Smartfind S5A
AIS SART
USER MANUAL
© 2021 NETWAVE SYSTEMS B.V. AND/OR ITS AFFILIATES. ALL RIGHTS ARE STRICTLY RESERVED.

THIS DOCUMENT IS COPYRIGHT © 2021 NETWAVE SYSTEMS B.V. AND/OR ITS
AFFILIATES. ALL RIGHTS ARE STRICTLY RESERVED. THIS DOCUMENT AND ANY
ATTACHED MATERIALS CONTAINS PROPRIETARY INFORMATION AND DATA
AND IS THE SOLE PROPERTY OF NETWAVE SYSTEMS B.V. AND/OR ITS
AFFILIATES. THE DOCUMENTS, ANY ATTACHED MATERIALS AND/OR
INFORMATION CONTAINED THEREIN MUST NOT BE USED, DISSEMINATED, OR
DISTRIBUTED EXCEPT FOR THE AGREED PURPOSE. UNAUTHORIZED USE,
REPRODUCTION, OR ISSUE TO ANY THIRD PARTY IS NOT PERMITTED WITHOUT
THE PRIOR WRITTEN CONSENT OF THE NETWAVE SYSTEMS B.V.

This manual is applicable to the AIS SART type McMurdo Smartfind S5A.
User instructions are also printed directly on the main unit and the deployment
instructions are repeated on the inside cover of the carry bag.

CONTENTS
1 SAFETY NOTICES ............................................................ 1
1.1 Use ............................................................................................. 1
1.2 Testing, maintenance and disposal ............................................ 1
1.3 Hazards and Warnings ............................................................... 1
1.4 EC Declaration of Conformity ..................................................... 2
1.5 FCC Compliance ........................................................................ 2
1.6 Ownership .................................................................................. 2
1.7 Disclaimer .................................................................................. 2
2 OVERVIEW ........................................................................ 3
2.1 AIS SART Handing .................................................................... 4
2.2 Environmental ............................................................................ 4
2.3 Controls and indicators .............................................................. 4
3 INSTALLATION ................................................................. 5
3.1 Items in the Package .................................................................. 5
3.2 Wall bracket installation ............................................................. 5
4 EMERGENCY PROCEDURE ............................................ 7
4.1 Abandon ship! ............................................................................ 7
4.2 Activation Process ...................................................................... 8
4.3 Deployment guidelines ............................................................... 9

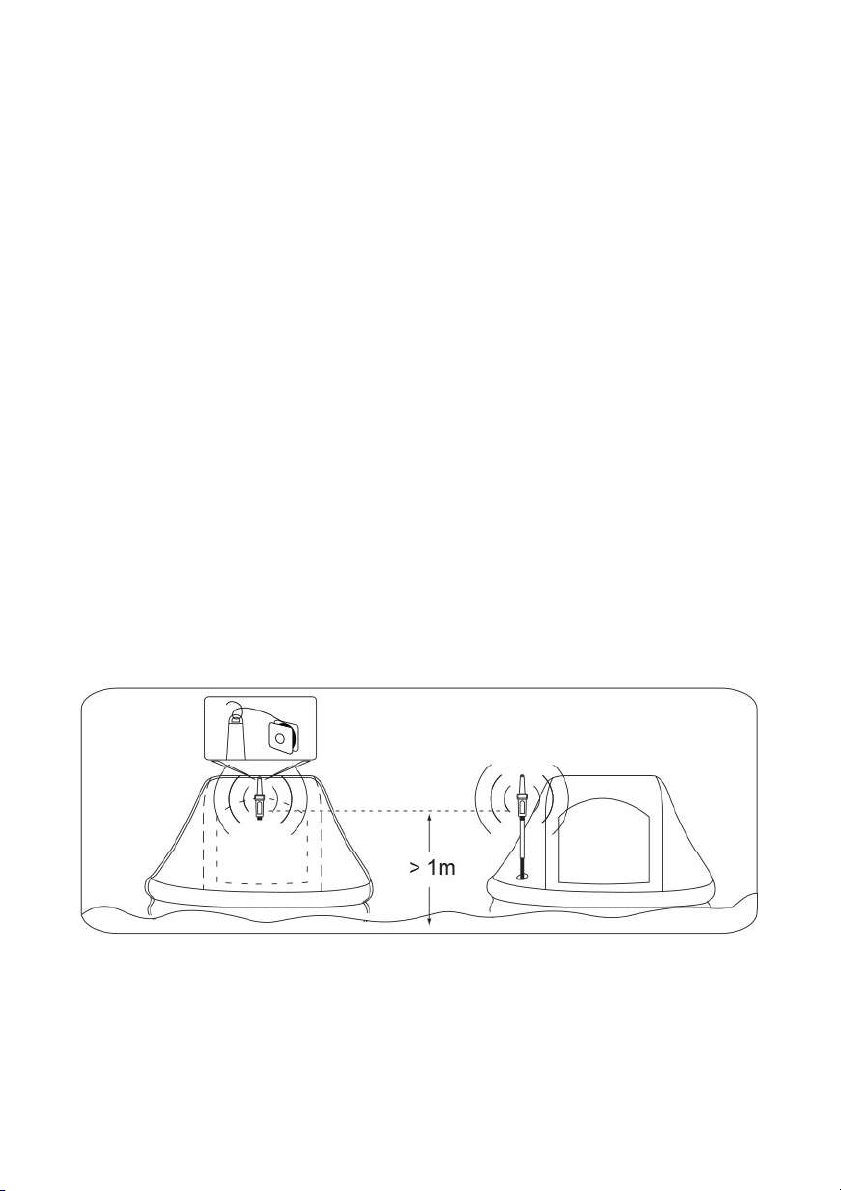

4.4 Mounting outside a canopy life raft .......................................... 10
4.1 Mounting inside a canopy life raft ............................................. 10
4.2 Deactivation Process ............................................................... 11

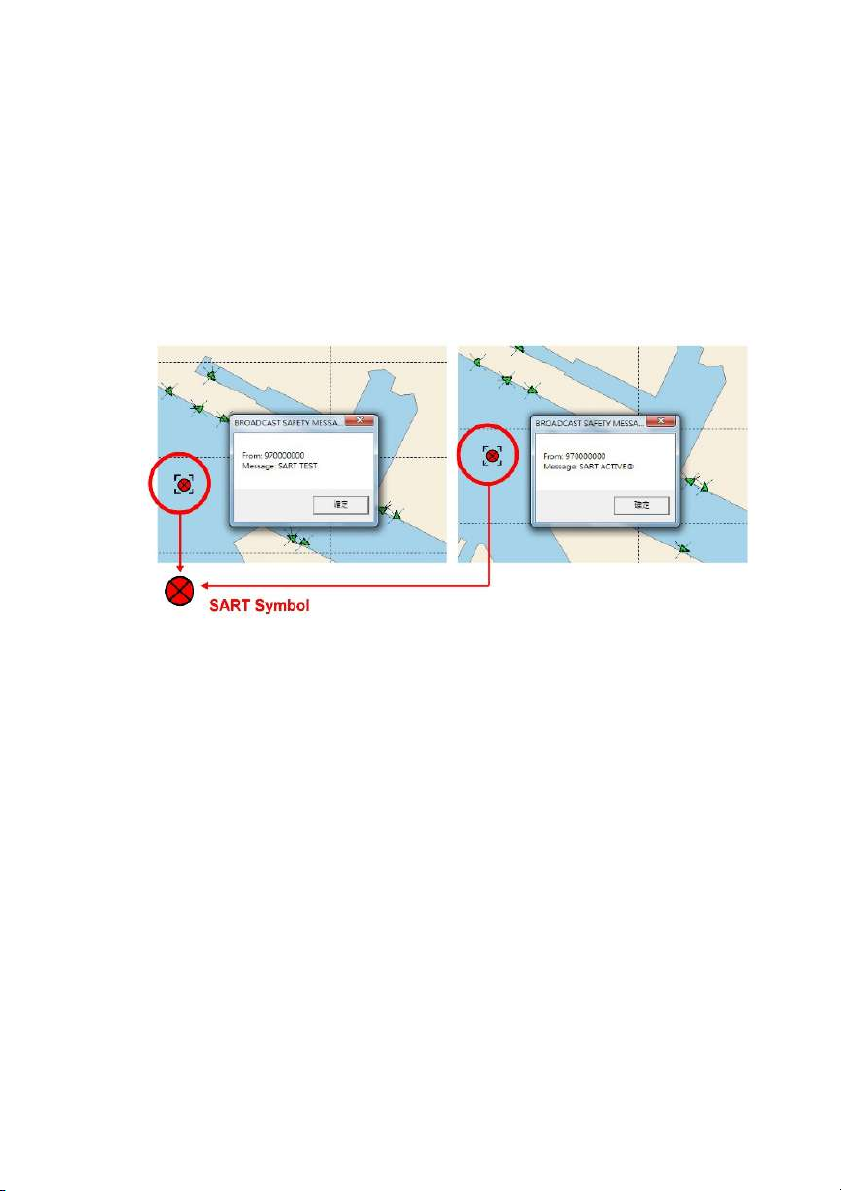

5 AIS SART TARGET VISUALIZATION ............................ 12
6 MAINTENANCE .............................................................. 13
6.1 Servicing schedule ................................................................... 13
6.2 Self-test & inspection ............................................................... 13
6.1 Self-test procedure ................................................................... 13
6.2 Mechanical inspection .............................................................. 15
Inspection ................................................................................. 15
6.3 Anti-tamper Cap replacement .................................................. 15
6.4 Battery replacement ................................................................. 15
6.5 Transportation .......................................................................... 16
6.6 GMDSS inspections ................................................................. 16
7 END OF LIFE STATEMENT ............................................ 17
7.1 Disposal ................................................................................... 17

8 TECHNICAL SPECIFICATION ....................................... 18
9 DIMENSIONAL DRAWINGS .......................................... 19
9.1 AIS SART main unit ................................................................. 19
9.2 Pole .......................................................................................... 20
9.3 Bag .......................................................................................... 21
9.4 Wall mounted bracket .............................................................. 22
10 PRODUCT WARRANTY ................................................. 23
10.1 Netwave Systems B.V. Warranty Registration ........................ 23
10.2 Warranty Statement ................................................................. 23
11 HOW DOES IT WORK? .................................................. 25

Page 1
1 SAFETY NOTICES
1.1 Use
An AIS SART ‘search and rescue locating device’ is designed to assist in
survivor craft location during search and rescue operations. AIS SART’s are
primarily intended for fitment by SOLAS vessels under carriage requirement
rules. The rules differ depending on type and size of vessel and life raft. In
general, at least one search and rescue locating device is carried on each side
of a passenger or cargo ship over 500 gross tons. Smaller SOLAS classified
vessels are required to carry at least one search and rescue locating device.
An AIS-SART is a portable device and should be stowed on board in a location
where it can be easily and rapidly taken on board a survival craft or life raft.
An AIS SART is an emergency radio beacon that is intended for use in
maritime emergencies and is approved for these contingencies. It is not
designed or recommended for use on land or in the air.
The intended usage of the AIS SART is to mark the location of maritime
survivors in need of imminent recovery by rescuers. False alerts endanger
lives and cause disruption to Search and Rescue services, deliberate misuse
of the AIS SART could result in penalty.
Read the complete manual before installing, testing or using the AIS SART.
1.2 Testing, maintenance and disposal
Self-test the AIS SART every 6 months, more frequent self-testing is not
recommended as it can cause unnecessary draining of the battery.
The AIS SART contains no user serviceable parts but a physical check should
be performed regularly. The battery pack is a Primary lithium battery. Do not
incinerate, puncture, deform or short-circuit. If you need to dispose of battery
or the complete AIS SART – see Section 7.
1.3 Hazards and Warnings
ELECTRICAL SHOCK HAZARD.
Do not dismantle the AIS SART, it contains no user-serviceable
parts.
The AIS SART contains lithium metal batteries. Do not incinerate, puncture,
deform, short circuit or recharge.
Avoid using chemical solvents to clean the AIS SART as some solvents can
damage the case material.
The AIR SART is compliant with SOLAS regulations when the anti-tamper cap
is intact. After the anti-tamper cap has been broken for any reason, it must be
assumed that the SART has been used and the AIS SART the subject of a
battery replacement service before being returned to use.

Page 2
As the AIS SART contains a radio transmitter, some administrations may
require that the user holds a maritime radio license authorizing ownership and
use.
When activated, the AIS SART emits low levels of radio frequency radiation. It
is advisable not to handle the upper section antenna zone.
When the AIS SART has reached its end of it useful in-service life it must be
disposed of in accordance with local waste disposal regulations. Refer to End
of Life Statement.
1.4 EC Declaration of Conformity
The AIS SART is in compliance with the essential requirements and other
relevant provisions of the Marine Equipment Directive (MED. A copy of the
Declaration of Conformity can be obtained online from:
https://www.seasofsolutions.com/support/mcmurdo/marine-products
1.5 FCC Compliance
The AIS SART is in compliance with the GMDSS provisions of Part 80 of the
FCC rules.
1.6 Ownership
It is not required for the AIS SART owner to file a product registration with the
maritime authority’s. It is recommended that a record of the AIS SARTs’
identifier number is included in this user manual (complete box below) and
filed for safe keeping with the vessels own management organization. The AIS
SART in marked with a 9-digit manufacturer serialized TX ID (MMSI) number
printed on the main body label for this purpose.
1.7 Disclaimer
The manufacturer reserves the right to change this specification at any time
without notice and hereby specifically disclaims liability for any consequences
of such action.
Ownership details
Vessel Name:
Owner details:
TX ID ;
9
7
0
1
7

Page 3
2 OVERVIEW
Only remove the RED anti-tamper Cap if you intend to operate the AIS SART
in a real emergency. An AIS SART is a single use device, once activated and
before returning it to storage a maintenance service battery replacement will
be required.

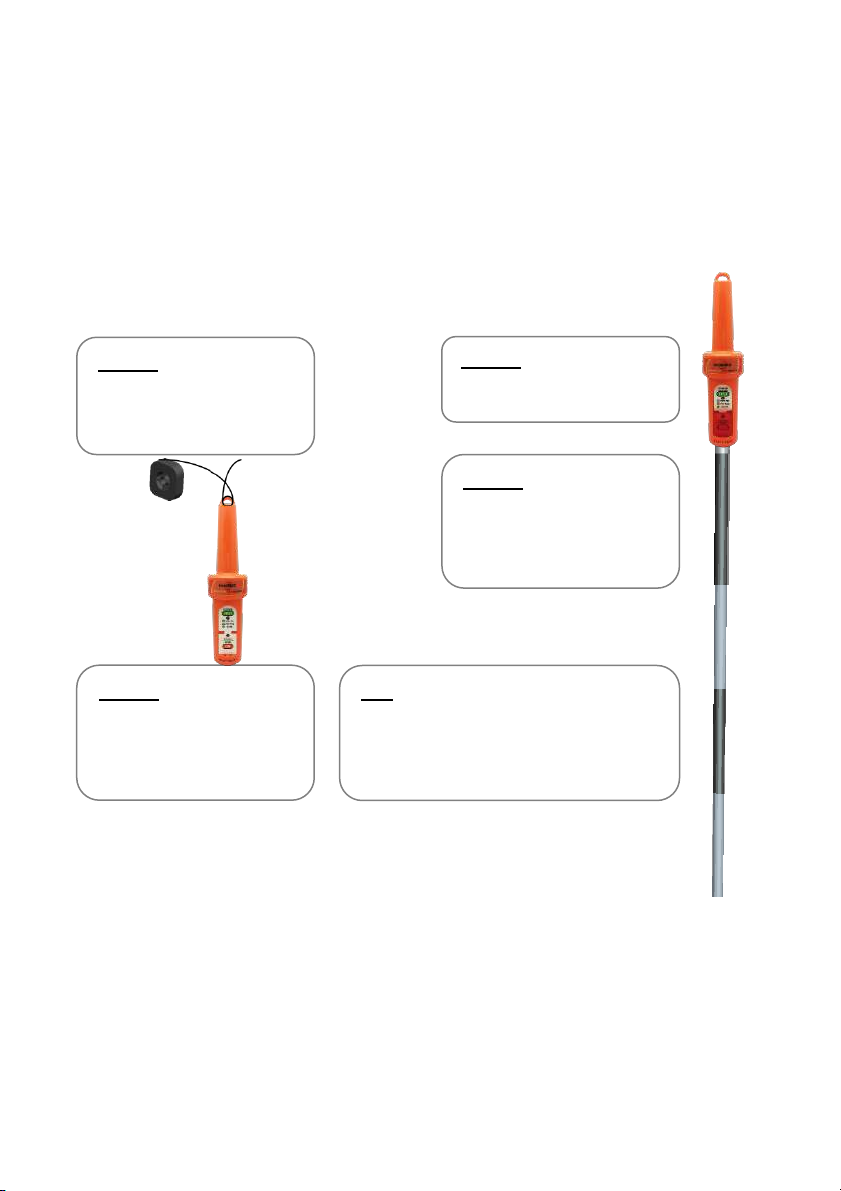

Figure 1: AIS SART key features description

Page 4
2.1 AIS SART Handing
The AIS SART is packed inside a buoyant carry bag with carry strap. The
carry bag contains the AIS SART main unit, a 1-meter telescopic extension
pole and 10 meters buoyant lanyard. The carry bag may be wall mounted
using the wall-mount bracket provided.

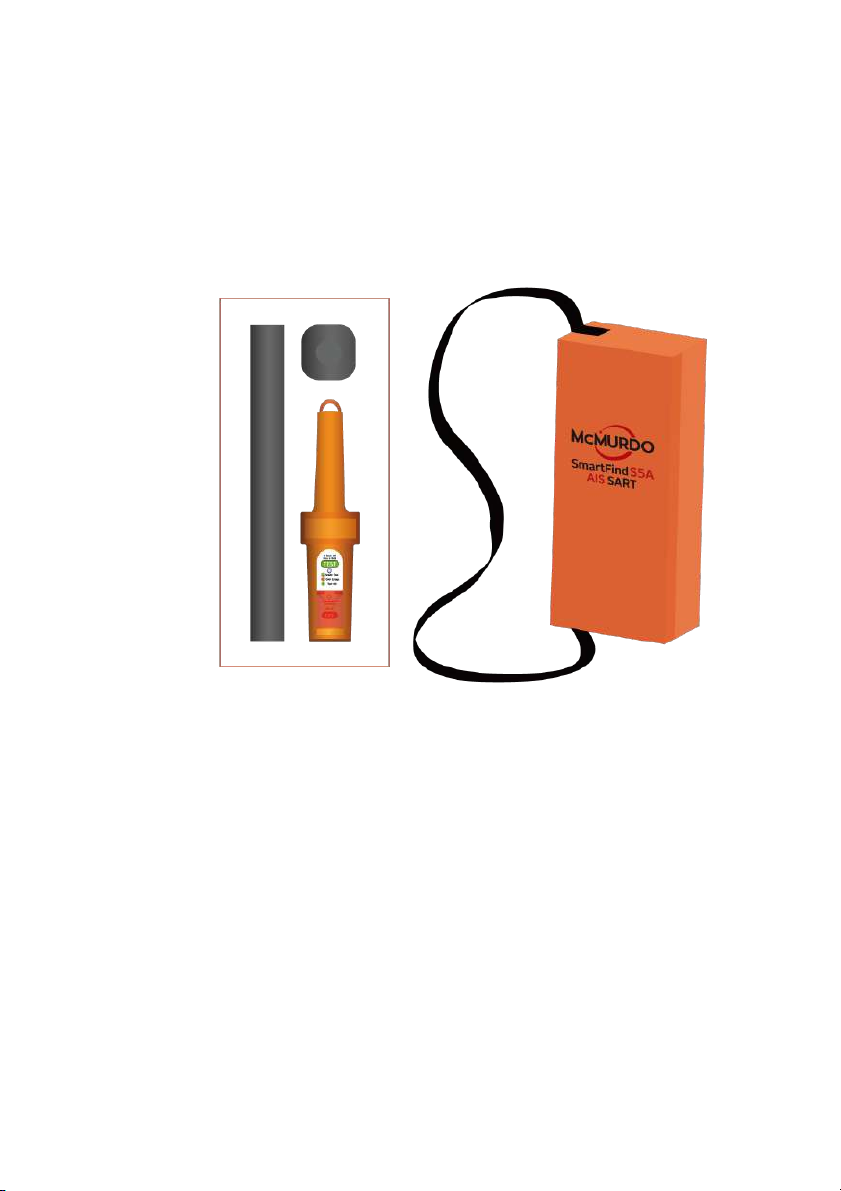

Figure 2 Carry bag overview
2.2 Environmental
The carry bag offers additional protection to the AIS SART both for storage
and when carrying on to a survival craft. Once assembled and ready for
deployment the main unit remains buoyant, waterproof and is tested to survive
a 20m drop in to water without damage.
2.3 Controls and indicators
The control panel has florescent backlighting that increases its visibility in
reduced lighting conditions. The ON button is protected from accidental
activation under a single use anti-tamper cap. Once activated a dual color
Red/Orange LED indicator provides real-time status induction and will flash the
Morse Code “SOS” sequence.

Page 5
3 INSTALLATION
3.1 Items in the Package
The AIS SART is typically delivered with standard package as listed in Table 1
and illustrated in Figure 3.
Table 1 Standard equipment list
Item N°
Designation
Quantity
1
AIS SART
1
2
Carry bag
1
3
1 m extension Pole
1
4
Wall mounted bracket
1
5
10 m buoyant lanyard
1
6
Screw M4x20
2
-
User manual (not shown)
1

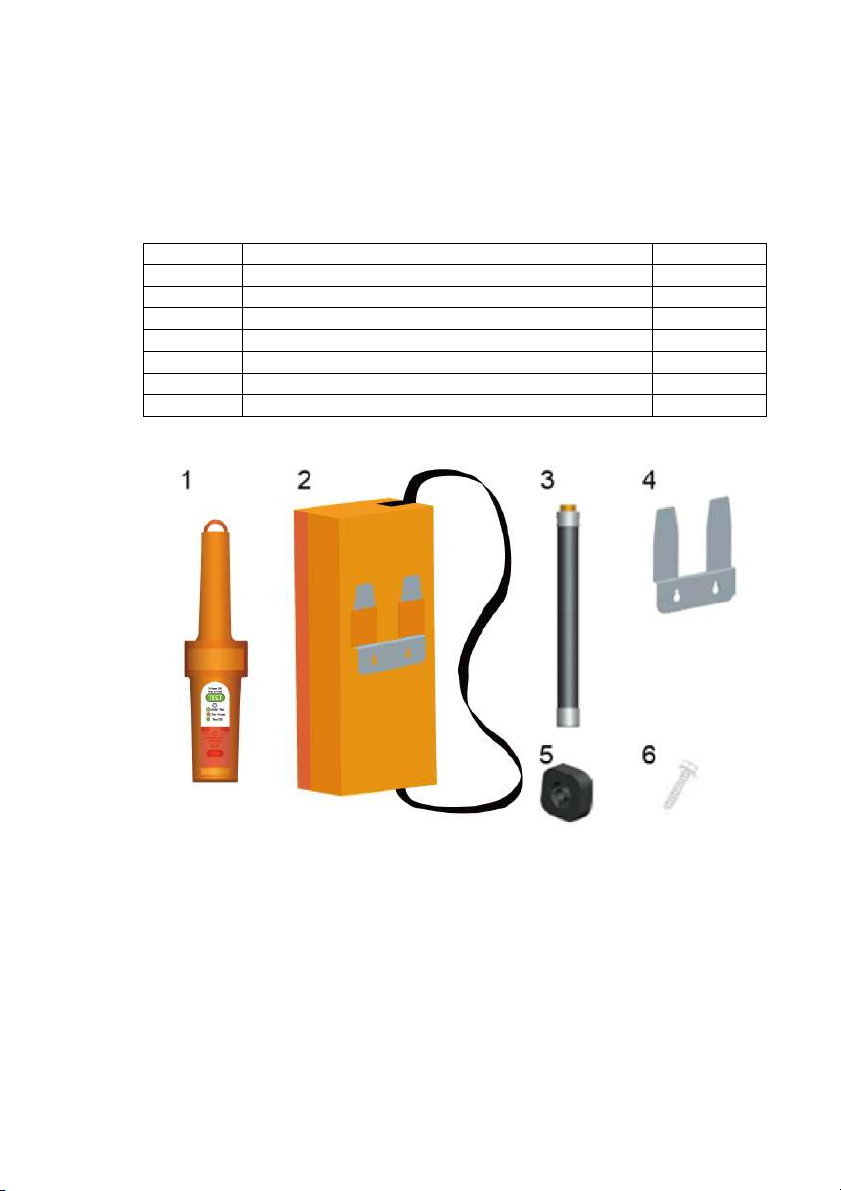

Figure 3 Standard Package
3.2 Wall bracket installation
When selecting a suitable mounting position consider the following points:
1. Ease of access in an emergency, adjacent to the ship’s bridge wing exits ready
for easy access is recommended.
2. Position at least 1m from compass equipment.

Page 6
3. Environmental protection, chose a protected location away from the extreme
effects of the weather and protected from powerful vessel wash down hoses.
4. Allow clearance above so that the AIS SART can be easily removed from the
bulkhead bracket.
Mounting procedure
Fix the mounting bracket to the ships wall using marine grade stainless steel
screws or bolts; length is dependent upon application. Bolts should be secured
with either stainless steel locking nuts or stainless-steel nuts with stainless
steel shake proof washers.
The wall bracket is designed to mount on a flat surface using two fixing points.
Two stainless steel screws 20mm in length are included. Check that the rear
side of the mounting surface is clear and that the fixing screws will not
penetrate something they should not. Offer the bracket into the chosen
position and mark through the mounting slots using the bracket as a template.
Drop the AIS SART carry bag rear pockets over the bracket hook section and
push the bag firmly into place.

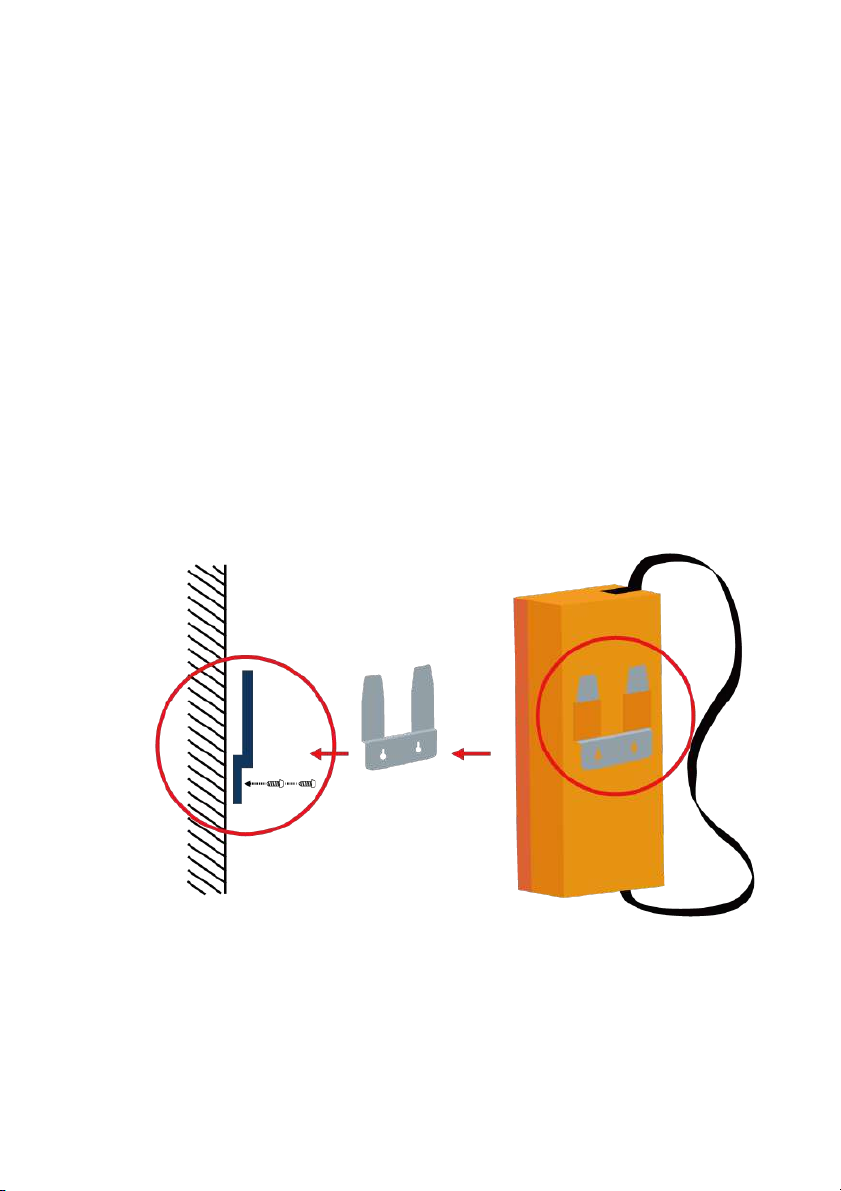

Figure 4 Wall mounting bracket

Page 7
4 EMERGENCY PROCEDURE
An AIS SART is a piece of life saving equipment. Its sole purpose is to
help survivor location during SAR operations.
It must only be used in situations of imminent danger.
4.1 Abandon ship!

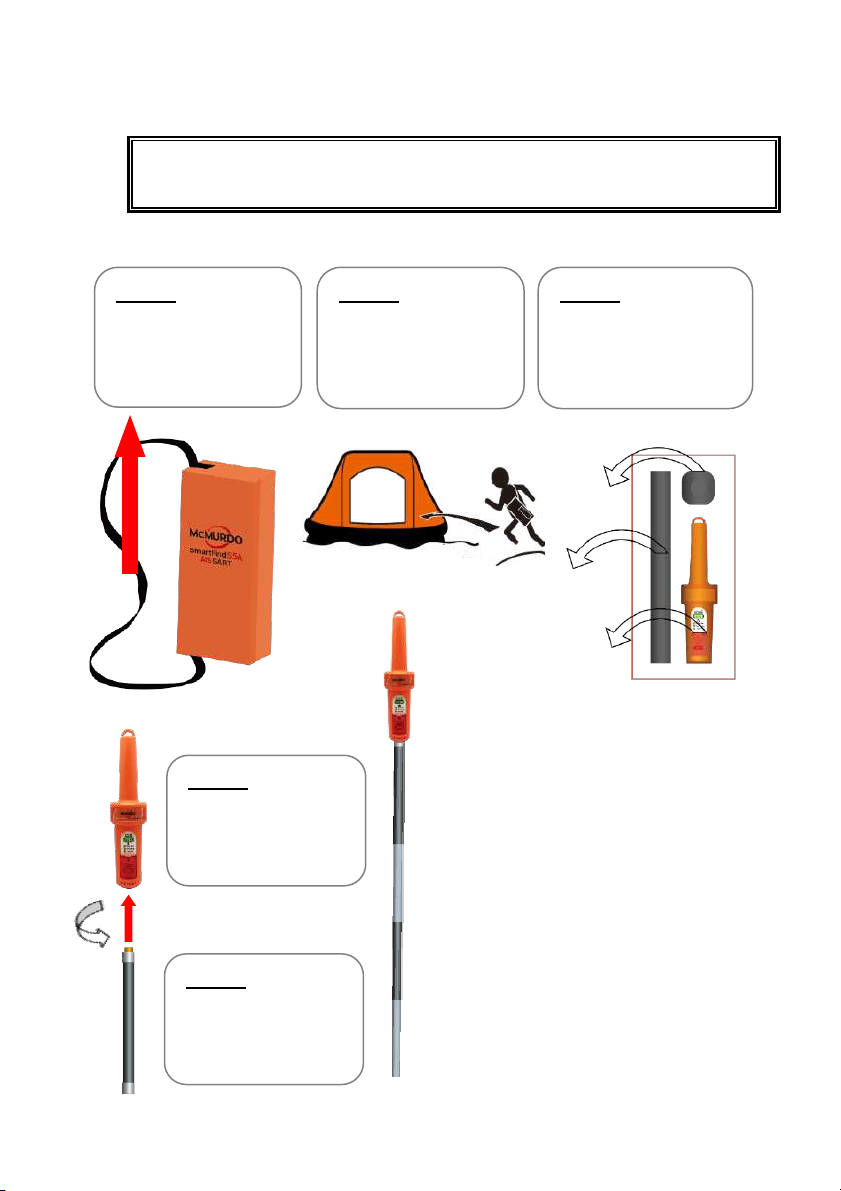

Figure 5: Deployment process
Step 3:
Open Carry Bag and take AIS
SART, Extension Pole and
buoyant lanyard out
Step 3:
Open Carry Bag and
take AIS SART,
Extension Pole and
buoyant lanyard out
Step 2:
Take Carry Bag into
the Life Boat.
Step 1:
Lift Carry Bag off
the wall bracket.
Step 4:
Connect and rotate
extension pole into
base of the main
unit.
Step 5:
Remove the
bottom cover and
extend pole up to 1
Meter

Page 8
4.2 Activation Process
1. Pull and break the red Anti-tamper Cap
to reveal the activation panel.
2. Hold the ON Button for 2 seconds:
- The ON LED flashes Orange during
GNSS acquisition
- The ON LED flashes Green once the
GNSS fix is acquired.
WARNING: DO NOT COVER GNSS AREA WHILE ACTIVE (see Figure 6)
Figure 6: GPS/GNSS AREA Location
NOTE 1: The GNSS receiver is activated (cold start) when ON is depressed
and the Orange LED indicator will initially flash changing to a Green LED
indication when a position fix has been resolved.
NOTE 2: The ON LED flashing sequence is the SOS Morse code flashed
every 30 seconds.
NOTE 3: The red Anti-tamper Cap breaks once pulled out and cannot be re-
installed by the user.

Page 9
4.3 Deployment guidelines
The AIS SART will work best when the top section has an unobstructed view of the sky.
If it is not possible to pick a location with a totally unobstructed view of the sky, do your
best to maximize the sky view. The antenna datum marked on the pole section should
be positioned more than one meter above sea level when the AIS SART is deployed.
Tie the securing lanyard to the survival craft to avoid loss of the AIS SART, activate and
deploy the AIS SART.
Method 1 Method 2
Figure 7: deployment
Step 1:
Release buoyant
lanyard secured to top
of the AIS SART
Step 2:
Hang the AIS SART
inside the life raft at a
height of at least 1
meter above water level
Step 1:
Extend the pole up to 1
meter.
Step 2:
Pass the pole through
the life raft canopy port
hole and securer the
pole in vertical position..
Tip.
Tie the lanyard cord between the
AIS SART and the survival craft to
prevent its loss.

Page 10
4.4 Mounting outside a canopy life raft
1. Fully extend the telescopic mounting pole:
Remove the rubber cover from the bottom of the mounting pole; allow the pole sections
to drop. Lock each section together by twisting each section.
2. Release the lanyard spool and tether the free end of the lanyard to a securer fixing
point within the survival craft.
3. Insert the AIS SART through the SART deployment port in the survival craft
canopy. Position the bottom of the support pole within the locating pocket. Secure
the pole to the canopy support.
Depending on the type of survival craft, the mounting pole can also be located on the
outboard side of the survival craft at the doorway entrance on the boarding ramp side.
The AIS SART is mounted in the same way except the pole is secured to the buoyancy
support.
4.1 Mounting inside a canopy life raft
The SART should be switched ON and suspended at highest point of the survival craft;
by its top loop using the lanyard provided.
Note: Operating the AIS SART inside a closed Survival Craft or under a canopy may
reduce its performance.
Figure 8: deployment options

Page 11
4.2 Deactivation Process
1. Hold the TEST button for over 3 seconds to initiate power
off.
2. Keep holding TEST until the ON LED stops flashing:
The AIS SART is then deactivated.
Figure 9: Deactivation
NOTE: After de-activating, all LEDs shall be off. If any LED is still flashing,
press the TEST button again for more than 3 seconds to de-activate the unit.

Page 12
5 AIS SART TARGET VISUALIZATION
Under active or test mode, the AIS SART will transmit a message with a 9 digit
TX ID number (MMSI) identity in the following format; 97016YYYY
The AIS SARTs GNSS derived position in latitude and longitude and the TX ID
will be display on the vessels navigation display or AIS receiver equipment.
A SELF TEST mode generated message is displayed as “SART TEST”
The live emergency transmission is displayed as “SART ACTIVE”
Figure 10: AIS SART Target Visualization

Page 13
6 MAINTENANCE
6.1 Servicing schedule
As an important item of safety equipment, your AIS SART should be checked
regularly according to the following schedule:
Service Interval
1 month
6 months
6 years
Physical check
Physical check and
Self-test
Dealer Battery
replacement
All servicing should be carried out by an Approved Service Agent. Always call
your nearest Approved Service Agent and talk to their customer service
department before returning equipment. You can find your nearest Approved
Service Agent from:
• The Netwave Systems website: http://www.seasofsolutions.com/
• Contacting Netwave Systems direct
• Contacting a distributor of Netwave products
If the AIS SART must be returned, the original packaging should be used if
possible.
Check your AIS SART for any damage or wear and tear according to the
manufacturer’s instructions (please refer to http://www.seasofsolutions.com/
for further details).
6.2 Self-test & inspection
It is recommended to self-test the AIS SART every 6 months; more frequent
self-testing can put unnecessary drain on the battery. When self-testing, a
specially coded AIS test transmission is sent that will be visible to all AIS users
in the locality. As a successful self-test result is dependent on GNSS position
acquisition; testing must be carried out in the open and under an unobstructed
sky.
6.1 Self-test procedure
Remove the AIS SART from its carry bag and assemble the top section onto
the mounting pole. It is not necessary to fully extend the mounting pole. Take
the AIS SART outside and hold it aloft under a clear view of the sky; this will
then maximize the speed of the GNSS position fix.
1. Hold “TEST” button for over 3 seconds
WARNING:DO NOT COVER GPS AREA WHILE ACTIVE (see Figure 6)

Page 14
2. The indicator will flash Green LED or Orange LED .
NOTE 1 – Normally the green flashing will happen in 2 mins right after the
GPS/GNSS position is fixed. If it happens at the 5th minute, the SART
message will be transmitted automatically, and GPS/GNSS position
might not be fixed. Please move the AIS SART to a new location which
has a clear view of the sky.
NOTE 2 – Orange flashing means the AIS SART has been previously
activated or self-tested more than the maximum of 100 times.
Figure 11: Testing of AIS SART
Indicator
Meaning
Green
AIS SART is under testing without over usage warning
Orange
AIS SART is in under testing with over usage warning
1 long Green
AIS SART complete transmission and light-off after long
green color flash automatically.
NOTE 1 – “Over usage” is caused by the following three situations:
battery is run down, unit has been tested over 100 times, unit has been
activated before.
