Seatara Bathmobile User manual

User Manual

V. 1.0

Designed for you

BathMobile

commode & shower

chair

Table of Contents

TABLE OF CONTENTS

GENERAL .............................................................................................................................................................. 2

Introduction ................................................................................................................................................................ 2

Delivery ....................................................................................................................................................................... 2

Intended use ............................................................................................................................................................... 2

Expected lifetime ........................................................................................................................................................ 2

Warranty ..................................................................................................................................................................... 2

SPARE PARTS ORDERS, COMPLAINTS .................................................................................................................... 3

SAFETY ................................................................................................................................................................. 3

Intended use ............................................................................................................................................................... 3

Warnings ..................................................................................................................................................................... 3

Danger of slipping! ................................................................................................................................................. 3

Danger of tipping over!........................................................................................................................................... 3

Danger of breakage!............................................................................................................................................... 3

Danger of falling!.................................................................................................................................................... 4

Danger of pinching! ................................................................................................................................................ 4

Danger of being run over........................................................................................................................................ 4

Symbols....................................................................................................................................................................... 5

PRODUCT SPECIFICATIONS.................................................................................................................................... 6

Dimensions.................................................................................................................................................................. 6

Part numbers............................................................................................................................................................... 7

ASSEMBLY ............................................................................................................................................................ 8

Optional self-propelled model .................................................................................................................................. 15

DISASSEMBLY ..................................................................................................................................................... 16

OPTIONAL ACCESSORIES..................................................................................................................................... 19

Padded Seat .............................................................................................................................................................. 19

Padded Arm rests...................................................................................................................................................... 20

Shower Holder ...................................................................................................................................................... 20

Rectangular removable pan - Option 1..................................................................................................................... 21

Round removable pan - Option 2.............................................................................................................................. 22

Carrying Case............................................................................................................................................................. 23

CLEANING AND MAINTENANCE .......................................................................................................................... 24

WARRANTY ........................................................................................................................................................ 25

WARNINGS FOR USE............................................................................................................................................. 26

General Introduction

Please read this user manual before using the commode and shower chair for the first

time, and keep it at hand for future reference.

GENERAL

INTRODUCTION

This user manual provides information and instructions for using and maintaining the

BathMobile commode and shower wheelchair.

DELIVERY

The product has been carefully inspected in the factory for defects and completeness. When you

receive it, carefully check the product for possible transport damages and for completeness.

INTENDED USE

BathMobile commode and shower chair is designed for homecare and out-patient purposes. The

commode and shower chair is to be used exclusively for showering or bathing, using a toilet, or

for transfer of persons inside buildings. The commode and shower chair is not designed for the

outdoors, nor for long periods of sitting.

Store the commode and shower chair in dry conditions only!

Ambient temperature: 0 – 40°C (104°F)

Relative humidity: 30% - 70%

EXPECTED LIFETIME

The expected lifetime of the commode and shower chair when properly used and maintained is

up to 4 years.

WARRANTY

This product carries a 2-year warranty. The warranty is conditioned on use in accordance with

the requirements and instructions outlined in this document, as well as regular maintenance. All

rubber parts are excluded. Not observing the user manual instructions, improper maintenance,

and unauthorized modifications to the product without the manufacturer's prior written

permission will automatically result in the immediate termination of liability and void the

product warranty.

Spare parts orders, complaints Intended use

SPARE PARTS ORDERS, COMPLAINTS

To ensure delivery of correct spare part and fast processing of complaints, always provide the

product name, serial number (SN) and the product’s year of manufacture when ordering spare

parts and in case of complaints.

You can find this information on the BathMobile nameplate.

SAFETY

The following safety rules must be observed when using BathMobile:

INTENDED USE

The BathMobile commode and shower chair is intended for use in the toilet and shower. It

may not be used for any other purpose.

The BathMobile commode and shower chair is intended for use solely by individuals who

have a medical or physical indication for using it.

The BathMobile is intended for use indoors only.

Patients who are not completely independent should not use the BathMobile commode and

shower chair unsupervised.

WARNINGS

DANGER OF SLIPPING!

Before using, verify that the upholstered seat is securely pressed into the seat frame.

Always lock the wheels before using the commode and shower chair, in order to prevent it

from rolling away.

The user should not sit on the front edge of the upholstered seat or seat cushion. Make sure

that the user sits all the way back on the seat.

DANGER OF TIPPING OVER!

The commode and shower chair may be used only with the armrests locked into position.

Do not bump into door sills or jambs.

Do not use on uneven surfaces

Use the BathMobile commode and shower chair only indoors, on solid, even, non-slippery

surfaces.

Do not tilt the commode and shower chair backwards.

DANGER OF BREAKAGE!

Never attempt to carry or lift the BathMobile while a patient is sitting in it.

Safety Warnings

The commode and shower chair is suitable only for persons. Be sure to observe the

maximum allowable patient body weight (specified on the nameplate)!

If the BathMobile commode and shower chair is damaged in any way such as a fall from

heights or bumping into something, it is no longer suitable for use. BathMobile may not be

used if any external damage signs are visible such as cracks or breakage.

If the shape of the commode and shower chair has changed in any significant manner, it may

no longer be used.

DANGER OF FALLING!

Sitting down, standing up and moving the patient should be supervised by a qualified

caregiver, as suitable for the health condition of the patient.

Using the commode and shower chair on any sloped surface may be done only with the

assistance of a caregiver.

DANGER OF PINCHING!

Avoid reaching into the hinges areas to prevent body parts or objects from getting pinched.

DANGER OF BEING RUN OVER

Avoid placing feet in the proximity of the chair's wheels, in order to avoid being run over.

Safety Symbols

SYMBOLS

"Serial Number". This symbol shall be followed by, or appear above

the manufacturer's serial number.

"Manufacturer". This symbol shall be adjacent to the name and

address of the manufacturer.

"Caution! Consult accompanying documents" or "Attention! See

instructions for use."

"Consult instructions for use or consult operating instructions"

The user’s weight must not exceed 130 kg

"Authorized Representative in the European Community". This symbol

shall be adjacent to the name and address of the authorized

representative in the European Community. The address is not

required on an immediate container unless the immediate container is

the outer container.

This symbol is a mandatory marking for devices entering the European

market to indicate conformity with the essential health and safety

requirements set out in European Directives. The symbol may be

accompanied by a four-digit identification number of the notified

body. The vertical dimensions may not be less than 5 mm high.

"Not for general waste". For European Union States. This symbol

should be used to mark devices that are reusable and not

contaminated at the end of the device life.

"Keep away from sunlight"

The product packaging can be recycled

Product specifications

PRODUCT SPECIFICATIONS

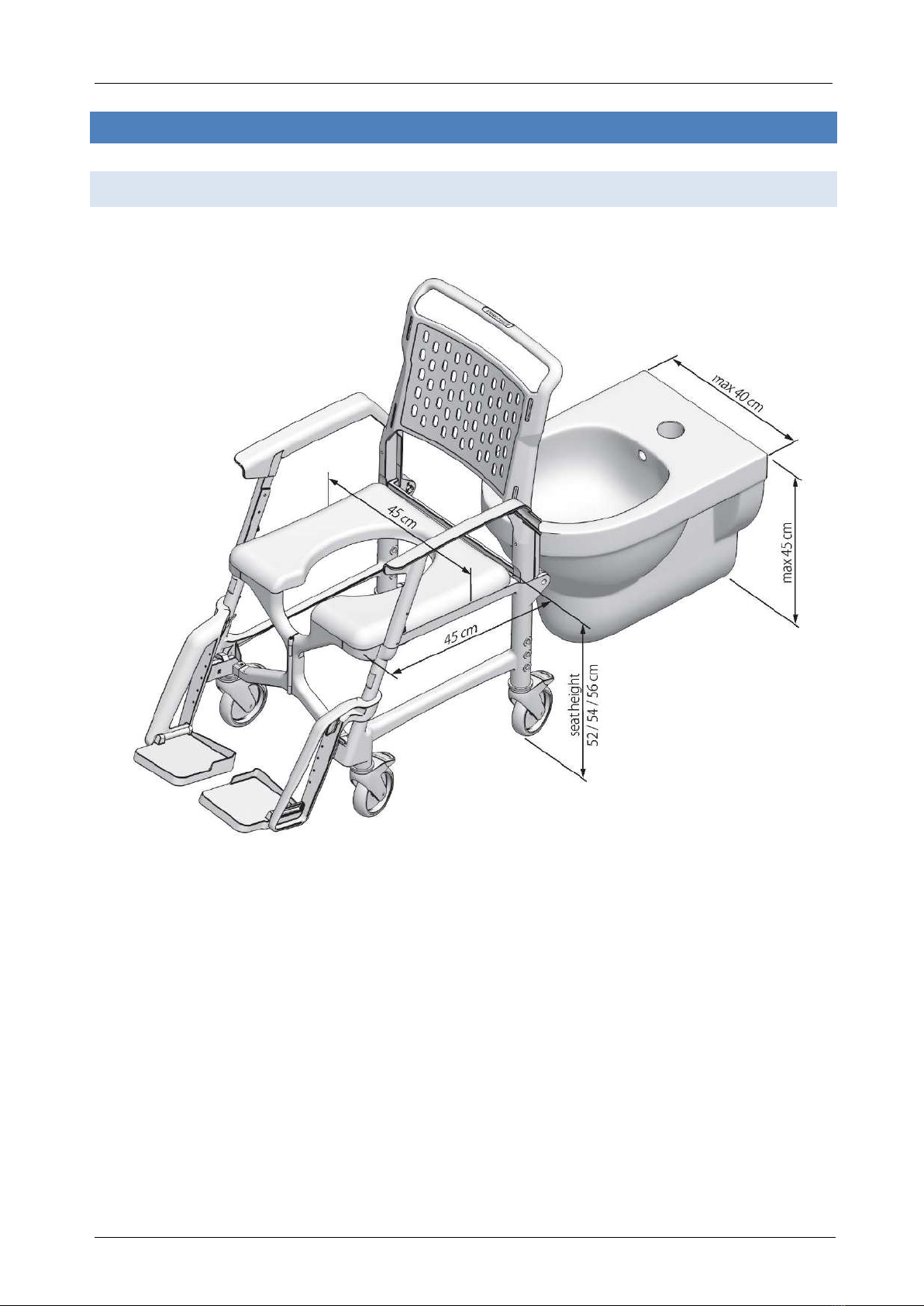

DIMENSIONS

Product specifications

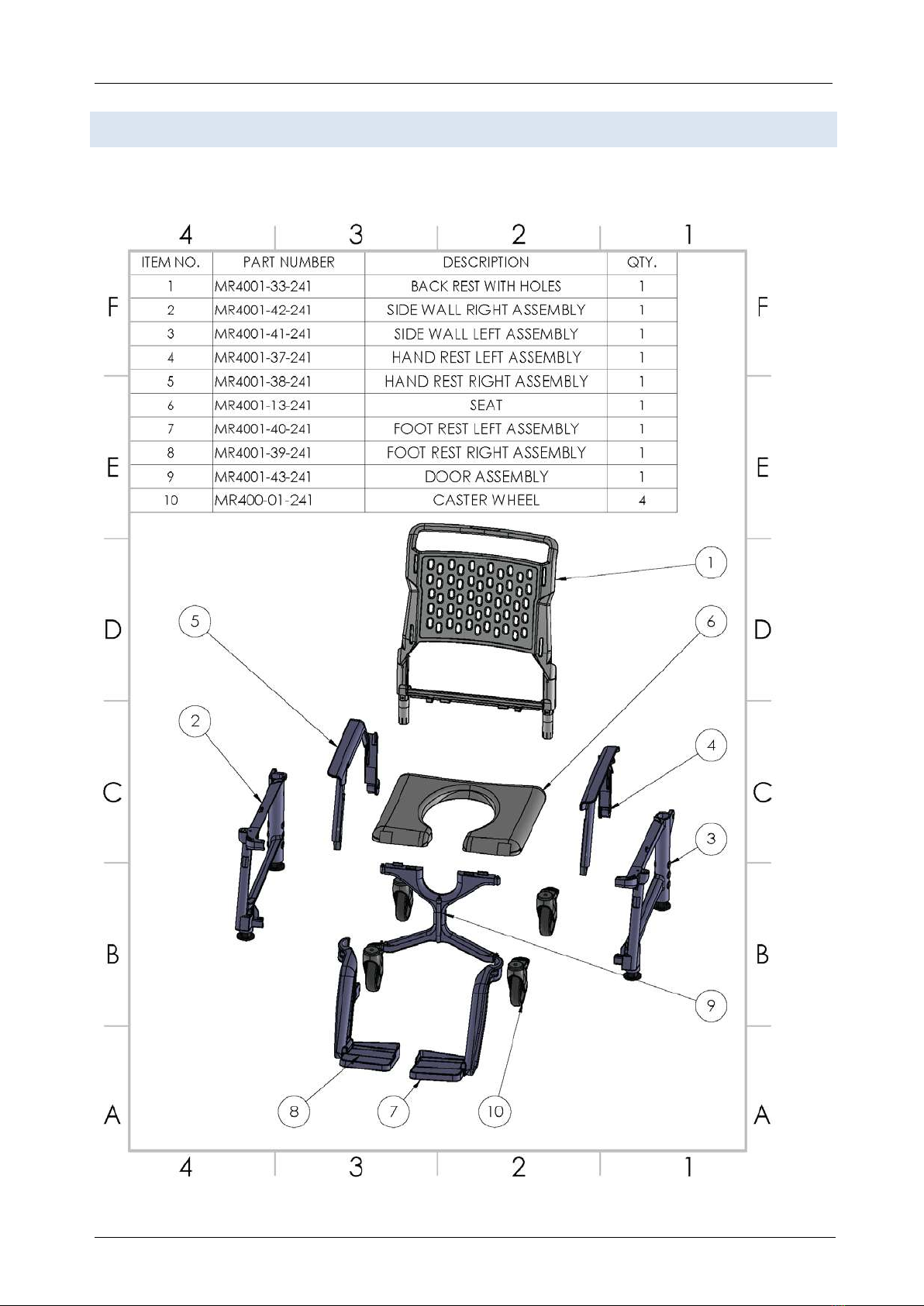

PART NUMBERS

As we continue developing and making technical improvements with respect to the design

shown in this user manual, we reserve the right to changes without notice.

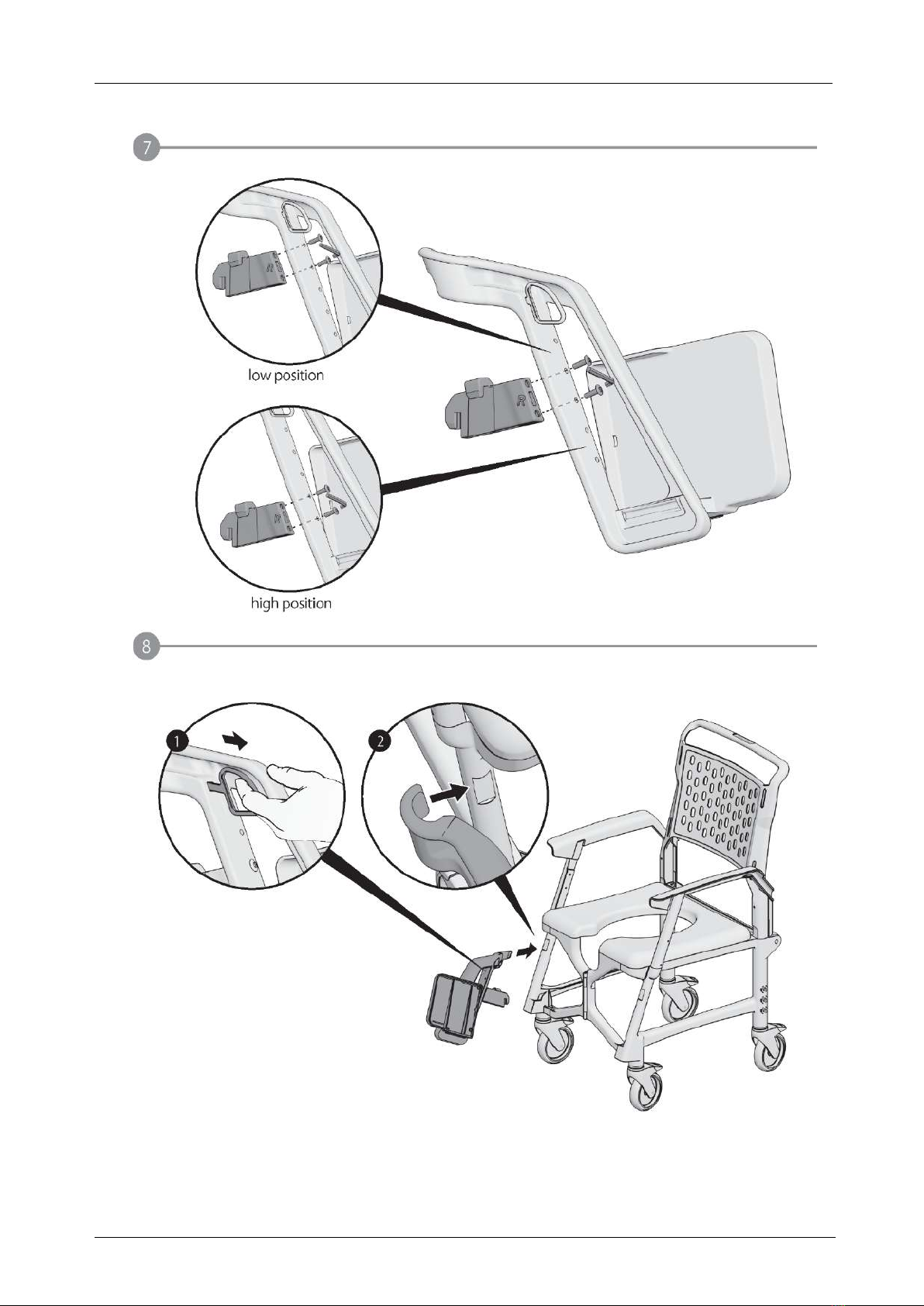

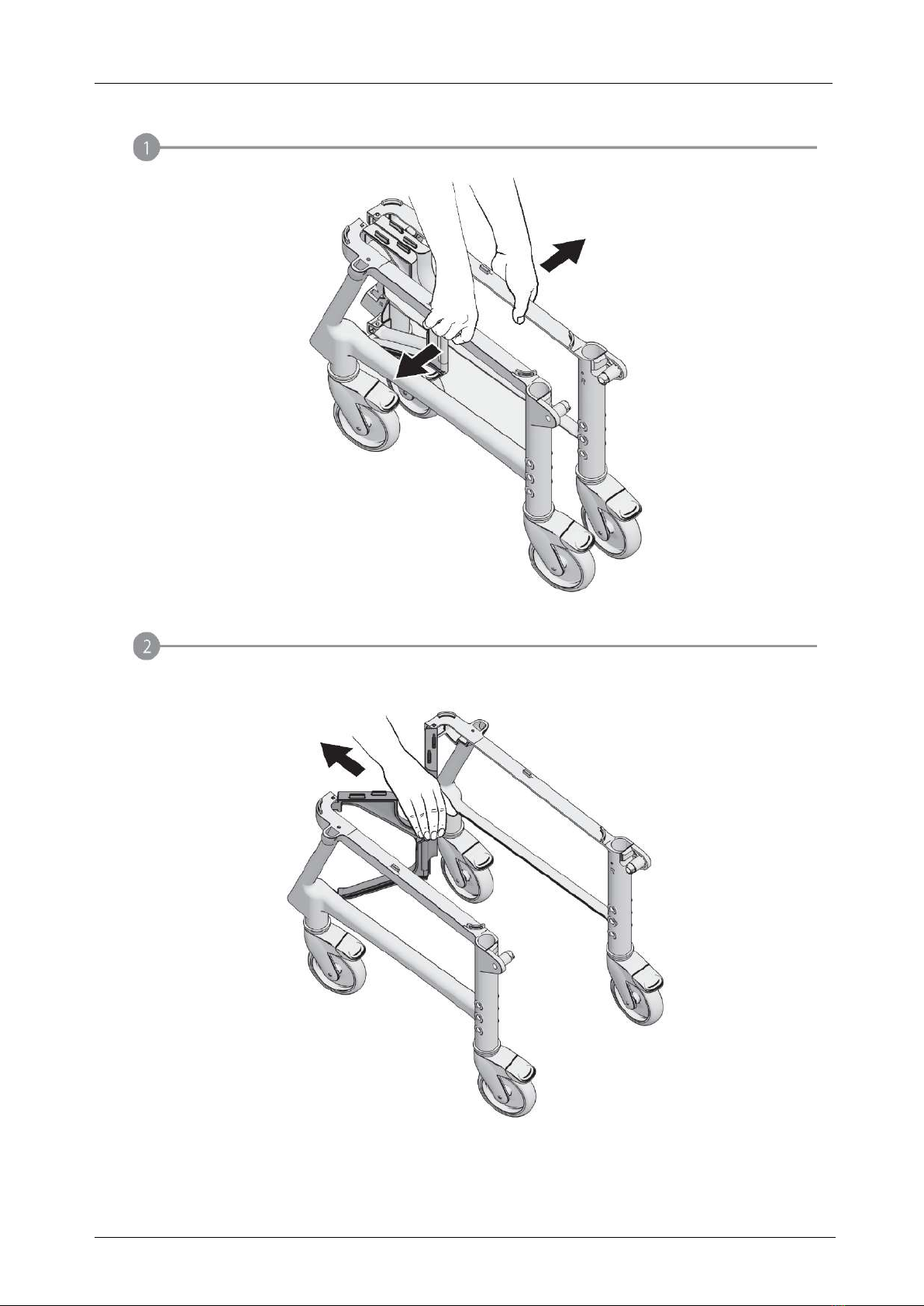

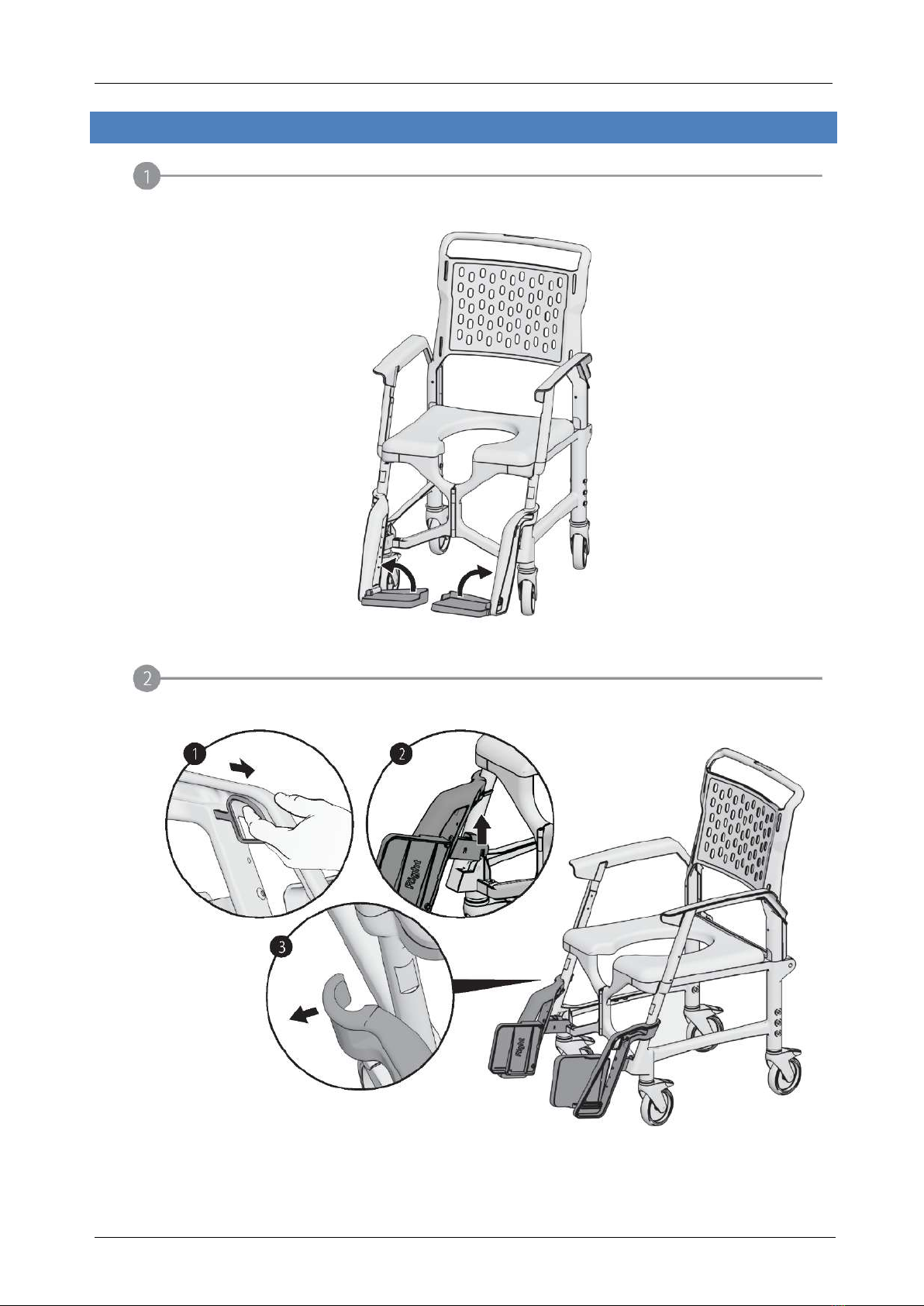

Assembly

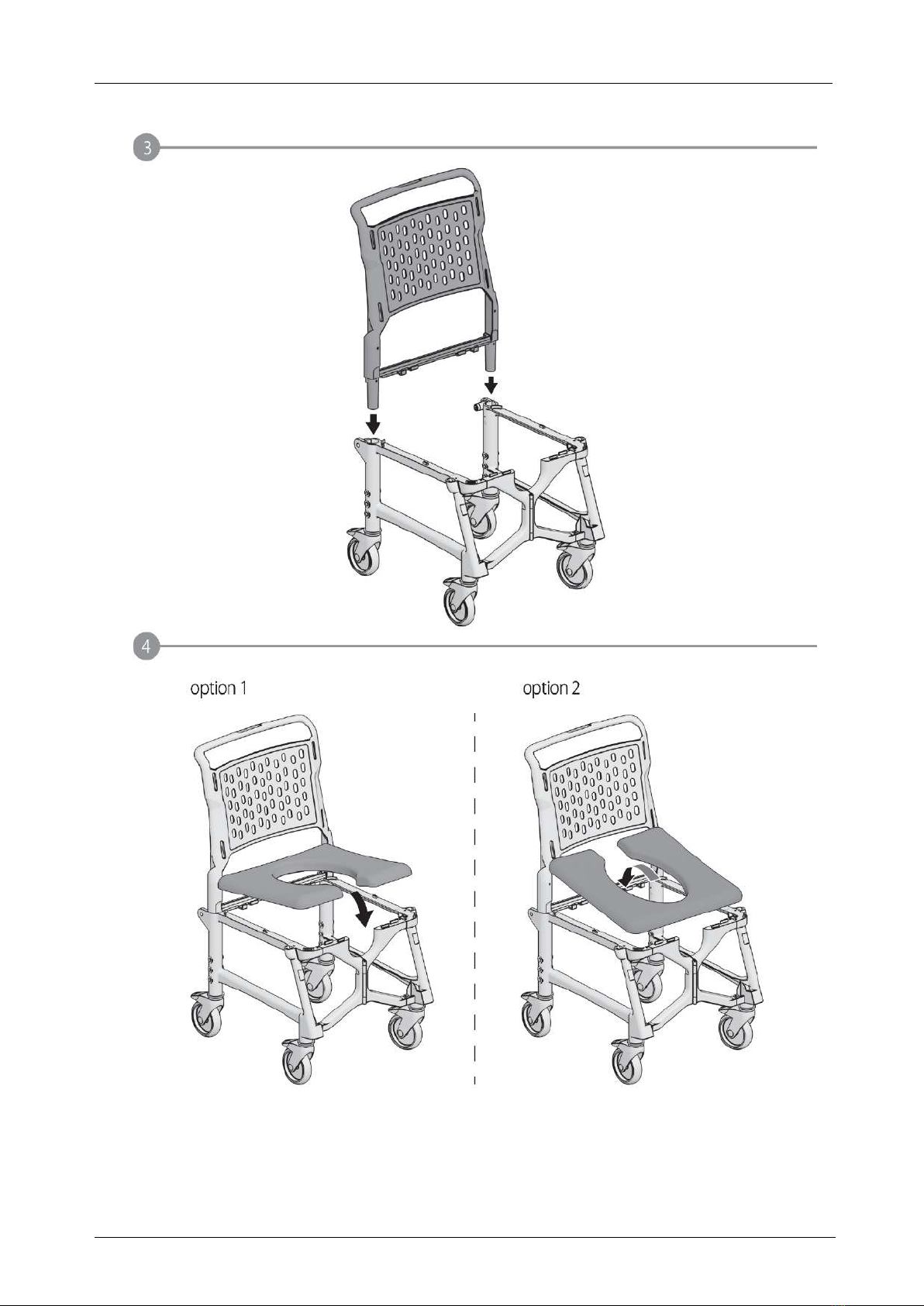

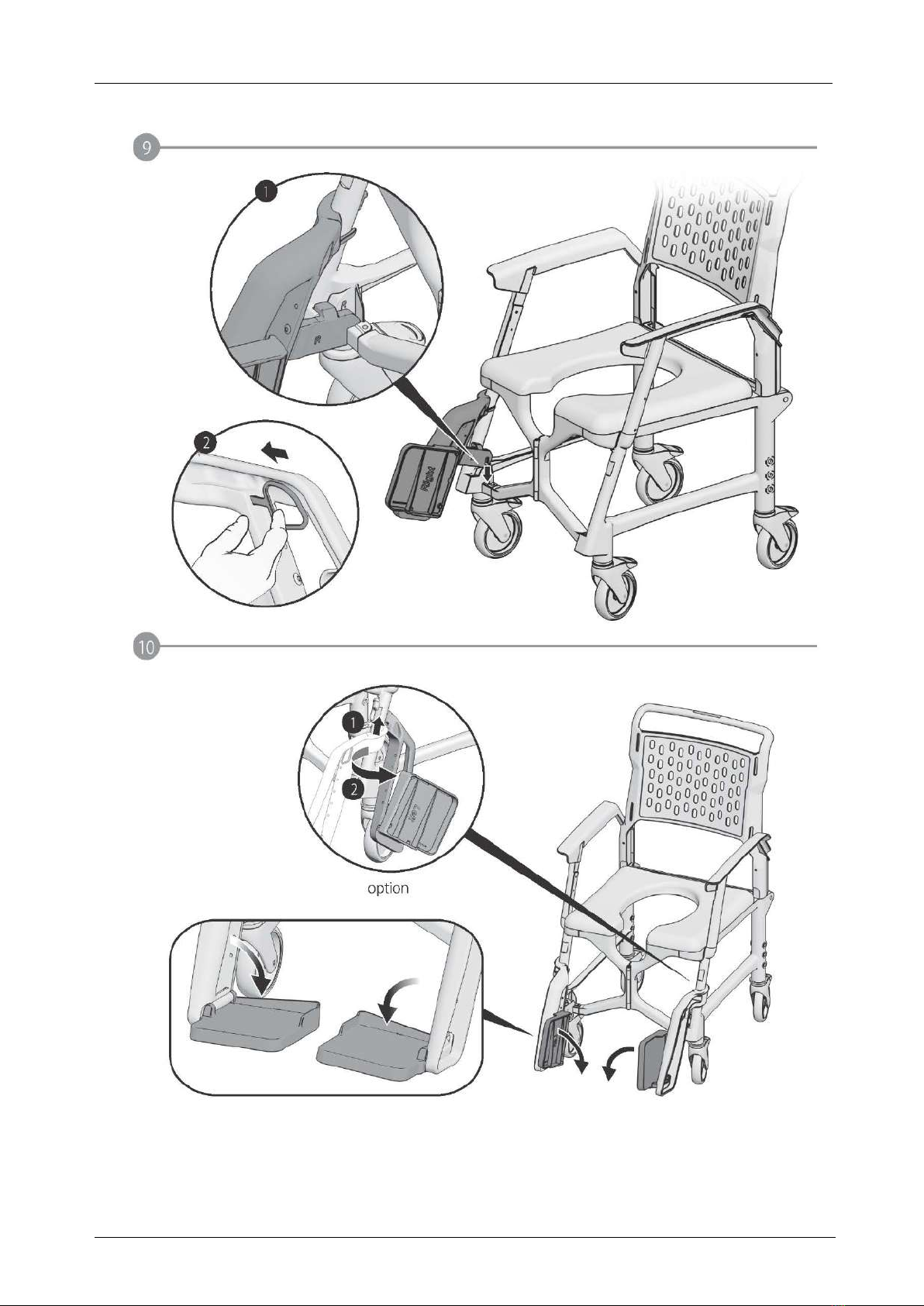

ASSEMBLY

Assembly

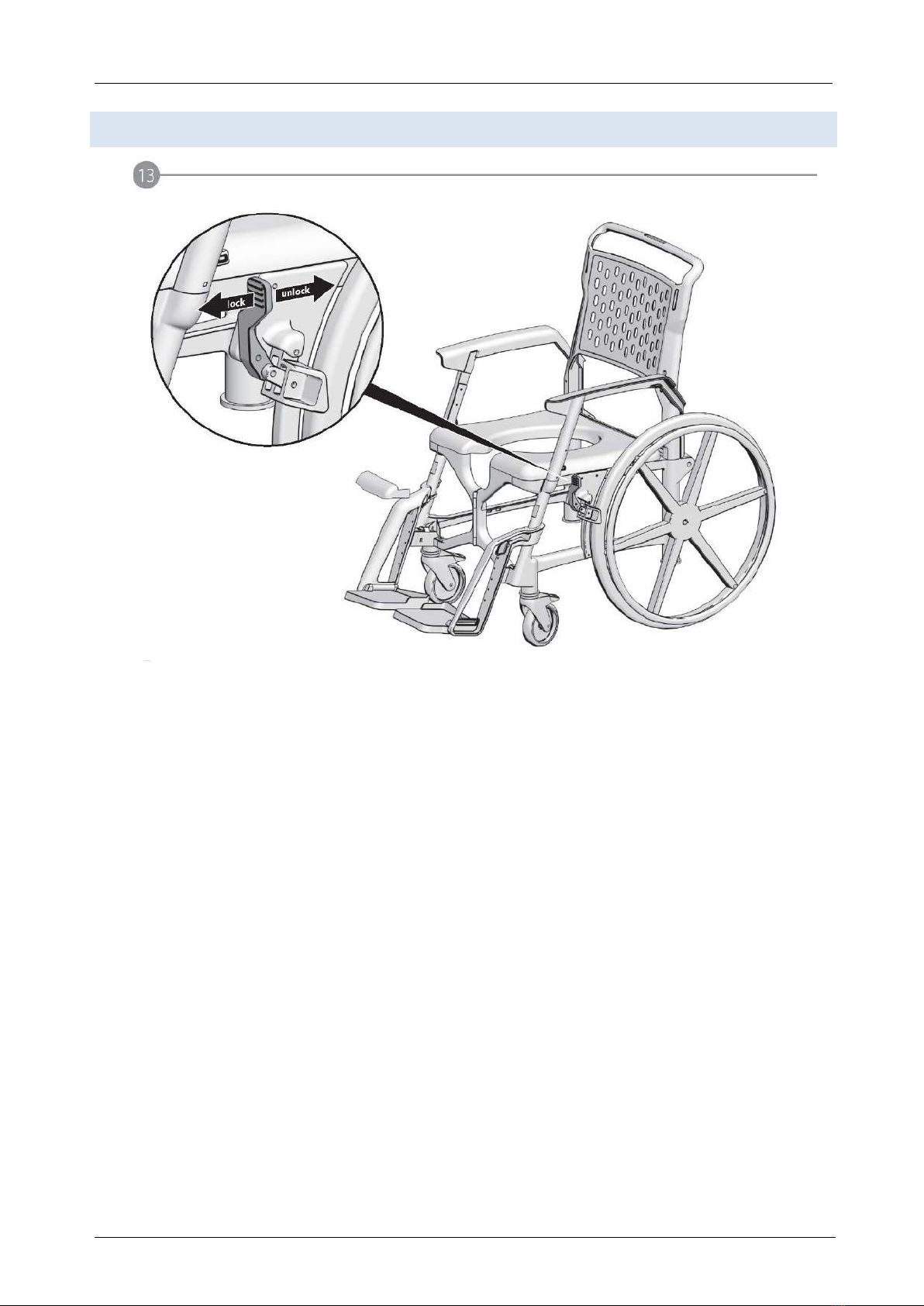

OPTIONAL SELF-PROPELLED MODEL

Disassembly

DISASSEMBLY

Disassembly

Optional Accessories Padded Seat

OPTIONAL ACCESSORIES

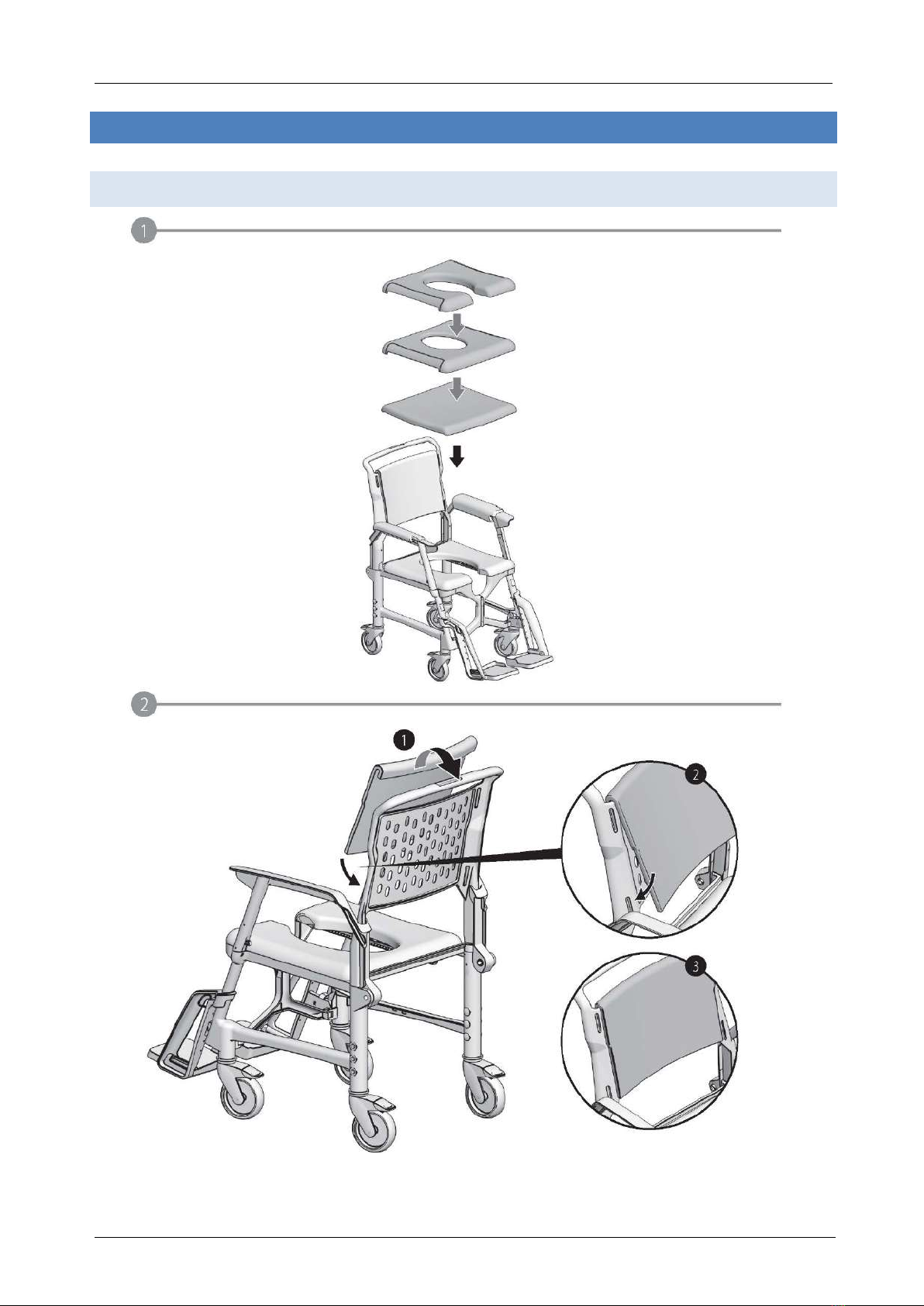

PADDED SEAT
