Seatara WHEELABLE User manual

WHEELABLE
User Manual
V. 1.0 2015

Table of Contents
W User Manual © 2
TABLE OF CONTENTS
GENERAL ................................................................................................................................................................... 3
Introduction...................................................................................................................................................................... 3
Intended use................................................................................................................................................................. 3
EXPECTED Lifetime ....................................................................................................................................................... 3
warranty ........................................................................................................................................................................... 3
SPARE PARTS ORDERS, COMPLAINTS ......................................................................................................................... 3
SAFETY ...................................................................................................................................................................... 4
Intended use..................................................................................................................................................................... 4
Warnings .......................................................................................................................................................................... 4
Danger of slipping!....................................................................................................................................................... 4
Danger of tipping over!................................................................................................................................................ 4
Danger of breakage! .................................................................................................................................................... 4
Danger of falling! ......................................................................................................................................................... 5
Danger of pinching!...................................................................................................................................................... 5
Symbol advisories............................................................................................................................................................. 6
PRODUCT SPECIFICATIONS......................................................................................................................................... 7
Dimensions....................................................................................................................................................................... 7
Scope of delivery .............................................................................................................................................................. 7
Technical specifications.................................................................................................................................................... 8
ASSEMBLY ................................................................................................................................................................. 9
FOLDING.................................................................................................................................................................. 14
CLEANING AND MAINTENANCE................................................................................................................................ 18
WARRANTY ............................................................................................................................................................. 19
WARNINGS FOR USE .................................................................................................................................................. 20
USER QUESTIONNAIRE............................................................................................................................................. 21

General Introduction
W User Manual © 3
Please read this user manual before using the commode and shower chair for the first time,
and keep it at hand for future reference.
GENERAL
INTRODUCTION
In this user manual you will find information and advice for using, operating and maintaining the
commode and shower chair.
INTENDED USE
The commode and shower chairis designed for homecare and out-patient purposes. The commode
and shower chair is to be used exclusively for assistance during showering or bathing, using a toilet,
or for transfer of persons inside buildings. The commode and shower chair is not designed for long
periods of sitting.
Store the commode and shower chair in dry conditions only!
Ambient temperature: 0 –40°C (104°F)
Relative humidity: 30% - 70%
EXPECTED LIFETIME
The expected lifetime of the commode and shower chair when properly used and maintained is up
to 4 years.
WARRANTY
There is a 2 year warranty on the commode and shower chair. The warranty is conditioned on use
in accordance with the requirements outlined in this document, as well as regular maintenance. All
rubber parts are excluded. Not observing the user manual instructions, improper maintenance, and
unauthorized modifications to the product without the manufacturer's prior written permission will
automatically result in the immediate termination of liability and void the product warranty .
SPARE PARTS ORDERS, COMPLAINTS
To ensure delivery of correct spare part and fast processing of complaints, always provide the
produt ae, serial uer SN ad the produt’s ear of aufature when ordering spare
parts and in case of complaints. You can find this information on the commode and shower chair’s
nameplate.

Safety Intended use
W User Manual © 4

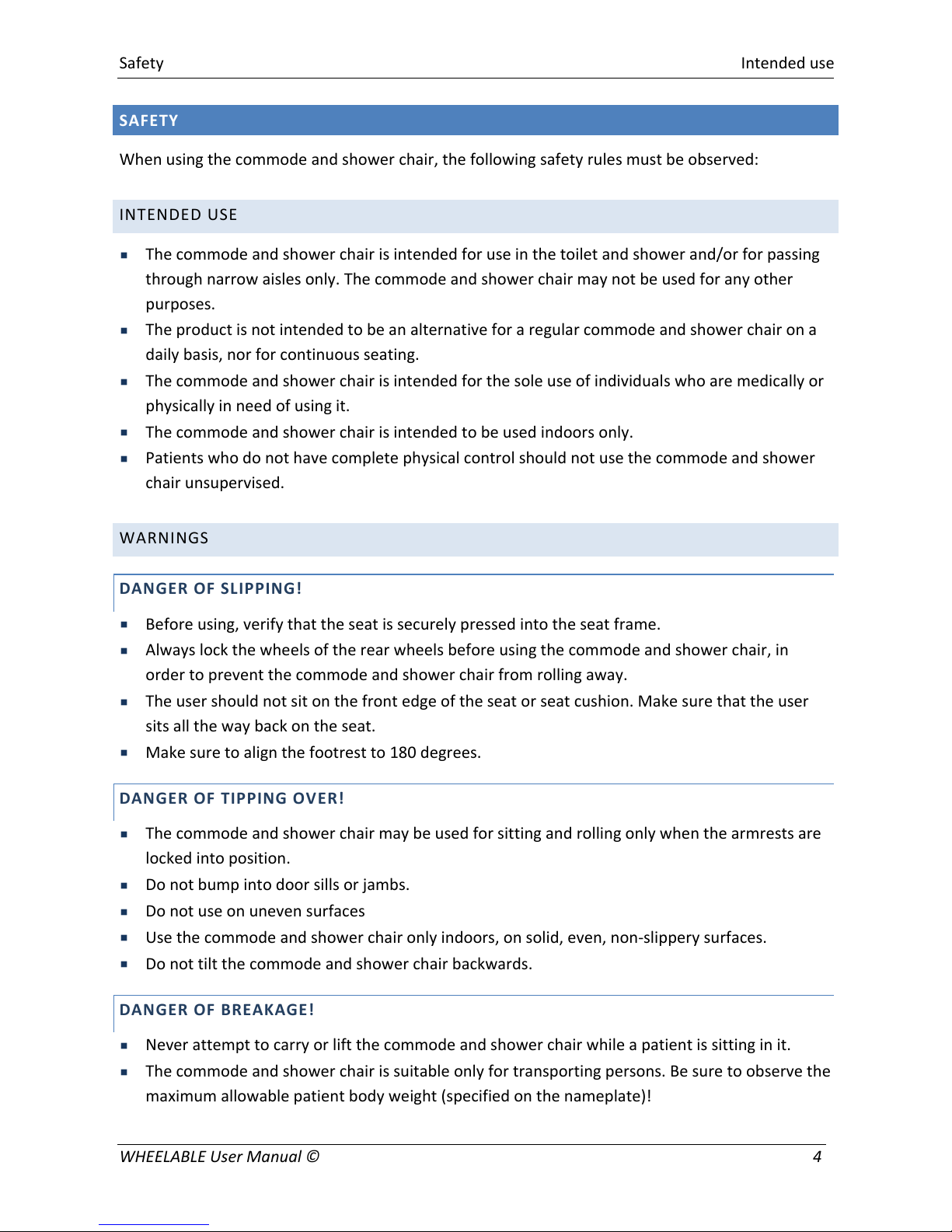

SAFETY
When using the commode and shower chair, the following safety rules must be observed:
INTENDED USE
The commode and shower chair is intended for use in the toilet and shower and/or for passing
through narrow aisles only. The commode and shower chair may not be used for any other
purposes.
The product is not intended to be an alternative for a regular commode and shower chair on a
daily basis, nor for continuous seating.
The commode and shower chair is intended for the sole use of individuals who are medically or
physically in need of using it.
The commode and shower chair is intended to be used indoors only.
Patients who do not have complete physical control should not use the commode and shower
chair unsupervised.
WARNINGS
DANGER OF SLIPPING!
Before using, verify that the seat is securely pressed into the seat frame.
Always lock the wheels of the rear wheels before using the commode and shower chair, in
order to prevent the commode and shower chair from rolling away.
The user should not sit on the front edge of the seat or seat cushion. Make sure that the user
sits all the way back on the seat.
Make sure to align the footrest to 180 degrees.
DANGER OF TIPPING OVER!
The commode and shower chair may be used for sitting and rolling only when the armrests are
locked into position.
Do not bump into door sills or jambs.
Do not use on uneven surfaces
Use the commode and shower chair only indoors, on solid, even, non-slippery surfaces.
Do not tilt the commode and shower chair backwards.
DANGER OF BREAKAGE!
Never attempt to carry or lift the commode and shower chair while a patient is sitting in it.
The commode and shower chair is suitable only for transporting persons. Be sure to observe the
maximum allowable patient body weight (specified on the nameplate)!

Safety Warnings
W User Manual © 5
If the commode and shower chair is damaged in any way such as a fall from heights or bumping
into something, it is no longer suitable for use. The commode and shower chair may not be
used if any external damage signs are visible such as cracks or breakage.
If the commode and shower chair has changed shape in any significant manner it may no longer
be used.
DANGER OF FALLING!
Sitting down, standing up and moving the patient should be supervised by a qualified caregiver,
as suitable for the health condition of the patient.
Rolling the commode and shower chair on any sloped surface may be done only with the
assistance of a caregiver.
DANGER OF PINCHING!
Avoid reaching into the hinges areas to prevent body parts or objects from getting pinched.

Safety Symbol advisories
W User Manual © 6
SYMBOL ADVISORIES
"Serial Number". This symbol shall be followed by, or appear above
the manufacturer's serial number.
"Manufacturer". This symbol shall be adjacent to the name and
address of the manufacturer.
Symbol indicating that the device has not been sterilized.
"Caution! Consult accompanying documents" or "Attention! See
instructions for use."
"Consult instructions for use or consult operating instructions"
The user’s eight ust ot eeed  kg
"Authorized Representative in the European Community". This symbol
shall be adjacent to the name and address of the authorized
representative in the European Community. The address is not
required on an immediate container unless the immediate container is
the outer container.
This symbol is a mandatory marking for devices entering the European
market to indicate conformity with the essential health and safety
requirements set out in European Directives. The symbol may be
accompanied by a four-digit identification number of the notified
body. The vertical dimensions may not be less than 5 mm high.
"Not for general waste". For European Union States. This symbol
should be used to mark devices that are reusable and not
contaminated at the end of the device life.
"Keep away from sunlight"
The product packaging can be recycled

Product specifications Dimensions
W User Manual © 7
PRODUCT SPECIFICATIONS
DIMENSIONS
SCOPE OF DELIVERY
The product has been carefully inspected in the factory for defects and completeness. After you
receive it, carefully check the product for possible transport damages and for completeness.

Product specifications
W User Manual © 8
TECHNICAL SPECIFICATIONS
We reserve the right to continue developments and making technical improvements with respect
to the design shown in this user manual.

Assembly
W User Manual © 9
ASSEMBLY

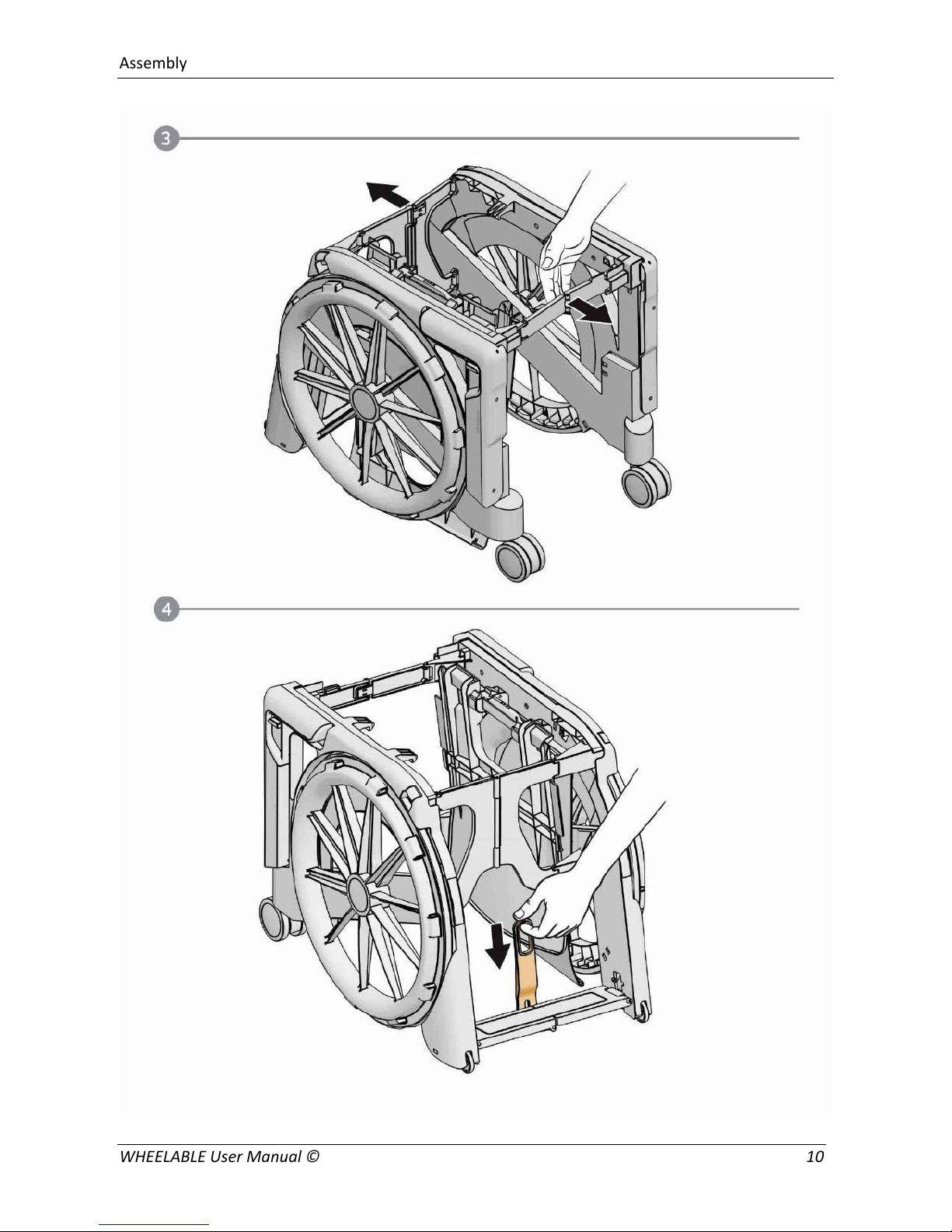

Assembly
W User Manual © 10

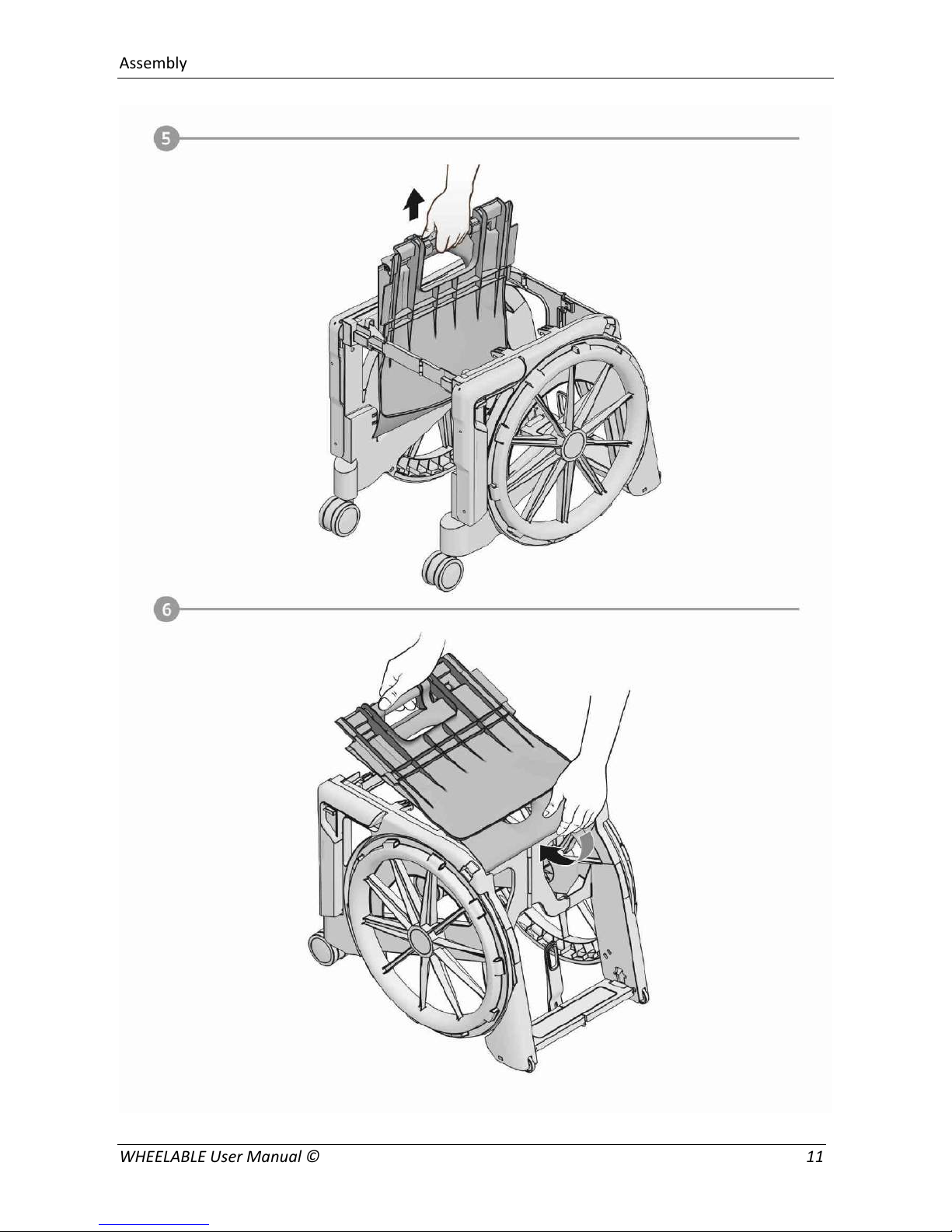

Assembly
W User Manual © 11

Assembly
W User Manual © 12

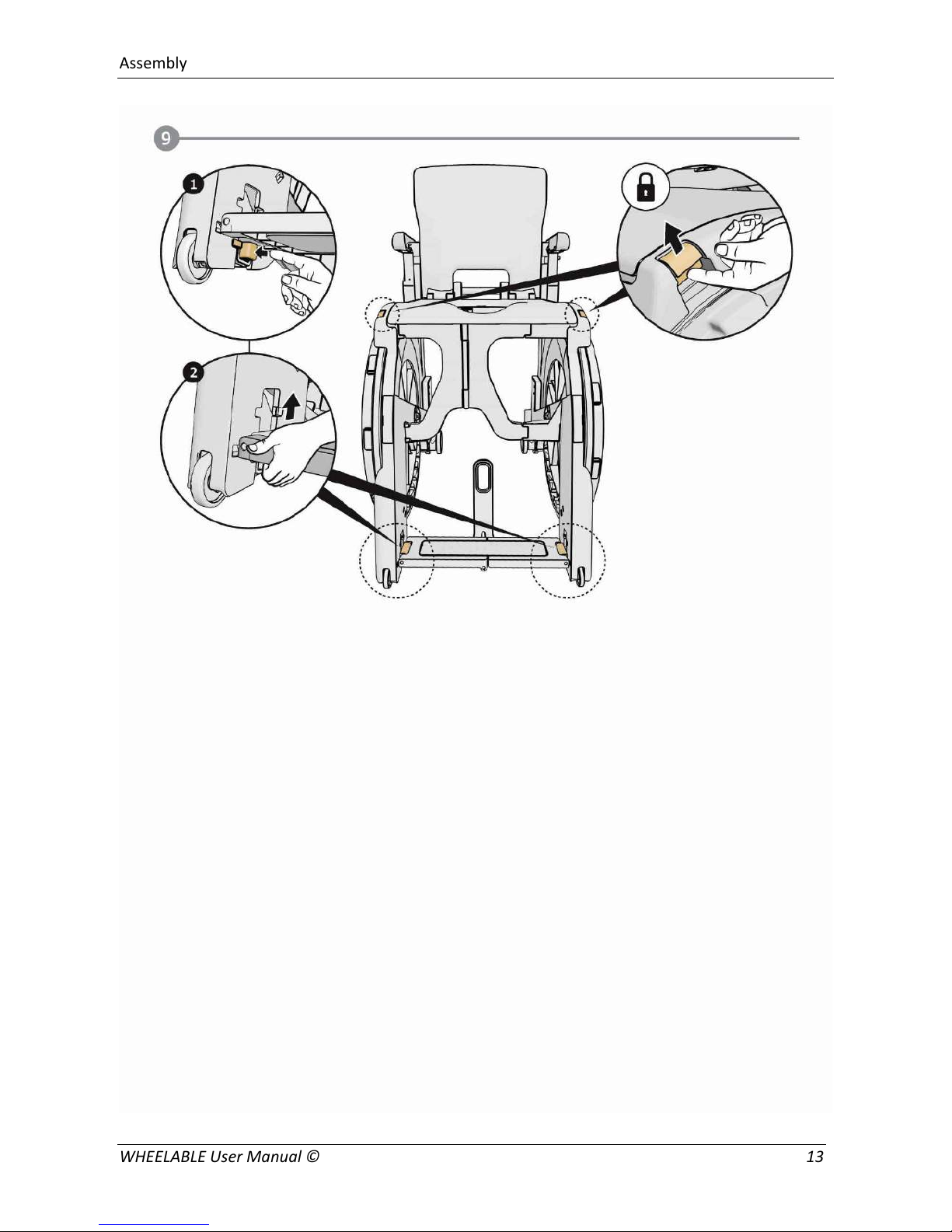

Assembly
W User Manual © 13

Folding
W User Manual © 14

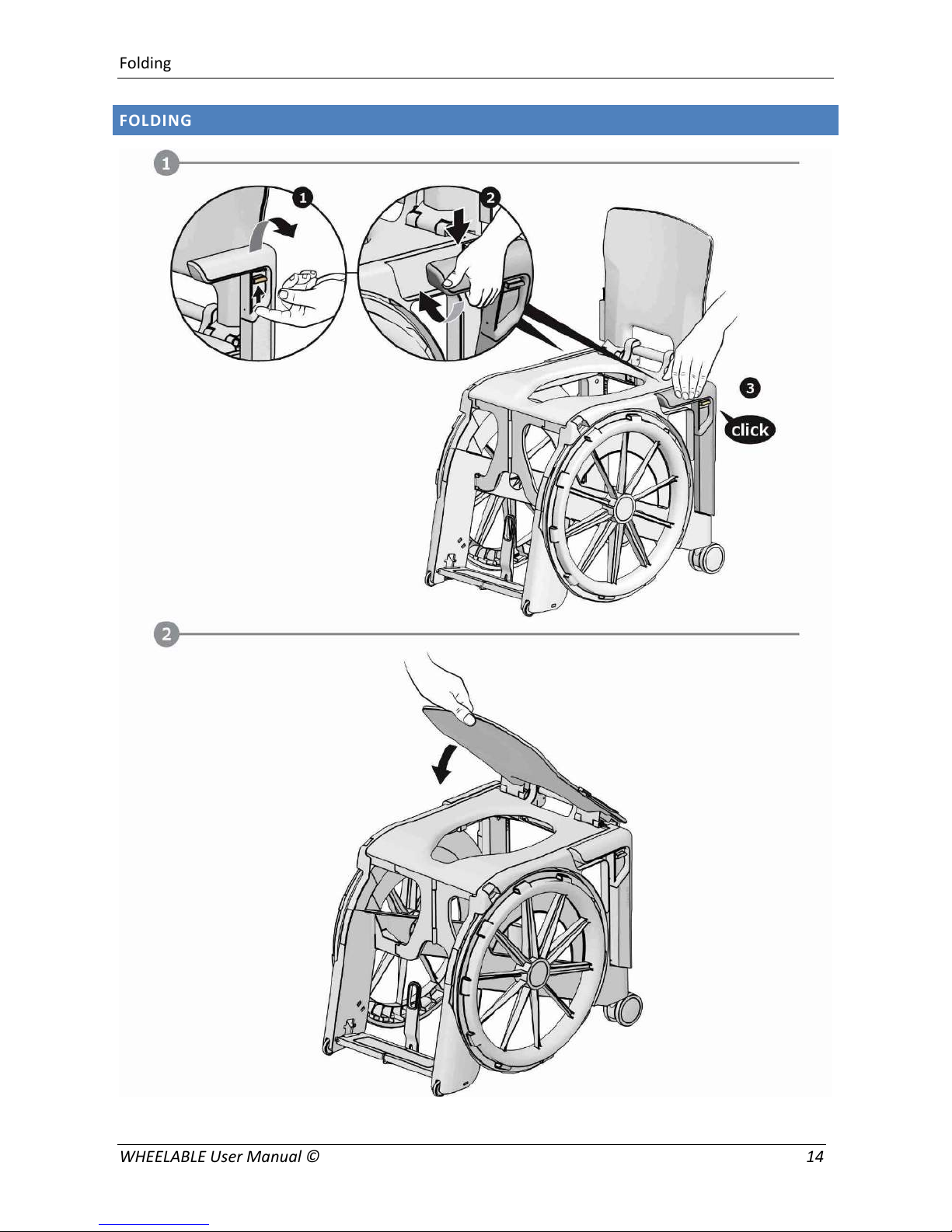

FOLDING

Folding
W User Manual © 15

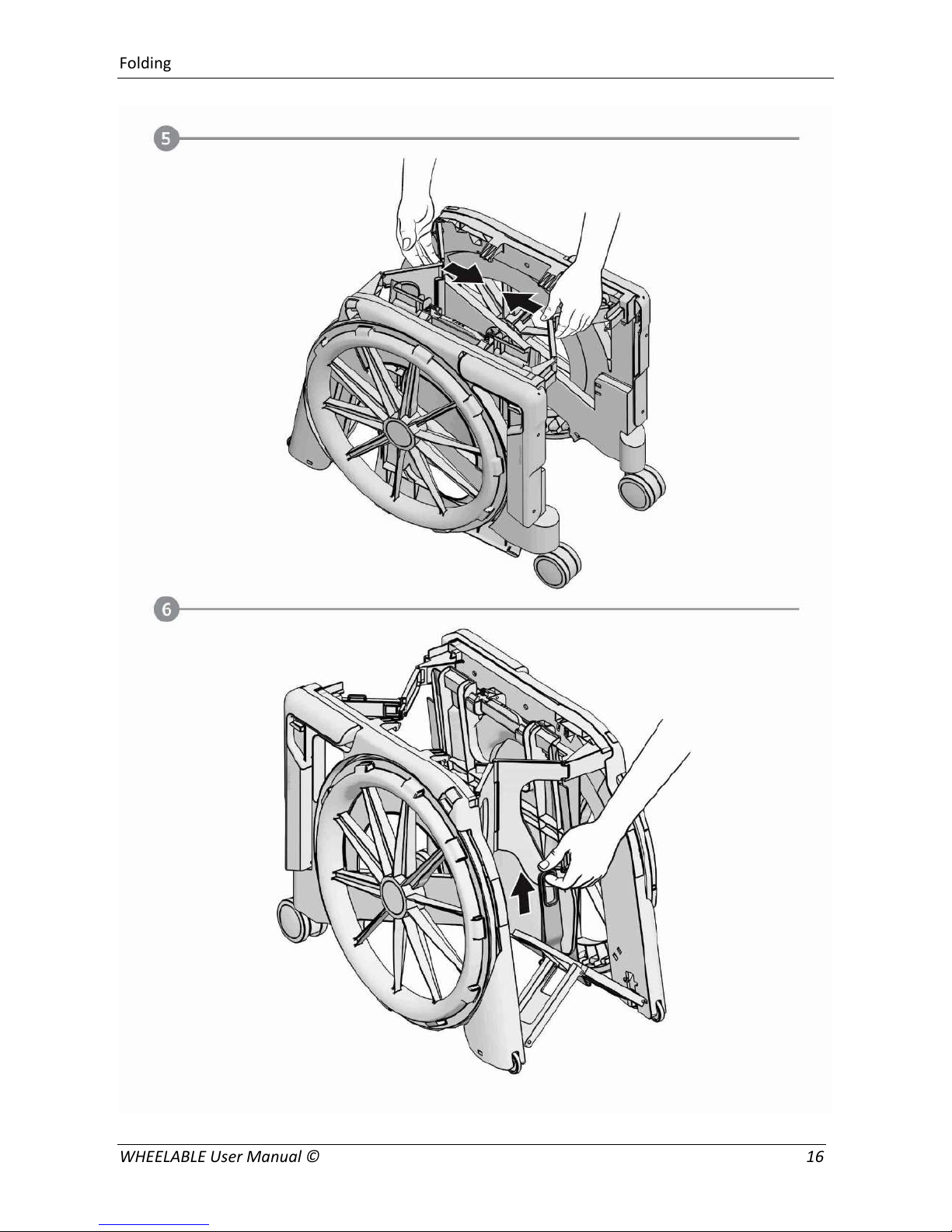

Folding
W User Manual © 16

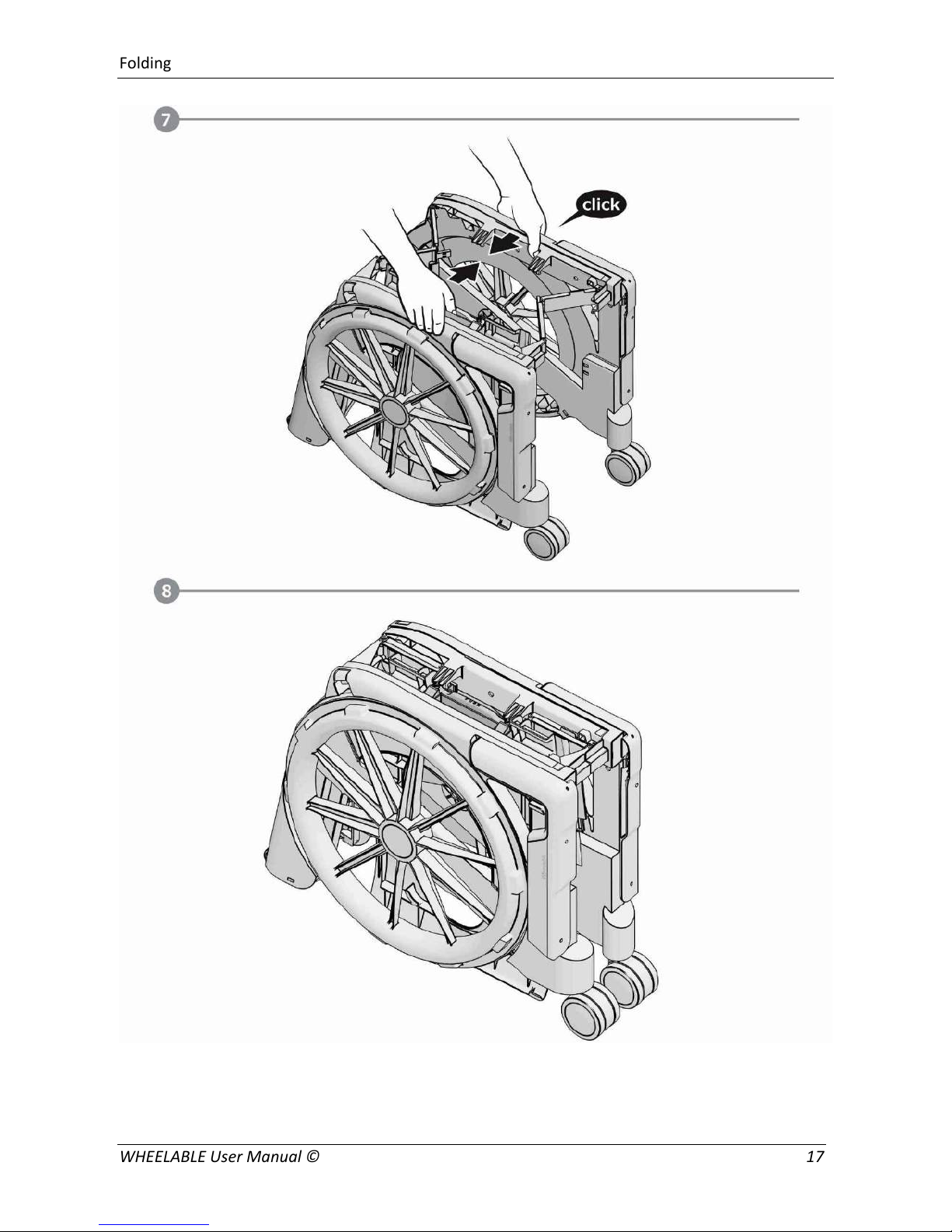

Folding
W User Manual © 17

Cleaning and maintenance
W User Manual © 18
CLEANING AND MAINTENANCE
The commode and shower chair can be cleaned using a mild cleaning and disinfecting agent. Simply
wipe the commode and shower chair with clean water and cloth, and then wipe dry with a clean
cloth.
Do not use an abrasive scouring agent or cleaner (read the product instructions!) that contain
aggressive solvents (acids, thinners). Do not use stiff cleaning brushes, as these will damage the
plastic surfaces or cause deposits to build up on the plastic parts and other materials.
Never make any unauthorized modifications or conversions to the commode and shower
chair. These will adversely affect the safety and function of the commode and shower chair
and void the warranty and nullify the manufacturer's liability!

Warranty
W User Manual © 19
WARRANTY
Dear client,
The tŚĞĞůďůĞ Company thanks you for choosing our product.
This product warranty is valid for two years from the date of purchase.
If you experience problems with your tŚĞĞůďůĞ product or if it is damaged, please contact the store
you purchased it from.
Warning! Please read the user manual and warnings in this document before using this product.
To activate the warranty, you have the following options:
1. Complete the attached customer information form and send it to us, together with a copy of
the purchase receipt.
2. Fill out the warranty form
First name
Last Name
Address
City
State
Country
Email
Product serial number
Place of purchase (Company/Retailer
name)
Purchase date
The product comes with a user manual that provides instructions on how to assemble and fold it.
Please make sure you understand the instructions. If necessary, refer to the tŚĞĞůďůĞ website or
contact one of tŚĞĞůďůĞ's retailers for further assistance.
Note that warning labels are affixed to the product to alert you to incorrect use.
We guarantee the integrity and functioning of all plastic and metal parts.
In the event of a warranty claim, the warranty is valid only when a filled customer information form
(found at the end of this user manual) and a proof of purchase (i.e., a receipt) are provided.
This arrat does ot appl to the produt’s tetile ad spoge parts, upholster, or surfaes i.e.,
discoloration, scratches or wear and tear arising from use).

Warranty
W User Manual © 20
Also, the warranty does not apply to product damage resulting from unreasonable or improper use,
falls from a height, or other accident.
WARNINGS FOR USE
An "indoor product" is a product that is designed for use indoors and not outside. This product
is an indoor product optimized for use on paved, level floors. It is designed for use only as a
commode and shower chair for toilet and for bathing.
This product is not a substitute for a regular commode and shower chair, and is not meant to be
used for prolonged sitting.
Do not use the product to go up or down stairs.
Do not tilt the product when a person is sitting on it.
Do not use the product on slopes and inclines greater than 10%, or surfaces that tilt more than
5% to one side.
The user’s eight ust ot eeed  kg.
If there is sensitivity in the seating area, use a padded cushion.
If the product is dropped, hit, or damaged in any way that hinders the safe use of the product, stop
usig the produt ad hae the produt’s itegrit erified  a opa represetatie.
