I Introduction
Model 384 is shipped in fully assembled form. After removing the unit from its packaging and ensuring
that it has suffered no damage in shipment, it is important to read this manual and follow its instructions
to ensure proper connection and mounting.

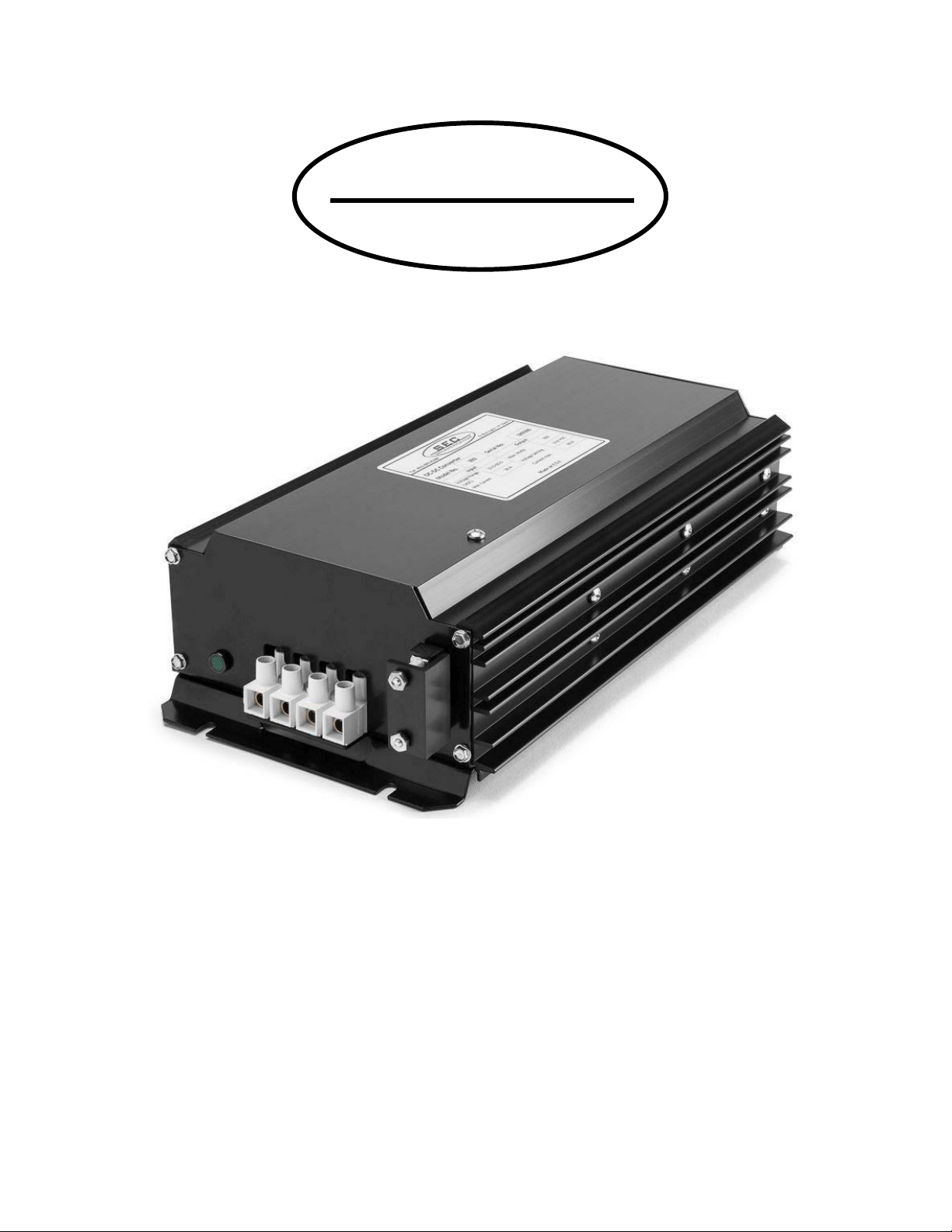

Model 384 is a high-power DC-DC down converter with a wide range (22V-60V) input capability. Its
continuous maximum output current is 60A at 13.6V. Model 384 is designed for mounting in vehicles of
all types and is capable of enduring harsh vibration and shock conditions
II Installation
2.1 Mounting
Model 384 has an overall length of 13.8 inches with mounting flanges included in this dimension. Hole
mounting centers are 13.3 x 3.93 (inches)
2.2 Connections
Tools Required - 1 flat blade screw driver (1/4 in. wide)
Figure 1 shows the connection panel view of the 384.
The 384 DC-DC Converter can be activated by:
1) Connecting Terminals 1 & 2 on TBA (as factory supplied)
2) By switching ON source power
OR
Activity
Light
TBA
Input
22-60 VDC
TBB
1 2 34
Input
Ground Output
Ground Output
13.6 VDC
1
2
40
Circuit Breaker
Figure 1
Page 1

Prior to Main Input Power Connections:
Make connections A through D prior to hook up to the vehicular power source as shown in Figure
#2. This ensures that there is no sparking from the source of power and allows a reprieve in case there is
a hook up error. (User should carefully review connections as such an error would have to be detected
prior to energizing the unit).
Activity
Light
TBA
Input
22-60 VDC
TBB
1 2 34
Input
Ground Output
Ground Output
13.6 VDC
1
2
For remote Turn On Connect 1 & 2 on TBA
Figure #2
40
Circuit Breaker
A) Connect input +(22-60)V line to position #1 of TBB.
B) Connect input ground to position #2 of TBB.
C) Connect output 13.6 V ground to position #3 of TBB.
D) Connect output +13.6V line to position #4 of TBB
Note: The two ground positions are in the center of the terminal block adjacent to each other.
Prior to energizing, installer should:
1) Ensure that hook up in steps A through D is correct.
2) Select the suitable method of converter activation.
2.3 Methods of Converter Activation
A) Connect terminal #1 to terminal #2 on terminal block TBA. The 384 is so configured
when shipped from the factory. This configuration allows for converter activation by
either turning the source power ON and OFF.
B) Terminal #1 can be connected to terminal #2 through a remote ON/OFF switch or relay
thereby activating the converter.
2.4 Power Limiting & Overload Protection
The 384 begins to electronically limit power once 800W output is exceeded.
In the event that the converter is misused e.g. its input is connected in reverse polarity, there is a
protective circuit breaker on the front panel above the connection block. (Figure #3)
Page 2

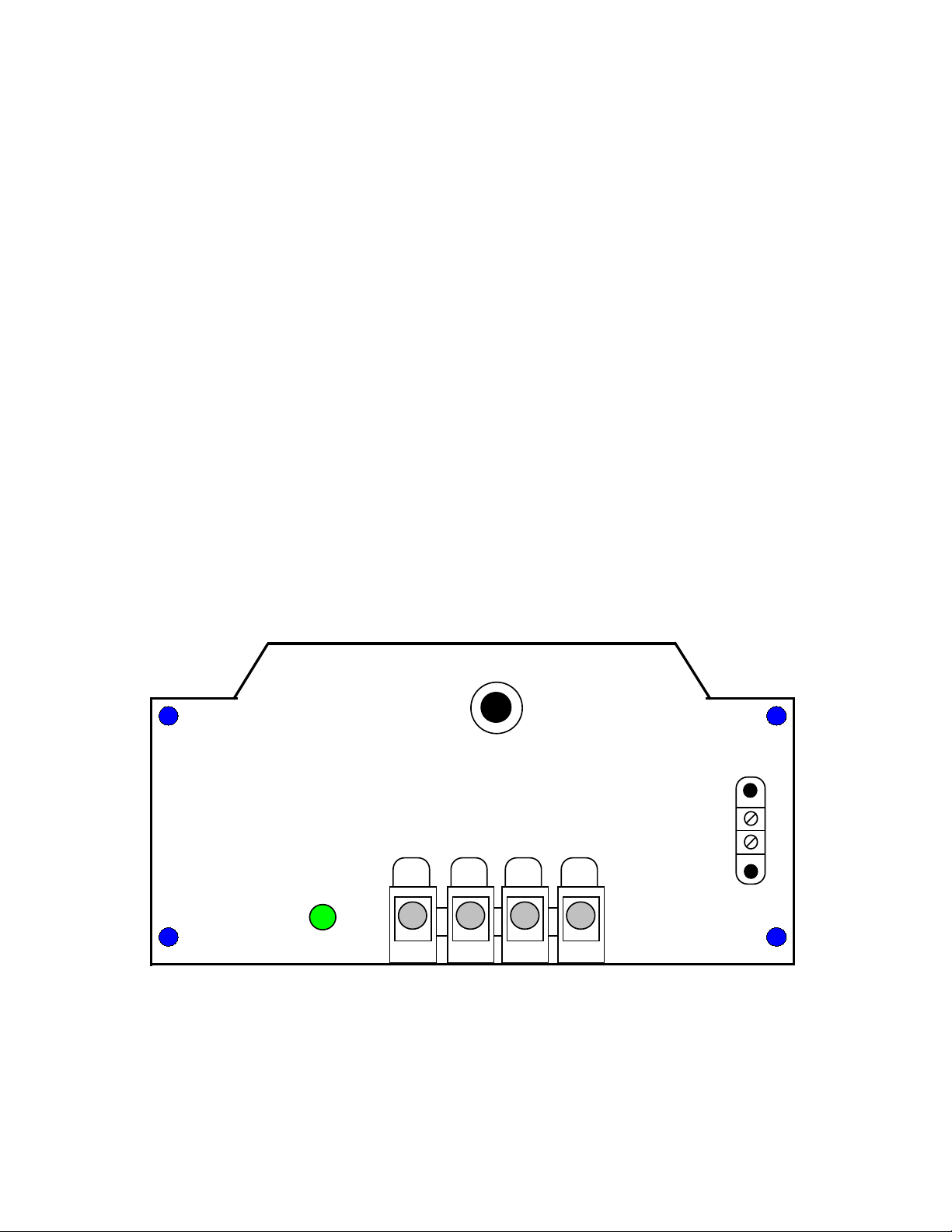

Figure #3
Circuit Breaker
Pilot Light ON/OFF
Remote turn on block

III Internal Adjustments
Varying the adjustments of the Model 384 require the technician to have a stable DC power supply
variable from at least 20 VDC to 30 VDC.
To access the adjustment, turn the unit upside down and remove the base plate by unscrewing the 4
securing screws in its corners. (See drawing on page #5)
Orient the converter upside down and horizontally with the connection panel to the left as shown in
figure #4.
Two potentiometers can be noticed. The voltage adjustment pot should be used for the procedure in
(3.1). The current limit adjust potentiometer is for power limiting purposes only and intended for
technical personnel only.
3.1) Voltage Adjustment
a) Hook up the unit to be adjusted as shown in Figure #5 under no load conditions:
Activity
Light
TBA
Input
22-60 VDC
TBB
1 2 34
Input
Ground Output
Ground Output
13.6 VDC
1
2
Power Supply +24V
Ret DVM
+12 V
Ret
Figure #5
40
Circuit Breaker
b) Make sure terminals 1 & 2 on TBA are tied together and that the Power supply is turned off. Set the
Digital Volt Meter to the appropriate scale to read 13.60 VDC to two decimals.
c) Energize power supply and adjust its output voltage to +24 VDC. Adjust voltage adjust potentiometer
shown in figure #4 to the desired setting (between 12 VDC and 14 VDC) and observe converter voltage
output reading on DVM
d) Turn off power supply. Page 3
Figure #4
Voltage adjust pot.
Current limit adjust pot.

IV Warranty and Repair
Should your investigations indicate that your new Model 384 is defective or damaged and your unit is
still under warranty then contact SEC America, LLC at 802-865-8388 and obtain return merchandise
authorization for credit or exchange.
If the warranty period has expired or if the warranty has been violated due to operator error or misuse,
call:
SEC America Corp., Repair Department, at 802-865-8388 or fax SEC America Corp. at 802-865-8389
to receive authorization for shipment back to factory for a survey and possible repair.
Warranty
The Model 384 has a 2-year warranty covering parts and labor. The warranty is found below:
We warrant each instrument, sold by us, or our authorized agents, to be
free from defects in material and workmanship and that it will perform
within applicable specifications for a period of two years after original
shipment. Our obligation under this guarantee is limited to repairing or
replacing any instrument or any part thereof,except fuses and pilot lights,
which shall within one year after delivery to the original purchaser, be
returned to us with transportation charges prepaid, prove after our exa-
mination to be thus defective.
LIMITED WARRANTY
The above limited warranties take the place of all other warranties,
expressed or implied, and correction of such defects by replacement or
repair shall constitute a fulfillment of all obligations under the terms of the
warranties. The warranties do not cover any unit that has been damaged
either in transit or by misuse, accident or negligence. No warranty or re-
presentation by anyone other than this Company shall be binding on us.
To return a unit send only to the following address:
SEC America Corp.
78 Ethan Allen Drive
S. Burlington, VT 05403
PLEASE RETAIN YOUR ORIGINAL BILL OF SALE. IT MUST
BE SUBMITTED WHEN MAKING ANY WARRANTY CLAIM
Page 4

V Base Plate Mechanical Drawing
Page 5

Design Features
- Low Input Voltage Cutout
- Compact design
- Convection Cooled
- High Efficiency- 96% minimum
- Common Input-Output Negative Terminal
- Soft start technology
SPECIFICATIONS
INPUT VOLTAGE RANGE 22 to 60 (+/- 0.5) VDC
INPUT CURRENT AT MAX CONTINUOUS POWER 31.0 A / 15.5 A @ 24 / 48 V
in
MAX. INPUT CURRENT AT NO LOAD 0.30 A when converter is in "ON" state
MIN. INPUT CURRENT AT NO LOAD <0.002 A when converter is in "OFF" state
OUTPUT VOLTAGE
13.6 - 13.8 VDC (factory set, internally adjustable)
OUTPUT VOLTAGE REGULATION < 40 mV, NL to Full Load
RATED MAX OUTPUT CURRENT 60 A
OUTPUT POWER, CONTINUOUS (RESISTIVE LOAD) 850 W
OUTPUT RIPPLE & NOISE <50 mV RMS
EFFICIENCY AT MAX CURRENT (55A) 96% minimum
LOW INPUT VOLTAGE SHUTDOWN 19.0 - 21.0 VDC
HIGH INPUT VOLTAGE SHUTDOWN > 61.0 VDC
OVERLOAD CURRENT LIMITING Electronic knee type at power limit
OVER TEMPERATURE SHUTDOWN Yes (Auto reset)
INPUT REVERSE POLARITY PROTECTION Resettable Integral Circuit Breaker
High pass filters allow RF signals in the PLC4 spectrum to pass between
input and output terminals with attenuation <3dB
INPUT CONNECTION WECO Screw Terminal Block
OUTPUT CONNECTION WECO Screw Terminal Block
REMOTE CONTROL PORT Yes
AMBIENT AIR OPERATING TEMPERATURE RANGE -30C to +50C no derating
Derate 15% per 10C above 50C to a maximum of 70C
OPERATING HUMIDITY <95%, non condensing
ALTITUDE 6000 meters
DIMENSIONS, INCHES (L x W x H) 13.8 x 6.9 x 3.6
MOUNTING CENTERS, INCHES (L x W x H) 13.30 x 3.38
VIBRATION & SHOCK RESISTANT Internally Encapsulated
WEIGHT (LB/KG) 12 / 5.5
NOTE: Specifications are subject to change without notice.
