SEC 711HS Series User manual

SEC
SEC America Corp
www.secamerica.com
USER MANUAL
711HS Series
DC-DC Converters
Applies to Models:
711HS 711HSBK
Aug 15, 2018

TABLE OF CONTENTS
page
I Introduction 1
II Installation 1
2.1 Mounting 1
2.2 Connections 1
2.3 Mechanical Drawing 2
III Remote Sense Regulation 2
IV User Adjustments 3
IVWarranty 4

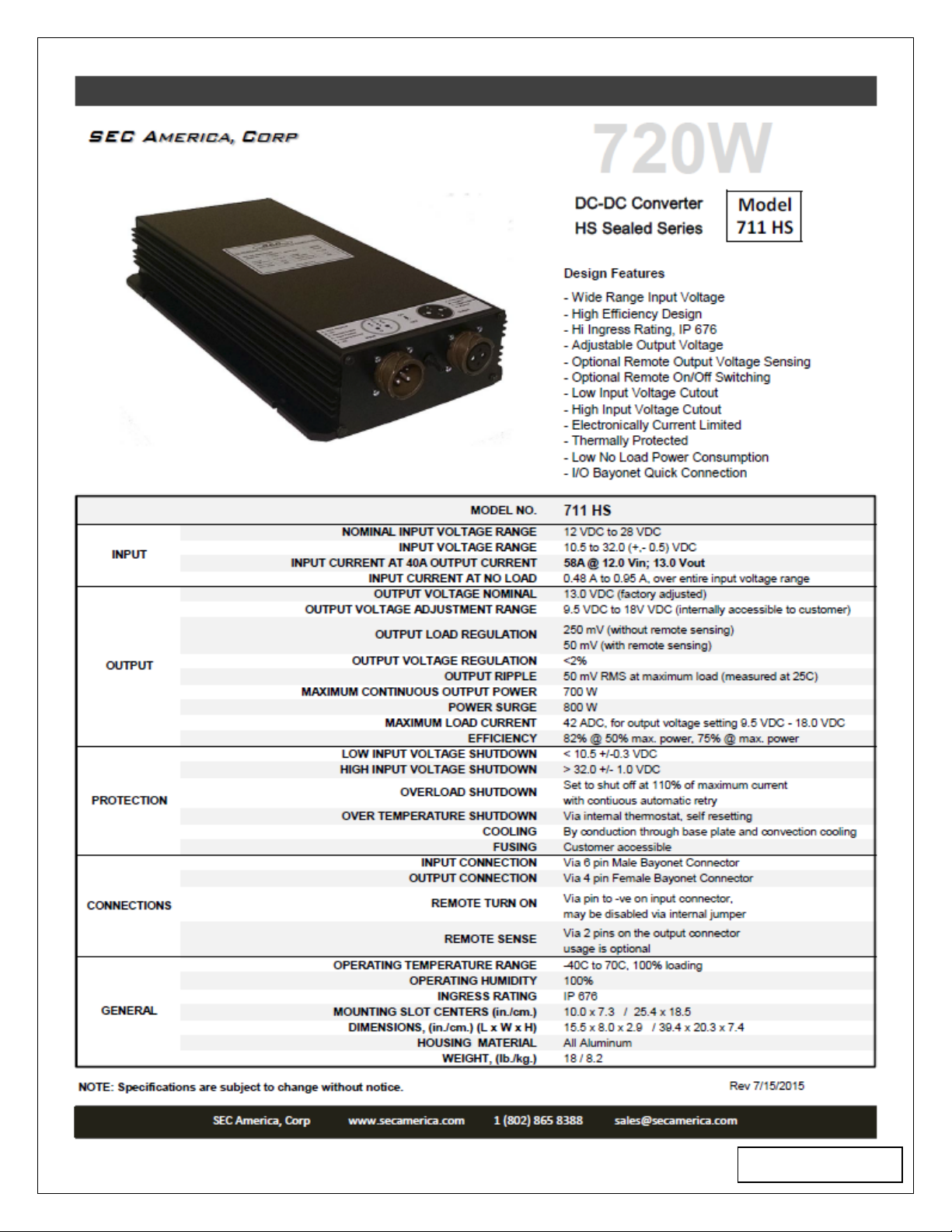

V Electrical Specifications 5-7

I Introduction
After removing the unit from its packaging and ensuring that it has suffered no damage in shipment, it
is important to read this manual and follow its instructions to ensure proper connection and mounting.
711HS Series models are fully isolated dc-dc converters capable of delivering up to 720 Watts in
extreme ambient temperatures and adverse operating conditions. See specification sheets at the end
of this manual for the ratings of a particular model.
II Installation
2.1 Mounting
The converters are designed to be mounted to flat metal surfaces offering optimum heat transfer from
the converter base in environments where air flow may be restricted. For best results, thermal
transfer compound is a recommended interface between the converter and mounting surface. The [4]
mounting slots in the flanges will accommodate mounting hardware up to ¼ inch diameter. (See
figure #2 for mounting centers)
2.2 Connections
The Input/Output connectors on the converter is shown in Figure 1/1A with designated pin functions.
A - Positive Sense
B - Negative
C - Negative Sense
D - Positive
E - Housing Ground
A - Input Negative
B - NC
C - Remote Enable
D - Input Positive
F - NC A
B
C
D
EF
Input
A
B
C
D
Output
ON
OFF
ON-OFF switch feature on BK Model
Figure 1 Figure 1A
An option for users who wish to purchase a manufactured cable assembly is P/N 68-0711-8 which is
of 8 feet length and is a standard SEC part.
Page 1
Input side mating connector
Canon P/N 3106E20-8SB
Output side mating connector
Canon P/N 3106E20-24PB
PIN Max. Wire Gauge
A, D #8
C, E #12
PIN Max. Wire Gauge
B, D #8
A, C #12

III Regulation With Remote Sense
+Vo
+S
-Vo
-S
711HS
Output
Connector Load
+
-
twisted pair Figure 3
D
A
C
B
Pin

TheHSSeriesprovidesregulatedoutputsattheoutputterminals.Whenthereisalargecurrentand/orthe
outputcableisofsomelength,thevoltageattheendofthecablemaybenoticeablylowerthanatthe
terminals.Theconvertercancompensateupto0.75Vofvoltagedropthroughremotesenseterminals.To
ensureaccurateregulation,usersshouldruntwoseparatewires(twistedfromthedesiredregulationpointsto
theremotesenseterminals.Eveniftheloadcurrentislow,usersshouldstillconnect+Voto+Sand–Voto–S.
Figure 2
Page 2
A
ll dimensions are in inches

IV User Adjustments
711HS Series units are gasket-sealed. Changes or adjustments to the operating modes of any unit
are accomplished internally:
1) To gain access, remove the 4 corner screws retaining the front connector plate as shown in
Figure #4.
2) Proceed to raise the front plate by pulling the edge, next to the mounting surface, upwards until
the view in Figure #5 can be attained.
With P/N ATC 30
Replace Fuses
ATC 30
123
jumper 2,3 - Unit ON
jumper 1,2 - ON by Remote Pin
Output Voltage
Adjustment jumper
P1 CON1 F1,2,3
Figure 5
Accessible Adjustments:
A) Output voltage is trimmed by adjusting the potentiometer P1. (711HS, 711HSBK)
B) Remote “Turn On” Disabled: Units are shipped from factory with pins 2 and 3 of the
connector [CON1] jumpered as shown. This programs the unit to be “ON” when source power
is applied. (711HS Only)
Page 3
Figure 4

C) Remote “Turn On” Enabled: To program the unit for remote enable, shift the jumper from
pin positions 2 and 3 of [CON1] to positions 1 and 2. In this mode the unit will energize when
pin C is connected to the negative input line pin A. (711HS Only)
D) Fuse Replacement: In the unlikely event that fuses F1,2,3 will open, disabling the unit, DO
NOT CHANGE FUSES WITH THE POWER APPLIED. In order to restore normal operation,
the user will need to ensure that the cause of the failure has been removed. Then the blown
fuses need to be removed by gently prying them out of their clips and replacing them with ones
of identical ratings. Notwithstanding the above the user should take every precaution to ensure
that a reversed polarity input is avoided. Any polarity reversals may result in permanent
damage.
3) Restore the front plate to its orginal position by replacing the securing screws and making sure
the gasket is compressed.
IV Warranty and Repair
Should your investigations indicate that your product is defective or damaged and the unit is still
under warranty, contact your dealer (purchase point of origin) and obtain a return merchandise
authorization (RMA number) for corrective action.
If the warranty period has expired or if the warranty has been violated due to operator error or misuse
call: SEC America Corp, 802-865-8388 to receive an authorization for return for an assessment and
possible repair.
Warranty
700HS Series models come with a 2 year factory warranty covering parts and labor per the
following:
Page 4

We warrant each instrument, sold by us, or our authorized agents, to be
free from defects in material and workmanship and that it will perform
within applicable specifications for a period of two year after original
shipment. Our obligation under this guarantee is limited to repairing or
replacing any instrument or any part thereof,except fuses and pilot lights,
which shall within one year after delivery to the original purchaser, be
returned to us with transportation charges prepaid, prove after our exa-
mination to be thus defective.
LIMITED WARRANTY
The above limited warranties take the place of all other warranties,
expressed or implied, and correction of such defects by replacement or
repair shall constitute a fulfillment of all obligations under the terms of the
warranties. The warranties do not cover any unit that has been damaged
either in transit or by misuse, accident or negligence. No warranty or re-
presentation by anyone other than this Company shall be binding on us.
To return a unit to factory, send only to the following address:
SEC America Corp
78 Ethan Allen Drive
South Burlington, Vermont 05403
PLEASE RETAIN YOUR ORIGINAL BILL OF SALE. IT MUST
BE SUBMITTED WHEN MAKING ANY WARRANTY CLAIM
Tel: [phone]
Page 5

Page 6

Page 7

SEC
SEC America Corp
P.O. Box 2266
South Burlington 78 Ethan Allen Drive VT 05403 www.secamerica.com
Tel: [phone] Fax: [phone]
cage code 07KU1
