Secabo Modular crosslaser system User manual

INSTRUCTION MANUAL

for the Secabo modular cross laser system

Congratulations on purchasing your Secabo modular cross laser system! To ensure

that you can start production smoothly with your device, please read these

operating instructions carefully. Any form of duplication of these operating

instructions requires the written permission of Nepata Vertrieb GmbH. Technical

data and product characteristics are subject to change without notice. Nepata

Vertrieb GmbH accepts no liability for direct or indirect damages resulting from the

use of this product.

Version 1.1 (02/23/2022)

Precautions

Please read these instructions and precautions carefully before operating the cross laser system

for the first time and keep them in a safe place! Please observe the following operating and safety

instructions so that you can enjoy your modular Secabo cross laser system for a long time.

● Do not make any changes to the cross laser system yourself.

● Make sure that the cross laser system does not come into contact with liquids.

● Make sure that the outlet used is grounded. Please note that the cross laser system may

only be operated from an outlet that is protected by an RCD circuit breaker.

● Only use the power adapter included in the scope of delivery.

● Disconnect the cross laser system from the power supply when not in use.

● Always operate the cross laser system out of the reach of children and never leave the

switched-on cross laser system unattended.

● Make sure that the cross laser system is only used in dry rooms.

● Do not assemble and adjust the cross laser system while the heat press is switched on and

while it is hot. CAUTION: Danger of burns!

● Removing the safety-relevant warning signs is not permitted!

Operating and safety instructions for the operation of cross lasers for heat presses (laser

class 2)

The cross lasers for heat presses correspond to a class 2 laser (according to DIN EN

60825-1:2014)

The precautionary measures of the accident prevention regulation (BGV B2) must be observed.

These include:

● Do not look into the beam or direct reflections, even with optical instruments.

● Clearly mark the laser area with warning signs at all access points.

● The laser beam should be directed well below or above, but not at eye level.

The operator of the laser equipment is responsible for compliance with the protective measures.

Among other things, they must ensure that the laser equipment is assigned to a laser class and

marked accordingly. The operator is also responsible for compliance with the special safety

requirements for the operation of the various laser types.

Further notes

● Solid state laser modules (DPSS) contain high-quality crystals. These are particularly

sensitive to shock. Shock loads over 50G lead to a loss of performance or the destruction

of the module.

● No liability or warranty is assumed for any changes made to the module, such as changes

to the electronics, manipulation of the controllers, housing or the optics (in particular

performance enhancement). Manipulation of laser modules may cause the output power

and the wavelength to deviate significantly from the guaranteed values. In this case, the

specified laser radiation can be exceeded many times over and invisible infrared laser

radiation can escape.

Technische Informationen

Laser class: 2

Wavelength: 650 nm

Color of the beam: red

Radiation characteristics: cross

Input voltage: 230 V AC

Operating current: ≤ 40 mA

Operating voltage: 3-5 V

Protection against water and dust: IP54

Performance: 4 mW

Ambient temperature: -10°C - +50°C

! Failure to comply with these instructions will void the legal warranty !

If you are unable to comply with one or more of the above safety regulations, or if you are not sure

if you meet all the points, please contact our technical support [email protected]

Intended use

The Secabo cross laser system is used to facilitate and precisely position

transfer objects and ensure consistent results in longer runs. You can easily

focus the laser beam. After placing the laser in the joint and aligning it with

the surface of the textile before turning it on, you can switch it on and

position it on the textile first.

The knurled screws on the joints are used to fasten and adjust the lasers,

these must not be tightened with tools or other aids, only tighten by hand.

The adjustable lens on the head of the laser allows you to focus the beam

as you wish, after this process hand tighten the knurled screws on the joint.

The height is also adjusted using this joint. With the single cross laser, this

can be done very easily by loosening the knurled screw on the side of the

rod until the desired height is reached and then tightening it hand-tight.

With the double cross laser, the height is adjusted via the fixed joint, which

serves as an intermediate element between the vertical and horizontal rods.

Tighten the knurled screw on the vertical rod only after the desired height

has been reached.

This flexible adjustment can also be found on the Secabo Storage Tray. The

star grip screw allows you to adjust conveniently and easily, and to swivel and

move the storage tray individually in your workspace. Please note that no

more than 2 kilograms should be placed on the tray! Hand-tighten the star

grip screw on the quick-change system before use.

Scope of delivery

Please check right at the beginning, using the delivery bill, whether you have received all the items

listed and ordered by you. If not, please contact your retail partner as soon as possible. Information

on the scope of delivery can be found on the following pages, depending on which Secabo cross

laser module you have ordered.

Here we have visualized the entire handling from unpacking to

assembly for you as a video. If you have any questions, please do not

hesitate to contact us by e-mail at [email protected].

Einzelteile

Secabo Crosslaser Basic Unit

With the flexible cross lasers from Secabo, textiles and other objects as well as transfer

elements such as flex foils, sublimation papers, etc. can be positioned easily and

reproducibly.

Secabo Stand Basic Unit

Stand plate for the fastening rod

Secabo Accessory Holder

Accessory holder for articulated rods or Abaleg module holder

Secabo Storage Tray

You can easily attach this practical storage plate to your heat press. Small tools such as

cutters or scissors can be stored here, as can your transfers. This way, the most important

things for your workflow are always at hand and sorted.

Secabo 300mm Rod

Mounting bar 300 mm long

Secabo 500mm Rod

Mounting bar 500 mm long

Secabo Fixed Joint Unit

Joint unit for fixing the attachment bar

This allows the fixing rod to be connected and fixed transversely in order to achieve

optimum adjustment.

Secabo Joint Unit

Rotatable joint unit - With this, the Secabo Crosslaser Basic Unit can be easily attached to

the mounting bar and adjusted depending on the desired angle simply by turning it.

Secabo Screws Bag for Transfer Extension Modules

Screw set for the mounting rods of the Secabo Crosslaser Basic Unit

Konformitätserklärung

Statement of Conformity

We herewith declare under sole responsibility that the Secabo cross laser meet the provisions of

the following EC Directives and Harmonized Standards:

EG-Richtlinien / EC Directives:

2014/35/EG Niederspannungsrichtlinie

2014/35/EC Low Voltage Directive

2014/30/EU Elektromagnetische Verträglichkeit

2014/30/EU Electromagnetic Compatibility

2006/42/EG Maschinenrichtlinie

2006/42/EC Directive on machinery

Norm / Standard:

EN 60825-1:2014

EN 60204-1 VDE 0113-1:2019-06

EN IEC 55015:2019

EN IEC 61000-3-2:2019

EN 61000-3-3:2013 + A1:2019

EN 61547:2009

Technische Dokumente bei / Technical documents at:

Nepata Vertrieb GmbH, Hochstatt 6-8, 85283 Wolnzach, Germany

Dipl. Ing. Fabian Franke Dipl. Ing.(FH) Bernhard Schmidt

This manual suits for next models

Table of contents

Popular Measuring Instrument manuals by other brands

Netech

Netech EXPMT 2000 Operator's manual

Bosch

Bosch GIM 60 L Professional Original instructions

IMI SENSORS

IMI SENSORS PCB PIEZOTRONICS ICP 66162ANZ1 Installation and operating manual

Keysight

Keysight 81960A user guide

Trotec

Trotec HG 125 operating manual

Contrel

Contrel EMA90 user manual

Chauvin Arnoux

Chauvin Arnoux C.A 846 user manual

Nissei

Nissei NS-30D instruction manual

Iskra

Iskra NPL 20 Quick reference guide

SATO KEIRYOKI

SATO KEIRYOKI Sophia instruction manual

Kessler-Ellis Products

Kessler-Ellis Products 528 Series manual

DeFelsko

DeFelsko PosiTest DFT instruction manual

ETI

ETI THERMAPEN ONE BLUE operating instructions

Velleman Modules

Velleman Modules VM112 user manual

Hultafors

Hultafors HXL operating instructions

PCE Health and Fitness

PCE Health and Fitness PCE-G1 manual

Siko

Siko DE09 User information

Helios

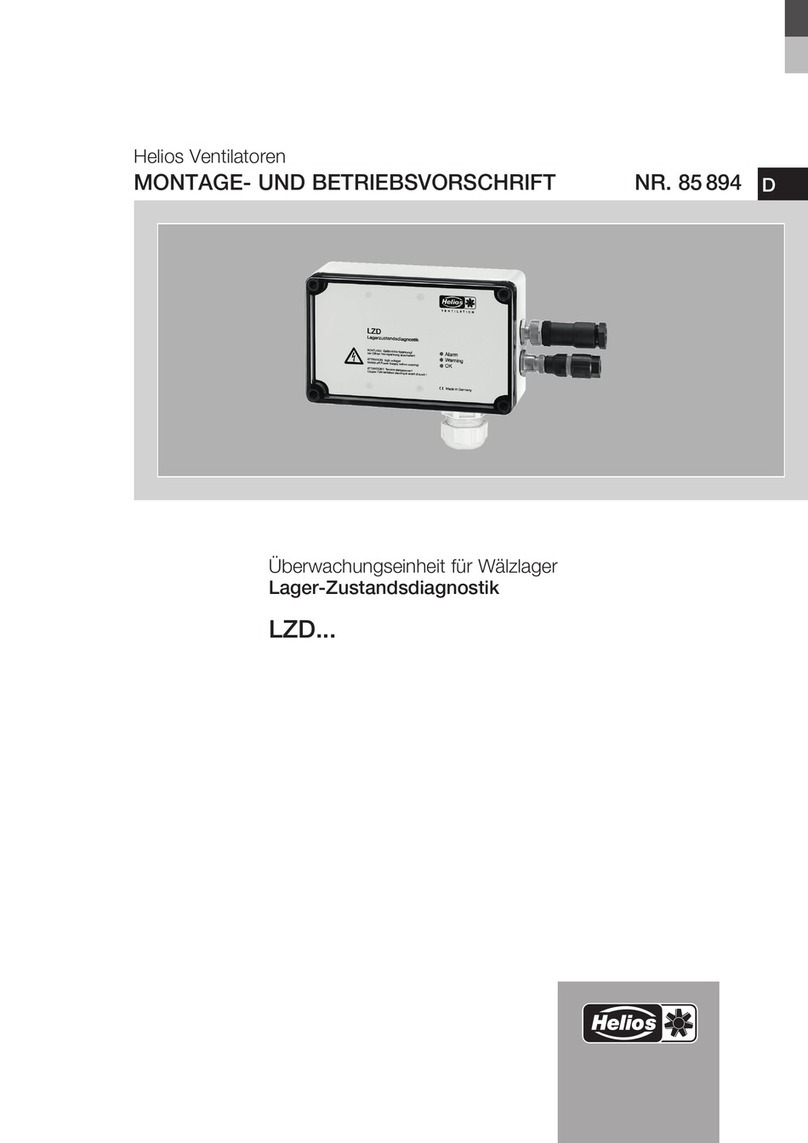

Helios LZD Series Installation and operating instructions
