SECO-LARM Enforcer CA-1510-3FLQ User manual

Simplifies installation of any CCTV,Access
control, or security application.
Eases troubleshooting, check at a glance if there is power.
Check for low voltage AC/DC before connecting your device:
Correct DC Polarity -
Incorrect DC Polarity -
AC Voltage -
Blue
Red
Purple
Safety: Illumination glows from all directions to indicate voltage.
Saves Money and Time: Test power before connecting equipment.
5 ~ 30 VAC/VDC range.
LED shines brighter as voltage increases.
1.949.261.2999 (CA &Int’l) 1.800.662.0800 Fax: [phone]
Email: [email protected] Website: www.seco-larm.com
16842 Millikan Avenue, Irvine, CA 92606
The SECO-LARM policy is one of continual development. For that reason, SECO-LARM reserves the right to change prices and specifications without notice. SECO-LARM is not responsible for misprints.
IllluminatedPowerConnectors.cdr
CA-1610-3FLQ
CA-1510-3FLQ
CA-1615-06LQ
®
Technical Specifications:
Model Output Voltage Amperage VA Input Voltage
ST-UV24-W50Q 24VAC 2.08 50VA 120VAC or 240VAC 50/60Hz
ST-UV16-W100Q 16VAC 6.25 100VA 120VAC or 240VAC 50/60Hz
24VAC 4.16 100VA 120VAC or 240VAC 50/60Hz
ST-UVDA-W100Q 28VAC 3.57 100VA 120VAC or 240VAC 50/60Hz
24VAC 7.50 180VA 120VAC or 240VAC 50/60Hz
ST-UVDA-W180Q 28VAC 6.43 180VA 120VAC or 240VAC 50/60Hz

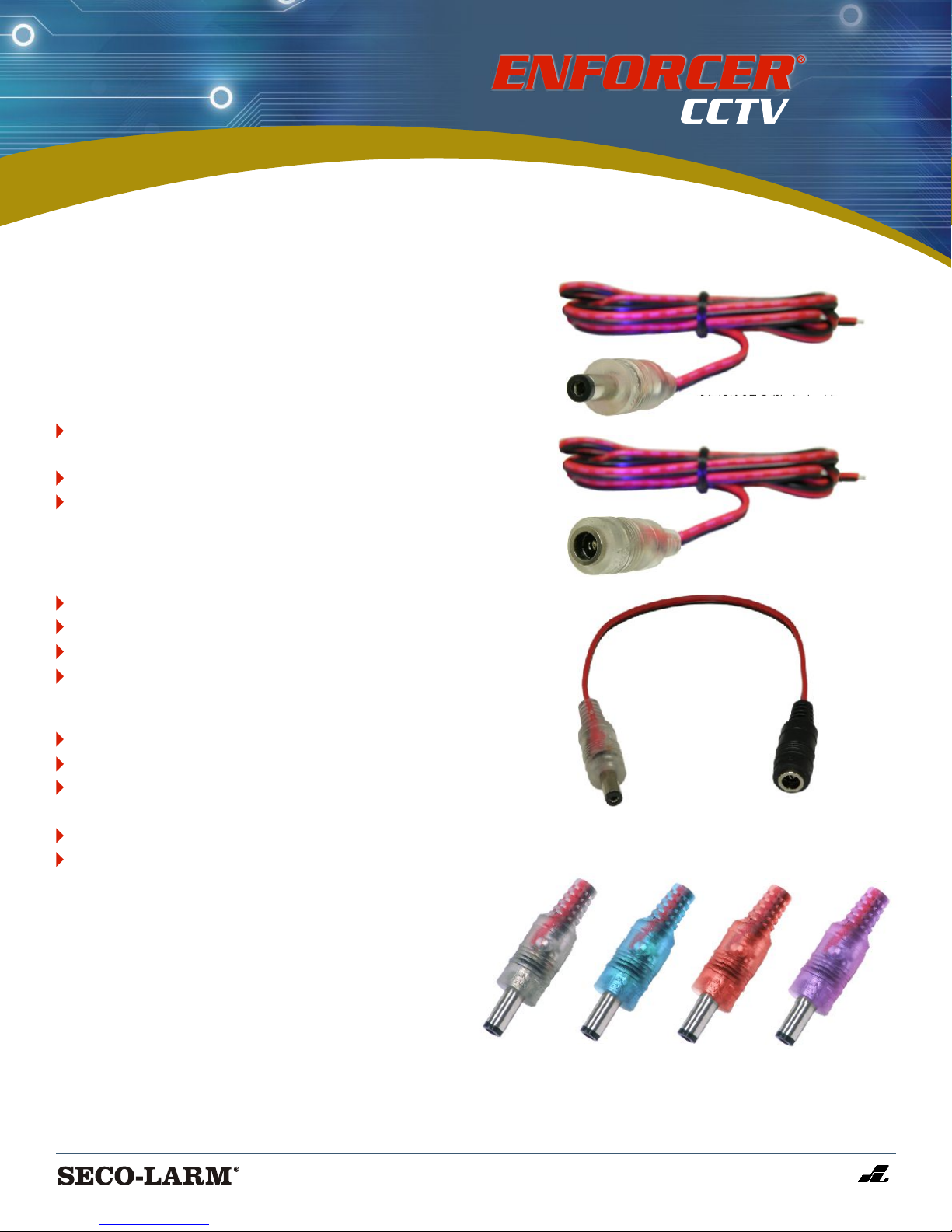

Male Plug
Female Jack
Test Light
–
–
–
Output voltage: ST-2406-2A ST-2406-3A ST-2406-5A ST-2406-7A
ST-UV24-W50Q ST-UV16-W100Q ST-UVDA-W180Q
6VDC 12VAC/20VA 24VAC/50VA 16VAC/100VA 24-28VAC/180VA
ST-UVDA-W100Q ST-UV16-W100Q ST-UVDA-W180Q
12VDC 12VAC/40VA 24-28VAC/100VA 16VAC/100VA 24-28VAC/180VA
ST-UV24-W50Q ST-UVDA-W100Q ST-UVDA-W180Q
24VDC 24-28VAC/210VA
24VAC/50VA 24-28VAC/100VA 24-28VAC/180VA
Transformer Selection Table:
Illuminated Power Connectors
Match the ENFORCER Open-Frame
Transformers with the ENFORCER
Series Power Supply/Chargers 1.5A continuous. 6/12/24 VDC
2.5A continuous. 6/12/24 VDC
4.0A continuous. 6/12/24 VDC
7.0A continuous. 6/12/24 VDC
ST-2406-2A
ST-2406-3A
ST-2406-5A
ST-2406-7A
–
–
–
–
Convert low-voltage AC input power
to low-voltage DC output power.
Regulated and filtered output voltage.
Short-circuit protection.
Thermal protection and compensation.
Built-in backup battery charger.
Switches to backup battery automatically
in case of power loss.
Fused protection for battery charger.
2 LEDs to indicate AC power input and
DC power output status.
Compatible with lead acid or
gel-type rechargeable battery.
Reverse polarity protected.
Copyright 2007 SECO-LARM U.S.A., Inc. Allrights reserved.
Features:
CA-1615-06LQ
CA-1610-3FLQ (3' wire leads)
Correct
DC Polarity AC Voltage
Incorrect
DC Polarity
Specifications:
Size: 5.5 x 2.1 mm
Voltage: 5~30 VDC/VAC
Current draw: 5mA @ 12VDC
Max current: 2A
OO OO
Operating temperature -14 ~158 F (-20 ~70 C)
Polarity configuration
CA-1510-3FLQ (3' wire leads)
No
Power
Applications:
Portable and versatile test light.
Permanent power indicator.
Check for voltage and polarity of CCTV
and access control installations.
Check power supply voltage.
Check polarity of UTP wires with power.
(LED shines brighter as voltage increases.)
U.S.A. and international Patents pending.
