SECO-LARM ENFORCER DRN-104-2TB User manual

ONVIF is a trademark of ONVIF, Inc.
The Adopted Trademarks HDMI, HDMI High-Definition Multimedia Interface, HDMI trade dress and the HDMI Logos are
trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.
4K Network Video Recorder
Installation Manual
DRN-116-4TB shown
•Compatible with 8MP (4K) IP Camera
•QR code and Wizard assistance for easier first-
time setup
•Plug-and-Play
•Built-in PoE Ports (IEEE 802.3af/at)
•VGA and HDMI®output up to 4K resolution
•ONVIF®Profile S conformant
•Live view recording and playback up to
4K@30FPS
•P2P for simple remote connection using PC or
mobile device
•Supports up to 9 AI functions, up to 12 when
used with EV-N2806-2W4WQ
DRN-116-4TB Additional Features:
•Supports up to two (2) HDDs
•Live view recording and playback up to
4K@45FPS
•8 Sensor inputs, 1 alarm relay output
Model
Channels
Included HDD*
Internal storage capacity
DRN-104-2TB
4 channels
2TB SATA
1 SATA, up to 10TB
DRN-108-2TB
8 channels
2TB SATA
1 SATA, up to 10TB
DRN-116-4TB
16 channels
4TB SATA
2 SATA, up to 10TB each
*Other HDD sizes available by special order, including 1/2/4/6/8/10 TB
The ENFORCER Network Video Recorder offers 4K and H.265 High Efficiency Video Coding, reducing
bandwidth and storage requirements without giving up video quality. These NVRs are perfect for a wide
range of applications due to their cost-effectiveness and simple-to-install design.

ENFORCER 4K Network Video Recorder
2 SECO-LARM U.S.A., Inc.
Table of Contents
Specifications................................................ 5
Warnings........................................................ 6
Parts List........................................................ 7
Overview ........................................................ 7
DRN-104-2TB .............................................. 7
DRN-108-2TB .............................................. 7
DRN-116-4TB .............................................. 7
Rear Panel Feature Descriptions ................. 8
Installation and Connection ......................... 9
Hard Drive Installation.................................. 9
Power Supply............................................. 10
Using the Mouse ........................................ 11
Using the Virtual Keyboard......................... 12
Password ................................................... 13

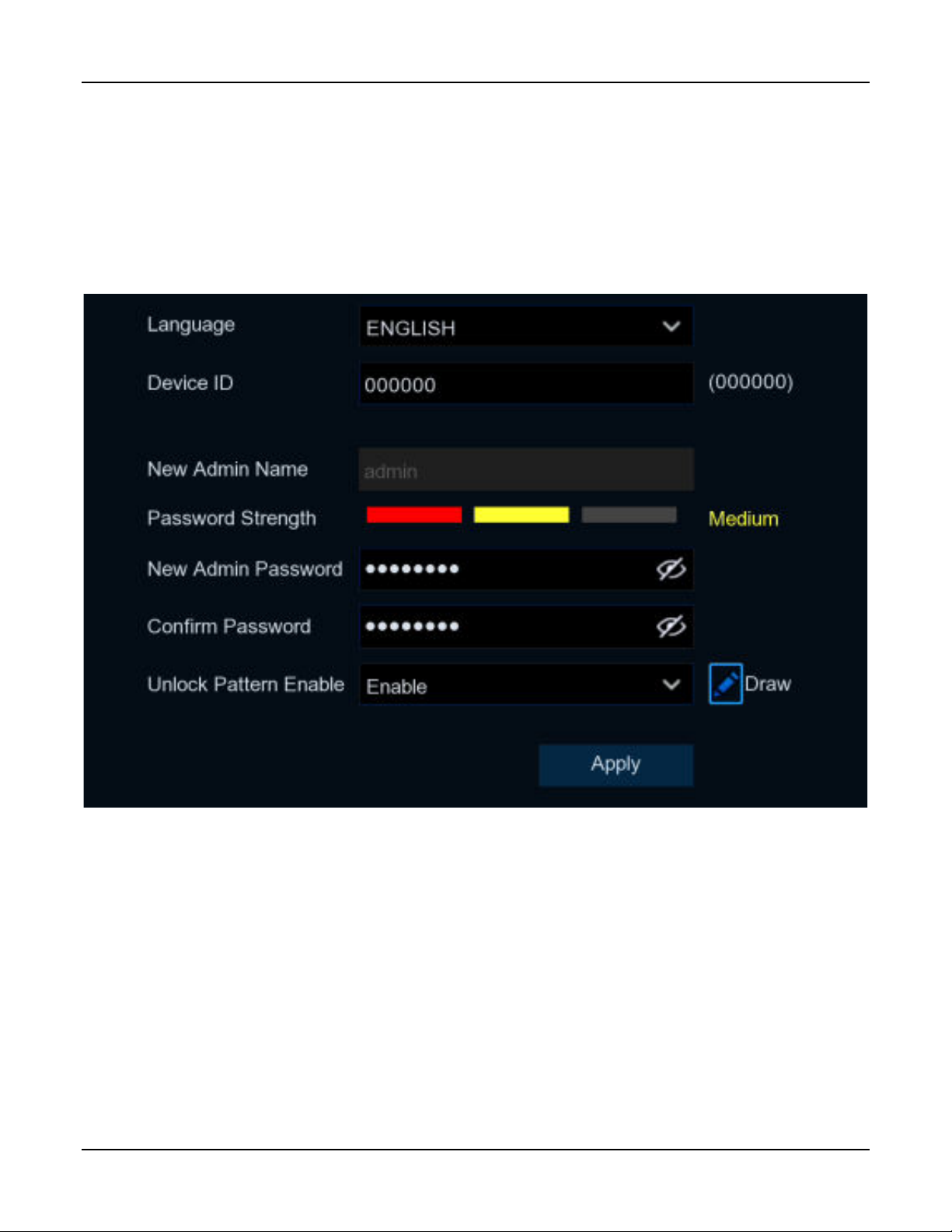

Setting a New Password ................................13
Resetting a Password ....................................16
Using Security Questions......................................... 16
Using the Secret Key ............................................... 18
Using a Super Code................................................. 19
Hard Reset............................................................... 20
Startup ......................................................... 21
Start Wizard ............................................... 21
Network Configuration....................................22
Date/Time ......................................................24
NTP (Network Time Protocol) ........................24
DST (Daylight Saving Time)...........................25
IP Camera Connection...................................26
Connecting Directly to NVR PoE Ports .................... 26
Connecting an IP Camera via LAN .......................... 28
Connecting an IP Camera from the Internet............. 31
Hard Drive......................................................33
Resolution ......................................................34
Mobile ............................................................34
Summary........................................................35
Live View Screen Overview........................ 36
Definitions ......................................................36
Camera Quick Toolbar ...................................38
Taskbar ......................................................... 39
Status Bar ..................................................... 40
Start Menu..................................................... 41
Alarm Notification Panel ................................ 42
System Setup ...............................................44
Channel ......................................................44
Channel......................................................... 45
IP Channels ..............................................................45
PoE Power................................................................56
Live ............................................................... 57
Image Control................................................ 59
Full Color Camera Settings.......................................62
Pan/Tilt/Zoom (PTZ)...................................... 64
MFZ and PTZ Control...............................................65
Video Cover .................................................. 69
Motion Detection ........................................... 70
Motion Alarm Settings...............................................72
ROI (Region of Interest) ................................ 75
Record ........................................................77
Encoding Settings ......................................... 77
Video Encoding.........................................................78
Audio Encoding.........................................................80
Record........................................................... 81
Recording Configuration...........................................82
Recording Schedule .................................................83
Capture Images............................................. 84
Capture Configuration...............................................84
Capture Schedule.....................................................85
Alarm Settings ............................................86
Motion Alarm ................................................. 86
PIR Alarm (Future) ........................................ 88
I/O Alarm....................................................... 89
Combination Alarm........................................ 92
PTZ Linkage.................................................. 95
Exception Alarm ............................................ 96
Alarm Schedule............................................. 97
Voice Prompts............................................... 98
File Management......................................................98
Loop Management..................................................102

ENFORCER 4K Network Video Recorder
Table of Contents (Continued)
SECO-LARM U.S.A., Inc. 3
When Using IP Cameras with Deterrence....103
Siren.............................................................106
Disarming.....................................................108
AI.............................................................. 109
AI Setup .......................................................109
FD (Face Detection)................................................110
PD & VD (Pedestrian and Vehicle Detection) .........115
PID (Perimeter Intrusion Detection) ........................117
LCD (Line Crossing Detection) ...............................119
CC (Cross Counting Detection)...............................121
HM (Heat Map)........................................................124
CD (Crowd Density Detection)................................125
QD (Queue Length Detection) ................................127
LPD (License Plate Detection)................................129
RSD (Rare Sound Detection)..................................131
SOD (Stationary Object Detection) .........................132
Sound Detection......................................................134
Video Tampering.....................................................136
Schedule .................................................................137
AI Recognition..............................................139
Model Configuration................................................139
Face Recognition Database Management..............143
License Plate Management.....................................162
AI Alarm Settings .........................................177
FR (Face Recognition) Alarm Settings....................177
AD (Attribution Detection) Alarm Settings ...............181
LPR (License Plate Recognition) Alarm Settings....183
PD & VD (Pedestrian & Vehicle Detection) Alarm
Settings................................................................188
PID / LCD / CC / CD / QD / LPD / RSD / SOD /
Sound Detection Alarm Settings..........................190
Statistics.......................................................192
FR (Face Recognition) Statistics.............................193
PD & VD (Pedestrian & Vehicle Detection)
Statistics ..............................................................194
CC (Cross Counting) Statistics ...............................195
HM (Heat Map) Statistics ........................................196
Network.................................................... 197
General Settings ..........................................197
General ...................................................................197
PPPoE Settings.......................................................199
SNMP......................................................................200
Port Configuration...................................................201
DDNS.......................................................... 203
Email Settings ............................................. 204
Email Configuration ................................................205
Email Schedule.......................................................206
IP Filter........................................................ 207
Voice Assistant............................................ 209
Voice Assistant with Amazon Fire TV Stick ............209
Voice Assistant with Google Chromecast...............210
Platform Access .......................................... 211
Storage .....................................................212
Disk ............................................................. 212
Disk Group..............................................................215
S.M.A.R.T. ..............................................................216
Cloud Storage ............................................. 217
Dropbox Settings ....................................................218
Google Drive Settings.............................................218
FTP Settings ............................................... 219
FTP Schedule.........................................................220
System Configuration................................221
General Settings.......................................... 221
General...................................................................222
Date and Time ........................................................223
DST (Daylight Saving Time) ...................................224
Output Configuration...............................................225
Multi-User.................................................... 227
Edit Users ...............................................................228
Edit User Permissions ............................................230
Maintenance................................................ 232
System Log.............................................................233
Load Default ...........................................................234
Reset Settings ........................................................234
System Upgrade.....................................................235
Parameter Management.........................................235
Auto Reboot............................................................236
Developer Mode .....................................................236
IP Camera Maintenance.............................. 237
Upgrade IP Camera................................................238
Load IP Camera Default Settings ...........................239
Reboot IP Camera..................................................240
Parameter Management.........................................241

ENFORCER 4K Network Video Recorder
Table of Contents (Continued)
4 SECO-LARM U.S.A., Inc.
Format IP Camera...................................................242
System Information ......................................243
System Information .................................................244
Channel Information................................................245
Record Information..................................................245
Network State..........................................................246
AI Scenario ................................................ 247
Cross Counting ........................................ 247
Real-Time Display and Controls...................248
Channel View Mode Settings .......................251
Group View Mode Settings...........................253
Advertisement Mode ....................................256
Search Counting Data..................................258
Face Attendance ...................................... 260
Object Classification................................. 263
Search, Playback, and Backup................. 267
Search and Play in General ..................... 268
Video Segment Backup................................271
Search, Play, and Back Up Event
Recordings ............................................ 273
Event Playback Control................................275
Sub-Periods Playback...............................277
Smart Search and Playback......................280
Tag Search and Playback.........................284
Play External Files ....................................286
Search and View Snapshots.....................288
Playing a Slideshow .................................... 290
Slice Search..............................................292
AI Search..................................................294
Face Detection Events ................................ 294
Playing Events........................................................296
Search and Compare Face Images (Recognition)..298
Tracking Faces .......................................................300
License Plate Search .................................. 305
Human and Vehicle ..................................... 308
PIC and LCD ............................................... 310
Repeat Visitors............................................ 312
Face Attendance ......................................... 315
Troubleshooting.........................................317
Warranty and Notices ................................318

ENFORCER 4K Network Video Recorder
SECO-LARM U.S.A., Inc. 5
Specifications
Model
DRN-104-2TB
DRN-108-2TB
DRN-116-4TB
Video
Resolution
8MP (4K), 5MP, 2MP (1080p), 1.3MP (960p), 1.0MP (720p)
Incoming bandwidth
50Mbps
76Mbps
112Mbps
Outgoing bandwidth
48Mbps
32Mbps
96Mbps
HDMI®output
1024x768, 1280x720, 1280x1024, 1440x900, 1920x1080, 2560x1440,
3840x2160 (4K)
VGA output
1024x768, 1280x720, 1280x1024, 1440x900, 1920x1080
Frame rate
4K: Up to 30FPS
4MP: Up to 60FPS
2MP: Up to 120FPS
4K: Up to 45FPS
4MP: Up to 90FPS
2MP: Up to 180FPS
Compression
H.265+/H.265/H.264+/H.264
AI
Support
Playback function
Fast forward / backward (2x,4x, 8x, 16x)
Slow forward (1/2x, 1/4x, 1/8x, 1/16x)
User Interface
Local
UI5.0
Web
IE10/11, Safari V12.1 above, Firefox V.52 above, Chrome V.57 above,
Edge V.79 above
Auxiliary Interface
HDMI®output
1 Output
VGA output
1 Output
POE input
4x RJ45
8x RJ45
16x RJ45
USB
USB2.0 x 1 front & 1 rear
Alarm I/O
None
8 In / 1 Out
Included HDD
2TB SATA
4TB SATA
Internal storage
capacity
1 SATA HDD, up to 10TB
2 SATA HDD, up to
10TB
General
Power supply
[email protected]
[email protected]
[email protected]A
Power consumption
5W
6W
8W
Operating humidity
Less than 90%RH
Operating temperature
32°~104°F (0°~40°C)
Dimensions
1113/16"x815/16"x21/16" (300x227x53 mm)
147/8"x133/8"x2"
(378x340x50 mm)

ENFORCER 4K Network Video Recorder
6 SECO-LARM U.S.A., Inc.
Warnings
•The device should be used in compliance with local laws, electrical safety regulations, and fire
prevention regulations.
•Use the provided power supply only. Never operate the equipment using another power supply.
•Insert the plug firmly into the power socket. Do not connect several devices to a single power
adapter.
•Power the device off before connecting and disconnecting accessories and peripherals.
•The NVR should not be placed in a dusty location.
•The NVR should be placed in a closed area with good ventilation and away from sunshine, rain,
and water. If the device should be exposed to water, unplug the power cable immediately.
•The NVR includes an HDD which produces a large amount of heat during operation. Do not
block the cooling vents (on the top, bottom, and both sides) during operation.
•Never place the NVR in an unstable location. The NVR may fall causing serious personal injury
or death.
•Keep the surface of the NVR clean and dry. Use only a soft cloth to clean the outer case of
NVR. Do not use liquid aerosol cleaners.
•If smoke, odor, or noise should come from the NVR, turn off the power immediately, unplug the
power cable, and contact your local dealer.
•This product contains a coin/button cell battery. If the battery is swallowed, it can cause severe
internal burns in under 2 hours possibly leading to death.
•If you think batteries might have been swallowed or placed inside any part of the body, seek
immediate medical attention.
•Keep new and used batteries away from children at all times.
•Do not dispose of the battery in a fire or hot oven, or mechanically crush or cut the battery.
Doing so may cause an explosion.
•Do not leave the battery in an extremely high temperature environment. Doing so may result in
an explosion or the leakage of flammable liquid or gas.
•Do not subject the battery to extremely low air pressure. Doing so may result in an explosion or
the leakage of flammable liquid or gas.
Please read the following safety instruction carefully to
avoid personal injuries and prevent the equipment and
other connection devices from being damaged.

ENFORCER 4K Network Video Recorder
7
Parts List
1x
NVR
1x
3' HDMI®Cable
1x
Mouse
4x
Screws for 2.5" HDD*
1x
Power supply
1x
3' Internet cable
1x
Manual
*DRN-116-4TB includes 8x mounting screws for 2.5" HDD and 4x mounting screws for 4.5" HDD.
Overview
DRN-104-2TB
DRN-108-2TB
DRN-116-4TB
Power
switch
48V
Audio
out
VGA
HDMI
USB
LAN
PoE
ports 1~4
Reset button
Power
switch
48V
Audio
out
VGA
HDMI
LAN
PoE ports 1~8
USB
Reset button
Power switch
48V
Audio
out
VGA
HDMI
LAN
PoE ports 1~16
USB
RS-485
Sensor (8~1, G)
Audio in
Reset button

ENFORCER 4K Network Video Recorder Overview
8 SECO-LARM U.S.A., Inc.
REAR PANEL FEATURE DESCRIPTIONS
•48V –Connect the included power supply.
•LAN –Connect to the internet router.
•PoE Ports –Connect to the PoE IP Cameras.
•USB –Connect the included mouse.
•HDMI®–Connect to a monitor via an HDMI®connection.
•VGA –Connect to a monitor via a VGA connection.
•Alarm –Connect to an external alarm output device such as a strobe or siren.
•Sensor (8~1, G) –Connect to external alarm sensors.
•Audio Out –Connect to speakers.
•Audio In –Connect to a microphone.
•RS-485 –Connect to an RS-485 device.

ENFORCER 4K Network Video Recorder
9
Installation and Connection
HARD DRIVE INSTALLATION
1. Power the NVR off, remove the screws on both sides and the rear panel and open the upper
cover (DRN-116-4TB shown in the following instructions but other models are similar).
CAUTION: DO NOT remove the cover or attempt to replace a hard drive while the device is
powered on.
2. Connect the data and power cables to the hard drive(s) and position as shown (DRN-116-4TB
shown here. DRN-104-2TB and DRN-108-2TB are similar but only have space and a port for a
single hard drive).
*DRN-116-4TB only
SATA Port 1
SATA Port 2*
Hard drive power

ENFORCER 4K Network Video Recorder Installation and Connection
10 SECO-LARM U.S.A., Inc.
Hard Drive Installation (Continued)
3. Carefully turn the NVR over and secure the hard drive(s) with screws (4 screws for each hard
drive).
4. Turn the NVR upright and carefully reattach the cover, replacing the screws on the sides and
back.
POWER SUPPLY
1. Connect the included power adapter to the 48V port on the back of the
NVR and plug it into a standard wall outlet.
CAUTION: Use only the provided power adapter. Use of any other
power adapter may damage the device and void the
warranty.
2. Turn the NVR on with the power switch located on the back panel.

Installation and Connection ENFORCER 4K Network Video Recorder
SECO-LARM U.S.A., Inc. 11
USING THE MOUSE
A. Left Button
•Click to select menu options.
•During Live View in split-screen view, double-click on a
channel to view it in full-screen. Double-click the
channel again to return to split-screen view.
•Click on a channel on a Live View screen to open the
Camera Quick Toolbar.
•Click and hold to drag sliders and scales in menu mode.
B. Right Button
•Click once to open the Taskbar on the Live View screen.
See the Taskbar on pg. 39.
•In menus, click to go back or close a menu.
C. Scroll Wheel
•In menus, scroll to move up or down through the menu content.
•While hovering over the volume control wheel, scroll to turn system volume up or down.

ENFORCER 4K Network Video Recorder Installation and Connection
12 SECO-LARM U.S.A., Inc.
USING THE VIRTUAL KEYBOARD
A virtual keyboard will appear onscreen at any point where data should be entered such as a
password, camera name, etc.
Click to toggle between upper case (and
additional punctuation) or lower case.
Click the left arrow to move the cursor left
or the right arrow to move the cursor right.
Click to delete a character.
Click to finish.

Installation and Connection ENFORCER 4K Network Video Recorder
SECO-LARM U.S.A., Inc. 13
PASSWORD
Strong and unique passwords are crucial to network security. Proper configuration of passwords
and other security settings is the responsibility of the installer and/or end-user.
SETTING A NEW PASSWORD
When you first set up the NVR, you will need to set your own username and password. It is
important that you record these and save them in a secure place for future reference.
•Language: Choose from one of the languages as the OSD language (default, English).
•Device ID: Enter a Device ID (default, 000000). See System Configuration, General Settings on
pg. 221 for more information on the Device ID.
•New Admin Password: Enter your new password. The password must be 8~16 characters,
combining at least 2 different types from among the following: uppercase letters, lowercase
letters, digits, and special symbols. You can view your Password Strength below to help you in
choosing a stronger password.
•Confirm Password: Enter the password again.

ENFORCER 4K Network Video Recorder Installation and Connection
14 SECO-LARM U.S.A., Inc.
•Unlock Pattern: Select Enable to allow unlocking with a pattern unlock. A separate screen will
open to allow you to "draw" your chosen pattern (see Set Unlock Pattern screen).
•Apply: Click Apply to confirm your settings. A Recover Password screen will open allowing you
to set password recovery questions should you forget your password.
PASSWORD –SETTING A NEW PASSWORD (CONTINUED)

Installation and Connection ENFORCER 4K Network Video Recorder
SECO-LARM U.S.A., Inc. 15
•Security Question Configuration: Check this box and choose three security questions using
the dropdown boxes beside each one and type in your answer exactly as you would always
answer it.
•Certificate Of Authorization: If you check this box, you will need to insert a USB drive and
click the Export button to save a secret key to the USB drive that will allow you to reset the
password in the future.
•Super Code: This option would allow the device to be unlocked by a temporary, time-bound
super code generated by an authorized dealer at your request if, at some future time, you were
to forget the password.
NOTE: Since the Super Code option is obviously much less secure, SECO-LARM does not
support this and would not be able to provide a super code.
PASSWORD –SETTING A NEW PASSWORD (CONTINUED)

ENFORCER 4K Network Video Recorder Installation and Connection
16 SECO-LARM U.S.A., Inc.
RESETTING A PASSWORD
You cannot log in to the system without the correct password. Should you forget the password, you
can reset it using one of the methods described below.
USING SECURITY QUESTIONS
If you enabled the Security Question Configuration option as described in Setting a New Password
beginning on pg. 13, you can reset it by answering these questions correctly.
1. In the login window, click the Forgot Password button.
PASSWORD (CONTINUED)

Installation and Connection ENFORCER 4K Network Video Recorder
SECO-LARM U.S.A., Inc. 17
2. Select Security Question Verification.
3. Enter the answer to each question.
4. Enter the new password twice and click OK to activate the new password.
PASSWORD –RESETTING A PASSWORD,USING SECURITY QUESTIONS (CONTINUED)

ENFORCER 4K Network Video Recorder Installation and Connection
18 SECO-LARM U.S.A., Inc.
USING THE SECRET KEY
If you enabled the Certificate of Authorization option as described in Setting a New Password
beginning on pg. 13, you can reset it with the secret key you exported to the USB drive at that time.
1. In the login window, click the Forgot Password button.
PASSWORD –RESETTING A PASSWORD (CONTINUED)

Installation and Connection ENFORCER 4K Network Video Recorder
SECO-LARM U.S.A., Inc. 19
2. Select Certificate of Authorization.
3. Insert the USB drive that includes the secret key and click the Import button to load the key.
4. Enter the new password twice and click OK to activate the new password.
USING A SUPER CODE
As noted in Setting a New Password beginning on pg. 13, SECO-LARM does not currently support
this option.
PASSWORD –RESETTING A PASSWORD,USING THE SECRET KEY (CONTINUED)

ENFORCER 4K Network Video Recorder Installation and Connection
20 SECO-LARM U.S.A., Inc.
HARD RESET
If you are unable to reset the password using any of the methods described above, you can reset
your NVR to factory default.
NOTE: Resetting your NVR will restore all settings to their factory
defaults resulting in the loss of all stored customizations, data,
and other settings and should be considered only as a last
resort.
1. To initiate a hard reset, find the reset button on the back just under
the USB port (see diagram, right).
2. Use a small pin or paper clip to press and hold the reset button for 10
seconds until you hear a beep.
Reset button
PASSWORD –RESETTING A PASSWORD (CONTINUED)
