Features:
1/3" Sony Super HAD CCD.
550 TV lines for high resolution.
56 IR LEDs: Up to 100 ft. (30m) range.
Day/Night Operation (0 lux with LEDs on).
DC auto iris varifocal 4 - 9mm lens.
External adjustments for zoom and focus.
Split-glass design to eliminate IR reflection.
CDS sensor.
Wiring concealed in bracket to prevent tampering.
Weatherproof IP66 for outdoor use.
Dual voltage: 12VDC or 24VAC.
56 Infrared LEDs
These LEDs illuminate the protected area with
bright infrared light to a range of up to 100 ft.
(30 meters), allowing a single EV-133C-DWAVQ
camera to replace multiple cameras at many
customer sites.
Split-Glass Design To Stop IR Reflection
Two separate panes of glass–one covering the lens,
the other covering the LEDs–are separated by the
lens hood to stop the LEDs’ infrared light from
reflecting off the glass and back into the lens.
DC Auto Iris Varifocal Lens
The focal length of the lens can be adjusted
from 4mm to 9mm via a convenient adjustment
screw under the camera. This allows the camera
to be set to cover a wide area or focus in on a
specific target.
Concealed Cabling Through The
Camera Mount
The power and video cables are concealed in
the mount between the camera and the
mounting base in order to protect the cables and
provide for a more attractive installation.

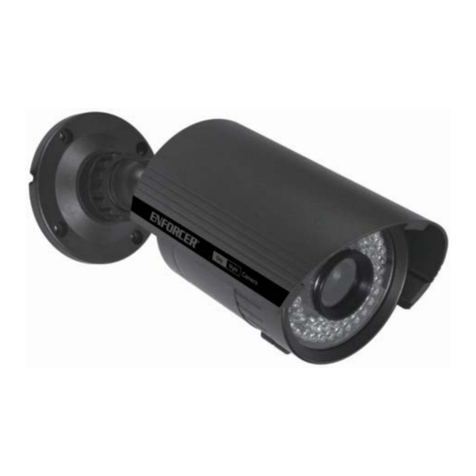

EV-133C-DWAVQ
56 IR LEDs
Up to 100 ft. (30m) Range
4 - 9mm Varifocal Lens
Day/Night Weatherproof
EV-133C-DWAVQ

1.949.261.2999 (CA & Int’l) 1.800.662.0800 Fax: [phone]
Email: [email protected] Website: www.seco-larm.com
16842 Millikan Avenue, Irvine, CA 92606
The SECO-LARMpolicy isone of continual development. For that reason,SECO-LARM reservesthe rightto changeprices and specifications withoutnotice. SECO-LARM isnotresponsible formisprints.
Copyright 2008 SECO-LARM U.S.A., Inc. All rights reserved.
EV-133C-DWAVQ-Data.cdr
Dimensions:
7
3/
16”(88mm)
313/16”(97mm)
59/32”(134mm)
315/16”(100mm) 7
9/8
”(251mm)
7
3/
16”(88mm)
311/16”(68mm)
Type
Chip
Resolution
Pickupelements
Scanningsystem
Sync
Videooutput
Lens
IR LEDs
IRdistance
Minimumillumination
Gammacorrection
S/Nratio
CDSsensor
Shuttercontrol
Backlightcompensation
Gaincontrol
Whitebalance
Powersource
Powerconsumption
Storagetemperature
Operatingtemperature
Dimensions
Weight
Colorcamera
1/3”Sony Super HAD CCD
550TVlines
768x494pixels
NTSC2:1interlace
Internal
1Vppcompositeoutput, 75 ohms
DCAutoIris, Varifocal4mm ~ 9mm,F1.6
56 IR LEDs
Upto100’ (30m)
0.1 lux (IR off), 0 lux (IR on)
0.45
Morethan 50dB
Photoconductivecells,10lux,Resistance 5~10kohm
Auto
Off
Auto
Auto
12VDC/24VAC(dualvoltage)
700mAmax. (IR on)
-4°~140°F(-20°~60°C),humidity95% max.
14°~122°F(-10°~50°C),humidity95% max.
315/16” x 59/32” x 97/8” (100 x 134 x 251 mm)
3lb.,5oz.(1,500g)
Specifications:
