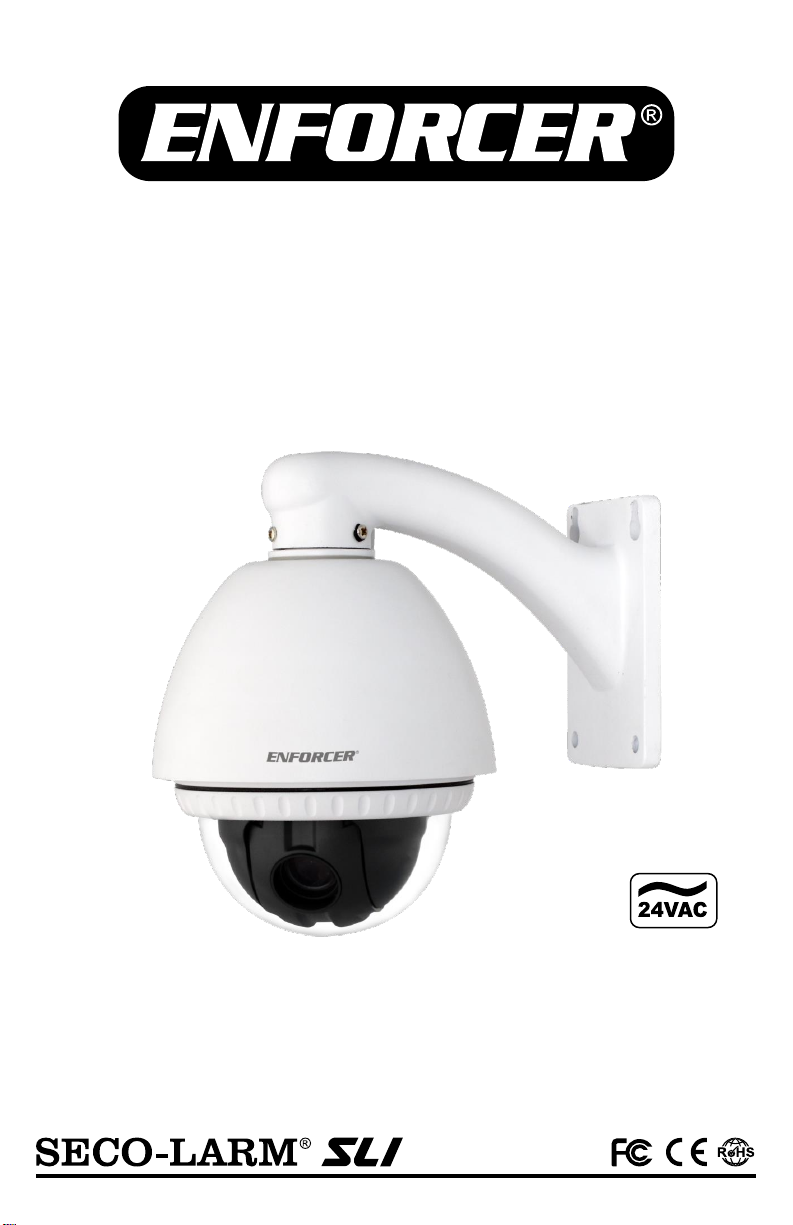

SECO-LARM ENFORCER EV-7605-NYWQ User manual

.
NOTE: Products with a model number that ends with “Q” or have a round green “Q” sticker represent RoHs compliant products.
EV-7605-NYWQ (NTSC)
EV-7605-PYWQ (PAL)
Mini PTZ Camera
Manual
12x Optical zoom and 16x digital zoom
Up to 192x zoom
Up to 360°/sec pan/tilt motion
Outdoor or indoor use
Up to 256 preset target views, each with
its own characteristics such as white
balance and auto exposure
Up to 90° tilt, up to 180° with auto-flip

ENFORCER Mini PTZ Camera
2SECO-LARM U.S.A., Inc.
Table of Contents:
Introduction .....................................................2
Features and Functions ..................................3
Parts List .........................................................4
Specifications..................................................4
Pan/Tilt Settings..............................................4
Dimensions .....................................................5
Safeguards and Precautions...........................6
Overview .........................................................7
Camera Address DIP Switch and
Communication Protocol Setup ......................7
Installation .......................................................8
Pre-operation Checklist...................................9
Understanding and Operating Preset
and Pattern Functions...................................10
Configuring Mini PTZ Camera with
Enforcer DR-1 Series DVR ...........................11
Reserved Presets..........................................12
Configuration Defaults...................................12

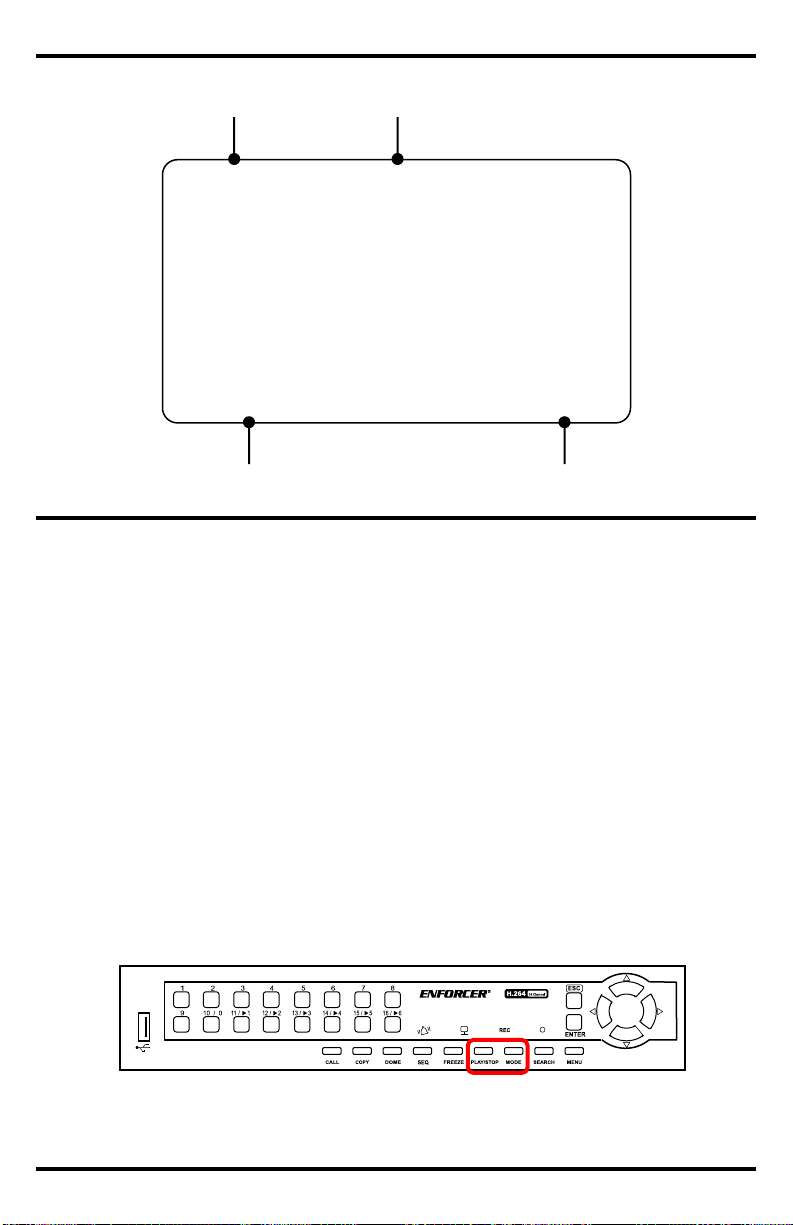

OSD Display..................................................13
Operating the OSD Menus............................13
Menu Diagrams.......................................14~16
System Information Menu .............................17
Addr Setting Menu ........................................ 17
Motion Menu ...........................................18~19
Pattern Menu ................................................ 19
Camera Menu .........................................20~21
Motion Detect Submenu ............................... 22
Focus Submenu............................................ 23
Exposure Submenu ...................................... 24
Special Submenu....................................25~26
Cruise Setting Menu ..................................... 27
Password Menu ............................................ 27
Display Setup Menu...................................... 28
Windows Blanking Menu .............................. 28
Alarms Setting Menu .................................... 28
Preset Label Menu........................................ 29
Restore Factory Default Menu...................... 29
Reboot System Menu ................................... 29
Preset Worksheet ......................................... 30
Installation Notes .......................................... 31
Troubleshooting ............................................ 32
Also Available from SECO-LARM................. 32
FCC Compliance Statement......................... 32
Warranty ....................................................... 32
The ENFORCER Mini PTZ Camera is a compact full-featured PTZ (pan/tilt/zoom) CCTV camera. In as little
as one second, the camera can pan a full 360 degrees, tilt up to 90 degrees, or auto-flip 180 degrees. It also
features an optical zoom of up to 12x and a digital zoom of up to 16x, providing a clear view of the entire
protected premises. The 1/4”Interline Transfer CCD provides high-resolution, 600 TV Line images in light as
low as 0.2 Lux for color use and 0.04 Lux for black and white use. A small size and a wide range of
mounting brackets make the ENFORCER Mini PTZ Camera ideal for almost any installation.
The Mini PTZ Camera is controlled with a keyboard controller or a DVR that uses RS-485 for
communicating between the devices.
Introduction:

ENFORCER Mini PTZ Camera
SECO-LARM U.S.A., Inc. 3
Powerful and Flexible: The ENFORCER Mini PTZ Camera is equipped with a 1/4”CCD, a powerful Day
and Night function with mechanical ICR, up to 192x zoom (max. 12x optical zoom and 16x digital zoom),
multiple focus modes, and other fully programmable features.
Pan/Tilt Functionality: The camera features 360° endless pan motion and 90° tilt. It can be programmed
to automatically flip the image if it tilts under the unit. The pan/tilt function uses vector drive technology to
quickly move to the target while ensuring the view on the monitor flows smoothly.
On-Screen Display (OSD): The On-Screen Display shows camera status and settings together with the
preset target views.
A Wide Range of Programmable Options:
Up to 256 preset target views, each with its own characteristics such as zoom and lens angle
Up to four patterns for moving the camera as if it were controlled by a joystick
Up to eight privacy masks which can be increased or decreased in size to cover certain areas to
protect privacy
Frame scan between two preset positions
Preset cruise for scanning between the first twenty presets
Reserved Presets: Certain camera characteristics can be specified by using reserved preset
configurations instead of individually configuring those characteristics.
Standard PTZ Control: Works with Pelco-D or Pelco-P compatible controllers via an RS-485 connection.
Auto-Flip: Vertically inverts the image if the camera tilts below its center.
Parking Action: Should no operator-activated or automated camera action occur during a specified time
(programmable from 15 to 250 seconds), the camera automatically moves to a pre-determined preset
position or any pre-programmed pattern, frame scan, or other scan function.
Smart Power-Up: The camera automatically moves to a pre-determined preset position or any pre-
programmed pattern, frame scan, or other scan function on power-up.
Window Blanking: Up to eight privacy masks can be created to cover certain areas or objects such as
windows or private houses. The masks can be adjusted for size. When the camera moves past such areas
or objects, the mask automatically covers them.
Semi/Auto Focus: The focus for each preset location is manually set, and the camera automatically uses
that focus when it moves to a preset location. During jog operations, the camera uses auto focus. The shift
between semi-auto and auto focus occurs automatically.
Features and Functions:

ENFORCER Mini PTZ Camera
4SECO-LARM U.S.A., Inc.
1x Camera 4x Short screws (for attaching camera to bracket)
1x Wall-mount bracket 4x Long screws (for attaching bracket to wall)
1x Manual 4x Screw anchors
1x Wire harness extension cord
Parts List:
EV-7605-NYWQ
EV-7605-PYWQ
Type
Mini PTZ Camera
CCD
¼” Interline transfer
Resolution
600TVL
Video output format
NTSC
PAL
Effective pixels
768x494 pixels
752x582 pixels
SSNR (Noise Reduction)
Low, middle, high, off
SSDR (Dynamic Range)
Off, on
Day/Night
Auto, Color, B/W (ICR)
OSD Control
RS-485
Protocols
Pelco-D, Pelco-P (automatic)
Scanning system
2:1 Interlace
Sync
Internal/Line-Lock
Video output
1.0Vp-p Composite video, 75Ω
Lens
3.94~46.05mm
Zoom
12x Optical / 16x Digital
Minimum illumination
Color: 0.2 Lux / B/W: 0.04 Lux
Gamma correction
Default
S/N Ratio
52dB (AGC Off)
DSS (Digital Slow Shutter)
x2~x512
Shutter control
1/60~1/120,000 s
Gain control
Off, Low, Middle, High, Manual
White balance
ATW, AWC, Indoor, Outdoor, Manual
Operating voltage
24VAC
Power
Consumption
Camera only
9W
Camera w/ fan
10W
Camera w/ fan and heater
20W
IP Rating
IP66
Operating temperature
-4°F~131°F (-20°C~55°C)
Dimensions
413/16”x7”x413/16” (122x180x122 mm)
Cable length
31.5” (80cm)
Weight
42.3-oz (1.2kg)
Specifications:
Range
Pan
360°
Tilt
180°
Pan/Tilt Speed
Preset
Up to 360°/s
Manual
0.05~360°/s (proportional to zoom)
Swing
1~180°/s
Presets
Max. 256 presets (Label, camera image setting)
Patterns
Max. 4 patterns
Pan/Tilt Settings:

ENFORCER Mini PTZ Camera
SECO-LARM U.S.A., Inc. 5
Camera
Wall-Mount Bracket

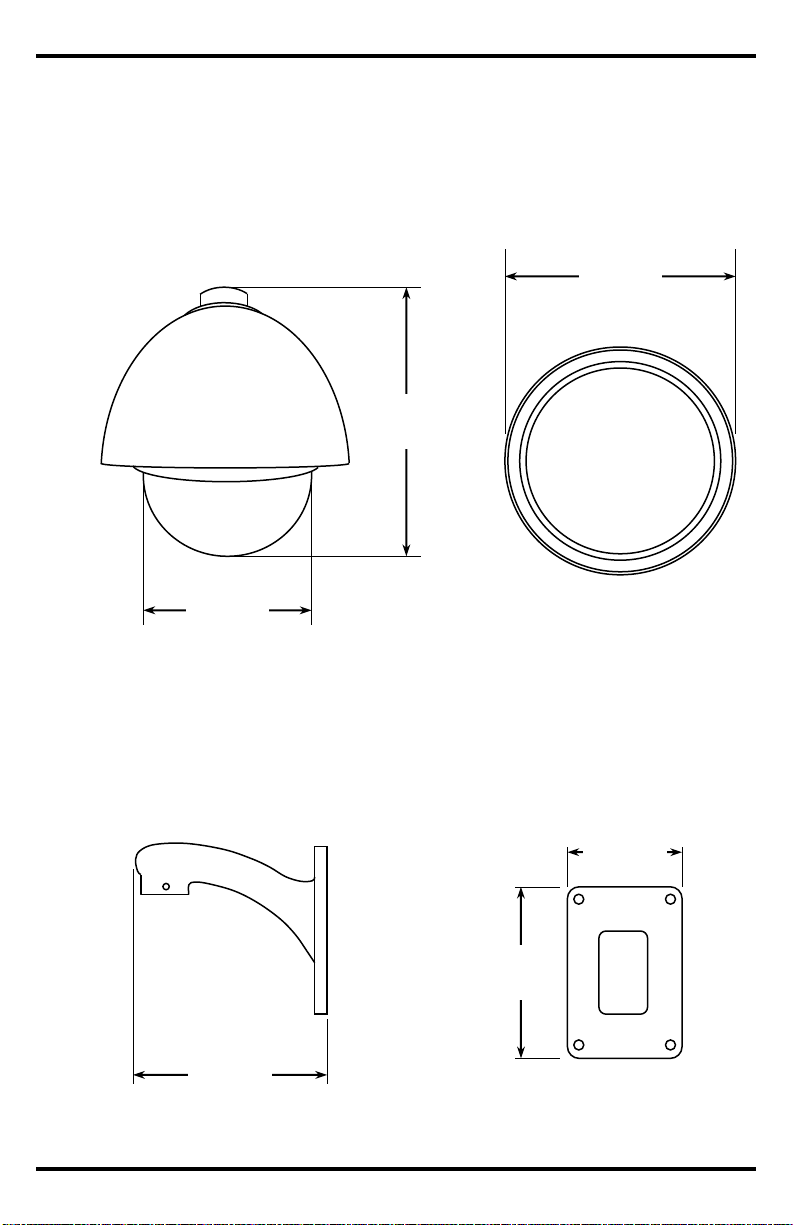

Dimensions:
6”
(152mm)
31/8”
(80mm)
411/16”
(119mm)
61/2”
(166mm)
Side
Bottom
Side
Bottom
413/16”
(122mm)
7”
(180mm)

ENFORCER Mini PTZ Camera
6SECO-LARM U.S.A., Inc.
Before Starting:
1. Please read this manual carefully and keep it for future reference.
2. Use the camera within given temperature and electrical limits.
3. Do not point the camera at the sun. Heat could damage the camera, even when not in use.
4. Do not expose the camera to rain or moisture.
5. Do not install the camera in dusty or humid environments.
6. Do not mount the camera in areas exposed to radiation, strong magnetic fields, or strong electrical
signals.
7. Do not open or disassemble the camera. There are no field-serviceable parts inside.
8. Do not drop the camera or subject it to strong vibrations.
9. This camera is VERY HEAVY. To prevent injury to the installer or the client, do not mount it on an
unstable or improperly supported surface. When mounting, only use brackets or other mounting devices
that are recommended in this manual.
Operation Precautions:
1. Only use regulated power supplies with voltage and minimum current output per the specifications of
this camera.
2. If the camera gets hot or starts smoking while in use, disconnect the power immediately and contact the
professional installer or dealer.
Cleaning Precautions:
1. Periodically clean the dust off the entire camera with a slightly damp (NOT WET) cloth. DO NOT USE
chemical cleaners.
2. Do not move the camera while cleaning, as this could change the angle of the view.
3. If the dome cover becomes dusty, carefully clean using a slightly damp (NOT WET) cloth. DO NOT USE
chemical cleaners. DO NOT SCRATCH the dome, as this will affect the quality of the video image.
Safeguards and Precautions:

ENFORCER Mini PTZ Camera
SECO-LARM U.S.A., Inc. 7

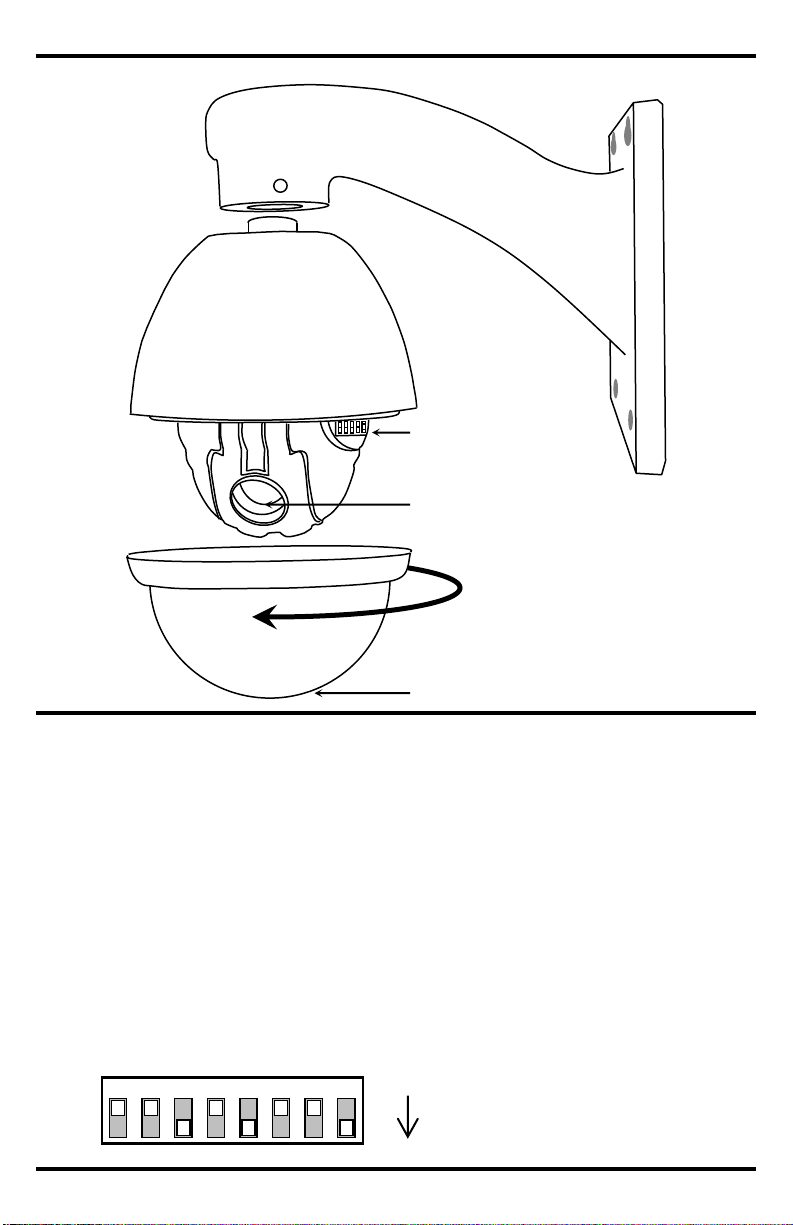

Overview:
Before the Mini PTZ Camera is installed, first set up the DIP switches to configure the camera address. The
communication protocol is configured automatically by the camera.
1. Remove the clear dome of the Mini PTZ Camera by turning it counterclockwise by hand.
2. Look for the DIP switch block near the base of the black plastic dome that surrounds the camera. DO
NOT REMOVE THE BLACK PLASTIC DOME.
3. Set the camera address (8-pin DIP switch):
The camera address is a number from 1 to 255. The factory default camera address is "1".
Do not use "0" as a camera address.
The address of a particular camera must match the address setting of the DVR or keyboard
controller.
To get the camera address, add the total DIP switches that are in the ON position.
Example: If DIP switches 1, 4, and 6 are ON then the camera address is 1+8+32=41.
Camera Address DIP Switch and Communication Protocol Setup:
:
Wall mount
bracket
Camera
DIP Switches
Lens
Dome
Turn counterclockwise to
remove
Value
8
1
2
3
4
5
6
7
128
1
2
4
8
16
32
64
ON
OFF

ENFORCER Mini PTZ Camera
8SECO-LARM U.S.A., Inc.
1. Connect the camera to either the included wall mount or another optional bracket.
2. Run a 24VAC power supply wire, a video cable with a male BNC connector, and a data wire through the
wall to where the camera is to be mounted.
3. Connect the camera's video cable to the video cable coming from the wall. Do not cut the female BNC
connector of the camera's video cable as that will void the warranty.
4. Connect the camera's RS-485 cable to the data wire cable coming from the wall.
5. Temporarily connect the camera to the power supply. Do not cut the AC power terminal of the
camera's power cable as that will void the warranty.
6. Hold the camera's bracket against the wall or ceiling where it is to be mounted, but do not mount yet.
While watching the monitor, operate the camera's pan and tilt functions to ensure that this mounting
location is correct. Use a pencil to mark the location of the screw holes in the mounting bracket.
7. Disconnect the power supply from the camera.
8. Mount the mounting bracket to the wall or ceiling using the included mounting screws. If the wall is
made of drywall, brick, or similar material, it may be necessary to use the included screw anchors.
9. Reconnect the camera's power supply.
10. Program the camera via the OSD (on-screen display) menus from the DVR or keyboard controller.
11. Do a final test of the video camera and monitor.
Installation:
:
Basic Installation
Multiple PTZ Camera Installation
DR-1 Series DVR
RS-485
24VAC Jack
Coaxial cable
RS-485 (-) (Yellow)
RS-485 (+) (Purple)
#1
#2
#n

ENFORCER Mini PTZ Camera
SECO-LARM U.S.A., Inc. 9
Before operating the Mini PTZ Camera, please note the following:
Double-check that the cables are properly run between the controller and camera, and that all
connections are correct.
Double-check that the camera address on the controller is the same as the address of the target
camera. The camera address can be found by looking at the camera address DIP switch settings
(see page 7) or through the ADDR SETTING menu in the OSD (see page 17).
The Pelco protocol setting of the controller and the camera must be identical. The Pelco protocol setting
of the camera is automatically matched to the communication protocol of the controller or DVR.
Make sure that the camera is rebooted after the camera address setup DIP switches are changed.
Refer to the controller or DVR manual for information on configuring or operating those devices.
Pre-Operation Checklist:
:

ENFORCER Mini PTZ Camera
10 SECO-LARM U.S.A., Inc.
Understanding and Operating Preset and Pattern Functions:
:
Standard Pelco-compatible controllers allow the camera operator to do several functions without going
through the full OSD menu, depending on the capabilities of the DVR to which the camera is connected.
The SECO-LARM series of DVRs allows operators to do the following via the "Dome Preset" menu:
Set the camera to remember multiple specific preset locations.
Tell the camera to go to a specific preset location.
Run certain preset functions, including patterns, frame scan, or preset cruise functions.
Change certain configuration patterns.
Programming the patterns, frame scan, preset cruise, and a detailed configuration of the PTZ camera
requires operators to use the OSD menu. See page 16 for more information.
This PTZ camera can be controlled by any DVR or keyboard controller which uses Pelco-compatible
protocols. When using non-SECO-LARM DVRs or when using keyboard controllers, the manuals for those
devices may include information on how to operate or program the PTZ camera.
To set or go to a preset location or use a preset function via a SECO-LARM DVR:
1. Press the "Dome" button. The lower left corner of the screen will change from "REC" to "DOME" to
show the camera is in the Dome Control menu.
2. Press the "1" button to go to the DOME PRESET menu.
3. Use the UP, DOWN, LEFT, and RIGHT buttons to highlight your selection and press ENTER to confirm
your selection.
Note: In most cases, only the GO function will work. Only the preset locations can be programmed via
the DOME PRESET menu. Other functions must be programmed using the OSD menu.
4. Use the UP and DOWN arrows to switch between YES and NO. Navigate to YES, and then press the
ENTER button.
See page 12 for a list of preset functions.

ENFORCER Mini PTZ Camera
SECO-LARM U.S.A., Inc. 11
Configuring Mini PTZ Camera with Enforcer DR-1 Series DVR:
:
Step 1
Press Dome on the DVR front panel to access DVR
controls.
Step 2
Press 1to access the DVR preset menu.
Step 3
Use the Up, Down, Left, Right, and Enter buttons
to make a selection.
Step 4
Go to Preset 95 to access Mini PTZ OSD settings.
This will bring up the SPEED DOME CAMERA menu as shown on page 18.

ENFORCER Mini PTZ Camera
12 SECO-LARM U.S.A., Inc.
Reserved Presets:
:
<Go Preset> [82]
Pan
Start Frame Scan function
<Go Preset> [83]
Clear all Presets
<Go Preset> [84~87]
Run Pattern function 1~4
<Go Preset> [88]
Run Preset 1~10 Cruise function
<Go Preset> [89]
Run Preset 11~20 Cruise function
<Go Preset> [90]
Run Preset 21~30 Cruise function
<Go Preset> [91]
Run Preset 31~40 Cruise function
<Go Preset> [92]
Run 360° Random Interval Scan function
<Go Preset> [95]
Enter into OSD menus
<Go Preset> [98]
Run 360° Continuous Scan function
<Go Preset> [99]
Run Preset Cruise function
Configuration Defaults:
:
Default Display Configuration
Default Camera Configuration
Preset Label
ON
SSDR
ON
Zoom
ON
White Balance
ATW
P/T Deg
ON
Backlight
OFF
Camera Title
OFF
Motion Detect
OFF
Camera ID
OFF
Focus Mode
AUTO
Camera Info
OFF
Digital Zoom
OFF
Motion Alarm
OFF
Brightness
50
Zoom Mag
OFF
Iris
AUTO
Default Motion Configuration
AGC
HIGH
Power Up
NONE
SSNR3
ON
Park Time
15s
SENS-UP
AUTO
Park Action
NONE
Day/Night
AUTO
Dome Speed
4
User Edit Data
Preset 1~81, 100~256
UNDEFINED
Frame Scan
UNDEFINED
Pattern 1~4
UNDEFINED

ENFORCER Mini PTZ Camera
SECO-LARM U.S.A., Inc. 13
For operating the OSD menus, please note the following:
To access the OSD menu from your DVR, go to Preset 95. For more information on DVR presets and
their functions for the ENFORCER Mini PTZ Camera, please see page 11, Reserved Presets.
Most commands are done on PELCO-compatible DVRs using the front panel buttons, including up,
down, right, and left arrows, or via a panel-mounted joystick. Such operations may also be possible
using the DVR’s remote control.
For many menu operations, the user must press the MODE or PLAY/STOP buttons. For most DVRs,
these are the buttons for iris open (MODE) and iris close (PLAY/STOP), but may be marked with other
words.
For ENFORCER DR-1 Series DVRs, the operations are done as follows:
–To navigate the menus, press the UP/DOWN/LEFT/RIGHT buttons.
–To enter a sub-menu (except for the CAMERA sub-menu), press the MODE or
RIGHT buttons.
–To enter a sub-menu in the CAMERA sub-menu, press the MODE button.
–To exit all menus (except for the CAMERA sub-menu), press the PLAY/STOP button.
OSD Display:
:
Operating the OSD Menus:
:
PLAY/STOP and MODE
buttons
CAMERA TITLE
PRESET 1
0/42
x1
Pan/Tilt Information
Action Title
Camera Title
Zoom Information

ENFORCER Mini PTZ Camera
14 SECO-LARM U.S.A., Inc.
Menu Diagram:
(see pg. 17)
:
SETUP MENU
SETTING
SETTING OPTIONS
SYSTEM
INFORMATION
(see pg. 18)
COM
ADDRESS
SOFTWARE VERSION
ADDR SETTING
(see pg. 18)
ADDR TYPE
HARD / SOFT
ADDR SOFT
1~255
ADDR HARD
MOTION
(see pg. 19~20)
FRAME SCAN
SET SCAN POSITION
CLEAR FRAME SCAN
FRAME SCAN SPEED: 1~32
POWER UP
NONE / AUTO SCAN / RANDOM SCAN / FRAME SCAN /
PRESET 1 / PRESET 8 / PATTERN 1 / PATTERN 2 /
PATTERN 3 / PATTERN 4 / CRUISE
PARK TIME
15~250S
PARK ACTION
NONE / AUTO SCAN / RANDOM SCAN / FRAME SCAN /
PRESET 1 / PRESET 8 / PATTERN 1 / PATTERN 2 /
PATTERN 3 / PATTERN 4 / CRUISE / REPEAT LAST
DOME SPEED
1~8
PATTERN
(see pg. 20)
PATTERN NUMBER
1~4
PROGRAM PATTERN
CLEAR CURRENT PATTERN
CLEAR ALL PATTERNS
CAMERA
SSDR
ON: SSDR: 1~15
D-RANGE: NARROW / WIDE
OFF
WHITE BALANCE
ATW
MANUAL: RED: 0~1023
BLUE: 0~1023
AWC→SET
OUTDOOR
INDOOR
BACKLIGHT
OFF
BLC: LEVEL: LOW / MIDDLE / HIGH
TOP: 0~68
BOTTOM: 32~100
LEFT: 0~70
RIGHT: 30~100
HLC: LEVEL: LOW / MIDDLE / HIGH
MASK TONE: 0~15

ENFORCER Mini PTZ Camera
SECO-LARM U.S.A., Inc. 15
Menu Diagram:
:
SETUP MENU
SETTING
SETTING OPTIONS
CAMERA –
MOTION DETECT
OFF
ON
AREA SELECT: AREA1~AREA8
AREA MODE: ON: TOP: 1~26
BOTTOM: 5~30
LEFT: 1~44
RIGHT: 5~48
OFF
SENSITIVITY: LOW / HIGH
SMART ZOOM: OFF
ON: START ZOOM: x1~x12
TARGET ZOOM: x1~x12
DWELL TIME: 5~60 SEC
CAMERA –
FOCUS
MODE
AUTO: TELE / WIDE
ONE-PUSH: TELE / WIDE / NEAR / FAR
MANUAL: TELE / WIDE / NEAR / FAR
ZOOM TRACK
AUTO TRACK / TRACK / OFF
ZOOM SPEED
SLOW / MEDIUM / FAST
D-ZOOM
OFF
ON: LIMIT: x2~x16
ZOOM POS INIT
OFF
AUTO
MANUAL: POS INIT: x1~x12
USER PRESET
OFF
ON: PRESET NO: 1~128: TELE / WIDE / NEAR / FAR
PRESET SAVE
PRESET CLEAR
LENS INIT
MANUAL
AUTO: DAY: 1~7
CAMERA –
EXPOSURE
BRIGHTNESS
1~100
IRIS
AUTO
MANUAL: IRIS F-NO: F1.6~F28, CLOSE
SHUTTER
_ _ _
MANUAL: MANUAL: 1/60~1/120,000, x512~x2
A. FLK
ESC
AGC
OFF
LOW
MEDIUM
HIGH
MANUAL: AGC VAL: 5dB~41dB
SSNR3
OFF
ON: LEVEL: 1~32
_ _ _
SENS-UP
OFF
AUTO: LIMIT: x2~x512
_ _ _

ENFORCER Mini PTZ Camera
16 SECO-LARM U.S.A., Inc.
Menu Diagram:
:
SETUP MENU
SETTING
SETTING OPTIONS
CAMERA –
SPECIAL
DAY/NIGHT
AUTO: DWELL TIME: 5~60 SEC
DURATION: SLOW / FAST
EXT
COLOR: BURST LEVEL: 0~100
B/W: BURST MODE: ON / OFF
DIS
OFF / ON
SYNC
INT
IMAGE ADJ
H-REV: OFF / ON
V-REV: OFF / ON
SHARPNESS: ON: LEVEL: 1~31
OFF
MONITOR
CRT: PED LEVEL: 0~70
COLOR LEVEL: 1~100
LCD: GAMMA: 0.20~1.0
PED LEVEL: 0~70
COLOR LEVEL: 1~100
USER: GAMMA: 0.20~1.0
PED LEVEL: 0~70
COLOR LEVEL: 1~100
DISPLAY
CAM TITLE: OFF
ON: Select camera title
CAM ID: OFF / ON
CAM INFO: OFF / ON
MOTION ALARM: OFF / ON
ZOOM MAG: OFF / ON
OSD COLOR: WHITE / YELLOW / GREEN / RED / BLUE
LANGUAGE: ENGLISH / KOREAN / JAPENESE /
SPANISH / FRENCH / PORTUGUESE
CRUISE SETTING
DWELL TIME
5~250 seconds
PRESET (1~20)
ON / OFF
PASSWORD
ENABLE PASSWORD
OFF / ON
EDIT PASSWORD
Modify password for OSD access
DISPLAY SETUP
PRESET LABEL
ON / OFF
ZOOM
ON / OFF
P/T DEG
ON / OFF
WINDOWS BLANKING
WINDOW NUMBER
1~8
EDIT WINDOW LOCATION
Edit size and location of privacy window
ENABLE WINDOW
OFF / ON
CLEAR WINDOW
Clear selected privacy window
ALARMS SETTING
ALARM ACT (1~4)
Reserved for future use
PRESET LABEL
PRESET
1~79
SET PRESET LABEL
Set selected preset label
CLEAR PRESET LABEL
Clear selected preset label
RESTORE FACTORY
DEFAULT
Restores factory defaults (except CAMERA section)
REBOOT SYSTEM
Reboot and go through start-up features
EXIT
Exit menu and save settings

ENFORCER Mini PTZ Camera
SECO-LARM U.S.A., Inc. 17
COM: Displays current serial baud rate, parity, data bits,
and stopped position of the camera.
ADDRESS: Displays the currently set address.
SOFTWARE VERSION: Displays the software version.
BACK: Return to previous menu.
EXIT: Exit OSD menus.
SYSTEM INFORMATION Menu:
From MAIN MENU
This menu shows the current configuration information of the Mini PTZ Camera. No information can be
programmed using this OSD menu.
SYSTEM INFORMATION
COM 9600, N, 8, 1
ADDRESS 6
SOFTWARE VERSION V5.3.2
BACK
EXIT
ADDR SETTING Menu:
From MAIN MENU
This menu allows for setting the address via the DIP switches or via the Mini PTZ software.
ADDR TYPE: Set the address type.
–HARD: Set via hardware DIP switches.
–SOFT: Set via software.
ADDR SOFT: Set the soft address.
–1~255
ADDR TYPE: Display the current DIP switch address.
BACK: Return to previous menu.
EXIT: Exit OSD menus.
ADDR SETTING
ADDR TYPE HARD
ADDR SOFT 1
ADDR HARD 1
BACK
EXIT

ENFORCER Mini PTZ Camera
18 SECO-LARM U.S.A., Inc.
MOTION Menu:
From MAIN MENU
This menu allows for setting different Mini PTZ movement options such as frame scan, power up operation,
and park action.
FRAME SCAN: The camera will pan between two
positions at a given angle.
SET SCAN POSITION: Set left and right frame scan
positions.
CLEAR FRAME SCAN: Clear the frame scan
positions.
–FRAME SCAN SPEED: Set the frame scan speed.
1~32
–BACK: Return to previous menu.
–EXIT: Exit OSD menus.
POWER UP: The camera will perform one of the below
actions.
–NONE: No action.
–AUTO SCAN: Continuous clockwise scan at given
tilt and zoom.
–RANDOM SCAN: Intermittent clockwise scan at
given tilt and zoom.
–FRAME SCAN: Continuous scan between two
positions.
–PRESET 1: Move to the Preset 1 position.
–PRESET 8: Move to the Preset 8 position.
–PATTERN 1: Perform the Pattern 1 action.
–PATTERN 2: Perform the Pattern 2 action.
–PATTERN 3: Perform the Pattern 3 action.
–PATTERN 4: Perform the Pattern 4 action.
–CRUISE: Perform the Cruise action between
Presets 1 through 20.
MOTION
FRAME SCAN
POWER UP NONE
PARK TIME 15S
PARK ACTION NONE
DOME SPEED 4
BACK
EXIT
SET SCAN POSITION
LEFT LIMIT POSITION
IRIS OPEN TO CONTINUE
340/42 X1
FRAME SCAN
SET SCAN POSITION
CLEAR FRAME SCAN
FRAME SCAN SPEED 16
BACK
EXIT

ENFORCER Mini PTZ Camera
SECO-LARM U.S.A., Inc. 19
MOTION Menu, continued:
PARK TIME: Idle time required before Park Action.
–15~250 seconds
PARK ACTION: The camera will perform one of the below actions.
–NONE: No action.
–AUTO SCAN: Continuous clockwise scan at given tilt and zoom.
–RANDOM SCAN: Intermittent clockwise scan at given tilt and zoom.
–FRAME SCAN: Continuous scan between two positions.
–PRESET 1: Move to the Preset 1 position.
–PRESET 8: Move to the Preset 8 position.
–PATTERN 1: Perform the Pattern 1 action.
–PATTERN 2: Perform the Pattern 2 action.
–PATTERN 3: Perform the Pattern 3 action.
–PATTERN 4: Perform the Pattern 4 action.
–CRUISE: Perform the Cruise action between Presets 1 through 20.
–REPEAT LAST: Repeat the last action.
DOME SPEED: Speed at which the Power Up Action and Park Action will move.
–1~8
BACK: Return to previous menu.
EXIT: Exit OSD menus.
PATTERN Menu:
From MAIN MENU
This menu allows for programming up to 4 unique patterns each with up to 100 actions including pan, tilt,
and zoom actions.
PATTERN NUMBER: Choose which pattern to set.
–1~4
PROGRAM PATTERN: Program the chosen pattern
with up to 100 actions including pan tilt and zoom.
CLEAR CURRENT PATTERN: Clear the chosen
pattern.
CLEAR ALL PATTERNS: Clear all patterns.
BACK: Return to previous menu.
EXIT: Exit OSD menus.
PATTERNS
PATTERN NUMBER 1
PROGRAM PATTERN
CLEAR CURRENT PATTERN
CLEAR ALL PATTERNS
BACK
EXIT
PROGRAM PATTERN
MOVE THE CAMERA TO THE
STARTING POSITION
IRIS OPEN TO CONTINUE
340/42 X1

ENFORCER Mini PTZ Camera
20 SECO-LARM U.S.A., Inc.
CAMERA Menu:
From MAIN MENU
This menu allows for setting different camera options such as SSDR, white balance, backlight, motion
detection, and exposure settings. Use the MODE (IRIS OPEN) key to enter submenus in this menu.
SSDR: Set dynamic range on or off.
ON: Turns SSDR on and enters SSDR sub-menu.
SSDR
o1~15
D-RANGE
oNARROW: Set for low light level.
oWIDE: Set for high light level.
RETURN : Return to the previous camera
menu.
–OFF
WHITE BAL: Adjust the color temperature and image
color.
–ATW: Set Automatic Tracking White Balance on.
MANUAL: Manually set the white balance.
RED: Set the red gain.
o0~1023
BLUE: Set the blue gain.
o0~1023
RETURN : Return to the previous camera
menu.
–AWC→SET: Press Iris Open when the camera is
focused on a plain white sheet of paper.
–OUTDOOR: Set the white balance for an outdoor
environment.
–INDOOR: Set the white balance for an indoor
environment.
MAIN SETUP
SSDR ON
WHITE BAL ATW
BACKLIGHT OFF
MOTION DET OFF
FOCUS
EXPOSURE
SPECIAL
RESET
EXIT
SSDR SETUP
SSDR -------x------- 8
D-RANGE NARROW
RETURN
WHITE BAL MANUAL SETUP
RED -------x-------529
BLUE -------x-------532
RETURN
