• Check that the camera is powered up.
• Check that the monitor is powered up.
• Check that the video cable connecting the camera to the monitor is connected properly.
• Clean the lens (using a soft, clean cloth).
• Check that the light source is adequate.
• Adjust the monitor’s contrast knob.
• Change the position of the camera.
• Change the position of the camera.
• Check “Focus” adjustment.
• Change the position of the camera.
• Check that the correct power supply is in use.
The screen is blank
The screen image is dim
The screen image has poor
contrast
The screen image flickers
The screen image is distorted
The camera case is hot
TROUBLE SHOOTING
MANUAL
ENFORCER
EV-133C-DWAVQ
1/3”CCD High-Res IR Bullet
Camera with 56 LEDs,
Split Glass Technology,
and 550 TV Lines
SECO-LARMSECO-LARM
SECO-LARMSECO-LARM
SECO-LARM®®
®®
®
VIDEO
®
SECO-LARM®U.S.A., Inc.
16842 Millikan Avenue, Irvine, CA 92606
Tel: [phone] Fax: [phone]
Website: www.seco-larm.com
E-mail: sales @ seco-larm.com
PIKHR1
®
IMPORTANT Users and installers of this product are responsible for ensuring this product complies with all national,
state, and local laws and statutes related to monitoring and recording audio and video signals. SECO-LARM will not be held
responsible for the use of this product in violation of any current laws or statutes.
WARNING Stop using the camera if you see a malfunction like smoke or unusual heat, as it could cause fire or electric
shock. Do not open the case of this device, as there are no field-serviceable components inside.
FCC COMPLIANCE STATEMENT Information to the user: This equipment has been tested and found to comply with
the limits for a Class A digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a commercial environment. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction
manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely
to cause harmful interference in which case the user will be required to correct the interference at his own expense.
NOTICE
The information and specifications printed in this manual are current at the time of publication. However, the SECO-LARM
policy is one of continual development and improvement. For this reason, SECO-LARM reserves the right to change
specifications without notice. SECO-LARM is also not responsible for misprints or typographical errors.
Copyright © 2008 SECO-LARM U.S.A., Inc. All rights reserved. This material may not be reproduced or copied, in whole or
in part, without the written permission of SECO-LARM.
WARRANTY This SECO-LARM product is warranted against defects in material and workmanship while used in normal
service for a period of one (1) year from the date of sale to the original consumer customer. SECO-LARM’s obligation is
limited to the repair or replacement of any defective part if the unit is returned, transportation prepaid, to SECO-LARM.
This Warranty is void if damage is caused by or attributed to acts of God, physical or electrical misuse or abuse, neglect,
repair, or alteration, improper or abnormal usage, or faulty installation, or if for any other reason SECO-LARM determines
that such equipment is not operating properly as a result of causes other than defects in material and workmanship.
The sole obligation of SECO-LARM, and the purchaser’s exclusive remedy, shall be limited to replacement or repair only, at
SECO-LARM’s option. In no event shall SECO-LARM be liable for any special, collateral, incidental, or consequential
personal or property damages of any kind to the purchaser or anyone else.

ENFORCER Color Hi-Res IR Bullet Camera Manual ENFORCER Color Hi-Res IR Bullet Camera Manual

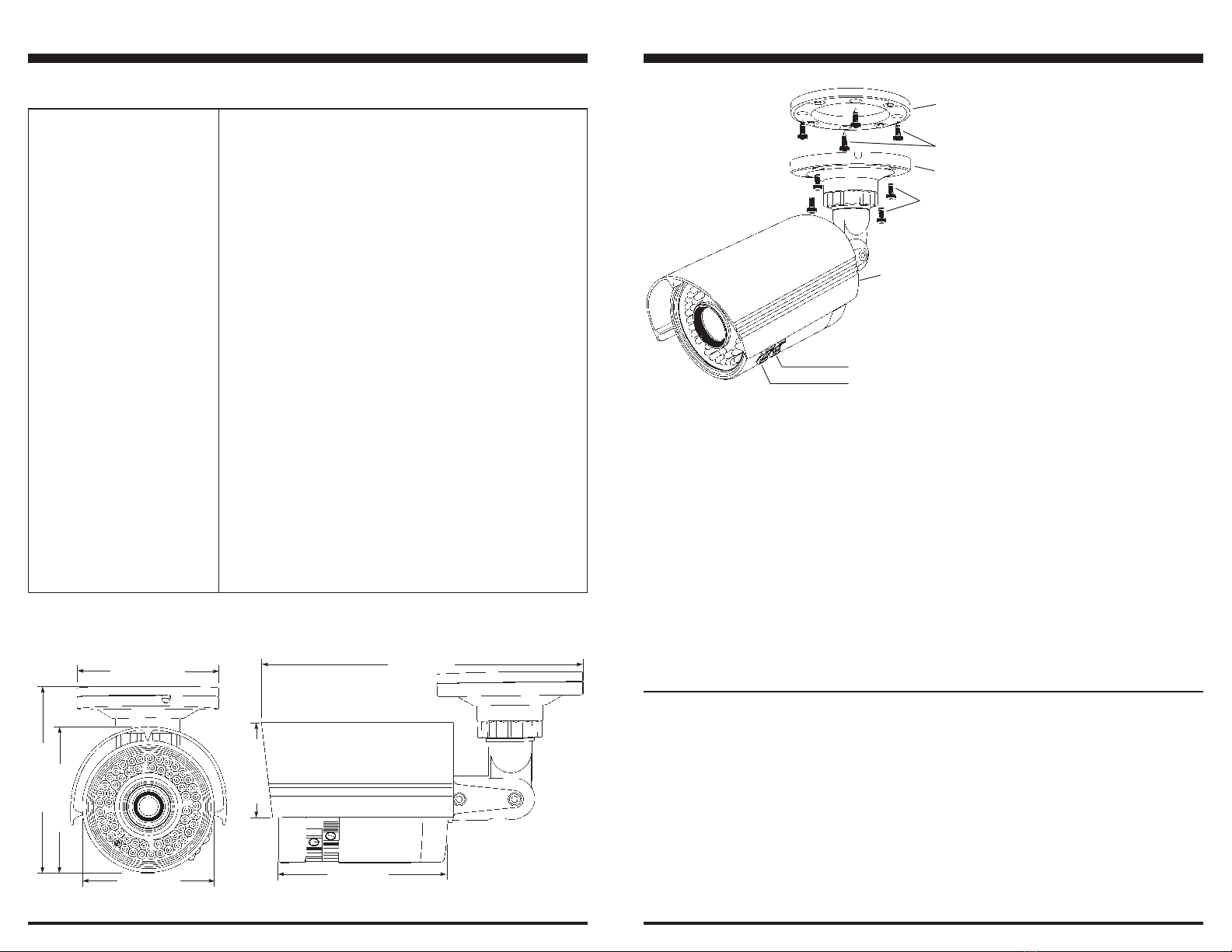

Dimensions:
37/16” (88mm)
313/16” (97mm)
59/32” (134mm)
315/16” (100mm) 97/8” (251mm)
37/16” (88mm)
311/16” (68mm)
Parts List:
1 x Camera with bracket
1 x Mounting plate
1 x Sunshield
4 x Mounting screws
4 x Hex screws
1 x L-wrench
Mounting plate
Camera base
Hex screws
Mounting screws
Focus
Zoom
Sunshield
______________________________________________________________________________________________________________
______________________________________________________________________________________________________________
______________________________________________________________________________________________________________
______________________________________________________________________________________________________________
______________________________________________________________________________________________________________
______________________________________________________________________________________________________________
______________________________________________________________________________________________________________
______________________________________________________________________________________________________________
____________________________________________________________________________________________________________________________________________________________________________________________________________________________
______________________________________________________________________________________________________________
______________________________________________________________________________________________________________
______________________________________________________________________________________________________________
______________________________________________________________________________________________________________
______________________________________________________________________________________________________________
______________________________________________________________________________________________________________
______________________________________________________________________________________________________________
____________________________________________________________________________________________________________________________________________________________________________________________________________________________
______________________________________________________________________________________________________________
______________________________________________________________________________________________________________
______________________________________________________________________________________________________________
______________________________________________________________________________________________________________
______________________________________________________________________________________________________________
______________________________________________________________________________________________________________
Type
Chip
Resolution
Pickup elements
Scanning system
Sync
Video output
Lens
IR LEDs
IR distance
Minimum illumination
Gamma correction
S/N ratio
CDS sensor
Shutter control
Backlight compensation
Gain control
White balance
Power source
Power consumption
Storage temperature
Operating temperature
Dimensions
Weight
Color camera
1/3” Sony Super HAD CCD
550 TV lines
768 x 494 pixels
NTSC 2:1 interlace
Internal
1V pp composite output, 75 ohms
DC Auto Iris, Varifocal 4mm ~ 9mm, F1.6
56 IR LEDs
Up to 100’ (30m)
0.1 lux (IR off), 0 lux (IR on)
0.45
More than 50dB
Photoconductive cells, 10 lux, Resistance 5~10k ohm
Auto
Off
Auto
Auto
12VDC/24VAC (dual voltage)
700mA max. (IR on)
-4°~140° F (-20°~60° C), humidity 95% max.
14°~122° F (-10°~50° C), humidity 95% max.
315/16” x 59/32” x 97/8” (100 x 134 x 251 mm)
3lb., 5oz. (1,500g)
Specifications: Mounting:
Before Starting
1. Please read this manual carefully and keep it for future reference.
2. Use the camera within given temperature and electrical limits.
3. Do not mount the camera where it is exposed to rain or other
moisture, or in humid or dusty places.
4. Do not point the camera at the sun. Heat could damage the
camera, even when not in use.
5. Do not mount the camera in areas exposed to radiation, strong
magnetic fields, or strong electrical signals.*
6. Do not open or disassemble the camera. There are no user-
serviceable parts inside.
7. Do not drop the camera or subject it to strong vibrations.
* Note: Many video monitors produce strong electromagnetic
fields close to the display CRT, especially when the monitor is
turned on or during de-Gaussing, which occurs automatically
with many monitors when the monitor is turned on.
Installation
1. Run a 12VDC or 24VAC power supply wire and a video cable
with a male BNC connector through the wall to where the
camera is to be mounted.
2. Temporarily connect the camera to the power supply.
3. Temporarily connect the camera’s female BNC connector to the
video cable’s male BNC connector.
4. While watching the monitor, hold the camera against the wall or
ceiling by hand where it is to be mounted, then turn the camera
until it is certain that this mounting location is correct. Use a
pencil to mark the location of the four screw holes in the
mounting plate.
5. Disconnect the power supply and video cable.
6. Mount the mounting plate to the wall or ceiling using the four
included mounting screws. If the wall is made of dry wall, brick,
or similar material, it may be necessary to use screw anchors
(not included).
7. Mount the camera base to the mounting plate using the four
included hex screws.
8. Reconnect the power supply and video cable. Turn the monitor
on, and make sure the camera is sending the proper video
signal.
9. Adjust the camera angle.
10. Put the sunshield on the camera.
11. Do a final test of the video camera and monitor.
