Sectoriel YT3300L User manual

SMART ELECTROPNEUMATIC
POSITIONER YTC YT3300L
Information given as an indication only, and subject to possible modifications
SECTORIEL S.A.
45 rue du Ruisseau
38290 SAINT QUENTIN-FALLAVIER –FRANCE
Tél : [phone] - Fax : [phone]
www.sectoriel.com / courrier : [e-mail]
Pages
1/5
Ref.
TDS3268 ENG
Rev.
01
Date
01/2024

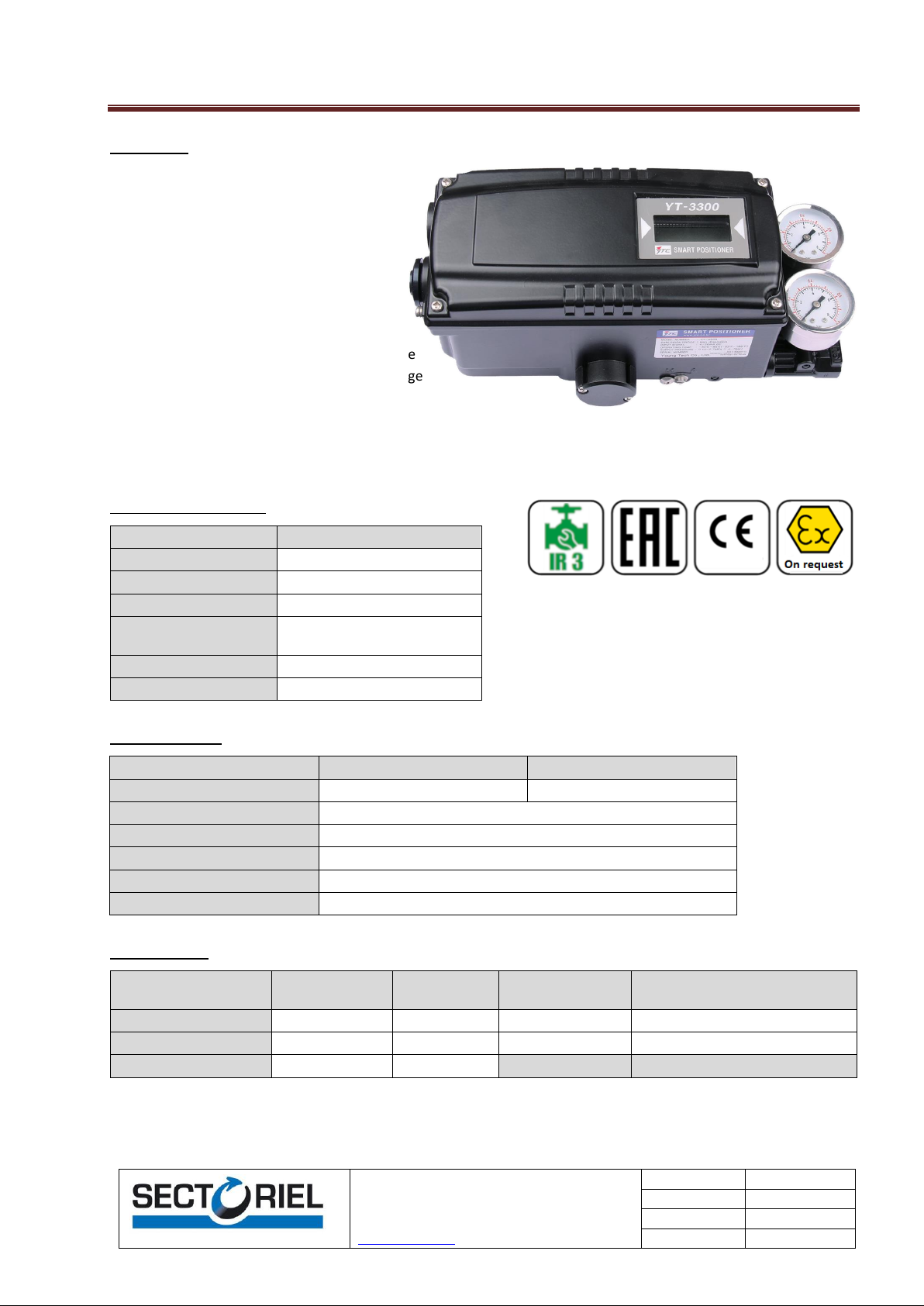

FEATURES
The YT3300L positioner is intended for
proportional control of single or double-acting
linear displacement pneumatic control valves.
The 4 to 20 mA proportional control signal is
compared to the valve position and the
pressure in the actuator is adjusted
accordingly to match the valve position
proportionally to the signal, independent of
the differential pressure across the valve. The
electrical power supply is provided by the voltage
carrying the control signal (2 wires).
The YT3300L positioner has an LCD display and self-calibration and manual adjustment functions. Different executions
are available, including the HART communication protocol.
The positioners are delivered equipped with a pressure gauge block and have a manual mode.
AVAILABLE MODELS
LIMITS OF USE
Standard
ATEX
Protection rating
IP66
Ex ia IIC T6 / T5
Temperature
-30 … +85°C
Air pressure
1,4 à 7 bar
Voltage
8,5 ÷ 30V
Maximum flow
70 l/min
Impédance
4500 Ω @ 30VCC
EXECUTIONS
Control
4÷20 mA
Feedback
4÷20 mA
2 limit
switches
2 limit switches
+ 4÷20 mA feedback
IP66
3268001
3268002
3268003
3268005
ATEX protection
3268006*
3268007*
3268008*
3268009*
HART protocol
3268010*
3268011*
* on request
Standard
Control signal
4÷20 mA
Pneumatic connections
1/4" NPT-F
Electric connections
G1/2
Valve stroke
2 à 35 mm
> 35 mm
Body
Aluminium
Cover
Aluminium

SMART ELECTROPNEUMATIC
POSITIONER YTC YT3300L
Information given as an indication only, and subject to possible modifications
SECTORIEL S.A.
45 rue du Ruisseau
38290 SAINT QUENTIN-FALLAVIER –FRANCE
Tél : [phone] - Fax : [phone]
www.sectoriel.com / courrier : [e-mail]
Pages
2/5
Ref.
TDS3268 ENG
Rev.
01
Date
01/2024

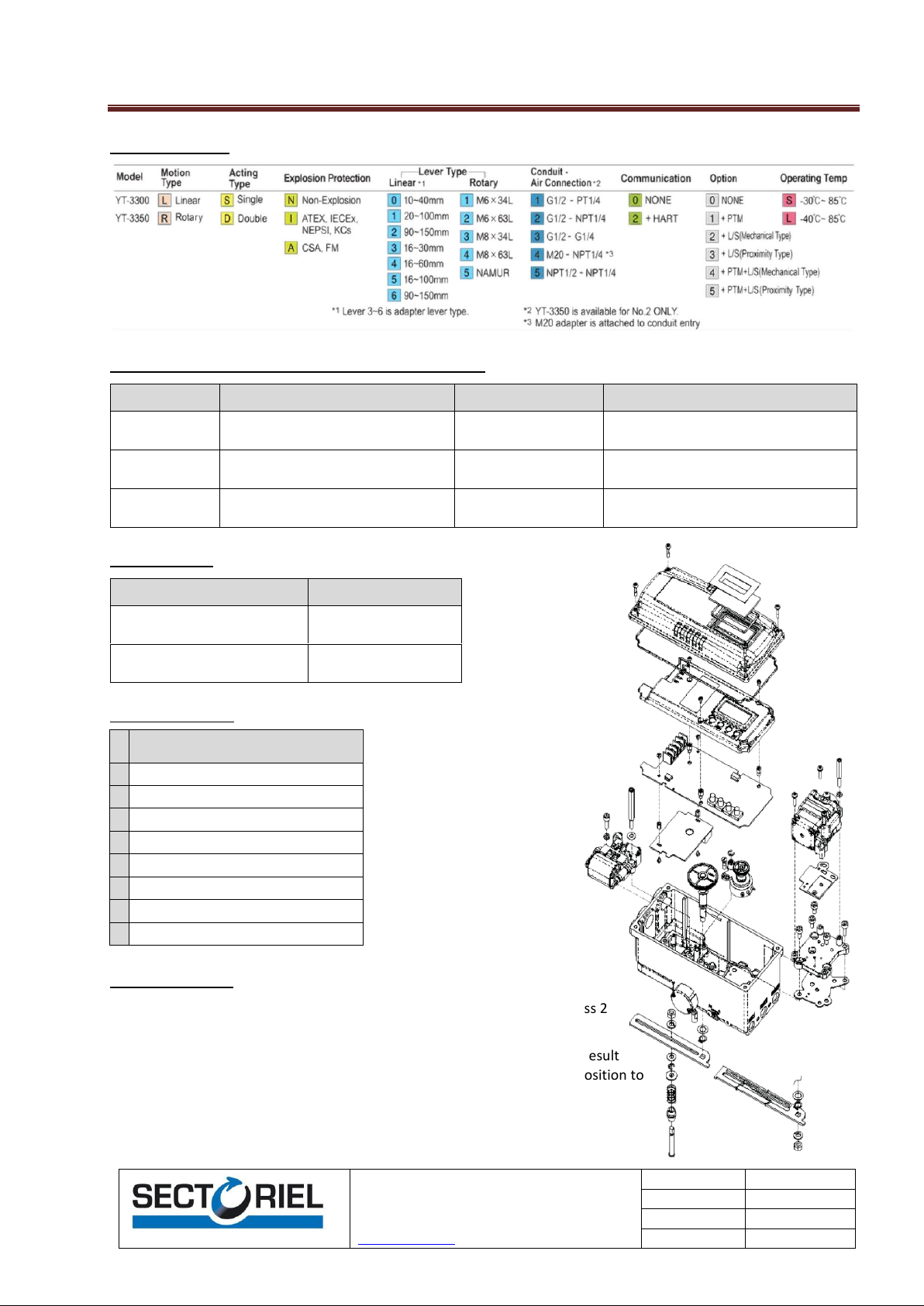

IDENTIFICATION
DIRECTIVES AND MANUFACTURING STANDARDS
Subject
Standard
Subject
Standard
CE
EN 61000-6-4:2007 + A1:2011
EN 61000-6-4:2005
Protection rating
IEC 60529:2001
IEC 60529:2006
CEM Directive
2014/30/UE
ATEX 2014/34 UE
(option)
II 2G Ex ia IIC T5/T6 Gb
II 2D Ex ia IIIC T100°C/T85°C Db IP6X
SIL2
IEC 61508-1-2-4-7:2010
Quality assurance
ISO 9001:2009
ISO 9001:2008
ACCESSOIRES
Item
Linkage for assembly
on valve 2 à 25 mm
ACCPOSIS1
Linkage for assembly
on valve stroke > 35 mm
ACCPOSIS2
CONSTRUCTION
Item
1
Aluminium epoxy coated body
2
Aluminium epoxy coated cover
3
LCD display
4
Controls
5
Terminals
6
Pilot block
7
Position sensor
8
Lever
FUNCTIONNING
The pneumatic power supply of the YT3300L positioner must be at least Class 2
or 3 (ISO8573.1)
The control signal is compared to the valve position and, depending on the result
of the comparison, the air pressure in the engine is adjusted to match the position to
the signal.
The LCD display shows the position in percentage of travel















SMART ELECTROPNEUMATIC
POSITIONER YTC YT3300L
Information given as an indication only, and subject to possible modifications
SECTORIEL S.A.
45 rue du Ruisseau
38290 SAINT QUENTIN-FALLAVIER –FRANCE
Tél : [phone] - Fax : [phone]
www.sectoriel.com / courrier : [e-mail]
Pages
3/5
Ref.
TDS3268 ENG
Rev.
01
Date
01/2024
ASSEMBLY
The positioner can be adapted to all types of linear actuator, the coupling kits available are particularly intended for
actuators with NAMUR yoke
PNEUMATIC CONNECTIONS
The supply air quality of the YT3300L positioner must be at least Class
2 or 3 (ISO8573.1), the installation of a regulator filter is
recommended (30 µ).
The pneumatic supply (7 bar maximum) is connected to the left ¼"NPT
port of the pressure gauge block. The recommended tube size is 6x8 mm
Outputs 1 and 2 correspond to direct (1) and reverse (2) output.
In the case of a single-acting actuator, the unused output must be closed.
ELECTRICAL CONNECTIONS
Terminal
Description
IN+
+ 4÷20 mA Control signal
IN-
- 4÷20 mA Control signal
F.G
Earth connection
OUT+
+ 4÷20 mA Feedback
OUT-
- 4÷20 mA Feedback
LS-1
1 - COM
Limit switch common N°1
2 - NO
NO limit switch terminal N°1
3 - NC
NC limit switch terminal N°1
LS-2
1 - COM
Limit switch common N°2
2 - NO
NO limit switch terminal N°2
3 - NC
NC limit switch terminal N°2
SETTINGS
The YT3300 positioner has as standard an LCD display and four keys allowing
you to display and configure the different settings.
UP
Menu navigation,
selection of values
DOWN

Validation, access to submenus
ESC
Return to previous menu
Numerous settings are available to the user to adapt the behavior of the valve to
the characteristics of the installation.
In particular, it is possible to adjust the PID, the valve curve, the dead zone (hysteresis), the split-range mode, etc.
Optional equipment such as limit switches, position transmitter or HART communication can also be configured, if
installed.
The YT3300L positioner has several self-learning modes.

SMART ELECTROPNEUMATIC
POSITIONER YTC YT3300L
Information given as an indication only, and subject to possible modifications
SECTORIEL S.A.
45 rue du Ruisseau
38290 SAINT QUENTIN-FALLAVIER –FRANCE
Tél : [phone] - Fax : [phone]
www.sectoriel.com / courrier : [e-mail]
Pages
4/5
Ref.
TDS3268 ENG
Rev.
01
Date
01/2024

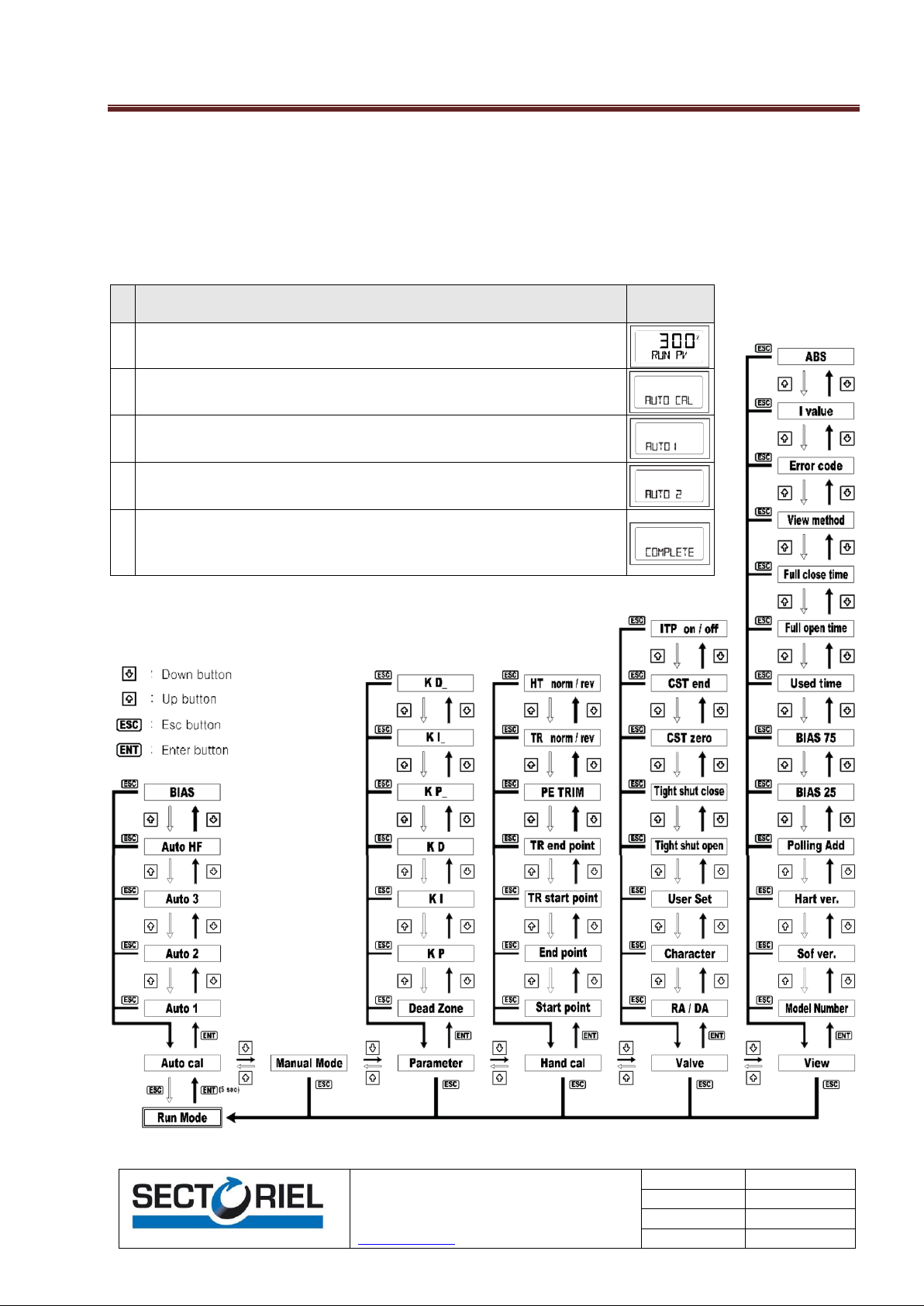

SELF-CALIBRATION
Auto calibration allows the positioner to find and adjust zero and travel, as well as other parameters (PID).
During the first start-up after assembly it is recommended to run the AUTO2 self-calibration, which adjusts all
parameters.
The AUTO1 self-calibration adjusts the zero and the travel without modifying the other parameters, this choice is
suitable after maintenance (skip step 4).
Steps of auto-calibration
Display
1
The control signal is activated at 50% (12 mA),
the positioner is in RUN mode, the display indicates:
2
Press the key for 6 seconds
the display indicates:
3
Press the key 
the display indicates:
4
Press the key DOWN,
the display indicates:
5
Press the key , the positioner controls the valve to search for its
references (2 to 3 minutes) then stops the self-calibration is completed.
The display indicates:
OTHER PARAMÈTERS
Other parameters can be adjusted in the menu,
following the displayed tree:

SMART ELECTROPNEUMATIC
POSITIONER YTC YT3300L
Information given as an indication only, and subject to possible modifications
SECTORIEL S.A.
45 rue du Ruisseau
38290 SAINT QUENTIN-FALLAVIER –FRANCE
Tél : [phone] - Fax : [phone]
www.sectoriel.com / courrier : [e-mail]
Pages
5/5
Ref.
TDS3268 ENG
Rev.
01
Date
01/2024

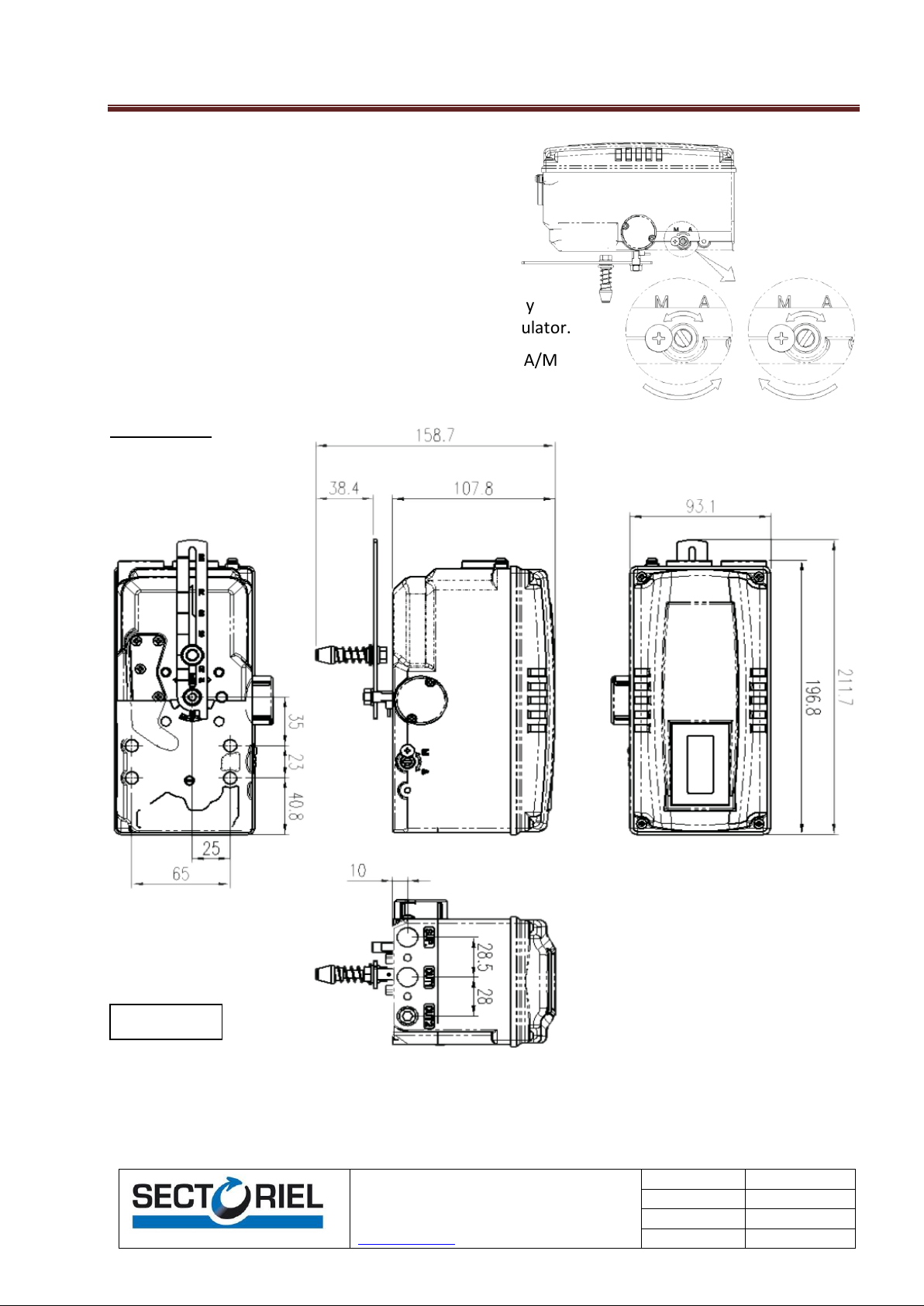

MANUAL OPERATION
The AUTO/MANUAL (A/M) selector allows you to
bypass the positioner and direct the supply pressure
directly to the actuator.
In the AUTO position, the 4÷20 mA signal controls
the valve
In MANUAL mode, the valve position can be adjusted by
modulating the supply pressure using the pressure regulator.
Loosen the lock using a Phillips screwdriver, orient the A/M
control using a flat screwdriver.
DIMENSIONS
Poids : 2 Kg
