Secureye S-24GE-M-2UG-400W-AI-VLAN User manual

User Manual
S-24GE-M-2UG-400W-AI-VLAN
24 Port Gigabit Layer 2 Managed AI PoE Switch

Installation manual introduction
The Product installation manual mainly describes S-24GE-M-2UG-400W-AI-VLAN AI PoE
switch hardware features, installation methods, and precautions during the installation.
This manual includes the following chapters:
Chapter 1: Product Introduction. Briefly describes the basic features of the switch and
the appearance details.
Chapter 2: Product Installation. Guide the switch hardware installation methods and
precautions.
Chapter 3: Hardware Connections. Guide the connection between switches and other
devices and precautions.
Chapter 4: Technical Specifications.
NOTE: To avoid potential device damage and personal injury, read the related
information in this manual before installing the device.
Agreement
The term "switch" mentioned in this manual, unless otherwise specified, refers to 24-
port full Gigabit Managed AI PoE switch, hereinafter referred to as S-24GE-M-2UG-
400W-AI-VLAN.
Some pictures for the schematic, the product itself and pictures may be different.

The contents of this document may be updated from time to time due to product
version upgrades or other reasons. Unless otherwise agreed, this document is
provided as a guide only, and all statements, information and recommendations in
this document do not constitute any form of warranty.
This icon indicates the items to be cautioned in the operation. If the operation is
wrong, the equipment may be damaged and other adverse consequences.
Chapter 1 Product Introduction
1.1 Product Introduction
S-24GE-M-2UG-400W-AI-VLAN is Layer 2 Managed AI PoE switch designed for
security transmission and WIFI coverage. It can satisfy the POE power supply
requirements of WIFI AP, IP camera, WIFI bridge, IP phone and other types of
equipment. The product adopts a new generation of high-performance
hardware and software platform to provide flexible, cost-effective access and
Gigabit uplink ports, complete security protection mechanism, complete
ACL/QoS policy and rich VLAN functions, easy to manage and maintain, and
satisfy users’ requirements for network equipment easy to manage, high
security and low-cost , it is applicable for network access, aggregation, and
core application scenarios of campus, hotel, and enterprise campus.
PoE (Power over Ethernet) refers to the power over Ethernet technology. It
refers to the transmission of data signals to some IP-based terminals (such as
IP phones, wireless access point APs, network cameras, etc.) and also provide

DC power supply technology. These devices that accept DC power supply are
called powered devices (PD, Powered Device)
1.2 Packing List
Open the package and check the list below
Commodity
Quantity
Description
PoE switch
1 pc
No
Power cord
1 pc
Optional
Bracket
2 pcs
Fixed on rack mount
User Manual
1 pc
Guide users to install switch
1.3 Appearance
Front Pannel

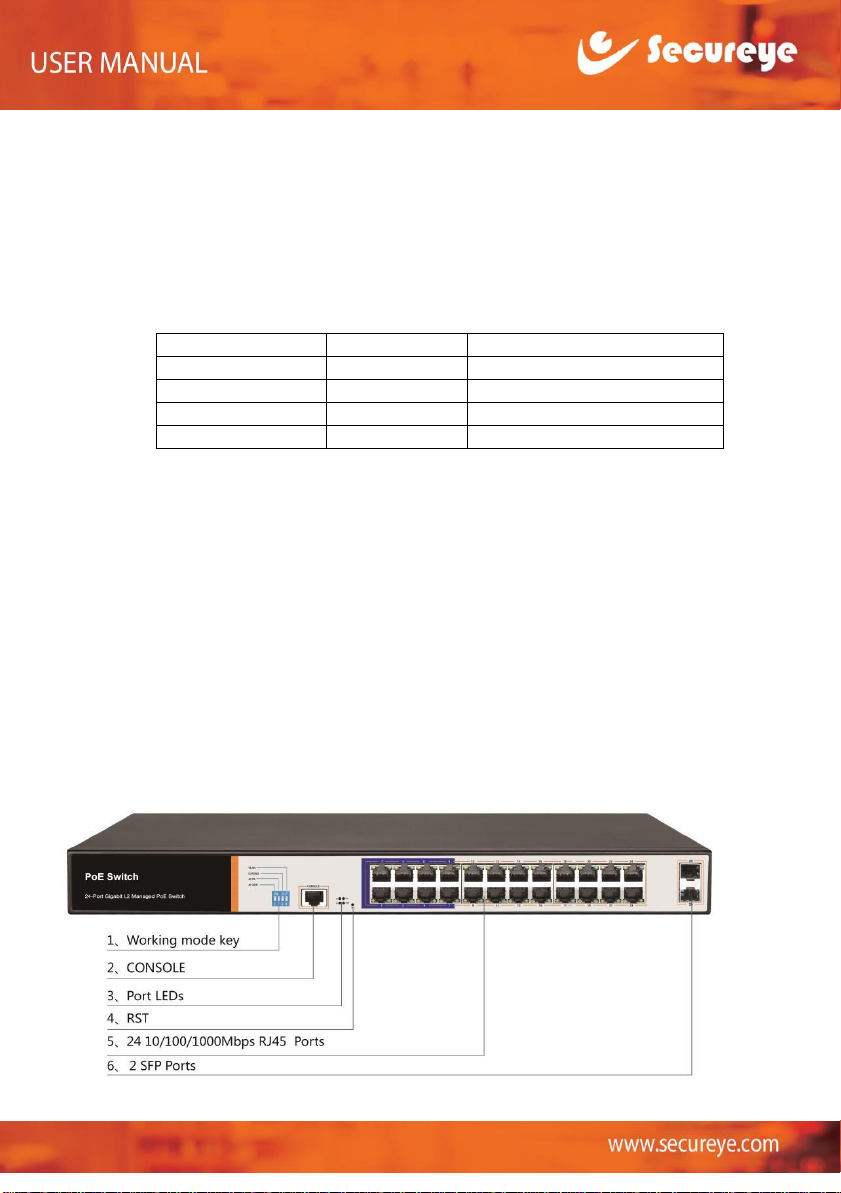

Indicators, RJ45 port, shortcut buttons, RST button, SFP port, CONSOLE
port, as shown in Figure as below:

Indicators
S-24GE-M-2UG-400W-AI-VLAN The indicator working status is shown as
following table:
Indicator
Title
color
Work
status
Description
PWR
Power
indicator
red
Solid
Power is normal
off
No power, the power switch is
not turned on, power supply is
abnormal
POE
POE power
indicator
yellow
solid
The corresponding RJ45 port is
connected to the powered device
and the power supply is normal
off
The corresponding RJ45 port is
not connected to the powered
device or the power supply is
abnormal
LINK/ACT
Connection
indicator
green
Blinking
A valid link is established
off
An invalid link is established
SYS
System
indicator
green
Blinking
System is functioning properly
off
System is functioning improperly
Software is damaged
DIP switch function
AI QOS: Improve video data processing capabilities and improve the
monitoring of Caton and Mosaic phenomena in the network.
EXTEND: 1-8 port rate down to 10Mbps, but the transmission distance up to
250 meters.
VLAN: Isolating ports 1-24 from each other, suppress network storms
effectively and improve network performance.
AI Power Supply: Detect PD, power failure and restart dead equipment.

RJ45 Port
S-24GE-M-2UG-400W-AI-VLAN supports 24 10/100/1000 Mbps ports, all
supporting IEEE802.3af and IEEE802.3at standard POE power supply.
SFP Port
S-24GE-M-2UG-400W-AI-VLAN provides 2 Gigabit SFP optical module
expansion slots (25, 26) for plugging Gigabit SFP modules
RST Button
When the switch is powered on, press the button with needle and release the
device to enter the restart state. When the SYS light is turned on again, the
device restarts. When the switch is powered on, press the button for 5
seconds or more to release the button device to enter the reset status, when
SYS lights up again, the device resets successfully.。
Console Port
The Console port is used for connecting to the serial port of a computer or
other terminal to manage or configure the switch.。
Back Panel
Includes: power socket, ground

Power socket
The power supply to the switch S-24GE-M-2UG-400W-AI-VLAN should be 100-
240V~ 50/60Hz AC power.
Ground terminal
Please use a wire to ground so that preventing lightning strikes, to avoid
product lightning strikes and extend the life of the product.
Chapter 2 Product Installation
2.1 Installation Precautions
Note: To avoid damage to the equipment and personal injury caused by
improper use, please observe the following precautions.
Installation safety precautions
The power is kept off during the installation process. Wear an ESD-
preventive wrist strap and ensure that the ESD-preventive wrist
strap is in good touch with the skin to avoid potential safety hazards.

The switch can work normally under the correct power supply.
Please confirm that the power supply voltage matches the voltage
indicated by the switch.
Before powering on the switch, please make sure that the power
circuit is not overloaded, so as not to affect the normal operation of
the switch and even cause unnecessary damage.
To avoid the risk of electric shock, do not open the case while the
switch is working, even if it is not charged, do not open it by yourself.
Before cleaning the switch, pull out the power plug of the switch.
Do not wipe with a moist fabric. Do not use liquid to clean.
Temperature and humidity
In order to ensure long-term stable operation of the switch and prolong
its service life, please maintain a certain temperature and humidity in
the environment. Excessively high or too low ambient humidity may
cause leakage, deformation or even corrosion of metal parts. If the
temperature is too high, the aging process of the insulation material will
be accelerated, which will seriously affect the service life of the
equipment. Normal operation and storage temperature / humidity of
this series of switches as below:
Environmental
Description
Temperature
Relative humidity
Working
Environment
0℃~40℃
10%～90% RH Non-condensing
Storage
Environment
-40℃～70℃
5%～90% RH Non-condensing
Altitude

Products with this mark are only suitable for safe use in areas below
2000m.
Dust-proof
Dust falling on the surface of the switch can cause electrostatic
adsorption and poor contact of the metal contacts. Although the device
itself has made certain measures in anti-static, when the static electricity
exceeds a certain strength, it will still cause fatal damage to the
electronic components on the internal circuit board. To avoid the static
electricity affecting the normal operation of the device, please pay
attention to the following:
Regular dust removal to keep indoor air clean, Confirm that the
equipment is well grounded to ensure the smooth transfer of static
electricity.
Electromagnetic interference
Electromagnetic interference will affect the internal components such as
capacitance, inductance and other electronic components by capacitive
coupling, inductive coupling, impedance coupling, etc. To reduce the
adverse effects caused by electromagnetic interference, please pay
attention to the following:
The power supply system takes necessary measures against grid
interference.
The switch should be away from high-frequency, high-power, high-
current equipment, such as wireless transmitters.
Take electromagnetic shielding measures when necessary.

Lightning protection needs
When a lightning strike occurs, a strong current is generated in an
instant, and the air in the discharge path is instantaneously heated to
20,000 degrees Celsius, and an instantaneous large current is enough to
cause fatal damage to the electronic device. For better lightning
protection, please note the following:
Confirm that the rack is in good contact with the ground.
Make sure the power outlet is in good contact with the ground.
Reasonable wiring to avoid internal induction lightning.
Signal lightning protector is recommended for outdoor wiring.
Installation station requirements
Regardless of whether the switch is installed in a rack or on another
horizontal workbench, be aware of the following:
Make sure the rack or workbench is stable, strong, and can withstand at
least 5.5Kg weight.
Make sure the rack has a good cooling system, or maintain good indoor
ventilation.
Make sure the rack is well grounded, the power outlet and switch are
within 1.5 meters.
Prepare tools for installation
You may need to use a screwdriver during installation, electrostatic
wrist strap, fiber optic cable and other tools to prepare yourself
2.2 Product installation

19-inch standard rack installation
S-24GE-M-2UG-400W-AI-VLAN is designed according to the standard 19-inch
rack size, you can easily install to the rack, the specific installation steps as
follows:
1) Check rack grounding and stability.
2) Install the two L-brackets in the accessory on each side of the switch
panel and secure with the screws provided in the accessory.
3) place the switch in an appropriate place in the rack and be supported by
the bracket. Screw the L-shaped bracket to the guide groove fixed on
both ends of the rack to ensure that the switch is stable and horizontally
installed on the rack.
Note:
Good grounding rack is anti-static equipment, anti-leakage, lightning
protection, anti-jamming important guarantee, so to ensure that the
rack ground wire properly installed;
Installation equipment within the rack from the bottom up, to avoid
overload installation;
Avoid placing other heavy objects on switch to avoid accidents;
Ensure heat dissipation and air circulation.
Chapter 3 Hardware Connection

3.1 RJ45 port connection
Connect the RJ45 port of the switch and the corresponding network
device via cables, the POE power supply function of the switch is default
enabled on the downlink port of the switch, which can be used for
IEEE802.3af or IEEE802.3at standards powered devices such as APs,
bridges, and network cameras.
Note:
When the switch connected workstations, servers, routers or other
Ethernet devices the cable length should be within 100 meters,

The Auto-MDI / MDIX Ethernet interface is enabled by default.
Category 5 the standard network cable or crossover cable can be used for
Ethernet connection.
Do not connect the RJ45 port to the phone line.
3.2 SFP Port connection
S-24GE-M-2UG-400W-AI-VLAN SFP port only support Gigabit fiber module.
Recommended use of standard SFP module products
The process of installing a fiber module on a switch is as follows:
First, grasp the optic fiber module from the side, insert it smoothly along
the SFP port slot until the optic fiber module and switch are in close
contact.
Second, confirm the Rx and Tx ports of the fiber module when connecting,
insert one end of the fiber into the Rx and Tx ports correspondingly,
ensure that the Tx and Rx ends of the interface are connected correctly
and the other end of the fiber is connected to another device.
Third, please check the corresponding indicator light status after power on.
If the light blinking that the link is properly connected, if the light is off ,
the link is failure, please check the line to confirm that the corresponding
equipment is enabled.
Note:
Does not allow excessive bending fiber, the radius of curvature should not

be less than 10cm.
Ensure the cleanliness of the fiber surface.
Please do not look directly into the optical fiber connector with your eyes
as this may cause eye injury.
3.3 Check before power on
Check whether the outlet power supply meets the switch specifications.
Check the power, switches, racks and other equipment have been properly
grounded.
Check whether the switch and other network devices are connected
properly.
3.4 Device initialization
The switch automatically initializes when the power switch is turned on.
Indicator will appear the following situation:
After the power is turned on, the power indicator remains on, the other
indicator is off at this time.
After about 1 second, all lights except for the power light turn on for about
35 seconds and then turn off. when the SYS light goes flashing, the system
runs normally.
Port LEDs indicates the connection status of each port, indicating that the
switch has started to work normally.

3.5 Web Login
Step1、In the normal operation of the device, connect the computer to the
switch's RJ45 port by network cables
Step 2、Manually changed the computer IP address to 192.168.254.X (X is 2 ~
254), subnet mask is 255.255.255.0
Step3、Open computer's browser, type 192.168.254.1 in the address box, hit

the Enter key.
Step4、Enter the default username and password “admin” and then click
Login.
Step5、Entered the switch web management interface successfully when you
see picture as below, then you can start to configure the switch.

Chapter 4 Technical Specifications
4.1Hardware Specifications
Network
standard
IEEE 802.3i IEEE 802.3u IEEE 802.3x
IEEE 802.3ab IEEE 802.3af IEEE 802.3at
Port
24 10/100/1000Mbps RJ45 port
2 gigabit SFP
1 Console
PoE
24 10/100/1000Mbps RJ45 port support PoE+
Max 250W

Single port max 46W
LEDs
26 Link/Act LEDS
24 POE LEDs
1 SYS LED
1 Power LED
Performance
Forwarding mode: store and forward
Bandwidth：52Gbps
Packet forwarding rate：38.688Mpps
8K MAC address table
Lightning
protection
6KV
Input
100-240V/50-60Hz
Dimension
（L×W×H）
440mm×180mm×44mm
4.2 Software Specifications
Protocol
Standard
IEEE 802.3:Ethernet Media Access Control (MAC) Protocol
IEEE 802.3i:10BASE-T Ethernet
IEEE 802.3u:100BASE-TX Fast Ethernet
IEEE 802.3ab:1000BASE-T Gigabit Ethernet
IEEE 802.3z:1000BASE-X Gigabit Ethernet (fiber)
IEEE 802.3ad:Standard method for performing link
aggregation
IEEE 802.3x:flow control
IEEE 802.1p:LAN Layer 2 Qos/Cos protocol for traffic
priority (multicast filtering)
IEEE 802.1q:VLAN
IEEE 802.1d:STP Spanning tree
IEEE 802.1s:MSTP Spanning tree
IEEE 802.1w:RSTP Spanning tree
IEEE 802.3af
IEEE 802.3at
One key VLAN
One key CCTV(1-8 port 250meters PoE distance)

Shortcut
Function
One key AI power supply
One key Q0S (Video priority)
DHCP
Support DHCP Snooping
VLAN
Support 4K VLAN
Support 802.1Q VLAN, MAC VLAN , IP VLAN
Voice VLAN
MAC address
table
Comply the IEEE 802.1d standard
Support MAC address learning and aging automatically
Support static, dynamic, filter address table
Safety
Password protection
Support based on the port number, IP address, MAC
address restrictions on user access
Support HTTPS, SSL V3, TLS V1, SSH V1/V2
Support IP-MAC-PORT ternary binding
Support ARP protection, IP source protection, DoS
protection
Support DHCP Snooping, DHCP attack protection
Support 802.1X certificated, AAA
Support port security, port isolation
Support CPU protection
POE
management
Support POE power limit
Support POE chip status view
Support setting PoE port priority
Support setting PoE power supply time period
Access control
Support L2 (Layer 2) ~ L4 (Layer 4) packet filtering

(ACL)
Support port mirroring, port redirection, flow rate limiting,
QoS re-marking
Quality of
Service (QoS)
Support 8 port queue
Support port priority, 802.1p priority, DSCP priority
Support SP, RR, WR, WFQ Priority scheduling algorithm
Spanning Tree
Support STP(IEEE 802.1d)，RSTP(IEEE 802.1w) and
MSTP(IEEE 802.1s) protocol
Support loop protection, root bridge protection, TC
protection, BPDU protection, BPDU filtering
Multicast
Support IGMP v1/v2 Snooping
Support fast leave mechanism
Support multicast VLAN
Supports multicast filtering, packet statistics, and unknown
multicast discards.
Storm
suppression
Support multicast suppression
Support broadcast suppression
Support unknown unicast suppression
Link
aggregation
Support static aggregation
Support dynamic aggregation
Support IP, MAC, and hybrid load balancing modes
Supports up to 32 aggregation groups
IPv6
Support IPv6 Ping, IPv6 Tracert, IPv6 Telnet
Support IPv6 SSH , IPv6 SSL
Support WEB network management (HTTP, HTTPS, SSL V3)
