OWNER’S MANUAL
Braemar Invertair™- True Inverter Add-On Cooling Unit
(English) (Invertair)
Original English Instructions
SACV10D1S / SCHV10D1S
SACV12D1S / SCHV12D1S
SACV14D1S / SCHV14D1S
SACV16D1S / SCHV16D1S

SEELEY INTERNATIONAL - OWNER’S MANUAL |1
TABLE of contents
MAIN COMPONENTS 2
INTRODUCTION & SAFETY 3
MAGIQTOUCH CONTROLLER®SETTINGS MENU 4
About Appliance 4
Cooler Selection 4
Min/Max Set Temperature 4
Room Fan Run-On Time 4
OPERATION 5
Refrigerated Cooling Zoning 5
Connection to other Ducted Gas Heater Brands 5
MAINTENANCE & SERVICE 5
Air Filter 5
Indoor Coil 5
Outdoor Unit 5
Refrigerant 5
MAINTENANCE SCHEDULE 6
CHECK BEFORE CALLING FOR SERVICE 7
OPERATION TIPS 8
TROUBLESHOOTING GUIDE 9
WARNING! Failure to install and commission the product in compliance
with these instructions, or failure to do the job properly and competently,
may void the customer’s warranty. Further, it could expose the Installer
and/or the Retailer to serious liability.

2 |Invertair™ - True Inverter Add-On Cooling Unit
ILL1989-A
TYPICAL ADD-ON COIL
TYPICAL OUTDOOR UNIT

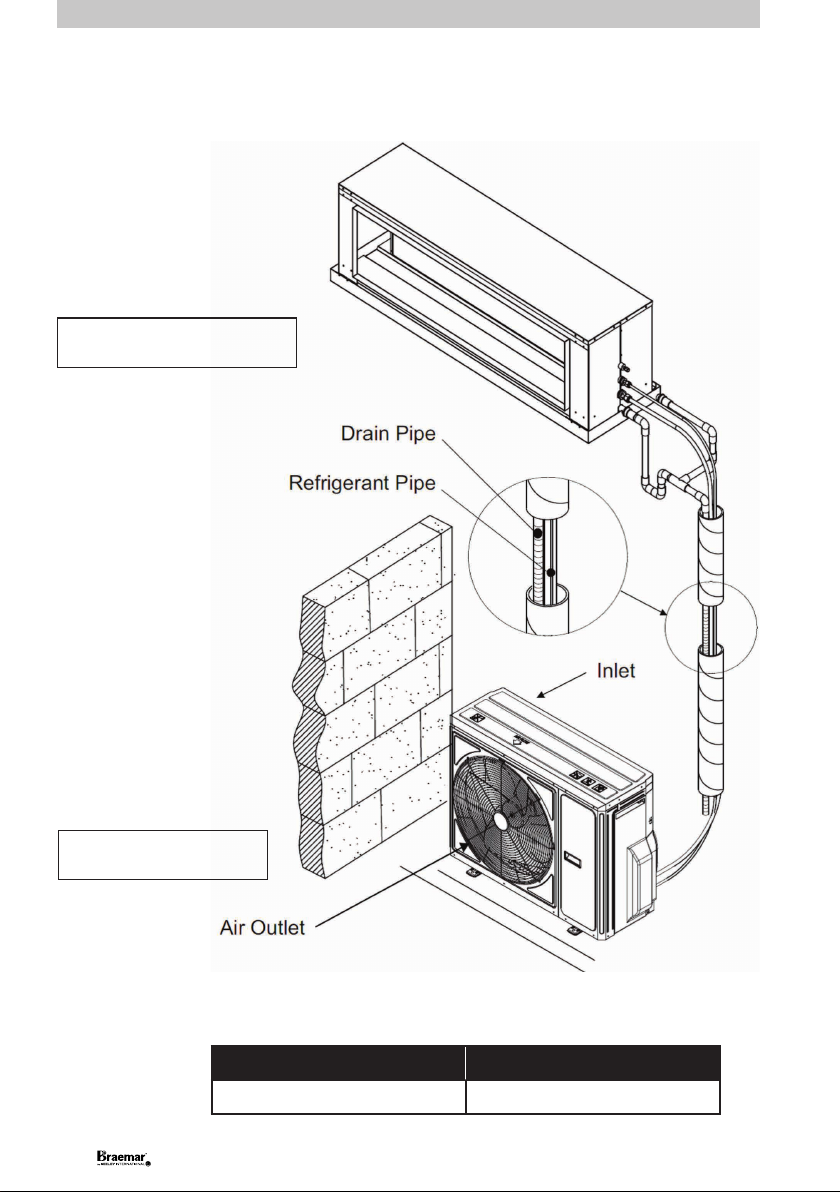

MAIN COMPONENTS
Indoor and Outdoor unit operating temperature range:
Indoor Unit Outdoor Unit
18°C - 30°C -15°C - 48°C

2 |Invertair™ - True Inverter Add-On Cooling Unit
ILL1989-A
TYPICAL ADD-ON COIL
TYPICAL OUTDOOR UNIT
MAIN COMPONENTS
Indoor and Outdoor unit operating temperature range:
Indoor Unit Outdoor Unit
18°C - 30°C -15°C - 48°C
SEELEY INTERNATIONAL - OWNER’S MANUAL |3
INTRODUCTION & SAFETY
Congratulations on purchasing a new
Braemar Invertair™ - True Inverter Add-On
Cooling unit!
Please keep this Manual and the Warranty
Booklet in a safe place, along with the
original purchase documents, plus all relevant
FHUWL¿FDWHVRIFRPSOLDQFHUHODWLQJWRWKH
installation work performed. Please register the
Warranty straight away, by following the steps
set out in the Warranty Booklet.
The Braemar Invertair™ - True Inverter Add-
On Cooling unit is a refrigerated cooling only,
split type air conditioning system, designed
VSHFL¿FDOO\IRUFRQQHFWLRQWRD%UDHPDU³74
740([WUD$LU´6HULHVJDVGXFWHGKHDWLQJXQLW
XVLQJ0DJ,4WRXFK&RQWUROOHU
The installer must read the Installation Manual
before installing the Braemar Invertair™ -
True Inverter Add-On Cooling unit. The home
owner/user should read the Owner's Manual
before operating the unit.
To ensure the warranty on the unit is continued
and valid, the unit must be checked and
serviced by the home owner/user as per the
requirements in the Maintenance & Service
section and the Maintenance Schedule. This
will also prolong the life of your air conditioner.
The home owner/user should regularly check
the Air Inlet side of the Outdoor unit (see the
diagram on page 1) to ensure grass, leaf and
other matter are not drawn into or onto the Inlet
side of the Outdoor unit. Restriction to the air
ÀRZDFURVVWKHFRLOZLOOUHGXFHWKHV\VWHPV
capacity, and result in high operation pressures
and excessive operating costs.
$UHWXUQDLU¿OWHU0867EHLQVWDOOHGE\WKH
LQVWDOOHUDWWKHUHWXUQDLUJULOOH7KHDLU¿OWHU
should be inspected and cleaned at least every
two weeks during summer or other periods
when the Braemar Invertair™ - True Inverter
Add-On Cooling unit is used.
Note: the manufacturer recommends that low
level return air grilles are installed.
Important! THE AUSTRALIAN
GREENHOUSE OFFICE HAS ISSUED
VARIOUS REGULATIONS ON THE USE
AND DISPOSAL OF REFRIGERANTS
IN THE UNIT. FAILURE TO FOLLOW
THESE REGULATIONS MAY HARM THE
ENVIRONMENT AND COULD LEAD TO THE
IMPOSITION OF SUBSTANTIAL FINES.
WHERE SPECIFIED, ONLY QUALIFIED
AND LICENSED TECHNICIANS SHOULD
PERFORM WORK ON THIS UNIT, FAILING
WHICH THE WARRANTY ON THE UNIT
WILL BE VOID.
WARNING! This appliance is not intended
for use by persons (including children)
with reduced physical, sensory or mental
capabilities, or lack of experience and
knowledge, unless they have been given
supervision or instruction concerning use of
the appliance by a person responsible for
their safety. Children should be supervised to
ensure that they do not play with the appliance.
If the supply cord is damaged, it must be
replaced by a Seeley service agent or similarly
TXDOL¿HGSHUVRQLQRUGHUWRDYRLGDKD]DUG

4 |Invertair™ - True Inverter Add-On Cooling Unit
MAGIQTOUCH CONTROLLER®SETTINGS MENU
Your MagIQtouch Controller contains a settings
menu which gives you access to information
about your Braemar Invertair™ - True Inverter
Add-On Cooling unit and to extra functions
including:
ABOUT APPLIANCE
Access information about the appliances
installed in your system.
COOLER SELECTION
If you have both an Evaporative Cooler and
Invertair™ True Inverter Add-On Cooling unit
installed, you can select which product to use
for cooling mode.
MIN/MAX SET TEMPERATURE
You can change the minimum and maximum
temperature displayed on your slider,
depending on what temperature range you
prefer your system to work within.
ROOM FAN RUN-ON TIME
You can select whether to have the fan on
Time" when the compressor stops.
Note! There are some settings that are just for
trained service agents or installers. You won’t
be able to access any of these options without
a pin code.
Here’s a brief visual guide to get you
started quickly!
Refer to the MagIQtouch Wall Control
Owner's Manual for detailed instructions.
STEP 1
Activate screen.
ILL1521-B
ILL1522-B
STEP 2
Select mode from lower taskbar.
ILL1523-B
ILL1524-B
STEP 3
Turn on cooler or heater.
ILL1525-B
ILL1526-B
STEP 4
Set desired temperature.
ILL1528-B
ILL1527-B
STEP 5
Access more advanced options by expanding
the lower taskbar.
ILL1529-B
ILL1530-B
STEP 6
Access wall control and system settings in the
SETTINGS menu.
ILL1531-B
ILL1532-B
SEELEY INTERNATIONAL - OWNER’S MANUAL |5
OPERATION MAINTENANCE & SERVICE
Your Braemar Invertair™ - True Inverter Add-
On Cooling unit has been designed and built
with reliable, quality components. To ensure
many years of trouble free, dependable service
please read the following pages very carefully,
and please ensure that you follow all of the
instructions.
Please refer to your Braemar Ducted Gas
Heater Home Owner's Manual for the setting
and operation of your Braemar Invertair™ -
True Inverter Add-On Cooling unit.
REFRIGERATED COOLING ZONING
TQ3 Series
7KH746HULHVRI%UDHPDU'XFWHG*DV
+HDWHUVDUHQRWGHVLJQHGIRU]RQLQJDQG
when operated all outlets will be open for
heating. If a Braemar Invertair™ - True Inverter
Add-On Cooling unit is connected, then when
it is operating all outlets will be open for
cooling. Accordingly, if you choose to have
D]RQLQJFRQWUROV\VWHP¿WWHGWR\RXU74
Series Heater, then because it has not been
GHVLJQHGIRU]RQLQJ\RXPD\EHGLVDSSRLQWHG
with the heating and the cooling performance.
However, any issues will need to be referred
back to the supplier and/or installer of the
]RQLQJFRQWUROV\VWHP
CONNECTION TO OTHER DUCTED GAS
HEATER BRANDS
The Braemar Invertair™ - True Inverter Add-
On Cooling unit is not suitable to be connected
to other brands of ducted gas heaters.
AIR FILTER
,WLVLPSRUWDQWWRFKHFNDQGFOHDQWKHDLU¿OWHUDV
per the Maintenance Schedule below. A dirty air
¿OWHUZLOOQRWDOORZWKHFRUUHFWDPRXQWRIFOHDQ
air to pass through your air conditioner, resulting
in poor performance and increased running
costs. You should ask the installer to show you
ZKHUHWKHDLU¿OWHULVORFDWHG
7RFOHDQWKHDLU¿OWHULWVKRXOGEHUHPRYHGDQG
then cleaned with a water hose using moderate
pressure, spraying from the internal side. Make
VXUHLWLVFRPSOHWHO\GU\EHIRUHUH¿WWLQJLW,ILWLV
YHU\GLUW\DQGFDQQRWEHFOHDQHGWKH¿OWHUZLOO
need replacing. You should never operate the
DLUFRQGLWLRQHUZLWKRXWWKHDLU¿OWHULQSODFH
INDOOR COIL (Refer page 2)
The indoor coil does not have any moving parts,
but it is advisable to have the drain and duct
connections checked on an annual basis (as set
out in the Maintenance Schedule below). Drains
can become blocked by insects, and rats have
been known to chew through the drain to get to
the water in the pipe.
OUTDOOR UNIT (Refer page 2)
The Outdoor unit has either one or two fans,
and draws air through the appliance to expel
the heat generated during the cooling cycle.
We recommend checking that plants haven't
grown into or around the air intake or outlet,
along with other debris that may build up over
time, namely, leaves and the like.
REFRIGERANT
The refrigerant is the life blood of your air
conditioning unit. Not only does the correct
refrigerant charge provide you with reliable and
economical cooling, it also provides the cooling
for the compressor. A lack of refrigerant, due to
a leak, will cause the compressor to overheat
and expire prematurely. You will notice a decline
in cooling effect and an increase in power
FRQVXPSWLRQ7KHUHIRUHKDYLQJDTXDOL¿HG
licensed technician service your air conditioner
will save you money in the long term.
PLEASE REFER TO THE NEXT PAGE FOR
THE MAINTENANCE SCHEDULE

SEELEY INTERNATIONAL - OWNER’S MANUAL |5
OPERATION MAINTENANCE & SERVICE
Your Braemar Invertair™ - True Inverter Add-
On Cooling unit has been designed and built
with reliable, quality components. To ensure
many years of trouble free, dependable service
please read the following pages very carefully,
and please ensure that you follow all of the
instructions.
Please refer to your Braemar Ducted Gas
Heater Home Owner's Manual for the setting
and operation of your Braemar Invertair™ -
True Inverter Add-On Cooling unit.
REFRIGERATED COOLING ZONING
TQ3 Series
7KH746HULHVRI%UDHPDU'XFWHG*DV
+HDWHUVDUHQRWGHVLJQHGIRU]RQLQJDQG
when operated all outlets will be open for
heating. If a Braemar Invertair™ - True Inverter
Add-On Cooling unit is connected, then when
it is operating all outlets will be open for
cooling. Accordingly, if you choose to have
D]RQLQJFRQWUROV\VWHP¿WWHGWR\RXU74
Series Heater, then because it has not been
GHVLJQHGIRU]RQLQJ\RXPD\EHGLVDSSRLQWHG
with the heating and the cooling performance.
However, any issues will need to be referred
back to the supplier and/or installer of the
]RQLQJFRQWUROV\VWHP
CONNECTION TO OTHER DUCTED GAS
HEATER BRANDS
The Braemar Invertair™ - True Inverter Add-
On Cooling unit is not suitable to be connected
to other brands of ducted gas heaters.
AIR FILTER
,WLVLPSRUWDQWWRFKHFNDQGFOHDQWKHDLU¿OWHUDV
per the Maintenance Schedule below. A dirty air
¿OWHUZLOOQRWDOORZWKHFRUUHFWDPRXQWRIFOHDQ
air to pass through your air conditioner, resulting
in poor performance and increased running
costs. You should ask the installer to show you
ZKHUHWKHDLU¿OWHULVORFDWHG
7RFOHDQWKHDLU¿OWHULWVKRXOGEHUHPRYHGDQG
then cleaned with a water hose using moderate
pressure, spraying from the internal side. Make
VXUHLWLVFRPSOHWHO\GU\EHIRUHUH¿WWLQJLW,ILWLV
YHU\GLUW\DQGFDQQRWEHFOHDQHGWKH¿OWHUZLOO
need replacing. You should never operate the
DLUFRQGLWLRQHUZLWKRXWWKHDLU¿OWHULQSODFH
INDOOR COIL (Refer page 2)
The indoor coil does not have any moving parts,
but it is advisable to have the drain and duct
connections checked on an annual basis (as set
out in the Maintenance Schedule below). Drains
can become blocked by insects, and rats have
been known to chew through the drain to get to
the water in the pipe.
OUTDOOR UNIT (Refer page 2)
The Outdoor unit has either one or two fans,
and draws air through the appliance to expel
the heat generated during the cooling cycle.
We recommend checking that plants haven't
grown into or around the air intake or outlet,
along with other debris that may build up over
time, namely, leaves and the like.
REFRIGERANT
The refrigerant is the life blood of your air
conditioning unit. Not only does the correct
refrigerant charge provide you with reliable and
economical cooling, it also provides the cooling
for the compressor. A lack of refrigerant, due to
a leak, will cause the compressor to overheat
and expire prematurely. You will notice a decline
in cooling effect and an increase in power
FRQVXPSWLRQ7KHUHIRUHKDYLQJDTXDOL¿HG
licensed technician service your air conditioner
will save you money in the long term.
PLEASE REFER TO THE NEXT PAGE FOR
THE MAINTENANCE SCHEDULE

6 |Invertair™ - True Inverter Add-On Cooling Unit
MAINTENANCE SCHEDULE
Installation Date: Installer:
Items to be done by the Home Owner/User (please sign in the places indicated)
Monthly Annually Year 1 Year 2 Year 3 Year 4 Year 5
Maintain required clearance
around Outdoor unit
Items to be done by a
(Home owner/user must ensure that the technician signs and dates in the places indicated)
Annually
Check drain from indoor coil
Check Outdoor unit clearances – maintain garden and debris
Check refrigerant charge
Check refrigeration connections for soundness
Check outdoor fans
Check electrical connections
Check overall installation
Report to the home owner/user all tasks that require attention
Year 1 – Date: Technician:
Year 2 – Date: Technician:
Year 3 – Date: Technician:
Year 4 – Date: Technician:
Year 5 – Date: Technician:
Please NOTE! the Maintenance Schedule covers Year 1 to Year 5. To preserve your investment
for many years afterwards, we strongly recommend that you continue to maintain and service the
Braemar Invertair™ - True Inverter Add-On Cooling unit as per the items and frequency set out in
the Schedule, and as indicated elsewhere in this manual.

SEELEY INTERNATIONAL - OWNER’S MANUAL |7
CHECK BEFORE CALLING FOR SERVICE
Before calling Service, please check the
following:
1. If a new installation, please contact the
installer to ensure the installation has been
completed and commissioned.
2. Your system MUST have a MagIQtouch
Controller, if not, please refer back to your
installer.
3. Does the display show any information?
a. If yes, go to Step 4.
b. If No, check power supply to Heater.
I. Repair power supply and set time and
day.
II. Follow procedure in your Braemar
Ducted Gas Heater Owner's Manual on
how to set up and operate your system.
III. After completing the above checks
and rectifying any fault as required, if your
appliance continues not to operate, please
call 1300 650 644.
,VWKH0DJ,4WRXFK&RQWUROOHUVHWWR&22/
mode?
a. If Yes,
I. Is there air coming out of the outlets in
your home?
II. If No,
1. (QVXUH0DJ,4WRXFK&RQWUROOHULVVHW
to COOL and the set point is below
the room temperature.
2. &KHFNDQGFOHDQUHWXUQDLU¿OWHU
3. &KHFNDQGRSHQRXWOHWVDQGRU]RQHV
4. Check duct for disconnection or
damage.
5. After the above have been checked
and repaired as required, please call
1300 650 644.
b. If Yes, continue below:
I. Check Circuit Breaker and/or Isolator
to Invertair Outdoor unit, Invertair Indoor
unit and Ducted Gas Heater. If electricity
is available, the unit may be timing out on
the inbuilt safety timer. Wait 5 minutes and
re-check.
II. If fan is blowing on Outdoor unit, check
large pipe's temperature, this pipe should
be cold to touch. If not cold, please have
the installer check for refrigerant leaks
before calling Braemar Service on
1300 657 506.
5. Does the Invertair Add-On Cooling unit run
for short periods of time?
1. If No, refer 4.a.ii above
2. If Yes,
a. Check to ensure enough outlets
are open.
E&KHFNDQGFOHDQUHWXUQDLU¿OWHU
c. The Invertair™ True Inverter Add-
On Cooling unit has special safety
features built in to protect the system.
It will switch off the Add-On Cooling
unit output signal when the supply air
temperature drops below a pre-set
minimum value and will restart after
the supply air temperature rises by a
pre-set value.
d. Call the installer to check you have
the required number of outlets open.
e. Once the above have been
checked and repaired as required, call
1300 657 506.
Please NOTE!
It is important that you recognise whether the
fault is with the Ducted Gas Heater or if the
fault is with the Braemar Invertair™ - True
Inverter Add-On Cooling unit. For prompt,
HI¿FLHQWVHUYLFHSOHDVHIROORZWKHDERYH
before calling the appropriate number below.
For Refrigerated Cooling Issues
1300 657 506
For Ducted Heater Issues
1300 650 644
When calling the Warranty Service number,
please ensure you have your model and serial
number available, along with date of purchase,
and if possible a description of the problem.

8 |Invertair™ - True Inverter Add-On Cooling Unit
OPERATION TIPS OPERATION TIPS cont.
The following events may occur during normal
operation:
1. Protection of the air conditioner.
Compressor protection
• The compressor cannot restart for 3 minutes
after it stops.
• The supply air drops below a pre-determined
set point; this prevents the indoor coil from
freezing.
2. A white mist coming out from the Indoor
unit.
• A white mist may generate due to a large
temperature difference between air inlet
and air outlet on COOL mode in an indoor
environment that has a high relative
humidity.
3. Low noise of the air conditioner.
• You may hear a low hissing sound when the
compressor is running or has just stopped
running.
This sound is the sound of the refrigerant
• You can also hear a low “squeak” sound
when the compressor is running or has just
stopped running.
This is caused by heat expansion and cold
contraction of the plastic parts in the unit
when the temperature is changing.
4. Dust is blown out from the Indoor unit.
This is a normal condition when the air
conditioner has not been used for a long
5. A peculiar smell comes out from the
Indoor unit.
This is caused by the Indoor unit giving off
smells permeated from building material,
from furniture, smoke (for example if
someone is cooking food), or from the duct
work.
6. FAN operation during COOL mode.
When indoor air temperature reaches the
setting on the MagIQtouch Controller, the
compressor will stop operating and after
approximately 60 seconds the indoor
fan will stop blowing air. When the room
temperature rises back to the set point, the
indoor fan and the compressor will start
again.
SEELEY INTERNATIONAL - OWNER’S MANUAL |9
Symptom Cause Action
The air conditioner does not run Power failure. Wait for power to resume.
Fuse blown or circuit breaker open. Replace the fuse or reset the
breaker.
Thermostat adjustment too high (in
cooling mode).
Check thermostat setting.
7KHUHLVLQVXI¿FLHQWFRROLQJ The room was probably very hot
when you started the system.
Wait a while so the unit has enough
time to cool the room.
‘Clicking’ sound is heard from
the air conditioner
In heating or cooling operation
any plastic parts may expand or
shrink due to a sudden temperature
change in this event, a clicking
sound may occur.
This is normal.
Note!
6HHOH\,QWHUQDWLRQDOVWULYHVIRUFRQWLQXRXVSURGXFWLPSURYHPHQWVWKHUHIRUHVSHFL¿FDWLRQVDUH
subject to change without notice. Unit colour may vary slightly from that depicted in this booklet.
,QVWDOODWLRQDQGFRPPLVVLRQLQJRIWKLVV\VWHPWRWKHPDQXIDFWXUHUVVSHFL¿FDWLRQDQGFRPSOLDQFH
with industry standards, and local, state and national regulatory codes, are the responsibility of the
installer.
Information in this booklet was true and correct at the time of publishing. E & OE
TROUBLESHOOTING GUIDE

8 |Invertair™ - True Inverter Add-On Cooling Unit
OPERATION TIPS OPERATION TIPS cont.
The following events may occur during normal
operation:
1. Protection of the air conditioner.
Compressor protection
• The compressor cannot restart for 3 minutes
after it stops.
• The supply air drops below a pre-determined
set point; this prevents the indoor coil from
freezing.
2. A white mist coming out from the Indoor
unit.
• A white mist may generate due to a large
temperature difference between air inlet
and air outlet on COOL mode in an indoor
environment that has a high relative
humidity.
3. Low noise of the air conditioner.
• You may hear a low hissing sound when the
compressor is running or has just stopped
running.
This sound is the sound of the refrigerant
• You can also hear a low “squeak” sound
when the compressor is running or has just
stopped running.
This is caused by heat expansion and cold
contraction of the plastic parts in the unit
when the temperature is changing.
4. Dust is blown out from the Indoor unit.
This is a normal condition when the air
conditioner has not been used for a long
5. A peculiar smell comes out from the
Indoor unit.
This is caused by the Indoor unit giving off
smells permeated from building material,
from furniture, smoke (for example if
someone is cooking food), or from the duct
work.
6. FAN operation during COOL mode.
When indoor air temperature reaches the
setting on the MagIQtouch Controller, the
compressor will stop operating and after
approximately 60 seconds the indoor
fan will stop blowing air. When the room
temperature rises back to the set point, the
indoor fan and the compressor will start
again.
SEELEY INTERNATIONAL - OWNER’S MANUAL |9
Symptom Cause Action
The air conditioner does not run Power failure. Wait for power to resume.
Fuse blown or circuit breaker open. Replace the fuse or reset the
breaker.
Thermostat adjustment too high (in
cooling mode).
Check thermostat setting.
7KHUHLVLQVXI¿FLHQWFRROLQJ The room was probably very hot
when you started the system.
Wait a while so the unit has enough
time to cool the room.
‘Clicking’ sound is heard from
the air conditioner
In heating or cooling operation
any plastic parts may expand or
shrink due to a sudden temperature
change in this event, a clicking
sound may occur.
This is normal.
Note!
6HHOH\,QWHUQDWLRQDOVWULYHVIRUFRQWLQXRXVSURGXFWLPSURYHPHQWVWKHUHIRUHVSHFL¿FDWLRQVDUH
subject to change without notice. Unit colour may vary slightly from that depicted in this booklet.
,QVWDOODWLRQDQGFRPPLVVLRQLQJRIWKLVV\VWHPWRWKHPDQXIDFWXUHUVVSHFL¿FDWLRQDQGFRPSOLDQFH
with industry standards, and local, state and national regulatory codes, are the responsibility of the
installer.
Information in this booklet was true and correct at the time of publishing. E & OE
TROUBLESHOOTING GUIDE

Warranty Service
Refrigerated Cooling 1300-657-506
Ducted Gas Heating 1-300-650-644
seeleyinternational.com
It is the policy of Seeley International to introduce continual product improvement.
the model selected
Seeleyinternational.com
.
AU 1508865324-D
