SeeTech iH-110 Series User manual

Rev. 1.0.2
Date: 2017. 02. 08
Cash counter & Discriminator

iH-110 Series Service Manual
Hitachi Terminal Solutions Korea Co., Ltd. 2
Records of Revision
Rev.
YYYY-MM-DD
Chief Contents
In Charge
Issued
2016-09-11
First Edition.
Kelly
2nd
2016-12-06
Main Screens of the machine are changed.
Kelly
3rd
2016-12-19
UV Calibration is changed.
Kelly
4th
2017-02-08
CIS Calibration is changed.
Kelly

iH-110 Series Service Manual
Hitachi Terminal Solutions Korea Co., Ltd. 3
- Contents –
1. Appearance ................................................................................................................... 4
2. Disassemble & Assemble ............................................................................................ 5
3. Upgrade....................................................................................................................... 40
4. Calibration................................................................................................................... 42
5. Data Acquisition.......................................................................................................... 53
6. Machine Setting Menu(Preparing).............................................................................. 56
7. Engineer Setting Menu(Preparing)............................................................................. 57
8. Specification ............................................................................................................... 58
9. Error code.................................................................................................................... 59
10. Trouble Shooting(Preparing) .................................................................................... 61
11. Block diagram........................................................................................................... 62

iH-110 Series Service Manual
Hitachi Terminal Solutions Korea Co., Ltd. 4
1. Appearance
<Front View>
<Rear View>
Hopper
Stacker
LCD Display
Hopper Guide
Operation
Keys
Reject Pocket
Printer
USB-H
(PC)
USB-S
(Devices)
LAN
Gap Adjust Knob
Power Switch
Power Supply
Socket
External
Display

iH-110 Series Service Manual
Hitachi Terminal Solutions Korea Co., Ltd. 5
2. Disassemble & Assemble
2-1. UPPER SIDE COVER and LOWER SIDE COVER
Left Side
Right Side
Upper Side
Lower Side

iH-110 Series Service Manual
Hitachi Terminal Solutions Korea Co., Ltd. 6
1) Left and Right Side Lower Cover are assembled with 3 pcs of TERAS BOLT.
2) Remove 3 pcs of TERAS BOLT as below.
3) By pulling the cover as below picture, separate Right Lower Side Cover from the machine.

iH-110 Series Service Manual
Hitachi Terminal Solutions Korea Co., Ltd. 7
4) Remove Left Lower Side Cover as the same method.
5) Left and Right Side Upper Cover are assembled with 3 pcs of SEM'S BOLT.

iH-110 Series Service Manual
Hitachi Terminal Solutions Korea Co., Ltd. 8
6) Remove 3 pcs of SEM'S BOLT as below.
7) Separate Right Upper Side Cover from the machine.

iH-110 Series Service Manual
Hitachi Terminal Solutions Korea Co., Ltd. 9
8) Remove Left Upper Side Cover as the same method.
9) When you want to assemble Left&Right Side Upper and Lower Cover, reassemble in reverse
order of disassembly.
*Check Points and Tips*
- When assemble Left&Right Side Upper Cover, you need adjust Screw hole correctly as below.

iH-110 Series Service Manual
Hitachi Terminal Solutions Korea Co., Ltd. 10
- When assemble Left&Right Side Lower Cover, put the front area of the covers first as below.
- You can remove Left&Right Side Upper Cover without disassemble Left&Right Side Lower
Cover.
1
2

iH-110 Series Service Manual
Hitachi Terminal Solutions Korea Co., Ltd. 11
2-2. LOWER REAR COVER and MODULE REAR COVER
1) Remove UPPER SIDE COVER and LOWER SIDE COVER first.
2) Go to back side.
3) LOWER REAR COVER is assembled with 6 pcs of TERAS BOLT.
4) Remove 6 pcs of TERAS BOLT as below.

iH-110 Series Service Manual
Hitachi Terminal Solutions Korea Co., Ltd. 12

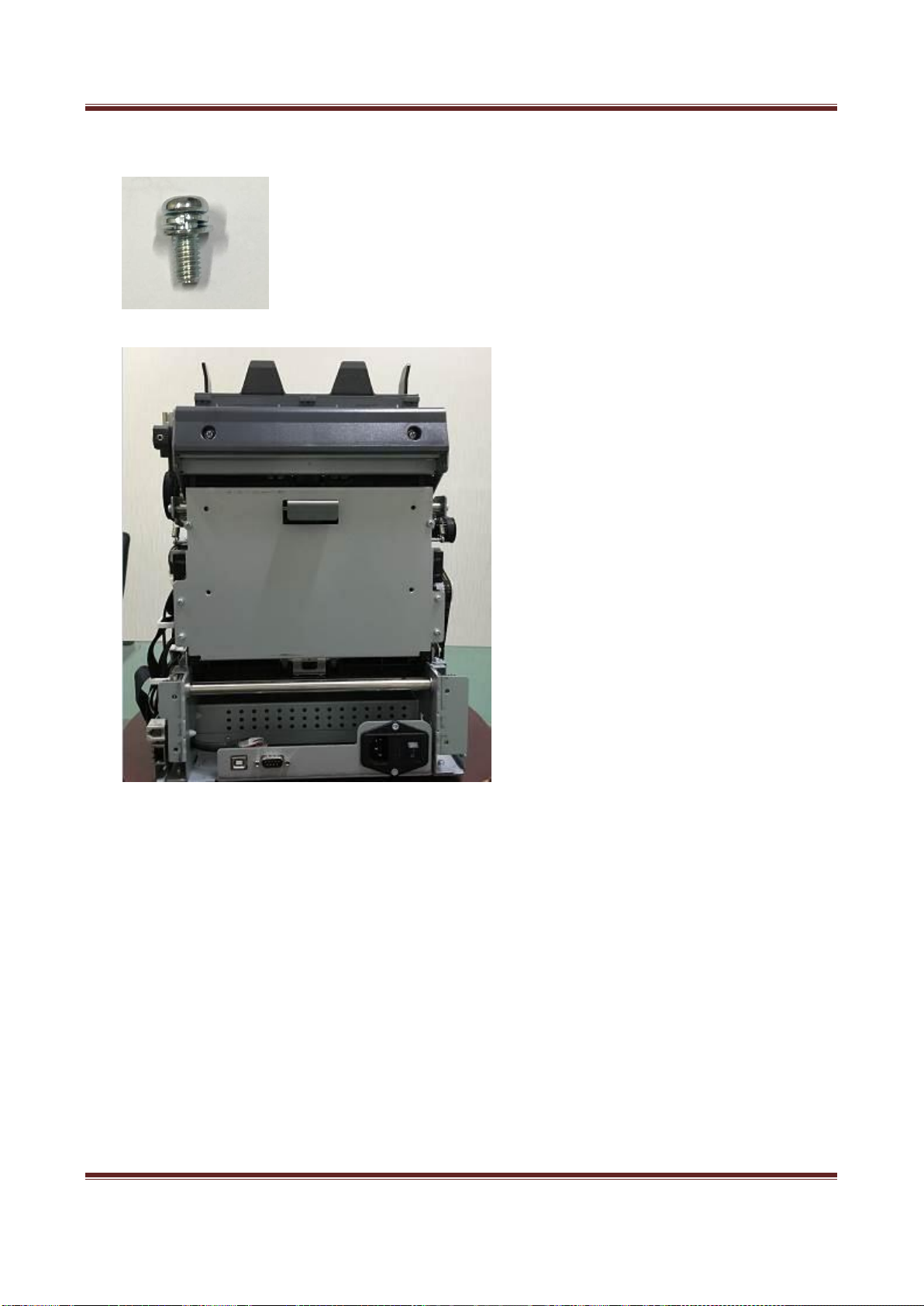

5) MODULE REAR COVER is assembled with 4 pcs of SEM'S BOLT.
6) Remove 4 pcs of SEM'S BOLT as below.
7) When you want to assemble LOWER REAR COVER and MODULE REAR COVER,
reassemble in reverse order of disassembly.

iH-110 Series Service Manual
Hitachi Terminal Solutions Korea Co., Ltd. 13
2-3. Front Cover & Hopper Cover
1) Remove UPPER SIDE COVER.
2) Go to the left side and remove 2 screws as below.
3) Go to the right side and remove 2 screws as below.

iH-110 Series Service Manual
Hitachi Terminal Solutions Korea Co., Ltd. 14
4) Hold HOPPER COVER and lift ROTARY BOLT UNIT slightly.
5) Remove HOPPR COVER.
6) Hold FRONT COVER as below and lean back it slightly.3 kinds of harnesses are connected to
FRONT BOARD.

iH-110 Series Service Manual
Hitachi Terminal Solutions Korea Co., Ltd. 15
7) Separate 3 harnesses and remove FRONT COVER from the machine.

iH-110 Series Service Manual
Hitachi Terminal Solutions Korea Co., Ltd. 16
8) When you want to assemble FRONT COVER, reassemble in reverse order of disassembly.
*Check Points and Tips*
- When assemble HOPPER COVER, adhere it to Machine as below, tighten screws.

iH-110 Series Service Manual
Hitachi Terminal Solutions Korea Co., Ltd. 17
2-4. MODULE 1
1) Remove UPPER SIDE COVER and LOWER SIDE COVER.
2) Remove LOWER REAR COVER and MODULE REAR COVER.
3) Go to left side of the machine.
4) Remove IH-BELT S3M318.

iH-110 Series Service Manual
Hitachi Terminal Solutions Korea Co., Ltd. 18
5) Remove ST-BELT (S3M 195-6).
6) Remove ST-BELT (S2M 142-6).

iH-110 Series Service Manual
Hitachi Terminal Solutions Korea Co., Ltd. 19
7) Remove 2 screws as below.
8) Go to right side of the machine.

iH-110 Series Service Manual
Hitachi Terminal Solutions Korea Co., Ltd. 20
9) Remove 2 screws as below.
