1. Introduction
2. Features
Thank you for purchasing this Mini Particle Counter PC E - M P C 10.
The PCE-MPC 10 with 2.0 color TFT LCD display provides fast, easy and accurate
readings for particle counter, particle mass concentration, Air temperature
and relative humidity. The series products is a delicate and practical
hand-held instrument, the real scene and time can be displayed on color
TFT LCD. memory readings can be recorded in meter. It Would be
the best instrument for environment protection and energy save.
2.0 TFT Color LCD display
220*176 pixels
Simultaneously measure PM2.5 and Pm10
Air temperature and humidity
Real time clock display
Analog bar indicator
Auto Power
"
Any
"•
•
•
•
•
•
•
All manuals and user guides at all-guides.com

9
10
7
2
4
3
5
6
1
8

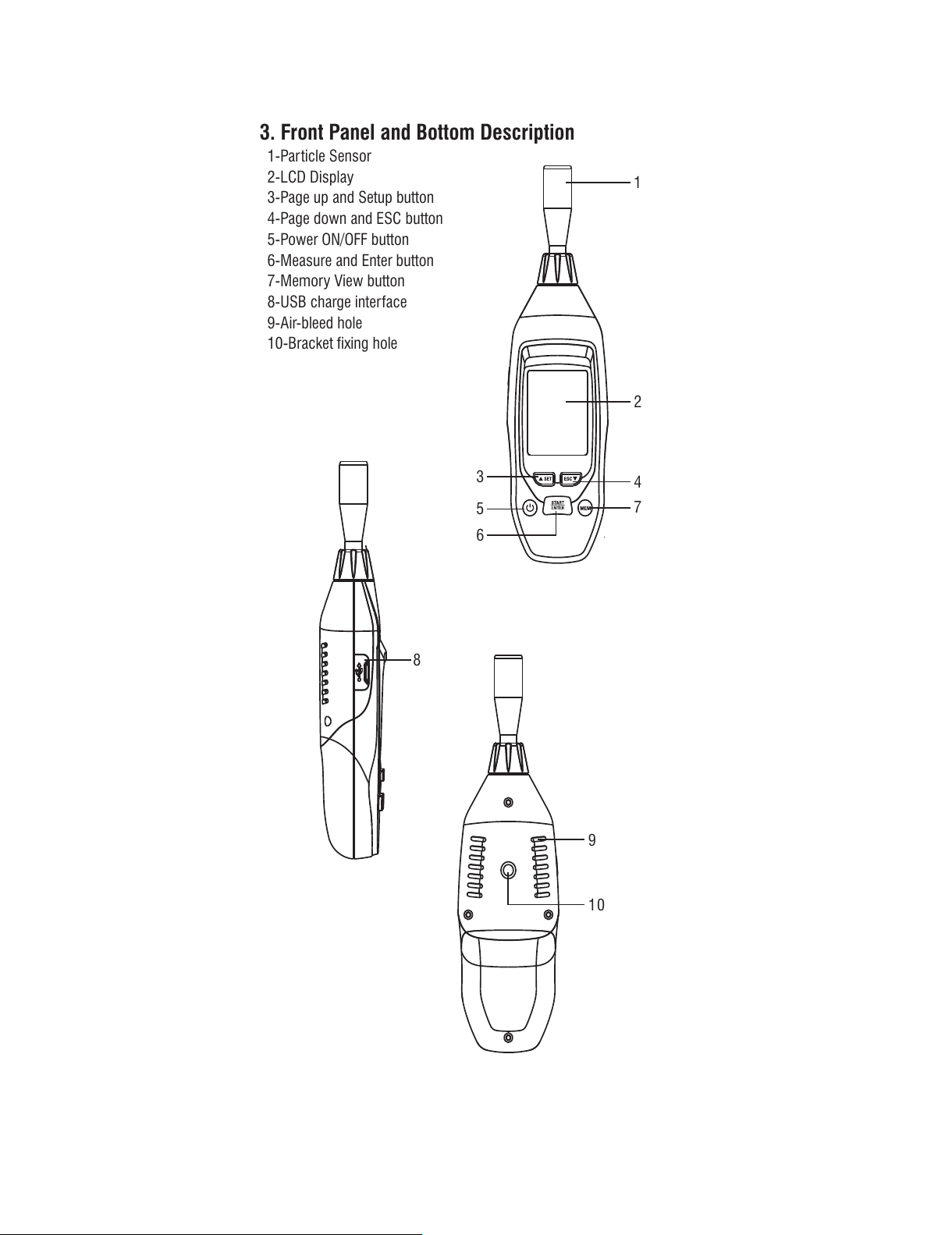

3. Front Panel and Bottom Description
1-Particle Sensor
2-LCD Display
3-Page up and Setup button
4-Page down and ESC button
5-Power ON/OFF button
6-Measure and Enter button
7-Memory View button
8-USB charge interface
9-Air-bleed hole
10-Bracket fixing hole
All manuals and user guides at all-guides.com

PM2.5: 0~2000ug/m
PM10: 0~2000ug/m
1ug/m
0 to 100%RH
0.1%RH
±5%RH
±3.5%RH
3
3
3
2.5um, 10um
0 ~ 50°C/32~122°F
0.1°C/°F
±1°C/2°F
Particle Counter PCE-MPC 10
Channel
Mass Concentration
Air Temperature Measure
Air Temp Range
Resolution
Basic Accuracy
Humidity Range
Resolution
Basic Accuracy
Resolution
4. Specications
0 ~ 20%RH
80~100%RH
20~80%RH
All manuals and user guides at all-guides.com

2015-10-08 16:24
Stopped
ug/m3
size
2.5um 28
1 0um 58
AT C RH %33.4 42.8
o
2015-10-08 16:24
Counting wait5
ug/m3
size
2.5um 0
1 0um 0
AT C RH %33.4 45.2
o
5. Power on or Power off
On the power off mode, press and hold button, until the LCD is on,
then the unit will power on.
On the power on mode, press and hold button, until the LCD is off,
then the unit will power off.
6. Measurement Mode
On the power on mode, you can press the button to start
measuring PM2.5 and PM10, the top left corner of the LCD display “Counting”,
the top right corner of the LCD display count down, LCD main display PM2.5
and PM10 data and temperature & humidity readings are at the bottom
of LCD.
Press the button again to stop the measurement, the top left corner of
the LCD display “Stopped”, The LCD display the last measurement data.
Data will be automatically saved to the instrument memory, which can store
up to 5000 data.
All manuals and user guides at all-guides.com
all-guides.com

2015-10-08 16:24
Date 2015-10-08
24Hour 16:24
Date Set
2015-10-08 16:24
ON
OFF
Alarm Set
2015-10-08 16:24
Date/Time
Alarm Set
Sample Mode
Unit( C/ F)
oo
Memory View
Mass/Particle
Auto Power off
System Set

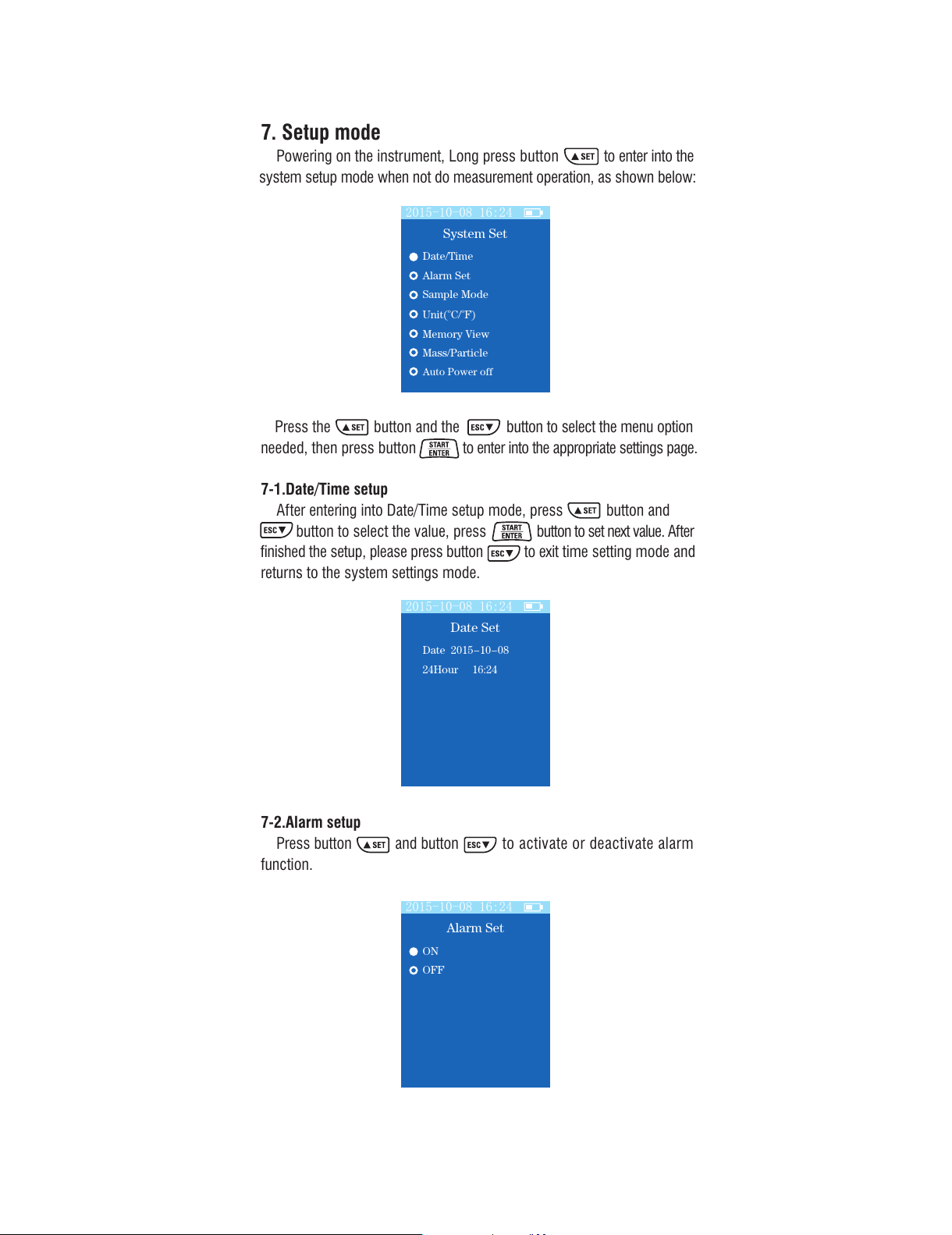

7. Setup mode
Powering on the instrument, Long press button to enter into the
system setup mode when not do measurement operation, as shown below:
Press the button and the button to select the menu option
needed, then press button to enter into the appropriate settings page.
After entering into Date/Time setup mode, press button and
button to select the value, press button to set next value. After
finished the setup, please press button to exit time setting mode and
returns to the system settings mode.
Press button and button to activate or deactivate alarm
function.
7-1.Date/Time setup
7-2.Alarm setup
All manuals and user guides at all-guides.com

2015-10-08 16:24
30S
1Min
2Min
5Min
Sample Time
2015-10-08 16:24
C
F
o
o
Unit Set

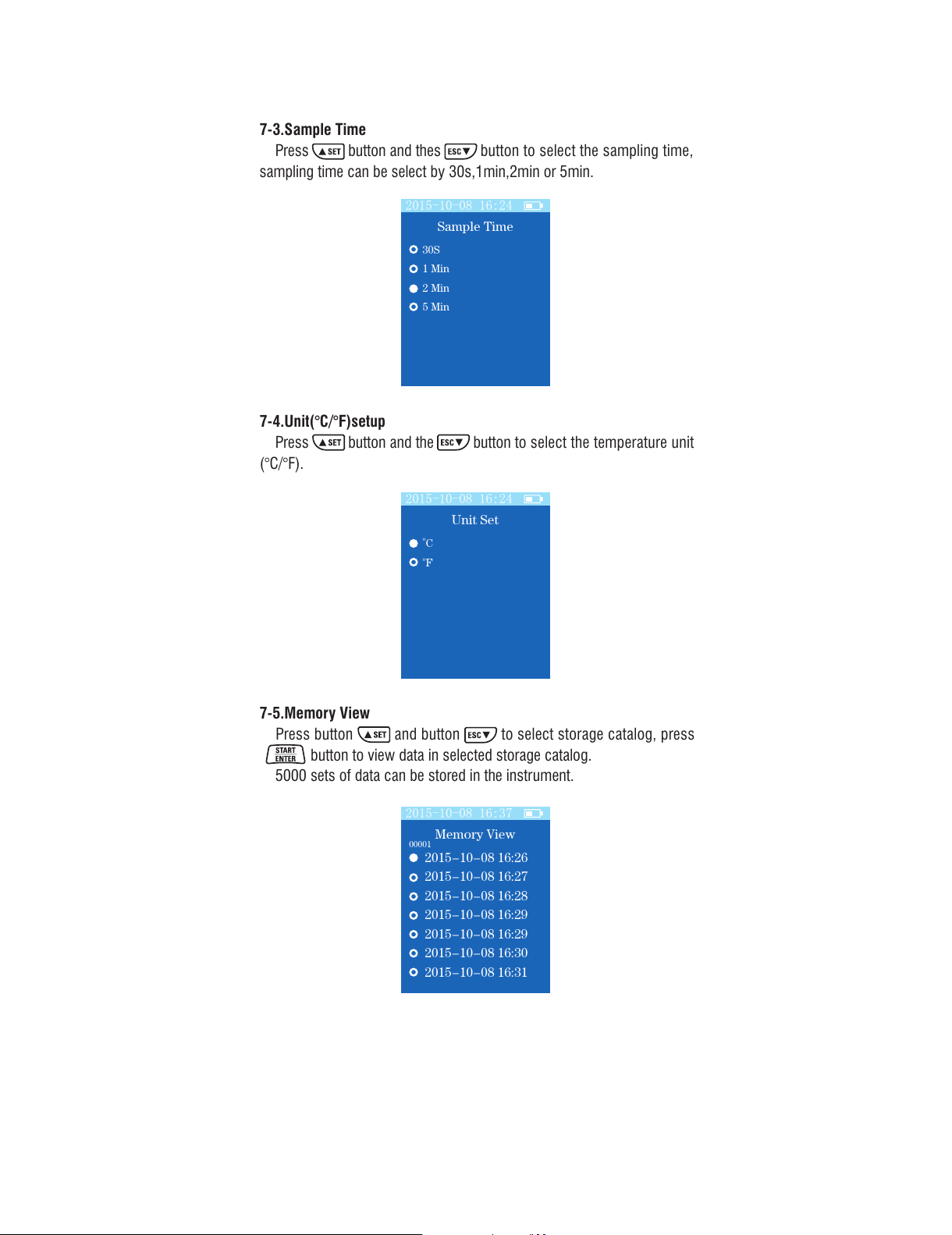

7-3.Sample Time
7-4.Unit(°C/°F)setup
7-5.Memory View
Press button and thes button to select the sampling time,
sampling time can be select by 30s,1min,2min or 5min.
Press button and the button to select the temperature unit
(°C/°F).
Press button and button to select storage catalog, press
button to view data in selected storage catalog.
5000 sets of data can be stored in the instrument.
2015-10-08 16:37
Memory View
2015-10-08 16:26
2015-10-08 16:2
2015-10-08 16:2
2015-10-08 16:2
2015-10-08 16:2
2015-10-08 16:
2015-10-08 16:
7
8
9
9
30
31
00001
All manuals and user guides at all-guides.com

2015-10-08 16:25
Mass
Particle
Mass/particle
2015-10-08 16:25
Auto Pow off
Disable
3MIN
10MIN
30MIN
perations.
7-6.Mass/Particle setup
7-7.Auto Power Off setup
Press button and the button to select the mode par ticle
concentration and mass concentration mode.
Press button and button to set the auto-off time.
Disable: Power off function is deactivated.
3MIN: Automatically shutdown in 3 minutes without any operations.
10MIN: Automatically shutdown in 10 minutes without any operations.
30MIN: Automatically shutdown in 30 minutes without any o
All manuals and user guides at all-guides.com

8. Shortcut keys
Press the button to quickly enter the storage data directory view,
select the directory button to view the specific data.
In the main LCD interface, pressing and hold the button then press
the button until the sound of a buzzer delete the stored data.
Maintenance or service is not included in this manual, the product must
be repaired by professionals
It must use the required replacement parts in maintenance
If the operating manual is changed, please instruments prevail without
notice
Do not use in over dirty or dusty environment. Inhalation of too many
particles will damage the product.
To ensure the measure accuracy, please do not use in an over fogged
environment.
Do not use in explosive environment.
Follow the instructions to use the product, privately take apart the unit
is not allowed.
9. Product Maintenance
10. Cautions
•
•
•
•
•
•
•
