CPI CUMMINS ALLISON CA-200 User manual

CA-200
Premium 1.5 Pkt Currency Scanner
User’s Guide

A-200 PREMIUM 1.5 PKT CURRENCY SCANNER
Page 2of 13
Introduction
Copyright © 2023
CA-200 User Guide –Revision 1.0.1
Thank you for purchasing the Cummins Allison model CA-200.
Please ensure to thoroughly read this entire user guide prior to using your CA-200.
Information in this document is subject to change without notice. All rights reserved. Reproduction, transmission, or
translation of this document is prohibited without prior written permission of Cummins Allison ULC. The publisher is not
liable for technical or editorial errors or omissions.
Figures and illustrations in this user manual are provided for reference only and may differ from the actual appearance of
the product.
Product design and specifications are subject to change without notice.
Thank you.
Table of Contents
Introduction ..............................................................................................................................................................................2
Table of Contents......................................................................................................................................................................2
Safety Information & Power Specs ...........................................................................................................................................3
Device Overview........................................................................................................................................................................4
Understanding the Start-up Screen ..........................................................................................................................................5
User Interface / Configuring Modes..........................................................................................................................................6
CA-200 Operating Modes..........................................................................................................................................................7
Multiple Currencies...................................................................................................................................................................8
Modes for Scanning & Counting Mixed Currencies ..............................................................................................................8
Daily Cleaning & Care................................................................................................................................................................9
Hopper Cleaning ...................................................................................................................................................................9
Stacker Cleaning....................................................................................................................................................................9

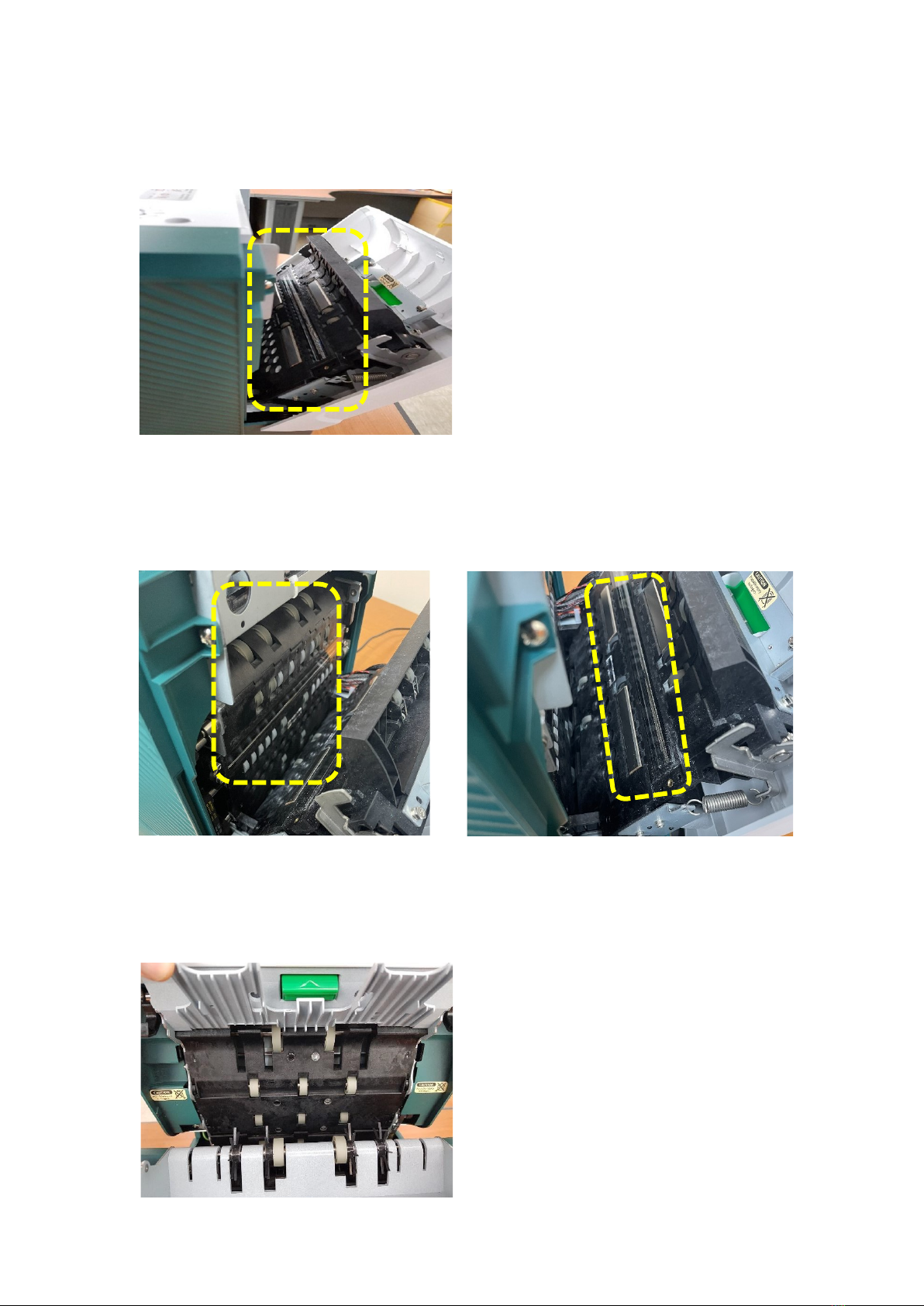

Rear Scanner Unit Cleaning.................................................................................................................................................10
Note Path Cleaning .............................................................................................................................................................10
Empty Dust Tray..................................................................................................................................................................11
Recommended Cleaning Materials .........................................................................................................................................12
Contact Information................................................................................................................................................................13

A-200 PREMIUM 1.5 PKT CURRENCY SCANNER
Page 3of 13
Safety Information & Power Specs
WARNING
High voltage inside. Risk of electric shock.
Turn power OFF and unplug power cord from machine before cleaning.
Do not attempt repairs. Repairs must be made by authorized Cummins Allison personnel. Use
grounded plug and properly grounded outlet. Read and understand all instructions before use.
NOTICE
Improper voltage levels can cause equipment malfunction, damage electrical
components, and void warranty. Provide separate circuit serving only this device and
follow listed power requirements to ensure proper operation.
Provide power conditioning/stabilizing devices if necessary.
Voltage operating range: 100-240V
Frequency: 50/60 Hz
Full load amps (FLA): 2.4A at 100V, 1A at 240V
Electrical supply circuit: The customer must provide a single-phase, dedicated power line that
meets the machine’s power requirements. Use a properly grounded circuit breaker in
compliance with applicable local electrical code.
Environmental Operating Conditions
Temperature: 0-35˚C (For use) / -10-40˚C (For storage)
Humidity: 20-90% RH
Compliance Acknowledgements
FCC: This device complies with part 15 of the FCC rules. Operation is subject to the following
two conditions:(this device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
REGULATORY
ULC & CE Certifications
CAUTION
For continued protection against risk of fire, replace only with same type and rating of fuse. Do
not attempt repairs.
Device servicing and repairs must be made by authorized
Cummins Allison personnel only!

A-200 PREMIUM 1.5 PKT CURRENCY SCANNER
Page 4of 13
Device Overview

A-200 PREMIUM 1.5 PKT CURRENCY SCANNER
Page 5of 13

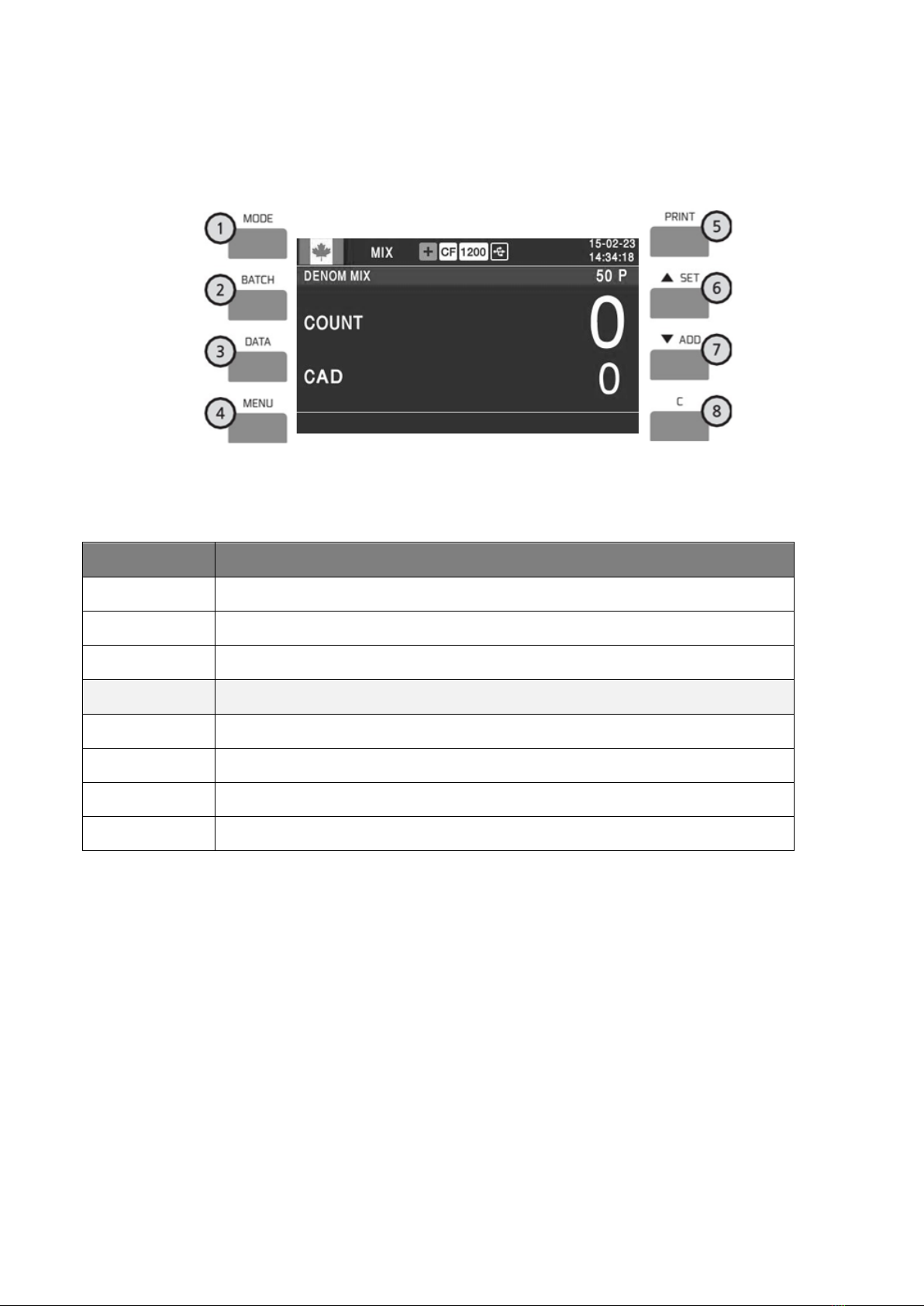

Understanding the Start-up Screen
This is the first screen that appears on the screen when the device is turned on.
The screen configuration may differ depending on the program version or system setting status.
No.
NAME
FUNCTION
1
The flag of currently set currency is displayed. Click this icon to change the currency
setting. Set to “A” for auto currency reading.
2
[CURRENT MODE]
Displays the current processingmode
3
[DEVICE STATUS]
Displays the device's current settings
Displays addition counting mode On/Off status
Scan
Displays the scan function
800
Displays current device count speed
Displays the status of external connections such as USB
SN*
Displays serial number detection function On/Off status
CF
Displays counterfeit detection function On/Off status
T
Displays the tape detection function On/Off status
4
[TIME DISPLAY]
Displays the current time. Click this icon to change the device's time settings.
Year-Month-Day / Hour: Minute: Second
5
[COUNT SETTING]
Displays the counting mode (e.g., DENOM), currency (e.g., CAD),
and pocket (e.g., MIX) setting status one after another.
6
[BATCH QUANTITY]
Displays the currently set batch quantity
7
[COUNT]
Displays the number of banknotes counted. Press the number section fordetailed info.
8
[TOTAL AMOUNT]
Displays the counted amount. Press the number section for detailed info
9
[DEPOSIT]
Press this icon to enter the deposit settings menu
10
[REJ]
Displays the reject status (when it occurs) Click the icon for reject details.
