Seeworld S03C User manual

GPS Vehicle tracker
User manual S03C
(Version V2.0)

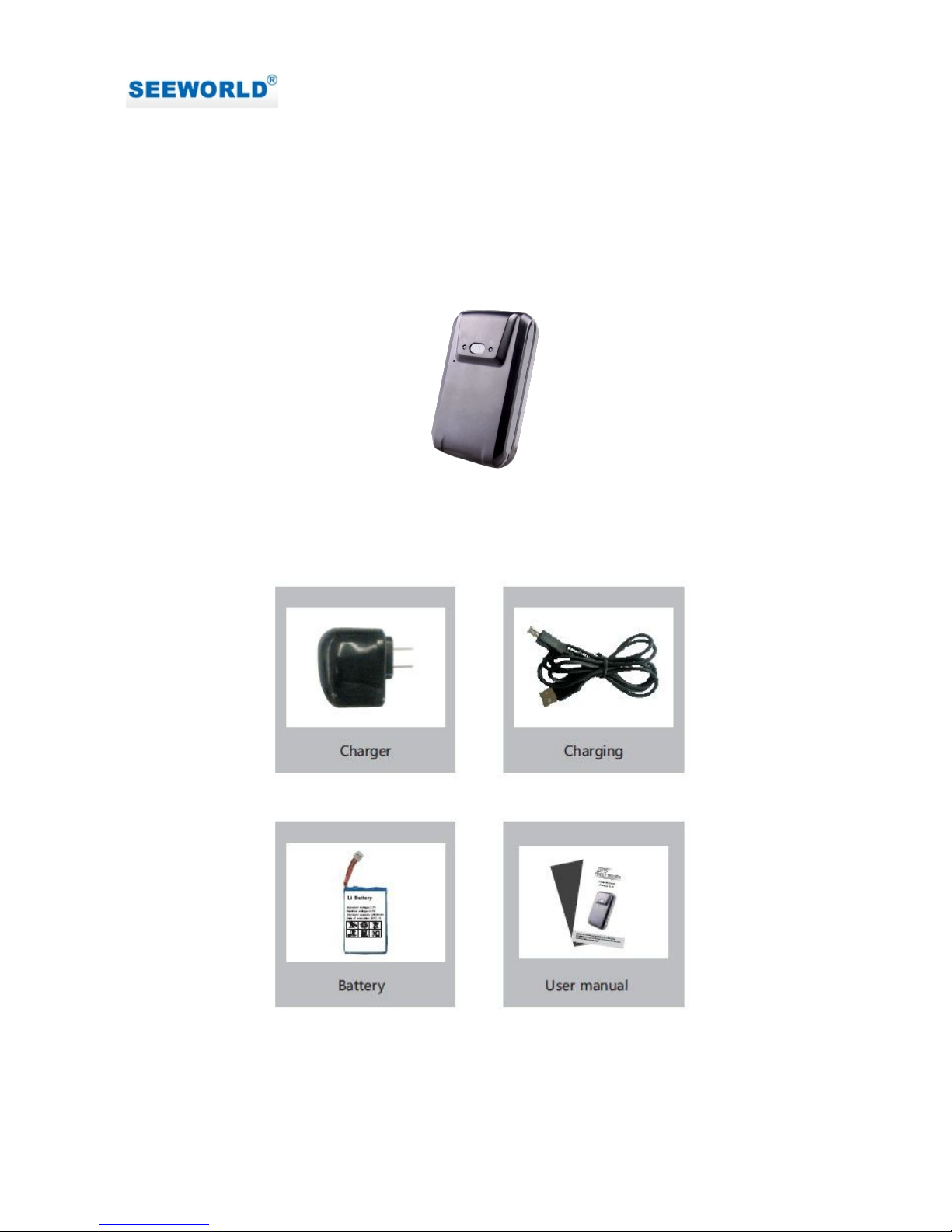

1.Accessories
Standard accessories:
1pc Charger
1pc USB cable
1pc Battery 5200mAh
1pc English Manual

S03C Product Description
GPS vehicle tracker
Geo-fence
Vibration alarm
Voice monitoring
With high intense magnet in its rear cover
Low power alarm
Battery with large capacity
SOS emergency alarm
Power-saving mode and avoid static drifting
Specification
GSM: MTK6223D
GSM :850/ 900/ 1800/ 1900 MHz
Build in GPS/GSM antenna
GPRS :Class12, TCP/IP build in GSM module
GPS Channels :20
Tracking sensitivity :-159dBm/-160dBm
Aquisition sensitivity: -144dBm/-147dBm
Locating time cost: Hot start: <1 sec(open sky)
Warm start: 35 sec on average
Cold start: 35 sec on average(open sky)
GPS antenna Built-in high sensitive omni antenna
LED indicators three LED indicators GPS-blue GSM-green Power-red
Button: Power on/off button
Battery :3.7vDC/ 5200mAh, longest work time: 30days,standby time: 45days.
Weight: 390g
Dimesion :91.5(L)×60.0(W)×38.0(H)mm

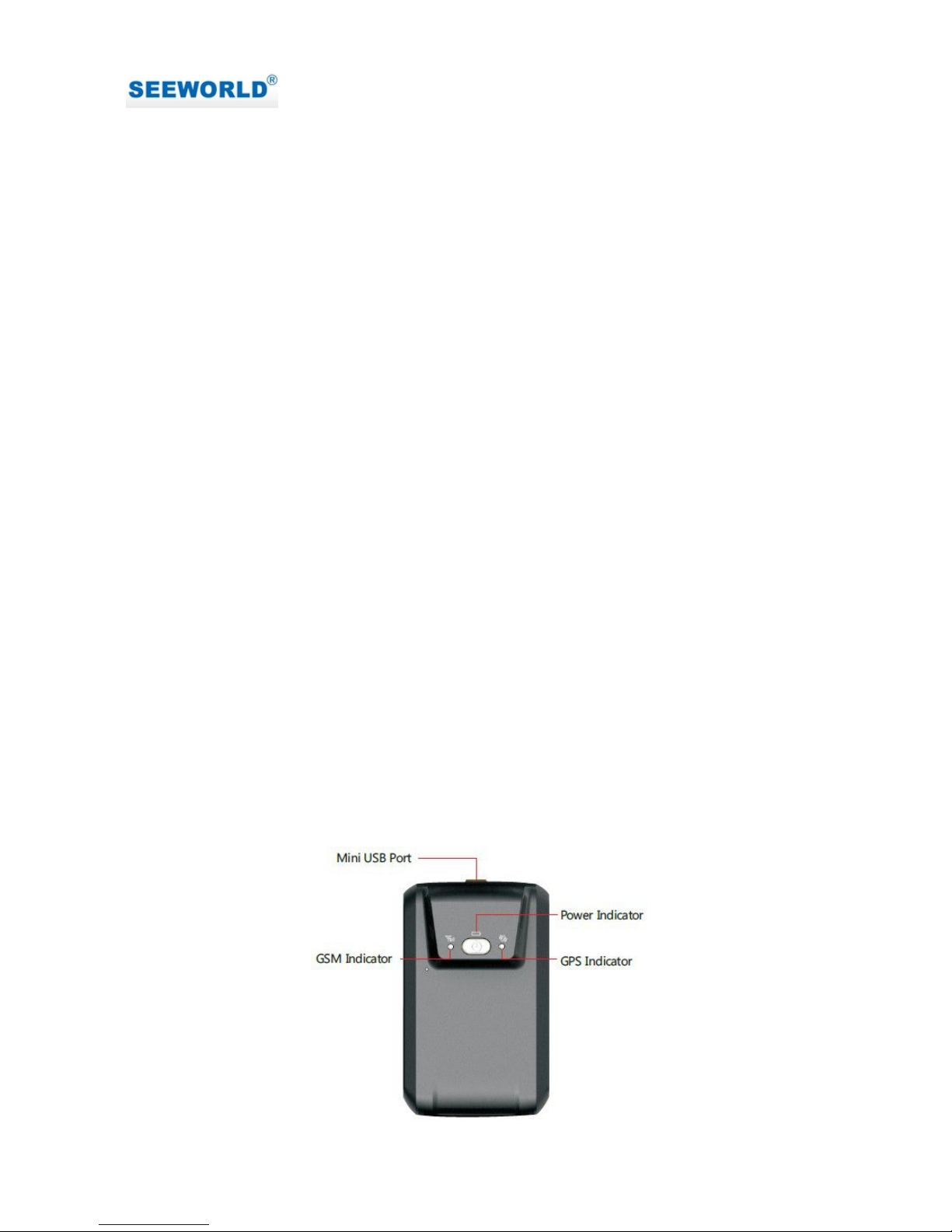

1. Appearance

2.1 LED status (non-sleep mode)
2.1.1Red LED (Power/working status)
LED Status
Indication
Flash quickly (interval 0.1S)
Low battery
Flash slowly (interval 2s)
Full charge/Working
normally
Flash slowly (Flash 0.1s after
every 2s)
Working normally
Bright
Charging
Dark
Out of battery / Troubleshot
2.1.2 Blue LED（GPS signal status）
LED Status
Indication
Flash quickly (interval 0.1s)
Searching GPS signal
Flash slowly (Flash 0.1s after
every 2s)
GPS signal has been
acquired successfully
Dark
GPS stops working
2.1.3 Green LED (GSM signal status)
LED Status
Indication
Flash quickly (interval 0.1s)
Receive GSM signal
normally
Flash slowly (flash 0.1s after
every 2s)
GPRS online
Bright
Incoming/outgoing calls
Dark
No GSM signal or no SIM
card installed
2.1.4 Defense Status Indication
While the three LEDs (blue/red/green) flash cyclically, it means the device begins to
enter defense status.
Note:
1. When it runs with battery, after GPS being located over 5s, all LEDs will be
automatically turned off.
2. If there is no operation over 20s when the LEDs are lightening, all LEDs will be
automatically turned off.
3. Short press SOS button could light LEDs and press again could close it.
3. Operation
3.1 Install/Remove the SIM card

(1) Power off the device, remove the battery and external power
(2) Put the SIM card in the SIM card slot
Note: 1. Please use a GSM SIM card
2. SIM card in the device should be enabled for GPRS
3. Caller ID of the SIM card in the device should be on
Warning: Please turn off the device before removing the SIM card. It is forbidden to
install or remove the SIM card while the power is on, otherwise the SIM card may be
damaged.
3.2 Power ON/OFF
Long press the Power ON/OFF button for 2 seconds to turn on/off the device.
3.3 Charge the battery
When the red LED on the device starts to flash quickly, the battery should be charged.
Please remember to charge it before the first use.
(1) Connect the charger to power
(2) Connect the charger with the device
(3) The charging process will take about 4-6 hours.
(4) The device can work normally during charging. Red LED being light indicates
that it is charging. When charging is finished, red LED will flash slowly.
Warning: the ambient temperature shall be 0℃～40℃while charging. Please use the
charger provided by the manufacturer.
3.4 Device installation
The device has a strong magnet in rear cover which could attach to any mental
surface.
The recommended installation position is as follows;

(1) Below the front windshield with the device front up and make sure there are no
sunshade mask and other anti-GPRS reception material on it
(2) On the bottom of a car such as the side place below door. Do not put it too far
inside, otherwise it can not receive GPS signal.
Note:
1. Device should be in the place with good GPS reception.
2. Do not put the device in some place where may get rusty easily.
3. Do not put the device in some place with extremely high temperature, such as
around the radiator pipe or exhaust port, for that it may lower the magnetism
greatly.
4. To place the device under the car, please make sure GPS is located first.
4. Functions and Parameter Settings
4.1.1 APN Setting
Please send SMS command to the number of device so as to set up the APN
parameter. The device will reply “OK” automatically after setting successfully. The
SMS command is as follows:
APN,APN’s name#
E.g APN,internet#
Note: The APN of some countries have user name and password, you may need to
send SMS command as following:
APN,APN name,user name,password#
E.g APN,internet,CLIENTE,AMENA#

4.1.2 Server Parameter Setting
SERVER,0,IP,Port,0# (With IP)
SERVER,0,172.168.9.1,8800,0#
4.2 SOS Numbers Setting
4.2.1 Add SOS number by SMS
SMS command: SOS,A,number 1,number 2,number 3,number 4#(A means add
number)
E.g. SOS,A,13510682360,13511685136,13612687248,13612683621#
4 SOS numbers can be set at one time. It will reply “OK” if succeeded.
SOS,A,13527852360# means setting the first specific number
SOS,A,,,13527852360,12510682360# means setting the third and fourth SOS number
4.2.2 Delete SOS numbers by SMS
SMS command: SOS,D,1,2,3,4# (D means to delete SOS number)
For example: SOS,D,1# means to delete the first number
To delete several numbers at one time, SMS command can be: SOS,D,1,2,4# means
to delete the first, second and the fourth numbers
If you do not know the serial number, you can also delete number by SMS command
like this: SOS,D,number#
E.g. SOS,D,13527852360# means to delete this SOS number directly.
It will reply “OK” if succeeded.
4.2.3 Add SOS number via platform
You can set SOS numbers via the platform when the device connects to the platform.
Note: Only the SOS number can make the operation as remote defense, monitoring
and SMS checking position.
4.3 Arm/disarm
There are 3 methods to activate/deactivate defense status.

4.3.1 Via Power ON/OFF button
Short pressing Power button twice to activate defense status. The three LEDs will
flash slowly one by one. After 3mins, the device will enter the defense status, and the
LEDs will then flash quickly one by one.
Short press Power button twice again to deactivate defense status
4.3.2 Via Calls
Any SOS number calls the device and then ends up the call by the mobile side in 10s,
the device will enter defense status and then reply SMS “Remote setting up defense
Successful”. If the SOS number does not end up the call in 10s, it will activate
monitoring function.
Any SOS number calls the device and then ends up the call by the mobile side in 10s,
it will disarm status from the arm status and then reply SMS “Remote disarm
succeeded”. If not ends up the call in 10s, the device will enter voice-monitoring
status.
4.3.3 Via SMS command
Send SMS “111” to arm. And the device will reply SMS “Remote setting up defenses
Successful” if it is set successfully. Only SMS from SOS numbers is valid.
Send SMS “000” to disarm. And the device will reply SMS “Successful remote
disarm” if it is set successfully. Only SMS from SOS numbers is valid.
Note:
(1) If you put the device in the car, please do not set arm statue when you are driving
as it will activate the vibration sensor.
(2) Only SOS numbers can set arm or disarm.
(3) Device SIM card should activate caller-ID function.
4.4 Anti-theft alarm
In defense status, once there is a vibration, the device will send alarm SMS to the
SOS numbers in 10s.
If the device is located, it will send accurate GPS location to SOS numbers.
Otherwise, it will send LBS location first. Once it is located successfully in 2 minutes,
the device will send a GPS location. E.g:

GPS location: “vibration ,Alarm: Date time：”12-10-31 20:08:18
http://maps.\google.com/maps?q=N22.577169,E113.916790.”
LBS location: “vibration ,Alarm: Date time：12-10-31 20:08:18
http://maps.\google.com/maps?q=N22.577169,E113.916754.“
During vibration alarm time, if the device is located, but fail to connect to the
platform, the device will send longitude and latitude information. E.g.
“Vibration alarm: N23.111748, E114.409215, 11
While if the GPS is neither located nor connect to the platform, the device can not get
the position information. Then it will send SMS “vibration alarm! Attention” to SOS
numbers.
Note:
1. The device will only alarm once in 5mins.
2. If device can not send SMS normally, please check whether there is enough
balance in the SIM card.
4.5 Geo-fence
You can set a special area as geo-fence field. When the car or person gets in/out of
this area, the device will send alarm to SOS numbers when the geo-fence function is
ON.
4.5.1 Activate geo-fence function
Geo-fence function is off as default. You can activate it by SMS command.
There are two kinds of Geo-fences, circular and rectangle.
(1) Circular fence
Set a coordinate as the centre of the circular fence, and then set a distance as radius.
Go in/out fence SMS:
“FENCE,ON,0,latitude,longitude,radius#”
e.g. FENCE,ON,0,N22.57139,E113.87710,5#
It means the radius is 500 meters（radius 1=100M，2=200M····and so on）
The device will reply “OK” if set successfully. As long as the device goes in or out of
this circular area, it will send alarm to the SOS numbers.

You can also set current location coordinates as the centre of the circular fence,
“FENCE,ON,0,0,0,radius#” (This SMS command is only available when device
get located)
Go-in fence SMS:
Any number can send the following
message”FENCE,ON,0,latitude,longitude,radius,IN#” to turn on circular fence
function
e.g. FENCE,ON,0,N22.57139,E113.87710,5,IN#
It means the radius is 500 meters（radius 1=100M，2=200M····and so on）
The device will reply “OK” if set successfully. As long as the device goes in this
circular area, it will send alarm to the SOS numbers.
Go-out fence SMS:
“FENCE,ON,0,latitude,longitude,radius,OUT#”
e.g. FENCE,ON,0,N22.57139,E113.87710,5,OUT #
It means the radius is 500 meters.（radius 1=100M，2=200M····and so on）
The device will reply “OK” if set successfully. As long as the device goes out of this
circular area, it will send alarm to the SOS numbers.
(2) Rectangle fence
Specify two points in the map and use them as diagonal line, you can draw a
rectangle area, which is the rectangle fence.
Go in/out fence SMS:
Any number send the command “FENCE,ON,1,the latitude of upper left corner,
the longitude of upper left corner, the latitude of lower right corner, the
longitude of lower right corner#”.
e.g. FENCE,ON,1,N22.541183,E113.916,N22.557743,E113.892334#
The terminal will reply “OK” if set successfully. Any time the terminal enter or leave
this rectangle fence, it will send alarm message to the preset SOS numbers.
Go in fence SMS:
Any number send the command “FENCE,ON,1,the latitude of upper left corner,

the longitude of upper left corner, the latitude of lower right corner, the
longitude of lower right corner, IN#”.
E.g. FENCE,ON,1,N22.541183,E113.916,N22.557743,E113.892334,IN#
The terminal will reply “OK” if set successfully. Any time the terminal enters this
rectangle fence, it will send alarm message to the preset SOS numbers.
Go out fence SMS:
Any number send the command “FENCE,ON,1,the latitude of upper left corner,
the longitude of upper left corner, the latitude of lower right corner, the
longitude of lower right corner, OUT#”.
E.g. FENCE,ON,1,N22.541183,E113.916,N22.557743,E113.892334,OUT#
The terminal will reply “OK” if set successfully. Any time the terminal leaves this
rectangle fence, it will send alarm message to the preset SOS numbers.
(3) Example of alarm message
While the Geo-fence function is activated, each time the terminal enters or leaves the
fence area, there will be alarm message sent to the preset SOS numbers.
E.g.
GEO FenceOut[DateTime:12-06-01 14:58:03] http://maps.google.com/maps?q=N22.
577137,E113.916785
GEO FenceIn[DateTime:12-06-01 14:58:03] http://maps.google.com/maps?q=N22.5
77137,E113.916785
4.5.2 Disable Geo fence
Send SMS to disable geo-fence function: FENCE,OFF#
After get reply “OK”, geo fence function is off.
4.5.3 Check Geo fence status
Send the command SEEFENCE# to check whether geo fence function is on or off.
If geo fence is off, it will reply SMS “Switch:OFF”.
If geo fence is on, it will reply SMS
“Switch:ON;State:IN&OUT;Lat:N22.567000;Lon:E113.890000,Radius:100M;Fence
Type:Circle.”

4.6 Low battery alarm
When battery is low, device will send low battery alarm SMS to SOS numbers
Low battery alarm SMS: “Warning! Battery is low, please charge in time!”
When battery is too low, it will send SMS: “Warning! Battery is too low, power off
automatically.”
4.7 Voice monitoring
Any SOS number calls the device and keep ringing for more than 10s, the device will
enter voice monitoring status. In this case, caller can monitor the sound around the
device.
Note: 1. Caller ID function is needed for voice monitoring.
2. Only SOS numbers can monitor the device.
4.8 Terminal position query
4.8.1 Address information query
SOS number can send the command WHERE# to query the address information.
If GPS is located successfully, the device will reply the accurate GPS address
information.
Otherwise, it will send LBS location first. And then if GPS located within 2mins,
device will send another SMS with accurate location. E.g.:
Lat:N22.571285,Lon:E113.877115,Course:42.20,Speed:0.0740,DateTime:10-11-23
22:28:51
If GPS is never located successfully, the terminal will reply the following message
after 2 minutes:
“GPS fail to locate, no data, please try again!”
4.8.2 Google link query
SOS number can send the command URL# to query the Google link.
If GPS is located, it will reply the Google link of the current position. If GPS is not
located over 2 minutes, it will send the link of last position. E.g.:
<DateTime:10-11-2323:42:51>http://maps.google.com/maps?q=N22.571490,E113.8
77103
If GPS is never located, the device will reply “No Data!”
Note: 1. GPS can only be located at the open place outdoor. While at the place
without no or little GPS signal, such as, indoor, under the tree or besides the tall

building, it can not be located. Yet LBS can be located wherever there is GSM
signal.
2. Only SOS numbers can query the position by SMS.
4.8.3 Position query via platform
The device will send position information to the platform server timely. The user can
check the position on the platform.
The platform website: www.justrack.com
Please contact your dealer for the login methods and operations.
LBS are a rough locating way. For more accurate information, GPS locating function
must be activated. Its positioning accuracy is around 10m.
Note: to realize this function, you need the support of the network operator. And
GPRS function should be activated for the SIM card.
4.9 Restore Factory Setting
While the terminal can not work normally because of some incorrect parameter
setting, you can try to reset the settings and see whether it works.
The command: FACTORY #
4.10 Reboot setting
If the terminal can not work normally while the parameter settings are right, you can
send command to reboot the terminal.
The command: RESET#
After receiving this command, the terminal will reboot in 1 minute.
4.11 Working Mode
Model1: Locating in a regular time interval mode
After uploading the first GPS location, the terminal will activate GPS in 30mins. If
located, it will send location to platform and turn off GPS automatically. If fail to
locate, then GPS will turn off and send LBS location.

Send SMS command: mode,1#
4.11.2 Model2: Locating according to vibration mode (default)
In this mode, the terminal will turn on GPS as default.
If GPS locates, the terminal will send first GPS location to the platform. If GPS could
not locate, it will upload LBS location.
In this mode, if the terminal does not detect any vibration, GPS will be off. And after
it detects vibration, it will start working again.
Send SMS command: mode,2#
4.11.3 Mode3: Locating according to command
In this mode, the terminal will be in Deep Sleep mode. It will not connect with the
platform. You can send SMS command/call to activate checking location function.
During this mode, arm/disarm will not be executed. It will reply: “The terminal is in
Deep Sleep mode. Please wake up!”
Send SMS command: mode,3#
5 Appendix
Battery security
● Please use the original battery. The warranty will be invalid by using any other
accessory. The manufacturer will not take any responsibility for any damage caused
by not using the original battery.
● The new battery can realize the optimal performance after fully- charging for 2 or 3
times.
● The battery can be used for hundreds of times, yet it will wear out eventually.
When its talking time and standby time shrinks sharply, you need a new one.
● Cut off power supply when not using the charger. Don’t charge the battery for more
than one week, since over charging will reduce its using time.
● Do not short-circuit the battery with metal stuff (such as the key in your pocket)
● Do not bend or open the battery.
● Do not put the battery into water or fire.
● The battery should never be charged at temperature below 0 degrees or above
45 degrees Celsius.
6. Trouble shooting
If there is any problem while operating the terminal, please refer to the following

table, or contact your service provider.
Common
problems
Causes
Solution
Bad reception
Near the tall building or
in the basement
Change to a place
with good signal
The terminal
can not
switch on
No battery power
Change a new
battery
Can not make
voice
monitoring
No preset SOS numbers
Set SOS numbers
SIM card is without
Caller ID function
Activate the
function
can not connect
to the network
SIM card is not inserted
correctly
Check the SIM
card
The sheet mental of
SIM card is
dusty
Wipe it clean
Invalid SIM card
Contact your
internet service
provider
Out of GSM service
area
Move back to the
GSM service
covered area.
weak signal
Try again in a
strong signal area
can not charge
Voltage is out of
charging range of the
charger
Change to the
proper voltage
Non-standard charger
Use charger that
come with the
package
Poor contact
Check if the plug
is in
Can not check
address
information
GPRS function is not
activated
Please contact the
SIM card operator
to activate GPRS
Can not get the position
data
1.restart the device
2.contact with
your distributor
It is not a SOS number
set SOS number

Other Setting command
Command
Format
Example
4
GPS/LBS
interval
setting
TIMER,LBS uploading
time interval(min),GPS
uploading time
interval(second)#
LBS uploading time
interval:1-60min;
GPS uploading time
interval:5-18000S;
e.g.:TIMER,2,10#
LBS data uploading
time interval:2 min;
GPS data uploading
time interval:10 S;
6
Timezone
setting
GMT,direction,serial,[15
,30,45]#
//direction,E or W, East
or West//
//serial,0-12//
//0.25,0.5,0.75 zone,
such as India in
GMT+5.5//
GMT,E,8#
GMT,E,5,30#
7
Recovery
FACTORY#
9
GPS
working
time after
alarm
triggered
TIMESET,upload time#
[range: 1-999 mins]
//When ACC is off, if
there will be any alarm
triggered, then GPS will
active and keep
working for some time
and then sleep again//
TIMESET,20#
10
GPRS
enable/dis
able
GPRSON,1/0#
GPRSON,1#
//enable//
GPRSON,0#
//disable//
11
Reboot
RESET#
13
Over
speed
alarm
SPEED,Time,Speed#
//time range: 1-10mins,
if put it in 0, it means
turn off alarm//
//speed
range:1-255km/h //
SPEED,1,120#
Checking command

1
Software
version
VERSION#
2
Parameters
PARAM#
3
GPRS
parameters
GPRSSET#
4
Longitude
and latitude
WHERE#
5
Check status
STATUS#
6
Location link
request
URL#
7
Geo-fence
check
SEEFENCE#
ERROR EXPLANATION
1
ERROR 100
Command length is over the ruled length.
2
ERROR 101
Parameters of Command are over the ruled
length.
3
ERROR 102
The format of command is incorrect.
4
ERROR 103
The format of password is incorrect.
5
ERROR 104
Family numbers are all set up fully.
6
ERROR 105
Family numbers are not exist already.
7
ERROR 106
The serial number is incorrect.
8
ERROR 107
Command is not exist.
9
ERROR 108
No command end symbol #
1
0
ERROR 109
Password is incorrect.
1
1
ERROR 110
Only family/SOS number could effect this
function.
End
