Sefa PR 245 S User manual

SEFA ®France
S.E.F.A
Z.I PASTABRAC - B.P 44
11260 ESPERAZA
FRANCE
Tel :[phone] - Fax :[phone]
E Mail : [email protected]
V01/0605

SEFA ®France
Page N°1
SUMMARY
I. CONDITIONS OF GUARANTEE .....................................................................................................................................1
II. SPECIFICATIONS..........................................................................................................................................................2
III. GENERAL POINTS ........................................................................................................................................................2
IV. USE OF THE MACHINE ...............................................................................................................................................5
1. SAFETY.............................................................................................................................................................................5
2. INSTALLATION...............................................................................................................................................................7
3. DESCRIPTION OF THE RUNNING CYCLE ..................................................................................................................7
V. PRESS SETTINGS ..........................................................................................................................................................8
1. TEMPERATURE /PRESSING TIME SETTINGS ...........................................................................................................8
a) TEMPERATURE SETTING .......................................................................................................................................8
b) TIME SETTING..........................................................................................................................................................8
2. PRESSURE ADJUSTMENT .............................................................................................................................................8
3. ADJUSTMENT OF THE BRACKET HEIGHT ................................................................................................................8
VI. IMPLANTATION OF THE EQUIPMENT ..................................................................................................................9
VII. ELECTRIC DIAGRAM ................................................................................................................................................10
VIII. PNEUMATIC DIAGRAM ........................................................................................................................................11
IX. SERVICE ........................................................................................................................................................................12
1. PARTS SUBJECTED TO WEAR AND TEAR ...............................................................................................................12
2. REPLACEMENT OF USED PARTS...............................................................................................................................13
3. MAINTENANCE.............................................................................................................................................................13
4. POSSIBLE BREAKDOWNS ..........................................................................................................................................13
5. MAINTENANCE LOG BOOK .......................................................................................................................................15
I. CONDITIONS OF GUARANTEE
• The guarantee period starts on the day of putting the equipment in service at the user’s place, for a
duration of one year that is to say 2000 hours.
• The guarantee is strictly limited to our equipments, against the defects of matter and execution, with the
buyer’s responsibility to prove the known defects.
• Our responsibility is limited to the obligation to rectify or replace free of charge the parts acknowledged as
faulty by ourselves, and there will be no claim for any indemnity whatever the reason given.
The parts replaced under the guarantee:
• remain our property
• are the subject of an invoicing of deposit
A credit of cancellation is activated as soon as the faulty parts are returned. The return will have to occur ONE
MONTH MAXIMUM after the intervention.
THE GUARANTEE DOES NOT COVER :
• The retail consumables such as:
fuses, bulbs, transformers, joint, flexible devices…
• The supplies, which are not our own manufacturing, undergo the guarantee of their manufacturer.
THE GUARANTEE DOES NOT APPLY:
• To replacements, nor repairs which would result from normal wear and tear of apparatus and machines, of
deteriorations and accidents coming from negligence, defect of monitoring and maintenance, defective use or
modifications without our written agreement.
• In case of vice coming from the material supplied by the buyer, or a design imposed by the latter.
• To repairs which would result from deteriorations or accidents occurred during transport.
• To operations of maintenance and adjustments inherent in the use of the machine, and indicated in the
maintenance manual, such as:
adjustments of intermediaries, screwing of piping, etc... do not enter the clauses of guarantee.

SEFA ®France
Page N°2
Année de Fab.
For the pneumatic machines, any trace of detergent oil in the pneumatic circuit inhibits the
conditions of guarantee previously mentioned.
For any technical information or spare parts orders,
please give the reference number of the machine as well as its serial number.
II. SPECIFICATIONS
Poids en ordre de marche / Weight in running order 125 kg
Hauteur / Height 635mm
Profondeur / Depth 830 mm
Largeur / Width 940 mm
Dimension du plateau / Dimension of the heating plate 400 x 450 mm
Alimentation électrique / Electric power supply 220 V Monophased + earth 50/60 Hz
Alimentation pneumatique / Pneumatic power supply 10 bars maximum
Puissance / Power 2 250 W
Ampérage / Amperage 10 A
Régulateur électronique de température à affichage digital / Thermoregulator
Précis à / Accurate to +/- 1%
Réglable de / Range of control 0 to 250 °C
Pression de travail / Working pressure
Mini 2 bar
Maxi 8 bar
Minuterie électronique multigamme cycle / Timer
Précis à / Accurate to +/- 1%
Réglable de / Range of control 0 to 500 sec
Non contractual document: according to the technical progress, we reserve the right to modify the characteristics of our products.
Some of these characteristics are recalled on the company plaque that you will find on the machine.
III. GENERAL POINTS
Made in France.by
MODELE
PUISSANCE
Tel :[phone] Fax :[phone]
S.E.F.A ®
Z.I PASTABRAC
11 260 ESPERAZA
–
(France)
N° de Série

SEFA ®France
Page N°3
Manometer
Pressure indicator
Handle for
plate rotation
On – Off + Fuse
Pressure adjustment wheel
( column height variation)
Right & left thrust
microswitch for
heating plate
position
Heating plate
connector
Filter
Security
microswitch
Pneumatic
distributor
Micro switch :
timer start

SEFA ®France
Page N°4
This heat seal press is standard to the article L 233-5 of the labour laws, to ensure the safety of the user.
Its design allows it to ensure an intensive production while keeping a total reliability.
This press was designed for an operator working opposite the machine.
Option
Security
connector
Heating plate
Emergency stop
Silicone mousse
Removable inferior
plate
LCD display
Timer + T° regulation
Reset button
Tactile keyboard
Push buttons

SEFA ®France
Page N°5
IV. USE OF THE MACHINE
The PR245S press was designed to apply all quality transfers in medium and great series.
This equipment was tested in our workshops to obtain a one-year guarantee against any manufacturing vice.
The adjustments (pneumatic, electric and mechanic) carried out by our technicians in the workshop as well
as the securities implemented on the machine should not be modified in any case. Otherwise, the S.E.F.A ®
Company will deny all responsibilty on possible problems linked to the machine.
Before starting any pressing operation, it is recommended to carefully read the safety instructions as well
as the directions for use.
1. SAFETY
THIS EQUIPMENT IS DESIGNED FOR SINGLE USE ONLY
USE BY QUALIFIED STAFF ONLY
Symboles internationaux :
You will find most of these symbols on the SEFA machines.
Some important points for the safety of the staff:
Avoid touching the hot parts of the equipment while in use.
Do not put your hands between the plates once the equipment is activated.
During handling action, ensure that the operator do not risk anything in terms of burn,
electrocution or other.
Carry out a daily inspection of the machine before starting the production.
In the zone close to the machine, make sure that nobody is around before you start.
If the machine does not work properly, immediately cut the energy supply and look for the
cause making use of the book’s chapter ”Service”.
O
I
OFF
ON
DANGER, WARNING
HOT SURFACE
ELECTROCUTION RISK

SEFA ®France
Page N°6
Safety devices on the machine:
Protections and safety devices should not be modified. They must be put together again in
case of possible removal for maintenance.
They must be kept in place and in good condition during normal operation.
The PR 245 S is equipped with security systems protecting the operator from any risk of pinching.
The main elements of security are:
The emergency stop
Situated on the left on the front of the machine: if the operator actions it, he switches the machine off.
The bimanual control
To control the pressing, only a constant and simultaneous hold of both push buttons enables the heating
plate to go down. It is necessary that the heating plate is in full lock on the right side or the left side, so that one of
the 2 “thrust” microswitches is activated. It is only at this moment that the operator can action both push buttons. If
the operator does not constantly maintain the pressure on the two buttons until the two plates are in contact, the
heating plate goes back up automatically.
OPTION : Control by pedal
It will be possible for the operator to pilot the plate lowering using the pedal. In that case, the protection of
the operator will be ensured by the security cover.
Checking of the functioning of the safety device:
¾Periodically try the emergency stop
¾Daily control the functioning of the bimanual
¾Control the good functioning of the security cover (in the case of the option).
After an emergency stop:
Check if no other problem remains on the machine.
Unlock the emergency stop turning the red part: the machine will reset itself automatically.
Manuals
Technical documentation on the components used is provided to you on delivery of the machine. Please
read it before any handling of the S.E.F.A ®machine.

SEFA ®France
Page N°7

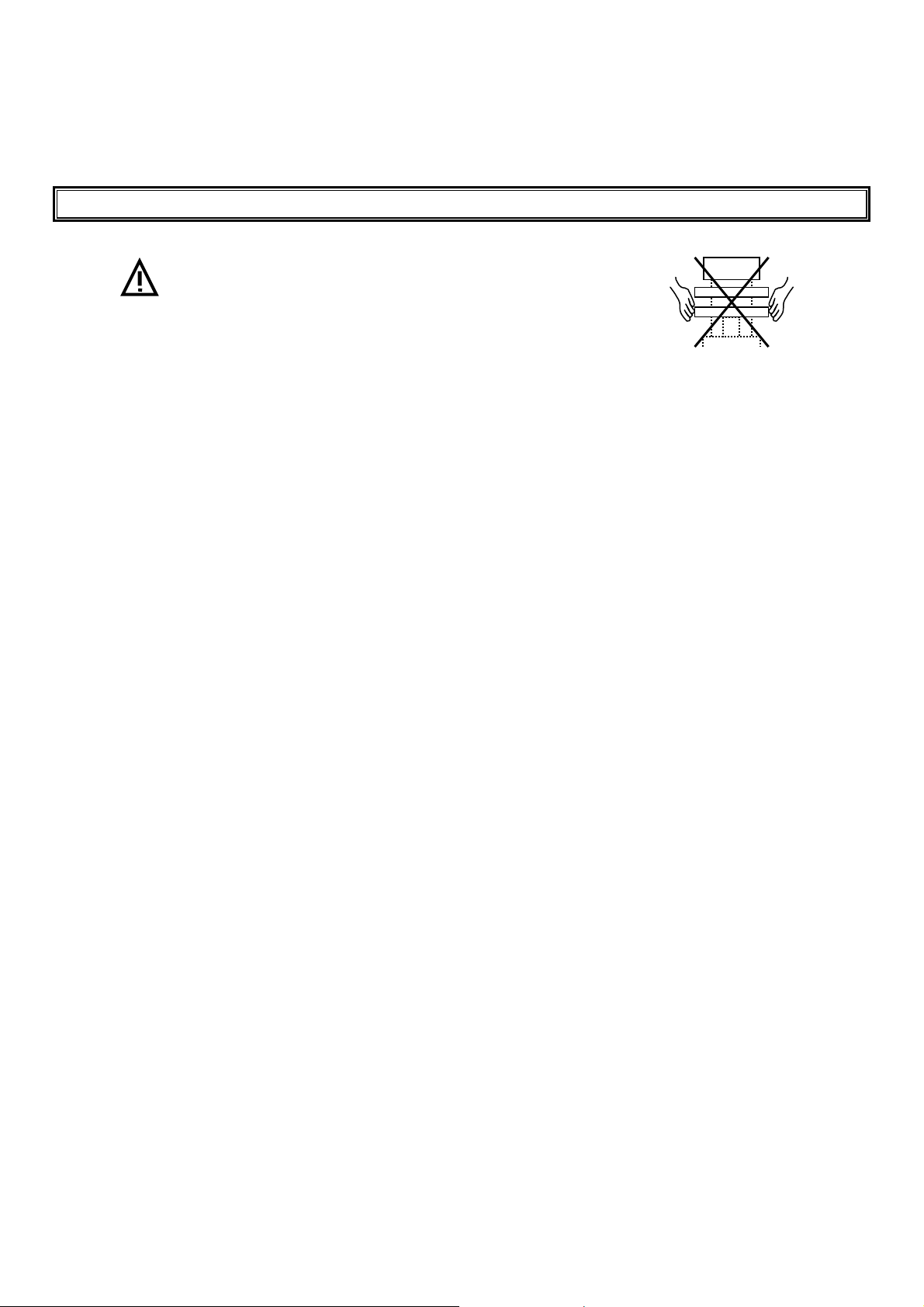

2. INSTALLATION
USE BY QUALIFIED STAFF ONLY
Do not manipulate the machine by the plates!
Unpack the machine.
Place it on a stable table handling it by its frame.
After having properly positioned the machine on it working place :
•Electrically plug the press in with the provided plug (220 Volt + Earth / 50 or 60 Hertz),
•Pneumatically connect the press to your compressed air network (3 bar mini, 10 bar maxi).
3. DESCRIPTION OF THE RUNNING CYCLE
1. The operator will have to power up the machine using the main switch which is on the back of the
machine,
2. Check if the screen lights on. After a welcome message, it will indicate the values preset in the
workshop,
3. Set the temperature thanks to the keyboard (to define according to the type of transfer),
See SETTING § 1,
4. Set the application time thanks to the keyboard (to define according to the type of transfer),
See SETTING § 1,
5. Adjust the pressure thanks to the regulator (to define according to the type of transfer) ,
See SETTING § 2,
6. Place the item on the inferior plate,
7. Adjust the transfer sheet,
8. Swivel the head of the press using both handles on the sides of the jack support,
9. When the bracket is in full lock, press simultaneously on both push buttons (or on the pedal). Maintain
both buttons until the heating plate is in contact with the inferior plate,
10. At the end of the timer countdown, the heating plate will go back up,
11. Move the heating plate away and remove the item,
12. Start the operation again from n° 6 (if the settings do not change otherwise start again from n°3).

SEFA ®France
Page N°8

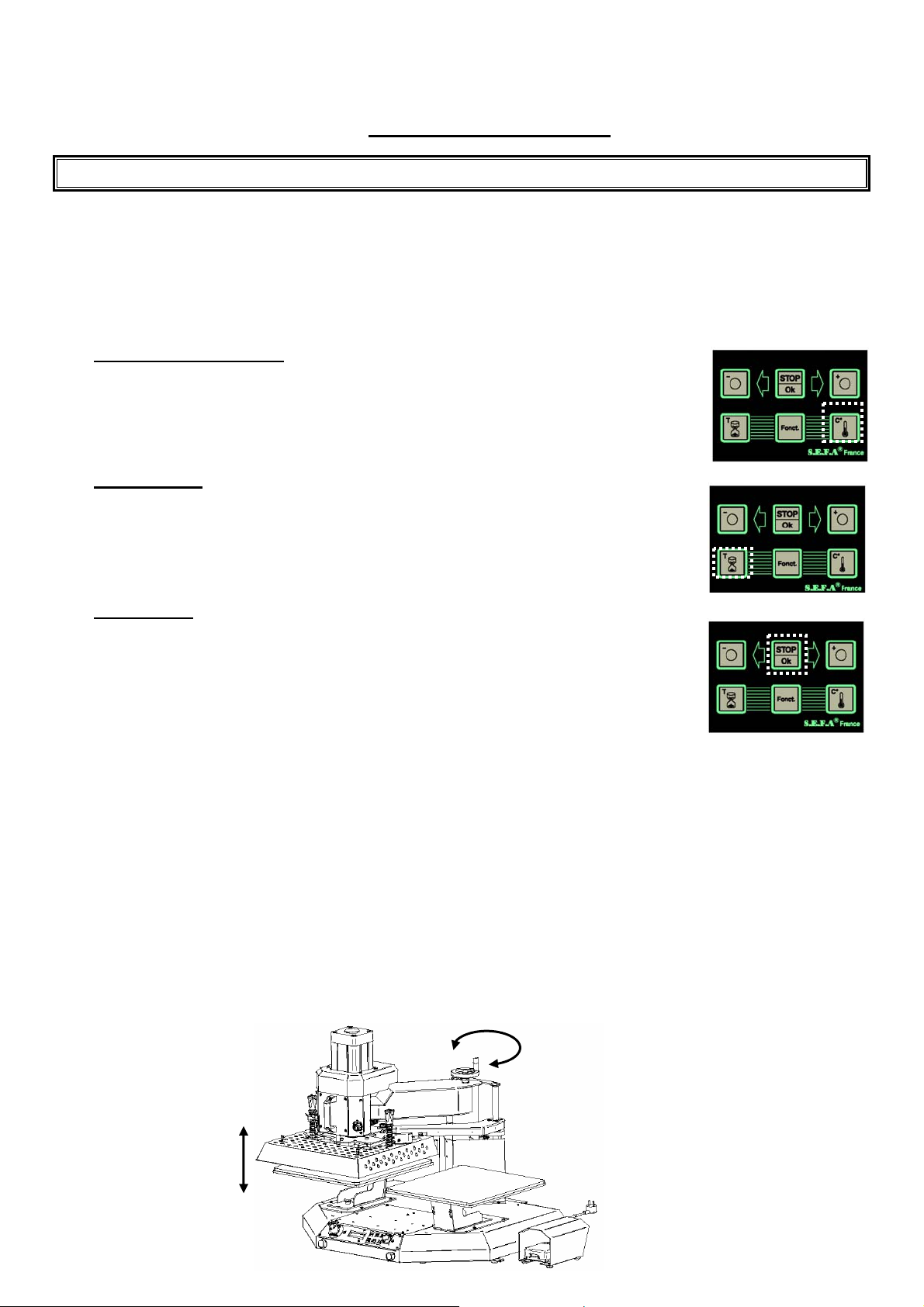

V. PRESS SETTINGS
USE BY QUALIFIED STAFF ONLY
1. TEMPERATURE / PRESSING TIME SETTINGS
To program these parameters in the control electronic card, use the keyboard situated on the front of the
machine.
a) TEMPERATURE SETTING
See also the instruction manual of the card provided with the machine.
b) TIME SETTING
See also the instruction manual of the card provided with the machine.
c) CYCLE STOP
2. PRESSURE ADJUSTMENT
The jack pressure can be modified according to the user’s need.
Use the pressure regulator situated on the filter behind the bracket. The pressure will be displayed on the
manometer’s dial at the front. Pull the head of the regulator upwards, then turn:
ªclockwise to increase the pressure,
ªanticlockwise to decrease the pressure.
3. ADJUSTMENT OF THE BRACKET HEIGHT
According to the type of the item to mark or to adapt to the accessories of the PR 245 S (ex. cap
accessory), the height of the bracket has to be modified. Turn the wheel situated on the column:
ªclockwise to lower the bracket,
ªanticlockwise to raise the bracket.
¾Press on ”Temps”,
¾Press on ”-” to decrease the indicated value
Or on ”+” to increase it,
¾Press on ”OK” to validate your choice.
¾Press on ”Température”,
¾Press on ”-” to decrease the indicated value
Or on ”+” to increase it,
¾Press on ”OK” to validate your choice.
¾Press on ”STOP / Ok”,
The cycle of the press is interrupted.

SEFA ®France
Page N°9

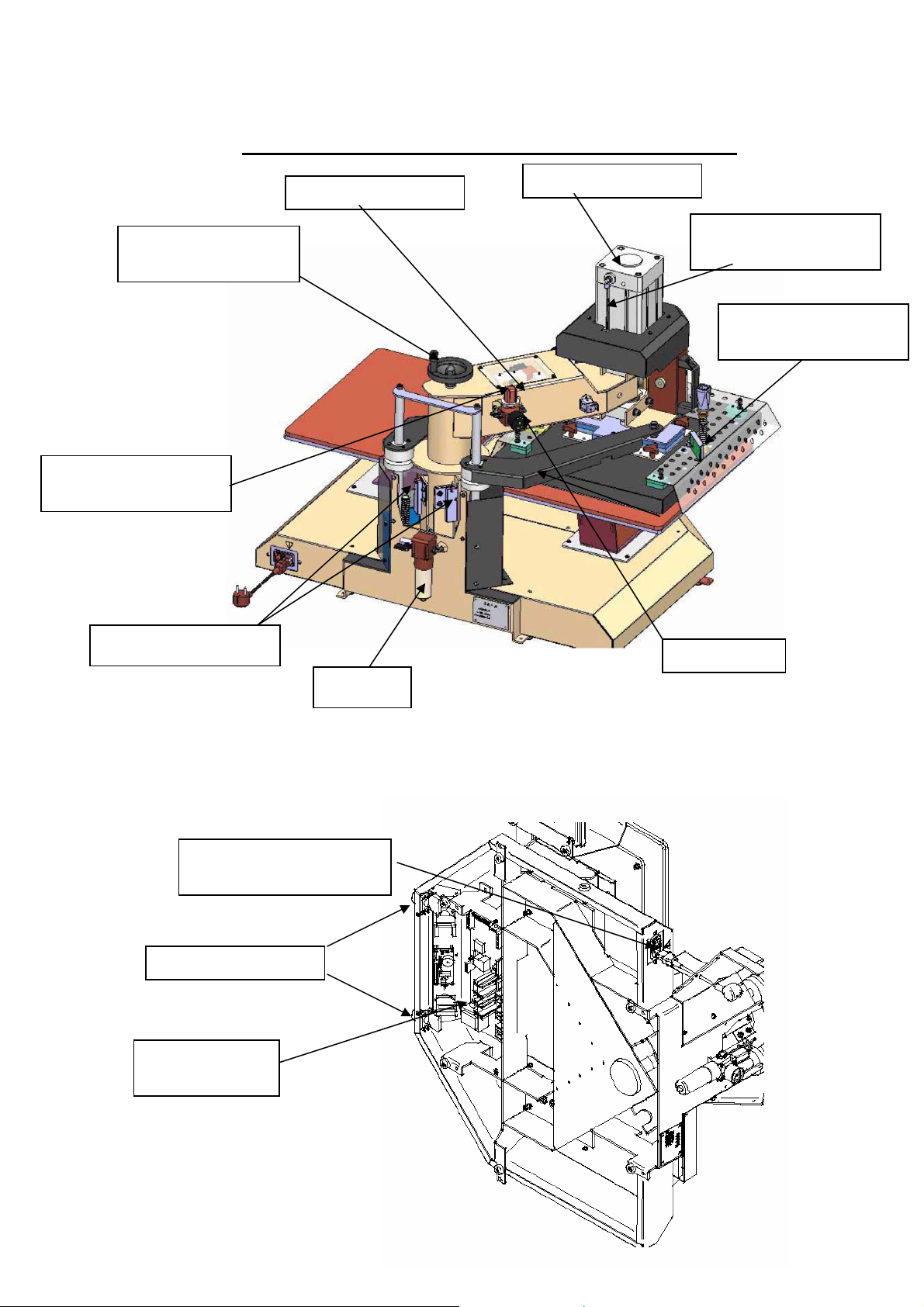

VI. IMPLANTATION OF THE EQUIPMENT
Push buttons
Electric connector +
fuses
Electronic
card
Pressure regulator
Pressin
g
j
ack
Electrodistributo
r
Manomete
r
Height adjustment
wheel
Filter
Security
microswitch
Thrust microswitch
Microswitch timer
start

SEFA ®France
Page N°10
VII. ELECTRIC DIAGRAM

SEFA ®France
Page N°11
VIII. PNEUMATIC DIAGRAM

SEFA ®France
Page N°12
IX. SERVICE
USE BY QUALIFIED STAFF ONLY
ANY MAINTENANCE INTERVENTION MUST BE DONE WHEN THE MACHINE IS
OFF AND LOCKED
(ELECTRIC AND PNEUMATIC ENERGIES UNPLUGGED)
It is recommended to have the following tools within reach:
-Cruciform and flat screwdrivers
-A set of end wrenches and box spanners
-Small adjustable pliers
-Circlip pliers
-Long and fine pliers with insulating handle
-A set of Allen key
-A multimeter
Before any handling, check that the temperature of the heating plate is lower than 25°C on
the display unit.
1. PARTS SUBJECTED TO WEAR AND TEAR
On any order: precise the specification, the reference and the quantity
Reference Specification Quantity
ELECTRIC EQUIPMENT
CAR-X1 CONTROL CARD XTRA 1
ECR-466 FRONT SCREEN VERS.50°C BACKLIT 1
CLA-371 6-KEY KEYBOARD 1
RES-548 HEAT ELEMENT MICA 450X380 2250 WATT 1
FUS-153 FUSE 5x20mmT 16 A 250V 2
CARD FUSE 80mAT 250V 1
COM-355 COMBI SWITCH 1
SON-188 T° SENSOR 1
CON-120 ON CONTACT 2

SEFA ®France
Page N°13
PNEUMATIC EQUIPMENT
VER-321 JACK Ø100 C50 1
FIL-013 FILTER 1
MIN-015 PRESSURE REGULATOR 1
ELE-203 ELECTRODISTRIBUTOR 5/2 G1/8 1
PRESS COVERING
MOU-445 MOUSSE 9 mm 400 X 450 mm
PEDAL OPTION
PED-279 PEDAL 1
FIN-231 SECURITY MICROSWITCH 1
2. REPLACEMENT OF USED PARTS
-The mat in silicone mousse
a) Check that the plate is cold.
b) Make sure that the plate surface is properly clean. Possible use a soft solvent such as White Spirit.
c) Use a RTV-1 tube of glue to stick the mousse to the aluminium plate (NB : read the instructions on the
tube packaging).
d) The mat and the plate must be clean and dry before starting any gluing.
e) Spread a fine layer of glue in a homogeneous way on the plate and immediately apply the mat making
sure that there is no air lock (NB : an indented spatula similar to the one used to lay tiles would suit
perfectly).
f) leave to settle overnight at room temperature with slight pressure and without heat.
-Other parts
Get in touch with your retailer to evaluate their change or their repair.
3. MAINTENANCE
The S.E.F.A ®heat presses hardly require any maintenance. To ensure a good functioning, follow the
preventive notice indicated below:
-Do not heat up objects which could deteriorate or even cut the silicone rubber or damage the teflon
surface of the heating plate
-Every so often and when the plate is cold, clean the machine with a clean cloth and white spirit (NB: as
this product is flammable, use with care and keep it away from any heat source)
-When the heating plate is hot and unused, keep it in open position.
DAILY : Clean the mousse and the heating plate surface (when cold) with a dry cloth or
impregnated with spot remover.
Check the air filter behind the bracket, drain it if there is too much condensation.
MONTHLY : Check the column and grease it.
ACCORDING TO THE USE : Change the mousse every six months.
USE BY QUALIFIED STAFF ONLY
4. POSSIBLE BREAKDOWNS

SEFA ®France
Page N°14
ANY MAINTENANCE INTERVENTION MUST BE DONE WHEN THE MACHINE IS OFF AND
LOCKED
(ELECTRIC AND PNEUMATIC ENERGIES UNPLUGGED)
SYMPTOMS POSSIBLE BREAKDOWNS REPAIR
The machine will
not start
¾The plug is not in
¾The switch is not connected
¾The general fuse is out of order
¾The card fuse is out of order
¾The display is faulty
¾Check your network and if the machine is
connected to it.
¾Put the main On/Off switch on 1.
¾It is situated in a casing next to the power cable
socket. To access it, remove the electric cable.
With the tip of a screwdriver, lift the fuse casing.
You will find in the square tube a replacement fuse
to put instead of the one in the clip.
¾It is situated on the bottom left of the card (80mAT)
¾Check if the flat cable is properly connected
otherwise the display is out of order
The plate will not
heat up
¾The heat elements are faulty
¾Card problem
¾Temperature value too low
¾Check the connections and the state of the electric
cables. To dismantle the heating plate, get in touch
with your reseller.
¾See the messages displayed on the screen and
refer to the card manual.
¾To modify this value, see chapter V
The plate
overheats
¾Sensor or card problem ¾See messages displayed on the LCD screen and
refer to the card manual. Get in touch with your
reseller.
The timer will not
count down
¾The detector placed on the jack is
not activated or is faulty
¾Card problem
¾Check the connections.
¾See messages displayed on the screen and refer to
the card manual.
The plate will not
go down
¾The push buttons will not work
¾Leak on the jack
¾The electrodistributor is faulty
¾The pressure in compressed air is
not sufficient
¾Check their connections.
¾Check the joints and all the connections. Get in
touch with your reseller.
¾Check its connections. Get in touch with your
reseller to possibly change it.
¾Check if the pressure of your network is > 3 bar.
The plate will not
go back up
¾The electrodistributor is faulty
¾Leak on the jack
¾Check its connections. Get in touch with your
reseller to possibly change it.
¾Check the joints and all the connections. Get in
touch with your reseller.
The plate stays
in low position
after pressing
¾The timer will not count down ¾See above.
¾See if the microswitch on the jack is activated (a
diode must be on). If the diode is not on, check that
the height of the plate is properly adjusted (height
between the heating plate and the inferior plate must
be of 45 mm maximum).

SEFA ®France
Page N°15
5. MAINTENANCE LOG BOOK
The operations of control and maintenance indicated in this table must be carried out regularly in order to
check the functioning state and the reliability of the press.
Date Number
of hours
Pressure
control
Air filter
control
Jack
control
Mousse
state
Heat
elements
control
Parts
changed Comments
In order to make the filling in of the table easy, it can be useful to use the following code:
C : Control CL: Cleaning R : Replacement
