Canon Selphy CP730 Configuration guide

Canon
SEl PHY CP730/CP720
COMPACT PHOTO PRINTER
Printing Guide
Basic to Advanced
Printing
1111111111111111111111111111111111
CDI-E262
Thank you for purchasing a SELPHY Compact
Photo Printer. You can
start to print immediately
with the items in your package. There are three
easy steps: Unpack the contents, prepare them
and print.
~ (4 S~TM miniTM
I ~ P·tltB~d DIREO 1=1.... ~
DPOF Ie n ge PRINT -.-.a.::::I

In this step, you will
unpack
the printer and
arrange
the items you
will need
to prepare
the printer and print. Compact Power Adapter Power Cord Starter Ink
Cassette
(Postcard Size)
Main Printer Unit
Postcard Size Paper
Cassette
Starter Paper Pack
(Postcard size: 100 x
148 mm (4 x6in.))
Separately Sold Accessories
You will need a memory card with
images
on it that has been removed
from the camera.
Depending on the region, Lsize
items may be supplied
with the
printer.
Although you will not use them when
following the steps in this guide, be
sure
the following items are also in
your package. Cleaner
CD-ROM:
Compact Photo
Printer Solution
Disk
2
This product is designed to achieve excellent performance when used with
genuine Canon accessories. Canon shall not be liable for any damage to this
product
and/or accidents such as fire, etc., caused by the malfunction of non-
genuine Canon accessories (e.g., aleakage
and/or explosion of abattery pack).
Please
note that this warranty does not apply to repairs arising out of the
malfunction of non-genuine Canon accessories, although you may request
such repairs on achargeable basis.

EJ Prepare
In this step you will insert the ink and paper cassettes to prepare for printing.
Although these illustrations show the CP730 model, the procedures apply
equally to the CP720 model.
1. Install the ink cassette.
Open the ink cassette
compartment cover on the
printer.
Insert
the starter ink cassette into
the printer until it clicks firmly into
place and close the cover.
2. Place paper into the paper cassette.
Slide the lid of the paper cassette Close the lid but do not slide it
and open it upward, as shown. forward. You should see a portion
Next, place the paper in the of the paper through the opening.
cassette with the shiny side
upward. Try not to touch the
shiny side of the paper.
3. Install the paper cassette into the printer.
Open the paper cassette slot Insert the paper cassette all the
cover. way into its slot.
3

4. Attach the power cord.
Plug the power cord into the
compact power adapter and then
into a power outlet.
Attach the compact power adapter
connector to the printer's DC IN
terminal.
Caution! Mismatching Paper Stocks, Paper Cassettes and
Ink
Cassettes
The printer will not print correctly if
you mismatch paper stocks to paper
cassettes or ink cassettes. The
matching paper size is written where
shown on paper cassettes and ink
cassettes.
.--------------- Wait! -------------,
Do not connect the printer to the computer until after you have installed
the printer driver.
• ••••••••••••••••••••• 1lI.1II •••••••• 1II11 ••• 1II.
· .
4
Can IUse Standard
Printer Paper and
Postcards?
:No. Always
use the genuine Canon brand" Color :
_.Ink/Paper Sets" included in SELPHY-specific :
III paper sets.
·
• • 111 111 111 • 111 ••••• 111 •• 111 111 111 111 111 111 •••• 111 ••••• 111 • 111 111 111 • II III • "

In this step you will insert a memory card with images into the printer, and
print.
1. Press the power button until the start-up image (shown right)
displays on the
LCD monitor.
Press until the image
~~"""'-appears.
canon
SD Memory Card
SDHC Memory Card
miniSD Card
miniSDHC Card
MultiMediaCard
RS-MMC
CompactFlash Card
Microdrive
xD-Picture
Card (a separate adapter*
is required)
*
Purchase aCompactFlash Card
Adapter for xD-Picture Cards
separately.
2. Insert the memory card into the appropriate card slot.
With the label side upward, insert the memory card fully.
Memory Stick PRO Duo
Memory Stick Duo
Memory Stick
PRO
Memory Stick
5

3. Press @ or ® to select an image tq print.
CP720
4. Press [DATE] and select whether or not to include the
shooting date.
When the bottom right of the monitor shows &mI, the date does
not print. When it shows ~, the date will print in the [month/
day/year] format.
5. Press (PRINT/STOP).
The printer will start. The paper will pass in and out four times. Do not pull
on or force the paper during this process.
After confirming that the image has printed, remove the memory card.
To turn the printer off, press the power button again for a moment .
6
How many prints
can
the starter ink
cassette print?
.... .......................................
•• ~~~~~:1:E~~~1~~~:~l~~~: the I .~ I ·
: one at the right will appear on the
• LCD monitor when the ink runs out. Please
•exchange
the ink cassette with a new one.
•
Note that dye-sublimation thermal transfer
• photo printers such as the SELPHY series cannot •
• print any more prints than those noted on the
• color ink/paper set packages. They use a
• technology very different from that used in ink •
•
jet printers.
.. ..................................... ..

You Can Also Connect the Camera to Print
If your Canon digital camera has a ~¢'VI (Print/Share) button on it, you
can connect
the camera to the printer for easy printing. If your camera'
does not have a ~¢'VI (Print/Share) button, please check its user manual.
1. Pull the cable out of the printer and attach it to the camera1s DIGITAL
terminal.
If the connector on the cable does not fit your camera's terminal, use
the USB cable supplied with your camera.
Confirm that all memory
cards have been removed
from the printer.
2. Press the power button until the start-up image displays on the LCD
monitor.
3. Select an image on the camera1s LCD monitor and press the ~¢'VI
(Print/Share) button.
Other camera brands that are PictBridge compliant can also be connected
for direct printing.
7

III
•
=-
••
The image number
also prints.
~4lmages
J5Ellndex
I!!I
canon
L
This button sets the print layout.
III 21mages
All
Prints one copy of each
image.
raJ DPOF
Prints according to the
DPOF settings set using
the camera. See the user
guide included with
your camera for
instructions regarding
DPOF settings.
This
button sets the printing
mode.Single
Prints one copy
of the
displayed image.
Select
Prints
the specified
number of copies of the
selected images.
Printing Using the
Select Mode
1. Press ® or ® to
select an image to
print.
2. Select the number
of prints using the
® or e button.
3. Repeat Steps 1and 2
as required for
successive images.
4. When you finish,
press (PRINT/STOP
).
This section introduces the
numerous functions that make
printing fun.
8

er
It displays the memory card images
and
current settings information.
CP730
Print Image
~-+----. w-Number of
Prints of
Selected Image
Total Number of
Prints
Installed Ink
Cassette Type
My Colors
Imprint
I
I
Lprint Layout
Press this button to display
the image at alarger size.
Press it again to restore it to
its original size.
This button sets the date
imprint that can be added to
images.
iii No Date
• Year/Month/Day
• Month/DayNear
1:1 Day/MonthNear
CP720
Selected Image Image Number
Printing
Mode
Press this button to start
printing. Pressing this button
while printing is in progress
stops it. It still consumes one
print's worth of ink even
when printing is stopped.
9

•Sepia
ml
B/W
• Neutral
•Vivid
•Off
Canon
This button starts the trimming mode, which lets
you enlarge a
portion of an image for printing.
How to Select the Trimming Area
1. Press the TRIM. button, followed by the
DISP. button.
2. Press the <±} and 8 buttons to adjust the
print area size, and the ®and ® buttons
to rotate the print area frame 90 degrees.
3. Press the DISP. button again, followed by
the <±}, 8, ®and ® buttons to move the
print area as desired.
4. Press the TRIM. button to put the settings
into effect.
This
button sets the My Colors function.
1

Installing
the PDF
Manual
Exit
COMPACT PHOTO PRINTER
so"i~tion··D·isk······················
Canon
The Printer User Guide (PDF manual) explains information such as details
about the printer, troubleshooting suggestions and instructions for
connecting the printer to acomputer. Use the following procedures to install
the Printer User Guide on your computer.
Windows
1. Place the supplied CD-ROM into the CD-ROM drive.
If the CD-ROM is already in the drive and the panel shown below has not
opened, take the CD-ROM out and re-insert it into the drive.
2. Click [Custom Installation] in
the Application Software/User
Guide section, followed by
[OK].
3. Select [Printer User Guide] and click [Next]. Follow the
onscreen instructions.
Remove the CD-ROM when the installation is complete.
11

3. Click [Agree], followed by [Next].
4. Select [Printer User Guide] and click [Next]. Follow the
onscreen instructions.
Remove the CD-ROM when the installation is complete.
CPPrlnter Driver
COMPAO PHOTO PRINTER
so'iu'tio~'i)"i;k"""""""""""
Canon
Macintosh
1. Place the supplied CD-ROM into the CD-ROM drive and
double-click the
(CPSD Installer) icon in the CD-ROM-
window.
2. Click [Install] in the Application
Software/User Guide section,
followed by [Custom
Installation] and [Next].
•The Printer User Guide is also installed by selecting the [Easy Installation]
option.
•The Adobe Reader or Adobe Acrobat Reader program is required to view
the Printer User Guide.
12

Supplied Items
Depen~ing on the region, Lsize items may be supplied with the printer.
mPostcard Size Paper Cassette
I) Postcard Size Paper Package (5 sheets)
[lInk Cassette for Postcard Size
Separately Sold Items*
*Some items are not sold in some regions.
m .. Color Ink/Paper Set KP-36IP" Postcard Size 36-Sheet Package
IJ "Color Ink/Paper Set KP-72IP" Postcard Size 72-Sheet Package
o "Color Ink/Paper Set KP-108IP" Postcard Size 108-Sheet Package
m "Color Ink/Paper Set KC-36IP" Card Size 36-Sheet Package
m "Color Ink/Paper Set KW-24IP" Wide Size 24-Sheet Package
D "Color Ink/Full-Sized Label Set KC-18IF" Card Size 18-Sheet Package
o .. Color Ink/Label Set KC-18IL" Card Size 18-Sheet Package
m "Color Ink/Paper Set KL-36IP" LSize 36-Sheet Package
oPostcard Size Paper Cassette (PCP-CP1 00)
mCard Size Paper Cassette (PCC-CP1 00)
m Wide Size Paper Cassette (PCW-CP100)
mLSize Paper Cassette (PCL-CP100)
Use Label Sheets to Make
Organizing, Arranging and
Classifying
Fun
Required Items: 0+m
13

Present Your Memories
Attractively in Photo Frames or
Albums or create Postcards with
Postcard Size Sheets
Required Items: m+ Il
(Add Options m, II or D)
Create Unique Stickers with
8-Label Sheets
Required Items: 0+m
14
The CP730 can print without acable connection if you have a mobile
phone that supports the IrDA (infrared data transmission) protocol. You
can also
print wirelessly with the Bluetooth Unit (BU-20) if you use mobile
phones and PDAs that support the Bluetooth protocol.
»))))))
Bluetooth Unit
(sold separately)

Carry Your Favorite Photos
Everywhere with Card Size Sheets
Required Items: m+ 1m
Use the Wide Size Sheets for the
Grand Appeal of Panorama Shots
Required Items: III +m
Use the CP730·s Separately Sold Battery Pack to Print Postcards
on Location
1. Open the battery cover. 2. Attach the battery.
~®
3. Charge the battery (approx. 2.5 hours from a depleted to fully charged
state).
.. .. ,'~
To apower outlet.
15

Solutions for when you cannot print as expected, or think the printer is not
operating properly.
16
:Did you press and hold the power button until
_. the start-up image displayed? Check the
compact power adapter, the main printer unit
•and the power cord to ensure that they are
:correctly connected.
·
:Have you run out of ink sheets? Replace the ink :
_. cassette (the starter ink cassette can be used to w
• print 5sheets). :
'1\1> III III 1II II!i 1II ll\I •• 111 111 III III III 1II III III II III III IIll IIll III III Il1l Il1l III III IIll IIll III II l1l'i 111 111 111 III 111 • III l;
:Some ink may be consumed even if you don't
_. print if you tug on the ink sheets or needlessly
turn the power on/off repeatedly. Also, the ink II
•can be wasted if you take out the ink cassette
:
when the paper sheets run out during a
8 multiple print run. Remove the paper cassette
II and replenish the paper without removing the
: ink cassettes.
·
••• 8811 ••• II 1l1l. 111111 III II III Ill. 111111111111111111 8 8 1111811. 8 IIl11l\11l\11ll1">
:Some categories cannot be selected or are
_. disabled with certain combinations of print
II mode, print layout, date imprint and print
II numbers.
·11 II II II II II II II 111111.1111 II III II ••• II II II ••• II. III 111 •• 1111 ••• 1'/ II"
1J •••••••••••••••••••••••••••• II.II ••••••• 1l
:Did you set SELPHY-specific paper in the cassette
_. with the shiny side upward as required? If the
ink sheet becomes dusty, blow it clean with a
•
blower brush or similar device. If narrow stripes
:appear, remove
the ink cassette and use the
•supplied cleaner two or three times to clean the
• interior of the printer. •
........................................ ..>

Printer.power
-button is blinking
red...
Images
will not
appear even with a
memory card
inserted...
Experiencing
numerous paper
jams...
... I1 ••••••••••••• I1 •••••••
II
•
II
•••• II •• II •• IIIIIP
.
e. Try turning the power off and on .
.
.......... 11 ••••••••••••••••••••••• 11 •• 11II •• ..>
: Confirm that the memory card is inserted all the •
e. way in. Also note that images may not be
detected in folders not based on standard file
•and folder conventions for digital cameras, the •
Design rule
for Camera File system (Exif
•
compliant).
lIII •
III •III • II •III II II III III III III •III •III III III •• III 11II 11II 11II l'lI II IIll III III III II IIlI III II III III III II .s
:Place 18 or fewer sheets of paper in the paper
e. cassette (12 or fewer for Wide Size sheets).
II Moreover, do not place more than 10 sheets of :
:
printed paper on top of the paper cassette.
.. II •• III. Ill. III. Ill •• III III III III •• II III III ••• II III III II II III III II II IIll III Ill. 11I.\\7
List of Error Symbols
III[
'''I!!!
'Oll.
~ .. ;~:~
~
G
o
Cannot display image
No images on
memory card
Cannot read image
No
paper
Paper jam
Noink
G
OJ
[E]
Ink cassette error
Low battery (CP730 only)
Communication error
Connection broken
D Other error
17

18
Safety Precautions
• Use this equipment correctly according to the following precautions to avoid the risk
of injury, fire, electrical shock, malfunctions and other hazards
•Please also read
the II Safety Precautions II and II Handling Precautions II sections of the
electronic manual (Printer User Guide) contained on the supplied CD-ROM.
~ WARNINGS
•Do not play the supplied CD-ROM(s) in any CD player that does not support data CD-
ROMs. Playing
the CD-ROM(s) in an audio CD player (music player) could damage the
speakers. It is also possible to suffer from hearing loss from listening with headphones
to the loud sounds of aCD-ROM played on amusic CD player.
•Store
the equipment in aplace where it cannot be reached by children.
•Do
not disassemble or modify the devices.
·If the devices are dropped or the casing becomes damaged, do not continue
operation.
·If the devices emit smoke or aburning odor, or show other signs of significant
malfunction,
immediately unplug the power cord from the power outlet.
•Do not allow water or other liquids to enter the interior of the equipment.
If the equipment is subjected to water droplets or damp salty air, gently wipe it with a
soft, absorbent cloth.
•Do
not insert or drop metallic objects or flammable substances into the equipment
interior.
Immediately switch off the printer power and remove the power cord from the
electrical outlet before attempting to remove the object or substance. (If powering it
by battery, remove the battery before removaI.)
•Do
not touch metal parts of the devices or the power plug during thunderstorms.
Immediately stop using the equipment and distance yourself from it.
•Do
not use flammable solvents such as alcohol, benzine, or paint thinner to clean the
devices.
•Do
not rest heavy objects on the power cord or plug, pull on it with excessive force or
damage it.
•Do
not use a power source (AC adapter, battery) that is not specified for the
equipment.
•Remove the power cord on aregular periodic basis and wipe away the dust and dirt
that collects on the plug, the exterior of the power outlet and the surrounding area.
•Do
not handle the power cord if your hands are wet.
•No part of this guide may be reproduced, transmitted, transcribed, stored in aretrieval system, or translated into any
language in any form, by any means,
without the prior written permission of Canon.
•While
every effort has been made to ensure that the information contained in this guide is accurate and complete, no
liability can be accepted
for any errors or omissions. Canon reserves the right to change the specifications of the
hardware and software described herein at any
time without prior notice.
•Canon makes no warranties
for damages resulting from corrupted or lost data due to amistaken operation or
malfunction
of the camera, the printer, the software, the memory cards, personal computers, peripheral devices, or use
of non-Canon memory cards.
•The
SDHC logo and miniSDHC logo are trademarks.

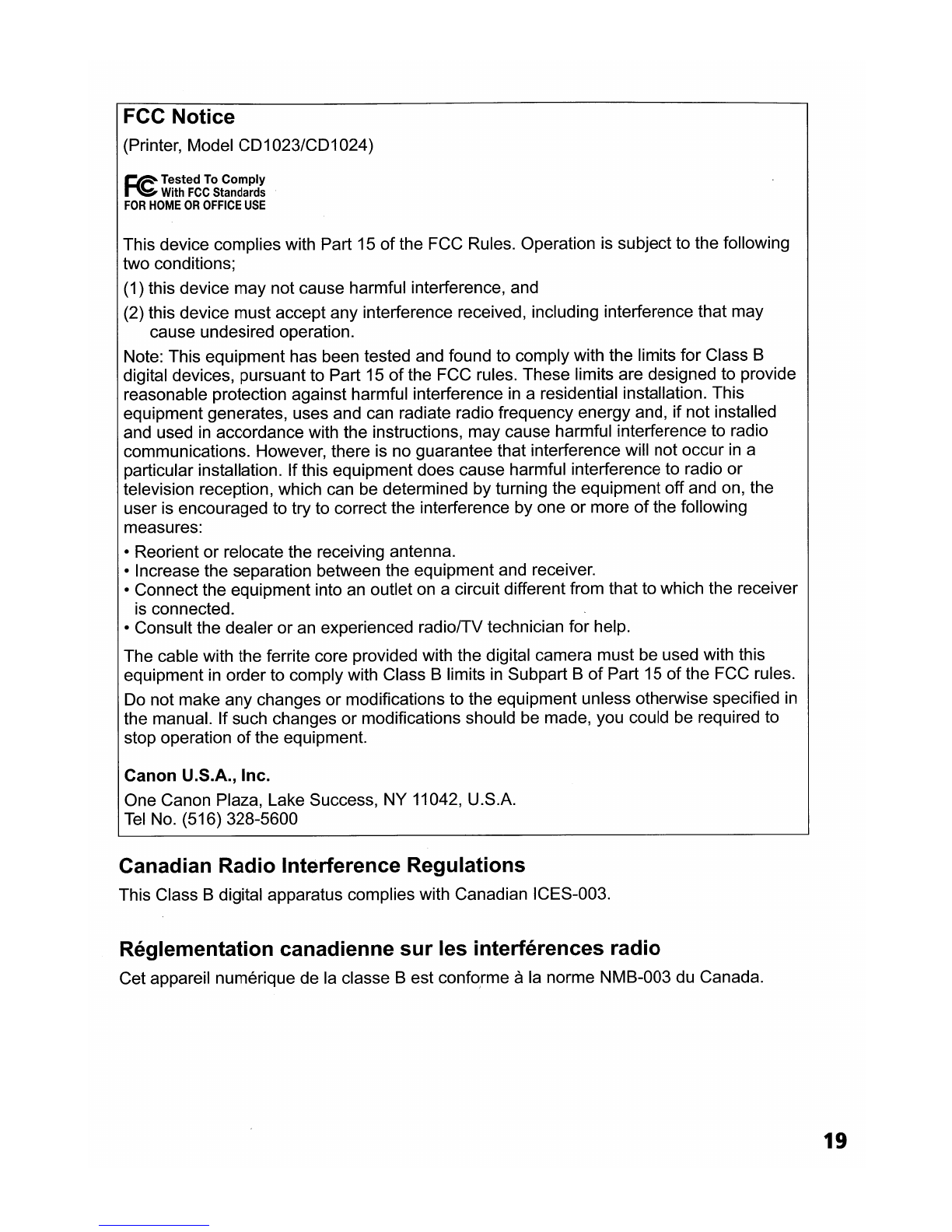

FCC Notice
(Printer, Model CD1023/CD1024)
~ Tested To Comply
~ With FCC Standards
FOR HOME OR OFFICE USE
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions;
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may
cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for Class B
digital devices, pursuant to Part 15
of the FCC rules. These limits are designed to provide
reasonable protection against harmful interference
in aresidential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used
in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur
in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more
of the following
measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into
an outlet on acircuit different from that to which the receiver
is connected.
•Consult the dealer or
an experienced radio/TV technician for help.
The cable with the ferrite core provided with the digital camera must be used with this
equipment
in order to comply with Class Blimits in Subpart B of Part 15 of the FCC rules.
Do not make any changes or modifications to the equipment unless otherwise specified in
the manual. If such changes or modifications should be made, you could be required to
stop operation
of the equipment.
Canon U.S.A., Inc.
One Canon Plaza, Lake Success, NY 11042, U.S.A.
Tel No. [phone]
Canadian Radio Interference Regulations
This Class Bdigital apparatus complies with Canadian ICES-003.
Reglementation canadienne sur les interferences radio
Cet appareil numerique de la classe Best conforme ala norme NMB-003 du Canada.
19

Canon
CDI-E262-010 0606Ni20 ©2006
CANON INC. PRINTED IN JAPAN
