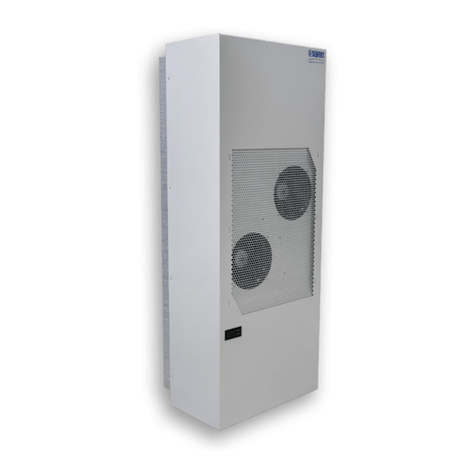

Seifert Progressive Series User manual

Version Nr. 1-13 - 11.07.2022 Doc. No. 99871200201USL 1 / 23
Table of Content 871200201USL
1. User manual 2 ..................................................................................................................................
2. Legal regulations 2 .........................................................................................................................
3. Safety instructions 3 ......................................................................................................................
4. Settings 4 .........................................................................................................................................
5. Functional principle 5 .....................................................................................................................
6. Technical data 6 ..............................................................................................................................
7. Performance graph 7 ......................................................................................................................
8. Mounting 8 .......................................................................................................................................
9. Condensate management 9 ...........................................................................................................
10. Mounting Principle 10 ..................................................................................................................
11. Cut out dimensions 11 ..................................................................................................................
12. Dimensions (H x W x D) 12 ..........................................................................................................
13. Electrical connection 13 ...............................................................................................................
14. Controller 15 ..................................................................................................................................
15. Wiring diagram 19 .........................................................................................................................
16. Taking into operation 20 ..............................................................................................................
17. Trouble shooting 20 ......................................................................................................................
18. Maintenance & Cleaning 21 .........................................................................................................
19. Transport & Storage 22 ................................................................................................................
20. Parts supplied / Spare parts / Accessories 23 ..........................................................................

Version Nr. 1-13 - 11.07.2022 Doc. No. 99871200201USL 2 / 23
1. User manual
This instruction manual contains information and instructions to enable the user to work safely, correctly and
economically on the unit. Understanding and adhering to the manual can help one:
Avoid any dangers.
Reduce repair costs and stoppages.
Extend and improve the reliability and working life of the unit.
PLEASE ENSURE TO USE THE RIGHT VERSION OF THE INSTRUCTION MANUAL SUITABLE FOR YOUR
UNIT.
Intended use
󰾬The unit is to be used exclusively for the dissipation of heat from control cabinets and enclosures in order to
protect temperature sensitive components in an industrial enviorment. To meet the conditions of use, all the
information and instructions in the instruction manual must be adhered to.
General danger
Indicates compulsory safety regulations which are not covered by a specific
pictogram such as one of the following.
󰾬
High electric voltage
Indicates electric shock danger.
Important safety instruction
Indicates instructions for safe maintenance and operation of the unit.
Attention
Indicates possible burns from hot components.
Attention
Indicates possible damage to the unit.
Instruction
Indicates possible danger to the environment.
2. Legal regulations
Liability
The information, data and instructions contained in this instruction manual are current at the time of going to
press. We reserve the right to make technical changes to the unit in the course of its development. Therefore,
no claims can be accepted for previously delivered units based on the information, diagrams or descriptions
contained in this manual. No liability can be accepted for damage and production caused by:

Version Nr. 1-13 - 11.07.2022 Doc. No. 99871200201USL 3 / 23
Disregarding the instruction manual
Operating error
Inappropriate work on or with the unit
The use of non-specified spare parts and accessories
Unauthorised modifications or changes to the unit by the user or his personnel
The supplier is only liable for errors and omissions as outlined in the guarantee conditions contained in the main
contractual agreement. Claims for damages on any grounds are excluded.
3. Safety instructions
Upon delivery the unit is already meeting current technical standards and can therefore be safely taken into
operation. Only authorised personnel is allowed to work on the unit. Unauthorised personnel must be prohibited
from working on the unit. Operating personnel must inform their superiors immediately of any malfunction of
the unit.
Please note that before starting to work on or with the unit, a procedure must be carried out inside the cabinet
on which the unit is to be mounted.
Before commencing work inside the cabinet, the control cabinet manufacturer's instruction must be read with
regards to:
Safety instructions.
Instructions on taking the cabinet out of operation.
Instructions on the prevention of unauthorised cabinet reconnection.
The electric equipment meets the valid safety regulations. One can find dangerous voltages (above 50 V AC or
above 100 V DC)
Behind the control cabinet doors.
On the power supply in the unit housing.
The unit has to be operated according to the type plate and the wiring diagram, and must be protected
externally from overloading and electrical faults via suitable protective devices.
Danger through incorrect work on the unit
The unit can only be installed and maintained by technical competent and qualified personnel,
using only supplied material according to the supplied instructions.
󰾬
Danger from electrical voltage
Only specialised personnel are allowed to maintain and clean the unit. The personnel must
ensure that for the duration of the maintenance and cleaning, the unit is disconnected from
the electrical supply.
Attention
Damage to the unit through the use of inappropriate cleaning materials. Please do not use
aggressive cleaning material.
Instruction
Damage to the environment through unauthorised disposal. All spare parts and associated
material must be disposed according to the environmental laws.

Version Nr. 1-13 - 11.07.2022 Doc. No. 99871200201USL 4 / 23
4. Settings
The cooling unit is intended to be used as a complementary accessory to larger industrial equipment. The unit
is used where heat needs to be dissipated from electrical control cabinets or similar enclosures in order to
protect heat sensitive components. It is not intended for household use.
The unit has two completely separate air circuits which ensure that the clean cabinet air does not come into
contact with the ambient air which may well be dirty or polluted.
Enclosure cooling units can dissipate large quantities of heat from sealed enclosures such as electrical
enclosures into the ambient air and at the same time reduce the cabinet internal temperature to below that of
the ambient air. The unit can function without problems in extreme ambient conditions (e.g. dusty and oily air).
For the cooling capacities, operating temperatures and environmental ratings please refer to the type plate
data.

Version Nr. 1-13 - 11.07.2022 Doc. No. 99871200201USL 5 / 23
5. Functional principle
The cooling unit for enclosures works on the basis of a refrigeration circuit consisting of four main
components: compressor, evaporator, condenser and expansion device.
The circuit is hermetically sealed and R134a refrigerant circulates inside it (R134a is chlorine free and has an
Ozone Destruction Potential [ODP] of 0 and a Global Warming Potential [GWP] of 1430). The compressor
compresses the refrigerant (thus taking it to high pressure and high temperature), and pushes it through the
condenser, where it is cooled by ambient air thus passing from the gas to the liquid state. At the liquid state it
then passes through the capillary pipe being a much lower pressure the refrigerant arrives to the evaporator
where it absorbs the necessary heat to change from liquid to gas state. The gas is then drawn back into the
compressor completing the cycle.
1 Air intake cabinet side 6 Air intake ambient side
2 Radial fan cabinet side 7 Air intake ambient side
3 Evaporator 8 Condenser
4 Air outlet cabinet side 9 Air outlet ambient side
5 Compressor 10 Filter dryer
11 Expansion device

Version Nr. 1-13 - 11.07.2022 Doc. No. 99871200201USL 6 / 23
6. Technical data
Order Number 871200201USL
Cooling capacity 95F/95F 4095 BTU
Cooling capacity 95F/122F 2730 BTU @ 50 Hz
2870 BTU @ 60 Hz
EER 95F95F 5.6 / 5.1
Compressor type Reciprocating compressor
Refrigerant / GWP R 134a / 1430
Refrigerant charge 210 g / 7.5 oz
High / low pressure 435 / 88 psi
Operating temperature range -40 °F - 140 °F
Air volume flow (system / unimpeded)
Ambient air circuit: 280 / 550 m³/h
Cabinet air circuit: 300 / 470 m³/h
Mounting Wall mounted
Housing Material Mild steel, powder coated
Dimension H x W x D 23 x 12 x 12 inch
Weight 68.5 lbs
Cut out dimensions 13.6 x 9.3 inch
Voltage / Frequency 230 V ~ 50/60 Hz
UL Voltage / Frequency 230 V ~ 60 Hz
Current 95F95F 3.2 A @ 50 Hz
3.6 A @ 60 Hz
Starting current 15 A
Max. current 4.6 A
Nominal power 95F95F 700 W @ 50 Hz
800 W @ 60 Hz
Max. power 1.05 kW
Fuse 15 A (T)
Max circuit ampacity 15 A
Short-circuit current rating 5 kA
Rated current compressor 2.5 A
Full load current fans 0.73 A
Connection 5 pole terminal block for signals, 4 pole terminal block for
power
Ingress protection IP 56 / Type 12, 3, 3R, 4
Approvals CE, UL(ACVS), cULus

Version Nr. 1-13 - 11.07.2022 Doc. No. 99871200201USL 7 / 23
7. Performance graph

Version Nr. 1-13 - 11.07.2022 Doc. No. 99871200201USL 8 / 23
8. Mounting
Unpacking unit:
Please follow the below steps to unpack the unit.
STEP 1:
Stand the air conditioner upright with the pre-cut packaging opening facing up.
STEP 2:
Pull off the packaging opening.
STEP 3:
Hang the transport loop of the unit in the transport hook and lift it slightly.
STEP 4:
Pull off the packaging and slide out the tray with installation material and the short version of the operating
manual.
STEP 5:
Pull off the remaining packaging.
STEP 6:
The cooling unit can now be attached to the enclosure.

Version Nr. 1-13 - 11.07.2022 Doc. No. 99871200201USL 9 / 23
Mounting:
The power supply rating on unit rating plate must comply with mains rating.
Always disconnect the power supply before opening the unit.
The heat load to be dissipated from enclosure should not exceed specific cooling output of the unit at any
condition. At cooling unit selection always cater for a safety margin of at least 15% extra cooling output in the
worst conditions. Air inlets and outlets must be completely free from obstruction.
Ensure that flows of air leaving and entering the cooling unit, internal and external, are not obstructed. Cooling
unit enclosure air suction hole must be installed in the highest possible point. When installing the unit on a door
ensure it can take the weight.
Before drilling the enclosure ensure the fixing elements and couplings will not interfere with the equipment
inside the enclosure itself. Disconnect power before starting any work inside the enclosure. Following this 1:1
Scale Drilling Template drill the holes and make the required cuts on the enclosure. This template may have
been affected by storage conditions, please check this template by verifying values of the largest dimensions
before drilling. Fit the sealing strip on the cooling unit on the side connected to the enclosure and follow the
installation diagram.
This AC unit can only be mounted to a suitably Type rated enclosure to maintain it's Type rating. The Type and
IP rating of the enclosure should be the same or higher than that of the unit.
9. Condensate management
High humidity and low temperatures inside the enclosure can lead to condensation on the evaporator.
Condensate that flows back into the enclosure can damage sensitive control electronics. The integrated
condensate evaporation of the cooling unit releases the condensate to the environment. If condensate
formation is too great, additional condensate can drip into an overflow trough, which then drains off on the
ambientt side.In order to prevent the formation of excessive condensate, you should nevertheless:
- check the seals at regular intervals
- consider installing a door contact switch (order no. 3100001). This can prevent condensation forming
when enclosure door is left open.
Condensation drain pipe connection:
The condensation drain is in the base of the unit. The condensation drain pipe should be attached as required
e.g. in conditions of high humidity.

Version Nr. 1-13 - 11.07.2022 Doc. No. 99871200201USL 10 / 23
10. Mounting Principle
NOTES:
Do not use within the first 15 minutes after installation!
Use only the supplied mounting hardware.
Tighten Screws to 4.5 Nm.
Ensure the mounting surface does not warp after assembly and reinforce it if necessary.
1 M6 bolts
2 M6 toothed washers
3 M6 Flat washers
4 Enclosure
5 Mounting gasket
6 Cooling unit

Version Nr. 1-13 - 11.07.2022 Doc. No. 99871200201USL 11 / 23
11. Cut out dimensions

Version Nr. 1-13 - 11.07.2022 Doc. No. 99871200201USL 12 / 23
12. Dimensions (H x W x D)

Version Nr. 1-13 - 11.07.2022 Doc. No. 99871200201USL 13 / 23
13. Electrical connection
Door Switch
The unit can be switched ON and OFF via a door contact switch. When delivered the door contact terminals are
bridged on the female connector. To connect the door contact switch remove the bridge and connect door
contact switch. The contact must be closed when the cabinet door is closed.
It is possible to change the logic of the door switch (controller firmware rev. 1.2 or higher). This can be set by
changing the value of parameter c68. Refer to the table below and section Controller: Setting temperature units
(°C / °F), low temperature alarm, door contact logic section for more information.
c68 = 0 (default) ON if closed - Door contact terminals bridged, or NC door switch connected
(contact must be closed when cabinet door is closed)
c68 = 1 ON if open - Remove bridge, or NO door switch connected
(contact must be open when cabinet door is closed)
Alarm Contacts
Alarm contacts rated according to:
EN60730-1 8(4)A N.O., 6(4)A N.C., 2(2)A N.O./ N.C. @ 250Vac 100000 cycles
UL 873 8A resistive 2FLA 12LRA, pilot duty C300 @ 250Vac 30000 cycles
These contacts are not suitable for fluorescent loads (neon lights, etc.) that use starters (ballasts) with phase
shifting capacitors. Fluorescent lamps with electronic controllers or without phase shifting capacitors can be
used, depending on the operating limits specified for each type of relay.
Connect unit:
Connect the cooling device according to the instructions below. The cable cross-section must correspond to the
required power for the current consumption, but max. 2.5 mm² / AWG 14.

Version Nr. 1-13 - 11.07.2022 Doc. No. 99871200201USL 14 / 23
SCCR
Refer to UL508A Supplement SB and Seifert Systems’ document Short Circuit Current Rating (SCCR) on methods
how to modify the available short circuit current within a circuit in the panel.

Version Nr. 1-13 - 11.07.2022 Doc. No. 99871200201USL 15 / 23
14. Controller
The display shows the temperature in the range of -50°C to +150°C (-58°F to +302°F). The temperature is
displayed with resolution of tenths between -19.9°C and +99.9°C (-3.8°F to +211.8°F). During programming, it
shows the codes and values of the parameters. The display also shows icons according to occurring events.
Display icons
Icon Function Description
1 Compressor relay active Flashes when activation is delayed or inhibited by
protection times, external disabling or other procedures
in progress
2 Alarm relay active
3 Heater relay active
4 Ambient blower relay active
Alarm Flashes when alarms are active
Heating mode Signals operation of unit in heating mode
Cooling mode Signals operation of unit in cooling mode
TEST Test mode in progress Activated only by manual procedure
Programming
The operating parameters can be modified using the front keypad. Access differs depending on the type of
parameter. Access to configuration parameters is protected by a password that prevents unwanted
modifications or access by unauthorised persons.
Setting cooling set point, St1:
1. Press “SET” and display should show St1 and then the pre-set value of St1. (default: +35°C / +95°F)
2. Reach the desired value by using ▲ or ▼.
3. Press “SET” again to save the new value of St1.

Version Nr. 1-13 - 11.07.2022 Doc. No. 99871200201USL 16 / 23
Setting heating set point, St2 (only for units supplied with internal heater):
1. Press “SET” twice slowly and display should show St2 and then the pre-set value of St2. (default: +5°C /
+41°F)
2. Reach the desired value by using ▲ or ▼.
3. Press “SET” again to save the new value of St2.
󰾬Setting temperature units (°C / °F), low temperature alarm and high temperature alarm:
1. Press “PRG” button for 5 seconds to reach the modifiable parameter list.
2. Use ▲ or ▼ to reach the desired parameter:
C18 for temperature unit of measure
°C = 0
°F = 1
P25 for low temperature alarm threshold (default -10°C / +14°F)
P26 for high temperature alarm threshold (default +55°C / +131°F)
c68 for door contact NO/NC logic change (0=ON if closed, 1=ON if open)
Controller firmware rev. 1.2 or higher.
3. Press “SET” on the desired parameter to display the current value.
4. Use ▲ or ▼ to reach the desired value.
5. Pressing “SET” temporarily saves the new value and returns to the parameters list.
6. Repeat steps 2-5 to set other parameters.
7. Press “PRG” for 5 seconds to permanently save the new values.
Test function
Different test functions can be used depending on the combination of keys pressed. Such tests run for the
duration of 4 minutes.
“SET+▲” tests Compressor and Ambient Blower relays.
“SET+▼” tests Alarms and Heater relays

Version Nr. 1-13 - 11.07.2022 Doc. No. 99871200201USL 17 / 23
Alarm Relay Operation
Both normally closed (NC) and normally open (NO) alarm contacts are provided. These refer to the alarm state.
Under normal conditions, the NC contact is closed and the NO contact is open. When an alarm condition is
present or the door contact is open, the NC contact will open and the NO contact will close. System power
failure will give an alarm condition.
State Alarm relay Display
1 System powered OFF
2 System powered ON
- NO ALARM
- Door Contact Closed
3 System powered ON
- Door Contact Open
4 System powered ON
- ALARM STATE
Failure table:
The display shows either ‘’OFF’’ or “EXX” with an icon flashing (triangle), alternating with the standard display. If
more than one error occurs, these are shown in sequence on the display.
Failure
Code Description Solution
OFF
Door open
Close the enclosure door and check the door contact switch. If no
door contact switch is used and c68=0, bridge terminals on power
connector.
Incorrect phase sequence
(3-phase units) Displayed on power-up. Check phase sequence.
E01 Failure internal
temperature sensor Check probe connections
E02 Failure ambient
temperature sensor Check probe connections
E04 High temperature alarm
The measured temperature has exceeded the threshold P26.
Check rating of the cooling unit. Clean air filters, condenser; check
fans’ and compressor’s correct operation. Contact your service
partner.
E05 Low temperature alarm The measured temperature has fallen below the threshold P25.

Version Nr. 1-13 - 11.07.2022 Doc. No. 99871200201USL 18 / 23
Failure
Code Description Solution
E07 / E08 Controller error Contact your service partner.
Important Notes
Whilst programming, if no button is pressed for 10 seconds, the display starts flashing, and after 1 minute
returns to the main display without saving changes.
To increase scrolling speed, press and hold the ▲ or ▼ button for at least 5 seconds.
When pressing “PRG” for 3 seconds, the firmware revision code is displayed for 2 seconds.
When cleaning the controller panel, do not use ethanol, hydrocarbons, ammonia or their by-products.
Use neutral detergents and water.
In order to protect the unit’s components, minimum relay output on (3 or 7 minutes) and off (4 minutes)
times and minimum time (7 or 11 minutes) between activation of the same relay output are applied.
In case of digital inputs not configured, probes not fitted or configured, or St2 not enabled on the
controller the display shows ‘nO’.

Version Nr. 1-13 - 11.07.2022 Doc. No. 99871200201USL 19 / 23
15. Wiring diagram
Power connector
1 L1
2 /
3 N
4 PE
Signal connector
1 Alarm (NC)
2 Alarm (COM)
3 Alarm (NO)
4 Door contact
5 Door contact

Version Nr. 1-13 - 11.07.2022 Doc. No. 99871200201USL 20 / 23
16. Taking into operation
Attention!
The unit can be damaged by lack of lubricant. To ensure that the compressor is adequately lubricated the oil,
which has been displaced during transport, must be allowed to flow back into it. The unit must therefore be
allowed to stand for at least 30 min. before being connected to the mains and taken into operation.
The unit / system must be protected with a MCB Type D or K. Upon connection the internal fan will start
working. If the temperature inside the enclosure is higher than the set value of the controller both the
compressor and external air fan start working. The cooling cycle will either stop once the air inside the
enclosure reaches the set temperature minus hysteresis or once the minimum On-time is reached. The setpoint
for the internal enclosure temperature is pre-set at 95°F.
The hysteresis is 3K, the minimum ON-time is 4 minutes, the minimum OFF-time is 3 minutes, for units with a
cooling capacity of more than 1 kW is it usually 7 minutes.
17. Trouble shooting
Failure Condition Cause Solution
Unit
doesn't
cool
Internal fan does not work Power not connected. Verify power supply
Internal fan works, external fan
and compressor don't work
Enclosure temperature is below
setting temperature (St)
Verify values of parameter
"St"
Door switch contact is open Verify door switch
Controller doesn't work Replace controller
Internal fan works, external fan
and compressor don't work.
Display shows alternating OFF
and temperature
The sequence of the phases
inside the power supply
connector is incorrect
Change phases inside power
supply connector
Unit
doesn't
cool
External and internal fan work,
compressor does not work
Compressor motor electrical
failure
Have compressor replaced
by qualified service technician
Capacitor for compressor failed Replace capacitor
Compressor works, external fan
doesn't work
External fan needs to be
replaced Replace external fan
Enclosure
temperature
too hot
Compressor and fans (external
and internal) work all the time Cooling unit undersized Enclosure needs a cooling unit with with higher capacity
Compressor and external fan
work in alternating mode
(ON / OFF)
Thermal compressor protector
triggered
Verify if ambient temperature
is too high,clean condenser
Refrigerant leakage Contact dealer/service center
Excessive
condensate
Enclosure door open Ambient air gets into the
enclosure
Ensure door is closed, add
a door switch and connect
it to controller
Enclosure door closed
Enclosure IP protection class
is below IP54
Seal all openings of the
enclosure
Damaged or misplaced sealing
strip
Repair sealing strip
accordingly
