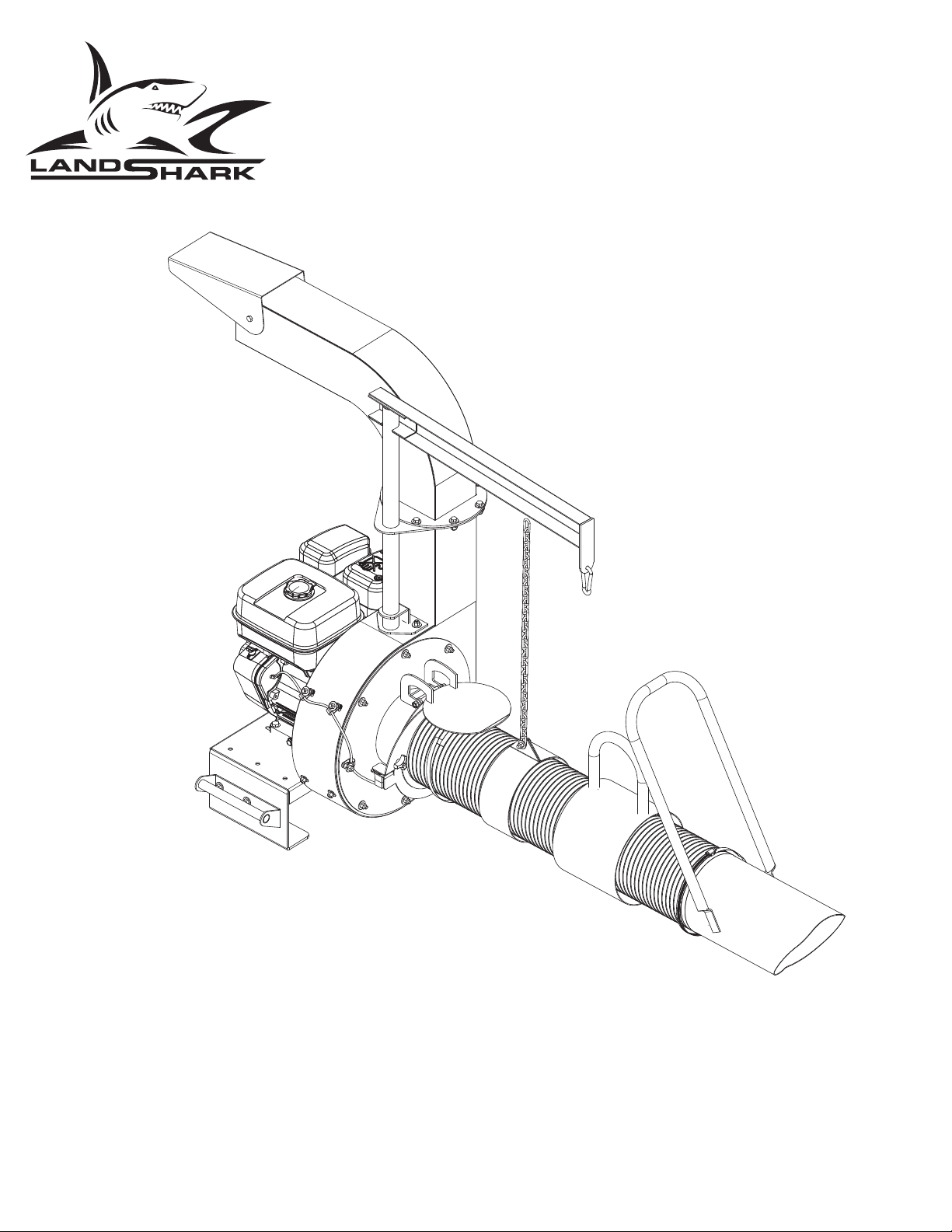

SELBRO LANDSHARK LSDL Series User manual

TRUCK LOADER
Owner’s manual
Covers Models :
LSDL-13GX390 - LSDL-14EX400 - LSDL-18VGDE
LSDL-13-18 Owner’s Manual
TM

CONTENTS
SPECIFICATIONS________________________________________3
INSTRUCTION LABELS___________________________________4
SHIPPING CHECKLIST____________________________________5
ILLUSTRATED PARTS DIAGRAM___________________________6
PARTS LIST__________________________________________7 & 8
ASSEMBLY______________________________________________9
SAFETY INSTRUCTIONS - DO NOT DO______________________10
SAFETY INSTRUCTIONS - DO_____________________________11
2
LSDL-13-18 Owner’s Manual
TM

3
LSDL-13-18 Owner’s Manual
TM
Model Number LSDL-13GX390 LSDL-14EX400 LSDL-18VGDE
Engine: HP 13 (9.69 kW) 14 (10.4 kW) 18 (13.4 kW)
Engine Model GX390OU1QA2 EX400DF5030 3564470011F1
HONDA ROBIN BRIGGS AND STRATTON
Mounng Skid Mount Skid Mount Skid Mount
Fuel Type Gas Gas Gas
Engine: Fuel Capacity 6.9 qt. (6.5L) 7.4 qt (7.0 L) 9.0 qt (8.52 L)
Engine : Oil Capacity 1.16 qt (1.1 L0 1.3 qt (1.2 L) 1.75 qt (1.66 L)
Loader Total Weight 244 lbs / 537.9 k 244 lbs / 537.9 k 337 lbs / 742.9 k
Maximum Operang Slope 25 Deg 25 Deg 25 Deg
Dimension - Height 47 47 49
Dimension - Width 22 22 29
Dimension length 26 26 34
CFM 3500 3500 4400
Intake Hose 8" x 10' Clear Urethane 8" x 10' Clear Urethane 10" x 10' Clear Urethane
Discharge 5.75" x 5.75" 5.75" x 5.75" 7" x 7"
Starter Recoil Recoil Electric/Recoil
Impeller 5/16" Steel 5/16" Steel 5/16" Steel
Shredding Yes / up to 12:1 Yes / up to 12:1 Yes / up to 12:1
Diameter 16" 16" 18"
Engine ShaConnecon Bored to size Bored to size Taper Lock Hub
Replaceable Housing Liners 12 Ga Steel 12 Ga Steel 10 Ga Steel
Baery (Electric Models Only)
LSDL-18VGDE CCA @ 0 Deg F AH Rang L -W - H
330 20 7.7 x 5.1 x 6.89
(NOTE: Baeries are NOT included with machines) ( Baery Group U1)
Specifications

INSTRUCTION / SAFETY LABELS AND SYMBOLS
The labels shown here have been installed in various locations on the LandShark Debris loader.
It is important to maintain these labels in good condition and replace them when necessary. The
part numbers are included in the Illustrated parts List.
4
LSDL-13-18 Owner’s Manual
TM
LSDL - INSTRUCTION
WARNING LABEL
P/N 1100-074
DANGER KEEP HANDS
AND FEET AWAY
P/N 12133 CAUTION
DISCONNECT SPARK PLUG
BEFORE SERVICING
READ OWNERS
MANUAL
WEAR PERSONAL
PROTECTION
EQUIPMENT
SPECIAL TOOLS
REQUIRED
CAUTION THROWN
OBJECTS
WARNING
PROPOSITION 65
WARNING

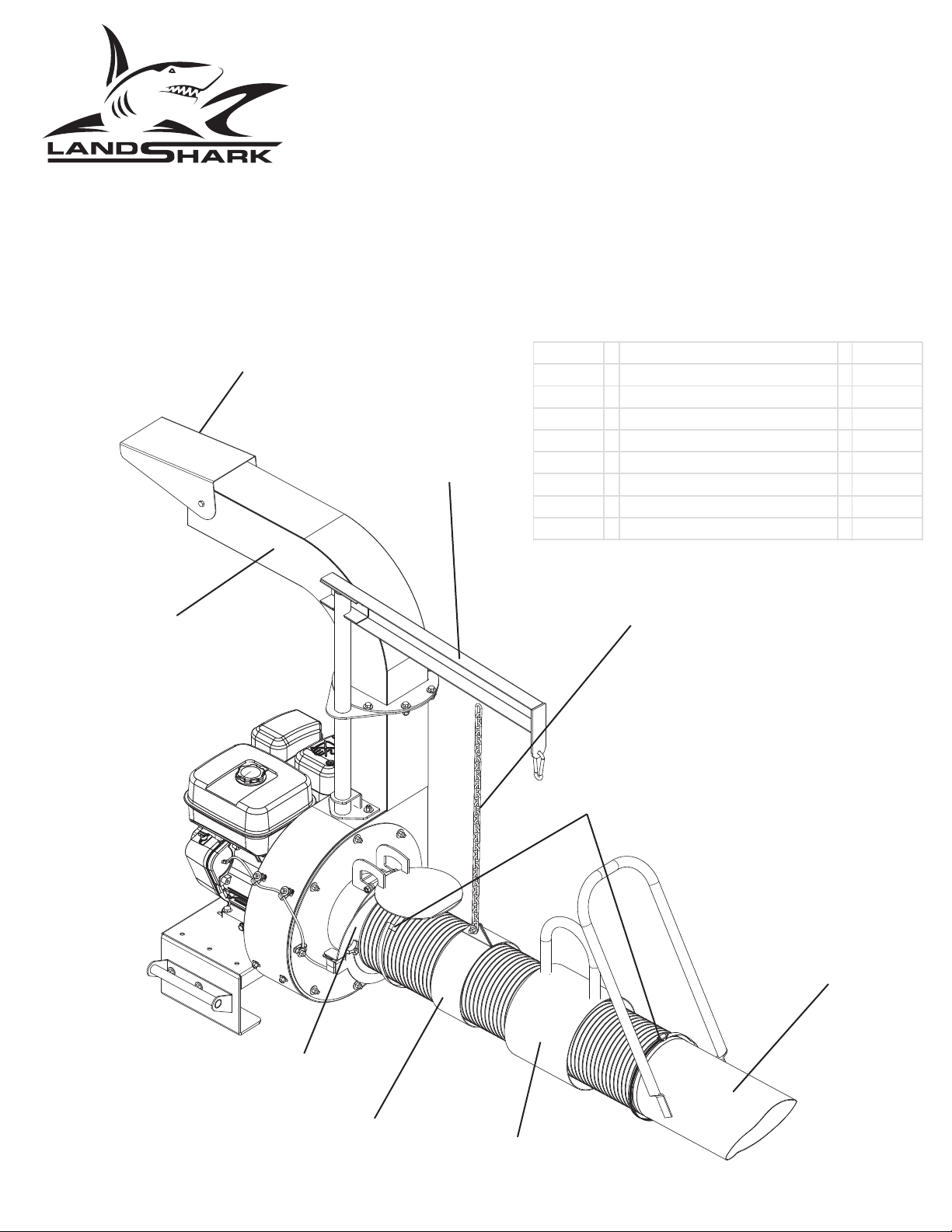

Loose Parts Check List
The LandShark Debris Loader is shipped fully assembled except for a few components:
Exaust Chute, Nozzle, Floating Collar, Hose Support Collar, Hose Support Boom, Hose Clamps and
Miscellaneous Hardware.
Hose Boom
Assembly
# 12403
Support Chain #12411
5
LSDL-13-18 Owner’s Manual
TM
Floating Collar
#12387
Discharge Flap
# 12399
Support Collar
#12388
Exhaust Chute
#12398
Safety Flange
#12389
Nozzle #12386
Bridge Clamps #12406
Part # Descripon Quanty
11080 HHCS 3/8-16 X 1.00 2
11535 HHCS 3/8-16 X 1.25 8
11150 Nylon Lock Nut 3/8-16 10
11366 USS Flat Washer 5/16 26
11815 HHCS 5/16-18 X 1.00 3
11532 Nylon Lock Nut 5/16-18 4
11156 USS Flat Washer 1/4 2
11147 HHCS 5/16-18 X 1.25 1
Hardware Bag Contents

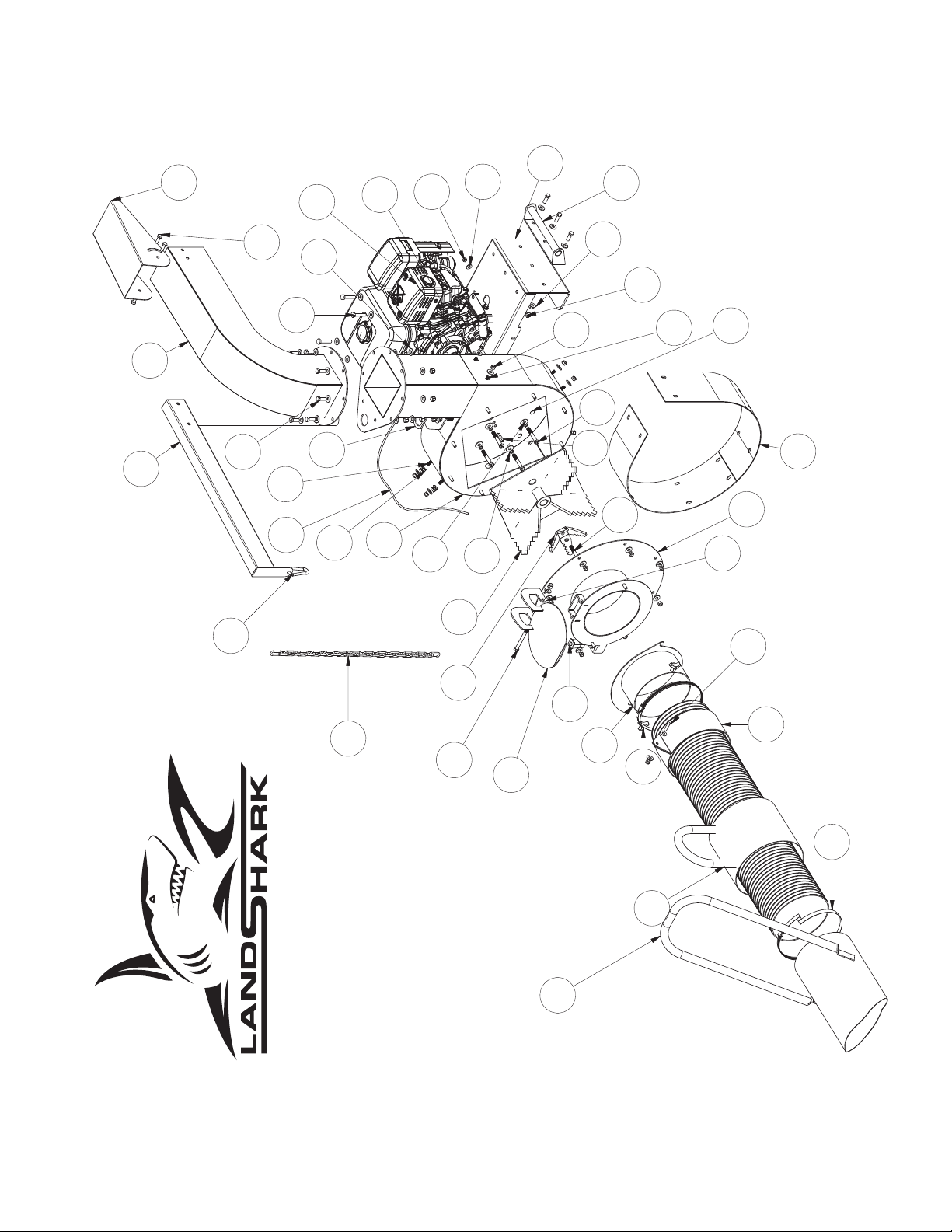

Parts Illustration
39
30
37
35
41
33
34
21
11
29
8
25
5
31
1
17
26
27
43
42
36
40
15
2
3
7
10
12
38
18
22
23
14
28
16
13
46
38
9
19
32
20
4
6
24
47
LSDL-13-18 Owner’s Manual
TM
6

Parts
7
LSDL-13-18 Owner’s Manual
TM

Parts
8
LSDL-13-18 Owner’s Manual
TM

Assembly
1) SECURELY ATTACH the Loader to the bed of a truck, trailer or install using the hanging tailgate brackets
(Optional) so the exhaust discharges into an enclosed container. Keep in mind, this loader MUST be
securely mounted to the bed of a truck or trailer prior to and during all operation and assembly.
2) ASSEMBLE INTAKE HOSE. On one end of the hose slide on the floating collar (item 2) and attach
the nozzle using the bridge clamp. (items 1 and 24) Securely fasten the clamp. On the other end of
the hose, slide the support collar over the hose and attach the safety flange to the hose using the
bridge clamp (item 24)
3) ASSEMBLE hanger arm (item 14) and attach support chain (item 4) to the hanger arm.
4)ATTACH safety flange to the front of the debris loader housing using the two phenolic securing
knobs. Carefully stretch the hose and secure the support collar (item 3) at a point where the chain
dangles to the hose.
5) ATTACH the discharge chute (item 16) to the top of the loader housing and secure with 8 bolts,
washers and nuts. Install the discharge flap (item 17) and secure with the supplied hardware.
9
LSDL-13-18 Owner’s Manual
TM
MOUNTING
This unit must be securely fastened to a trailer, truck bed or use the optional hanging
brackets prior to operation. The unit is not intended to be operated free standing and
will create an unsafe situation if attempted.
The loader must be secured using 3/8 dia bolts with washers and lock nuts.

Safety Instructions - DO NOT
DO NOT OPERATE THIS UNIT FREESTANDING. IT MUST BE SECURED USING ONE OF THE
SPECIFIED MOUNTING OPTIONS.
DO NOT operate this equipment with ANY safety features or guards removed
DO NOT run this equipment indoors or in any poorly ventilated area. Refuel outdoors only
DO NOT refuel this equipment when engine is running. Allow engine to cool for several minutes before
refueling
DO NOT store gasoline near open flame
DO NOT remove gas cap while engine is running
DO NOT start or operate engine if a strong odor of gasoline is present
DO NOT operate engine with grass, leaves or other combustable material near the muffler
DO NOT leave equipment unattended while in operation
DO NOT operate the equipment with bystanders in the area
DO NOT allow children to operate this equipment
DO NOT operate this equipment on slopes greater than listed in the specifications section of this
manual
DO NOT place hands or feet inside the nozzle intake, debris discharge outlet or near any moving parts
DO NOT run this maching with a damaged impeller under any circumstances or with excessive vibra-
tion
DO NOT use this machine for solely vacuuming sand, dust, fine dirt, rocks, glass, string like material,
grain, rags, cans, bark or water
DO NOT attempt to start the engine without the hose and all associated safety systems securely in
place
DO NOT remove hose until engine and all moving parts have stopped.
10
LSDL-13-18 Owner’s Manual
TM

Safety Instructions - DO
ALWAYS remove the spark plug when performing any type of maintenance and servicing
ALWAYS check fuel lines and fittings for wear, cracks and leaks. Replace as necessary
ALWAYS keep hands and feet away from moving or rotating parts.
ALWAYS store fuel in approved safety containers
ALWAYS wear the appropriate personal protective equipment (PPE) when operating this machine.
ALWAYS inspect replaceable wear liner daily before each use.
11
LSDL-13-18 Owner’s Manual
TM
For questions and technical information contact:
Selbro, Inc. 1-800-973-5276
P.O. Box 595, Bellevue, Ohio 44811
