Self-Sat SNIPE DOME 2 User manual

Stationary Automatic
Camping Satellite Antenna
www.selfsat.com
ver. 1.0
User’s manual • Bedienungsanleitung • Manuel utilisateur

Contents
1. General Information
.............................................................................................
...............................................................................
.............................................................................................
1-1. Introduction
1-2. Proper use and operation
1-3. Safety notes
2
3
3
2. Contents
.......................................................................................
...........................................................................................
2-1. Accessory included
2-2. Name of parts
4
5
7. Caravan/Motorhome Installation
..........................................................................
..............................................................................
..............................................................................
..............................................................................
7-1. Precaution before installation
7-2. Required space for SNIPE DOME 2
7-3. Equipment for installation
7-4. Instruction for installation
15
16
17
17
3. Operating Instruction
....................................................................................
..................................................................................
.........................................................................................
3-1. Connection diagram
3-2. Functional description
3-3. Quick reference
6
7
11
...............................................................................................
............................................................................................

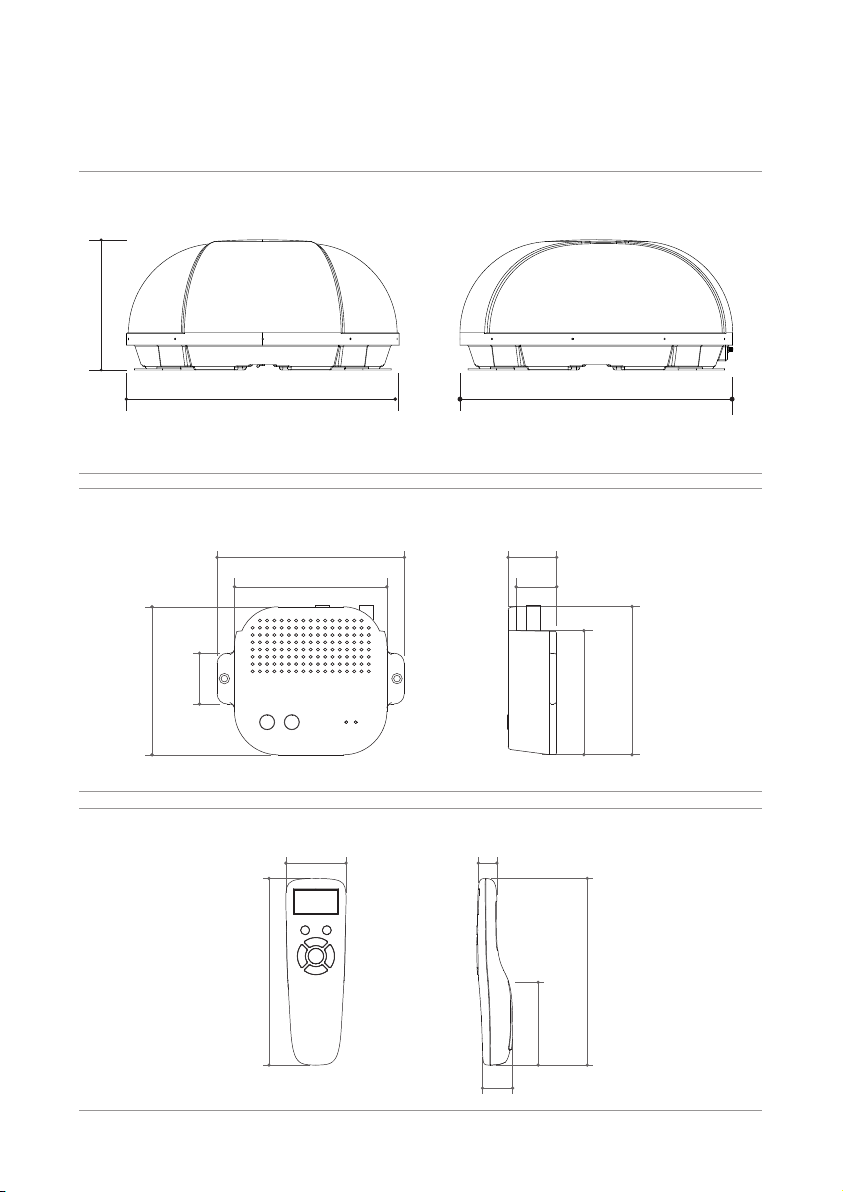

6-1. Dimension
6-2. Specifications
13
14
4. Software Upgrade
5. Troubleshooting
6. Specifications
................................................................................
...............................................................................
11
12

ENGLISH - 2
1. General Information
1-1. Introduction
These instructions describe the functions and operation of the SNIPE DOME 2 satellite
system. Correct and safe operation of the system can only be ensured by following these
instructions.
Your SNIPE DOME 2 is an intelligent satellite TV reception antenna system which can align
itself towards a preset satellite automatically as long as the system is located within the
footprint of this satellite.
For general operation, please ensure that the system always has a clear view to the sky. If the
satellite‘s signal beam is interrupted by obstacles such as mountains, buildings or trees, the
unit will not function and no TV signal will be received
The first few pages of these instructions contain information about using the general
functions of your SNIPE DOME 2, followed by an explanation of all the adjustment options.
The last pages of the instructions cover various technical aspects of the SNIPE DOME 2.

ENGLISH - 3
•
•
•
•
•
•
•
Please also note the following instructions from the manufacturer :
1-2. Proper use and operation
This product has been designed for fixed installation on vehicles with maximum speeds of
130 km/h. The unit is programmed to automatically aims at geostationary television
satellites.
The power is supplied by a standard vehicle electrical system with a rated voltage of 12 or 24
Volts DC. For installations on the vehicle, use power input cable (cigarette lighter cable) to
supply power. For portable use, optional power adaptor produced by SNIPE series manufac-
turer must be used.
Use of the equipment for any other purpose to the one specified is not permitted.
1-3. Safety notes
Please carefully read and follow the operating instructions in this manual and use the
SNIPE DOME 2 for its intended purpose.
Upon installation of SNIPE DOME 2, please ensure the installation is done with supplied
cables and ensure the cables are not modified in any way.
As the user of this equipment, be responsible for ensuring compliance with the relevant
laws and regulations.
The manufacturer does not take liability for direct or indirect consequential damage of
the system, motor vehicles or other equipment by reason of unsuitable battery usage or
erroneous installation or wrong wire connection.
It is not possible to add or remove components on this product.
The use of other components other than those originally supplied is not permitted.
To complete installation, installer must strictly follow instruction in the supplied user manual.
Failure to follow the user manual may cause damage to the unit or user's vehicle.
The product does not require any regular maintenance; all service must be carried out at
approved service centers.
All relevant guidelines of the automotive industry must be observed and complied with.
The equipment must only be installed on solid vehicle roofs.
Avoid cleaning user's vehicle with the mounted satellite system in a drive-through car wash or
a car wash with a high-pressure cleaner.

ENGLISH - 4
2. Contents
2-1. Accessory included
Actual components may differ from the above images.
The unit enables to have power from car battery. To make power input cable for
direct connection, cut off cigarette lighter adaptor and peel off to take copper
cables out.
Only power adaptor produced by SNIPE series manufacturer is guaranteed and
has be used.
Power adaptor has to be purchased separate. Please ask to local dealer/shop for
more information.
※
※
※
※
Main unit PI box
Cable gland
Remote control
Cable holderRemote control Bracket
M4 ×20(15)
User manual Power adaptor
(Optional)
Cigarette lighter adaptor
Signal cable -10m
(x2 for twin outputs)
PI cable - 1.5m

ENGLISH - 5
2-2. Name of parts
Main unit
to PI (ANT Port)
Mounting plate
PI box Remote control
STB LED
POWER LED
HOME button
POWER button
Fixed hole
Power
to STB
to unit
Display window
BT button
Mode button
HOME button
SET button
Arrow button
DiSEqC button
Bracket
Pairing antenna
with remote control
Antenna
to Receiver (optional)

ENGLISH - 6
3. Operating Instruction
3-1. Connection diagram
Turn on the PI power after all cables connections are complete.
When not using the antenna, turn o the PI power.
MAIN UNIT
PI box
Signal cable (10 m)
PI cable (1.5 m)
STB
TV
Power input cable
Cigar jack
Remote control Mobile App

ENGLISH - 7
STB LED
POWER LED
HOME button
POWER button
Fixed hole
Power
to STB
to unit
Display window
BT button
Mode button
HOME button
SET button
Arrow button
DiSEqC button
Bracket
Pairing antennas
with remote controls
3-2. Functional description
Press the POWER button to turn on the PI
box, and power to the antenna unit.
(Power LED ON)
Press and hold for more than 3 seconds to
turn off the power. (Power LED OFF)
a.
b.
When not used for more than 1 minute, it
enters the power saving mode. (When the
battery is inserted in the remote control)
To return from sleep mode, press any button
except DiSEqC button
i.
ii.
When the power of the set-top box
connected to the PI box is turned on, the
STB LED turns ON
a.
1. PI box
2. Remote control
i. POWER Button
A. Button and Display
A. Button and LEDs
B. Basic Features
When the Home button is pressed, the
antenna moves to the home position
a.
ii. HOME Button
iii. STB LED
When receiving a broadcast signal or when the antenna is in the home position, the antenna
operates only with the current from the receiver
When searching for a satellite or when the antenna moves, it automatically changes to the power
connected to DC power adapter
a.
b.
i. Power save mode
※‘HOME’ or 'Home position' refers to
the Standby position for the antenna
to search for satellites.

ENGLISH - 8
The remote control automatically searches for nearby antenna unit.
If there is an antenna that has been connected before, connect it
immediately
B. Basic Features
CONNECTING
Remote control
Version : 00
When use antenna and remote control for the first time or when you
delete the antenna list stored in the remote control, a list of products that
can be connected will appear.
Press the left and right buttons on the remote control to select the MAC
Address of your antenna unit, and press the SET button to connect to the
remote control
SELECT MAC
O - 09 : 39 : E4
PRESS SET
When the remote control and the antenna are connected, a ‘Connected’
message appears.
O - 39 : E4
Connected
The MAC Address of the connected antenna, the satellite name set for
the antenna, and the current status are displayed.
Press the left or right arrow button to select the desired satellite and
press the SET button to search for the satellite.
HOME - When the antenna is in the home position
Searching - When the antenna is searching for satellites
Found SAT - When the satellite search is complete
Mov To Home - the antenna will move to the home position.
O - 39 : E4
ASTRA 1
Home
Pressing the DiSEqC button changes the DiSEqC settings of antenna unit.
DiSEqC mode is indicated by [D] mark in the first line.
O - 39 : E4 D
DiSEqC ON
Found SAT

ENGLISH - 9
The DiSEqC function is disabled when the antenna is in the HOME position.
To use DiSEqC, press the DiSEqC button to activate the function when the
message 'Searching' or 'Found SAT' to appear on the remote control screen.
(ex)
※
Refer SNIPE DOME 2’s pre-satellites for DiSEqC 1.1 when user setup at STB
For DiSEqC operating, user needs to assign DiSEqC satellites list at STB is in same order as above
SNIPE DOME 2’s pre-set list
i. DiSEqC setting
NO
1
2
3
4
5
6
7
8
9
10
11
12
LNB
LNB 1
LNB 2
LNB 3
LNB 4
LNB 5
LNB 6
LNB 7
LNB 8
LNB 9
LNB 10
LNB 11
LNB 12
Satellite
ASTRA1
ASTRA2
ASTRA3
ASTRA1
Hot Bird
Eutelsat 9
ASTRA 4
Thor
Eutelsat 5W
ASTRA1
USER1
USER2
OK NO
O - 39 : E4
ASTRA 1
Home
O - 39 : E4
ASTRA 1
Searching

ENGLISH - 10
Delete the MAC Address of antenna stored in the remote control.
Used to connect to other products
If an error occurs during operation, the error number appears with the
error statement.
BT button
i.
BT SET
REMOVE MAC
PRESS SET
Research function can be turned on / off.
The research function is a function that automatically moves the antenna
to the position of the last received satellite signal when the receiver is
turned on.
When the Research function is turned on, [R] mark in the first line
BT SET
REFIND ON
PRESS SET
R
Used to update the remote control firmware.
Press the SET button to restart the remote control in update mode
BT SET
R/C Update
PRESS SET
O- 39 : E4 D
ASTRA 1
Error 6F
Press BT button to change to BT setting screen. Press the arrow to move to the desired function
and set with the SET button
a.
Press and hold BT button for more than 5 seconds to reset the remote controlb.
C. Additional settings
D. Error message
The errors message are shown in the table below.
0x00
0x6A
0x6B
0x6C
0x6E
0x6F
0x70
0x71
Not indicated
Home position
AZ Motor movement
EL Motor Movement
NID Check fail
Tuner lock fail
EL Up LIMIT Error
EL Down LIMIT Error

ENGLISH - 11
4-1. Upgrade via the app
4. Software Upgrade
Download and install the Sat Connect app from the App store
Turn on the antenna power (Turn on the receiver power and PI box)
Connected the application with the antenna
Select FW UPGRADE from the menu to update the antenna
UPGRADE takes about 5 minutes
a.
b.
c.
d.
e.
3-3. Quick reference
In order to ensure that your SNIPE DOME 2 works properly you must
ensure that it is following by the Operating Instructions in this manual
and used as intended purpose.
If the system cannot fully be removed due to user's negligence, then it is
your responsibility to check that the antenna is properly stored in safe.
Please also note that different legal requirements are applied to the
operation of electrical and electronic equipment in different countries.
As the user of this equipment, you are responsible for yourself ensuring
compliance with the relevant laws and regulations. The manufacturer
does not take liability for direct or indirect consequential damage of the
system, motor vehicles or other equipments by reason of unsuitable
battery usage or erroneous installation or wrong wire connection.
NOTE
1.
2.
3.
4.
Turn on the remote control and select the unit that matches the MAC Address of your
antenna.
Use the left and right arrow buttons to select the satellite and press the SET button.
Wait for the message 'FOUND SAT' to appear on the remote control screen.
When the satellite search is complete, watch the broadcast.

ENGLISH - 12
There are a number of common issues that can affect the signal reception quality or
the operation of the unit. The following sections address these issues and potential
solutions.
5. Troubleshooting
i.
Connection between the power and the PI box.
Connection between the PI box and antenna.
Check if the power input cable has been damaged.
Check the battery polarities (+/-).
Check if the PI Box is powered on (Check Power LED of PI BOX is on)
ii.
iii.
iv.
Select another satellite as example Astra3, if this locks then select your desired satellite. ie Astra1.
Turn the unit off and then back on again and select desired satellite.
ii.
iii.
-
-
-
-
A. No function when power on the antenna
Check again all the cable connections have been made correctly.
D. Mechanical problems
i.
Try to power OFF/ON again.
If the antenna does not move into desired position.
ii.
Try to power OFF/ON again. If problem persists, please contact local dealer/shop for assistance.
If the antenna makes a noise whilst remaining static.
i.
C. Fail to search the selected satellite
Satellite signals can be blocked or degraded by buildings, trees.
Make sure there are no obstructions in a southward direction.
i.
E. Other issues
If the system has been improperly wired, it will not operate properly. Contact local dealer/shop
for assistance of cable damage.
i.
ii.
iii.
B. The remote control does not turn on
Try pressing any button other than the DiSEqC button.
Check if the battery is properly inserted.
Check if the remote control's battery is exhausted.

ENGLISH - 13
66.0cm 66.0cm
31.5cm
6. Specications
6-1. Dimension
SNIPE DOME 2
PI box
Remote control
105 mm
129 mm
102 mm 35 mm
34 mm
28 mm
102 mm
85mm
69 mm
25 mm
15 mm50 mm
155 mm 155 mm

ENGLISH - 14
Model
Input Frequency
Polarization
Antenna Gain
Size (W x D x H)
Weight
Min EIRP
Angle Range (EL / AZ )
Satellite Switching System
Satellite Searching Time
LNB
Input Voltage
Power Consumption
Output
Output Frequency
L.O. Frequency
SNIPE DOME 2
10.7 ~ 12.75 GHz
Vertical & Horizontal
33.7 dBi @ 12.7 GHz
(ANT) 660 x 660 x 315 mm
(ANT) 9.6 kg / (RCU) 23 g
50 dBW
15° ~ 75° / 390°
DiSEqC
180 seconds (average)
1 / 2 output (optional)
950 ~ 2,150 MHz
9.75 / 10.6 GHz
DC 12 V
30 W (in searching)
Model
Frequency
Support Bluetooth version
BLE Gain
Size (W x D x H)
Screen size (L X H)
Battery
TX power
RX sensitivity
SNIPE DOME 2 Remote control
2.4 GHz
Ver 4.2 / 5.0 (the latest)
up to +3 dBm
down to -92 dBm
140 X 50 X 18 mm
128 X 64 Pixels
AAA X 2
6-2. Specications

ENGLISH - 15
The product is shipped with internal lock for protecting the unit and preventing damage
while transportation.
Prior to the installation, remove the locking bolt in the bottom of the product, which is
indicated with “Remove (allow mark)” sticker (please refer to the below image)
Do not open the antenna cover to remove bolt.
7-1. Precaution before installation
7. Installation
Be aware that using antenna before removal the internal lock bolt will damage the antenna
so make sure to read this manual and precautions thoroughly before installation to prevent
damage to the product.
Warning
7. Caravan/Motorhome Installation

ENGLISH - 16
Take care, that there is enough space for the SNIPE DOME 2, just as for the operation range.
7-2 . Required space for SNIPE DOME 2
Driving direction
Driving direction
Vehicle rear
31.5cm
66.0cm
66.0cm

ENGLISH - 17
Silicone
Masking tape
Cleaner
2mm drill bit, over 20mm drill bit
Power drill
Cable holder
Cable gland
M4 ×20(15)
PI box
PI cable (1.5m)
Signal cable (10m)
Remote conteol
Remote conteol bracket
Cigarette lighter adaptor (Power input cable)
7-3. Equipment for installation
7-4. Instruction for installation
A. SNIPE DOME Installation on the vehicle roof
(same for all 4 mounting plate edges)
1
2
10 11
4
13
3
1
2
3
4
5
6
7
8
9
10
11
12
13
14
8
5
6
14
5
7
12 9
A-2
FRONT
A-1
Put aside the antenna to apply silicone inside
the guided tape line
Attach masking tape outside of the mounting
plate, to be 4mm away from the plate edge
A-4
Clean the surface with cleaner
A-3
Locate the antenna in the center of car roof

ENGLISH - 18
B-3
B-1
C. Apply silicone between mounting plate and masking tape
Remove masking tape and allow to dry
C-4
C-2
Apply silicone around mounting plate edges
C-3
C-1
Tidy silicone surface
Repeat the same for the remaining mounting
plates
B. Assemble 2pcs of M4x20 bolt to fix the four(4) mounting plates each
B-4
B-2
Place main unit on the top of fixed plate. Put back
the mounting plate on the silicone applied and
make
two(2) holes (2mm) with power drill
7
Apply silicone on the holes
Assemble mounting plate using two(2) M4x20
screws
Re-apply silicone to cover tightened screws
8

ENGLISH - 19
D-3
Place the assembled cable holder inside the tape
marking and drill three(3) of 2mm holes
Fix cable holder on the vehicle roof with
three(3) of M4 x 20 screws on drill holes made
D-6
D-5
Apply silicone around cable holder and on the
top of screws for waterproof
Connect cables to the ports of the antenna ,
remove masking tape and tidy silicone before dry
D-8D-7
Set up the signal cable, cable holder and cable
gland as above picture
D-1 D-2
Apply masking tape 5mm from away the
outside of holder and drill a 20mm hole in the
center to allow the cable can pass through.
D. Cable holder installation
approx. 30cm
Insert the signal cable through the hole
D-4
Arrange cable holder in front of (30cm apart
from) antenna center by facing open side of
cable holder. Then attach masking tape
outside of cable holder
