What is SELFSAT-H21D+ / H30D+?
SELFSAT-H21D+ / H30D+ is a Horn Array Type Satellite Antenna with Dual Linear Polariza-
tion, it can receive signal from major Satellites and would replace a normal former Parabolic
Dish.
Small, discreet and easy to use, it can be installed in a few minutes and used as a portable
antenna for all satellite receptions.
SELFSAT-H21D+ / H30D+ can be used for both free to Air and encrypted (requiring a
subscription with an operator) channel reception; it can also receive all High Denition
channels with a superior image quality.
For the use and installation, please read the following instructions and installation materials
carefully.
Product introduction
Do you have a TV’s at home more than one?
Then, take SELFSAT built in multi LNB output
Watching 2 channels is possible through H21D2+ / H30D2+
Even enjoying 4 channels is possible through H21D4+ / H30D4+
Built in Twin LNB output Built in Quad LNB output
H30D2+ H30D4+
H21D2+ H21D4+

www.self-sat.com 4
English
Warning
Antennas improperly installed or installed to an inadequate structure are very susceptible to
wind damage. This damage can be very serious or even life threatening. The owner and installer
assumes full responsibility that the installation is structurally sound to support all loads (weight,
wind & ice) and properly sealed against leaks. The manufacturer will not accept liability for any
damage caused by a satellite system due to the many unknown variable applications.
Before using this product please read this manual carefully and follow exactly all installation,
mounting & orientation instructions.
All the instructions should be followed in order to avoid any technical problems.
Any electric or magnetic eld close to the SELFSAT-H21D+ / H30D+ may cause a bad reception or
even cut o the signal completely.
Do not drill the plastic cover of the antenna, which seals the antenna from moisture.
Handle the antenna with care as any impact will cause damage to the electronics.
Do not open the cover, any attempt to repair by a non-qualied person can be dangerous and void
the warranty.
Any obstacle (buildings, trees, etc....) will block the reception of the signal from the satellite to the
antenna.
Do not paint or add any substance on the antenna cover, this will block the reception of the signal
from the satellite.
The cable between the antenna and the Satellite receiver should not exceed 30m as it will decrease
the quality of the signal.
The use non- isolated jacks will result in a loss of the signal level.
Do not forget to adjust the antenna and the bracket to the cross-polarity
Tighten all the screws of the antenna once you have nished the adjustments.
This product contains one universal LNB, it is forbidden to add, change or modify the LNB.
For more precise details on the above points or for any information, please ask your retailer or
customer service.
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Safety Instructions

5
No
1 1
SELFSAT-H21D+
SELFSAT-H30D+
Antenna
Body
2
A1
B1 1
Angle
Bracket
3B2 1
Main
Support
4B3 1
Window
Bracket A
5B4 1
Window
Bracket B
Fix
Bracket A
Fix
Bracket B
6B5 1
7B6 1
Symbol Part name Image Quantity
8B7 1
Spanner
Box Content

www.self-sat.com 6
English
No
9 1
Hex Bolt
M6x18 SEMS2
10 4
Pan Head
M4X10 SEMS2
Hex Bolt
M6X50 SEMS2
11
C1
S2
S1
S3
3
Round Head
SquareNeck Bolt
M6x50
Round Head
SquareNeck Bolt
M6x30
12
S4
1
13 1
Flanged Nut
M6
14 S5 3
15 S6 2
U-Bolt
M6x85
16 N1 7
17 E1 4Rubber
Symbol Part name Image Quantity
Compass

7
How to Install?
By following the instructions step by step you can proceed easily to install SELFSAT-H21D+ / H30D+ by
yourself or with the help of a professional antenna installer.
Step 1: Where to Install?
Bad Quality Singnal Reception
Note
In order to receive a signal from the Satellite, SELFSAT-H21D+ / H30D+ is to be installed in an open
loop space (outside the house or the apartment), in the direction of the satellite towards the equator,
for which, you will need a compass to exactly orient SELFSAT-H21D+ / H30D+ toward the satellite
(Note: please take reference to the table of the Azimuth angles specied in the back pages of this manual)
Make sure that there are no obstacles in front of SELFSAT-H21D+ /
H30D+ which can decrease the signal reception quality, such as buildings, or trees (you may keep in
mind that trees will grow and may block the signal).
In order to be able to x and install your antenna easily you might choose an easily accessible place
without any potential danger for installation.
Think about the way you might pass your cable in a discreet way from the SELFSAT-H21D+ / H30D+
to your Set top Box. The antenna should not be too distant from your satellite receiver; a cable longer
than 30 meters can decrease the quality of the signal.
Before installing your antenna, you check that SELFSAT-H21D+ / H30D+ box contains all the items
listed above in the ‘Box Content’. In the event of any missing parts, please contact your distributor.
To ensure an accurate compass reading, stay away from large
metal objects, specically electrical cables and then make
multiple readings
BAD!BAD!
Install

www.self-sat.com 8
English
Step 2: Installation Choice
A) Table Stand Type (on a Horizontal Plain)
12
3
S2
S5
S2
N1
B1 B5
B1
A1 S1
S2 S4
N1
Depending on the choice of installation position for the SELFSAT-H21D+ / H30D+, you can then
decide on the mounting type, all parts are included.
Good Quality Singnal Reception
GOOD!GOOD!

9
C) Window Type
12
3
S2
S5
S5
N1
S2
N1
B1
B2
B6
B2
A1
S2
S3
B) Wall Mounting Type
2
4
N1
S4N1
12
3
S2
S5
S2
S1
S5
N1
B1
B4
B6
B2
A1
S2
S3
2
4
B2
B3

English
www.self-sat.com 10
D) Clamp on Balcony Type
12
3
S2
S5
S5
S2
S6
S6
N1
N1
N1
B1
B6
B5 B5
B2
B2
A1
S2
S3
2
4
5
Step 3: Connecting the Antenna and the Set top box
Once you have installed the antenna in an open loop space and mounted the way you want it to be the
next step is to connect it all together.
In order to be able to watch your favorite satellite programs, you need to connect your satellite antenna
to a receiver by a cable.
The cable between the antenna and the Satellite receiver should not exceed 30m as it will decrease the
quality of the signal.
The use of a long or bad quality cable and not isolated jacks can cause a loss of the signal level, it would be
preferable to use an RG6 Coaxial cable (HF 17VATC or 19VATC cable), in order to minimize a signal loss.

11
A) How to prepare the cable?
Step 4: Antenna Pointing Menu
Once all connected, turn on the TV and the
Satellite receiver.
Select the Antenna Pointing Menu on your set
top box.
This image shows the Signal level and the
screen you will see on your TV.
Do not forget to choose “LNB : ON”
You will need someone to stay in front of the TV
to tell you when the signal is “good” while
you’re outside trying to adjust the antenna the
best way possible.
It is important that the coaxial cable does not become damaged or Kinked
during the installation procedure.
B) How to connect the cable to the antenna and the set top box?
One side
To Antenna
Other side
To receiver
Cable
15mm CONNECTOR COVER
F CONNECTOR
8mm
3mm
Antenna Pointing Menu
Signal: 0
Satelite : ASTRA 1
Transponder : 23
LNB : ON
Polarisation : Horizontal
Frequency : 12640

English
www.self-sat.com 12

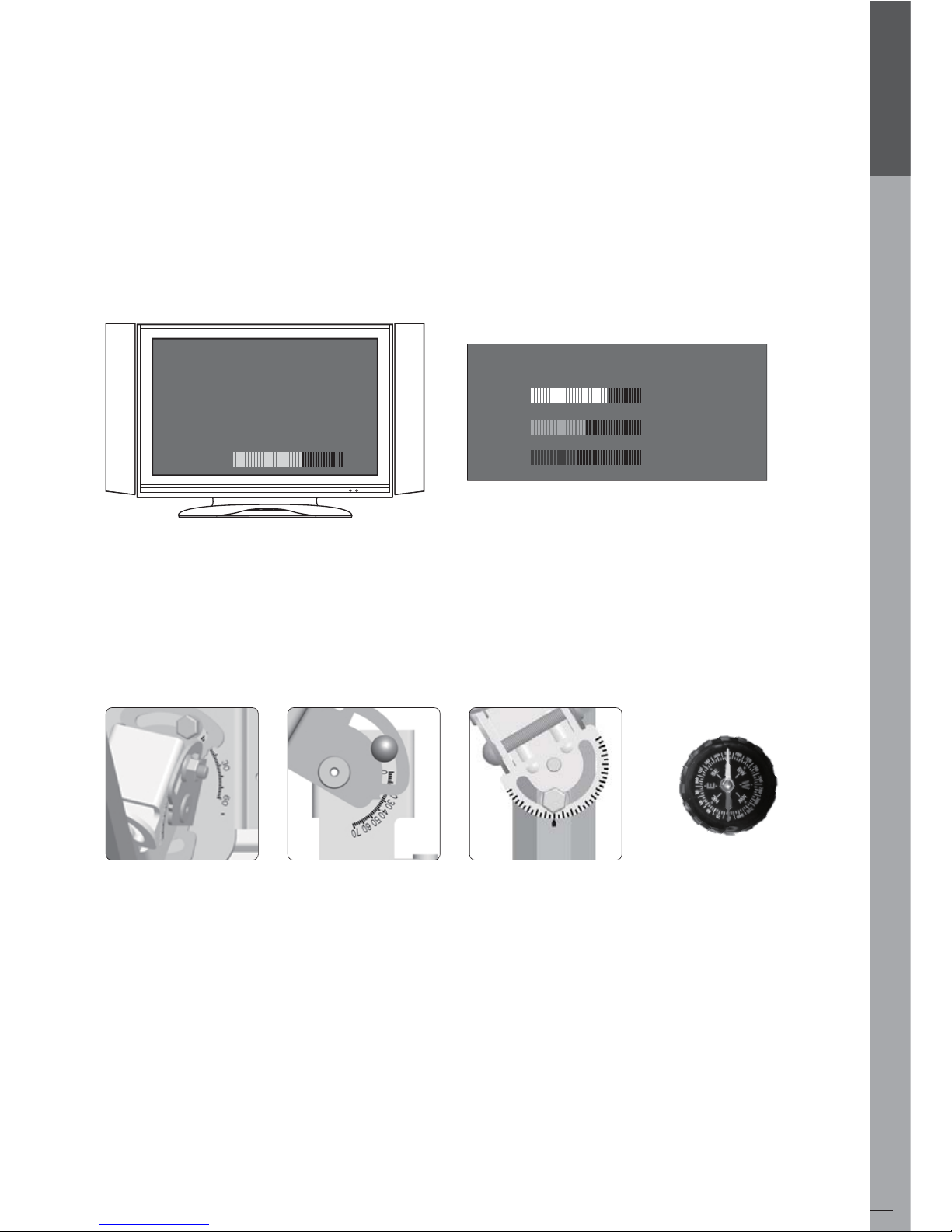

Step 5: Pointing and locating the Signal
< Skew > < Elevation > < Azimuth >
S
N
Antenna Pointing Menu
Signal: 0
Satelite : ASTRA 1
Transponder : 23
LNB : ON
Polarisation : Horizontal
Frequency : 12640
Antenna Pointing Menu
Signal:
Signal:
Signal:
90 Good
75 Not Sucient
55 Bad
The signal level and quality is indicated on the TV screen and will uctuate and change colour accord-
ing to the adjustment & movement of the antenna while you are pointing & nding (azimuth, elevation
and Skew angle).
The level indicates the power of the signal and the colour is the signal reception quality from the
chosen satellite.
Once ne tuning is complete, and the signal is at its peak level with a good quality, you can stop
adjusting the antenna.
(Example of pointing & nding the signal)
In order to watch Canal+ through ASTRA1(19.2 East) from the city ‘Brest’ of France, you will see Skew
angle at -12.7, Elevation angle at 30, and Azimuth angle at 149.6 (in reference to the angle table on the
back page of this manual)

13
If the signal is not found, be sure the receiver user manual and the antenna user manual have been
followed closely, check the following:
Make sure all cable connections are correct and each connection is seated/tightened properly
Inspect the inside of each cable connector for dirt or possible connector to case/shield short.
Verify the Azimuth, Elevation and Tilt angles for your location by ZIP code.
Make sure the Tilt and Elevation pointers are aligned correctly to the scales. Do not use washer or
bolt as reference.
Make sure the Tilt adjustment is not changed from the recommended setting for the antenna
location.
Remove existing TV-specic components, such as TV splitter, etc; reduce the installation to the basic
connections called out in this guide. Such components may not work with the satellite signal and
they may be in the wall where you can’t see them. When in doubt. Run RG6 cable directly to your
receiver
Make sure there are no obstructions (trees, buildings, windows, corner or overhang of your roof,
your body or hands) – the signal does not pass leaves, branches, glass, etc.
RG 6 cable with solid copper center conductor is highly recommended because it has much lower
DC voltage drop compared to RG 6 cable with a copper-coated, steel center conductor.
Standard RG 59 cable causes too much DC drop and signal drop; it can not be used to pass the
satellite signal. RG 6 coaxial cable must be used.
Some after-market, o-the-shelf add-on components may not be as advertised. They might not
work or could cause additional DC drops and signal amplitude attenuation. Remove such compo-
nents. Go back to the basic connections called out in this manual and re-verify.
Make sure the satellite cable is connected to the “Sat In” jack, not the “Antenna In” jack, The
“Antenna In” jack at the back of the receiver is for o-air antenna input or cable TV input.
If all are done correctly but the signal is still not found. Change the Elevation adjustment of the
antenna slightly (±2°, then ±4°from the called-for setting) and repeat the procedure.
Make sure the Access Card from your receiver is fully inserted into the Access Card slot and oriented
correctly.
√
√
√
√
√
√
√
√
√
√
√
√
√
Troubleshooting Check List for Initial Installation

English
www.self-sat.com 14
The satellite signal may be lost temporarily due to unusually heavy rainfall. An optimally aligned
antenna, along with the shortest possible cable run, minimizes the chances of “rain fade.”
Make sure the antenna is mounted securely to prevent it from being blown out of alignment in a
heavy wind.
Heavy snow accumulation on the antenna may reduce the satellite signal strength, snow should be
swept away as sppn as possible.
Tree foliage growth into antenna’s line-of-sight to the satellite may result in gradual loss of picture.
●
●
●
●
For installations where the RG 6 cable runs from the receuver(s) to the LNB far exceeds 100 feet (150
feet or more), as encountered in a commercial or multi-dwelling building, you need to use an AC
power booster module to bias the LNB.
You will also need an additional RF signal amplier to compensate the signal amplitude loss.
Otherwise, your antenna and receiver may not work properly and be subject to frequent outages in
adverse weather. Contact a professional concerning such installations.
●
●
Loss of Signal / Rain Fade
Installation Using Long Cable

Germany
Einführung
Inhalt
..............................................Um was handelt es sich bei der SELFSAT-H21D+ / H30D+? 3
Sicherheitsanweisungen
...................................................................................Sicherheitsanweisungen 4
Schachtelinhalt
.............................................................................................Schachtelinhalt 5
Störungsbehebungs-Prüiste für die Erstinstallation
.....................................................Störungsbehebungs-Prüiste für die Erstinstallation 13
Verlust des Signals / Regen-Verblassung
..................................................................Verlust des Signals / Regen-Verblassung 14
Installation mittels langem Kabel
..........................................................................Installation mittels langem Kabel 14
Installation
.......................................................................................
...................................................................
.............................................................................
............................................
..................................................................
............................................................
.....................................................
...................................................................................
...........................................................................................
..................................................................................
.......................................................................
......................................
So wird sie installiert?
Schritt 1: Wo kann man sie installieren?
Schritt 2 : Wahl der Installation
Schritt 3 : Verbinden der Antenne mit dem Digitalempfänger
Schritt 4 : Antennenausrichtungs-Menü
Schritt 5: Ausrichten und Anpeilen des Signals
A) Tischstand-Typ (auf einer waagrechten Ebene)
B) Wandmontage-Typ
C) Fenster-Typ
D) Balkonklammer-Typ
A) Wie präpariert man das Kabel?
B) So verbindet man Kabel mit Antenne und Digitalempfänger
7
7
8
10
11
12
8
9
9
10
11
11

H30D2+ H30D4+
H21D2+ H21D4+
3
Um was handelt es sich bei der SELFSAT-H21D+ / H30D+?
Die SELFSAT-H21D+ / H30D+ ist eine Satellitenantenne vom Typ Hornanordnung mit
doppelter Linear- Polarisation, die Signale von großen Satelliten empfangen kann und eine
normale Parabol-Antenne, wie es sie früher gab, ersetzen kann.
Da sie klein, unauällig und bedienungsfreundlich ist, kann sie innerhalb von wenigen
Minuten aufgestellt werden und als tragbare Antenne für sämtliche Arten des Satelliten-
empfangs verwendet werden.
Die SELFSAT-H21D+ / H30D+ kann sowohl für den Empfang frei zugänglicher als auch den
verschlüsselter Kanäle verwendet werden (wobei in diesem Fall ein Abonnement bei einem
Betreiber benötigt wird); sie kann auch alle Kanäle mit hochauösenden und deshalb
hervorragenden Fernsehbildern empfangen.
Um Näheres über Gebrauch und Installation zu erfahren, lesen Sie bitte die nun folgenden
Anweisungen und Installationshinweise sorgfältig durch.
Einführung
Nutzen Sie zuhause mehr als einen Fernseher?
Nehmen Sie einen SELFSAT mit mehrfachem Ausgang
Es ist möglich 2 Kanäle gleichzeitig mit der SELFSAT-H21D2+ / H30D2+ zu schauen
Wollen Sie 4 Kanäle gleichzeitig geniessen? Dies ist möglich mit der SELFSAT-H21D4+ / H30D4+
zwei eingebaute LNB Anschlüsse vier eingebaute LNB Anschlüsse

www.self-sat.com 4
Germany
WARNUNG
Nicht korrekt oder an eine unpassende Struktur angebrachte Antennen sind leicht durch den
Wind zu beschädigen. Diese Schäden können sehr ernsthafter Natur und sogar lebensge-
fährlich sein. Der Eigentümer und Antennen-Installateur übernimmt die volle Verantwortung
dafür, dass die Installation strukturell in Ordnung ist, damit sie sämtliche Lasten tragen kann
(Gewicht, Wind und Eis) und gegen lecke Stellen vorschriftsmäßig abgedichtet ist. Der
Hersteller übernimmt aufgrund der vielen unbekannt variierenden Anwendungen keine
Haftung für Schäden, die durch ein Satellitensystem verursacht worden sind.
Vor dem Gebrauch dieses Produkts lesen Sie bitte diese Bedienungsanleitung sorgfältig durch und
befolgen sie Installations-, Montage- und Ausrichtungsanweisungen genau.
Alle Anweisungen sollten befolgt werden, um technische Probleme zu vermeiden.
Jegliches elektrische oder magnetische Feld, das sich in der Nähe der SELFSAT-H21D+ / H30D+
bendet, kann zu schlechtem Empfang führen oder sogar dafür verantwortlich sein, dass das Gerät
vollständig vom Signal getrennt wird.
Bohren Sie den Kunststodeckel der Antenne, der diese vor Feuchtigkeit schützt, nicht an.
Gehen Sie vorsichtig mit der Antenne um, da jeglicher Stoß die Geräteelektronik beschädigt.
Önen Sie den Deckel nicht, jeglicher Reparatur-Versuch einer nicht entsprechend ausgebildeten
Person kann gefährlich sein und die Garantieansprüche erlöschen lassen.
Jegliches Hindernis (Gebäude, Bäume, etc.) blockiert den Empfang des Signals vom Satelliten an
die Antenne.
Malen Sie nichts auf den Antennendeckel oder fügen diesem irgendeine Substanz zu, da dies den
Empfang des Signals vom Satelliten blockiert.
Das Kabel zwischen der Antenne und dem Satellitenempfänger darf nicht länger als 30 m sein, da
dies zur Qualitätsminderung des zu empfangenden Signals führt.
Der Gebrauch von nichtisolierten Buchsen führt zum Verlust des Signalpegels.
Vergessen Sie nicht, die Antenne und die Halterung an die Kreuzpolarität anzupassen.
Ziehen Sie alle Antennenschrauben an, wenn Sie sämtliche Anpassungen vorgenommen haben.
Dieses Produkt enthält einen Universal-LNB, es ist untersagt, einen LNB hinzuzufügen, ihn
auszuwechseln oder zu verändern.
Um Näheres über die oben genannten Punkte oder sonstige weitere Informationen zu erfahren,
wenden Sie sich bitte an Ihren Händler oder den Kundendienst.
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Sicherheitsanweisungen

5
Nr.
1 1
Antennen-
Hauptteil
2
A1
B1 1
Winkelhalterung
3B2 1
Hauptstütze
4B3 1
Fensterhalterung A
5B4 1 Fensterhalterung B
Fixierungshalterung A
Fixierungshalterung B
6B5 1
7B6 1
Symbol Teilename Abbildung Menge
8B7 1
Schraubenschlüssel
panner
Schachtelinhalt
SELFSAT-H21D+
SELFSAT-H30D+

www.self-sat.com 6
Germany
Nr.
10
91
Sechskantschraube
M6x18 SEMS2
11
4
Schraube
M4X10 SEMS2
Sechskantschraube
M6X50 SEMS2
12
C1
S2
S1
S3
3
Halbrund-Vierkant-
Halsschraube
M6x50
Halbrund-Vierkant-
Halsschraube
M6x30
13 S4
1
14
1
Bundmutter
M6
15
S5 3
16
S6 2
U-Bolzen
M6x85
17
N1 7
E1 4
Gummi
Symbol Teilename Abbildung Menge
Kompass
