U6D770E0.book Page 1 Tuesday, October 12, 2004 5:00 PM

Important manual information
EMU25100
To the owner
Thank you for choosing a Selva outboard
motor. This Owner’s Manual contains infor-
mation needed for proper operation, mainte-
nance and care. A thorough understanding of
these simple instructions will help you obtain
maximum enjoyment fromyour new Selva.
If you have any question about the operation
or maintenance of your outboard motor,
please consult a Selva dealer.
In this Owner’s Manual particularly important
information is distinguished in the following
ways.
The Safety Alert Symbol means AT-
TENTION! BECOME ALERT! YOUR SAFE-
TY IS INVOLVED!
WARNING
EWM00780
Failure to follow WARNING instructions
could result in severe injury or death to the
machine operator, a bystander, or a per-
son inspecting or repairing the outboard
motor.
CAUTION:
ECM00700
A CAUTION indicates special precautions
that must be taken to avoid damage to the
outboard motor.
NOTE:
A NOTE provides key information to make
procedures easier or clearer.
Selva continually seeks advancements in
product design and quality. Therefore, while
this manual contains the most current product
information available at the time of printing,
there may be minor discrepancies between
your machine and this manual. If there is any
question concerning this manual, please con-
sult your Selva dealer.
NOTE:
The Marlin 100, Narwhal 115 and the standard ac-
cessories are used as a base for the explana-
tions and illustrations in this manual.
Therefore some items may not apply to every
model.
EMU25120
U6D770E0.book Page 1 Tuesday, October 12, 2004 5:00 PM

Table of contents
General information ...................... 1
Identification numbers record ...... 1
Outboard motor serial number ....... 1
Key number.................................... 1
EC label....................................... 1
Safety information ....................... 2
Important labels........................... 3
Warning labels................................ 3
Fueling instructions ..................... 3
Gasoline ......................................... 3
Engine oil........................................ 3
Battery requirement..................... 4
Battery specifications ..................... 4
Propeller selection....................... 4
Start-in-gear protection ............... 5
Basic components ........................6
Main components........................ 6
Fuel tank......................................... 6
Fuel joint......................................... 7
Fuel gauge ..................................... 7
Fuel tank cap.................................. 7
Air vent screw................................. 7
Remote control ............................... 7
Remote control lever ...................... 7
Neutral interlock trigger .................. 8
Neutral throttle lever....................... 8
Throttle friction adjuster.................. 8
Engine stop lanyard switch............. 8
Main switch..................................... 9
Power trim and tilt switch on
remote control or tiller handle ..... 9
Power trim and tilt switch on
bottom engine cowling .............. 10
Trim tab with anode...................... 10
Tilt support lever for power trim
and tilt or hydro tilt model.......... 11
Top cowling lock lever
(pull up type) ............................. 11
Flushing device ............................ 11
Digital tachometer ........................ 12
Low oil pressure warning
indicator .................................... 12
Overheat warning indicator
(digital type) .............................. 12
Speedometer (digital type) ........... 13
Trim meter (digital type) ............... 13
Hour meter (digital type)............... 14
Engine trouble warning
indicator .................................... 14
Trip meter ..................................... 14
Clock ............................................ 15
Fuel gauge ................................... 15
Fuel warning indicator .................. 15
Low battery voltage warning
indicator .................................... 16
Warning system ........................ 16
Overheat warning ......................... 16
Low oil pressure warning.............. 17
Engine trouble warning................. 17
Operation ..................................... 18
Installation................................. 18
Mounting the outboard motor ....... 18
Breaking in engine .................... 19
Procedure for 4-stroke models ..... 19
Preoperation checks ................. 19
Fuel .............................................. 19
Controls ........................................ 20
Engine .......................................... 20
Checking the engine oil level........ 20
Filling fuel.................................. 20
Operating engine ...................... 21
Feeding fuel (portable tank) ......... 21
Starting engine ............................. 22
Warming up engine................... 23
Manual start and electric start
models ...................................... 23
Shifting ...................................... 24
Forward (tiller handle and
remote control models) ............. 24
Reverse
(automatic reverse lock and
power trim and tilt models)........ 24
Stopping engine........................ 24
Procedure..................................... 24
Trimming outboard motor.......... 25
U6D770E0.book Page 1 Tuesday, October 12, 2004 5:00 PM

Table of contents
Adjusting trim angle...................... 26
Adjusting boat trim........................ 26
Tilting up and down ................... 27
Procedure for tilting up ................. 28
Procedure for tilting down............. 29
Cruising in shallow water .......... 29
Power trim and tilt models /
power tilt models ....................... 29
Cruising in other conditions....... 30
Maintenance.................................31
Specifications ............................ 31
Transporting and storing
outboard motor....................... 32
Storing outboard motor................. 32
Procedure..................................... 33
Lubrication
(except oil injection models)...... 34
Battery care .................................. 34
Flushing power unit ...................... 35
Cleaning the outboard motor........ 36
Checking painted surface of
motor......................................... 36
Periodic maintenance................ 36
Replacement parts ....................... 36
Maintenance chart........................ 37
Maintenance chart (additional) ..... 38
Greasing....................................... 39
Cleaning and adjusting spark
plug ........................................... 39
Checking fuel system ................... 40
Inspecting fuel filter ...................... 40
Cleaning fuel filter......................... 41
Inspecting idling speed................. 41
Changing engine oil...................... 42
Checking wiring and
connectors ................................ 44
Exhaust leakage........................... 44
Water leakage .............................. 44
Engine oil leakage ........................ 44
Checking power trim and tilt
system....................................... 44
Checking propeller ....................... 45
Removing the propeller ................ 46
Installing the Propeller.................. 46
Changing gear oil ......................... 47
Cleaning fuel tank......................... 48
Inspecting and replacing
anode(s).................................... 48
Checking battery
(for electric start models) .......... 49
Connecting the battery ................. 50
Disconnecting the battery............. 50
Checking top cowling ................... 50
Coating the boat bottom ............... 50
Trouble Recovery........................ 52
Troubleshooting ........................ 52
Temporary action in
emergency ............................. 55
Impact damage............................. 55
Replacing fuse.............................. 55
Power trim and tilt will not
operate...................................... 56
Starter will not operate ................. 56
Emergency starting engine........... 57
Treatment of submerged
motor...................................... 58
Procedure..................................... 58
U6D770E0.book Page 2 Tuesday, October 12, 2004 5:00 PM

General information
1
EMU25170
Identification numbers record
EMU25182
Outboard motor serial number
The outboardmotor serial number is stamped
on the label attached to the port side of the
clamp bracket or the upper part of the swivel
bracket.
Record your outboard motor serial number in
the spaces provided to assist you in ordering
spare parts from your Selva dealer or for
reference in case your outboard motor is sto-
len.
EMU25190
Key number
If a main key switch is equipped with the mo-
tor, the key identification number is stamped
on your key as shown in the illustration.
Record this number in the space provided for
reference in case you need a new key.
EMU25202

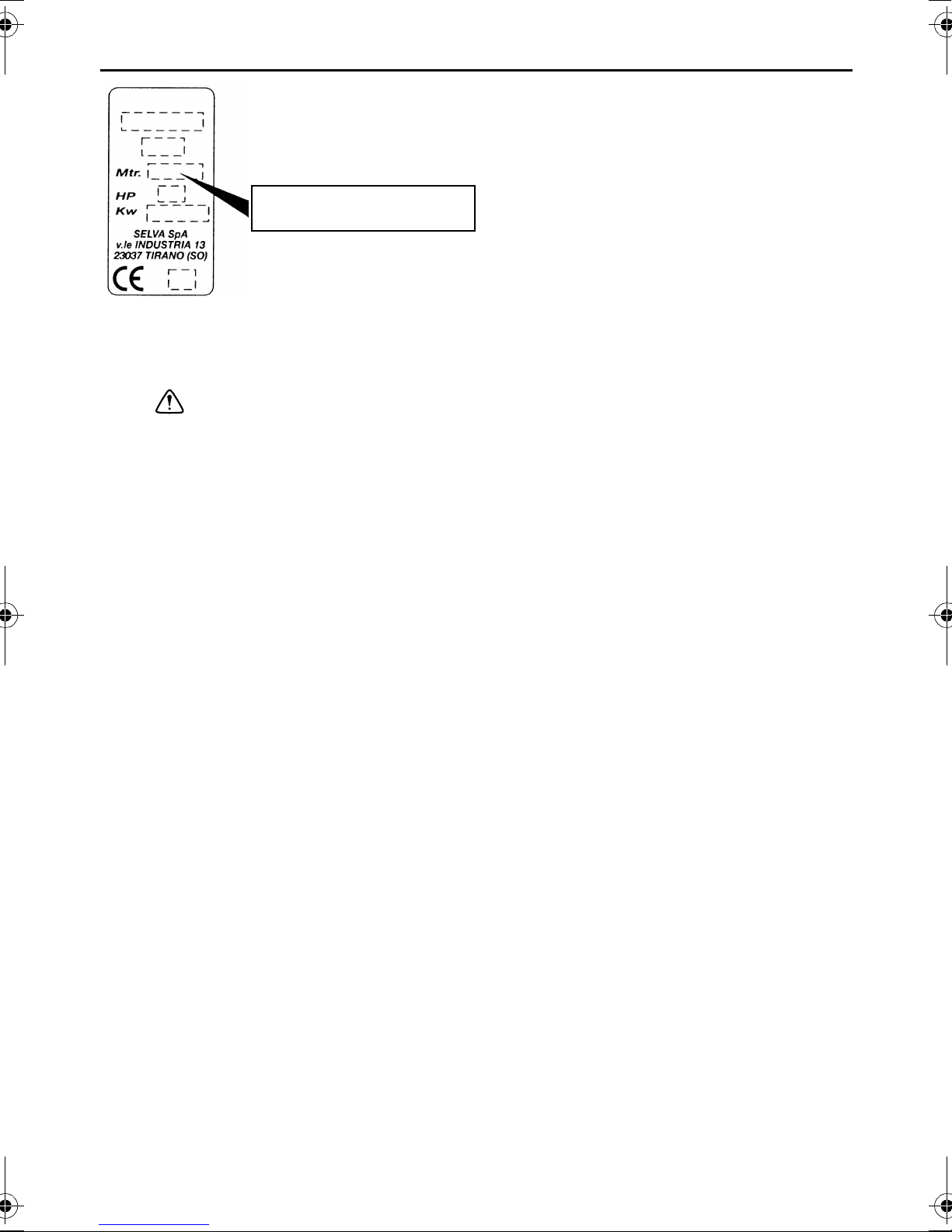

EC label
Engines affixed with this label conform to cer-
tain portions of the European Parliament di-
rective relating to machinery. Refer to the
label and the EC Declaration of Conformity for
more details.
1. Outboard motor serial number location
1
ZMU04214
1. Key number
U6D770E0.book Page 1 Tuesday, October 12, 2004 5:00 PM
1
1.EC label location

General information
2
EMU25370
Safety information
●Before mounting or operating the outboard
motor, read this entire manual. Reading it
should give you an understanding of the
motor and its operation.
●Before operating the boat, read any own-
er’s or operator’s manuals supplied with it
and all labels. Be sure you understand each
item before operating.
●Do not overpower the boat with this out-
board motor. Overpowering the boat could
result in loss of control. The rated power of
the outboard should be equal to or less than
the rated horsepower capacity of the boat.
If the rated horsepower capacity of the boat
is unknown, consult the dealer or boat man-
ufacturer.
●Do not modify the outboard. Modifications
could make the motor unfit or unsafe to use.
●Never operate after drinking alcohol or tak-
ing drugs. About 50% of all boating fatalities
involve intoxication.
●Have an approved personal flotation device
(PFD) on board for every occupant. It is a
good idea to wear a PFD whenever boat-
ing. At a minimum, children and non-swim-
mers should always wear PFDs, and
everyone should wear PFDs when there
are potentially hazardous boating condi-
tions.
●Gasoline is highly flammable, and its va-
pors are flammable and explosive. Handle
and store gasoline carefully. Make sure
there are no gas fumes or leaking fuel be-
fore starting the engine.
●This product emits exhaust gases which
contain carbon monoxide, a colorless,
odorless gas which may cause brain dam-
age or death when inhaled. Symptoms in-
clude nausea, dizziness, and drowsiness.
Keep cockpit and cabin areas well ventilat-
ed. Avoid blocking exhaust outlets.
●Check throttle, shift, and steering for proper
operation before starting the engine.
●Attach the engine stop switch lanyard to a
secure place on your clothing, or your arm
or leg while operating. If you accidentally
leave the helm, the lanyard will pull from the
switch, stopping the engine.
●Know the marine laws and regulations
where you will be boating - and obey them.
●Stay informed about the weather. Check
weather forecasts before boating. Avoid
boating in hazardous weather.
●Tell someone where you are going: leave a
Float Plan with a responsible person. Be
sure to cancel the Float Plan when you re-
turn.
●Use common sense and good judgment
when boating. Know your abilities, and be
sure you understand how your boat han-
dles under the different boating conditions
you may encounter. Operate within your
limits, and the limits of your boat. Always
operate at safe speeds, and keep a careful
watch for obstacles and other traffic.
●Always watch carefully for swimmers during
the engine operation.
U6D770E0.book Page 2 Tuesday, October 12, 2004 5:00 PM
Serial Number

General information
3
●Stay away from swimming areas.
●When a swimmer is in the water near you
shift into neutral and shut off the engine.
EMU25380
Important labels
EMU25395
Warning labels
EMU25401
Label
WARNING
EWM01260
●Be sure shift control is in neutral before
starting engine. (except 2HP)
●Do not touch or remove electrical parts
when starting or during operation.
●Keep hands, hair, and clothes away from
flywheel and other rotating parts while
engine is running.
EMU25540
Fueling instructions
WARNING
EWM00010
GASOLINE AND ITS VAPORS ARE HIGH-
LY FLAMMABLE AND EXPLOSIVE!
●Do not smoke when refueling, and keep
away from sparks, flames, or other
sources of ignition.
●Stop engine before refueling.
●Refuel in a well-ventilated area. Refuel
portable fuel tanks off the boat.
●Take care not to spill gasoline. If gaso-
line spills, wipe it up immediately with
dry rags.
●Do not overfill the fuel tank.
●Tighten the filler cap securely after refu-
eling.
●If you should swallow some gasoline, in-
hale a lot of gasoline vapor, or get gaso-
line in your eyes, get immediate medical
attention.
●If any gasoline spills onto your skin, im-
mediately wash with soap and water.
Change clothing if gasoline spills on it.
●Touch the fuel nozzle to the filler open-
ing or funnel to help prevent electrostat-
ic sparks.
CAUTION:
ECM00010
Use only new clean gasoline which has
been stored in clean containers and is not
contaminated with water or foreign matter.
EMU25580
Gasoline
If knocking or pinging occurs, use a different
brand of gasoline or premium unleaded fuel.
EMU25680
Engine oil
Recommended gasoline:
Regular unleaded gasoline with a mini-
mum octane rating of 90 (Research
Octane Number).

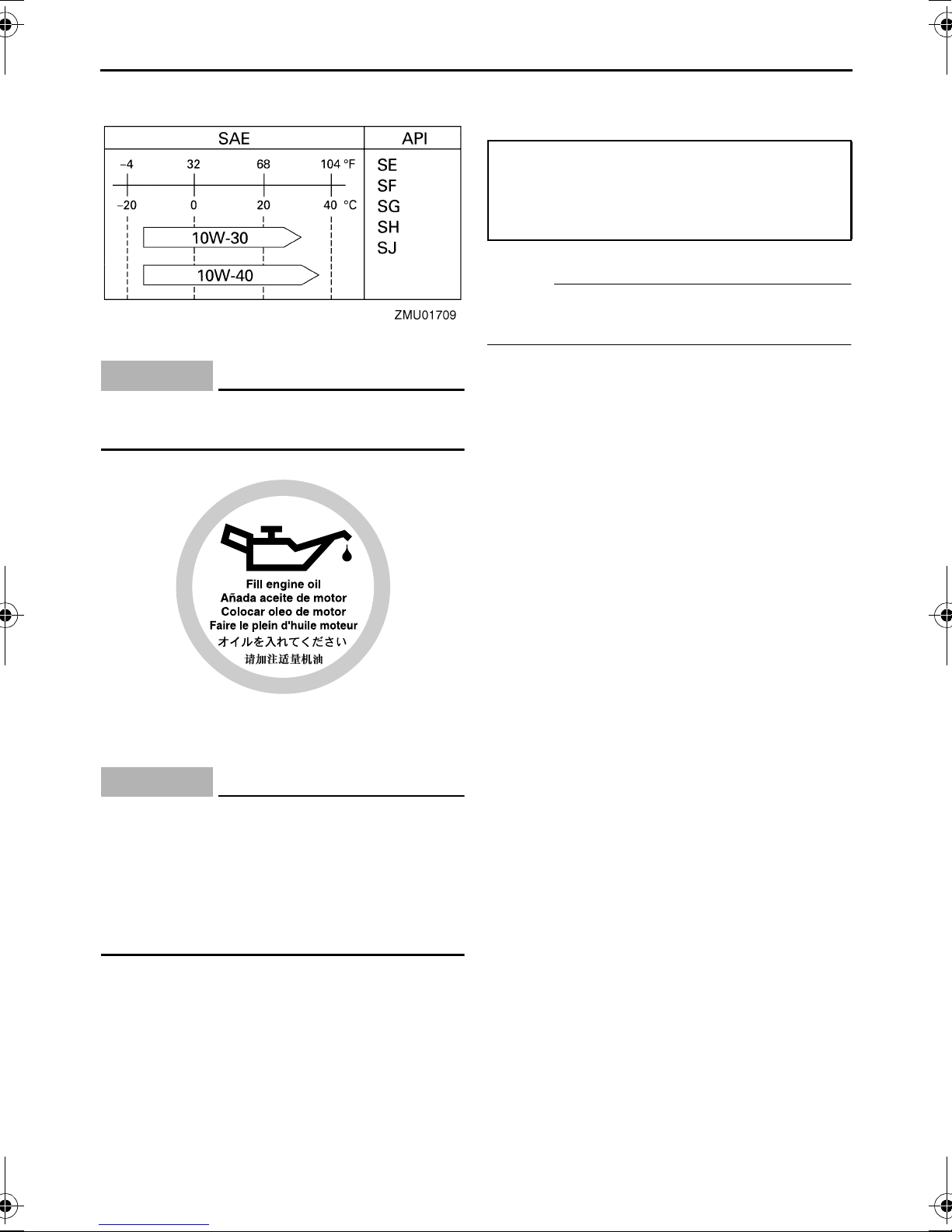

Recommended engine oil:
4-stroke motor oil with a combination of
corresponding SAE and API as shown
in the chart
U6D770E0.book Page 3 Tuesday, October 12, 2004 5:00 PM

General information
4
CAUTION:
ECM01050
All 4-stroke engines are shipped from the
factory without engine oil.
EMU25700
Battery requirement
CAUTION:
ECM01060
Do not use a battery that does not meet the
specified capacity. If a battery which does
not meet specifications is used, the elec-
tric system could perform poorly or be
overloaded, causing electric system dam-
age.
For electric start models, choose a battery
which meets the following specifications.
EMU25720
Battery specifications
NOTE:
The engine cannot be started if battery volt-
age is too low.
EMU25742
Propeller selection
The performance of your outboard motor will
be critically affected by your choice of propel-
ler, as an incorrect choice could adversely af-
fect performance and could also seriously
damage the motor. Engine speed depends on
the propeller size and boat load. If engine
speed is too high or too low for good engine
performance, this will have an adverse effect
on the engine.
Selva outboard motors are fitted with pro-
pellers chosen to perform well over a range of
applications, but there may be uses where a
propeller with a different pitch would be more
appropriate. For a greater operating load, a
smaller-pitch propeller is more suitable as it
enables the correct engine speed to be main-
tained. Conversely, a larger-pitch propeller is
more suitable for a smaller operating load.
Selva dealers stock a range of propellers,
and can advise you and install a propeller on
your outboard that is best suited to your appli-
cation.
ZMU01710
Minimum cold cranking amps (CCA/EN):
430.0 A
Minimum rated capacity (20HR/IEC):
70.0 Ah
U6D770E0.book Page 4 Tuesday, October 12, 2004 5:00 PM

General information
5
NOTE:
Select a propeller which will allow the engine
to reach the middle or upper half of the oper-
ating range at full throttle with the maximum
boat load. If operating conditions such as light
boat loads then allow the engine r/min to rise
above the maximum recommended range, re-
duce the throttle setting to maintain the en-
gine in the proper operating range.
For instructions on propeller removal and in-
stallation, see page 45.
EMU25760
Start-in-gear protection
Selva outboard motors affixed with the pic-
tured label orSelva-approved remote con-
trol units are equipped with start-in-gear
protection device(s). This feature permits the
engine to be started only when it is in neutral.
Always select neutral before starting the en-
gine.

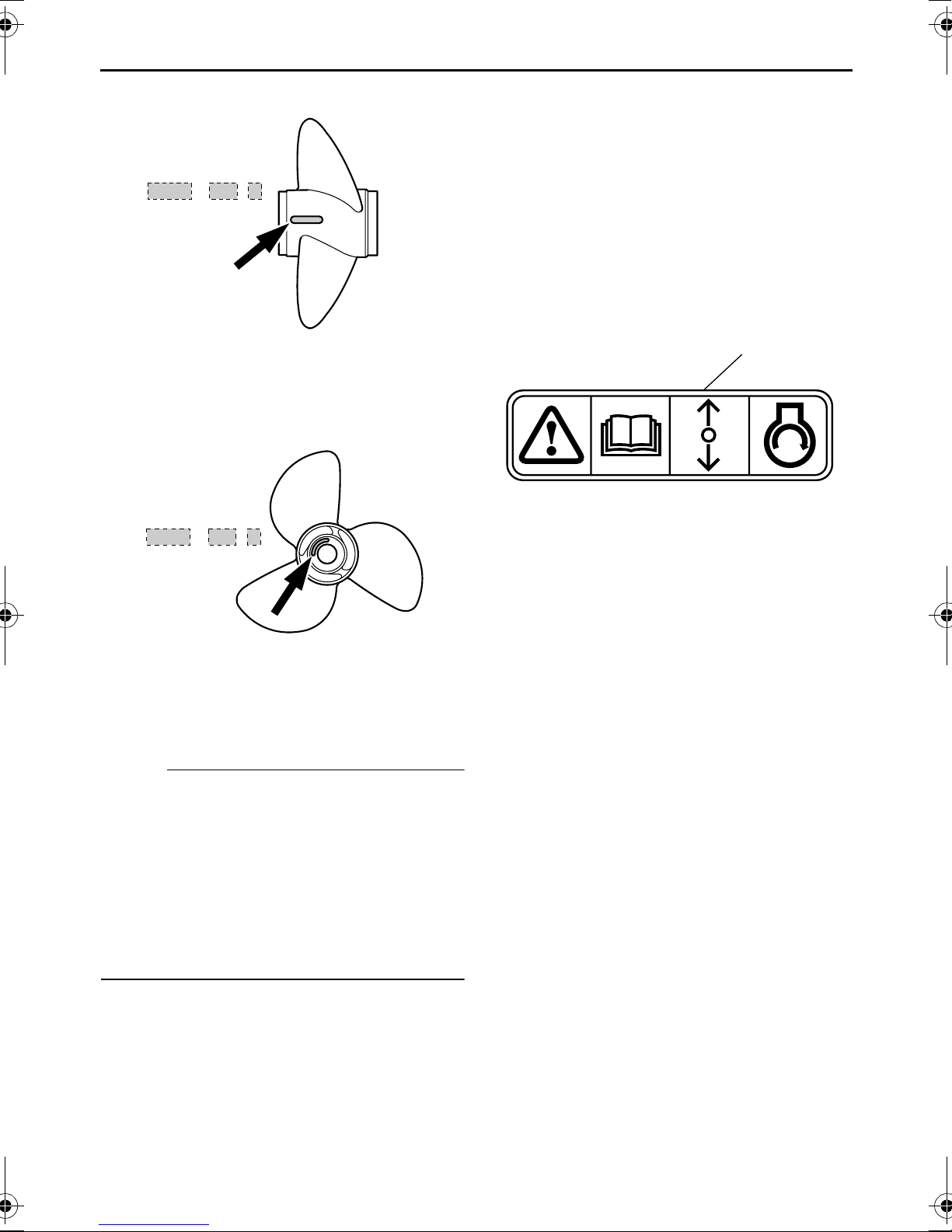

1. Propeller diameter in inches
2. Propeller pitch in inches
3. Type of propeller (propeller mark)
1. Propeller diameter in inches
2. Propeller pitch in inches
3. Type of propeller (propeller mark)
ZMU04606
-
x
123
ZMU04607
-
x
123 1. Start-in-gear protection label
ZMU01713
1
U6D770E0.book Page 5 Tuesday, October 12, 2004 5:00 PM

Basic components
6
EMU25795
Main components
NOTE:
* May not be exactly as shown; also may not be included as standard equipment on all models.
EMU25802
Fuel tank
If your model was equipped with a portable
fuel tank, its function is as follows.
WARNING
EWM00020
The fuel tank supplied with this engine is
its dedicated fuel reservoir and must not
be used as a fuel storage container. Com-
mercial users should conform to relevant
licensing or approval authority regula-
tions.
1. Top cowling
2. Top cowling lock lever(s)
3. Anti-cavitation plate
4. Trim tab (anode)
5. Propeller*
6. Cooling water inlet
7. Clamp bracket
8. Flushing device
9. Power trim and tilt switch
10.Remote control box (side mount type)*
11.Digital speedometer*
12.Digital tachometer*
13.Fuel tank*
U6D770E0.book Page 6 Tuesday, October 12, 2004 5:00 PM

Basic components
7
EMU25850
Fuel tank cap
This cap seals the fuel tank. When removed,
the tank can be filled with fuel. To remove the
cap, turn it counterclockwise.
EMU25860
Air vent screw
This screw is on the fuel tank cap. To loosen
the screw, turn it counterclockwise.
EMU26180

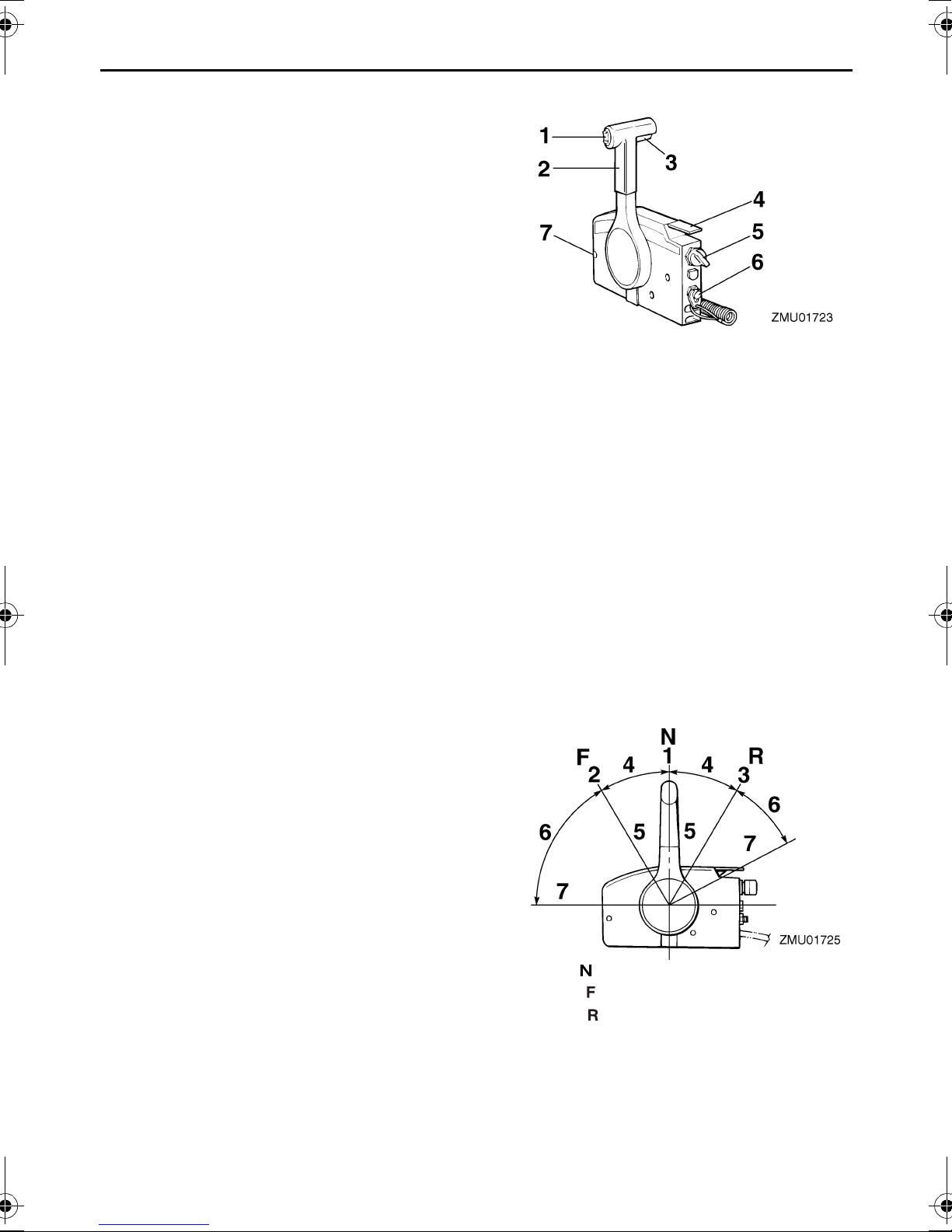

Remote control
The remote control lever actuates both the
shifter and the throttle. The electrical switches
are mounted on the remote control box.
EMU26190
Remote control lever
Moving the lever forward from the neutral po-
sition engages forward gear. Pulling the lever
back from neutral engages reverse. The en-
gine will continue to run at idle until the lever
is moved about 35°(a detent can be felt).
Moving the lever farther opens the throttle,
and the engine will begin to accelerate.
1. Power trim and tilt switch
2. Remote control lever
3. Neutral interlock trigger
4. Neutral throttle lever
5. Main switch / choke switch
6. Engine stop lanyard switch
7. Throttle friction adjuster
1. Neutral “”
2. Forward “”
3. Reverse “”
4. Shift
5. Fully closed
6. Throttle
7. Fully open
U6D770E0.book Page 7 Tuesday, October 12, 2004 5:00 PM

Basic components
8
EMU26201

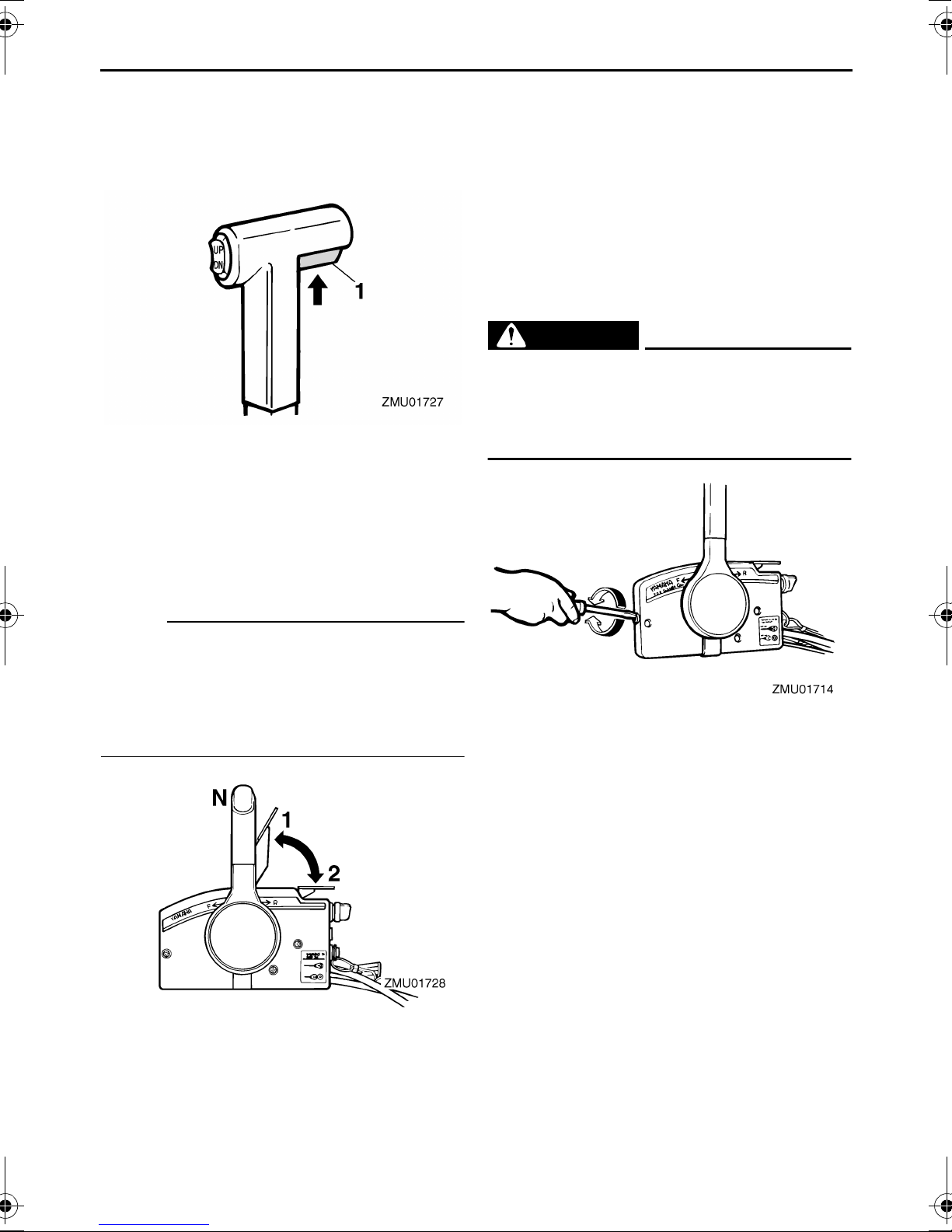

Neutral interlock trigger
To shift out of neutral, first pull the neutral in-
terlock trigger up.
EMU26211
Neutral throttle lever
To open the throttle without shifting into either
forward or reverse, put the remote control le-
ver in the neutral position and lift the neutral
throttle lever.
NOTE:
The neutral throttle lever will operate only
when the remote control lever is in neutral.
The remote control lever will operate only
when the neutral throttle lever is in the closed
position.
EMU25970
Throttle friction adjuster
A friction device provides adjustable resis-
tance to movement of the throttle grip or the
remote control lever, and can be set accord-
ing to operator preference.
To increase resistance, turn the adjuster
clockwise. To decrease resistance, turn the
adjuster counterclockwise.
WARNING
EWM00030
Do not overtighten the friction adjuster. If
there is too much resistance, it could be
difficult to move throttle lever or grip,
which could result in an accident.
When constant speed is desired, tighten the
adjuster to maintain the desired throttle set-
ting.
EMU25990

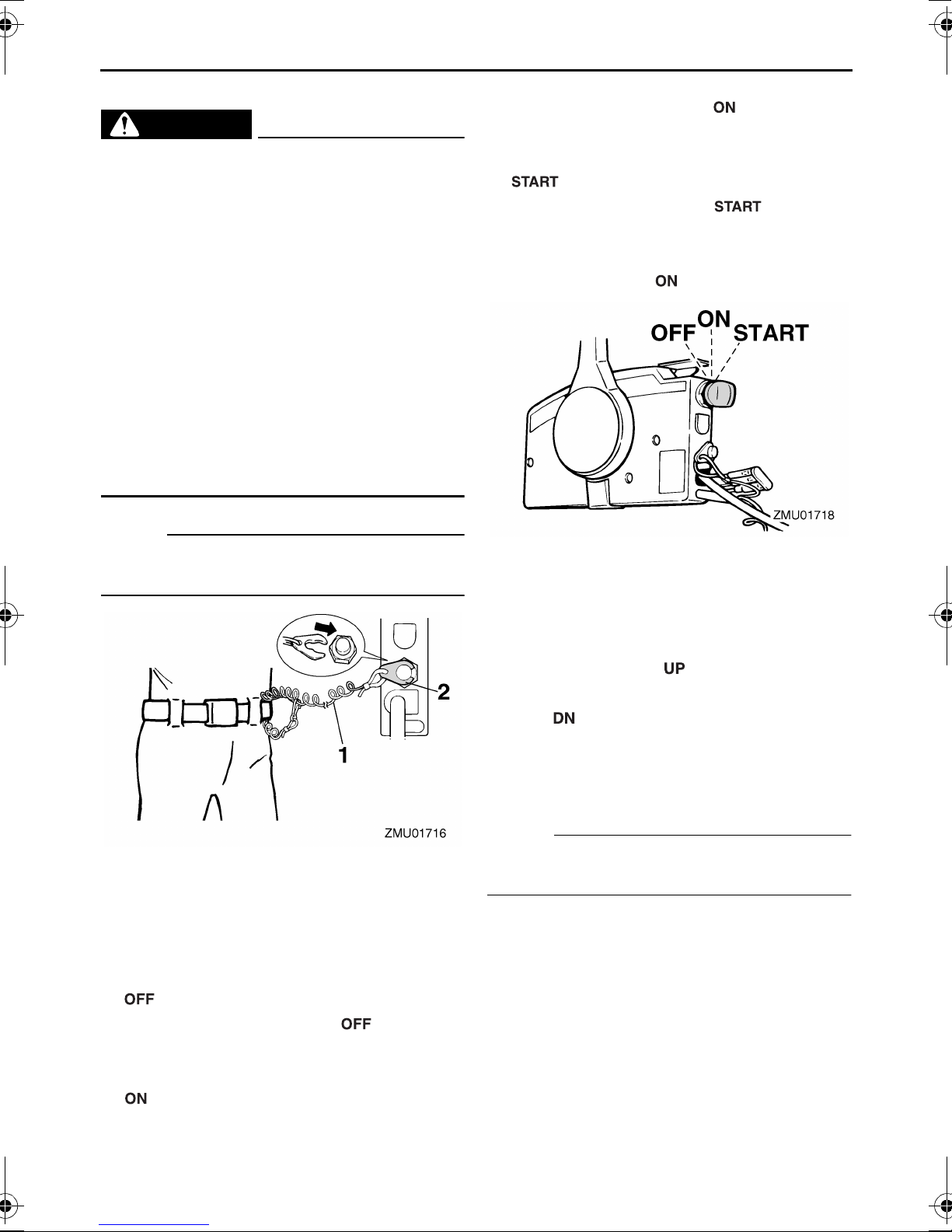

Engine stop lanyard switch
The lock plate must be attached to the engine
stop switch for the engine to run. The lanyard
should be attached to a secure place on the
operator’s clothing, or arm or leg. Should the
operator fall overboard or leave the helm, the
lanyard will pull out the lock plate, stopping ig-
nition to the engine. This will prevent the boat
from running away under power.
1. Neutral interlock trigger
1. Fully open
2. Fully closed
U6D770E0.book Page 8 Tuesday, October 12, 2004 5:00 PM

Basic components
9
WARNING
EWM00120
●Attach the engine stop switch lanyard to
a secure place on your clothing, or your
arm or leg while operating.
●Do not attach the lanyard to clothing
that could tear loose. Do not route the
lanyard where it could become entan-
gled, preventing it from functioning.
●Avoid accidentally pulling the lanyard
during normal operation. Loss of engine
power means the loss of most steering
control. Also, without engine power, the
boat could slow rapidly. This could
cause people and objects in the boat to
be thrown forward.
NOTE:
The engine cannot be started with the lock
plate removed.
EMU26090
Main switch
The main switch controls the ignition system;
its operation is described below.
●“”(off)
With the main switch in the “”(off) posi-
tion, the electrical circuits are off, and the key
can be removed.
●“”(on)
With the main switch in the “”(on) position,
the electrical circuits are on, and the key can-
not be removed.
●“”(start)
With the main switch in the “”(start) po-
sition, the starter motor turns to start the en-
gine. When the key is released, it returns
automatically to the “”(on) position.
EMU26141

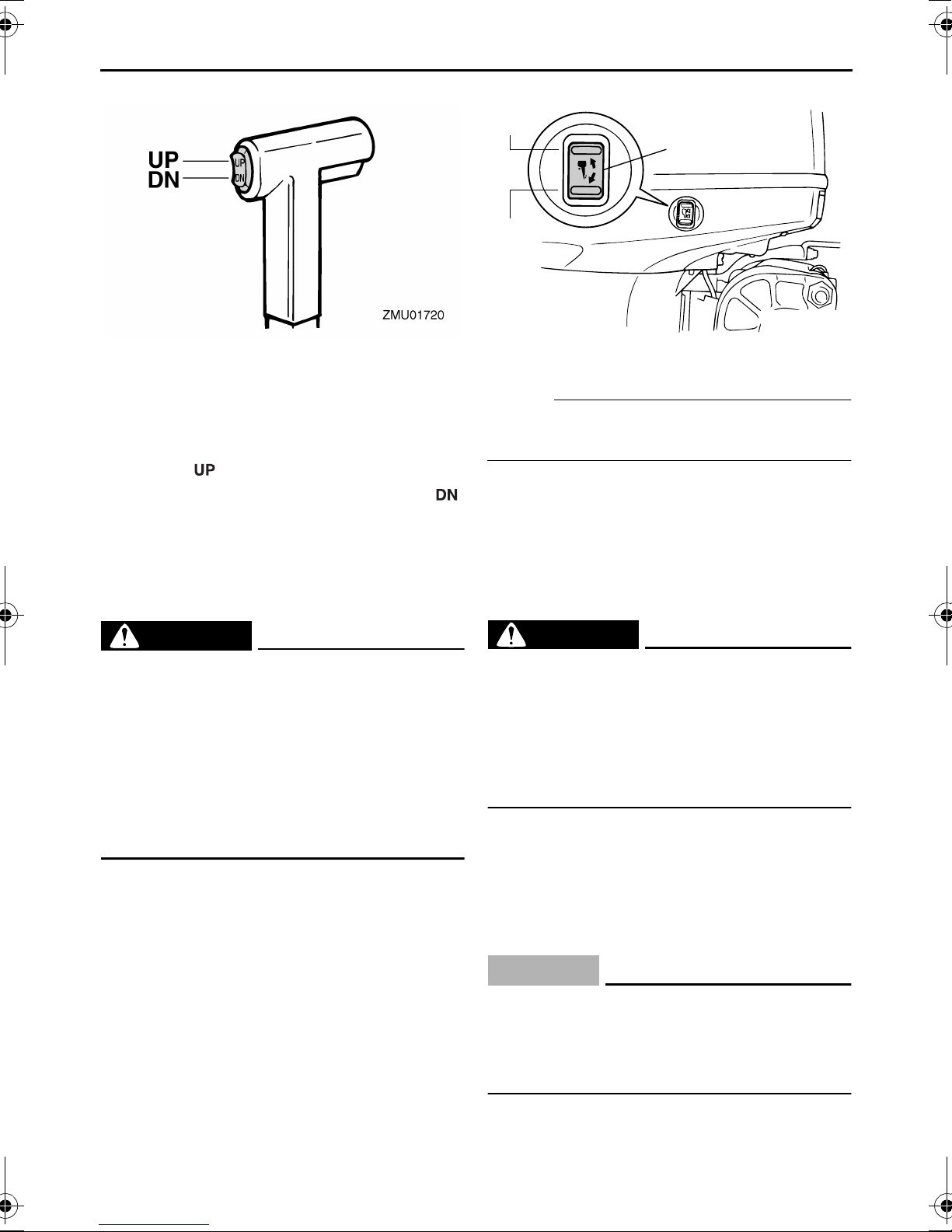

Power trim and tilt switch on remote
control or tiller handle
The power trim and tilt system adjusts the out-
board motor angle in relation to the transom.
Pressing the switch “”(up) trims the out-
board motor up, then tilts it up. Pressing the
switch “”(down) tilts the outboard motor
down and trims it down. When the switch is re-
leased, the outboard motor will stop in its cur-
rent position.
NOTE:
For instructions on using the power trim and
tilt switch, see pages 25 and 27.
1. Lanyard
2. Lock plate
U6D770E0.book Page 9 Tuesday, October 12, 2004 5:00 PM

Basic components
10
EMU26151
Power trim and tilt switch on bottom
engine cowling
The power trim and tilt switch is located on the
side of the bottom engine cowling. Pressing
the switch “”(up) trims the outboard motor
up, then tilts it up. Pressing the switch “”
(down) tilts the outboard motor down and
trims it down. When the switch is released,
the outboard motor will stop in its current po-
sition.
WARNING
EWM01030
Use the power trim and tilt switch located
on the bottom engine cowling only when
the boat is at a complete stop with the en-
gine off. Attempting to use this switch
while the boat is moving could increase
the risk of falling overboard and could dis-
tract the operator, increasing the risk of
collision with another boat or an obstacle.
NOTE:
For instructions on using the power trim and
tilt switch, see page 27.
EMU26241
Trim tab with anode
The trim tab should be adjusted so that the
steering control can be turned to either the
right or left by applying the same amount of
force.
WARNING
EWM00840
An improperly adjusted trim tab could
cause difficult steering. Always test run af-
ter the trim tab has been installed or re-
placed to be sure steering is correct. Be
sure you have tightened the bolt after ad-
justing the trim tab.
If the boat tends to veer the left (port side),
turn the trim tab rear end to the port side “A”in
the figure. If the boat tends to veer the right
(starboard side), turn the trim tab end to the
starboard side “B”in the figure.
CAUTION:
ECM00840
The trim tab also serves as an anode to
protect the engine from electrochemical
corrosion. Never paint the trim tab as it will
become ineffective as an anode.
1. Power trim and tilt switch
UP
DN
1
ZMU04231
U6D770E0.book Page 10 Tuesday, October 12, 2004 5:00 PM

Basic components
11
EMU26340
Tilt support lever for power trim and
tilt or hydro tilt model

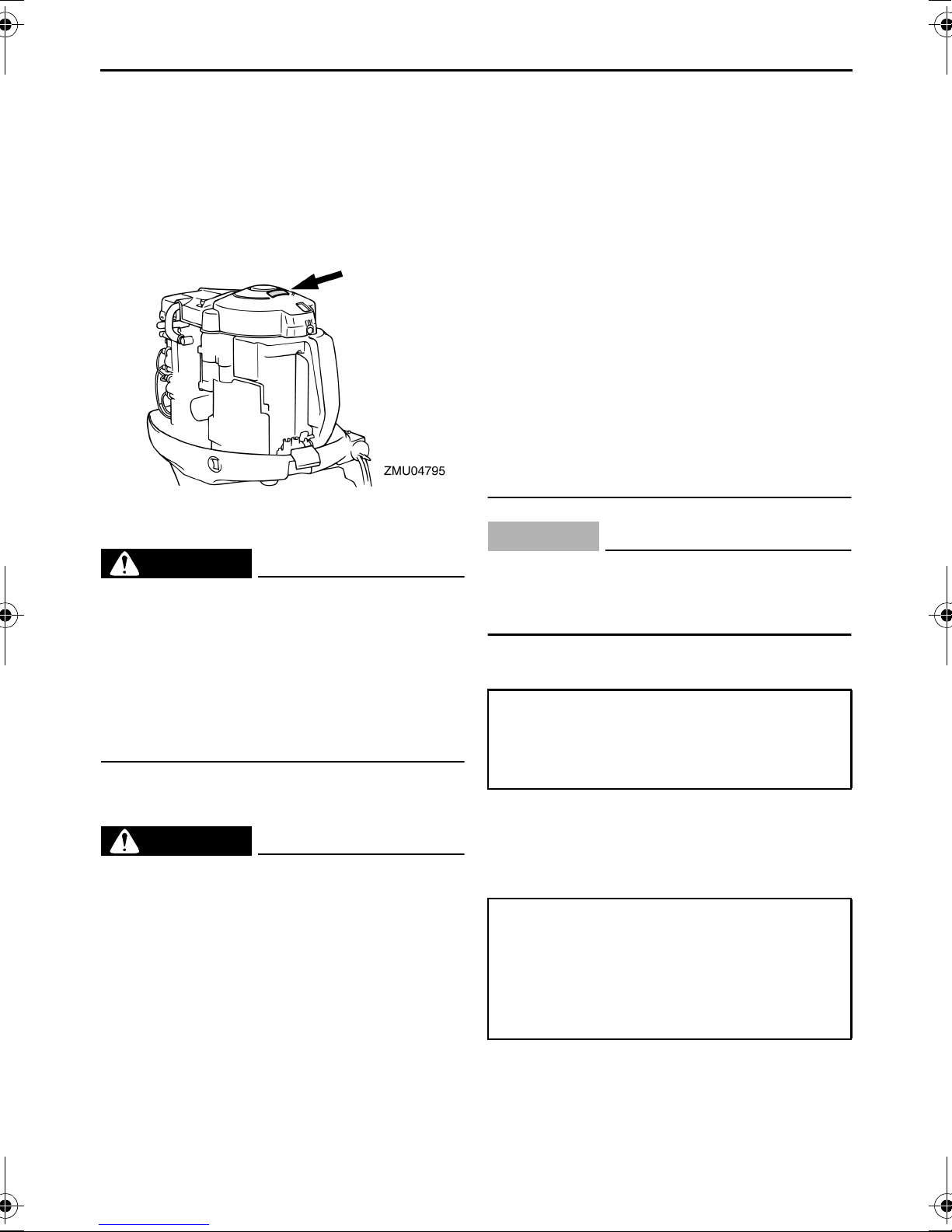

To keep the outboard motor in the tilted up po-
sition, lock the tilt support lever to the clamp
bracket.
EMU26382
Top cowling lock lever (pull up type)
To remove the engine top cowling, pull up the
lock lever(s) and lift off the cowling. When in-
stalling the cowling, check to be sure it fits
properly in the rubber seal. Then lock the
cowling by moving the lever(s) downward.
EMU26460
Flushing device
This device is used to clean the cooling water
passages of the motor using a garden hose
and tap water.
NOTE:
For details on usage, see page 35.
1. Trim tab
2. Bolt
3. Cap
1. Tilt support lever
1
2
3
ZMU02525
A
B
A
BZMU01863
1. Top cowling lock lever(s)
1. Top cowling lock lever(s)
ZMU04225
1
ZMU04226
1
U6D770E0.book Page 11 Tuesday, October 12, 2004 5:00 PM

Basic components
12

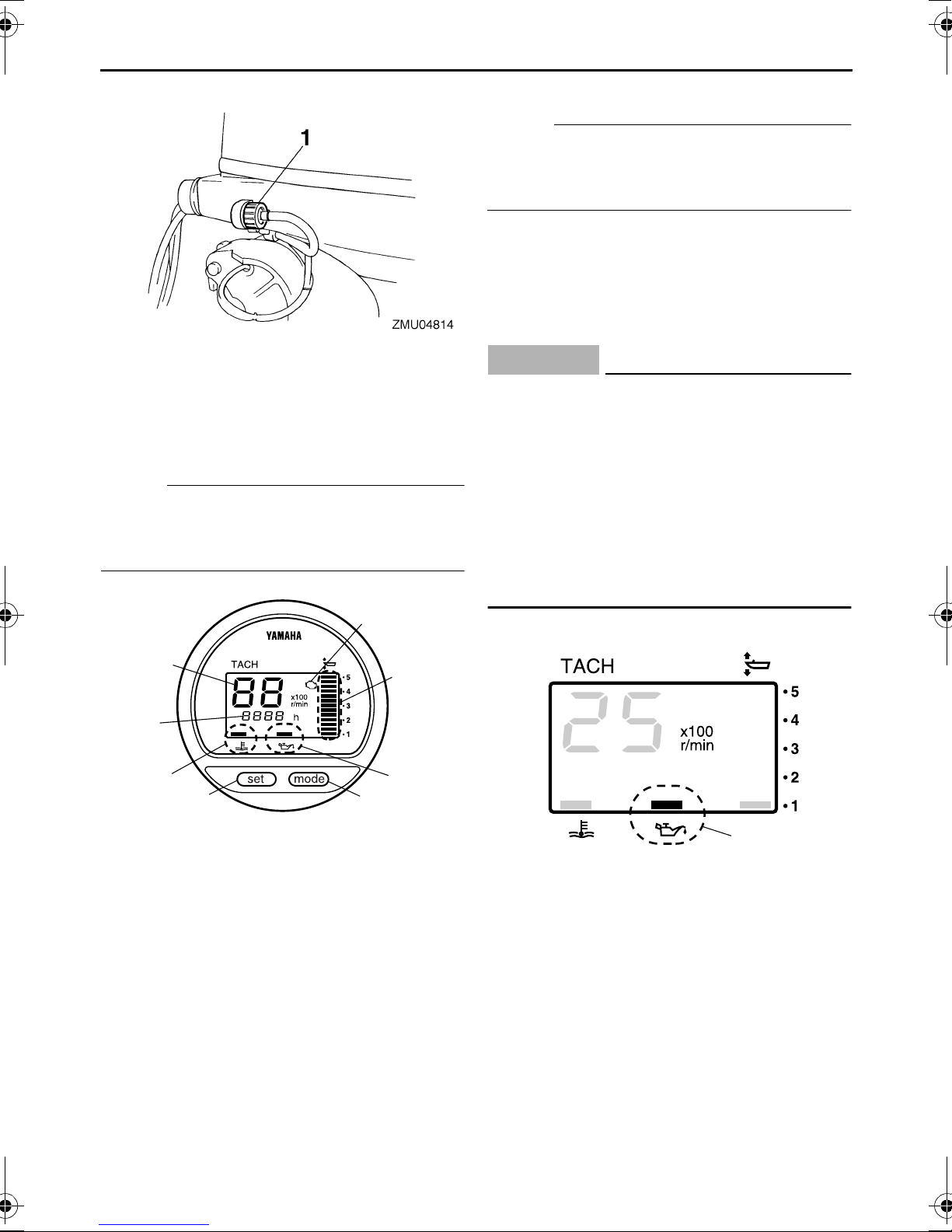

EMU26491
Digital tachometer
The tachometer shows the engine speed and
has the following functions.
NOTE:
All segments of the display will light momen-
tarily after the main switch is turned on and
will return to normal thereafter.
NOTE:
The water separator and engine trouble warn-
ing indicators only operate when the engine is
equipped with the appropriate functions.
EMU26521
Low oil pressure warning indicator
If oil pressure drops too low, the warning indi-
cator will start to blink. For further information,
see page 17.
CAUTION:
ECM00020
●Do not continue to run the engine if the
low oil pressure warning indicator is on
and the engine oil level is lower. Serious
engine damage will occur.
●The low oil pressure warning indicator
does not indicate the engine oil level.
Use the oil dipstick to check the remain-
ing oil quantity. For further information,
see page 20.
EMU26581
Overheat warning indicator (digital
type)
If the engine temperature rises too high, the
warning indicator will start to blink. For further
information on reading the indicator, see page
16.
1. Flushing device
1. Tachometer
2. Trim meter
3. Hour meter
4. Low oil pressure warning indicator
5. Overheat warning indicator
6. Engine trouble warning indicator
7. Set button
8. Mode button
ZMU01735
1
5
2
4
3
6
78
1. Low oil pressure warning indicator
ZMU01736
1
U6D770E0.book Page 12 Tuesday, October 12, 2004 5:00 PM

Basic components
13
CAUTION:
ECM00050
Do not continue to run the engine if the
overheat warning indicator is on. Serious
engine damage will occur.
EMU26600

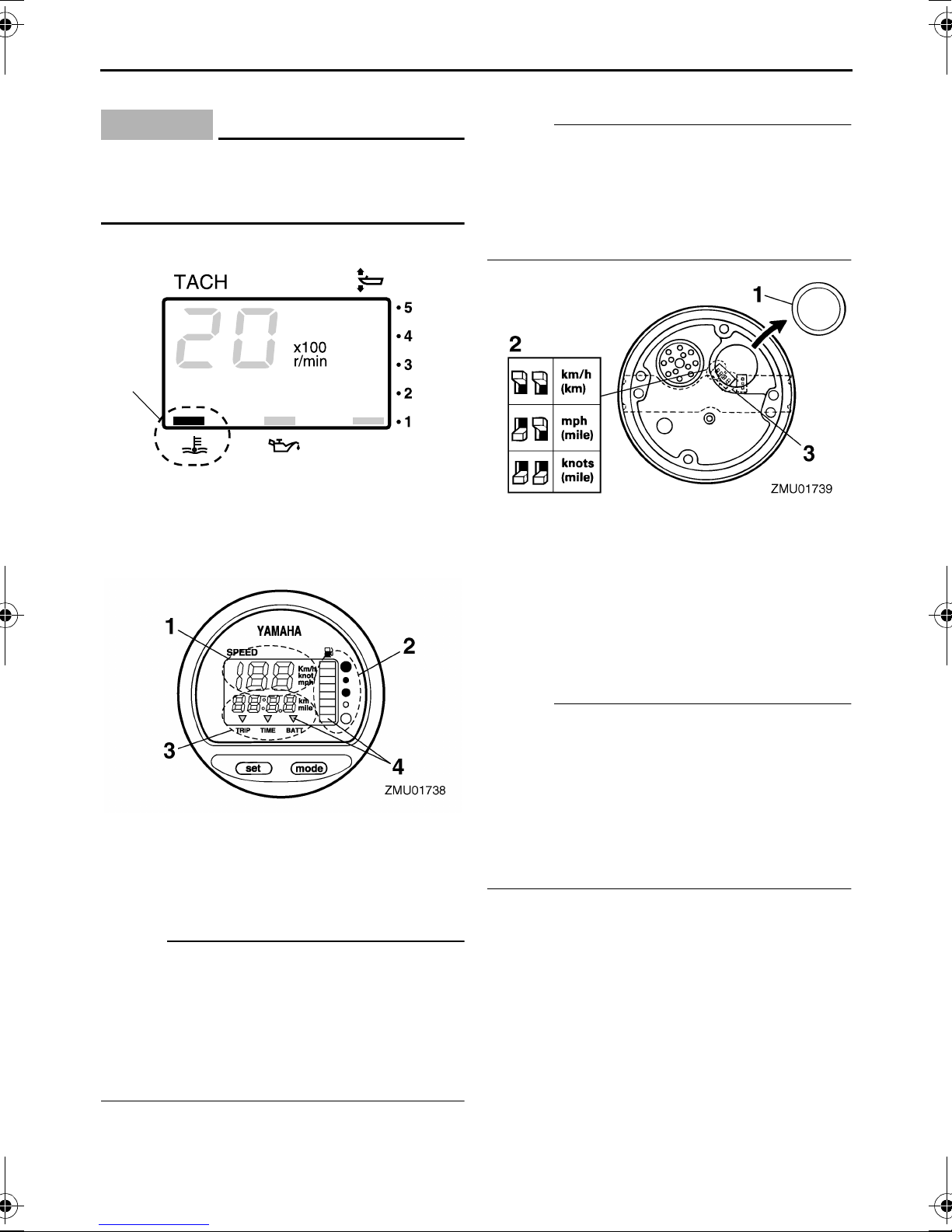

Speedometer (digital type)
This gauge shows the boat speed.
NOTE:
After the main switch is first turned on, all seg-
ments of the display come on as a test. After
a few seconds, the gauge will change to nor-
mal operation. Watch the gauge when turning
on the main switch to make sure all segments
come on.
NOTE:
The speedometer displays km/h, mph, or
knots, according to operator preference. Se-
lect the desired unit of measurement by set-
ting the selector switch on the back of the
gauge. See the illustration for settings.
EMU26620
Trim meter (digital type)
This meter shows the trim angle of your out-
board motor.
NOTE:
●Memorize the trim angles that work best for
your boat under different conditions. Adjust
the trim angle to the desired using the pow-
er trim and tilt switch.
●If the trim angle of your motor exceeds the
trim operating range, the top segment on
the trim meter display will blink.
1. Overheat warning indicator
1. Speedometer
2. Fuel gauge
3. Trip meter/clock/voltmeter
4. Warning indicator(s)
ZMU01737
1
1. Cap
2. Selector switch (for speed unit)
3. Selector switch (for fuel sensor)
U6D770E0.book Page 13 Tuesday, October 12, 2004 5:00 PM

Basic components
14
EMU26650
Hour meter (digital type)
This meter shows the number of hours the en-
gine has been run. It can be set to show the
total number of hours or the number of hours
for the current trip. The display can also be
turned on and off.
●Changing the display format
Pressing the “”(mode) button chang-
es the display format in the following pat-
tern:
Total hours→Trip hours→Display off
●Resetting the trip hours
Simultaneously pressing the “”(set) and
“”(mode) buttons for more than 1 sec-
ond while the trip hours are displayed re-
sets the trip counter to 0 (zero).
NOTE:
The total number of hours the engine has
been run cannot be reset.
EMU26680
Engine trouble warning indicator
This indicator will blink when the engine mal-
functions.
CAUTION:
ECM00920
In such an event, the engine will not oper-
ate properly. Consult a Selva-dealer im-
mediately.
EMU26690
Trip meter
This gauge displays the distance the boat has
traveled since the gauge was last reset.
Press the “”(mode) button repeatedly
until the indicator on the face of the gauge
points to “”(trip). To reset the trip meter to
zero, press the “”(set) and “”(mode)
buttons at the same time.
ZMU01740
ZMU01741
1. Engine trouble warning indicator
ZMU01742
1
U6D770E0.book Page 14 Tuesday, October 12, 2004 5:00 PM

Basic components
15
NOTE:
●The trip distance is shown in kilometers or
miles depending upon the unit of measure-
ment selected for the speedometer.
●The trip distance is kept in memory by bat-
tery power. The stored data will be lost if the
battery is disconnected.
EMU26700
Clock
Press the “”(mode) button repeatedly
until the indicator on the face of the gauge
points to “”(time). To set the clock, be
sure the gauge is in the “”(time) mode.
Press the “”(set) button; the hour display
will begin blinking. Press the “”(mode)
button until the desired hour is displayed.
Press the “”(set) button again, the minute
display will begin blinking. Press the “”
(mode) button until the desired minute is dis-
played. Press the “”(set) button again to
start the clock.
NOTE:
The clock operates on battery power. Discon-
necting the battery will stop the clock. Reset
the clock after connecting the battery.
EMU26710
Fuel gauge
The fuel level is indicated by eight segments.
When all segments are showing, the fuel tank
is full.
CAUTION:
ECM00860
The Selva fuel tank sensor differsfrom
conventional sensors. Incorrectly setting
the selector switch on the gauge will give
false readings. Consult your Selva deal-
er on how to correctly set the selector
switch.
N
O
TE:
The fuel level reading can be affected by the
position of the sensor in the fuel tank and the
attitude of the boat in the water. Operation
with bow-up trim or continuous turning can
give false readings.
EMU26720
Fuel warning indicator
If the fuel level decreases to one segment, the
fuel level warning segment will begin to blink.
CAUTION:
ECM00880
Do not continue to operate the engine with
full throttle if a warning device has activat-
ed. Get back to the port within trolling en-
gine speed.
ZMU01745
U6D770E0.book Page 15 Tuesday, October 12, 2004 5:00 PM
