Sengun Makina SM-300 SINGLE Operating instructions

MODEL
SM-300 SINGLE , SM-450 SINGLE , SM-600 SINGLE
DOUGH ROLLING MACHINE (SINGLE ROLLER)
USER & MAINTENANCE MANUAL
ÜRETİCİ FİRMA: ŞENGÜN MAKİNA İNŞAAT ve KIRTASİYE SAN. TİC. LTD. ŞTİ

1
WARRANTY CERTIFICATE
SERIAL NUMBER:
SALE DATE:
Sold at the above date SM-…….. SINGLE MODEL DOUGH ROLLING MACHINE is guaranteed against
production failures for 1 Year by ŞENGÜN MAKİNA İNŞAAT ve KIRTASİYE SAN. TİC. LTD. ŞTİ.
Warranty Terms;
- Warranty terms start after the product delivery for 1 year.
- Recommended daily working time is 10 hours. The scope of warranty is assessed by year or by working
hours.
- The product is under warranty except plastic rollers (included plastic rollers if it is a manufacturing defect).
- Documents are invalid, if haven’t sale date and confirm signature of company. You have to show the
warranty certificate to benefit from the warranty.
- Device is guaranteed against defects if mount and use as described ın the use and maintenance manual.
- Detection the location of defects, and elimination of the problems are responsibilities of the ŞENGÜN
MAKİNA…
- Warranty terms includes only one device. You can’t claim any rights or compensation for another devices.
- If Changes are made at the type, model and serial numbers, the warranty eliminates.
- If material, worker or assembly defects appear, repaired free by ŞENGÜN MAKİNA at the product warranty
period (Transportation cost is not included).
- Failures are only repaired by ŞENGÜN MAKİNA’s personal. The intervention of unauthorized person, cancel
the appliance of warranty.
- Installation have to be done by ŞENGÜN MAKİNA’s personal. İf usage place changes, customer must give
information to ŞENGÜN MAKİNA
- In the event of failure service must be informed.
- The failures and damages given by external factors are out of the warranty terms.
- Any failure of the product warranty period is added to the product warranty time. The repair time is until
20 working days.
AUTHORIZED PERSON
STAMP –SIGNATURE

2
CONTENTS
SECTION 1: INTRODUCTION
1.1 General Introduction of Dough Rolling Machine
1.2 Technical Specifications Table
1.3 Safety Warnings Labels
SECTION 2: INTRODUCTION OF MACHINE BODY COMPONENTS
2.1 Guard Sheet Assembly
2.2 Body Components
SECTION 3: INSTRUCTIONS FOR USE
3.1 Usage Recommendations
3.2 Safety Warnings
3.3 Operating and Starting Instructions
SECTION 4: MAINTENANCE
4.1 Exterior Body Maintenance
4.2 Scraping Knife Maintenance
SECTION 5: ELECTRICAL DİAGRAM

3
SECTION 1: INTRODUCTION
1.1 General Introduction Of Dough Rolling Machine Model
Uses at lahmacun, pizza and other dough rolling processes. Dough thickness and diameter get easy with
roller gap adjustment system. SM-300 SINGLE Dough rolling process perform in min. 3, max. 5 seconds, SM-
450 SINGLE and SM-600 SINGLE min. 6, max. 8 seconds with fast and easy using feature.
1.2 Technical Specifications Table
Technical Specifications
SM-300 SINGLE
SM-450 SINGLE
SM-600 SINGLE
Machine Length (cm)
54
54
54
Machine Width (cm)
44
59
74
Machine Height (cm)
44
44
44
Machine Weight (Kg)
34
40
47
Engine Power (kW)
0.37
0.37
0.37
Electrical Connection (V-HZ)
230V 1N 50/60HZ
230V 1N 50/60HZ
230V 1N 50/60HZ
Max. Dough Weight (gr)
1500
2000
2500
Dough Diameter (cm)
19-29
19-45
19-60
Roller Range (mm)
0-10
0-10
0-10
Hourly Production Quantity
720-1200
450-600
450-600
1.3 Safety Warnings Labels
LABELS

4
SECTION 2: INTRODUCTION OF MACHINE BODY COMPONENTS
2.1 Guard Sheet Assembly
1- THIMBLE
2- GUARD SHEET
3- BAKELITE
4- STAY BOLT
5- STAY BOLT
6- TRANSPARENT PROTECTION APPARATUS (OPTIONAL)
2.2 Body Components
FRONT VIEW BACK VIEW
1 –BODY 6 –ROLLER SCRAPER
2 –SHEET HOLDER PIN 7 –ADJUST HANDLE
3 –START/STOP SWITCH 8 –FAN
4 –CENTRAL SHEET 9 –BACK COVER
5 –ROLLER GROUP 10 –SCRAPERS WIRE

5
SECTION 3 INSTRUCTIONS FOR USE
3.1 Usage Recommendations
For rolling circular dough (lahmacun dough etc.);
- Compress the dough and make it circular.
- Pass through the dough to the upper roller gap.
- Rotate the dough (shown in figure) then pass through the dough in
parallel to the bottom roller gap.
For rolling ellipse dough (pide dough);
- Compress the dough and make it circular.
- Pass through the dough to the upper roller gap.
Rotate the dough (shown in figure) then pass through the dough in
45° to the bottom roller gap.
3.2 Safety Warnings
1- Secure voltage is between 230 V and 240 V
2- Set up on a straight floor.
3- Single phase on operating.
4- Don’t wipe the machine with a wet cloth when connect
to plug.
5- Cut electric current before opening protection system.
6- Check the air intake of the cooling fan daily.

6
3.3 Operating and Starting Instructions
1- Connect to monophase electrical supply.
2- Push the “I” button.
3- Adjust the roller space shown in picture.(This procedure adjust the dough thickness and diameter)
Adjust the dough thickness from “0” to “22” shown in
figure.
- Pull the adjust handle and rotate the “+” or “-”
direction.
- Rotate the knob to “+” direction for enlarge the
dough thickness. Rotate the knob to “-” direction for
reduce the dough thickness.
- Push the adjust handle knob when the intended
roller gap adjusted.
DESIRED PRODUCT
UPPER
BOTTOM
LAHMACUN
PIDE
PİZZA
TORTILLA BREAD
BOREK DOUGH
NOTE = Entrance roller gap advice to be bigger than the exit roller gap.
NOTE: Scrapers must be stretched

7
SECTION 4 MAINTENANCE
4.1 Exterior Body Maintenance
Pull up the central sheet shown in picture then clean the flour and crumbs. Stop the machine and unplug the
electrical supply then clean with wet cloth. Don’t plug the electrical supply before the machine dry.

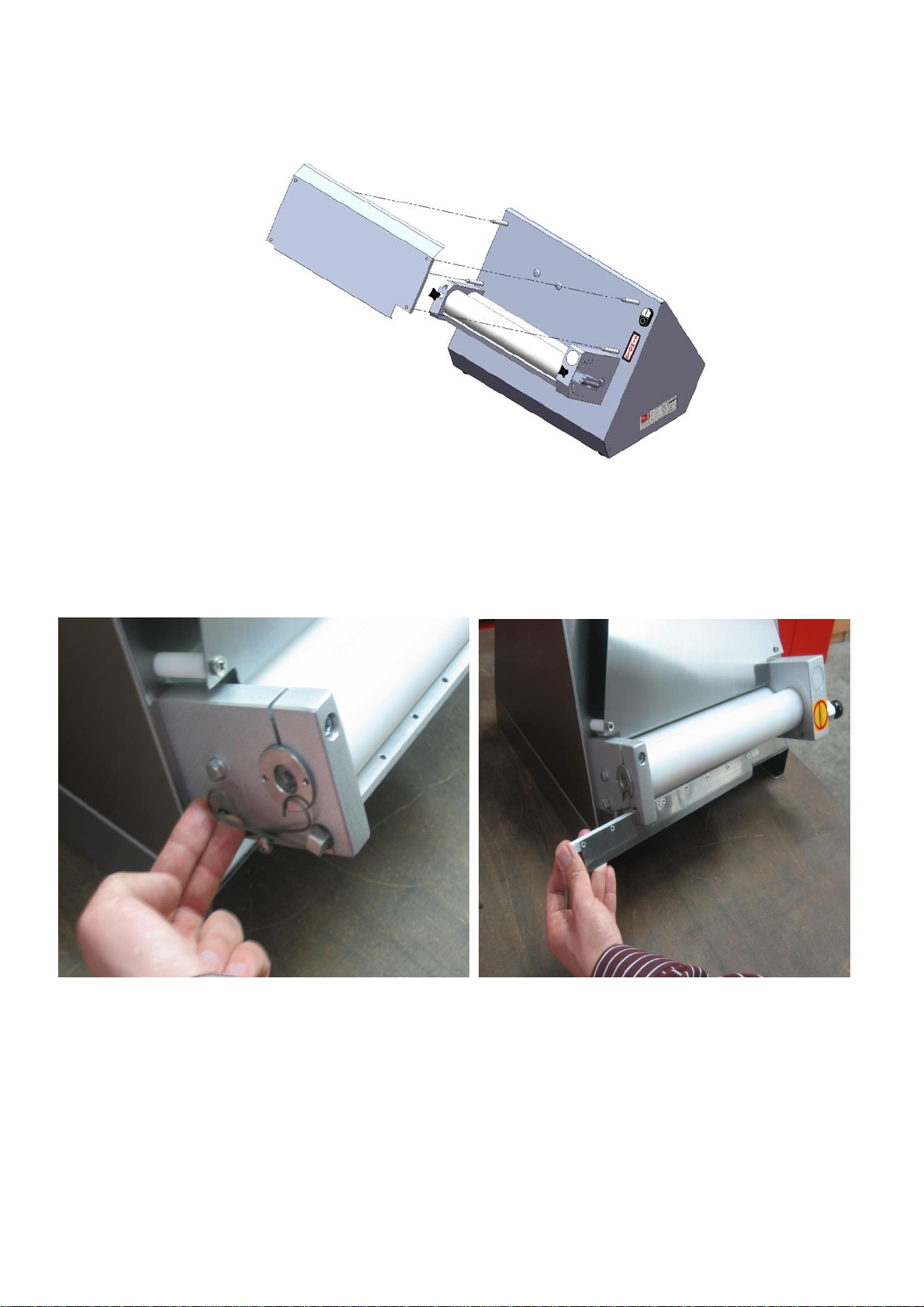

4.2 Scrapers Maintenance
Push up scrapers wire as shown in the figure
Remove the scrapers from the hole as shown in the figure and clean the scrapers daily.

8
SECTION 5: SPARE PARTS MANUAL

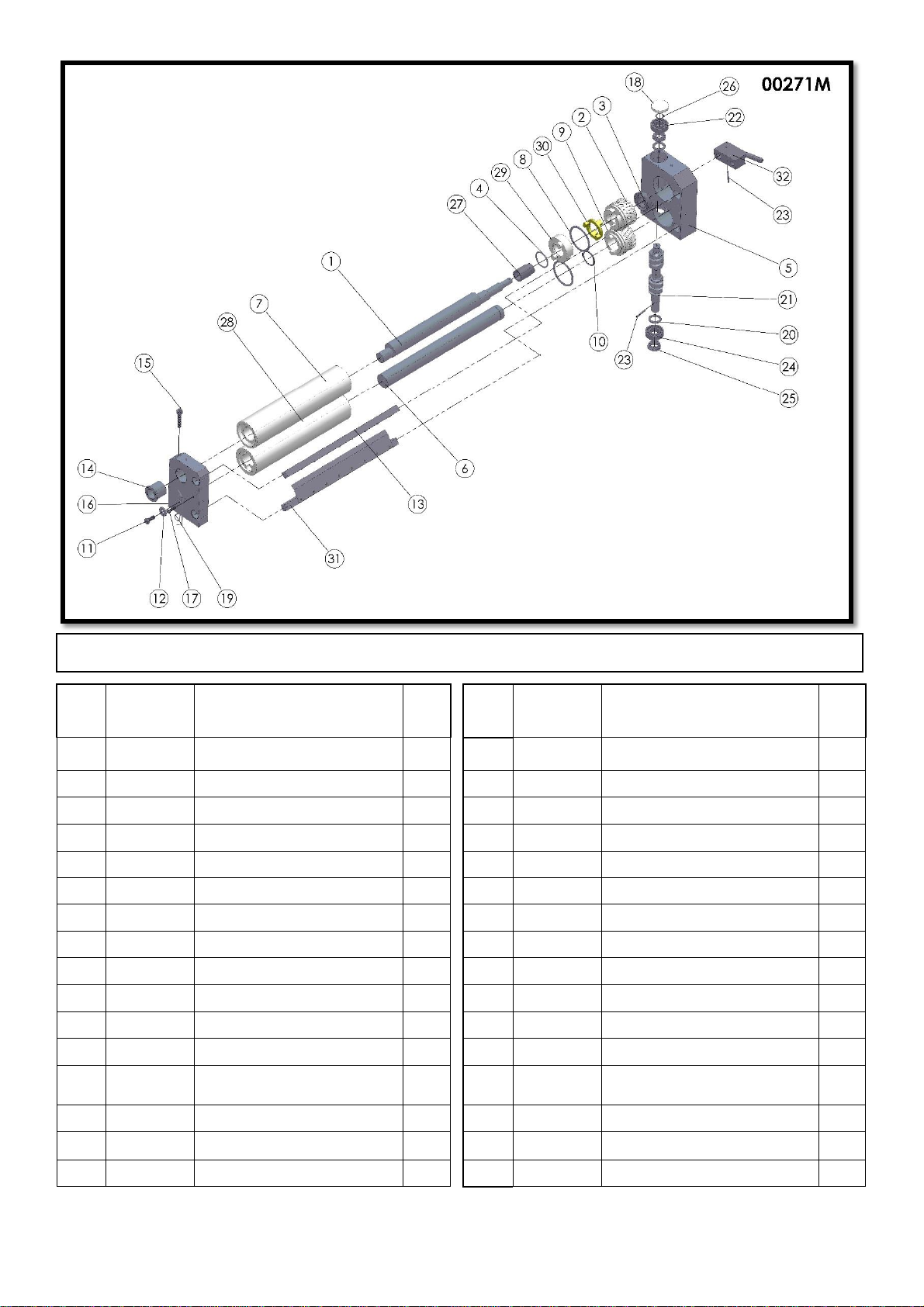

00271M (ROLLER GROUP) SPARE PARTS LIST
ITEM
NO.
SPARE PART
NUMBER
DESCRIPTION OF THE SPARE
PART
UNIT
ITEM
NO.
SPARE PART
NUMBER
DESCRIPTION OF THE SPARE
PART
UNIT
1
00240
ROLLER CAMSHAFT(TOP)
1
17
00047
BOLT
1
2
00204
GEAR
1
18
00219
COVER
1
3
00208
BEARING
1
19
00267
SCRAPER SPRING
2
4
00226
O-RİNG
1
20
00555
WASHER
1
5
00201
GEAR BOX
1
21
00206
WORM GEAR
1
6
00245
ROLLER SHAFT(TOP)
1
22
00209
BEARING
1
7
00261
TOP ROLLER
1
23
00096
PIN
2
8
00228
SHIFT SEGMENT
2
24
00207
BEARING
1
9
00205
GEAR
1
25
00565
THIMBLE
2
10
00249
SEGMENT
1
26
00211
SEGMENT
1
11
00043
BOLT
2
27
00570
THIMBLE
1
12
00044
WASHER
2
28
00256
TOP ROLLER (BOTTOM)
1
13
00352M
TOP ROLLER SCRAPER
(BOTTOM)
1
29
00227
ROLLER BREAK COUPLER
1
14
00222
THIMBLE
1
30
00218
ROLLER BREAK COUPLER
1
15
00349
BOLT
1
31
00352M
TOP ROLLER SCRAPER(BOTTOM)
1
16
00574
ROLL BEARING
1
32
00263M
CONTROL LEVER GROUP
1

9
