Senior Bad W60 User manual

Assembly Instructions Whirlpool Bath
W60 (05v23) eng
Attention: The assembly of this tub
should be done by two people!
Senior
BadGmbH

2
Foreword
Dear customer, we are pleased that you have chosen this product. Please observe all
instructions before assembly and use and strictly follow the procedure below!
Please check the product for completeness rst. If there is any damage, please send us a
message with a short description and photos of the a󰀨ected area. A responsible employee
will contact you as soon as possible and nd a solution together with you.
You have a 2-year legal warranty on all products.
Important information
Please note: The product is designed exclusively for private use. Our products are sub-
ject to constant further development. This may result in changes to the design and the
use of other components. We try to keep the following pages up to date. If you have any
questions regarding the design, please contact us at +49 35795 - 179 600 or by e-mail at
[e-mail]. We are very grateful for any suggestions for improvement.
Please read the operating instructions carefully rst!
If you still have questions about the assembly, we will be happy to help you personally.
Complaints resulting from incorrect installation or use are excluded from the warranty!
Seals, hand showers, shower hoses and castors are wearing parts, therefore a warranty
period of 6 months applies here. The costs for replacement are not covered. Illuminants are
completely excluded from the warranty.
• Installation and assembly work should only be carried out by a skilled worker.
• Make sure that the bathtub is properly earthed. We recommend that any electrical
connections be made by trained professionals.
• The permissible water pressure should be approx. between 4 and 6 bar.
• From a hardness level of 10° (German hardness) we recommend the installation of a
softening device.
• Complaints based on limescale deposits are excluded from the warranty!

3
Sealing areas under/behind the bathtub
Sealing is compulsory - silicone is not enough!
The areas behind and under the bathtub must be tiled. Sealant joints - like silicone joints
- are not waterproong, but only maintenance and beauty joints! Only the use of bathtub
sealing tapes or e.g. sheet sealants comply with this DIN.
Waterproong according to DIN 18534
„This standard is therefore not only addressed to the waterproong specialist, but also to
those who are responsible for the overall planning and execution of the building and its
components, because the e󰀨ect and durability of the waterproong depend on the coordi-
nated planning of all those involved.“
You as the installer are responsible for reliable waterproong alongside the planner and
tiler. „The waterproong must full its function for the intended service life with sucient
reliability.“
Waterproong must be planned so that it functions for the entire duration of use. In a
domestic bathroom, this can be an average of 20 to 25 years. In practice, this means laying
tiles or a membrane waterproong under the bath is mandatory. Note that the sealing area
at the transition from the oor to the wall must be at least 10 cm high.
Please note:
• The pool must not be permanently installed. It must be ensured that it can be moved
away from the wall for maintenance work.
• The pool should be connected by an approved tradesman.
• The pool should be installed by a professional in accordance with these installa-
tion instructions. The electrical connection for the pool must be made by a certied
electrician. This person must also ensure su󰀩cient earthing to prevent accidents and
malfunctions.
• Please have an electrician check the function of the residual current circuit breaker
regularly.
• The statics of the oor must ensure that it can withstand the total weight of the pool,
including water and one person.
• The feet of the pool must stand on a rm, stable surface. The oor must be level.
• Any damage found during unpacking must be reported to the dealer immediately; it is
best to take photos and send them to the dealer.

4
Technical data
Outside dimensions of the pool 140 cm Length
140 cm Wide
70 cm High
Hot and cold water connection ½ Inch max. 4 Bar
Waste water HT 40mm
Power connection 220-240 V
50 Hz
max. 12 A
Massage pump air 400 W
Massage pump water 750 W
Heating 1500 W
Max. water ll level 34 cm
Entry height 20 cm
Tools for the construction
Tools are not included in the package.
Spirit level Measuring
tape
Phillips / slotted
screwdriver
Open-end spanner

5

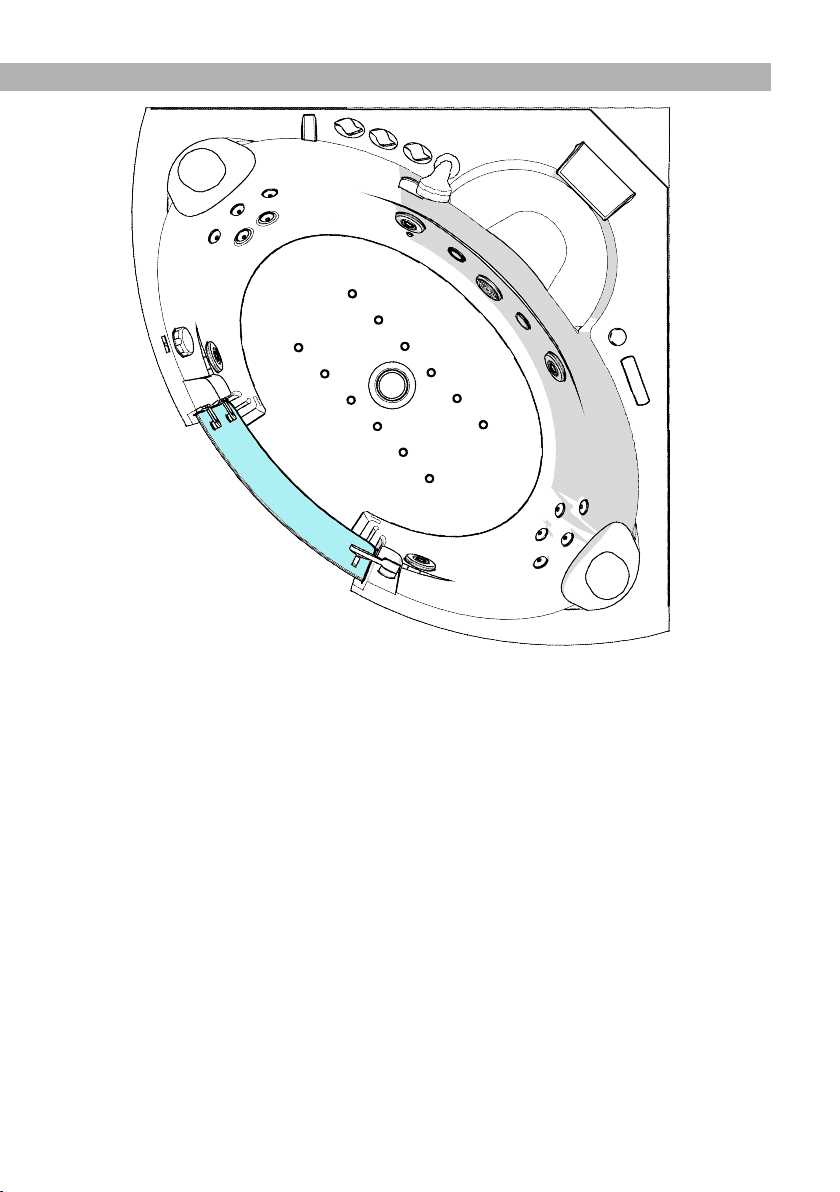

Designations
Self-cleaning and heating are optional. To use self-cleaning, it is rst necessary to set
switch 1 to self-cleaning.
There are 2 setting variants for this on switch 1. One for rinsing the left side of the hoses
and one for the right side. It is best to rinse the hoses with hot water. By opening the hot
water switch 3, the hoses are now rinsed, once on the left side and then on the right side.

1
2
3
4

5

6

7

8

9

10

11

12

13

14

15

16

17

1

1

2

2

3

3

4

4

5

5

6

6

7

7

8

8

9

9

10

10

11

11

12

12

13

13

14

14

15

15

16

17

17

16
Self-Clean (bei entspr. Modell)
Kaltwasser
Umschalter Wasserfall/Handbrause/-
Self-Clean
Warmwasser
Handbrause
Wasserfall-Wanneneinlauf
Massageeinstellung
Kontrollpaneel Heizung/Pumpe
Massagedüsen groß
Licht
Wasseransauger
Massagedüsen klein
Luftdüsen
Abfluss
Abflussöffner
Tür
Nackenkissen
1Switch for hand shower/optional
Self-Clean
2Cold water
3 Hot water
4 Hand shower
5 Bath ller
6Waterfall
7 Control panel heating/pump
8 Control panel heating/pump
9 Large massage jets
10 Light
11 Water suction
12 Massage jets small
13 Air jets
14 Drain
15 Drain opener
16 Door
17 Neck cushion

6

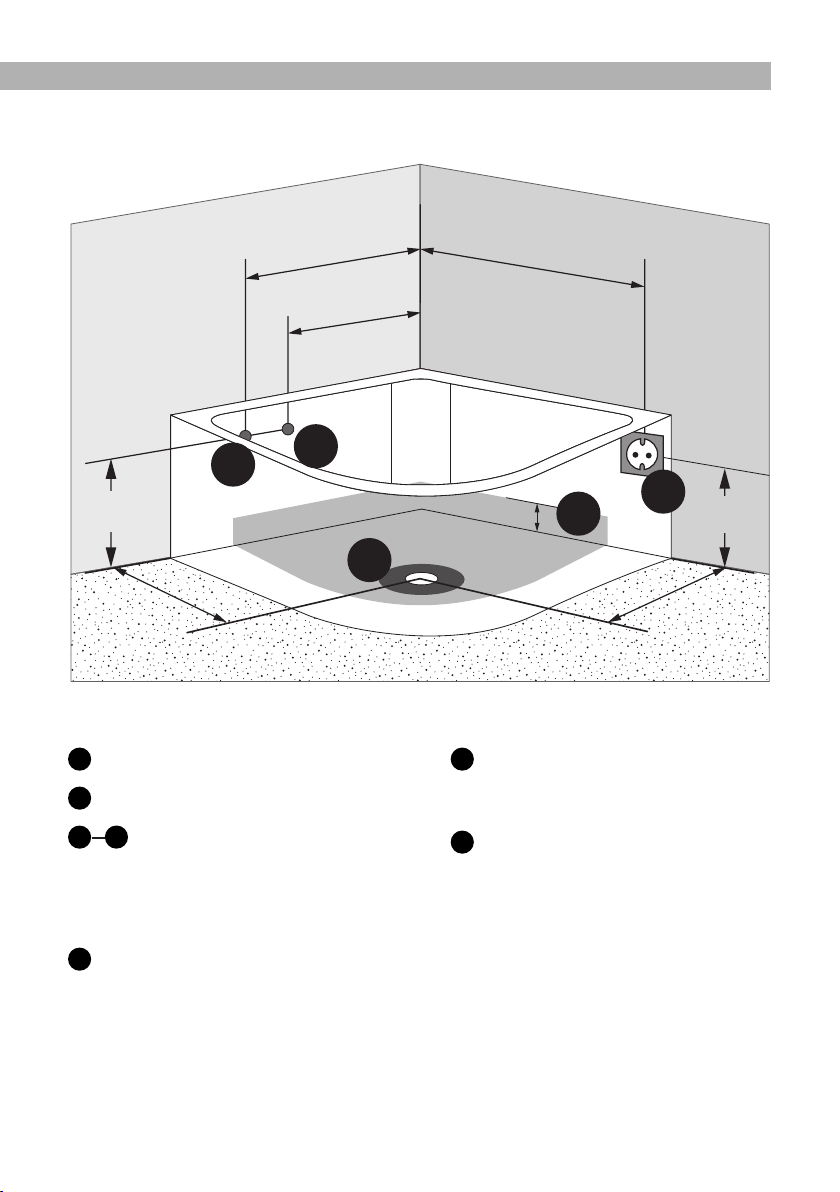

Preparing the connections
1 Hot water 1/2 inch
2 Cold water 1/2 inch
12Connections can also be on the
opposite side (possible with hose
extension)
3 grey area = possible area for the
drain pipes, in the wall area the drain
can be up to a max. height of 6 cm to
the centre of the hole
Connection of waste water via HT 50
pipe supplied.
4 ATTENTION: leave the 15 cm Ø
around the white siphon (dark grey
area) under the drain free.
5 230V 16A socket outlet (or xed
socket outlet)
100 cm
40 cm 45 cm
75 cm75 cm
65 cm
75 cm
12
3
4
0-6 cm
5

7

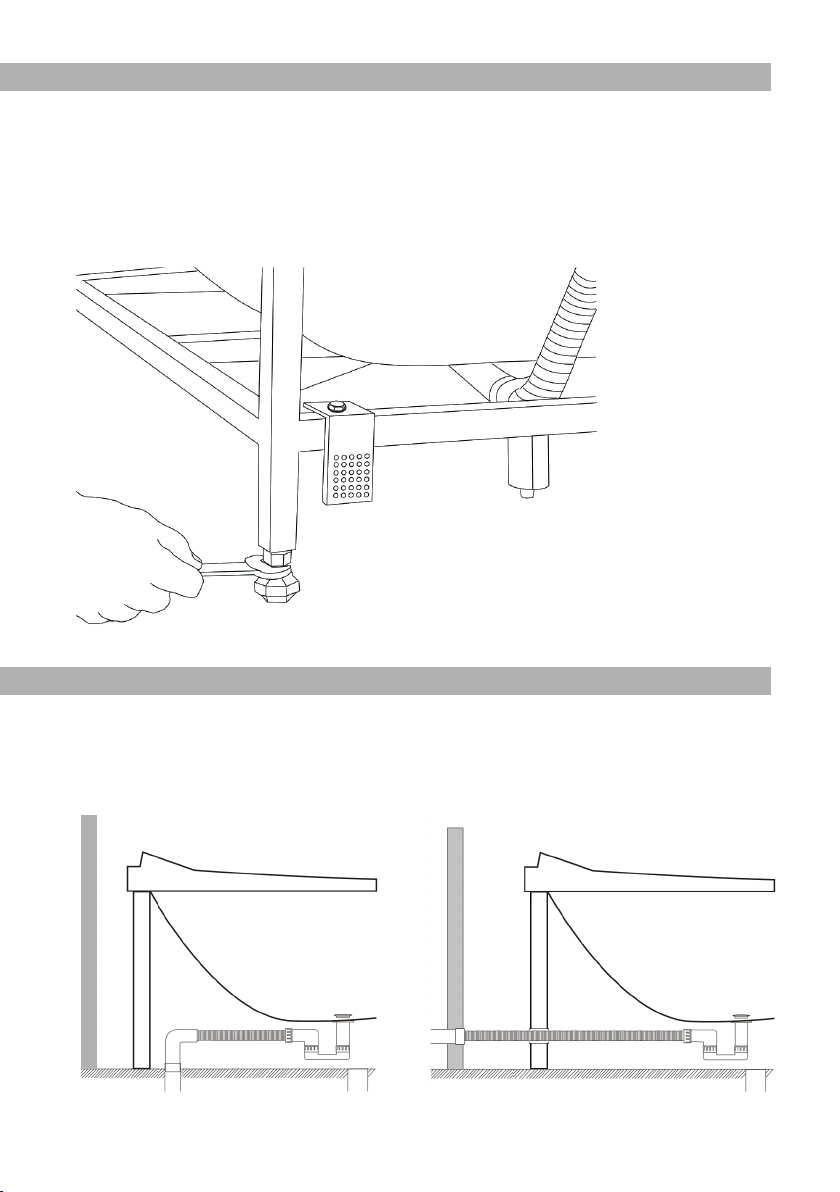

Alignment
In order for the pool to stand straight, it is necessary to align the pool precisely with the
help of a spirit level. Each foot is individually adjustable, so you can compensate for small
irregularities in the oor. Please make sure that all feet are touching the ground and that the
weight is evenly distributed on the ground. To adjust the feet, the apron of the tub must not
be removed. The front feet can be easily adjusted by tilting the tub slightly. All other feet can
be easily reached from the side.
Installing the drain
The drain is in the oor, but the exible drain hose can also be attached to a drain in the
wall, but not higher than 6 cm so that the drain is still allowed. The exible connection HT 40
used for this purpose is included in the delivery. It is not necessary to remove the apron for
installation.
Tub
Ground
Wall
Tub
Ground
Wall

8

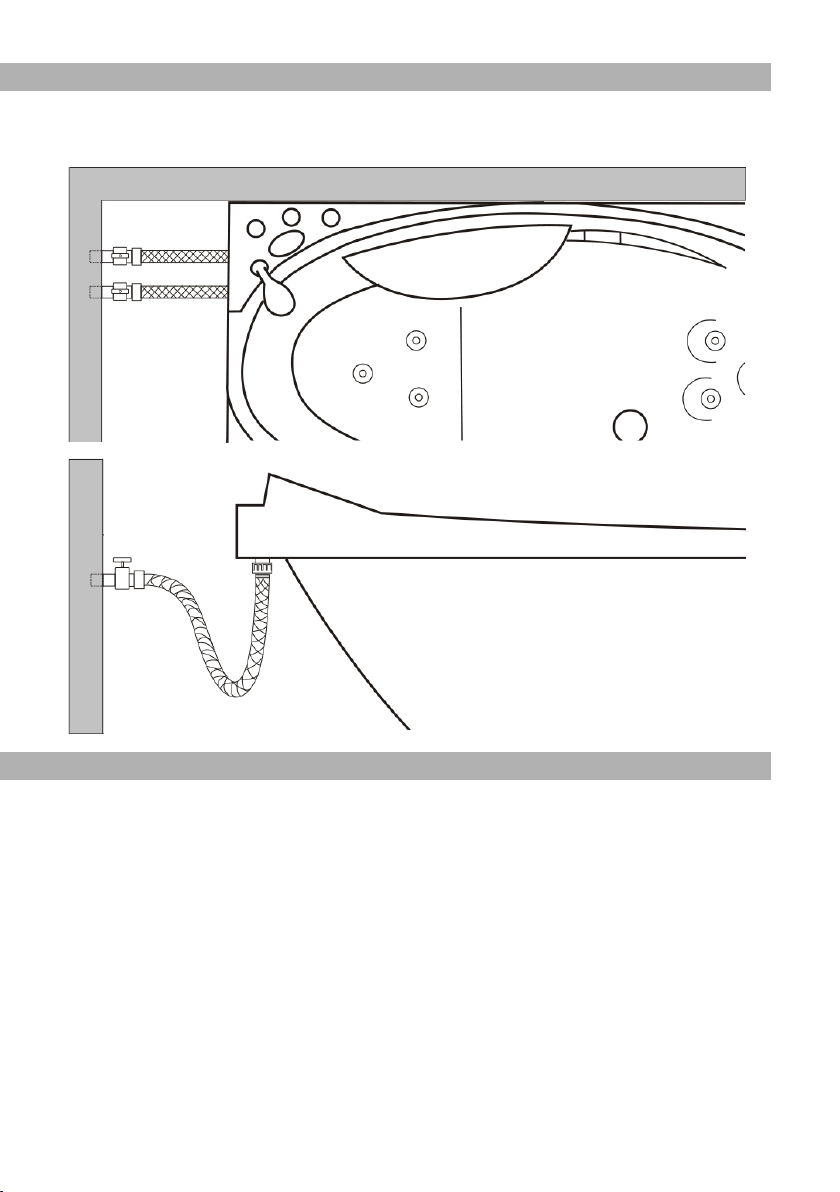

Connecting the cold and hot water
After the drain pipes have been installed, the water is now connected. The cold water con-
nection is on the right and the hot water connection is on the left.
Commissioning/leak test
For the leak test, please now connect the water and waste water with the hose connections.
It is important that the tub continues to stand away from the wall so that you can still operate
behind it. Before you put the pipe under water pressure, please note that it has only been
pre-assembled by the factory to make it easier for you to set it up. It is absolutely necessary
that you check all screw connections and tighten them if necessary. This applies to the
nozzles and the clamps. Only when all this has been checked may you open the water inlet.
Now test all functions that have to do with water, one after the other. Check the hand show-
er and the function of the tap. It is best to test this in pairs. One stands in front of or next
to the bath, the other stands behind the bath and looks at the hose connection and the func-
tion that is currently being tested. If a screw connection is not properly tight, check whether
the seal in the screw connection is properly seated and whether it is screwed tight enough.
After the leak test, the electrical functions can.
Wall
Wall
Tub
Cold water
Hot water
Wall
Tub

9

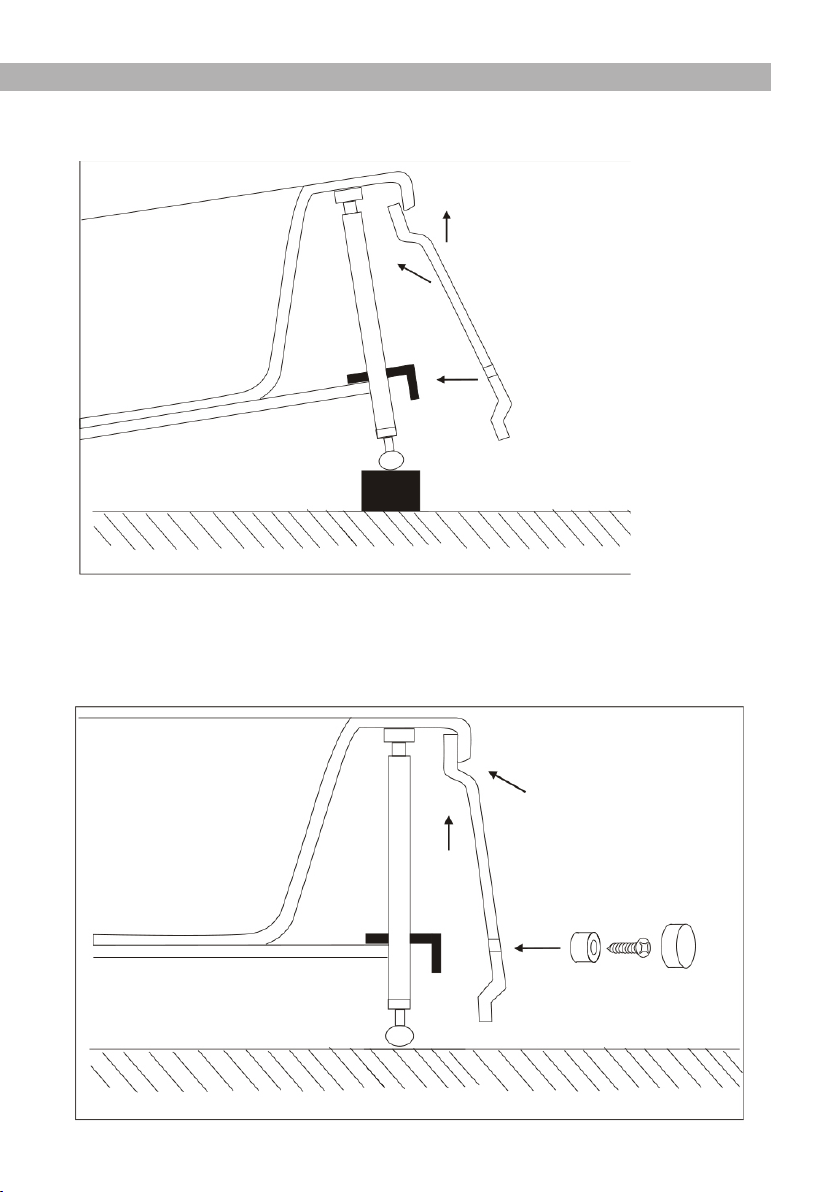

Facing the tub
When the tub is nished and professionally connected, the sides are faced.
To do this, simply tilt the tub slightly and raise it to click the side parts underneath. Now just
screw it in place and put the cover cap on the screw.

10
Sealing
You can now draw a silicone joint between the tub and the wall to seal it.

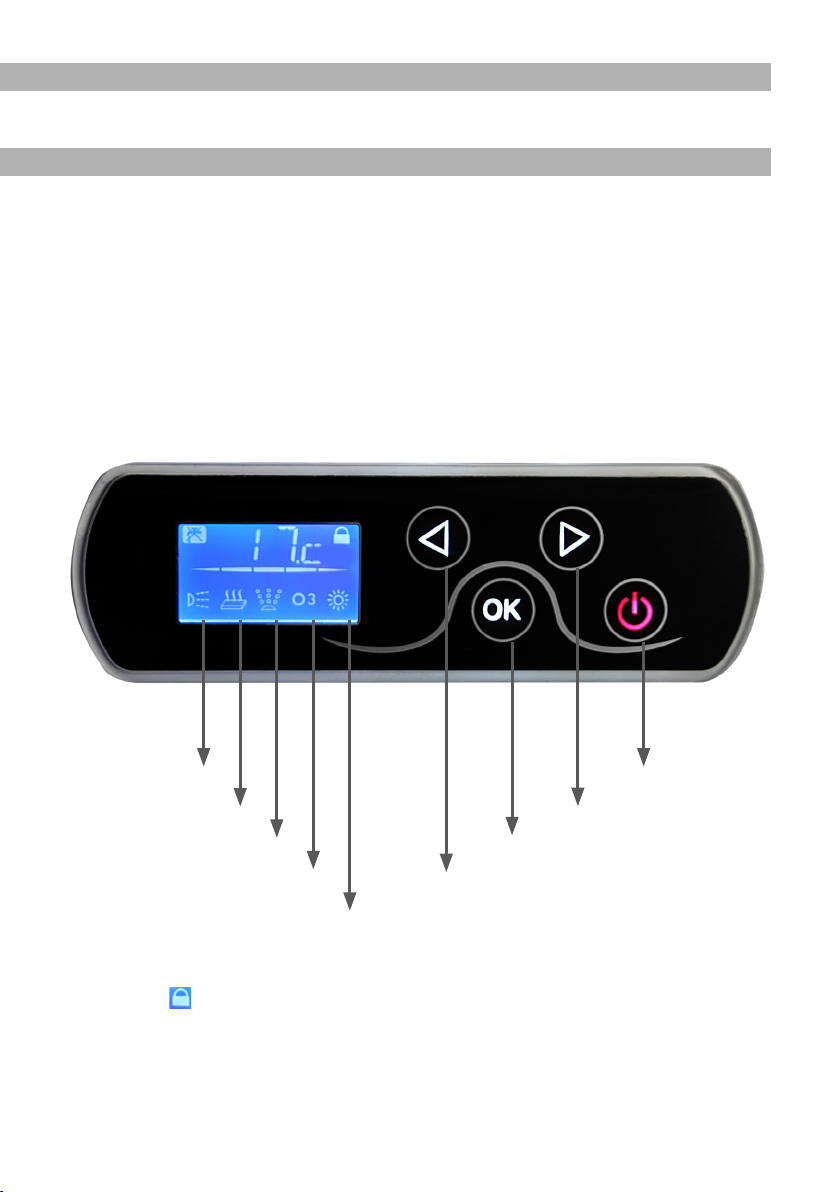

Pool control panel
To switch on the display, press and hold the On/O󰀨 button for 2-3 seconds.
In order to use the air and massage jets, it is necessary to ll the tub with water up to
approx. 5 cm above the upper massage jets. Then select the desired option by pressing the
selection function keys on the display and conrm by pressing OK.
Ozone cleaning is a disinfection of the pool and the hoses. You can activate this via the dis-
play after bathing. For this purpose, it is necessary that the water remains in the pool until
you nish the ozone cleaning. We recommend approx. 15 minutes.
* To set the temperature, press the OK button for 3 seconds and then select the desired
temperature using the arrow buttons.
The key lock switches on automatically after a while. The key lock must be released so
that the display can be operated again. To do this, press the OK button for approx. 3 sec-
onds.
Please note that these displays are installed in all W60 whirlpool tubs. Regardless of wheth-
er the equipment is with or without heating.
Massage-
Strength control On / O󰀨 switch press 3 sec
Heating*
Bubble massage
Ozone
Underwater light
Dial function button +/-
Conrmation key
Dial function button +/-

11
Pool maintenance and cleaning
1. Clean the pool with a mild liquid detergent and a soft cloth. Caution: Never use ace-
tone, cleaning agents containing ammonia or coarse-grained scouring agents!
2. Clear the pool drain regularly of hair and the like to prevent clogging.
3. Use an acrylic care product for the tub and the panel to protect the surface from
scratches.
4. Small scratches can be polished with toothpaste and a soft cloth, for example.
5. Before using the whirlpool system for the rst time, it should be rinsed through with
disinfectant. Afterwards, it is su󰀩cient to repeat the disinfection after approx. 5 baths.
Disinfection should also follow if the whirlpool system is not used for a longer period of
time.
Warranty and service
You receive a 2-year warranty for our products. A warranty period of 6 months applies to
wearing parts such as seals, hand showers and shower hoses. The costs for replacement
are not covered. Spare parts can be ordered from our customer service.
E-mail: [e-mail]
Online shop: www.seniorbad.de
Telephone: [phone] - 179 600
Fax: [phone] - 179 699
Defects that can be traced back to calciferous or iron-rich water are excluded from the
warranty. Please describe the spare part exactly and state the exact pool type (e.g. W60).
We are always open to your comments and suggestions.
Note
Each pool is assembled, connected, tested and repacked at the factory for testing purpos-
es. As our products are subjected to several checks during manufacture, small amounts of
residual water may be present in parts of the product.

12
Recycling
The disposal of the product‘s electronics is governed by the Waste Electrical and Electronic
Equipment Act. The „old device“ must then be taken to an appropriate collection point.
We recommend that you remove the control unit, the lighting unit and the display and take
these parts to the electrical/electronic collection point. The remaining large „residue“ can be
treated as usual (local variant - such as bulky waste collection ...).
