Sennheiser HMD 26 User manual

Instruction manual
HME 26
HMD 26
Broadcast
HMDC 26

1
Safety instructions
yPlease read these instructions carefully and completely
before using the headset.
yMake these instructions easily accessible to all users at
all times.
yAlways include these instructions when passing the
headset on to third parties.
yThe headset is capable of producing sound pressure
levels exceeding 85 dB(A). In many countries 85 dB(A)
is the maximum legally permissible level for
continuous noise exposure during the working day.
Exposure to sounds of higher volume levels or for
longer durations can permanently damage your
hearing!
yNever repair or attempt to repair a defective headset
yourself. Contact your Sennheiser agent or the
Sennheiser Service Department.
yOnly replace those parts of the headset whose
replacement is described in this manual. All other parts
of the headset must be replaced by your Sennheiser
agent.
yProtect the headset from wetness. Use only a slightly
damp cloth to clean the headset. For information on
how to clean the headset, contact your Sennheiser
agent.
Book_523984_1208_SP7.book Seite 1 Montag, 5. Januar 2009 10:09 10

2
Intended use of the headset
Intended use includes:
• having read this instruction manual especially the
chapter “Safety instructions”.
• using the headset within the operating conditions as
described in this instruction manual.
Improper use
Improper use means using the headset other than as
described in this instruction manual, or under operating
conditions which differ from those described herein.
Book_523984_1208_SP7.book Seite 2 Montag, 5. Januar 2009 10:09 10

3
HMD 26 / HME 26 / HMDC 26
The HMD 26/HMe 26/HMDC 26 headsets feature
dynamic, closed headphones. The noise-compensating
microphone of the HMD 26 and HMEC 26 ensures
excellent speech transmission even in noisy
environments. The headsets have been designed for
broadcast use, e.g. for outdoor broadcast or broadcast
van applications. The HMDC 26 features NoiseGard™
active noise compensation. The HME 26 is fitted with an
omni-directional condenser microphone and is ideally
suited for studio use.
Features
yLightweight
yExtremely comfortable to wear, even for extended
listening, due to the patented two-piece automatic
headband and soft ear pads
yActiveGard™ (switchable) safeguards you from
volume peaks above 105 dB
y“Flip-away” headphone allows single-sided listening
yDetailed, linear sound reproduction for demanding
applications
yFlexible microphone boom, can be worn on either left
or right-hand side
yNoise-compensating dynamic microphone ensures
excellent speech transmission (HMD/HMDC)
yOmni-directional condenser microphone with
extremely linear frequency response (HME)
ySingle-sided cable, easy to exchange
Book_523984_1208_SP7.book Seite 3 Montag, 5. Januar 2009 10:09 10

4
Delivery includes
y1 HMD 26 / HME 26 / HMDC 26 headset
y1 cable clip
y1 wind and pop screen
y1 instruction manual
Operation

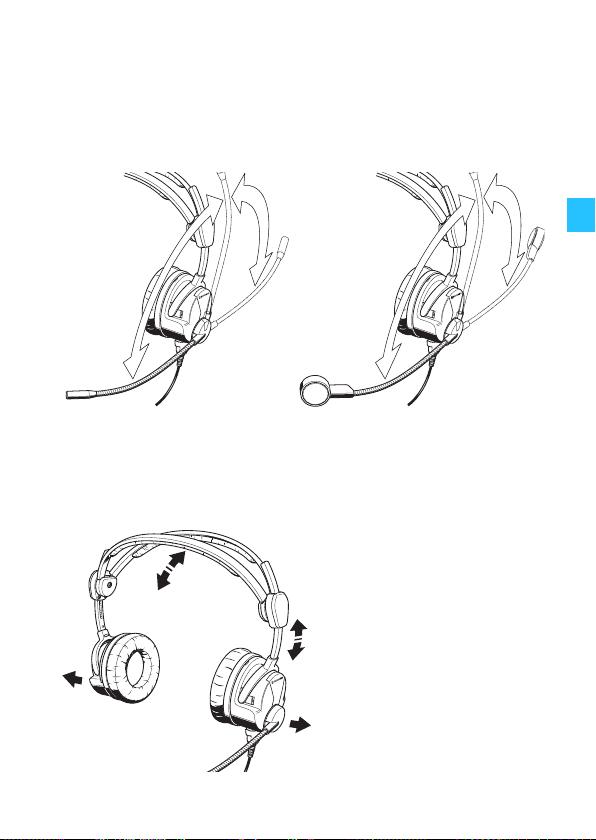

Turning the microphone boom
The microphone boom can be rotated by 180°. This allows
the headset to be worn with the microphone boom
positioned on either the left or right-hand side of the
head.
Book_523984_1208_SP7.book Seite 4 Montag, 5. Januar 2009 10:09 10

5
Switching the microphone transmission off
If, during turning, the microphone boom is in the middle
position (90°), the microphone transmission will be
switched off in order to prevent disturbing noise.
Putting on the headset
When putting on the headset, the patented two-piece
headband adjusts automatically.
Book_523984_1208_SP7.book Seite 5 Montag, 5. Januar 2009 10:09 10

6
Positioning the microphone
Bend the flexible microphone boom so that the micro-
phone is placed at the corner of the mouth. Maintain a
distance of approx. 2 cm between microphone and mouth.
Always use the supplied wind and pop screen.
Flipping away one earcup
The headset features a “flip-away” earcup for single-
sided listening.
Book_523984_1208_SP7.book Seite 6 Montag, 5. Januar 2009 10:09 10

7
Adjusting the volume directly on the audio system
Connect the headset to the corresponding sockets of your
audio system. Adjust the volume directly on the audio
system.
Switching ActiveGard™ on and off (HME/HMD)
ActiveGard™ safeguards your ears from volume peaks
above 105 dB, which can be transmitted via the audio
system or radio equipment. ActiveGard™ is factory-
preset to “on”. You can switch ActiveGard™ off by gently
sliding the switch to the upper position using a pointed
tool.
Hearing damage due to high volumes!
This headset is capable of producing high
sound pressure levels. Higher volumes or
longer durations can damage your hearing!
Set the volume to a medium level. Make sure
that you can hear critical environmental
sounds.
CAUTION!
Book_523984_1208_SP7.book Seite 7 Montag, 5. Januar 2009 10:09 10

8
Operating control for HMDC 26 in conjunction with
cable -B-6
Switching NoiseGard™ on/off
The NoiseGard™ ON/OFF switch 쐃allows you to switch
the NoiseGard™ active noise compensation on or off. With
NoiseGard™ switched off, the headset can be used as a
conventional headset.
Set the NoiseGard™ ON/OFF switch 쐃to the desired
position:
ON: NoiseGard™ is switched on. The LED 쐇lights up,
indicating the battery charge status (see page 9).
OFF: NoiseGard™ is switched off. The LED 쐇is off.
Operating control
쐃NoiseGard™ ON/OFF
switch
쐇LED


Book_523984_1208_SP7.book Seite 8 Montag, 5. Januar 2009 10:09 10

9
Powering NoiseGard™ via two (rechargeable) batteries
Insert two 1.5 V AA alkaline batteries (IEC LR 6) or two
1.2 V AA rechargeable batteries (IEC LR 6). Observe correct
polarity when inserting the batteries.
The operating time with batteries/rechargeable batteries
is approx. 100 hours.
With NoiseGard™ switched on (see page 8), the LED 쐇
provides information on the remaining battery/
rechargeable battery capacity.
LED 쐇lights up yellow: The battery capacity is
sufficient.
LED 쐇lights up red: The batteries are flat.
Replace the batteries.
Book_523984_1208_SP7.book Seite 9 Montag, 5. Januar 2009 10:09 10

10
Care and maintenance
Cleaning the headset
Use a soft, slightly damp cloth to clean the headset from
time to time. If the headset is very dirty, use a cloth
dampened with mild, soapy water. Do not use any
solvents or cleansing agents.

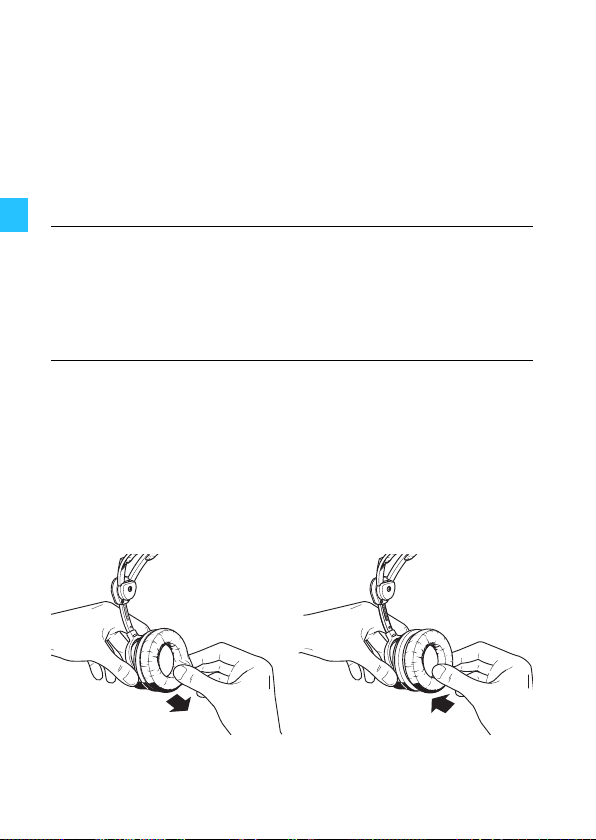

Replacing the earpads
For reasons of hygiene, the earpads should be replaced
from time to time. Grasp the edge of the earpad and pull
sharply. Attach the new earpad to the earcup by pressing
firmly around the earpad until you hear all 12 latches lock
into place. Repeat for the other earcup.
Danger of short-circuit due to the ingress of
water!
Water entering the housing of the headset
can cause a short-circuit and damage the
electronics.
CAUTION!
Book_523984_1208_SP7.book Seite 10 Montag, 5. Januar 2009 10:09 10

11
Accessories and spare parts
By changing the cable, you can simply retrofit your
headset (see “Product variants” on page 13).
yCable -6 Cat. No. 500836
yCable -7 Cat. No. 502360
yCable -B-6 (HMDC) Cat. No. 502470
yCable -H-6 Cat. No. 502533
yCable -X4F Cat. No. 502461
yCable -X5 Cat. No. 502462
yCable -X3K1 Cat. No. 502459
yCable -X3K1-P48 (HME) Cat. No. 502460
yCable -H-X4F Cat. No. 502457
yCable -H-X5 Cat. No. 502458
yCable -H-X3K1 Cat. No. 502456
yHeadband padding, 1 pair Cat. No. 515629
yEarpads, leatherette, 1 pair Cat. No. 529766
yEarpads, leatherette, 100 pairs Cat. No. 529767
yEarpads, velour, 1 pair Cat. No. 532724
yHygiene pads HZH 26, 200 pairs Cat. No. 502595
yCarry bag Cat. No. 077408
yWind screen for MD 424, 1 item Cat. No. 532732
yWind screen for MD 424, Cat. No. 530811
any quantity
yWind screen for MKE 4-2, 1 item Cat. No. 532733
yWind screen for MKE 4-2, Cat. No. 524577
any quantity
Book_523984_1208_SP7.book Seite 11 Montag, 5. Januar 2009 10:09 10

12
yCable clip MZQ 2002 Cat. No. 044740
yCable clip HZC 08 Cat. No. 525787
Cable clips
HZC 08 MZQ 2002
(for round or flat cable)
(for round cable only)
Book_523984_1208_SP7.book Seite 12 Montag, 5. Januar 2009 10:09 10

13
Product variants
Variant
(Cat. No.)
(Part Number)
Description Cable, length 2 m
HMD 26-600*
(502463)
(026-EA)
600 Ωper system,
dynamic microphone –
HMD 26-600-X3K1
(502466)
(026-EA-999-0E36)
600 Ωper system,
dynamic microphone Steel wire cable with XLR-3 connector and
¼“ (6.3 mm) jack plug
HMD 26-600-7
(502464)
(026-EA-999-0C32)
600 Ωper system,
dynamic microphone Steel wire cable with open ends
HMD 26-600S*
(502465)
(026-FA)
600 Ω, single-sided,
dynamic microphone –
HMD 26-100*
(502451)
(026-AA)
100 Ωper system,
dynamic microphone –
HMD 26-100-7
(502452)
(026-AA-999-0C32)
100 Ωper system,
dynamic microphone Steel wire cable with open ends
HMDC 26-600*
(502453)
(026-DA)
NoiseGard™,
600 Ωper system,
dynamic microphone
–
HME 26-100*
(502454)
(026-B5)
100 Ωper system,
condenser microphone –
HME 26-100-7
(502455)
(026-B5-999-0C32)
100 Ωper system,
condenser microphone Steel wire cable with open ends
HME 26-600*
(502467)
(026-G5)
600 Ωper system,
condenser microphone –
HME 26-600-7
(502468)
(026-G5-999-0C32)
600 Ωper system,
condenser microphone Steel wire cable with open ends
HME 26-600S*
(502469)
(026-H5)
600 Ω, single-sided,
condenser microphone –
* The headsets can be combined with all cables (see page 11).
Book_523984_1208_SP7.book Seite 13 Montag, 5. Januar 2009 10:09 10

14
Cable and connector assignment
Headset connector
Cable -6 (HMD/HME)
Cable -7 (steel wire cable, HMD/HME)
Lato
saldato
white Audio Hi left
orange Audio Hi right
brown Audio Lo left
green Audio Lo right
yellow not assigned
red Microphone Hi
blue Microphone Lo
Screen Screen
white
orange
brown
green
yellow
red
blue
Screen
Audio Hi left
Audio Hi right
Audio Lo left
not assigned
Microphone Hi
Microphone Lo
Screen
Audio Lo right
yellow
red
gray
blue
red
blue
Screen
Audio Hi left
Audio Hi right
Audio Lo left
Microphone Hi
Microphone Lo
Screen
Audio Lo right
Book_523984_1208_SP7.book Seite 14 Montag, 5. Januar 2009 10:09 10

15

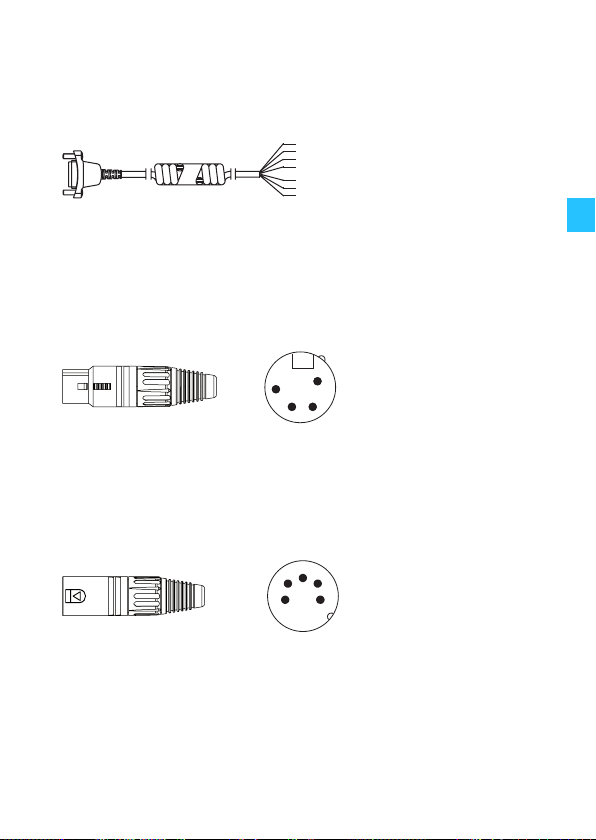

Cable -H-6 (HMD/HME)
Cable -X4F/cable -H-X4F (HMD/HME)
Cable -X5/cable -H-X5 (HMD/HME)
white
orange
brown
green
red
blue
Screen
Audio Hi left
Audio Hi right
Audio Lo left
Microphone Hi
Microphone Lo
Screen
Audio Lo right
Solder side
1
2
3
Microphone Lo
Microphone Hi
Audio Lo
4Audio Hi
1
23
4
1
2
3
Microphone Lo
Microphone Hi
Audio Lo
4
4
5
5Audio Hi left
Audio Hi right
Solder side
1
23
Book_523984_1208_SP7.book Seite 15 Montag, 5. Januar 2009 10:09 10

16

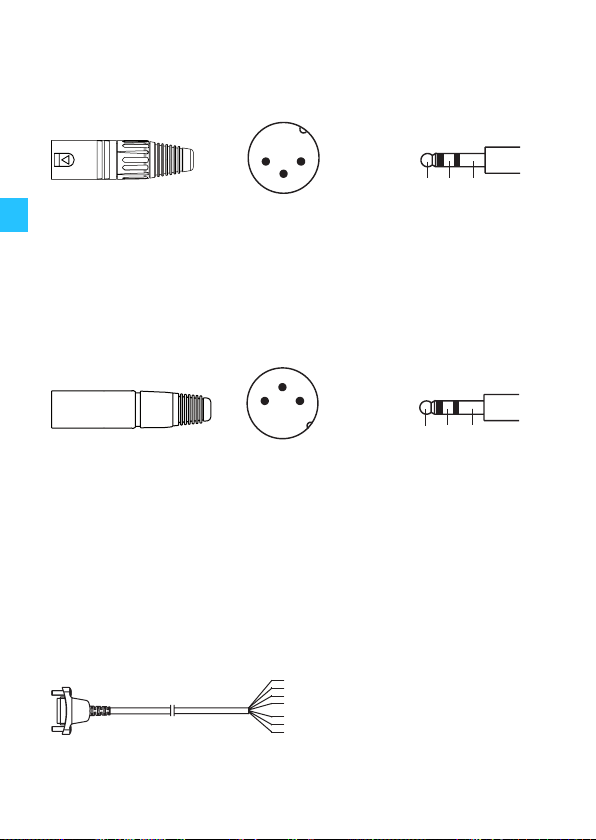

Cable -X3K1/cable - H-X3K1 (HMD/HME)
Cable -X3K1-P48 (HME*)
*Together with the cable -X3K1-P48, the HME 26 is designed for P48
phantom powering as per DIN 45596.
Cable -B-6 (HMDC)
¼" (6.3 mm)
jack plug
1
2
3
Audio Hi left
Audio Hi right
Audio Lo
12 3
XLR-3 connector
1
Solder sideSolder side
2
3
Screen
Microphone Hi
Microphone Lo
2
13
¼" (6.3 mm)
jack plug
12 3
XLR-3 connector
2
1
3
1
2
3
Audio Hi left
Audio Hi right
Audio Lo
1
Solder sideSolder side
2
3
Ground/screen
Microphone Hi/48 VDC
Microphone Lo/48 VDC
yellow
red
gray
blue
red
blue
Screen
Audio Hi left
Audio Hi right
Audio Lo left
Microphone Hi
Microphone Lo
Screen
Audio Lo right
Book_523984_1208_SP7.book Seite 16 Montag, 5. Januar 2009 10:09 10

17
Specifications HMD 26-600/-100
Headphones
Transducer principle dynamic, closed
Ear coupling supra-aural
Frequency response 20–18,000 Hz
Impedance
HMD 26-600 300 Ω mono/600 Ωstereo
HMD 26-600S 600 Ω mono
HMD 26-100 50 Ω mono/100 Ωstereo
Characteristic SPL 105 dB SPL at 1 kHz, 1 mW
HMD 26-600/-600S 107 dB SPL at 1 kHz, 1 V
HMD 26-100 115 dB SPL at 1 kHz, 1 V
(ActiveGard switched off)
Max. SPL 105 dB SPL at 1 kHz
(ActiveGard switched on)
HMD 26-600/-600S 127 dB SPL at 1 kHz, 200 mW
HMD 26-100 128 dB SPL at 1 kHz, 200 mW
(ActiveGard switched off)
THD < 0.5 % at 1 kHz
Contact pressure approx. 3.6 N
Microphone
Type MD 424
Transducer principle dynamic,
noise-compensating
Frequency response 40–16,000 Hz
Output voltage 0.3 mV/Pa at 1 kHz
Impedance 300 Ω
General data
Temperature range operation: –15 °C to 55 °C
storage: –55 °C to 70 °C
Weight without cable
HMD 26-600/-100 approx. 200 g
HMD 26-600S approx. 130 g
Book_523984_1208_SP7.book Seite 17 Montag, 5. Januar 2009 10:09 10

18
Specifications HME 26-600/-100
Headphones
Transducer principle dynamic, closed
Ear coupling supra-aural
Frequency response 20–18,000 Hz
Impedance
HME 26-600 300 Ω mono/600 Ωstereo
HME 26-600S 600 Ω mono
HME 26-100 50 Ω mono/100 Ωstereo
Characteristic SPL 105 dB SPL at 1 kHz, 1 mW
HME 26-600/-600S 107 dB SPL at 1 kHz, 1 V
HME 26-100 115 dB SPL at 1 kHz, 1 V
(ActiveGard switched off)
Max. SPL 105 dB SPL at 1 kHz
(ActiveGard switched on)
HME 26-600/-600S 127 dB SPL at 1 kHz, 200 mW
HME 26-100 128 dB SPL at 1 kHz, 200 mW
(ActiveGard switched off)
THD < 0.5 % at 1 kHz
Contact pressure approx. 3.6 N
Microphone
Type MD 424
Transducer principle pre-polarized condenser
microphone, omni-directional
Frequency response 40–16,000 Hz
Output voltage 4 mV/Pa ±2.5 dB
Terminating impedance min. 4.7 kΩ
Supply voltage 5–15 V DC
General data
Temperature range operation: –15 °C to 55 °C
storage: –55 °C to 70 °C
Weight without cable
HMD 26-600/-100 approx. 200 g
HMD 26-600S approx. 130 g
Book_523984_1208_SP7.book Seite 18 Montag, 5. Januar 2009 10:09 10

19
Manufacturer Declarations
Warranty
Sennheiser electronic GmbH & Co. KG gives a warranty of 2 years
on this product.
For the current warranty conditions, please visit our web site at
www.sennheiser.com or contact your Sennheiser partner.
CE Declaration of Conformity
This equipment is in compliance with the essential
requirements and other relevant provisions of Directive
2004/108/EU.
The declaration is available at www.sennheiser.com.
Before putting the device into operation, please observe the
respective country-specific regulations!
Book_523984_1208_SP7.book Seite 19 Montag, 5. Januar 2009 10:09 10
