Sennheiser HMD 46 User manual

HME 46
Air Traffic Control
Instructions for use
HMD 46

1
Safety instructions
yPlease read these instructions carefully and
completely before using the headset.
yMake these instructions easily accessible to all users
at all times.
yAlways include these instructions when passing the
headset on to third parties.
yThe headset is capable of producing sound pressure
levels exceeding 85 dB(A). Inmany countries 85 dB(A)
is the maximum legally permissible level for
continuous noise exposure during the working day.
Exposure to sounds of higher volume levels or for
longer durations can permanently damage your
hearing!
yNever repair or attempt to repair a defective headset
yourself. Contact your Sennheiser agent or the
Sennheiser Service Department.
yOnly replace those parts of the headset whose
replacement is described in this manual. All other
parts of the headset must be replaced by your
Sennheiser agent.
yProtect the headset from humidity. Use only a slightly
damp cloth to clean the headset. For information on
how to clean the headset, contact your Sennheiser
agent.

2
Intended use of the headset
Intended use includes:
• having read these instructions especially the chapter
“Safety instructions”.
• use of the headset within the operating conditions as
described in these instructions.
Improper use
Improper use means use of the headset other than as de-
scribed in these instructions or use under operating con-
ditions different from those described in these instruc-
tions.

3
HMD 46 / HME 46
The HMD 46 / HME 46 headset features dynamic, open
headphones. The noise-compensating microphone
ensures excellent speech transmission even in noisy
environments. Designed for air traffic control, intercom
systems and other communication purposes.
Features
yExtremely lightweight
yExtremely comfortable to wear due to the patented
two-piece automatic headband and soft ear pads
yActiveGard™ safeguards you from the effects of an
acoustic burst (except HMD 46-31 and HME 46-31)
y“Flip-away” headphone allows single-sided listening
yFlexible microphone boom, can be worn on either left
or right-hand side
yNoise-compensating microphone ensures excellent
speech transmission
ySingle-sided cable, easy to exchange
yPTT button integrated in the cable (see “Product vari-
ants” on page 10)

4
Delivery includes
yHMD 46 / HME 46 headset
yCable clip
yWind and pop screen
yInstructions for use
Operation

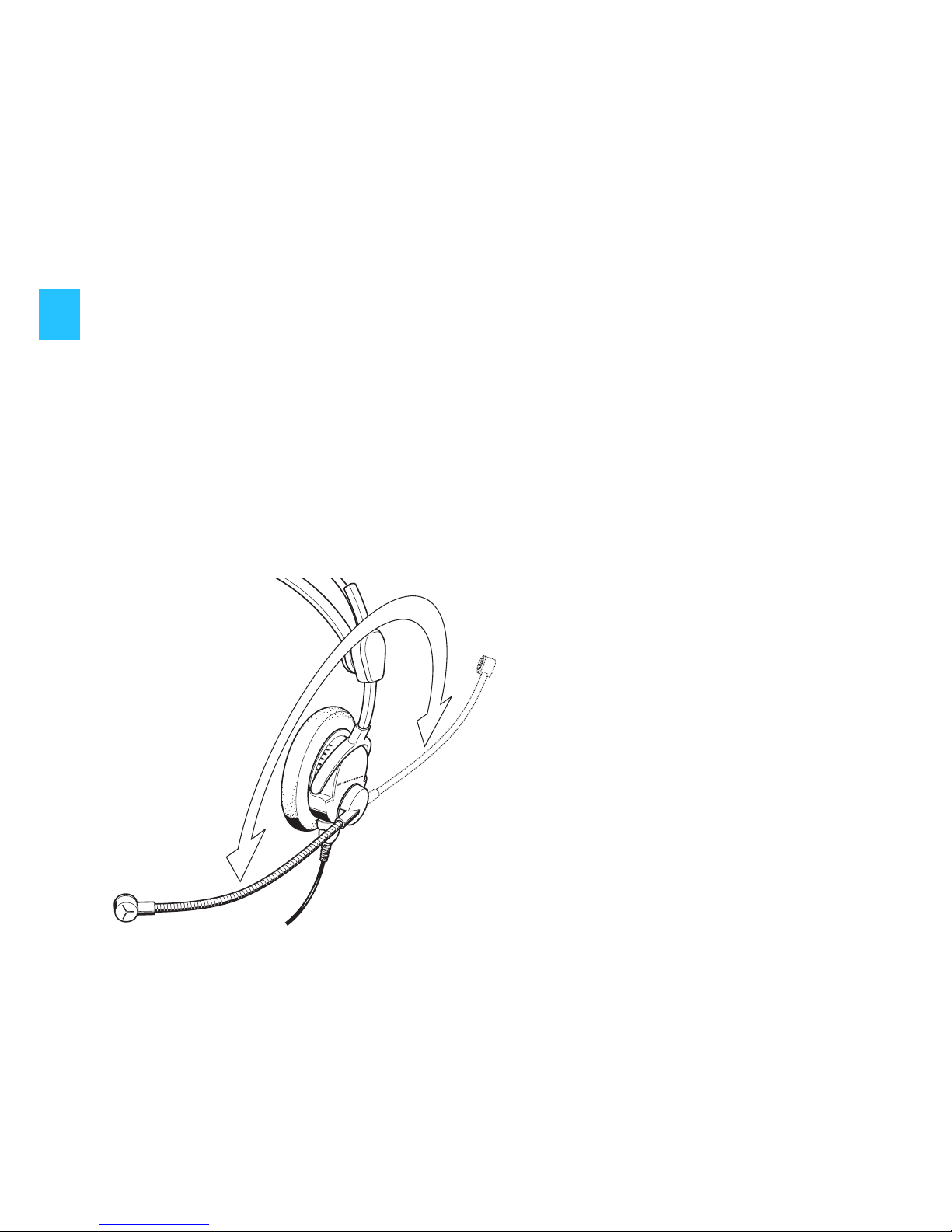

Turning the microphone boom
The microphone boom can be rotated. This allows the
headset to beworn with themicrophone boom positioned
on either the left or right-hand side of the head.

5

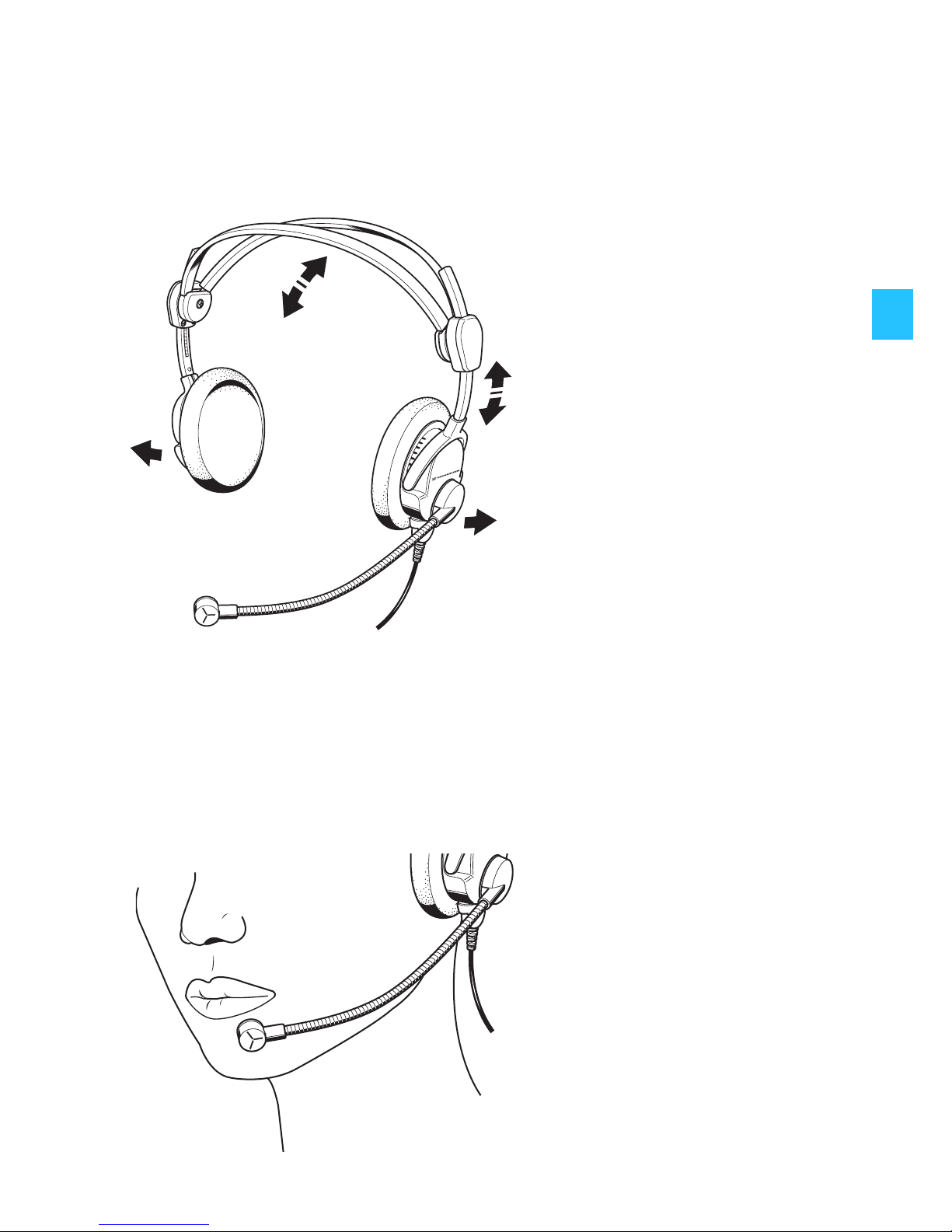

Putting on the headset
When putting on the headset, the patented two-piece
headband adjusts automatically.
Positioning the microphone
Bend the flexible microphone boom so that the micro-
phone is placed at the corner of the mouth. Maintain a
distance of approx. 2 cm between microphone and mouth.

6

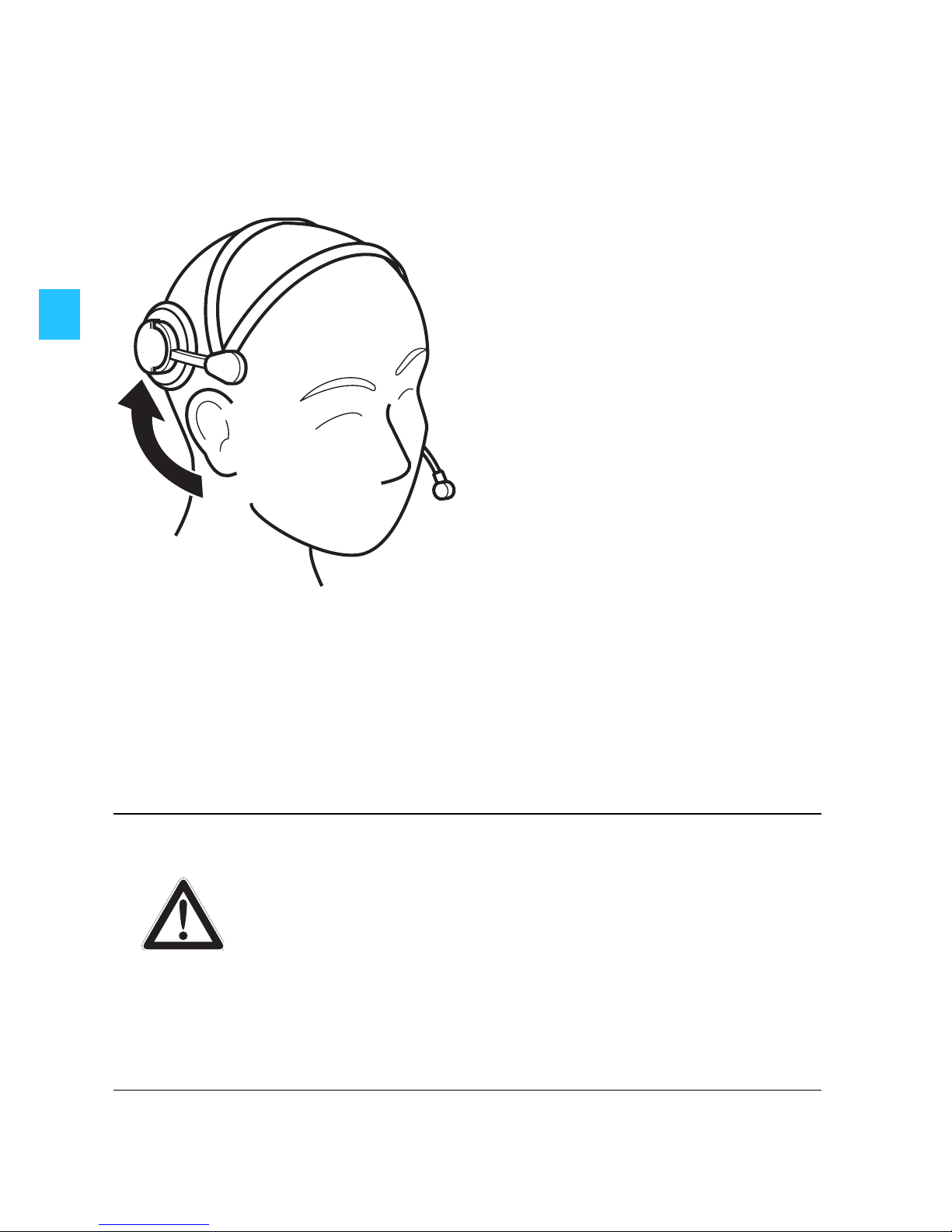

Flipping away one earcup
The headset features a “flip-away” earcup for single-
sided listening.
Adjusting the volume directly on the audio system
Connect the headset to the correspondingsockets of your
audio system. Adjust the volume directly on the audio
system.
Hearing damage due to high volumes!
This headset is capable of producing high
sound pressure levels. Higher volumes or
longer durations can damage your hearing!
Set the volume to a medium level. Make sure
that you can hear critical sounds such as
warning alarms.
CAUTION!

7

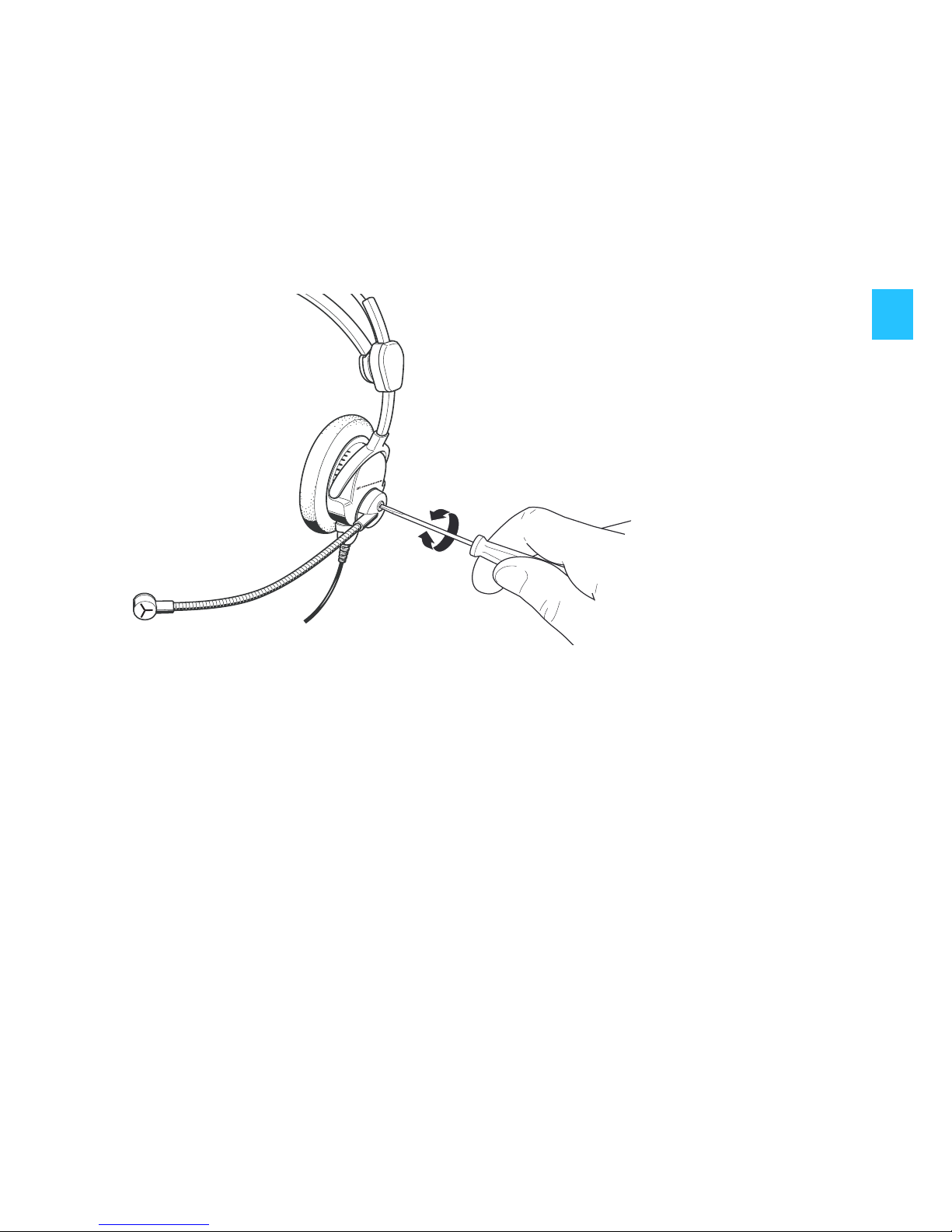

Adjusting the microphone sensitivity
The microphone sensitivity has been factory pre-set to
80 mV/Pa as per RTCA DO-214. You can change the
microphone sensitivity by turning a small screwdriver in
the direction of the arrow.
+
–

8
Care and maintenance
Cleaning the headset
Use a soft, slightly damp cloth to clean the headset from
time to time. If the headset is very dirty, use a cloth
dampened with mild, soapy water.

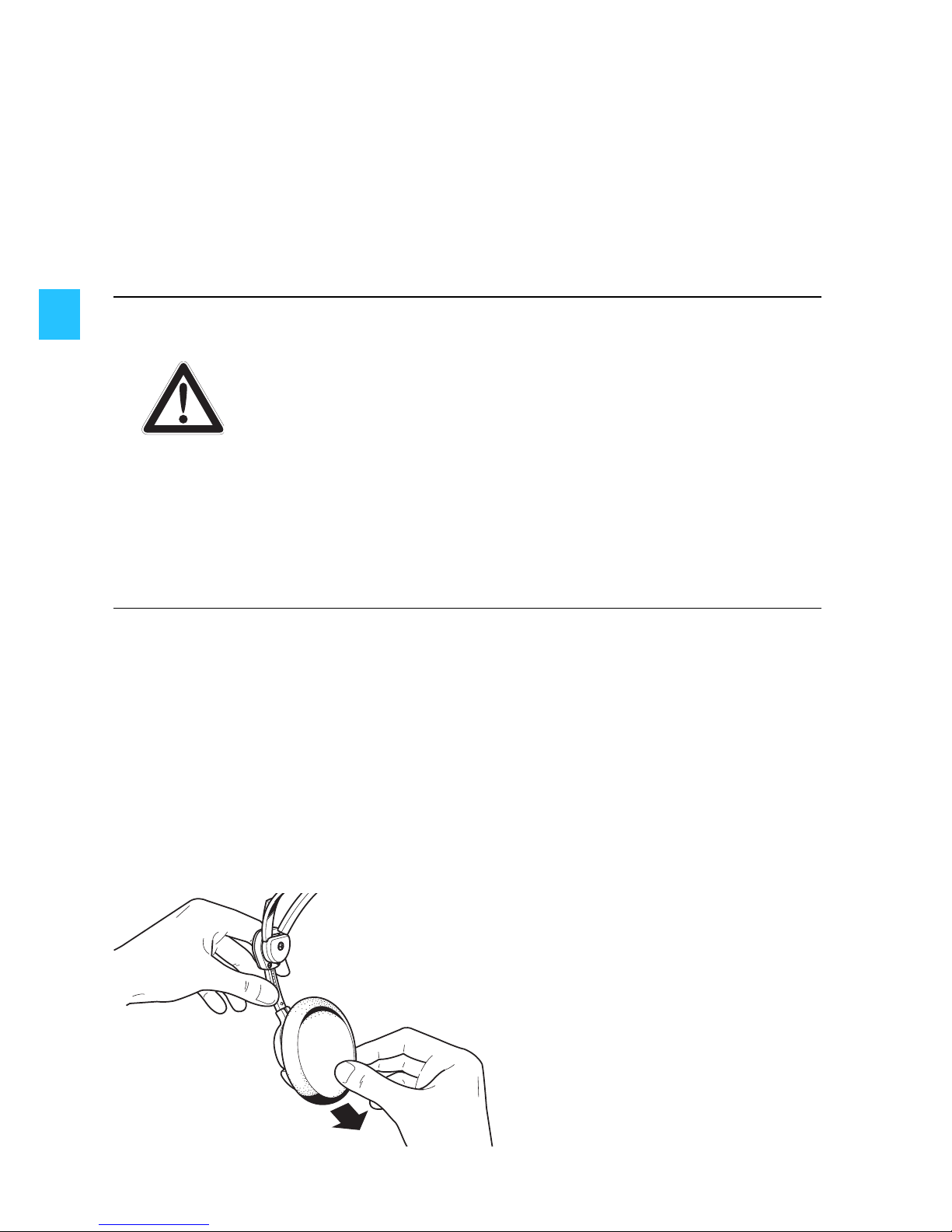

Replacing the earpads
For reasons of hygiene, the black earpads should be
replaced from time to time. Grasp the edge of the foam
earpad behind the earcup as shown and peel it up and
away from the earcup. Slide the new earpad onto the
earcup. Repeat for the other earcup.
Danger of short-circuit due to the ingress of
water!
Water entering the housing of the headset
can cause a short-circuit and damage the
electronics.
Use only a slightly damp cloth to clean the
headset. Do not use any solvents or cleansing
agents.
CAUTION!

9
Accessories and spare parts
By changing the cable, you can simply retrofit your head-
set (see “Product variants” on page 10).
yCable -6 Cat. No. 500836
yCable -7 Cat. No. 502360
yCable -L Cat. No. 502365
yCable -PTT-6 Cat. No. 500844
yCable -PTT-6-1 Cat. No. 502418
yCable -PTT-L Cat. No. 500845
yCable -PTT-LA Cat. No. 502187
yCable D-3PTT-M Cat. No. 500930
yCable E-3PTT-M Cat. No. 500931
yMZQ 2002 cable clip Cat. No. 044740
yHZC 08 cable clip Cat. No. 525787
yEarpads (1 pair) Cat. No. 515295
yEarpads (100 pairs) Cat. No. 515296
yHZH 46 hygiene pads (200 pairs) Cat. No. 502194
yWind and pop screen (1 item) Cat. No. 515297
yWind and pop screen
(any number of items) Cat. No. 514127
yHeadband padding (1 pair) Cat. No. 515629

10
Product variants
Variant
(Cat. No.) Microphone type Single-sided round cable
HMD 46-3
(500849) Dynamic mic –
HMD 46-31
(502483) Dynamic mic –
HMD 46-3-6
(500466) Dynamic mic with open ends,
length 1.85 m
HMD 46-3PTT-M
(500873) Dynamic mic with PTT button and
mini DIN plug,
length 1.85 m
HME 46-3
(500857) Condenser mic –
HME 46-31
(502484) Condenser mic –
HME 46-3-6
(500467) Condenser mic with open ends,
length 1.85 m
HME 46-3PTT-M
(500874) Condenser mic with PTT button and
mini DIN plug,
length 1.85 m
HME 46-3PTT-6
(500468) Condenser mic with PTT button and
open ends,
length 1.85 m
HME 46-3PTT-L
(500469) Condenser mic with LEMO connector
FFP.3S.310.CLA.252A,
length 1.85 m
HME 46-3PTT-LA
(502172) Condenser mic with LEMO connector
FHG.2B.310.CLAD52Z,
length 1.85 m
HME 46-ATC
(500851) Condenser mic with LEMO connector
FFP.3S.310.CLA.252A,
length 2 m

11

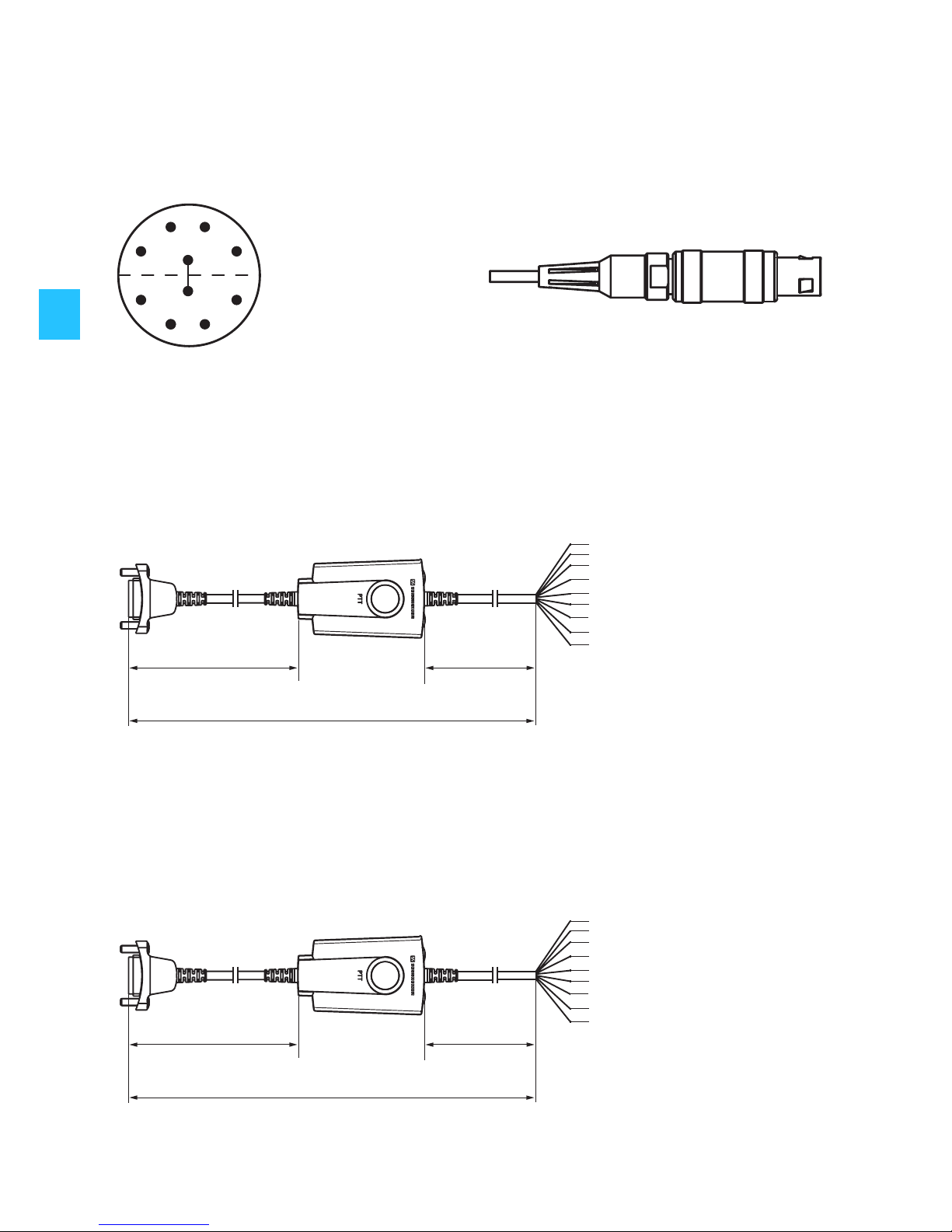

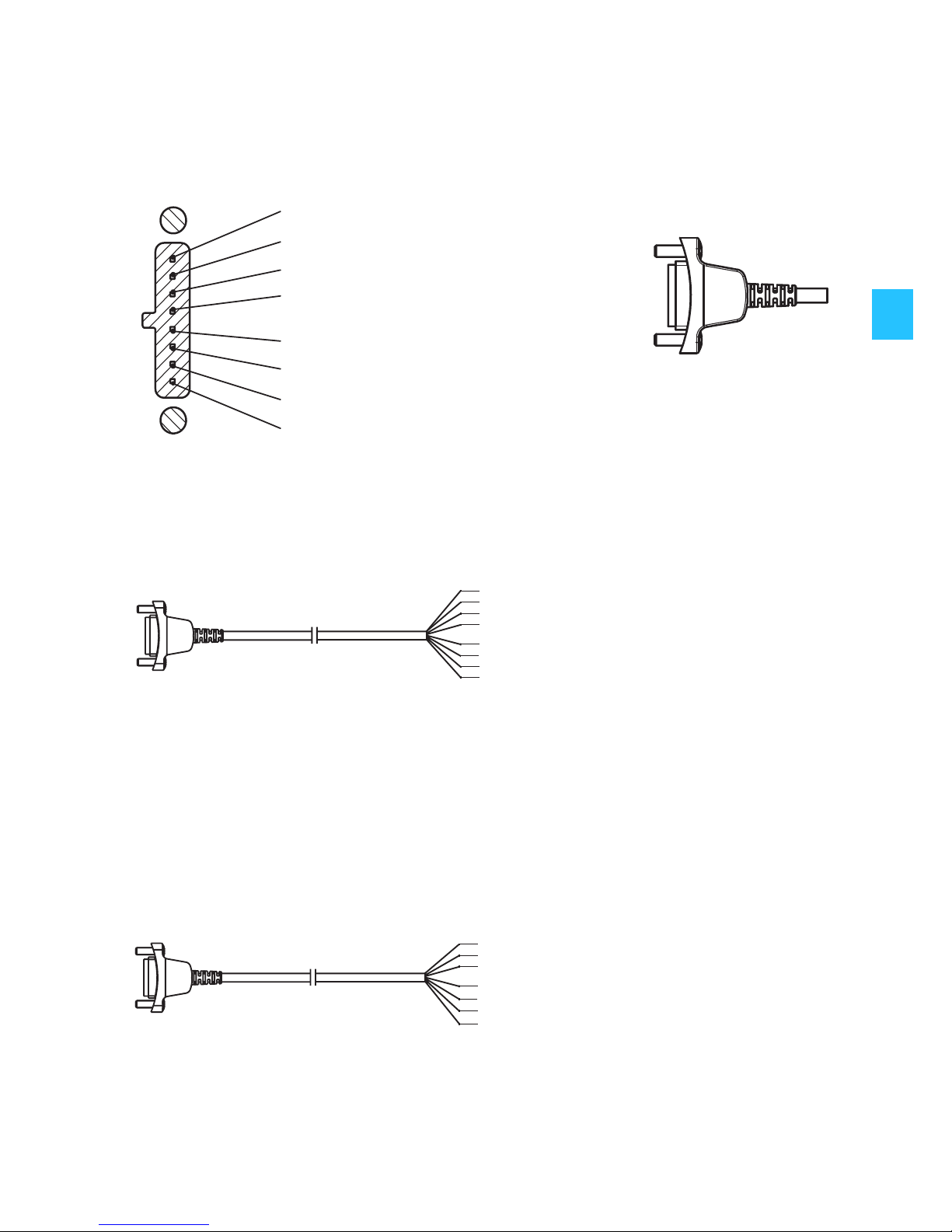

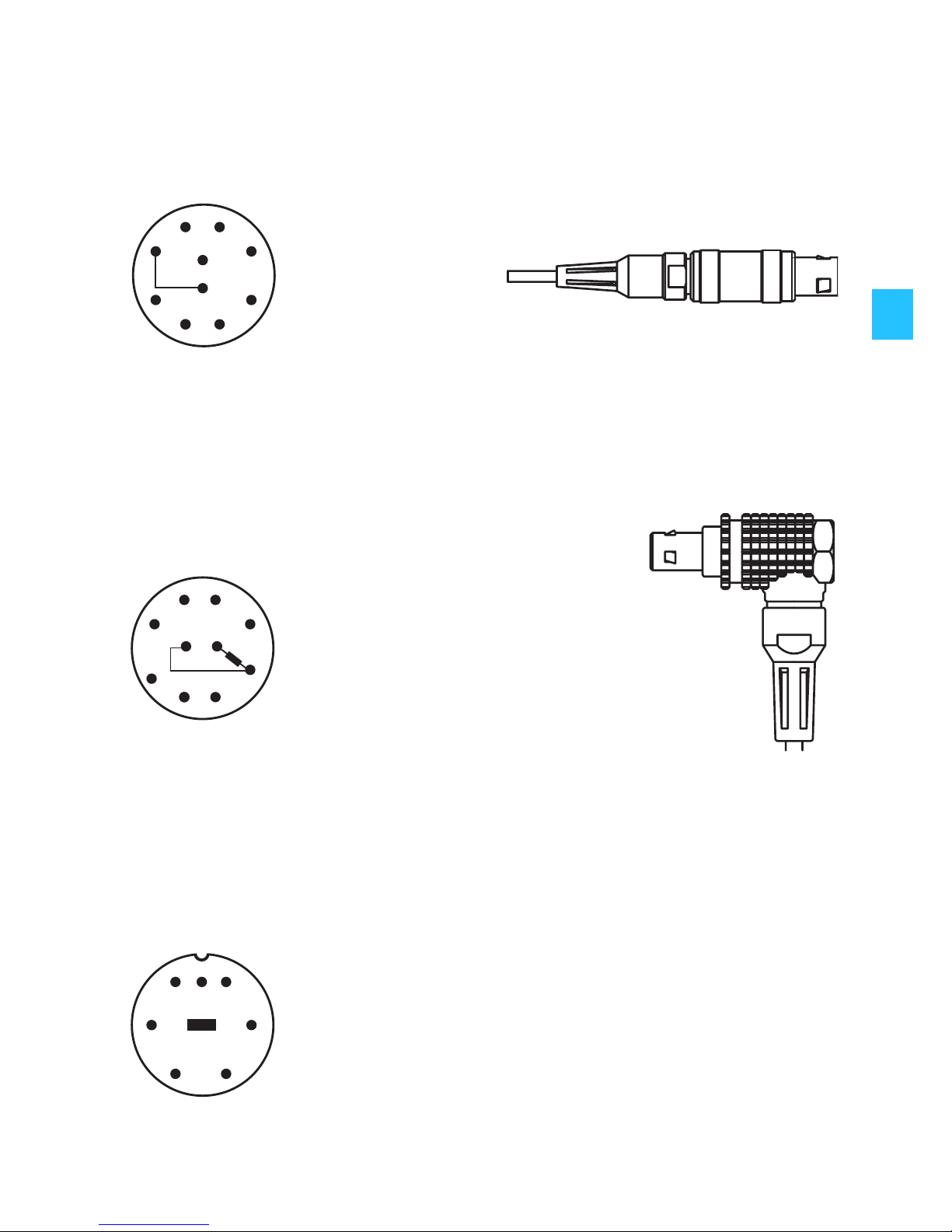

Cable and connector assignment
Headset connector
Cable -6
Cable -7 (steel wire cable)
Designed for 2-connector variants
Steel wire cable,
length 1.85 m
Lato
saldato
white Audio Hi left
orange Audio Hi right
brown Audio Lo left
green Audio Lo right
yellow not assigned
red Microphone Hi
blue Microphone Lo
Screen Screen
white Audio Hi left
orange Audio Hi right
brown Audio Lo left
green Audio Lo right
yellow not assigned
red Microphone Hi
blue Microphone Lo
Screen Screen
red Microphone Hi
blue Microphone Lo
Screen Screen
yellow Audio Hi left
gray Audio Lo left
red Audio Hi right
blue Audio Lo right

12
Cable -L
Cable -PTT-6
Cable -PTT-6-1
149 8
510
67
2
3
Solder side 1 Audio Hi right
2 Audio Lo right
3 not assigned
4 Screen
5 Audio Hi left
6 Audio Lo left
7 Microphone Hi
8 Microphone Lo
9 Bridge to pin 10
10 Bridge to pin 9
approx. 0.3 mapprox. 1.5 m
approx. 1.85 m
white
orange
brown
green
yellow
black
red
blue
Screen
Audio Hi left
Audio Hi right
Audio Lo left
Audio Lo right
PTT
PTT
Microphone Hi
Microphone Lo
Screen
approx. 1.0 mapprox. 0.8 m
approx. 1.85 m
white
orange
brown
green
yellow
black
red
blue
Screen
Audio Hi left
Audio Hi right
Audio Lo left
Audio Lo right
PTT
PTT
Microphone Hi
Microphone Lo
Screen

13
HME 46-3PTT-L
HME 46-3PTT-LA
HMD 46-3PTT-M and HME 46-3PTT-M
149 8
510
67
2
3
Solder side 1 Audio Hi left
2 Audio Lo left
3 PTT
4 PTT (bridge to pin 10)
5 Audio Lo right
6 Audio Hi right
7 Microphone Hi
8 Microphone Lo
9 Screen
10 PTT (bridge to pin 4)
58 9
4
1
10
23
6
7
Solder side 1 Audio Hi right
2 Audio Lo right
3 PTT
4 PTT / screen / bridge to pin 9
5 Audio Hi left
6 Audio Lo left
7 Microphone Hi
8 Microphone Lo
9 Bridge to pin 4 / PTT / screen
10 75-Ωresistor between pin 4 and pin 10 / screen
54
7
21
68
3
Solder side
1 Audio Hi
2 Audio Lo
3 Dynamic microphone Hi (HMD)
4 not assigned
5 Pre-polarized microphone Hi (HME)
6 PTT
7 PTT / screen
8 Microphone Lo

14
Specifications HMD 46-3
Headphones
Transducer principle dynamic, open
Ear coupling supra-aural
Frequency response 20–14,000 Hz
Impedance 300 Ωper system
Characteristic SPL 95 dB SPL at 1 kHz, 1 mW, mono
83 dB SPL at 1 kHz, 1 V
THD < 1 % at 95 dB SPL
(350–3,000 Hz)
Contact pressure approx. 3 N
Microphone
Type MD 46-413
Transducer principle dynamic, noise-compensating
Frequency response 100–12,000 Hz
Output voltage 0.5 mV/Pa
Impedance 200 Ω
General data
Temperature range Operation: –15 °C to 55 °C
Storage: –55 °C to 70 °C
Weight without cable 150 g

15
Specifications HME 46-3
Headphones
Transducer principle dynamic, open
Ear coupling supra-aural
Frequency response 20–14,000 Hz
Impedance 300 Ωper system
Characteristic SPL 95 dB SPL at 1 kHz, 1 mW, mono
83 dB SPL at 1 kHz, 1 V
THD < 1 % at 95 dB SPL
(350–3,000 Hz)
Contact pressure approx. 3 N
Microphone
Type MKE 46
Transducer principle pre-polarized condenser
microphone,
noise-compensating
Frequency response 100–15,000 Hz
Output voltage adjustable from 17–100 mV/Pa,
(HME 46-3, -3-6, 80 mV/Pa (factory pre-set)
-3PTT-M, -3PTT-6, -3PTT-L) 400 mV at 114 dB SPL
Output voltage adjustable from 17–215 mV/Pa,
(HME 46-3PTT-LA, -ATC) 152 mV/Pa (factory pre-set)
1520 mV at 114 dB SPL
Terminating impedance 150–2,200 Ω
Supply voltage 8–16 V DC
General data
Temperature range Operation: –15 °C to 55 °C
Storage: –55 °C to 70 °C
Weight without cable 150 g

16
Specifications HMD 46-31
Headphones
Transducer principle dynamic, open
Ear coupling supra-aural
Frequency response 20–14,000 Hz
Impedance 300 Ωper system
Characteristic SPL 103 dB SPL at 1 kHz, 1 mW, mono
83 dB SPL at 1 kHz, 1 V
THD < 1 % at 95 dB SPL
(350–3,000 Hz)
Contact pressure approx. 3 N
Microphone
Type MD 46-413
Transducer principle dynamic, noise-compensating
Frequency response 100–12,000 Hz
Output voltage 0.5 mV/Pa
Impedance 200 Ω
General data
Temperature range Operation: –15 °C to 55 °C
Storage: –55 °C to 70 °C
Gewicht ohne Kabel 150 g

17
Specifications HME 46-31
Headphones
Transducer principle dynamic, open
Ear coupling supra-aural
Frequency response 20–14,000 Hz
Impedance 300 Ωper system
Characteristic SPL 103 dB SPL at 1 kHz, 1 mW, mono
83 dB SPL at 1 kHz, 1 V
THD < 1 % at 110 dB SPL
(350–3,000 Hz)
Contact pressure approx. 3 N
Microphone
Type MKE 46
Transducer principle pre-polarized condenser
microphone,
noise-compensating
Frequency response 100–15,000 Hz
Output voltage adjustable from 17–100 mV/Pa,
80 mV/Pa (factory pre-set)
400 mV at 114 dB SPL
Terminating impedance 150–2,200 Ω
Supply voltage 8–16 V DC
General data
Temperature range Operation: –15 °C to 55 °C
Storage: –55 °C to 70 °C
Weight without cable 150 g

18
Manufacturer Declarations
Warranty regulations
The guarantee period for this Sennheiser product is 24 months from the
date of purchase. Excluded are accessory items, rechargeable or
disposable batteries that are delivered with the product; due to their
characteristics these products have a shorter service life that is
principally dependent on the individual frequency of use.
The guarantee period starts from the date of original purchase. For this
reason, we recommend that the sales receipt be retained as proof of
purchase. Without this proof (which is checked by the responsible
Sennheiser service partner) you will not be reimbursed for any repairs
that are carried out.
Depending on our choice, guarantee service comprises, free of charge,
the removal of material and manufacturing defects through repair or
replacement of either individual parts or the entire device.
Inappropriate usage (e.g. operating faults, mechanical damages,
incorrect operating voltage), wear and tear, force majeure and defects
which were known at the time of purchase are excluded from guarantee
claims. The guarantee is void if the product is manipulated by non-
authorised persons or repair stations.
In the case of a claim under the terms of this guarantee, sendthe device,
including accessories and sales receipt, to the responsible service
partner. To minimise the risk of transport damage, we recommend that
the original packaging is used. Your legal rights against the seller,
resulting from the contract of sale, are not affected by this guarantee.
The guarantee can be claimed in all countries outside the U.S. provided
that no national law limits our terms of guarantee.
CE Declaration of Conformity
This equipment is in compliance with the essential require-
ments and other relevant provisions of Directive 89/336/EU.
The declaration is available on the internet site at
www.sennheiser.com.
Before putting the device into operation, please observe the respective
country-specific regulations!
