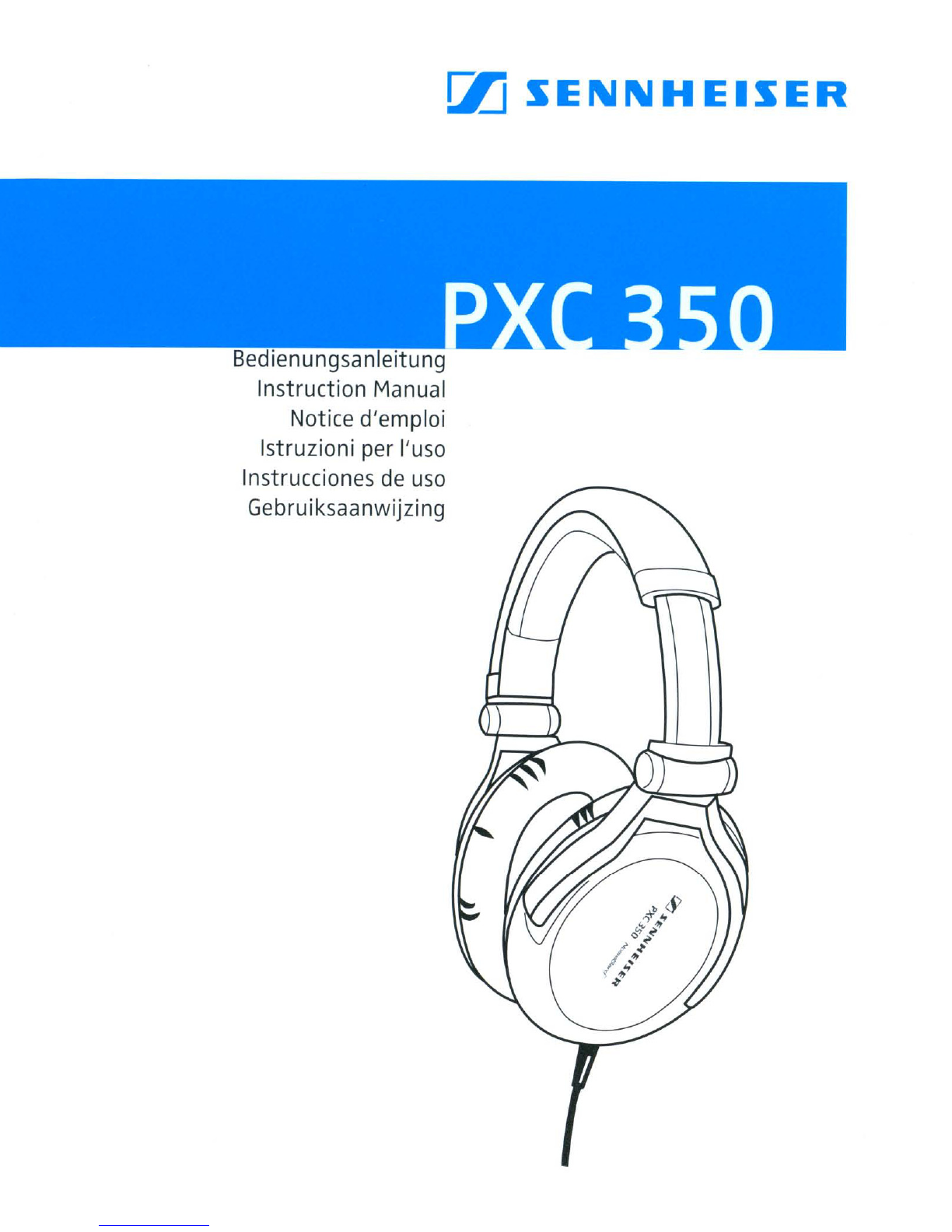

Sennheiser PXC 350 User manual

[Zj SENNHEISER
Bedienungsanleitung
Instruction Manual
Notice d'emploi
Istruzioni per I'uso
Instrucciones de uso
Gebruiksaanwijzing

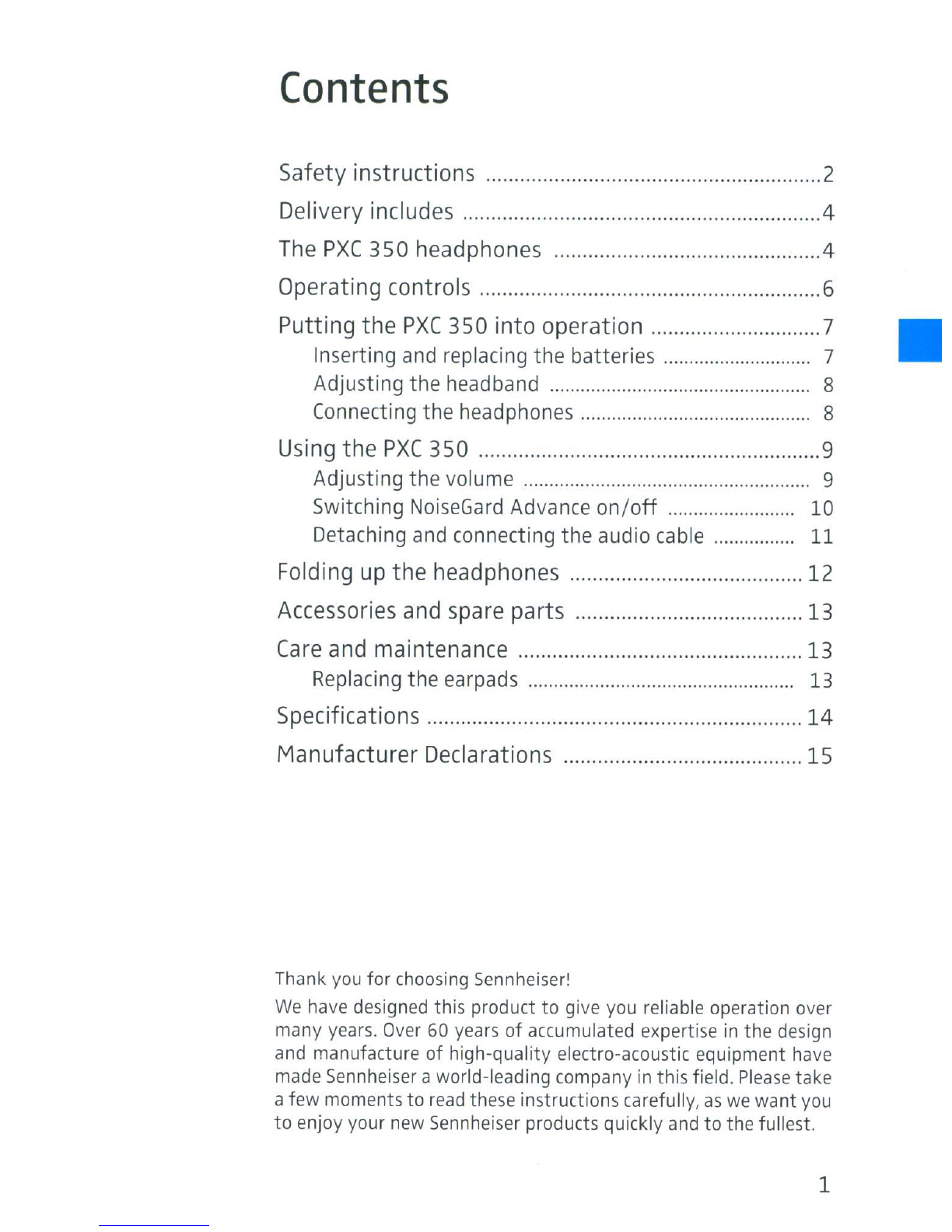

Contents
Safety instructions 2
Delivery includes 4
The PXC 350 headphones .4
Operating controls 6
Putting the
PXC 350 into operation 7
Inserting and replacing the batteries 7
Adjusting
the headband 8
Connecting
the headphones 8
Using the PXC 350 9
Adjusting the volume 9
Switching NoiseGard Advance
on/off 10
Detaching and connecting
the audio cable 11
Folding up the headphones 12
Accessories and spare parts 13
Care and maintenance 13
Replacing the earpads 13
S'f' . peci Icatlons 14
Manufacturer Declarations 15
Thank you for choosing Sennheiser!
We have designed this product to give you reliable operation over
many years. Over 60 years of accumulated expertise in the design
and manufacture
of high-quality electro-acoustic equipment have
made Sennheiser aworld-leading company in
this field. Please take
a few moments to read these instructions carefully, as we want you
to enjoy your new Sennheiser products quickly and to the fullest.
1

•
2

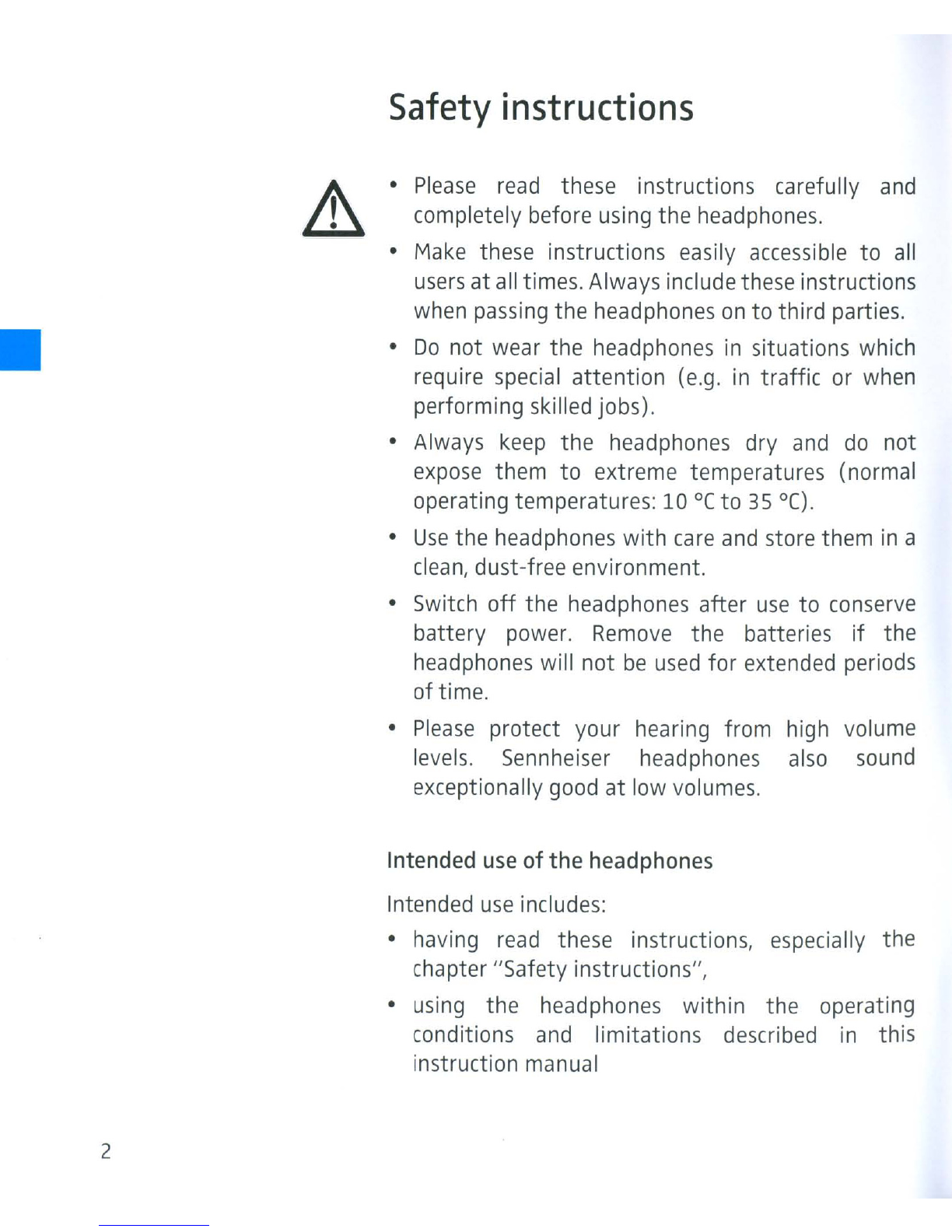

Safety instructions
• Please read these instructions carefully and
completely before using
the headphones.
•Make these instructions easily accessible
to all
users
at all times. Always include these instructions
when passing
the headphones on to third parties.
•
Do not wear the headphones in situations which
require special
attention (e.g. in traffic or when
performing skilled jobs).
•Always keep
the headphones dry and do not
expose them to extreme temperatures (normal
operating temperatures:
10 O( to 35 O().
• Use the headphones with care and store them in a
clean, dust-free environment.
•Switch
off the headphones after use to conserve
battery power. Remove the batteries if the
headphones will
not be used for extended periods
of time.
•
Please protect your hearing from high volume
levels. Sennheiser headphones also sound
exceptionally good
at low volumes.
Intended use
of the headphones
Intended
use includes:
•having read these instructions, especially
the
chapter "Safety instructions",
•using
the headphones within the operating
conditions and
limitations described in this
instruction manual

Improper use
"Improper use" means using the headphones other than as described in these
instructions,
or under operating conditions which differfrom those described herein.
Safety instructions
for batteries/rechargeable batteries
Dispose of exhausted batteries/
rechargeable batteries at
special
collection points or return them to
your specialist dealer.
Switch
off battery-powered/
rechargeable battery-powered
devices
when not in use.
Remove batteries/rechargeable
batteries
when the device is not used
for extended periods oftime.
Only charge rechargeable batteries
with the appropriate Sennheiser
chargers.
After extended periods of non-use,
charge rechargeable batteries before
using them.
Only charge rechargeable batteries at
ambient temperatures between 10°C
and 40 0c.
•
II
&
I
~ Do not solder.
~ Do not mutilate or
~ dismantle.
@
Do not. pack charged
. 6~ .' batteries loose -danger of
.shorting out -fire hazard.
IGi\ Do not get flat and fully
\!II charged batteries/
rechargeable batteries
mixed
up.
~ Do not attempt to
"y recharge non-rechargeable
batteries.
If
abused or misused, batteries/rechargeable batteries may leak and, in extreme
cases, may even present an explosion and fire hazard. Sennheiser does not accept
any liability for damage arising from abuse or misuse.
@
+KeePbatteriesoutofreachlmmediatelyremove flat batteries/
iollJ and out of sight of rechargeable batteries from the
children.
device.
I<:l\ Do not heat or throw into /? Observe correct polarity.
'eVfire. [U'
@ Do not short-circuit. It
3

I
4
Delivery includes
Delivery of the PXC 350 headphones includes:
1
PXC 350 headphones
1
soft case
1audio adapter (1/4" (6.3 mm) stereo jack)
1
in-flight adapter (2 x3.5 mm mono jack)
2AAA size batteries
Instructions
for use
The PXC 350 headphones
The PXC 350 are closed, dynamic, circumaural stereo
headphones
with NoiseGard Advance active noise
compensation technology, designed
for use with e.g.
in-flight entertainment systems. Passive and active
noise reduction enable you
to enjoy music even in
noisy environments.

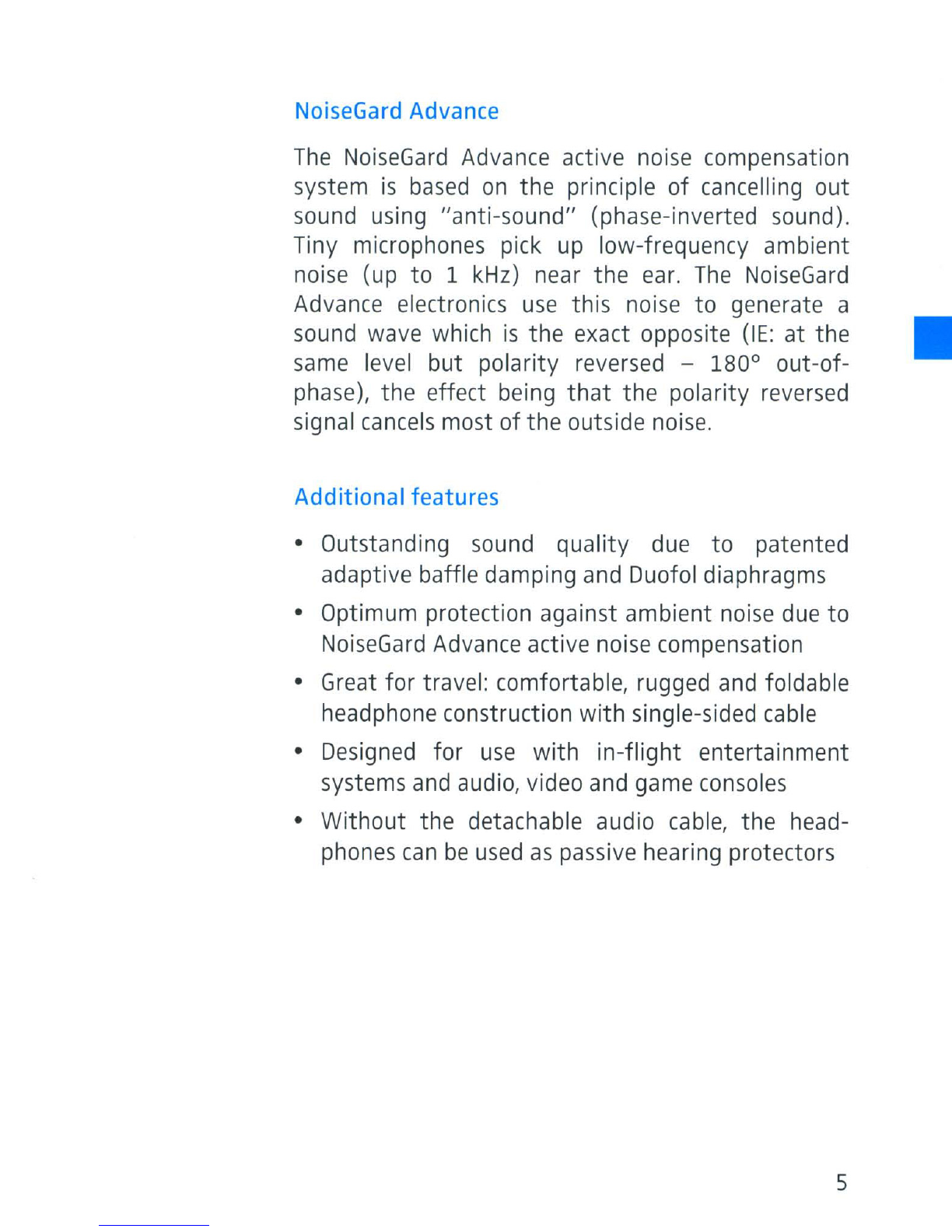

NoiseGard Advance
The NoiseGard Advance active noise compensation
system
is based on the principle of cancelling out
sound using "anti-sound" (phase-inverted sound).
Tiny microphones pick up low-frequency
ambient
noise (up to 1kHz) near the ear. The NoiseGard
Advance electronics use
this noise to generate a
sound wave which
is the exact opposite (IE: at the •
same level
but polarity reversed - 180
0
out-of-
phase), the effect being that the polarity reversed
signal cancels most
of the outside noise.
Additional features
•Outstanding sound quality due to patented
adaptive baffle damping and Duofol diaphragms
•Optimum protection against
ambient noise due to
NoiseGard Advance active noise compensation
•Great
for travel: comfortable, rugged and foldable
headphone construction
with single-sided cable
•Designed
for use with in-flight entertainment
systems and audio, video and game consoles
•
Without the detachable audio cable, the head-
phones
can be used as passive hearing protectors
5

•

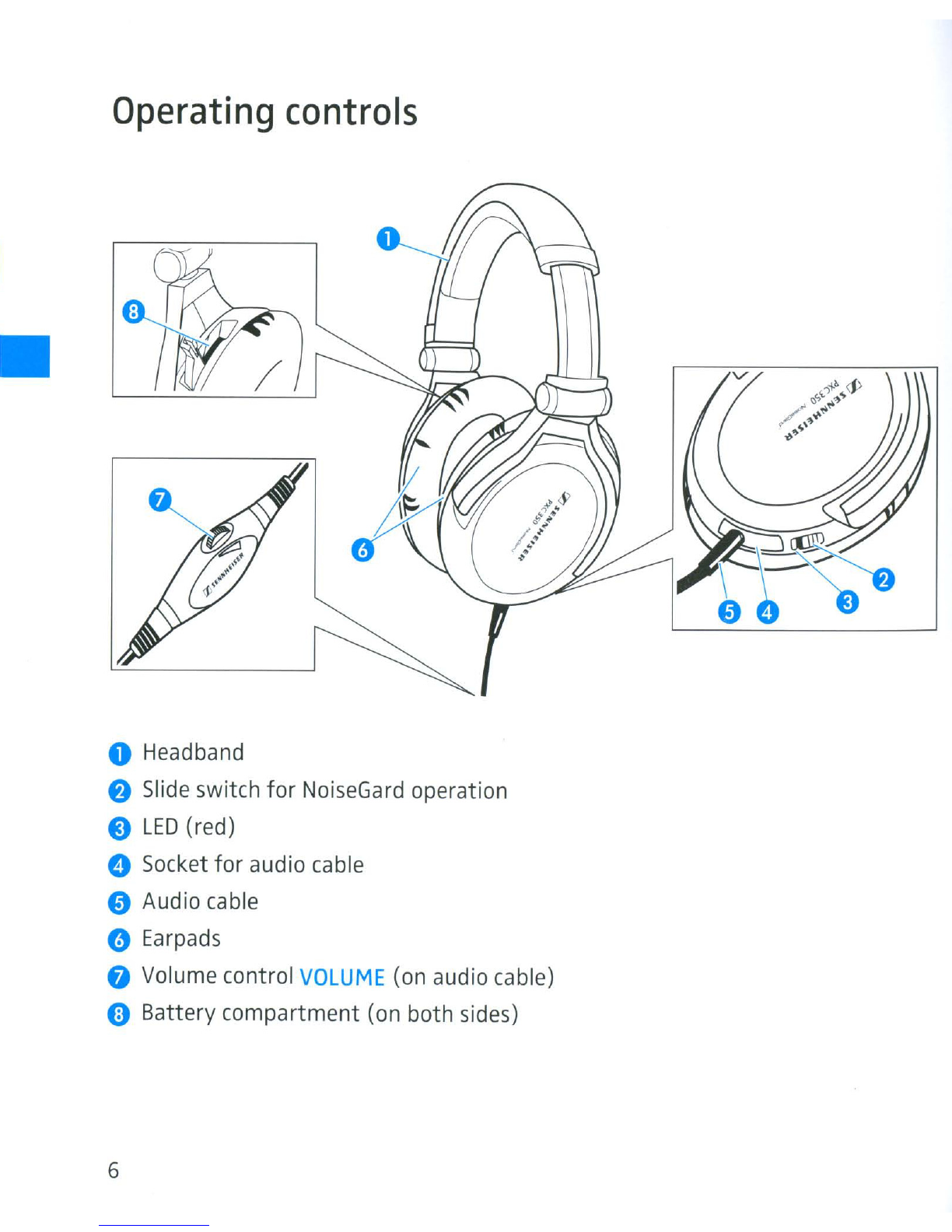

Operating controls
oHeadband
f) Slide switch for NoiseGard operation
e LED (red)
oSocket for audio cable
oAudio cable
o Earpads
oVolume control VOLUME (on audio cable)
eBattery compartment (on both sides)
6

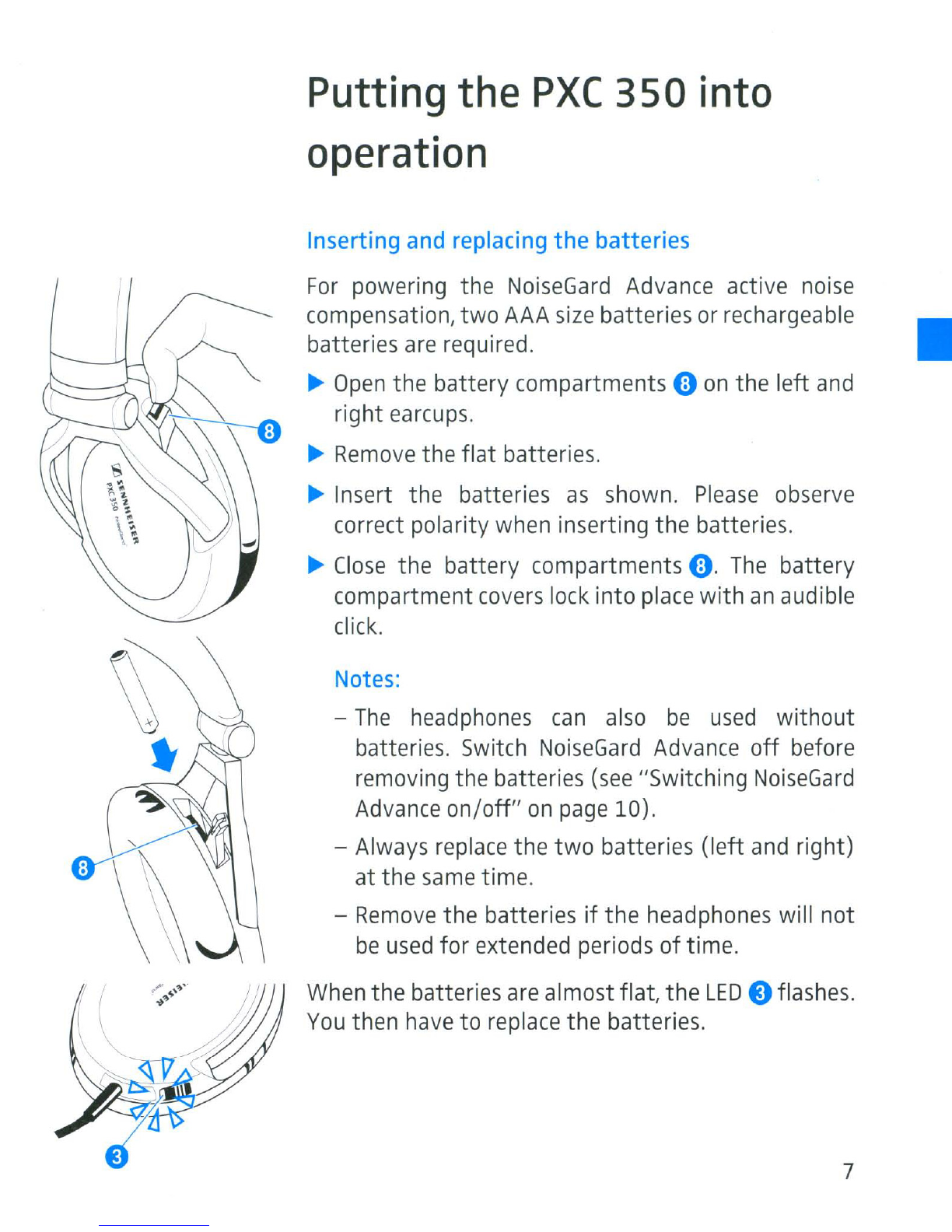

Putting the PXC 350 into
operation
Inserting and replacing the batteries
For powering the NoiseGard Advance active noise
compensation, two AAA size batteries or rechargeable •
batteries
are required.
~ Open the battery compartments (i) on the left and
right earcups.
~ Remove the flat batteries.
~ Insert the batteries as shown. Please observe
correct polarity when inserting the batteries.
~ Close the battery compartments (i). The battery
compartment
covers lock into place with an audible
click.
Notes:
-
The headphones can also be used without
batteries.
Switch NoiseGard Advance off before
removing the batteries
(see "Switching NoiseGard
Advance on/off" on page 10).
-Always
replace the two batteries (left and right)
at the
same time.
-
Remove the batteries if the headphones will not
be used for extended periods of time.
When the batteries are almost flat the LED eflashes.
You then have to replace the batteries.
7

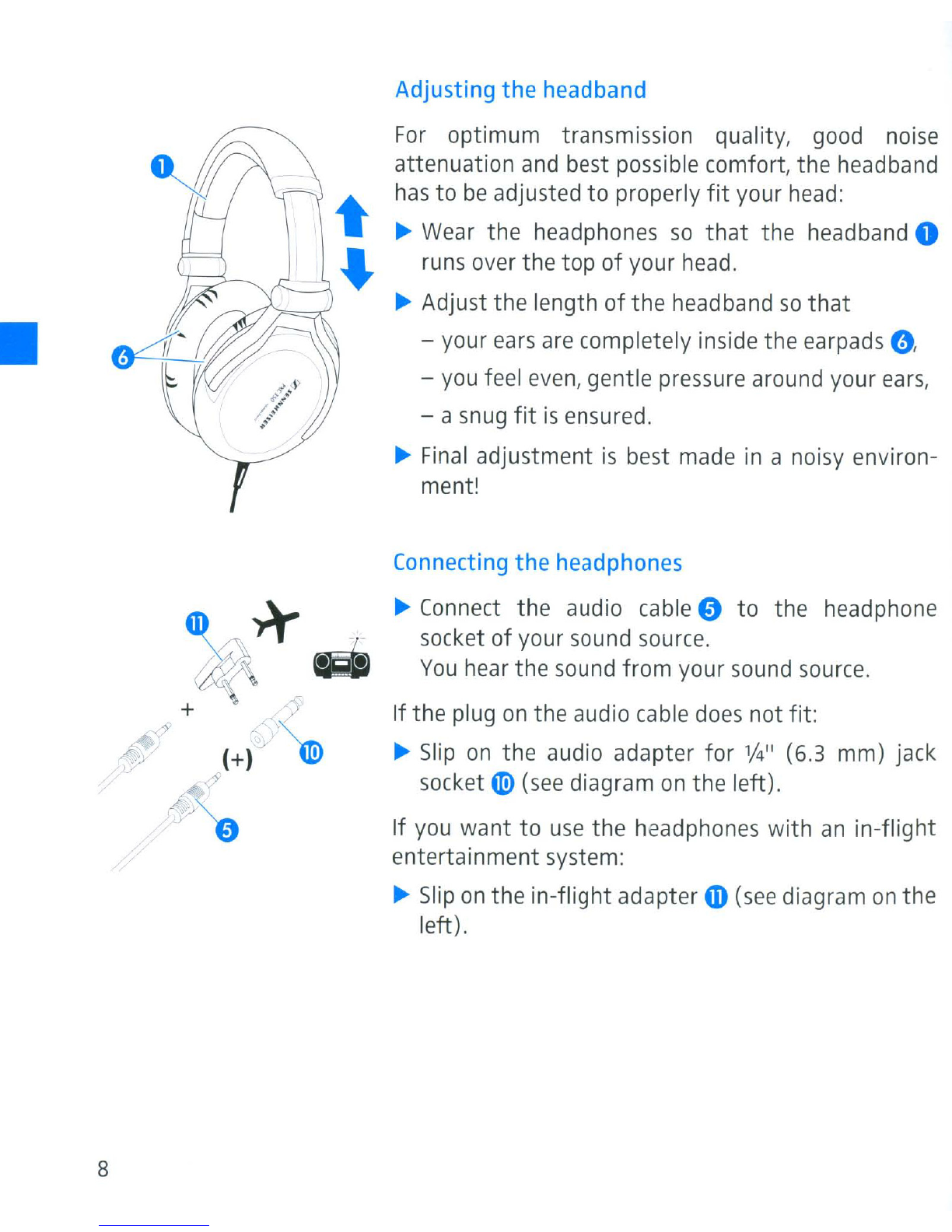

Adjusting the headband
For optimum transmission quality, good noise
attenuation and best possible comfort,
the headband
has
to be adjusted to properly fit your head:
~ Wear the headphones so that the headband 0
runs over the top of your head.
~ Adjust the length of the headband so that
-your ears are completely inside the earpads 0,
-you feel even, gentle pressure around your ears,
- a snug fit is ensured.
~ Final adjustment is best made in anoisy environ-
ment!
8
.'
)
Connecting the headphones
~ Connect the audio cable" to the headphone
socket
of your sound source.
You hear the sound from your sound source.
If the plug
on the audio cable does not fit:
~ Slip on the audio adapter for 1/4" (6.3 mm) jack
socket
~ (see diagram on the left).
If you
want to use the headphones with an in-flight
entertainment system:
~ Slip on the in-flight adapter m(see diagram on the
left).

Using the PXC 350
Adjusting the volume
CAUTION!
Volume up? - No!
When people use headphones, they
tend to
choose ahigher volume than
with loudspeakers. Listening at high
volume levels for long periods
can lead
to permanent hearing defects. Please
protect your hearing, Sennheiser head-
phones also sound exceptionally good
at low volumes.
'.
~ Turn the volume control VOLUME f) to adjust the
volume.
9

LED Meaning
Note:
Switch
NoiseGard off after use to conserve battery
power.
When the batteries are completely discharged, the
NoiseGard Advance active noise compensation
automatically switches off. Audio will still
be heard
through the headphones when the slide switch is set
to position
B.
Meanings ofthe LED 8:
Batteries/rechargeable batteries are
almost flat
NoiseGard Advance is switched on red
flashing
Switching
NoiseGard Advance on/off
To switch NoiseGard Advance on:
~ Set the slide switch f) to position A as shown.
The LED 8lights up red.
To switch NoiseGard Advance off:
~ Set the slide switch f) to position B.
The LED 8 goes off.
•
10

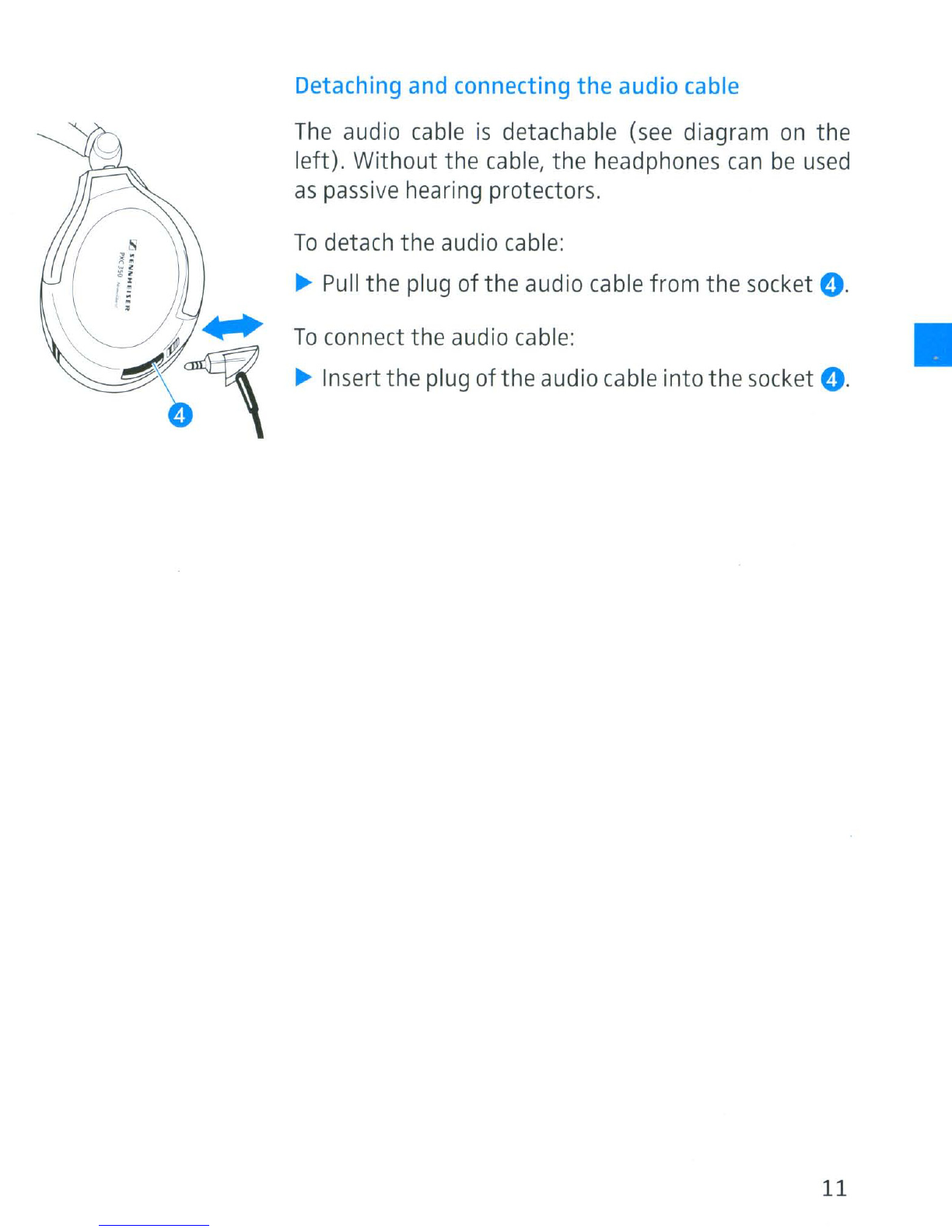

Detaching and connecting the audio cable
The audio cable is detachable (see diagram on the
left). Without the cable, the headphones can be used
as passive hearing protectors.
To detach the audio cable:
~ Pull the plug of the audio cable from the socket O.
To connect the audio cable:
~ Insert the plug of the audio cable into the socket O.
11

•
12
Folding up the headphones
For space-saving transportation, the headphones can
be folded up in different ways:
To fold up the headphones as flat as possible:
~ Rotate the earcups by 90° as shown.
To fold up the headphones as compact as possible:
~ Tuck the earcups between the headband as shown.
For safe transportation of the headphones, use the
supplied soft
case and fold the headphones as follows:
~ Rotate the earcups by 90°.
~ Pull out the right earcup and then fold it in.
~ Place the headphones flat into the soft case as
shown.
The two AAA size batteries e can be inserted into the
two straps at the
side of the soft case.
The accessories can be transported in the cover of the
soft
case:
- ~ Audio adapter (1/ 4" (6.3 mm) stereo jack)
- G) In-flight adapter (2 x 3.5 mm mono jack)

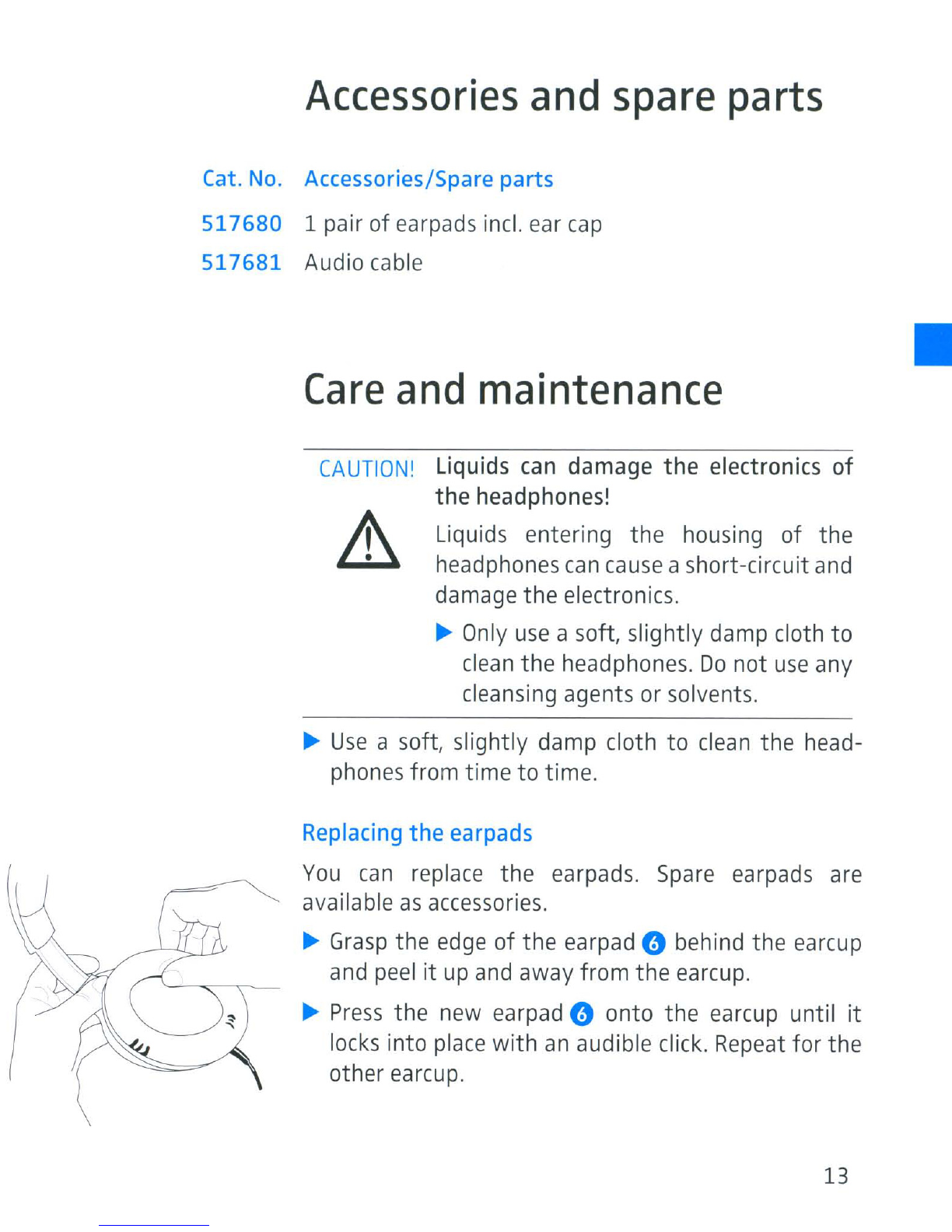

Accessories and spare parts
Cat. No. Accessories/Spare parts
517680 1pair of earpads inc!. ear cap
517681 Audio cable
(are and maintenance
CAUTION!
Liquids can damage the electronics of
the headphones!
Liquids entering the housing of the
headphones can cause ashort-circuit and
damage the electronics.
~ Only use asoft, slightly damp cloth to
clean the headphones. Do not use any
cleansing agents or solvents.
~ Use asoft, slightly damp cloth to clean the head-
phones from time to time.
Replacing the earpads
You can replace the earpads. Spare earpads are
available as accessories.
~ Grasp the edge of the earpad 0behind the earcup
and peel it up and away from the earcup.
~ Press the new earpad 0onto the earcup until it
locks into place with an audible click. Repeat for the
other earcup.
13

Specifications
Transducer principle dynamic/
closed
Ear coupling circumaural
Frequency response 8 - 28/000
Hz
Nominal impedance
•active/passive
750/150 Ohms
Sound pressure level at
1
kHz and 1 V 108
dB SPL
THO at 1 kHz 0.10 %
Cable connector 3.5 mm stereo jack
In-flight adapter 2 x
3.5 mm mono jack
Audio adapter
1/4" (6.3 mm)
stereo jack
Cable length 1.4 m
Weight
W /0 cable and batteries 245 g
Batteries/recha
rgea ble
batteries (AAA) 2 x 1.2 -
1.5 V
Passive attenuation ~ 32 dB
NoiseGard
active noise compensation ~ 18 dB
14

Manufacturer Declarations
warranty
The original Sennheiser product you have purchased is covered by a
warranty of 24 months. The warranty period begins on the date of
purchase of brand new, unused products by the first end user.
Please retain your sales receipt (or
your warranty certificate) as
proof of purchase. Unless you submit proof of purchase, which will
be verified by your local Sennheiser service partner, you will be
obliged to pay for any repairs that are carried out. Proof of purchase •
must state the date of purchase and name of the product.
We shall satisfy our warranty obligations by remedying any
material or manufacturing
faults free of charge at our discretion
either by repair or by exchanging individual parts or
the entire
appliance.
Any defective parts removed from aproduct during the
course of a warranty claim shall become the property of Sennheiser
electronic
GmbH & Co. KG.
The following cases are not covered by the above warranty:
• minor faults or deviations in the quality of aproduct which do
not affect the product's value or fitness for its intended purpose
•any accessories supplied
with the product
•rechargeable and disposable batteries (these products have a
shorter service life,
the length of which also depends on the
frequency of use)
•
faults resulting from improper use (e.g. operating errors,
mechanical damage, incorrect operating voltage)
Proper use
for the purposes of this warranty is defined as use of
the product under the conditions stated in the instructions for
use.
•
faults due to wear and tear
•any modification of Sennheiser products effected by you or a
third party, unless Sennheiser has given its prior written consent
to the nature and extent of the modification
• faults caused by force majeure
•
faults of which the purchaser was already aware at the time of
purchase
All
warranty claims become void if the product is tampered with by
unauthorised persons or repair shops.
Warranty claims can be enforced in any country throughout the
world in which the statutory rights of the country concerned are not
in conflict with our warranty regulations. No other warranty claims
15

•
16
CE
or claims over and above the rights stated in these terms and
conditions will
be accepted.
Consumers may
be entitled to statutory rights in their own
countries which are
not restricted by these warranty terms and
conditions,
as the warranty is governed by the laws of the country
in which the Sennheiser product was purchased by the consumer.
The provisions
of the UN Convention on the International Sale of
Goods do not apply to this service.
If you wish to file aclaim under the warranty, please send the
product to your local service partner, together with accessories and
proof
of purchase. The customer bears the risk of shipment. To
avoid any damage in transit, please use the original packaging if
possible.
An up-to-date list of all service partners of Sennheiser electronic
GmbH & CO.KG worldwide is available on the internet at
www.sennheiser.com.
The customer bears
the risk and cost of shipment. To avoid any
damages
in transit, please use the original packaging if possible.
CE Declaration of Conformity
This equipment is in compliance with the essential requirements
and other relevant provisions
of Directive 89/336/EU. The
declaration
is available on the internet site at www.sennheiser.com.
Before
putting the device into operation, please observe the
respective country-specific regulations'
WEEE Declaration
Your Sennheiser product was developed and manufactured with
highquality materials and components which can be recycled and/
or reused. This symbol indicates that electrical and electronic
equipment
must be disposed of separately from normal waste at
the end of its operational lifetime.
Please dispose
of this product by taking it to your local collection
point or recycling centre for such equipment. This will help to
protect the environment in which we all live.
Batteries or rechargeable batteries
The supplied batteries or rechargeable batteries can be recycled.
Please dispose of them as special waste or return them to your
specialist dealer. In order to protect the environment, only dispose
of exhausted batteries.
Sennheiser and
NoiseGard™ are registered trademarks of
Sennheiser electronic GmbH & Co. KG.

Sennheiser electronic GmbH & Co. KG
30900 Wedemark, Germany
Phone
[phone]
Fax [phone]
www.sennheiser.com
Printed in China Pub!.
06/07
515699/AOI

[Zj SENNHEISER
ntsc el en
Impulsgeber
der Musikbranche
Driving10rces in thde 1 .
worl 0musl

Vom kleinen Institut zum Audio-Konzern
From asmall scientific institute to a
major audio concern
Erstklassige Kopfhorer und Mikrofone sowie maBgeschneiderte Audio-Komplettlosungen - dafOr steht seit mehr
als 60 Jahren Sennheiser. Segonnen hat der Unternehmensgrunder Fritz Sennheiser mit einem kleinen ausgelagerten
Universitatsinstitut. Sis heute ist daraus ein Audio-Konzern geworden. Sennheiser electronic beschaftigt rund
1.600 Mitarbeiter. Zusammen mit Tochtergesellschaften und einem Joint Venture gehOrt Sennheiser weltweit
zu den fOhrenden Audio-Spezialisten. Und gesteuert wird dies alles im Ort Wedemark nordlich von Hannover.
First-rate headphones and microphones and tailor-made all-round audio system solutions - the name Sennheiser
has stood for such things for more than 60 years. The founder of the business, Fritz Sennheiser, started off with
a small institute spun off from a university Over the years it has grown into a major audio corporation.
Sennheiser electronic employs around 1,600 people. Together with its subsidiary companies and a joint venture,
Sennheiser is one of the world's leading audio specialists. And all of this is controlled and managed from a small
place called Wedemark, just to the north of Hannover.
[Zj 5EI\II\IHEI5ER
~
Grunderhaus
Where it all began
1945
FirmensllZ Headquarters. 2006
-.;;0 __ ......... _
International aufgestellt Global presence
Seit jeher Iiegt der Fokus Sennheisers auf der Forschung und Enlwicklung - mit sehr
gut ausgebildeten Mitarbeitern aus der Region Hannover. Daneben sichert Sennheiser
seinen technischen Vorsprung mit zwei F&E-Suros in Kalifornien abo Produziert wird in
Deutschland, Irland und in den USA. Uberall auf der Welt ist Sennheiser mit Tochter-
gesellschaften und Vertriebspartnern vertreten.
Right from its earliest days, Sennheiser has focused on research and development -
for which it employs very well-trained people from the Hannover Region In addition,
Sennheiser maintains two R&D centres in California in order to safeguard its technological
lead. The production facilities are in Germany, Ireland and the USA. Sennheiser is repre-
sented allover the world by subsidiaries and sales partners.
3www.sennheiser.com
