Sensear sp1r User manual

1
SP1R
Manual

2
INTRODUCTION
The SP1R is a state-of-the-art hearing protection (ie protects
against harmful noise) communication system that allows you to
retain situational awareness while remaining in full contact with
your two-way radio communication device.
Situational awareness is provide by
p rocessing technology and environmental microphones mounted
within the earbuds.
The SP1Rheadset draws power from the two-way radio. It must
be connected by the appropriate SRCK7(XXX) radio cable to
utilize both the situational awareness and two-way
radio communications
SRCK7(XXX) part numbers vary depending on the radio
connector and are sold separately. For language translated
manuals and further information please visit www.sensear.com.

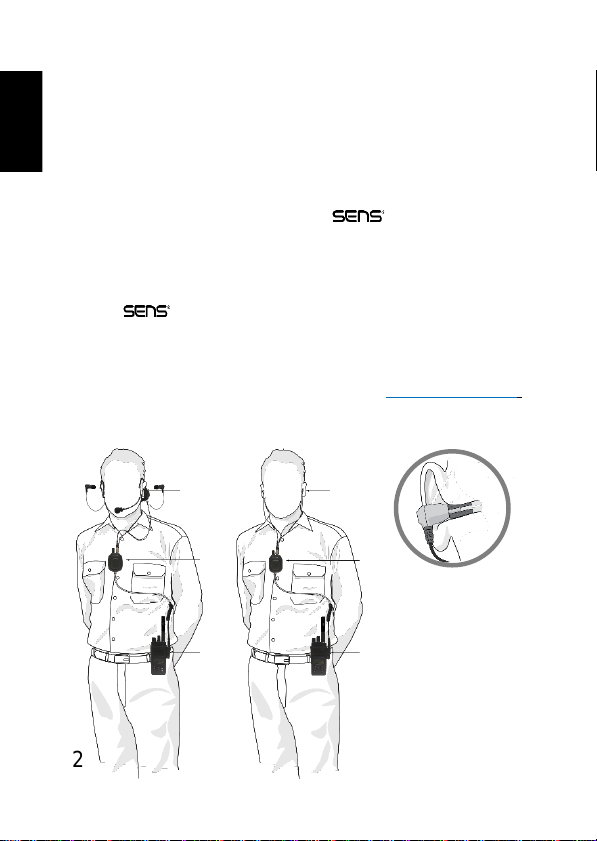

The SP1R is designed to be worn with the main housing attaching to the
belt or pant seam, and the Inline PTT attaching to the shirt / upper garment.
E
ngl
i
s
h
two-way
radio
two-way
radio
smartPlug
unit + PTT
smartPlug
unit + PTT
Boom mic.
headset with
earplugs
Earplugs
with in-ear
mic.

3
FITTING THE EARBUDS
The SP1R comes with a detachable earpiece assembly
designed for ease of serviceability and hygiene for users who
share the base unit. For further information and to order
additional earpiece assemblies, please contact your supplier or
visitwww.sensear.com
1. Place disposable foam tip between thumb and forefinger.
2. Roll foam tip to a compressed, crease free cylinder.
3. Push the foam tip all the way onto the ear bud spout.
4. Roll the foam tip again between the thumb and forefinger.
5. Ensure the foam tip remains a compressed crease-free cylinder.
6. Using your opposite hand, pull your ear upward &outward.
7. Insert the earbud and hold in place for 30 seconds while the foam
tip expands. Proper fit is ensured by not having any of the foam
tip visible while the earbud is in the ear.
E
ngl
i
s
h

4
OPERATING THE HEADSET
POWER ON:
1. Connect the SRCK7XXX radio cable to the Hirose
connector on the bottom of the main unit.
2. Connect the SRCK7XXX cable to the two-way radio.
3. Turn the two-way radio on.
4. The headset will power up. An audible “Sensear,
sounds good to me” will be heard through the headset.
POWER OFF:
Option 1. Turn the two-way radio off from the two-way radio.
Option 2. Disconnect the headset cable from the SRCK7XXX
cable.
(Option 2. Reverts audio back to the two-way radio
automatically)
ENVIRONMENTAL MODES
MODE:
Mode can be turned on and off by turning the volume
knob to the on/off position with a click, which will toggle the unit
into mode or quiet mode, while also controlling the
volume level. This allows for easy muting of Sensear’s
situational awareness feature when, and if, this is preferred by
the user.
COMMUNICATING OVER TWO-WAY RADIO
• Press and hold the built-inPTT button located on the SP1R
unit.
• Release the inline PTT button to ceasetransmission.
E
ngl
i
s
h

5
E
ngl
i
s
h
Boom mic headset
with earplugs
(SPBMHS02)
Earplug headset
with in-ear mic
(SPEBHS02)
Hirose quick
release connector
Hirose quick
release connector
SENS mode
ON/OFF/Volume
Control knob
smartPlugR02
base unit and PTT
Hirose quick
release connector
Two-Way Radio
cable
SRK7XXX….
Two-Way Radio
(Not included)
E
ngl
i
s
h

6
MAINTENANCE AND
STORAGE
This product may be adversely affected by certain chemical
substances. Further information should be sought from the
manufacturer.
The headset should be stored at room temperature
(between15°C/59°F and 25°C/77°F).
ACCESSORIES AND
SPARE PARTS
The following accessories and spare parts may be ordered
separately:
Further information may be obtained from your Sensear
representative, via the Sensearweb site, orby emailingorwriting
totheaddressonthis UserManual.
SRCK7xxx
Various models, two-way radio interface cables for
most popular two-way radios.
SPEBHS02
SP1R earpieces with Hirose connector
SPBMHS02
SP1R Boom Mic headset with earplugs with
Hirose connector
FETSM010
Foam ear tip –small (10.5mm) –10 pair
FETMD010
Foam ear tip –medium (12mm) –10 pair
FETLG010
Foam ear tip –large (14mm) –10 pair
E
ngl
i
s
h
E
ngl
i
s
h

7
DECLARATION OF CONFORMITY
We, the undersigned,
Company
Address
Country
Telephone No.
Web
Email
Sensear Pty Ltd
199 Great Eastern Highway, Belmont, WA
Australia
[phone]
http://www.sensear.com
[e-mail]
Declare that:
Model SP1R in accordance with the following directives:
•2011/65/EU
•89/686 /EEC
Has been designed and manufactured to the following specifications:
•EN 352-2:2002 Hearing Protectors –Safety requirements
and Testing –Ear Plugs
•EN 352-7:2002 Hearing Protectors –Safety Requirements
and Testing - Level-dependent Ear Plugs
E
ngl
i
s
h

8
Sensear Pty Ltd
(“SENSEAR”) warrants the SENSEAR manufactured HEARING PROTECTION products (“Product”)
listed below to be free from defects in material and workmanship under normal use and service for a
period of 12 months from the original date of purchase.
SENSEAR will at its absolute discretion repair or replace the Product where a defect in material or
workmanship occurs, at no charge to the end user for parts or labour. SENSEAR reserves the right to
replace the Product with the same or equivalent part or Product rather than repair it. Where a part or
Product is replaced, the part or Product becomes the property of SENSEAR. SENSEAR reserves the
right to use refurbished parts or Product for repair or replacement.
SENSEAR is not responsible for any damage caused to or by accessory or ancillary equipment
connected or attached to the Product that is not provided by SENSEAR and is not expressly designed
to operate in conjunction with theProduct.
This warranty is not assignable or transferable to any other party, this warranty is extended to the
original purchaser of the Product only.
This warranty is in addition to your statutory rights provided under the Trade Practices Act, or relevant
legislation in your state or territory.
SENSEAR reserves the right to limit its liability to the repair, replacement or refund of the purchase
price of a Product. Under no event shall SENSEAR be liable for damages in excess of the original
purchase price of the Product, for any loss of use, lossof time, inconvenience, loss of profits or
savings, loss of revenue, commercial loss or any otherincidental, special or consequential loss to the
full extent such may be disclaimed by thelaw.
This warranty does not cover:
• Defect or damage resulting from use of the Product in other than its normal or intended manner.
• Defects or damage occurring from misuse, abuse, accident, corrosion, fire, liquid intrusion or neglect,
including duringtransportation.
• Defects or damage occurred from improper or unauthorized testing, operation, maintenance,service,
repair, alteration, modification or adjustment.
• Freight costs to the place of repair.
• Product that has been subjected to unauthorized or illegal alteration of the firmware or software in the
Product.
• Cosmetic damage to the Product that does not interfere with the intended operation of the Product.
• Normal wear and tear.
• Product where the serial number has been removed oraltered.
• Any batteries rechargeable or otherwise either shipped with or internal to the Product.
• Any consumable items, for example replaceable ear-tips or ear-cup pads.
• Warranty claims made outside of the warranty period.
• Warranty claims made without appropriate proof of purchase bearing both the original purchase price
and date.
• All other warranties, conditions, terms, representations and undertakings whether express or implied.
To register your product visit:
If you require warranty service visit:
h tt p : // www . sens ea r.c o m / support/headset-registration
h tt p : // www . sens ea r.c o m/support/ returns-repairs-new
E
ngl
i
s
h

9
SP1R
HEADSET INFORMATION
ENGLISH

10
FORWARD
Product Safety and RF Exposure Compliance:
This product is designed to be used in isolation or in conjunction
with a two-way radio. Before using this product with a two-way
radio,readthe operating instructions for safe usage contained in the
Product Safety and RF Exposure booklet enclosed with thetwo-way
radio.
FCC COMPLIANCE STATEMENT
Thisequipmenthasbeentestedandfoundtocomplywiththelimits
for a Class Bdigital device,pursuant topart 15oftheFCCRules.
These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates, uses andcanradiateradiofrequencyenergy
and,if not installedandusedin accordance with the instructions,
may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of
the following measures:
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and
receive.
•Connecttheequipmentintoanoutletonacircuitdifferent
fromthattowhichthereceiverisconnected
•Consult the dealer or an experienced radio/TV
technicianfor help
E
ngl
i
s
h

11
SPECIFICATIONS
SPECIFICATION
SP1R
Weight
107.2g
3.8oz
Operational Temperature
-25°C to +60°C
-13°F to +140°F
Power
See radio cable documentation
Housing Material
PC/ABS + TPE
RoHS Compliant
Yes
NRR AND SLC80
The SP1R has been certified to International hearing
protection standards including EN352-2, EN352-7, ANSI
S3.19-1974, ANSI 12.6-2008 and AS/NZS 1270-2002. The
followingpassiveattenuationratingswere observed:
PASSIVE ATTENUATION (ANSI S3.19 -1974)
SP1R measured in accordance with ANSI S3.19 -1974.
Foam tips (sml, med, lrg)
Frequency (Hz)
125
250
500
1000
2000
3150
4000
6300
8000
NRR
Mean
attenuation (dB)
38.2
35.6
40.3
39.6
40.7
42.9
40.9
44.5
45.8
31 dB
Standard
deviation (dB)
4.2
2.8
3.9
4.2
3.8
3.5
2.9
4.4
3.9
E
ngl
i
s
h
E
ngl
i
s
h

12
PASSIVE ATTENUATION (ANSI S12.6 - 2008)
SP1R measured in accordance with ANSI S12.6 –2008
(Method B)
Foam tips (sml, med, lrg)
Frequency (Hz)
125
250
500
1000
2000
4000
8000
NRS
Mean
attenuation (dB)
32.0
29.2
32.3
32.5
37.0
40.8
42.6
29 to 39 dB
Standard
deviation
(dB)
6.1
6.5
6.8
6.7
5.1
5.8
4.5
APV 84%
26.9
23.7
26.6
26.9
32.7
35.9
38.8
PASS IVE A TTE NUA TION ( A S / NZS 127 0: 200 2)
SP1R m easu r ed i n ac c or dan c e wi th A S / N ZS 12 70: 2002 .
Foam tips (sml, med, lrg)
Frequency (Hz)
125
250
500
1000
2000
4000
8000
SLC (80)
Mean attenuation
(dB)
31.7
28.1
32.1
32.7
36.7
39.5
42.0
28dB,
Class 5
Standard deviation
(dB)
9.7
7.8
8.0
8.2
5.7
7.6
5.7
Mean attenuation –
Standard deviation
(dB)
22.0
20.3
24.1
24.5
31.0
31.9
36.3
E
ngl
i
s
h

13
PASSIVE ATTENUATION (EN352-2 AND EN352-7)
SP1R measured in accordance with EN352-2 and EN352-7.
Foam tips (EN352-2)
Frequency (Hz)
125
250
500
1000
2000
4000
8000
H
M
L
SNR
(dB)
Mean
attenuation (dB)
38.8
35.4
40.7
39.8
40.9
40.8
44.3
37
36
35
38
Standard
deviation (dB)
4.8
3.2
3.5
4.7
3.5
3.7
3.7
Mean attenuation
–
Standard
deviation(dB)
34.1
32.2
37.2
35.1
37.5
37.1
40.7
The SP1R has level dependent facilities and the criterion levels
as definedin EN352-7aredisplayedbelow
Model
H
M
L
(dBA)
Foam tips
115.4
118.0
118.1
E
ngl
i
s
h
E
ngl
i
s
h

14
COPYRIGHT NOTICE
This document remains the property of Sensear Pty. Ltd. All
rights reserved.Nopartofthisdocumentmaybereproducedinany
form,either in an electronic retrieval system or otherwise, without
thepriorwritten consentofSensearPty.Ltd.
IMPORTANT NOTICE
Sensear Pty. Ltd. reserves the right to make corrections,
modifications, enhancement, improvements and other
changes to its products and services and to discontinue
any product or service without notice.
WhilstSensearPty.Ltd.makeseveryefforttoensurethatthe
information in this document is correct at the time of
publication, users and potential users should first check
withSensearPty.Ltd.toensurethattheyhave receivedthe
mostup-to-datedocumentation.
E
ngl
i
s
h

15
Waste (Disposal) of your Electronic and Electric Equipment
European Union (EU) Waste of Electrical and Electronic Equipment (WEEE) directive
TheEuropeanUnion’sWEEEdirective requiresthatproductssoldintoEU countriesmusthavethecrossedout trashbin
labelontheproduct(orthe packageinsomecases).Asdefined by the WEEE directive, this cross-out trashbin label
meansthatcustomers andend-usersinEUcountriesshould
notdisposeof electronicandelectrical equipment or accessories in household waste. Customers or end-users in EU
countries should contact their local equipment supplier representative or servicecentreforinformationaboutthe
waste collection system in theircountry.
Directive de l’Union Européenne (UE) sur l’Élimination des Équipements Électriques et Électroniques (DEEE)
La directive DEEE de l’Union Européenne impose que les produits vendus dans les pays de l’UE portent la
marque (éventuellement sur l’emballage) d’une poubelle sur roues barrée d’une croix.
Comme la directive DEEE l’explicite, cette marque composée d’une poubelle sur roues barrée d’une croix
signifiequeles clientsetlesutilisateursdespaysdel’UE nedevraientpasinclureleurséquipements électriques et
électroniques ou accessoires dans leurs déchets ménagers. Lesclientsouutilisateursdespaysdel’UE devraient
contacter le représentant local deleurfournisseurd’équipement ouun centredeservicepours’informer sur le
système de collection de déchets dans
leur pays.
De richtlijn inzake afgedankte elektrische en elektronische apparatuur (AEEA) van de Europese Unie (EU)
DerichtlijnAEEAvandeEuropeseUnie vereistdatproductendieindelandenvan de EU worden verkocht (of in
sommige gevallen de verpakking daarvan), moeten zijn voorzien van het etiket met een doorgekruiste
vuilnisbak. Zoals bepaald doorderichtlijnAEEA,betekentditetiket met de doorgekruiste vuilnisbak dat klanten en
eindgebruikers in delandenvan deEU elektrische en elektronische apparatuur
oftoebehorennietmethethuisvuilmogen wegwerpen. Klanten en eindgebruikers binnen de EU moeten contact
opnemen met hun plaatselijke leverancier of onderhoudscentrumvoorinformatieover hetafvalinzamelsysteemin
hunland.
Richtlinie über Elektro- und Elektronik-Altgeräte (WEEE) der Europäischen Union (EU)
Produkte, die in EU Ländern auf den Markt gebracht werden, müssen mit einer durchgestrichenen
Abfalltonne gekennzeichnet sein (oder in einzelnen Fällen die Verpackung). Die WEEE Direktive definiert,
dass Kunden und Endnutzer in Ländern der Europäischen Union (EU) elektronische und elektrische Geräte
sowie elektronisches oder elektrisches Zubehör nicht in
den Hausmüll entsorgen dürfen. Innerhalb der EU setzen Sie sich bitte mit dem örtlichen Vertreter oder
Kundendienst Ihres Gerätelieferanten in Verbindung, der IhnenAuskunft
zur Altgeräteentsorgung/-abholung geben kann.

16
La direttiva de la Unione Europea (EU) sui rifiuti di apparecchiature elettriche ed elettroniche (RAEE)
La direttiva RAEE della Unione Europea richiedecheiprodottivendutineipaesi dellaUEdebbanoesseremarcaticonil
simbolo di un contenitore dispazzatura mobilebarratosulprodotto(oincasi eccezionali sull’imballaggio). Il simbolo diun
contenitoredispazzaturamobile barrato,conformealladirettivaRAEE,
significachiiclientieidetentorifinalinei paesidellaUE,nondovrebberosmaltire gliapparecchiogliaccessorielettronici
edelettriciconinormalirifiutidomestici. Iclientioidetentorifinalineipaesidella UEdovrebberorivolgersialfornitore,
rappresentante o centro di riparazione locale per ottenere informazioni sui sistemipredispostinelpropriopaeseper
laraccoltaditaliapparecchiusati.
Directiva da União Europeia (UE) relativa aos Resíduos de Equipamentos Eléctricos e Electrónicos (REEE)
ADirectivaREEEdaUniãoEuropeiaexige queosprodutosvendidosempaísesda UEtenhamaetiquetacomosímbolodo
contentor do lixo barrado com uma cruz no próprio produto (ou, em determinados casos, na embalagem). Tal como
definido pelaDirectivaREEE,estecontentordolixo barradocomumacruzsignificaqueos clienteseutilizadoresfinaisnos
paísesda UEnãodevemeliminarequipamentos eléctricos e electrónicos ou acessórios juntocomolixodoméstico.Os
clientes
ou utilizadores finais nos países da UE devem contactar o representante local do fornecedordoequipamentoou
umcentrode assistência para obter informações relativas ao sistema derecolha de lixo
no país onde vivem.
Директива Европейского Союза (ЕС) об утилизации электрического и электронного оборудования («УЭЭО»).
Директива «УЭЭО» Европейского Союза требует, чтобы на изделиях, продаваемых в странах ЕС (а вотдельных
случаях на
их упаковке), была нанесена маркировка в виде перечёркнутого мусорного контейнера. Как установлено в
директиве
«УЭЭО», такая маркировка в виде перечёркнутого мусорного контейнера означает, что покупатели и конечные
пользователи не должны выбрасывать электронное и электрическое оборудование или приборы в бытовой
мусор. Покупателям и конечным пользователям в странах ЕС следует обращаться к местным представителям
поставщиков оборудования или
всервисныецентрыдляполучения информацииосистеме сбораотходов в их стране.
La directiva de la Unión Europea (EU) sobre Residuos de Aparatos Eléctricos y Electrónicos (RAEE)
LadirectivaRAEEdelaUniónEuropea requierequelosproductosvendidos enlospaísesdelaUEseanrotulados mediante
elsímbolodeuncontenedor debasuratachadosobreelproducto (oenalgunoscasossobreelenvase). Conforme con la
directiva RAEE, el símbolo del contenedor de basura tachadosignificaquelosclientesy usuariosfinalesenlos
paísesdelaUE nodeberían dedisponer losaparatos
eléctricosoelectrónicosniningunodesus componentes junto a labasura doméstica.
Clientesousuariosfinalesenlospaíses delaUEdebenentrarencontactocon elcentrodeserviciooproveedoresdel
equipo para obtener información acerca del sistemade recolecciónensupaís.
Printed In Australia DOC00091 Rev 5.2
