SenseCAP All-in-One Weather
Station User Guide
Version: V1.0
Dates: 2023-4-07

User manual/ Technical information
Seeed Technology Co., Ltd. All rights reserved. www.seeedstudio.com
The 2 Page total 49
Page
Tables of Contents
Tables of Contents .....................................................................................................................................................2
1 Product Introduction ...............................................................................................................................................4
2 Installation................................................................................................................................................................7
Packing List ..................................................................................................................................................8
Installation ....................................................................................................................................................9
2.2.1 Device Interface Introduction..........................................................................................................9
2.2.2 Connect with USB Cable ..............................................................................................................10
2.2.3 M12 Cable.......................................................................................................................................10
2.2.4 Install the device. ...........................................................................................................................12
3 Device's Operating Mode ....................................................................................................................................17

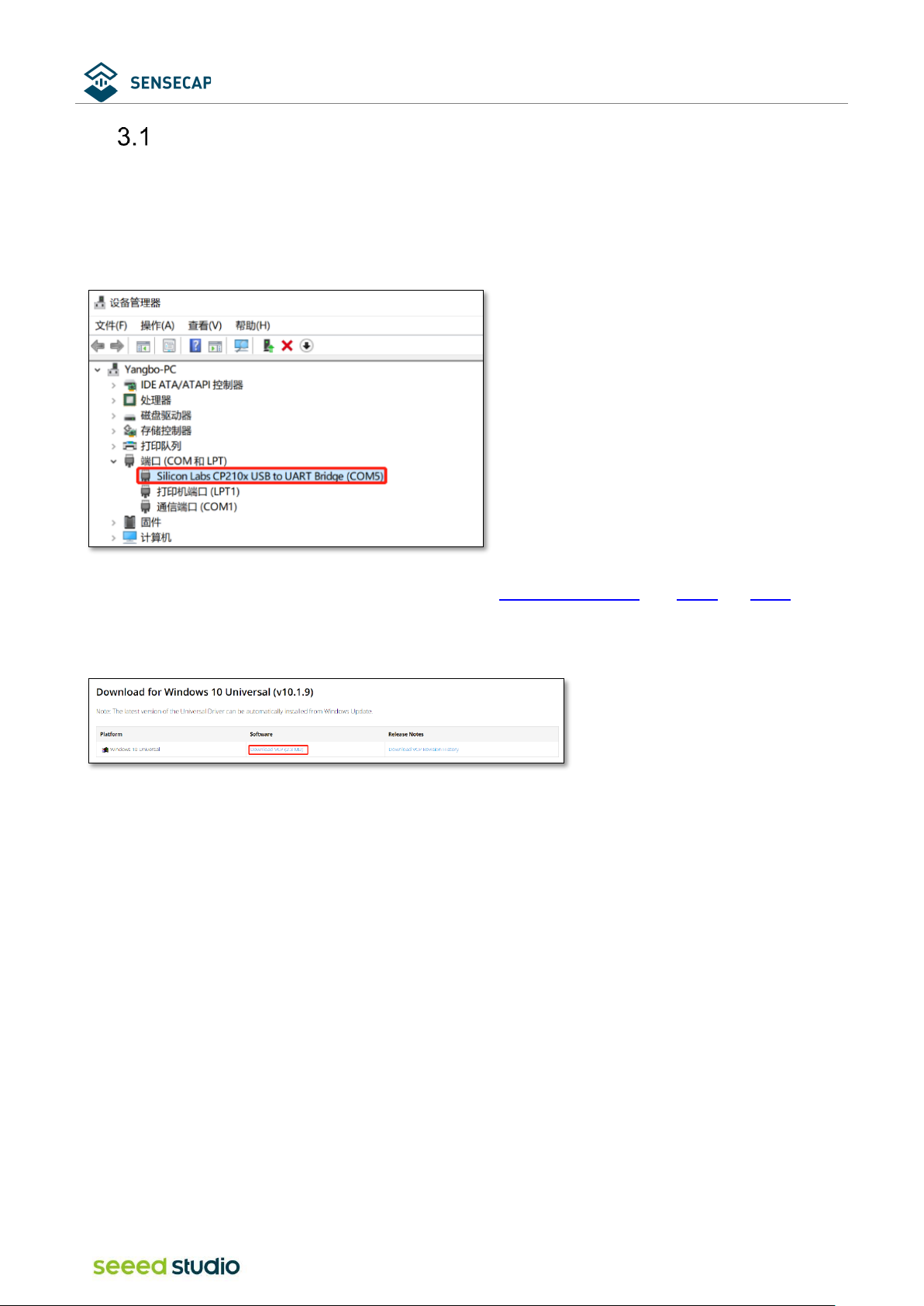

Configure the device via USB port..........................................................................................................18
SenseCAP ONE Configuration Tool .......................................................................................................19
Serial debug tool........................................................................................................................................23
4 Communication Protocols ...................................................................................................................................24
Modbus-RTU Protocol ..............................................................................................................................25
4.1.1 Modbus-RTU Protocol Message Format....................................................................................25
4.1.2 Register Address Definition ..........................................................................................................26
4.1.3 Modbus-RTU Read........................................................................................................................27
4.1.4 Noise sensor...................................................................................................................................31
ASCII Protocol............................................................................................................................................33
4.2.1 Command definition.......................................................................................................................33
4.2.2 Query Command Format ..............................................................................................................33
4.2.3 Setting Command Format.............................................................................................................34
4.2.4 Command List.................................................................................................................................34
SDI-12 .........................................................................................................................................................41
4.3.1 SDI-12 command and response ..................................................................................................41
4.3.2 SDI-12 Read ...................................................................................................................................44
5 Error code ..............................................................................................................................................................49
Modbus error code ....................................................................................................................................49
ASCII error code ........................................................................................................................................49
SDI-12 error code......................................................................................................................................49

User manual/ Technical information
Seeed Technology Co., Ltd. All rights reserved. www.seeedstudio.com
The 3 Page total 49
Page
Version
Description
Date
The modifier
V1.0
Initial version
04-07-2023
Jenkin Lu

User manual/ Technical information
Seeed Technology Co., Ltd. All rights reserved. www.seeedstudio.com
The 4 Page total 49
Page
1 Product Introduction
SenseCAP ONE is a series of all-in-one compact weather sensors, including S1000 10-in-1, S800 8-in-1,
S700 7-in-1, S500 5-in-1, S200 weather sensors. These weather sensors integrate multiple sensors into
this compact device, monitoring up to10 weather parameters: air temperature, air humidity, atmospheric
pressure, light intensity, wind speed, wind direction, precipitation, PM 2.5, PM 10,noise and CO2. The
sensors use ultrasonic to measure wind speed and wind direction, to achieve high-precision data collection,
which is easy maintenance. The equipment is designed with industry standards and can work stably in
harsh outdoor environments from -40°C to 85°C. The product supports the Modbus-RTU (RS485) and
SDI-12 protocols.
Basic parameters
Product Model
SenseCAP ONE Series (S200/S500/S700/S800/S1000)
Power Supply
12V ~ 24V (1W)
Heating Power Supply
24V (3W)
Support Protocols
RS485 (MODBUS-RTU) / SDI-12
IP Rating
IP66
Working Temperature
-40 ℃ ~ + 85℃
Working Humidity
0 to 100%RH (non-condensing)
Product Model: S500 (5-in-1)
Measurement Parameter
Measurement Range
Measurement Accuracy
Resolution
Air temperature
-40~85°C
±0.1℃
0.01°C
Air humidity
0~100%RH
±1.5%RH
0.01%RH
Barometric pressure
300~1250hPa
±50Pa
10 Pa
Wind speed
0~60 m/s（@-40 ~60℃）
±0.3m/s,（≤10m/s）
±3% of the measured value（>10m/s）
0.1m/s
Direction of the wind
0~360°（@-40~60℃）
±3.0°
0.1°
Product Model: S700 (7-in-1)
Measurement Parameter
Measurement Range
Measurement Accuracy
Resolution
Air temperature
-40~85°C
±0.1℃
0.01°C
Air humidity
0~100%RH
±1.5%RH
0.01%RH
Barometric pressure
300~1250hPa
±50Pa
10 Pa

User manual/ Technical information
Seeed Technology Co., Ltd. All rights reserved. www.seeedstudio.com
The 5 Page total 49
Page
Wind speed
0~60 m/s（@-40℃~60℃）
±0.3m/s,（≤10m/s）
±3% of the measured value（>10m/s）
0.1m/s
Direction of the wind
0~360°（@-40℃~60℃）
±3.0°
0.1°
Light intensity
0~188000 Lux
5% * reading
5Lux
Rain intensity
0~200mm/h
±10%
0.2mm/0.02mm
Product Model: S900 (9-in-1)
Measurement Parameter
Measurement Range
Measurement Accuracy
Resolution
Air temperature
-40~85°C
±0.1℃
0.01°C
Air humidity
0~100%RH
±1.5%RH
0.01%RH
Barometric pressure
300~1250hPa
±50Pa
10 Pa
Wind speed
0~60 m/s（@-40℃~60℃）
±0.3m/s,（≤10m/s）
±3% of the measured value（>10m/s）
0.1m/s
Direction of the wind
0~360°（@-40℃~60℃）
±3.0°
0.1°
Light intensity
0~188000 Lux
5% of reading
5Lux
Rain intensity
0~200mm/h
±10%
0.2mm/0.02mm
PM2.5
0~1000µg/m3
±10%@100~1000µg/m3
±10µg/m3@0~100µg/m3
1µg/m3
PM10
0~1000µg/m3
±15%@100~1000µg/m3
±15µg/m3@0~100µg/m3
1µg/m3
Product Model: S1000 (10-in-1,CO2 series)
Measurement Parameter
Measurement Range
Measurement Accuracy
Resolution
Air temperature
-40~85°C
±0.1℃
0.01°C
Air humidity
0~100%RH
±1.5%RH
0.01%RH
Barometric pressure
300~1250hPa
±50Pa
10 Pa
Wind speed
0~60 m/s（@-40℃~60℃）
±0.3m/s,（≤10m/s）
±3% of the measured value（>10m/s）
0.1m/s
Direction of the wind
0~360°（@-40℃~60℃）
±3.0°
0.1°
Light intensity
0~188000 Lux
5% * reading
5Lux
Rain intensity
0~200mm/h
±10%
0.2mm/0.02mm

User manual/ Technical information
Seeed Technology Co., Ltd. All rights reserved. www.seeedstudio.com
The 6 Page total 49
Page
PM2.5
0~1000µg/m3
±10%@100~1000µg/m3
±10µg/m3@0~100µg/m3
1µg/m3
PM10
0~1000µg/m3
±15%@100~1000µg/m3
±15µg/m3@0~100µg/m3
1µg/m3
CO2
400-5000ppm;extended
range up to 10000 ppm
土(30 ppm +3% of reading)
(extended range ±10% of reading）
1ppm
Product Model: S1020（10-in-1，noise series，the custom product）
Measurement Parameter
Measurement Range
Measurement Accuracy
Resolution
Air temperature
-40~85°C
±0.1℃
0.01°C
Air humidity
0~100%RH
±1.5%RH
0.01%RH
Barometric pressure
300~1250hPa
±50Pa
10 Pa
Wind speed
0~60 m/s（@-40℃~60℃）
±0.3m/s,（≤10m/s）
±3% of the measured value（>10m/s）
0.1m/s
Direction of the wind
0~360°（@-40℃~60℃）
±3.0°
0.1°
Light intensity
0~188000 Lux
5% * reading
5Lux
Rain intensity
0~200mm/h
±10%
0.2mm/0.02mm
PM2.5
0~1000µg/m3
±10%@100~1000µg/m3
±10µg/m3@0~100µg/m3
1µg/m3
PM10
0~1000µg/m3
±15%@100~1000µg/m3
±15µg/m3@0~100µg/m3
1µg/m3
Noise intensity
30~130dB
±1.5dB
0.1dB
Note: Multi-in-one meteorological environment sensors with other monitoring elements can be
customized. For specific requirements, please contact relevant personnel of the company.

User manual/ Technical information
Seeed Technology Co., Ltd. All rights reserved. www.seeedstudio.com
The 7 Page total 49
Page
2 Installation
Before the installation, check the packing list and make sure there are no missing parts.

User manual/ Technical information
Seeed Technology Co., Ltd. All rights reserved. www.seeedstudio.com
The 8 Page total 49
Page
Packing List
Number
Parts
Number
1
SenseCAP ONE All-in-one compact weather sensor
1
2
M12 8-pin communication cable (default length 3-meter hook-up wire, and there
is a waterproof aviation connector type to choose when working with SenseCAP
SensorHub datalogger. If the aviation connector is not needed, cut it off by
yourself)
1
3
USB Type-C cable, for configuring devices
1
4
Flange plate (purchased separately)
1
5
Pole adapter sleeve base (purchased separately)
1
6
Pole adapter cross bar (purchased separately)
1

User manual/ Technical information
Seeed Technology Co., Ltd. All rights reserved. www.seeedstudio.com
The 9 Page total 49
Page
Installation

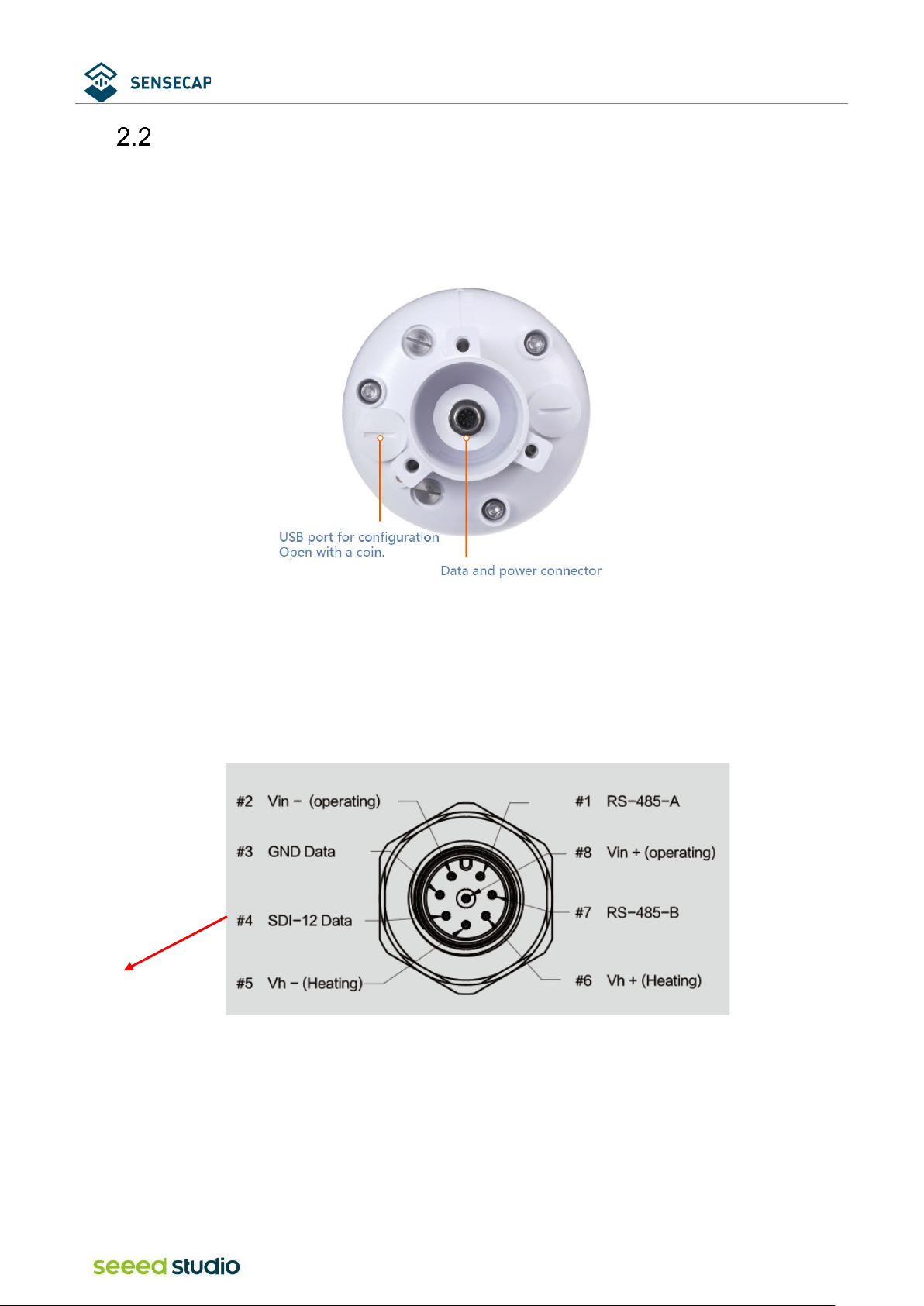

2.2.1 Device Interface Introduction
There are two connectors at the bottom of the device.
•USB Type-C interface allows you to connect your computer with a normal USB Type-C cable to the
device for configuration.
•The main data interface can be connected to the M12 8-pin cable, supporting multiple bus protocols
Bottom of the device

User manual/ Technical information
Seeed Technology Co., Ltd. All rights reserved. www.seeedstudio.com
The 10 Page total 49
Page
2.2.2 Connect with USB Cable
Note: The white caps should be screwed down after commissioning, to prevent water from the device!
2.2.3 M12 Cable
The device adopts an M12 8-pin connector, the different colored pins provide power and data
communication (as shown in the above diagram).
When working with the RS-485, you can connect only 4 wires (not using a heating function), and the rest
can be individually wrapped with tape to prevent short circuit

User manual/ Technical information
Seeed Technology Co., Ltd. All rights reserved. www.seeedstudio.com
The 11 Page total 49
Page
The holes of the cable and the pins of the device connector must be aligned when the cable is plugged
in.
Plugin the cable and tighten it clockwise
Note: the cable is aimed at with the bottom before inserting it into the bottom. Otherwise,the pins are
skewed may cause the communication is abnormal .
When using the device with a heating function, a separate 24V (24V@1A is recommended) power supply

User manual/ Technical information
Seeed Technology Co., Ltd. All rights reserved. www.seeedstudio.com
The 12 Page total 49
Page
is required. Gray wire #5 is connected to the negative of the power supply, and pink wire #6 is connected
to the positive pole of the power supply.
2.2.4 Install the device.
There are two major installation methods, either mount on a pole with a sleeve or a platform with a
flange plate.
Reminding:
1. When the device needs to add power extension cable, if its length is more than 100 meters, it
needs to use 24V/2A for power supply (without heating function);
2. When the heating function is enabled, the power supply of the heating module should be within 3
meters of the SenseCAP ONE.The distance between the power supply of the heating module and
the device is not more than 5m. Please use the 3m / 5m conversion cables sold by our company.

User manual/ Technical information
Seeed Technology Co., Ltd. All rights reserved. www.seeedstudio.com
The 13 Page total 49
Page
The size of the sleeve is shown below.

User manual/ Technical information
Seeed Technology Co., Ltd. All rights reserved. www.seeedstudio.com
The 14 Page total 49
Page
It is recommended that the diameter of the pole should be less than or equal to 75cm.

User manual/ Technical information
Seeed Technology Co., Ltd. All rights reserved. www.seeedstudio.com
The 15 Page total 49
Page
The dimension of the flange plate is shown below.
Note: Please tighten the screws !

User manual/ Technical information
Seeed Technology Co., Ltd. All rights reserved. www.seeedstudio.com
The 16 Page total 49
Page

User manual/ Technical information
Seeed Technology Co., Ltd. All rights reserved. www.seeedstudio.com
The 17 Page total 49
Page
3 Device's Operating Mode
After installation, you can power on the device, configure it and collect data from the device.
The device has two operating modes, configuration mode, and working mode.
Configuration Mode
With a USB cable, you can check or configure the device’s parameters,
such as device name, version number, and communication protocol
configuration. Product firmware can be upgraded in this mode.
Working Mode
Connect the devices and data logger with an M12 data and power cable,
and then the data collected by the device will be sent to the host via
different communication protocols.

User manual/ Technical information
Seeed Technology Co., Ltd. All rights reserved. www.seeedstudio.com
The 18 Page total 49
Page
Configure the device via USB port
There is a waterproof round cover at the bottom of the device. Turn it counterclockwise to remove this
cover, and you can see a USB Type-C connector and a configuration button.
Connect the device to your computer with a USB Type-C cable. The computer will automatically install the
device driver. After the driver is successfully installed, you can see a serial port in the device's manager.
If the driver is not installed automatically, click this link to manually download and install the driver.（The
version is CP210x Windows Drivers）
There are two methods to configure the device:
SenseCAP ONE Configuration Tool
Serial debug tool

User manual/ Technical information
Seeed Technology Co., Ltd. All rights reserved. www.seeedstudio.com
The 19 Page total 49
Page
SenseCAP ONE Configuration Tool
SenseCAP ONE Configuration Tool offers a graphical interface for you to configure the device. And you
can download the tool from the GitHub link below:
https://github.com/Seeed-Solution/SenseCAP-One-Configuration-Tool/releases
Select the software for the respective operating system, Windows, macOS, or Linux based on your needs.
The next image shows the main interface of the SenseCAP ONE Configuration Tool.
1. Open the software, click on the pull-down box at the serial port, select the corresponding serial port
of the device.
2. Set the Baud rate to 9600.
3. Click connect, if the connection is successful, the sensor data area on the right will show the
corresponding measurements.

User manual/ Technical information
Seeed Technology Co., Ltd. All rights reserved. www.seeedstudio.com
The 20 Page total 49
Page
Click Settings to enter the device settings,and click“Read From Device”to obtain the Information of the
device.
1. Select the communication protocol. In the example here we choose the RS-485 Modbus RTU.
