Sentinel HLC-300 Parts list manual

- 0 -
VEGETABLE CUTTING MACHINE
USE – MAINTENANCE
H
H
HL
L
LC
C
C-
-
-3
3
30
0
00
0
0

- 1 -
CONTENTS
1、SAFETY INFORMATION
2、PERFORMANCE
3、INSTALLATION
4、OPERATION INSTRUCTIONS
5、CLEANING AND MAINTENANCE
6、DISK
7、EXPLODED DRAWING1
8、CIRCUIT DIAGRAM

- 2 -
SAFETY INFORMATION
1.1. GENERAL PRECAUTIONS
• THE VEGETABLE CUTTING MACHINE MUST BE OPERATED BY SKILLED PERSONNEL, FAMILIAR WITH THE
INSTRUCTIONS FOR USE AND SAFETY CONTAINED IN THIS MANUAL.
• EVEN THOUGH THE MACHINE COMES WITH SEVERAL SAFETY SYSTEMS, AVOID PLACING HANDS NEAR
THE CUTTING DISCS AND MOVING PARTS.
• BEFORE ANY CLEANING AND MAINTENANCE, CHECK TO MAKE SURE THE MACHINE IS DISCONNECTED
FROM THE ELECTRICAL POWER SUPPLY.
• PERIODICALLY CHECK CORD AND PLUG CONDITIONS.
• NEVER USE THE CUTTING MACHINE WITH FROZEN FOOD.
• NEVER REPLACE PARTS OF THE MACHINE BY YOURSELF, USE A CERTIFIED SERVICE AGENT.
• THE APPLIANCE SHOULD NOT BE OPERATED BY CHILDREN OR PERSONS UNFAMILIAR WITH THE USE OF
THIS PRODUCT.

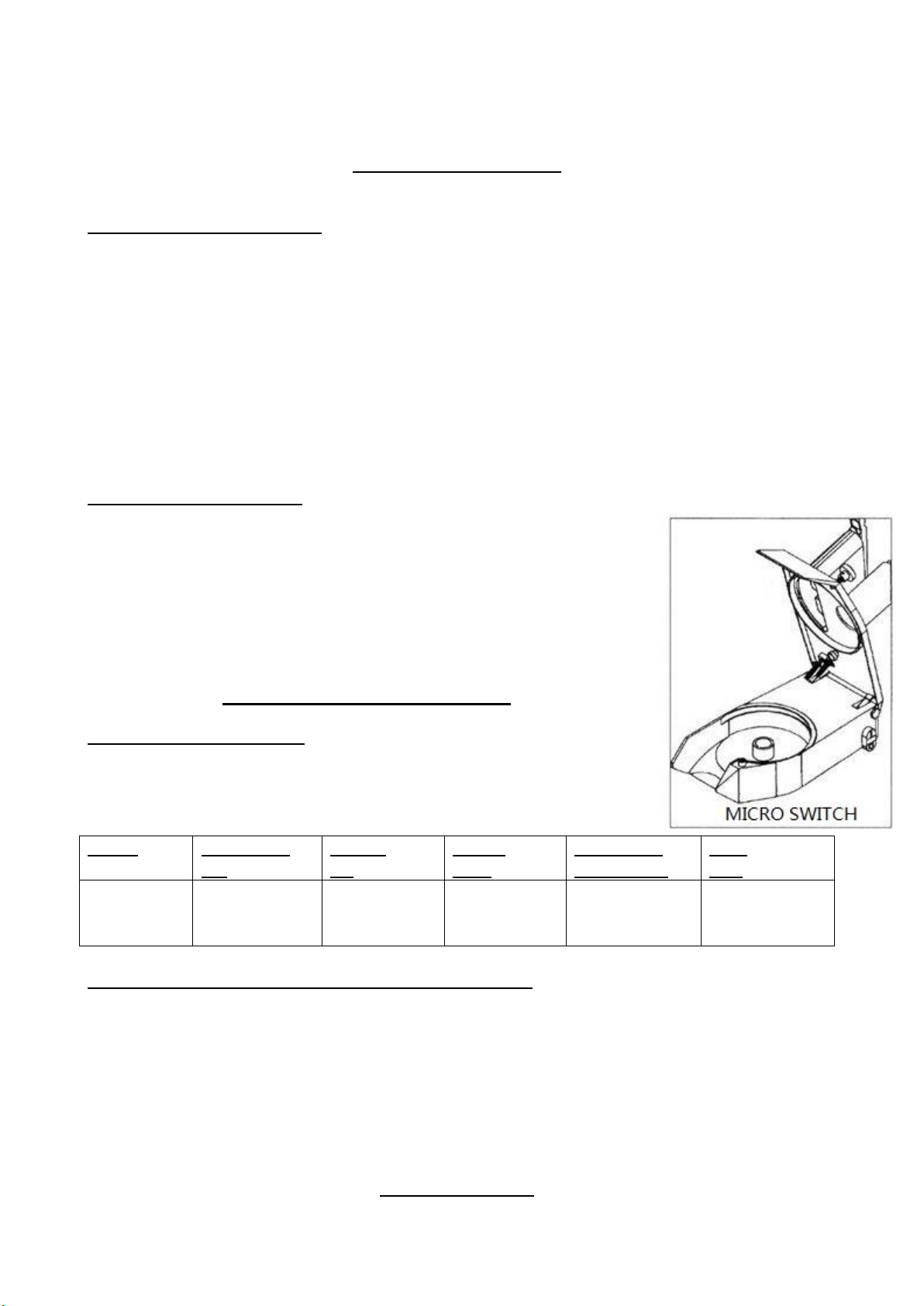

1.2 ELECTRICAL SAFETIES
THERE ARE TWO MICRO-SWITCHES ON THE COVER OF THE MACHINE,
THESE PREVENT ACCIDENTAL INJURY: 1. WHEN LIFTING CRESCENT-SHAPED
INLET PRESSURE HANDLE
TO A CERTAIN HEIGHT, THE MACHINE STOPS RUNNING,
2. WHEN YOU OPEN THE COVER UP, THE MACHINE STOPS RUNNING,
TO ENSURE SAFE OPERATION.
2. PERFORMANCE PARAMETER
2.1. TECHNICAL FEATURES
MODEL
DIMENSIONS
CM.
WEIGHT
KG.
POWER
WATT
ELECTRICAL
CONNECTION
REVS
DISC
HLC-300
57X23X51
22.50
550
110/1/50~60
220~240/1/50~60
380/1/50~60
270
2.2. SUPPLY CONDITIONS AND DISPOSAL OF PACKINGS
THE CUTTING MACHINE IS PACKED IN A STURDY CARDBOARD BOX WITH INTERNAL SHAPED EDGES WHICH
GUARANTEE THE PERFECT INTEGRITY OF THE MACHINE DURING TRANSPORT.
ALL THE PACKING COMPONENTS (CARTON, FOAM, STRAPS, AND SO ON) CAN EASILY BE DISPOSED OF AS
HOUSEHOLD TRASH.
3. INSTALLATION

- 3 -
3.1. SETTING THE MACHINE
THE MACHINE CONNECTION AND THE OPERATION MUST BE MADE BY SKILLED PERSONNEL.
WARNING: BOTH THE SYSTEM AND LOCATION WHERE THE EQUIPMENT IS PLACED MUST COMPLY WITH
SAFETY REGULATIONS AND FOOD SAFETY STANDARDS.
THE MANUFACTURER DECLINES ANY AND ALL RESPONSIBILITY FOR DIRECT OR INDIRECT DAMAGES
WHICH MAY ENSUE FOR NON-COMPLIANCE WITH THE ABOVE MENTIONED REGULATIONS.
SET THE EQUIPMENT ON A WIDE, LEVELLED, DRY AND FIXED BASE/TABLE, FAR FROM HEAT SOURCES AND
WATER.
3.2. ELECTRIC CONNECTIONS
THE EQUIPMENT IS SUPPLIED WITH AN ELECTRIC CORD AND PLUG.
IT IS IMPERATIVE THAT THE EQUIPMENT IS WELL GROUNDED ACCORDING TO THE REGULATIONS.
THE MANUFACTURER DECLINES ANY AND ALL RESPONSIBILITY FOR DIRECT AND INDIRECT DAMAGES
WHICH MAY ENSUE FOR NON-COMPLIANCE WITH THE REGULATIONS IN FORCE.
4. USE OF THE EQUIPMENT

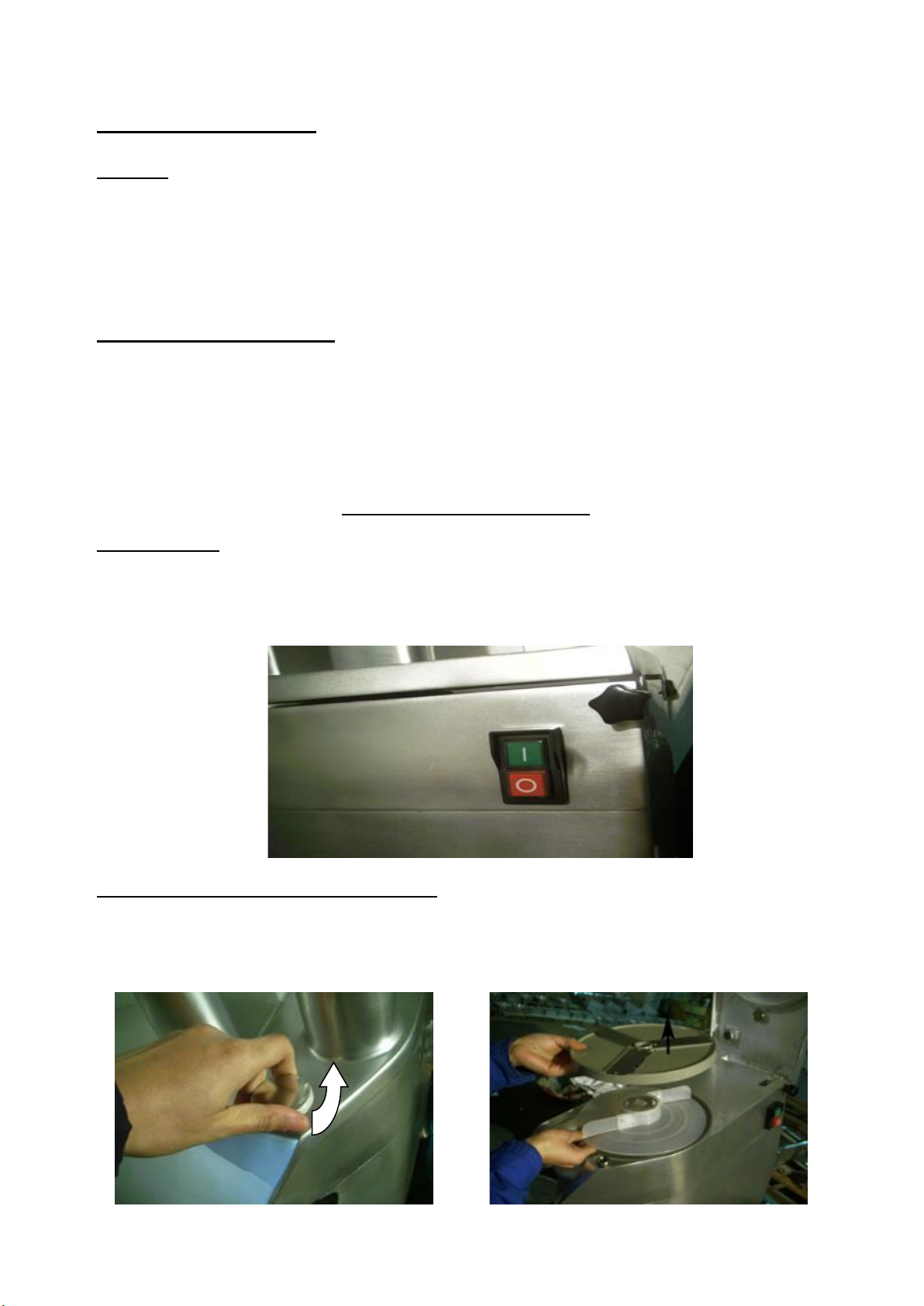

4.1. CONTROLS
THE CONTROLS AND LIGHT ARE SET ON THE RIGHT SIDE OF THE BASE.
1. GREEN BUTTON FOR STARTING THE MACHINE
2. RED BUTTON FOR STOPPING THE MACHINE
4.2. SETTING THE DISCS ON THE MACHINE
ROTATE THE KNOB AS SHOWN IN FIGURE N.1 AND OPEN THE COVER FIRST SET THE PLASTIC EJECTING
DISC (2), THEN INSTALL THE DISC SELECTED FOR THE CUTTING/SLICING.
CLOSE THE COVER AND REVERSE THE ROTATION OF THE HANDLE. PRESS THE START BUTTON TO
AUTOMATICALLY HOOK THE DISCS IN THE CORRECT POSITION.

- 4 -
COVER OPENING (1) DISC POSITION (2)

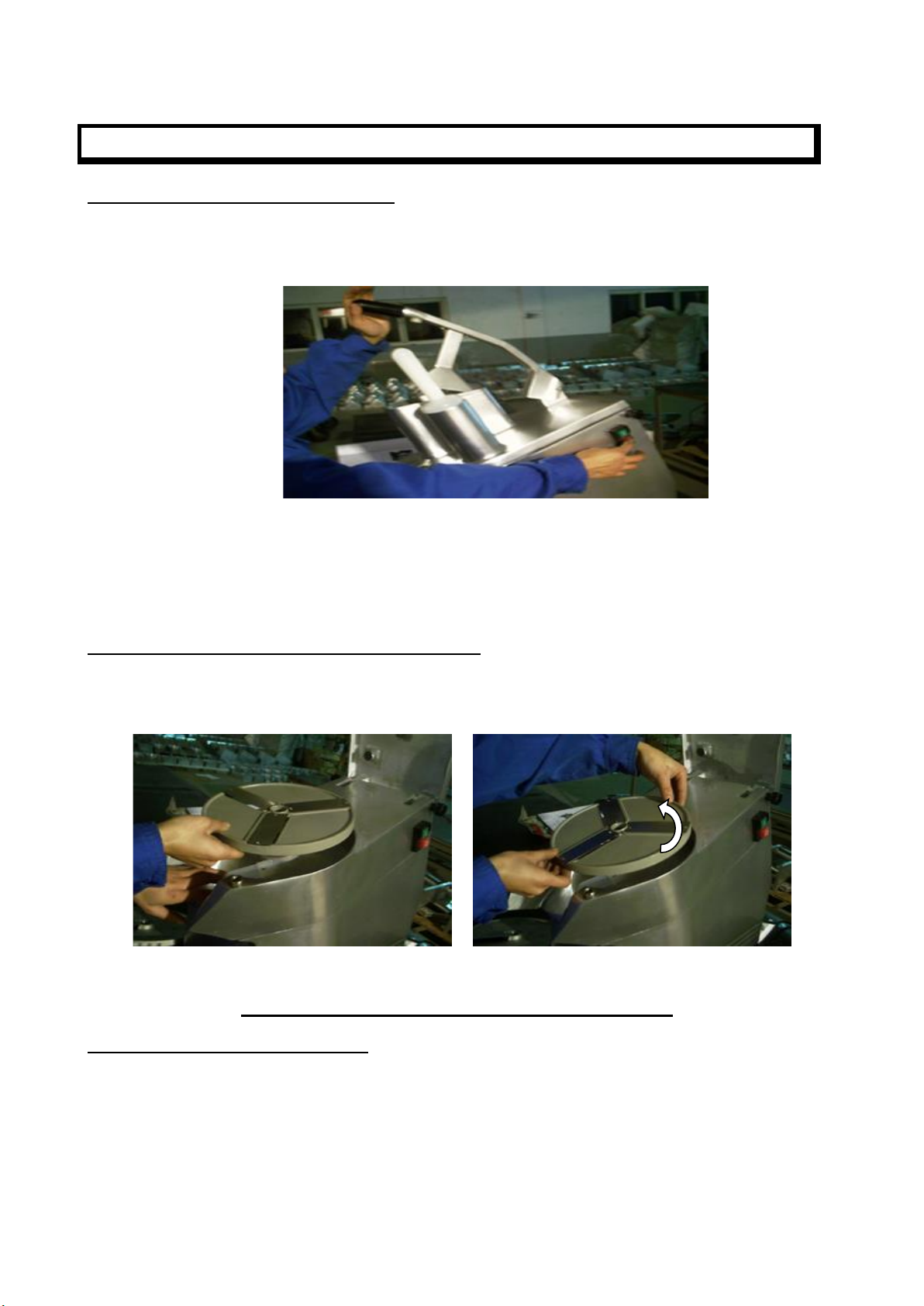

4.3. SETTING AND CUTTING THE FOOD
LIFT THE HANDLE AND SET THE FOOD INSIDE THE OPENING AS SHOWN IN FIGURE N.3, THEN PUT DOWN
THE HANDLE, PRESS THE GREEN START BUTTON WITH YOUR RIGHT HAND, AND WITH YOUR LEFT HAND,
LIGHTLY MOVE THE HANDLE DOWNWARDS UNTIL FOOD FULLY DISPENSED.
(3)
LIFT THE HANDLE TO ADD FOOD.
THE MACHINE WILL AUTOMATICALLY STOP WHEN THE HANDLE IS RAISED POWER RESUMES WHEN THE
HANDLES IS PUSHED DOWN.
ROUND INLET IS USED FOR CUTTING SLENDER VEGETABLES SUCH AS CARROTS, CUCUMBER.
WARNING: NEVER USE THE HAND, BUT PRESS THE VEGETABLE WITH THE PESTLE SUPPLIED.
4.4. RELEASE AND REPLACEMENT OF THE DISCS
TURN THE KNURLED HANDLE AND LIFT THE COVER. (FIG.1)
TURN THE DISCCOUNTERCLOCKWISE AND COVER THE CUTTING EDGE WITH APPROPRIATE MATERIAL AS
(RUBBER, FABRIC, ETC), AND THEN REMOVE THE DISCS FROM BOTTOM TO UP BY HAND.
(4) (5)
5. CLEANING AND MAINTENANCE OPERATIONS
5.1. GENERALITIES AND CLEANING
BEFORE PERFORMING ANY CLEANING OR MAINTENANCE OPERATIONS, CHECK TO MAKE SURE THAT THE
POWER SWITCH IS OFF AND THE PLUG IS DISCONNECTED FROM THE OUTLET.
CLEAN THE EQUIPMENT AND THE DISCS EVERY DAY FOR INCREASED LONGEVITY OF THE EQUIPMENT,
THE DISCS, AND THE PLASTIC EJECTOR, CAN BE REMOVED FOR WASHING UNDER A WARM WATER.
CLEAN THE MACHINE, AND ABOVE ALL WHERE THE DISCS REST, WITH A CLOTH OR A WET SPONGE WITH
WARM WATER, REMOVE ALL FOOD WASTE TO PREVENT THE DISCS FROM CHANGING THEIR POSITION.

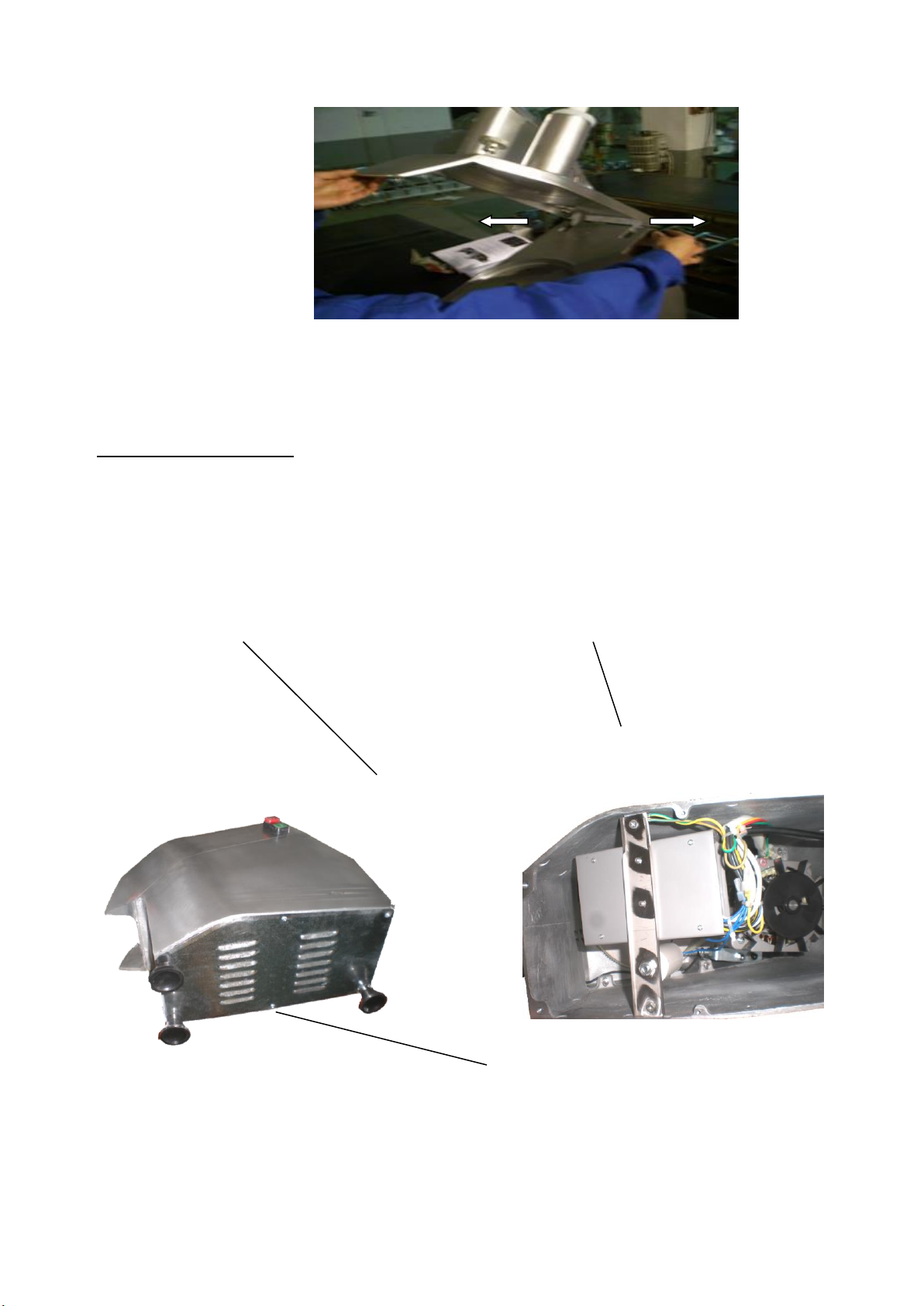

OPEN THE COVER AND LOOSEN THE 2 PINS AS SHOWN IN FIG.6. REMOVE THE COVER AND RUN UNDER
ATTENTION TO DISC BLADES!!

- 5 -
WARM WATER.
(6)
CLEAN THE SURFACES WITH WATER AND SOAP, ALCOHOL, DETERGENTS WITHOUT ABRASIVES OR
SUBSTANCES CHLORINE BASED OR SODA (CHLORINE WATER, MURIATIC ACID).
NEVER USE ABRASIVES, STEEL WOOL, OR SIMILAR PRODUCTS AS THEY MAY DAMAGE THE PAINT, OR THE
MACHINE BODY.
FOR CLEANING, USE NON-TOXIC PRODUCTS AND ONES THAT GUARANTEE THE BEST HYGIENE.
5.2. TROUBLESHOOTING
1.WHEN THE GREEN POWER BUTTON IS PRESSED, IF THE LIGHT IS DARK, CHECK THE COVER OF THE
MACHINE AND INSURE THE FIT IS TIGHT; IF THE LIGHT IS BRIGHT, AND THE MACHINE IS NOT OPERATING,
CHECK THE HANDLE POSITION; IF IT IS STILL NOT OPERATING PROPERLY, THEN CUT OFF THE POWER AND
CONTACT THE SERVICE CENTER.
2.IF THE MACHINE DOES NOT HAVE POWER OR THE BLADE IS RUNNING SLOW, OPEN THE MACHINE
BOTTOM, ACCORDING TO THE BELOW INSTRUCTIONS AND ADJUST THE MOTOR TENSION BELT NEW
MACHINES MAY REQUIRE ADJUSTMENT WITHIN THE FIRST 2-3 MONTHS OF USE. (1) REMOVE THE BOTTOM
2) REMOVE THE BRACKET
3) BY ADJUST THE SCREW TO
ADJUST THE BELT TENSION

- 6 -
5.3. STORAGE FOR LONG PERIODS OF DOWN TIME
SHOULD THE MACHINE NOT BE USED FOR A LONG PERIOD OF TIME, DISCONNECT THE MAIN WALL SWITCH AND
CLEAN
THE MACHINE AND ITS ACCESSORIES ACCURATELY. USE VASELINE OIL (OR SIMILAR PRODUCTS)
TO PROTECT ALL THE MACHINE’S ELEMENTS.
WE RECOMMEND COVERING THE MACHINE WITH A NYLON (OR SIMILAR) CLOTH.

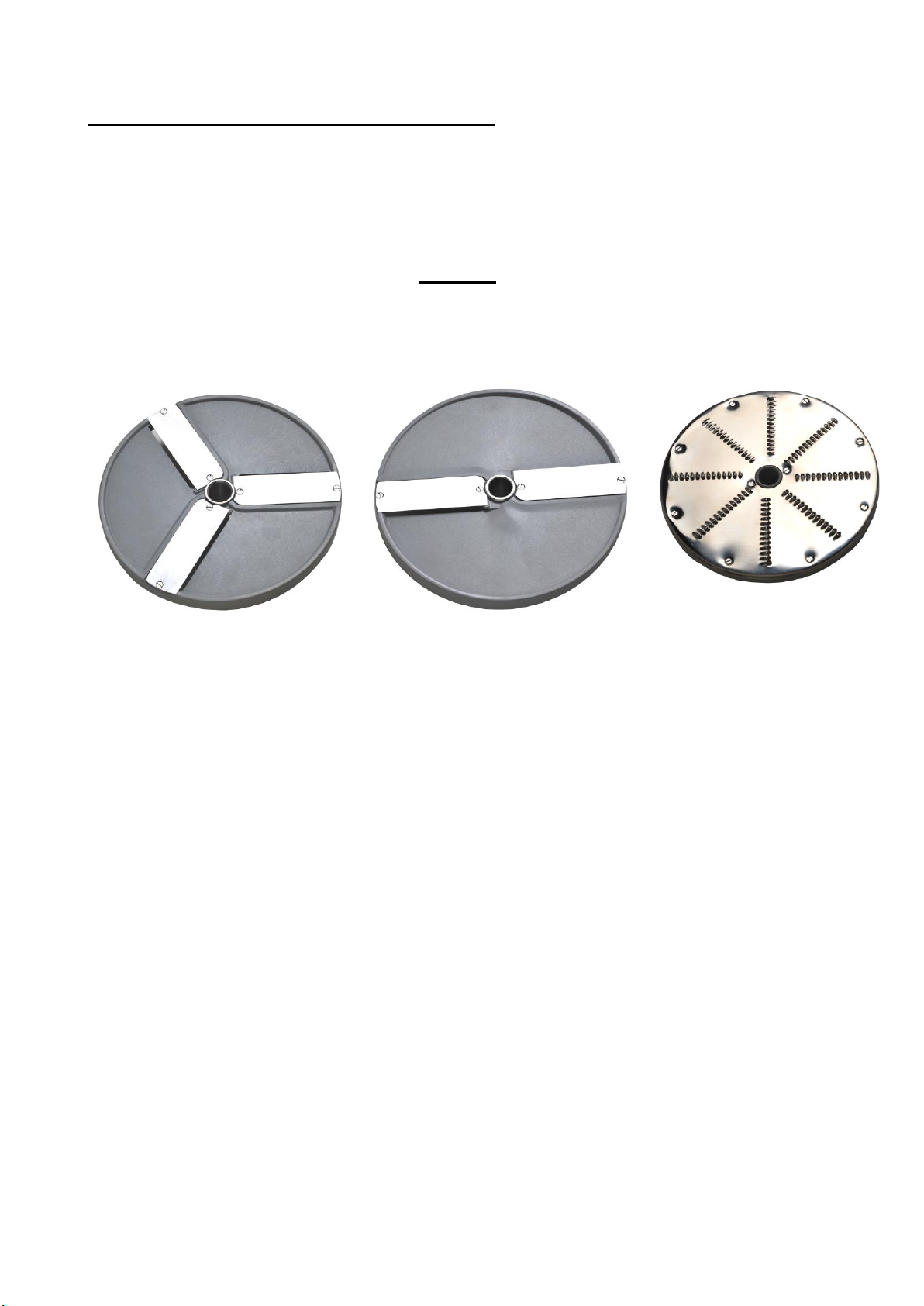

6. DISCS
THIS MACHINE SHIPS WITH THE FOLLOWING BLADE OPTIONS:
6.1 SLICING BLADE (WITH THE MACHNE) P2, P4
6.2 GRATING BLADE (WITH THE MACHINE) H3, H4,H7
H3 H4 H7
P2 P4

- 7 -

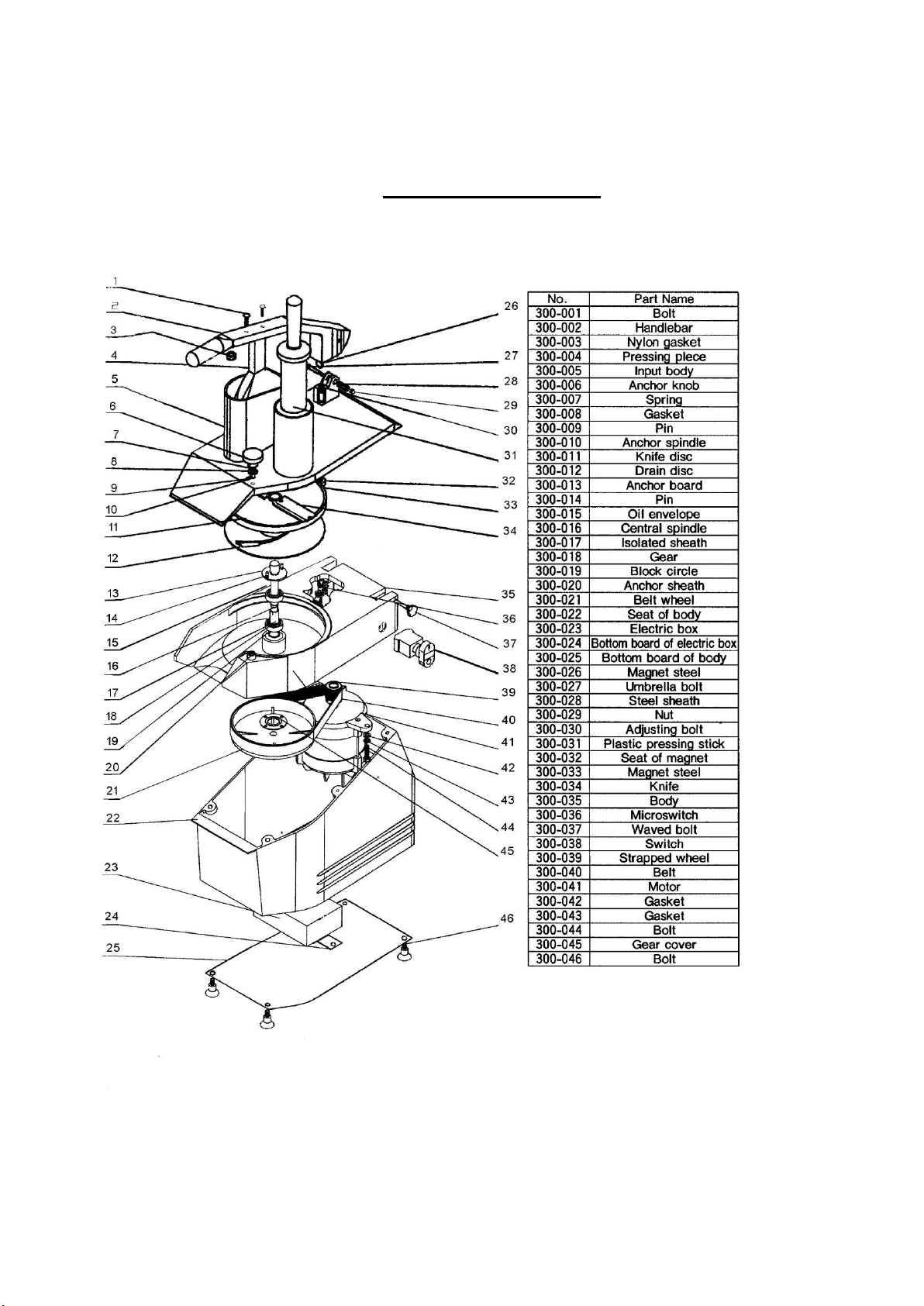

7. EXPLODED DRAWING

- 8 -
8. ELECTRICAL DRAWING
