Sentinel SHLM-10A User manual

1
Planetary Mixer
Instruction Manual
SHLM-10A,SHLM-20B,SHLM-30B

2
Index
Index
Pack Contents …………………………………………….……..………3
General Description …………………………………………….……..….…...3
Technical Parameters …………………………………………….………..……3
External Parts of Mixer ……………………………………………….….….……4
Operating Instructions …………………………………………………..….……5
Accessories and Functions………………………………………………..…….…...5
Operating Instructions ………………………………………………….………..6
Maintenance ……………………………………………….…………..6
Troubleshooting ………………………………………………….………..7
Warning! ………………………………………………….………..8
Parts List ………………………………………………………..9-14

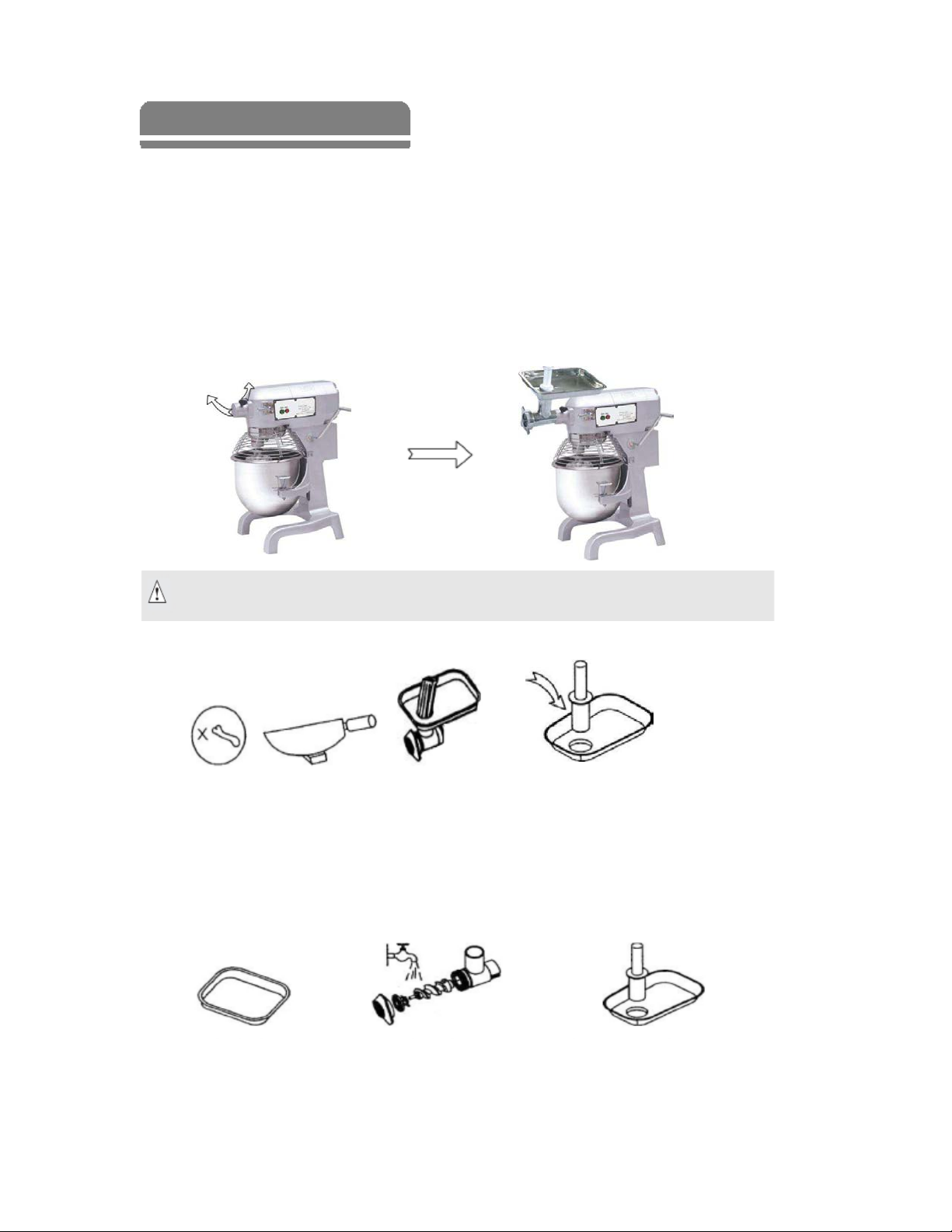

Grinder Attachment ………………………………...………………….…15-16
Certifications …………………………………………………….……17
Warranty …………………………………………………….……17

3
Pack Contents
The following is included:
•Food Mixer •Spiral Dough Hook •Whisk
•Mixing Bowl •Beater • Instruction Manual
General Description
Your new SHLM-10A, SHLM-20B, SHLM-30B Planetary Mixer is a
changing speed gear mixer with a three speed motor and a non-rotation bowl.
Planetary mixers are an excellent choice for general purpose kitchens,
bakeries and pizzerias.
This type of mixer is great for blending ingredients and kneading dough, and
with the addition of appropriate attachments is capable of chopping meat,
grating cheese and whipping light meringues.
Technical Parameters
Name Power
(KW) Weight (lbs)
Speed of Stirring Shaft (r/min) Overall Dimensions
(inch)
1st Speed 2nd Speed 3rd Speed
SHLM-10A 0.75 99 108 195 355 20” x 19” x 30½”
SHLM-20B 1.1 234 108 195 355 25” x 23” x 37”
SHLM-30B 1.5 392 91 166 282 28” x 26½” x 51”

4

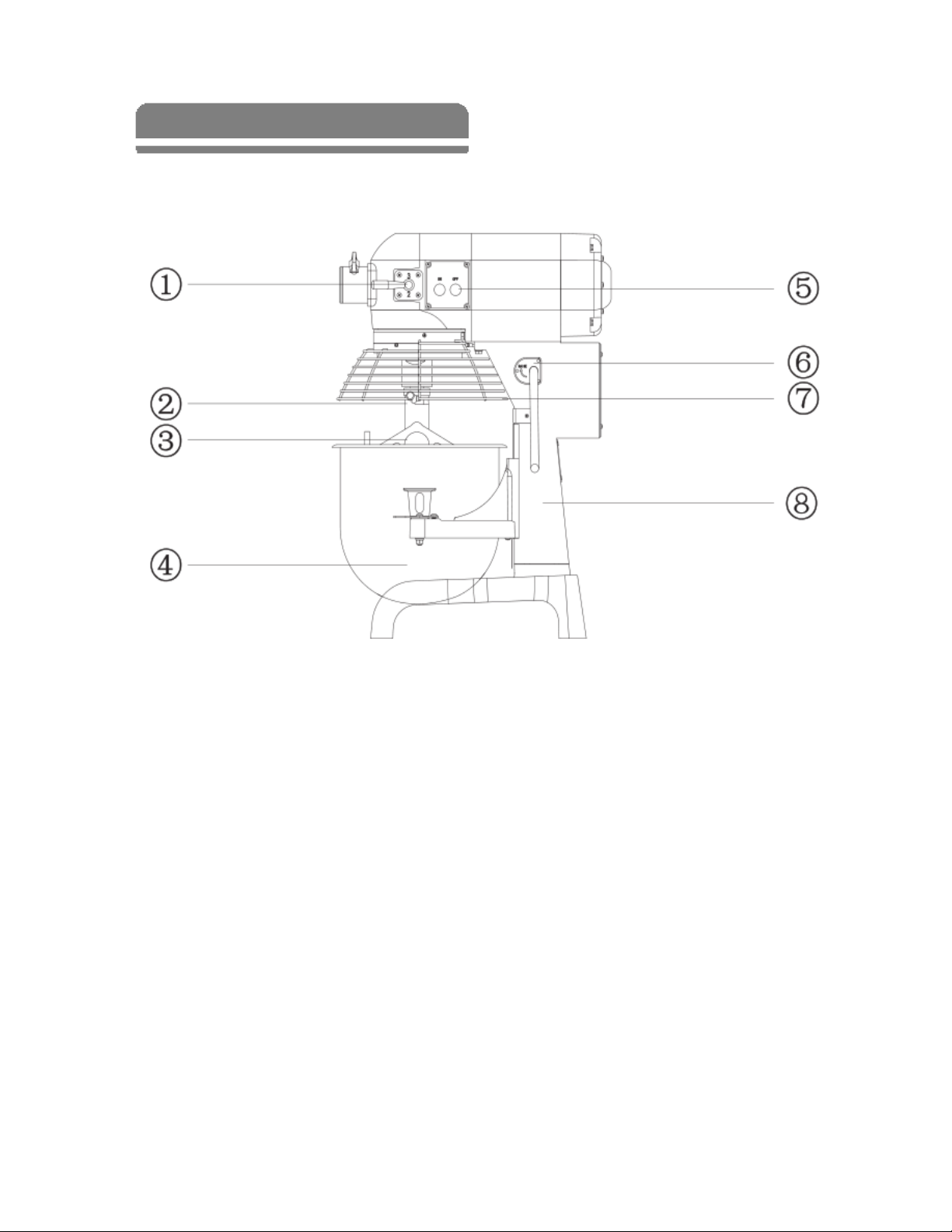

Main External Parts of Mixer
① Gear change hand lever
② Stirring shaft
③ Mixer
④ Stainless bowl
⑤ Power switch
⑥ Bowl Lift Handle
⑦ Safety guard
⑧ Support

5
Operating Instructions
① Standard power supply - 110 v/ 60 HzAc. (Please use a plug with 3 wide
contacts and good grounding.)
② Installation of mixer: Put the stirring shaft 2 in Mixer 3 and rotate it in
clockwise direction.
③ Starting procedures: Pull the gear change hand lever 1 to position 1 before
starting, then turn on the power switch 5 and set the speed required. After
the mixer is in normal operation, pull the hand lever 6 to the highest point
and lift the support 7 to the highest position.
④ Speed transformation: If you want to change speed, please turn off the
power switch first, and then pull the gear change hand lever 1 to the
position required.
⑤ Shutting down: when the operation is complete, turn off the power switch
first, then pull the gear change hand lever 1 to position 1, and pull back
the hand lever 6 to the lowest point and finally disconnect power supply.
Accessories and Functions
① Whisk: Used for stirring of liquids, such as cream and egg.
Recommended speed: mid or high speed.
② Beater: Used for stirring batters, such as stuffing and cake dough.
Recommended speed: start with low speed, end with mid speed.
③ Spiral dough hook: Used for making dough. Recommended speed: low
speed.
④ Mixing Bowl

6
Operating Instructions
① The outlet must be provided with a ground wire to guarantee the
mixer’s grounding through it. Electric shock could occur if the ground
wire is improperly mounted.
② Never put your hands or fingers into the bowl during operation, serious
injury could occur. Power supply should be disconnected before
working with the bowl.
③ Don’t operate the mixer beyond the time limit to prevent reduction of
its service life.
④ The mixer should be mounted in a stable and clean place. Keep it away
from hot or wet environments.
⑤ Clean mixer after each use. Disconnect power supply before cleaning.
Clean it with a piece of soft, damp cloth. Don’t clean it with liquid or
spraying detergent.
Maintenance
The entire mixer, including removable parts, must be thoroughly cleaned
and sanitized using the procedures identified by your local health department.
Clean the bowl and attachments after each use to keep mixer functioning
properly. Never use a scrubber pad, steel wool, or abrasive material to clean
the mixer.
Hand wash using mild soap and water, rinse, dry and sanitize. The bowl
can also be placed in the dishwasher.
The transmission gear box is lubricated in the factory. Check the gearbox
lubrication every 6 months. To add or refill grease, open the top cover, then
fill grease from aperture or replace the grease directly.

7
Troubleshooting
Troubleshooting
Problems Causes Solutions
Tool shaft does not
rotate after starting
the machine Loose electric wiring Check electric wiring, plug
and cord
Oil leakage The seal rings are worn out Replace seal rings
Motor temperature
raised while reduced
output speed
Too low voltage Check the power supply
Overloaded Reduce load
The speed of mixing is too
high or you may be using
the wrong attachment.
Select a suitable speed and
attachment
The attachments hit
the bowl The attachment or bowl may be damaged Repair or replace the attachment or bowl
Noise or high
temperature from
gearbox Insufficient lubrication Add or replace the grease

8
Warning!
•If the equipment is not functioning properly, it should be serviced by
an authorized service agent only.
•Persons under 18 years of age are not permitted to operate
•Read all instructions and safety warnings prior to operating
•Keep hands and fingers away from the bowl while in operation
•Do not attempt to clear/clean or adjust attachments without shutting off
the power and disconnecting the power cord.
•Do not operate without the bowl in place.

9

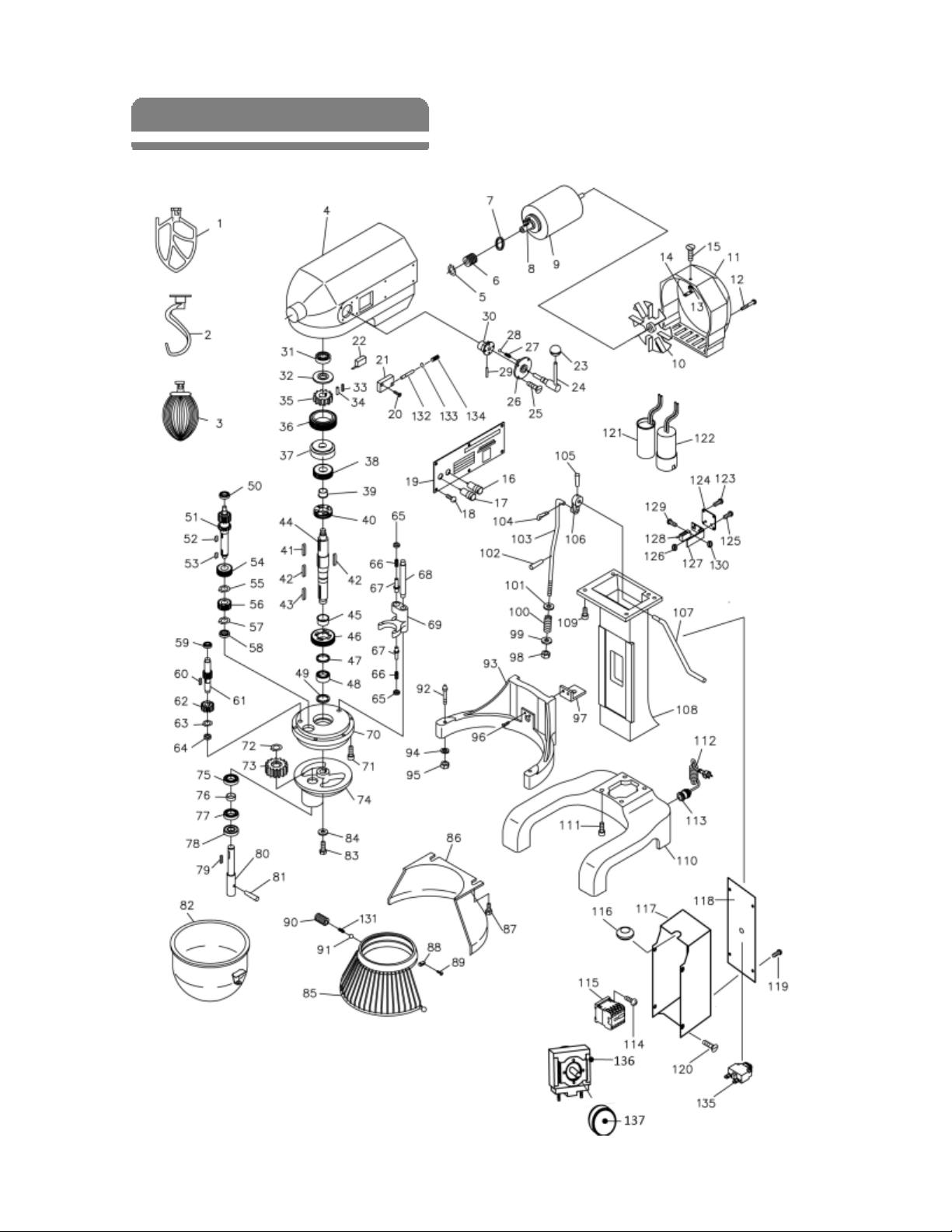

Parts List for SHLM-10A
SER.NO. PART.NO. PART NAME SER.NO. PART.NO.
PART NAME
1 10-1
Flat Beater
70 10-70
Inner gear
2
10-2
Hook
71
10-71
hexagon socket cap screws
3 10-3
Wire whip
72 10-72
Circlips for shaft
4
10-4
Gear box
73
10-73
Planet gear
5 10-5
Circlips for shaft
74 10-74
Operating shelf
6
10-6
Worm pole
75
30-76
Bearing
7
10-7
Oil seal
76
10-76
Running shaft support
8
10-8
Key
77
30-76
Bearing
9
10-9
Motor(110v 60Hz with the tools)
78
10-78
Oil seal
10
10-10
fan
79
10-79
Key ：5X20
11
10-11
Back cover
80
10-80
running spindle
12 10-12
Nut:M5X60
81 10-81
Retainer-spring
13
10-13
Spring washer
82
10-82
Bowl
14 10-14
Connector
83 10-83
cross recess pan head screw
15
10-15
Nut:M4X8
84
10-84
Moving frame clamp
16
10-16
Red button
85
10-85
front shield
17
10-17
Green button
86
10-86
back shield
18
10-18
Nut:M4X8
87 10-87
hexagonal head bolt
19 10-19
Brand
88
10-88
Bump pin block
20
10-20
Nut:M4X20
89
10-89
cross recessed countersunk head screw
21
10-21
The micro switch installation
90
10-90
Allen flat end set screws
22
10-22
Distance switch
91
10-91
steel ball
23 10-23
Nob
92 10-92
Taper pin column
24
10-24
Speed handle
93
10-93
Support
25 10-25
Nut:M4X8
94 10-94
Spring washer
26
10-26
fix seat
95
10-95
Type 1 hexagonal nut
27
10-27
Spring
96
10-96
cross recessed countersunk head screw
28
10-28
steel ball
97
10-97
Support lifting climbing
29
10-29
Retainer-spring
98
10-98
hexagon lock nut
30
10-30
nob
99
10-99
flat washer
31
10-31
deep groove ball bearing
100
10-100
compression spring
32 10-32
Plug
101 10-101
flat washer
33
10-33
Spring
102 10-102
elastic cylindrical pin
34 10-34
Roller：6X10
103 10-103
Connecting rod
35
10-35
Gear
104
10-104
cotter
36
10-36
Super machine parts
105
10-105
Retainer-spring
37
10-37
ring gasket
106
10-106
Crank lever
38
10-38
Combination of gear
107
10-107
Handle
39
10-39
Gear shaft sleeve
108
10-108
Stud
40
10-40
Claw-type clutch
109
10-109
hexagonal head bolt
41 10-41
Key ：5X25
110 10-110
foundation
42
10-42
Key ：5X30
111
10-111
hexagonal head bolt
43 10-43
Key ：5X30
112 10-112
Power cord
44
10-44
Main shaft
113
10-113
Power supply is waterproof connectors
45
10-45
Gear shaft sleeve
114
10-114
cross recess pan head screw
46
10-46
Gear
115
10-115
Contact switch
47
10-47
Spring washer
116 10-116
Channeling coil
48 30-36
Bearing
117
10-117
electricity box
49
10-49
Oil seal
118
10-118
Electrical box cover plate
50 10-50
Bearing
119 10-119 M4X8 Stainless steel cross trough pan head
screws
51
10-51
Gear shaft
120
10-120
M4X8 cross recessed countersunk head screw
52 10-52
Key ：5X10
121 10-121
Capacitor
53
10-53
Key ：5X10
122
10-122
Capacitor
54 10-54
Combination of gear
123 10-123
cross recess pan head screw
55
10-55
Circlips for shaft：55
124
10-124
Travel switch fixed plate
56
10-56
Gear
125
10-125
cross recess pan head screw
57
10-57
Circlips for shaft
126
10-126
Type 1 hexagonal nut
58
10-58
Bearing
127
10-127
Travel switch bracket
59
10-59
Bearing
128
10-128
Distance switch
60
10-60
Key ：5X14
129
10-129
cross recess pan head screw
61 10-61
Shaft worm gear
130 10-130
Type 1 hexagonal nut
62
10-62
Worm gear
131 10-131
Shield compression spring
63 10-63
Circlips for shaft
132 10-132
Switch shaft pin
64
10-64
Bearing
133
10-133
split washer
65
30-7
Control nut
134
10-134
Switch shaft pin compression spring
66
10-66
Spring 135 10-135 Overload switch
67
10-67
Fork pin
136 10-136
Timer(with four screws)
68 10-68
declutch shift shaft
137 10-137
Timer knob
69
10-69
Shifting yoke

10
Parts List for SHLM-10A

11
Parts List for SHLM-20B
SER.NO. PART.NO. PART NAME SER.NO. PART.NO. PART NAME
1 20-1 Wire whip 47 20-47 Oil seal
2 20-2 Spiral dough hook 48 20-48 Fore lump
3 20-3 Flat Beater 49 20-49 Support
4 20-4 Safety guard 50 20-50 Case
5 20-5 Bowl assembly 51 20-51 Nut
6 30-7 Plunger-shifter yoke 52 20-52 Bearing
7 30-8 Spring 53 20-53 Mid-gear wheel
8 30-9 Pin shaft 54 20-54 Key
9 20-9 Shifting yoke 55 20-55 Circlips for shaft
10 30-11 Cam-gear shifter 56 20-56 Gear
11 30-12 Plate-shifter index 57 20-57 Bushing
12 20-12 Handle-shifter cover 58 20-58 Gear
13 20-13 Handle-shifter 59 20-59 Plug cover
14 20-14 Speed handle 60 20-60 Worm wheel
15 20-15 Gear case gland 61 20-61 Oil seal
16 20-16 Nut 62 30-62 Green button
17 20-17 Pressing plate 63 20-63 Red button
18 30-35 Plug cover 64 20-64 Brand
19 20-19 Super machine parts 65 20-65 Motor box
20 20-20 Declutch shift shaft 66 20-66 Key
21 20-21 Ring 67 20-67 Shaft worm gear
22 20-22 Nut 68 20-68 Gear
23 20-23 Main shaft 69 20-69 110V/60HZ Motor(with tool)
24 20-24 Gear box 70 20-70 Back housing
25 20-25 Plug attachment hub 71 N/A N/A
26 20-26 Internal gear 72 20-72 Handle-shifter
27 20-27 Gear 73 20-73 Crank lever
28 20-28 Operating shalf 74 20-74 Connecting rod
29 30-36 Bearing 75 20-75 Stud
30 20-30 Oil seal 76 20-76 Clamp plate
31 20-31 Working shaft 77 20-77 Clamp plate
32 20-32 Retainer-pin 78 20-78 Spring
33 20-33 Spring 79 30-92 Distance switch
34 20-34 Pressing plate 80 20-80 Overload switch
35 20-35 Transmission shaft support 81 20-81 Power cord
36 30-53 Bearing 82 20-82 Power supply is waterproof connectors
37 20-37 Spacer-lower 20-83 Contact switch
38 20-38 Circlips for shaft 83 20-84 Capacitor
39 20-39 Ring gasket 84 20-85 Capacitor
40 20-40 Gear 85 20-86 Attachment hub
41 30-40 Bushing 87 20-87 Spring
42 20-42 Sleeve 88 20-88 Circlips
43 20-43 Claw type gear wheel 89 20-89 Gear
44 20-44 Ring 90 20-90 Timer
45 30-26 Bearing 91 20-91 Timer knob
46 20-46 Bushing

12
Parts List for SHLM-20B
B

13
Parts List for SHLM-30B
SER.NO. PART.NO. PART NAME SER.NO. PART.NO. PART NAME
1 30-1 Hook 52 30-52 Base
2 30-2 Beater 53 30-53 Bearing
3 30-3 Wire Whip 54 30-54 Transmission shaft support
4 30-4 Safety guard 55 30-55 Key
5 30-5 Bowl 56 30-56 Circlips for shaft
6 30-6 Top cover 57 30-57 Gear
7 30-7 Screw 58 30-58 Bushing
8 30-8 Spring 59 30-59 Front housing
9 30-9 Pin shaft 60 30-60 Worm wheel
10 30-10 Shifting yoke 61 30-61 MARK
11 30-11 Cam-gear shifter 62 30-62 Case
12 30-12 Plate-shifter index 63 30-63 Back cover
13 30-13 Handle-shifter 64 30-64 Internal gear
14 30-14 Handle set 65 30-65 switch axle
15 30-15 Turnset 66 30-66 Seal up ring
16 30-16 Speed handle 67 30-67 Gear shaft
17 30-17 Plug attachment hub 68 30-68 Gear
18 30-18 Attachment hub 69 30-69 Bushing
19 30-19 Spring 70 30-70 Gear
20 30-20 Circlips 71 30-71 Gear
21 30-21 Gear 72 30-72 Plate
22 30-22 Hood ring 73 30-73 Plug 1
23 30-23 Circlips for shaft 74 30-74 Nut
24 30-24 Planet gear 75 30-75 Spring plate
25 30-25 Operating shelf 76 30-76 Bearing
26 30-26 Bearing 77 30-77 Shaft worm gear
27 30-27 Oil seal 78 30-78 Key
28 30-28 Pin 79 30-79 Circlips for shaft
29 30-29 Working shaft 80 30-80 Circlips for shaft
30 30-30 Declutch shift shaft 81 30-81 Plug 2
31 30-31 Plate 82 30-82 110V/60HZ Motor(with tool)
32 30-32 Main shaft 83 30-83 stop block
33 30-33 Nut 84 30-84 Green button
34 30-34 Top batter valve cap 85 30-85 Red button
35 30-35 Flat valve cap 86 30-86 Crank lever
36 30-36 Bearing 87 30-87 Handle-shifter
37 30-37 Spacer-lower 88 30-88 Connecting rod
38 30-38 Super machine parts 89 30-89 Spring
38-1 30-38-1 Super machine parts 90 30-90 Spring plate
38-2 30-38-2 Gear 91 30-91 Clamp plate
38-3 30-38-3 Roller 92 30-92 Distance switch
38-4 30-38-4 Spring 93 93 overload switch
39 30-39 Gear 94 94 Power cord
40
30-40 Bushing
95
95 Power supply is waterproof
connectors
41 30-41 Sleeve 96 96 Contact switch
42 30-42 Gear 97 97 Capacitor
43 30-43 Clamp plate 98 98 Capacitor
44 30-44 Bearing 99 99 switch mounting collar
45 30-45 Bushing 100 100 Switch compression spring
46 30-46 Oil seal 101 101 split washer
47 30-47 Body housing 102 102 The left guard
48 30-48 Bowl hold kits 103 103 The right guard
49 30-49 Support 104 104 Timer
50 30-50 Clamp plate 105 105 Timer knob
51 30-51 Nut

14
Parts List for SHLM-30B
Grinder Attachment

15
Grinder Attachment
Ⅰ
. Operations
1. Unplug the mixer and turn the unit off.
2. Detach and clean the meat-grinding components with clear water, then assemble them
sequentially. Lock the handle.
3. Take off the cover and locking bolt, and then fit on the meat grinder
(attachment hub) to the mixer. Tight up the locking bolt.
WHEN UNIT IS ON, THE ROTATING BLADE IS A HAZARD! KEEP
FINGERS OUT OF OPENINGS!
4. Remove all bones. Cut food into pieces small enough to fit the feeding inlet .
5. Feed the food into the grinding cavity with the feeding rod. Do not replace the rod with
other tools.
6. Upon completion, detach and clean the meat-grinding component immediately to
prevent bacteria growth.
7. If the grounded product is not smooth or if it is pasty, please check the following

16
1 .The locking of the front nut is not tight enough, resulting in poor contact
between the grinding blade and the discharge plate. Readjust the nut.
2 .The grinding plate may be blocked. Clean it.
3 .The grinding blade may be blunt. Sharpen or replace it.
Ⅱ
. Maintenance
1. Clean the machine thoroughly after every operation. Wipe the body and clean the
attachments in warm, soapy water.
2. Oil the gear cavity on a regular basis. Lubricate the gear and shaft bearing every half a
year.
3. Protect the grinding blade from damage. If necessary, sharpen orreplace it.
DO NOT IMMERSE MACHINE INTO WATER!

17
To help prevent possible harm to human health and/or the environment, the product must be
disposed of in an approved and environmentally safe recycling process. For further
information on how to dispose of this product correctly, contact the product supplier, or the
local authority responsible for waste disposal in your area.
Parts have undergone strict product testing in order to comply with regulatory standards
and specifications set are international, independent, and federal authorities
Certifications
Warranty
The Sentinel SHLM-10A, SHLM-20B & SHLM-30B carries a 1-year parts & labor
warranty against manufacturer’s defects. This period begins on the date of purchase by
the end user. The limited liability warranty will remain in full effect provided the product
is used in accordance with the instructions for use.
Warranty work must be performed by an authorized agent under normal business hours.
Sentinel is not responsible nor will they cover overtime charges. The warranty is not
transferrable. Damages from transit/installation error, alternation or misuse are not
covered.
Sentinel is not liable for any consequential, compensatory, incidental or special damages.
1-800-235-3325
