Sentry W9150 Series Instruction manual

Original Instructions
sentry-equip.com
966 Blue Ribbon Circle North, Oconomowoc,WI 53066 U.S.A. | +1-262-567-7256 | suppor[email protected]
Installation, Operation & Maintenance Manual
Waters Equipment W9150/W9250 Series
Sample Coolers
W-SW-IOM-00044-1 8-16
Do not install, maintain, or operate this equipment without reading,
understanding, and following the appropriate Sentry Equipment Corp
instructions. Otherwise, injury, damage, or both may result.
Copyright
© 2016 by Sentry Equipment Corp. All rights reserved. All product and company
names are property of their respective owners. This document contains
proprietary information. No part of this document may be photocopied or
reproduced without the prior written consent of Sentry Equipment Corp.
Limit of Liability
Sentry Equipment Corp, its employees, agents, and the authors and contributors
to this document specically disclaim all liabilities and warranties, express or
implied (including warranties of merchantability and tness for a particular
purpose), for the accuracy, currency, completeness, and/or reliability of the
information contained herein and/or for the tness for any particular use and/or
for the performance of any material and/or equipment selected in whole or part
with the user of/or in reliance upon information contained herein. Selection of
materials and/or equipment is at the sole risk of the user of this publication.
Note
The information contained in this document is subject to change without notice.
Safety Information
Please read the entire manual before attempting to unpack, set up, or operate this
product. Pay careful attention to all Warnings, Cautions, and Notes. Failure to do so
could result in serious personal injury and/or equipment damage.
Use of Hazard Information
If multiple hazards exist, the signal word corresponding to the greatest hazard
shall be used.
Definitions
DANGER indicates a hazardous situation
which, if not avoided, will result in death
or serious injury.
WARNING indicates a hazardous
situation which, if not avoided, could
result in death or serious injury.
CAUTION, used with the safety alert
symbol, indicates a hazardous situation
which, if not avoided, could result in
minor or moderate injury.
NOTICE is used to address practices not
related to personal injury.
NOTE
Information that requires special emphasis.
TIP
Alternate techniques or clarifying information.
SHALL:
This word is understood to be mandatory.
SHOULD:
This word is understood to be advisory.
General Safety Precautions
Product Selection, Installation, and Use
Improper selection, installation, or use can cause personal injury or property damage.
It is solely the responsibility of users, through their own analysis and testing, to select
products suitable for their specific application requirements, ensure they are properly
maintained, and limit their use to their intended purpose.
Follow proper local, state, and federal regulations for proper installation and operational
requirements.
Always use caution and common sense when working with any chemical. Read
the product label and Material Safety Data Sheets (MSDS) carefully and follow the
instructions exactly.
Potential Equipment Hazards
Hot surfaces! This equipment may have very hot
surfaces. If an operator contacts a hot surface, injury
may occur. Use protective clothing to prevent injury.
If other equipment comes in contact with a hot
surface, damage to the equipment may occur. Ensure
the area around this equipment is kept clear to
prevent this damage from occurring.
High pressures! This equipment may contain fluids
at very high pressures. Prior to installing, removing,
or maintaining this equipment, ensure that the
equipment is isolated from all connecting piping, the
equipment is depressurized, the contents have been
drained, and the equipment is cool.
Freezing Temperatures! This equipment may have
very cold surfaces. If an operator contacts a cold
surface, injury may occur. Use protective clothing to
prevent injury. If other equipment comes in contact
with a cold surface, damage to the equipment may
occur. Ensure the area around this equipment is kept
clear to prevent this damage from occurring.
Freezing of fluids in tube
can lead to rupture of the
tube wall and coil failures.
Take precautions to avoid
freezing, such as draining
the equipment when out
of service or installing the
equipment in an environment
protected from temperatures
below the freezing point of
the fluids used.
Standard Warranty
Sentry Equipment Corp (“Seller”) warrants products manufactured by it and
supplied hereunder (“Products”) to be free from defects in workmanship and, to
the extent materials are selected by Seller, to be free from defects in materials, in
each case for a period as dened in the table below:
Brand Product Line Warranty Period
Sentry® Steam & Water Sampling Products and Systems
Solid & Powder Sampling Products and Systems
Gas Sampling Products and Systems
Liquid & Slurry Sampling Products and Systems
Pipeline Integrity Products
Eighteen months from
date of shipment or
twelve months from
startup (whichever
occurs rst)
Waters
Equipment
Steam & Water Sampling Products and Systems Twelve months from
date of shipment
To view the full warranty, go to
www.sentry-equip.com/warranty.
VIBRATION is the typical cause of Sample Cooler failure.
VIBRATION is caused by two (2) conditions:
A. CAVITATION RESULTS whenever localized boiling occurs on the outside surface
of the hot heat transfer coil. Steam bubbles form on the shell side of the hot
coil surface and are swept into the main stream of the cooling water, where
they immediately condense and collapse. The collapsing bubbles generate
severe shock waves (i.e. vibrations) which can fatigue and ultimately fracture
the heat transfer coil.
CAVITATION IS CAUSED BY: (a) the cooling water FLOW RATE IS TOO LOW,
such that the water is OVERHEATED to its boiling point, and/or (b) the cooling
water OPERATING PRESSURE IS TOO LOW, such that the cooling water can
BOIL at too low a temperature.
CAVITATION CAN BE PREVENTED if (a) the cooling water and sample ows
are kept at the design conditions specied in WATERS literature, and (b)
the cooling water pressure is kept as high as possible (50 psig minimum
recommended). To avoid reducing the cooling water pressure in the shell side,
do any throttling at the cooling water OUTLET, never at the INLET.
B. EXCESSIVE COOLING WATER VELOCITY will vibrate the heat transfer coil, which
can fatigue and ultimately fracture the coil. To prevent coil failure, keep the
cooling water ow at the design conditions specied in WATERS literature.
REMEMBER: Throttling must be done at the cooling water OUTLET.
IF YOU HEAR VIBRATION OR RATTLING NOISES from the cooler, take corrective
action IMMEDIATELY to:
Eliminate vibration from cavitation by adjusting cooler so that:
a. Cooling water inlet valve is fully open.
b. Cooling water ow is per design condition.
c. Cooling water shell side pressure is as high as possible.
d. Sample ow is reduced if necessary.
Eliminate vibration from excessive velocity by throttling cooling water
ow to design conditions. Always throttle at the cooling water outlet.
Installation
1. Support the Waters Equipment W9150/W9250 Series sample cooler by its
bracket or by water lines only.
2. Provide a globe valve (not gate) in the COOLING WATER OUTLET LINE for
throttling purposes. (3/8" for Model W9000, ½" for Model W9100 series; ¾" for
Model W9200 series)
3. If it’s desired to isolate the cooler, provide a ¾" gate or ball valve (not globe) in
the COOLING WATER INLET line.
4. For shell side pressure relief, install a combination temperature/pressure relief
valve in the COOLING WATER INLET line.
5. Mount the cooler vertically.
6. Make connections to the cooling water connection and sample uid studs by
means of welding or with ttings, as appropriate.
Start-up and Operation
1. Open fully all cooling water lines. Verify that minimum specied cooling water
ow is occurring. If cooling water is untreated, its temperature rise should not
exceed 40°F, so as to minimize scaling.
2. When necessary, throttle cooling water ow by partially closing the globe
valve on the COOLING WATER OUTLET line. Any valve on the COOLING
WATER INLET must always be full open.
3. When possible and practical, shut o the sample uid when not taking a
sample so as to minimize scaling. This action is not necessary if the cooling
water is from a treated, closed loop supply.
Disassembly and Reassembly
1. For heavily scaled coolers, disassembly is easier by rst dissolving the scale.
Remove scale by circulating an oxalic acid cleaning solution through the
cooling water side.
2. Reuse original gaskets if not too old or if not overly compressed. After
reassembly, pressurize shell and visually inspect for water leaks. Replace those
gaskets that show visible leaks. Keep spare shell gaskets on hand for this need.
Model Gasket
W9150, W9155 WA170592
W9250, W9255, W9260, W9265 WA170593
3. During reassembly, retorque nuts as follows:
Model Ft-Lbs Torque
W9150, W9155 15-20
W9250, W9255, W9260, W9265 20-25
Customer Support
With proven sampling expertise since 1924, Sentry products and services
provide business operations the critical insights to optimize process control and
product quality. We deliver true representative sampling and analysis techniques
to customers around the globe, empowering them to accurately monitor and
measure processes for improved production efficiency, output, and safety.
Standing behind our commitments, we are determined to tackle any application,
anywhere.
We know that running an efficient operation isn’t easy. It requires thorough,
careful analysis of controlled, real-time data achieved through reliable, accurate,
and repeatable process monitoring and measuring. By eectively conditioning,
sampling, and measuring gas, liquid, slurry, powder, solids, steam, or water within
their production environments, our customers obtain the critical insights they
need to control and optimize their processes.
Yet, controlling your processes also means reliable customer support throughout
the life cycle of your equipment.

Customer Service—General information, warranty claims, order management.

Installation Service—For systems that require specialized expertise upon
installation.

Technical Support—Troubleshooting, training, and technical manuals.

Field Service & Retrots—When a problem needs immediate attention.

Replacements Parts & Consumables—Order your replacement parts and
consumables.

Sentry ProShield Services—Select from four ProShield Guardian service plans
providing dierent levels of support to protect your large system investments
with regularly scheduled maintenance.
To learn more, go to
www.sentry-equip.com/support.

This manual suits for next models

10

Other Sentry Accessories manuals

Sentry WF001 User manual

Sentry

Sentry WF001 User manual

Sentry W9000 Series Instruction manual

Sentry

Sentry W9000 Series Instruction manual

Popular Accessories manuals by other brands

IFM SB1 Series operating instructions

IFM

IFM SB1 Series operating instructions

BOMANN KSG 235 instruction manual

BOMANN

BOMANN KSG 235 instruction manual

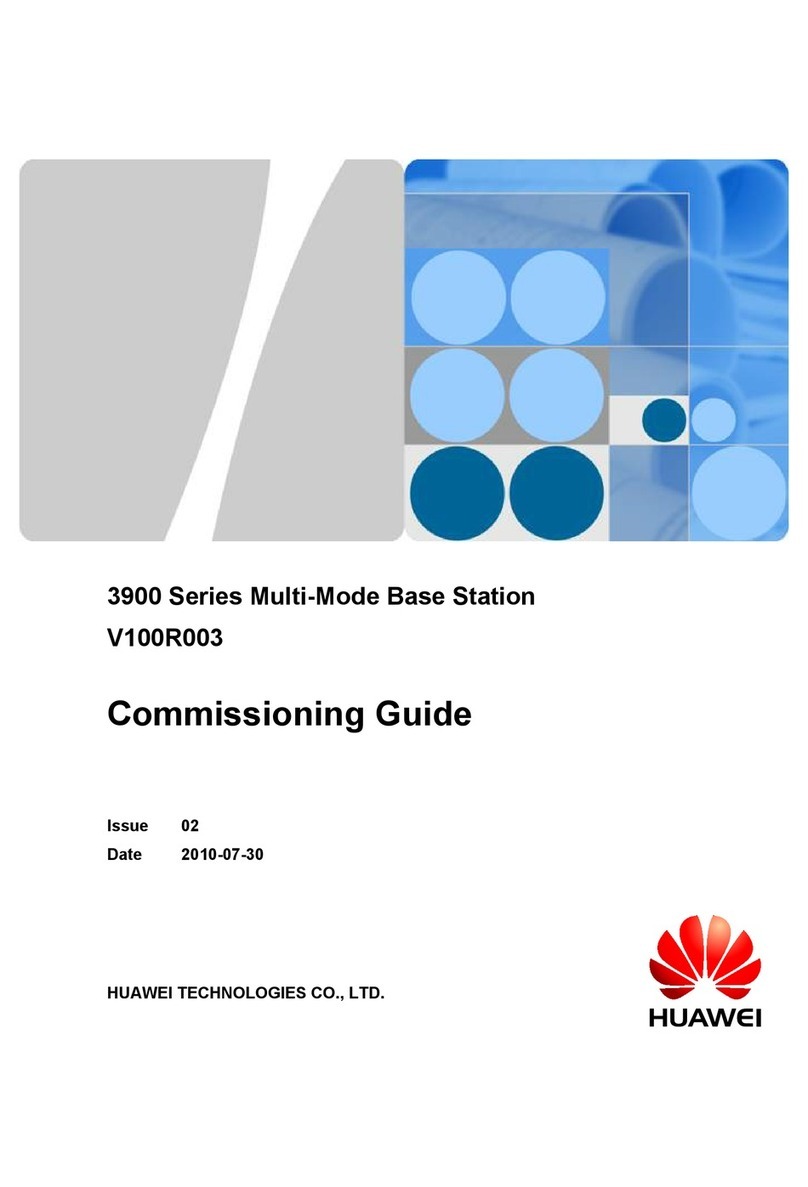

Huawei 3900 Series Commissioning manual

Huawei

Huawei 3900 Series Commissioning manual

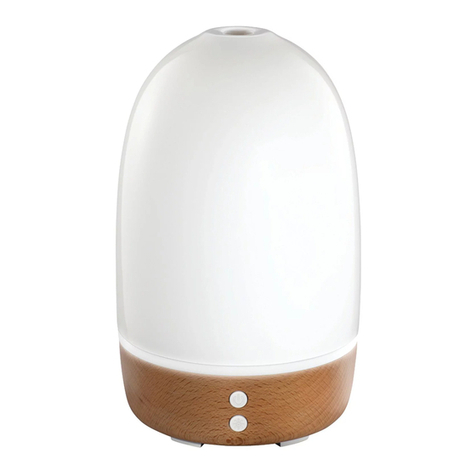

Ellia Thrive ARM-520 quick start guide

Ellia

Ellia Thrive ARM-520 quick start guide

ConnectSense CS-IWO-15 installation instructions

ConnectSense

ConnectSense CS-IWO-15 installation instructions

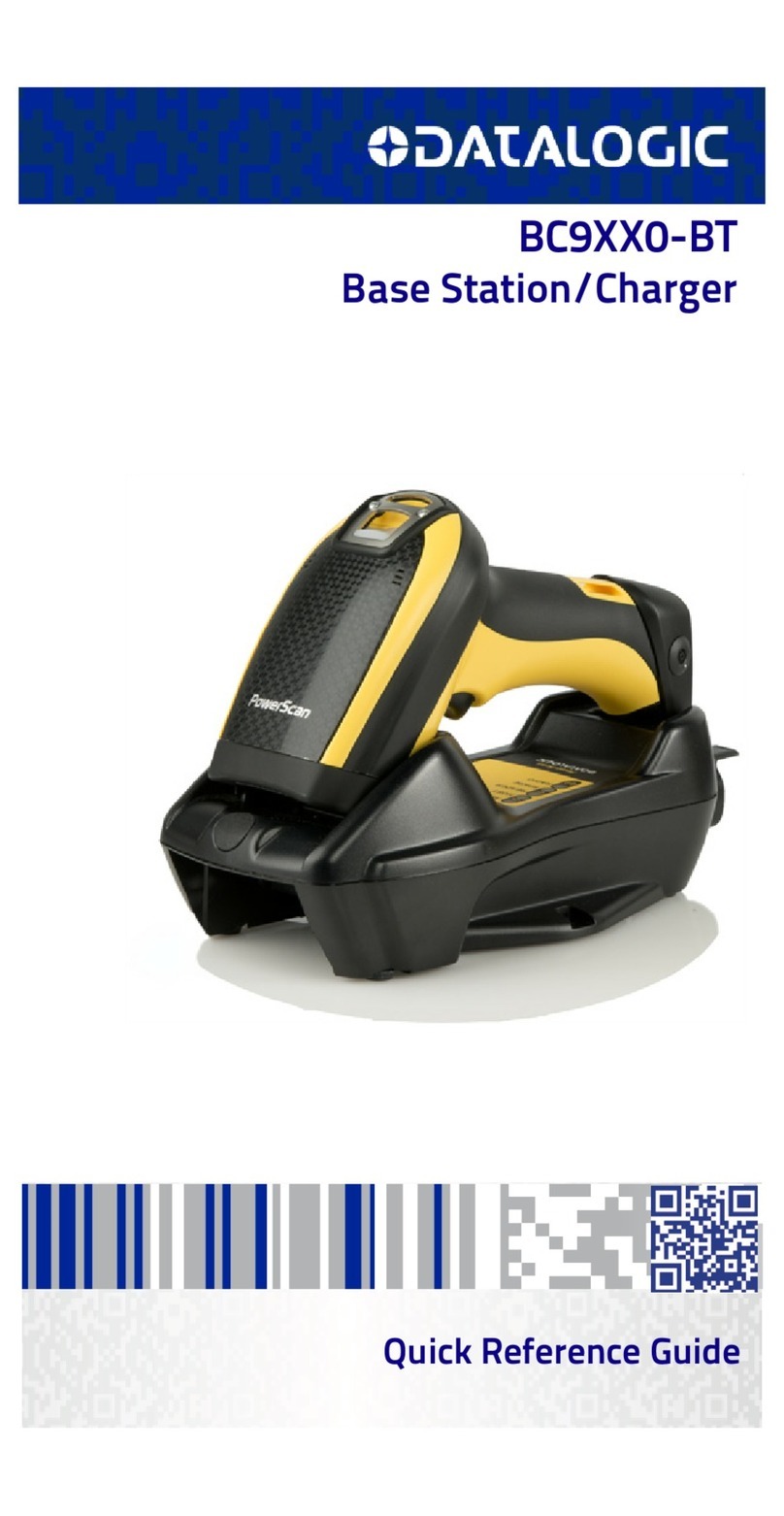

Datalogic BC9XX0-BT Quick reference guide

Datalogic

Datalogic BC9XX0-BT Quick reference guide

NuAire NU-5500 Operation and maintenance manual

NuAire

NuAire NU-5500 Operation and maintenance manual

Swiss Peak P322.051 manual

Swiss Peak

Swiss Peak P322.051 manual

ROSE DISPLAYS SUPERSNAP WITH SLATWALL HANGERS instruction sheet

ROSE DISPLAYS

ROSE DISPLAYS SUPERSNAP WITH SLATWALL HANGERS instruction sheet

Zip FlushMaster 40090 Installation instructions & user manual

Zip

Zip FlushMaster 40090 Installation instructions & user manual

Vishay VT300 Technical manual

Vishay

Vishay VT300 Technical manual

AirCom TC8 Installation, operation and maintenance

AirCom

AirCom TC8 Installation, operation and maintenance

Visonic MCT-350 installation instructions

Visonic

Visonic MCT-350 installation instructions

ChargeZilla A158 user manual

ChargeZilla

ChargeZilla A158 user manual

Tiiwee A2 Instructions for use

Tiiwee

Tiiwee A2 Instructions for use

Sygonix 2489874 operating instructions

Sygonix

Sygonix 2489874 operating instructions

IFM Electronic efector500 PC3 Series installation instructions

IFM Electronic

IFM Electronic efector500 PC3 Series installation instructions

Kenwood TDF-38RA instruction manual

Kenwood

Kenwood TDF-38RA instruction manual

manuals.online logo
manuals.online logoBrands
  • About & Mission
  • Contact us
  • Privacy Policy
  • Terms and Conditions

Copyright 2025 Manuals.Online. All Rights Reserved.
