Servend BLADE TOWER User manual

Manitowoc Beverage Equipment
2100 Future Drive Sellersburg, IN 47172-1868
Tel: [phone] Fax: [phone]
www.manitowocbeverage.com
In accordance with our policy of continuous product development and
improvement, this information is subject to change at any time without notice.
April 01, 2008 REV0
Notice: DO NOT throw this manual away.
This manual contains important information
regarding this product.
Keep this manual at the dispenser location.
BLADE TOWER
2 Valve Root Beer Dispenser
INSTALLATION & SERVICE GUIDE
Part Number 020001448

FOREWORD
Manitowoc Beverage Equipment (MBE) developed this manual as a reference guide for the owner/
operator, service agent, and installer of this equipment. Please read this manual before installation
or operation of the machine. A qualified service technician should perform installation and start-
up of this equipment, consult the Troubleshooting Guide within this manual for service assistance.
If you cannot correct the service problem, call your MBE Service Agent or Distributor. Always have your model and
serial number available when you call.
Your Service Agent___________________________________________________________________
Service Agent Telephone Number ______________________________________________________
Your Local MBE Distributor ___________________________________________________________
Distributor Telephone Number _________________________________________________________
Model Number ______________________________________________________________________
Serial Number _______________________________________________________________________
Installation Date _____________________________________________________________________
UNPACKING AND INSPECTION
Note: The unit was thoroughly inspected before leaving the factory. Any damage or irregularities should
be noted at the time of delivery.
WARRANTY INFORMATION
Consult your local MBE Distributor for terms and conditions of your warranty. Your warranty specifically
excludes all beverage valve brixing, general adjustments, cleaning, accessories and related servicing.
Your warranty card must be returned to Manitowoc Beverage Equipment to activate the warranty on this
equipment. If a warranty card is not returned, the warranty period can begin when the equipment leaves
the MBE factory.
No equipment may be returned to Manitowoc Beverage Equipment without a written Return Merchandise
Authorization (RMA). Equipment returned without an RMA will be refused at MBE’s dock and returned to
the sender at the sender’s expense.
Please contact your local MBE distributor for return procedures.

TABLE OF CONTENTS
FOREWORD ........................................................................................................ 2
UNPACKING AND INSPECTION ......................................................................... 2
WARRANTY INFORMATION ............................................................................... 2
SAFETY ............................................................................................................... 5
IMPORTANT SAFETY INSTRUCTIONS ........................................................................... 5
CARBON DIOXIDE WARNING ......................................................................................... 5
QUALIFIED SERVICE PERSONNEL ................................................................................ 5
SHIPPING, STORAGE, AND RELOCATION ..................................................................... 5
ADDITIONAL WARNINGS ................................................................................................ 5
INSTALLATION .................................................................................................... 6
UNIT INSPECTION ........................................................................................................... 6
PRE-INSTALLATION CHECK LIST .................................................................................. 6
STARTING YOUR BEVERAGE SYSTEM AND DISPENSER............................................ 6
SPECIFICATIONS ............................................................................................................ 6
BLADE TOWER DIMENSIONS ........................................................................................ 7
COUNTER TOP FOOTPRINT ........................................................................................... 7
UNIT INSTALLATION ....................................................................................................... 8
BASIC B-I-B SYSTEM & PRESSURES ............................................................................ 8
DRAINAGE OPTIONS ...................................................................................................... 9

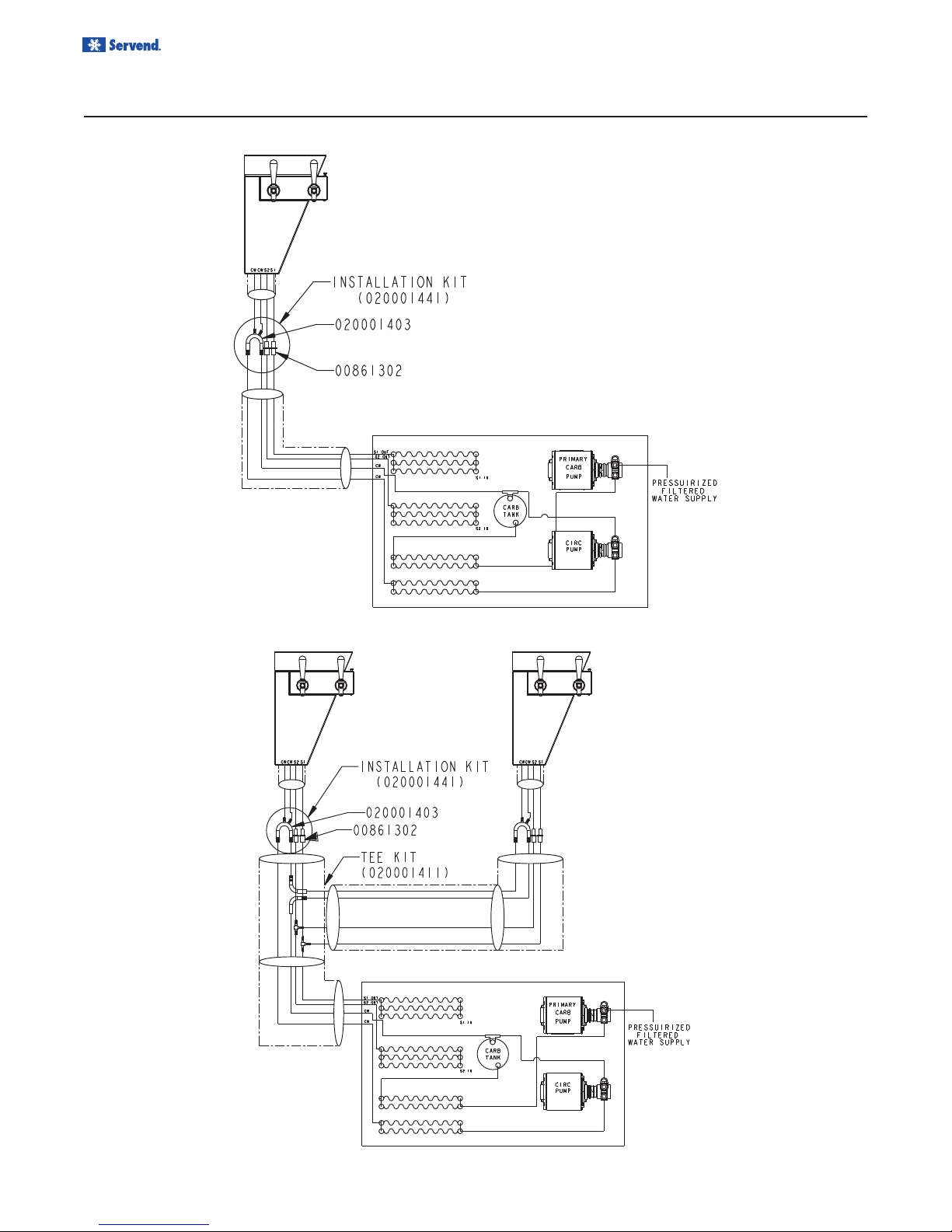

PLUMBING DIAGRAM LOCATION .................................................................................. 9
SINGLE TOWER PLUMBING ......................................................................................... 10
DUAL TOWER PLUMBING ............................................................................................ 10
TRIPLE TOWER PLUMBING ..........................................................................................11
BRIXING PROCEDURE ................................................................................................... 11
SYRUP DELIVERY SYSTEM .......................................................................................... 12
BACK ROOM PACKAGE ............................................................................................... 12
RACKING ....................................................................................................................... 13
B-I-B ............................................................................................................................... 13
PUMPS ........................................................................................................................... 13
AUTO BAG SELECTORS ............................................................................................... 13

TABLE OF CONTENTS
USER MAINTENANCE ...................................................................................... 13
PREVENTATIVE MAINTENANCE .................................................................................. 13
WINTERIZATION ............................................................................................................ 13
CO2 HANDLING ............................................................................................................. 13
HOW TO DISASSEMBLE TOWER COMPONENTS ....................................................... 14
CLEANING EQUIPMENT AND SUPPLIES ..................................................................... 14
CLEANING & SANITIZING THE DISPENSING VALVES & PRODUCT LINES ............... 14
MAINTENANCE SCHEDULE ......................................................................................... 15
NIGHTLY SHUTDOWN PROCEDURE ............................................................................ 15
CLEANING AND SANITIZING PROCEDURE ................................................................. 16
BEVERAGE SYSTEM CLEANING ................................................................................. 16
BAG-IN-BOX SYSTEM ................................................................................................... 17
TROUBLESHOOTING ....................................................................................... 18
DRINKS .......................................................................................................................... 18

Installation and Service Manual
5
SAFETY
IMPORTANT SAFETY INSTRUCTIONS
Carefully read all safety messages in this manual. Learn how to operate the A&W Tower unit
properly. Do not allow anyone to operate the unit without proper training and keep it in proper
working condition. Unauthorized modifications to the A&W Tower may impair function and/or
safety and affect the life of the unit.
CARBON DIOXIDE WARNING
QUALIFIED SERVICE PERSONNEL
SHIPPING, STORAGE, AND RELOCATION
ADDITIONAL WARNINGS
Installation and start-up of this equipment should be done by a qualified service technician. Operation,
maintenance, and cleaning information in this manual are provided for the user/operator of the equipment.
Save these instructions.
DANGER: Carbon Dioxide (CO
2
) displaces oxygen. Exposure to a high concentration of CO
2
gas
causes tremors, which are followed rapidly by loss of consciousness and suffocation. If a CO
2
gas leak
is suspected, particularly in a small area, immediately ventilate the area before repairing the leak. CO
2
lines and pumps should not be installed in an enclosed space. An enclosed space can be a cooler or
small room or closet. This may include convenience stores with glass door self serve coolers. If you
suspect CO
2
may build up in an area, venting of the B-I-B pumps and / or CO
2
monitors should be utilized.
WARNING: Only trained and certified electrical and plumbing technicians should service this unit.
All wiring and plumbing must conform to national and local codes.
CAUTION: Before shipping, storing, or relocating this unit, syrup systems must be sanitized. After
sanitizing, all liquids (sanitizing solution and water) must be purged from the unit. A freezing envi-
ronment causes residual sanitizing solution or water remaining inside the unit to freeze, resulting
in damage to internal components.

6
Installation and Service Manual
INSTALLATION
UNIT INSPECTION
Included with each Blade Tower should be one (1) installation kit (020001441) and if multiple towers are being
installed a tee kit (020001411) is included with each additional tower. Listed below are the contents of each kit;
020001441- KIT INSTL 2 VLV RB BLADE TOWER
Item Description Quantity
00861302 SPLICER 1/4 X 3/8 BARB SS 2
020001403 UBEND BARB 1/2 X 1/2 X 28 1/4 1
11.3-505R CLAMP STEPLESS SS 4
15514500 CLAMP STEPLESS SS 14.5MM 2
18.5-706R CLAMP STEPLESS SS 2
020001448 MAN A AND W BLADE TOWER 1
0901803 WASHER FLAT #10 ZINC 4
020002097 SCR 10-24 X 2 SS 4
00850812 NUT HEX 10-24 SS 4
5006594 WASHER STAR #10 SS 4
020001411- KIT CONDUIT TEE 4 LINE
Item Description Quantity
00854996 ELL 1/2 X 1/2 BARB SS 2
5009851 TEE 3/8 BARB 2
15514500 CLAMP STEPLESS SS 14.5MM 6
18.5-706R CLAMP STEPLESS SS 4
1900315 BAG 9X12 CLR ZIPLOCK 1
5029545 TAPE 3IN X 60FT BLK 1
Thoroughly inspect the unit upon delivery. Immediately report any damage that occurred during transportation to
the delivery carrier. Request a written inspection report from a claims inspector to document any necessary claim.
PRE-INSTALLATION CHECK LIST
When installing any system, first make sure the major components are available. Generally the major components
necessary for an installation are:
Pre-mix system:
CO2regulator set
Product connectors for tank
Gas connectors for tank
Beverage dispenser
Beverage tubing
CO2tank
Beverage tanks
Stepless (Oetiker) clamps
Chain for CO2tank
Double Check:
Do you have enough space to install the dispenser?
Is the counter top level?
Can the counter top support the weight of the
tower?
B-I-B System:
B-I-B connectors
B-I-B regulator set
B-I-B rack
B-I-B syrup boxes
Also consider the location of the following items be-
fore installation:
Water line
Drain
Power outlet
Heating and air conditioning ducts
STARTING YOUR BEVERAGE SYSTEM AND DISPENSER
Upon completion of the beverage dispenser and / or sys-
tem installation, all tubing, dispenser, and system compo-
nents must be cleaned and sanitized prior to use.
NOTE: At installation equipment, dispensers, and tubing
get moved through many environments, dirt, dust, chases,
insulation, drywall, etc. It is an important procedure and
best practice to address cleaning to deliver the best quality
drink to your customer.
Clean and sanitize the water and syrup circuits according
to instructions provided in this manual. Clean and sanitize
the dispenser components according to instructions pro-
vided in this manual. Seal the unit to the counter top. Con-
sult and use local health codes if a discrepancy occurs
between this manual and your local health codes.
SPECIFICATIONS
Blade Tower has a stainless steel cabinet standard. Beverage valves, tubing connections, valves are top serviceable.
The tower drains through either an existing counter top drain or the optional drain for this unit. Optimum ambient
conditions for Blade Tower operation is between 500F and 950F.

Installation and Service Manual
7
7.39
5.00
.750
1.750
11.86
10.75
4.88
3.00
3.29
9.68
17.30
COUNTER TOP AREA
CAUTION: Cutting the counter top may decrease its strength. Counter should
be braced to support the dispenser counter top weight plus ice storage ca-
pacity and weight of icemaker, if applicable.
INSTALLATION
BLADE TOWER DIMENSIONS
COUNTER TOP FOOTPRINT
Counter Top Weight
25 Lbs (11.34 Kgs)

8
Installation and Service Manual
INSTALLATION
UNIT INSTALLATION
1. Using the footprint cut holes in the desired counter
top location(s). If installing the optional flush mount
drain cut the hole for the drain(s) at this time also.
Repeat this step for each tower being installed if
this is a two or three tower system.
NOTE: The minimum to maximum ambient tempera-
ture that the unit should be installed and oper-
ated at is 40 degrees F to 105 degrees F (4.44
C to 40.56 C)
2. Place the tower(s) in the desired location(s). Each
tower must be placed and operated in a horizontal
(level) position.
3. Run the beverage lines and water lines; make sure to
install the water connections to the proper inlets. If
installing more than one tower connect the tee tower
kit at this time, 1 per additional tower installed.
(See the Plumbing Section)

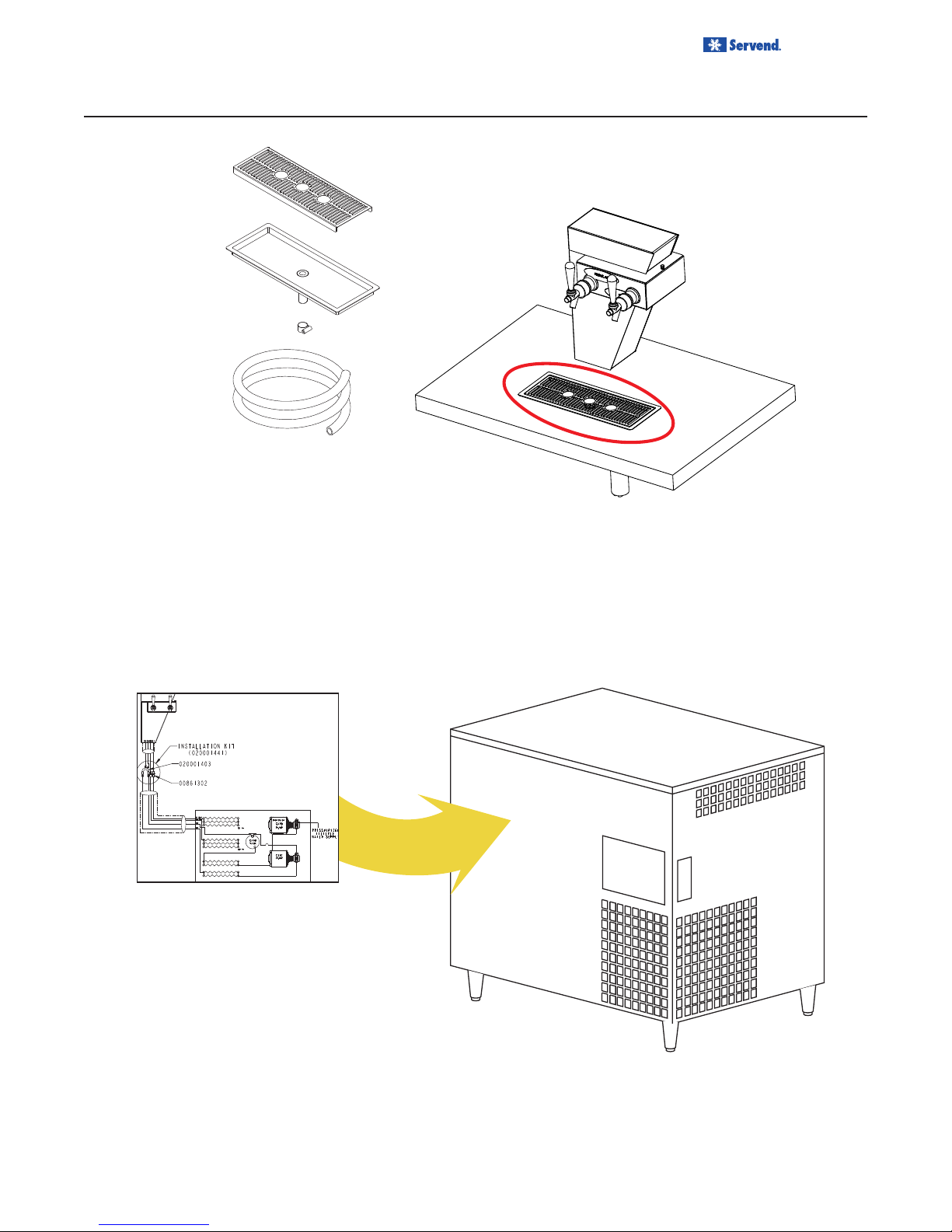

4. If installing the optional flush mount drain plumb for
drain(s) and insulate at this time.
5. Turn water supply on to the dispenser. Water pres-
sure should be between 40 and 55 psi with the car-
bonator pump running. If not in between those pres-
sures, proper measures must be taken to regulate
them to correct settings.
6. Once water is supplied to unit air needs to be purged
from the carbonator tank. Do so by lifting the pressure
relief valve tab on the carbonator tank until water
comes out of the relief valve.
7. Check water and beverage lines for leaks, if there
are no leaks fasten the tower to the counter top
using the bolts included in the installation kit and
seal to the counter top using a silastic sealant such
as Dow Corning RTV 731 or equivalent on the base
bottom edges.
8. Meet all local code requirements.
9. Brix beverage valves. (See the Brixing Section)
10. Attach tower top riser.
Use an existing drain or the optional flush mount drain as
Illustrated above (See Drain Options).
90
1800
60
CO2
SYRUP
CO2
SYRUP
SYRUP
SYRUP SYRUP
CARBONATED WATER CARBONATED WATER
SYRUP
2
CO
Multiplex
CO2Cylinder
Tap Water
Bag-In-Box
Syrup
Carton
BIB
Syrup Pump
NOTE:
This is a simplified schematic to
show the basic operation of the
beverage system.
Countertop
Blade Tower Valves
Typical A&W
Blade Tower Rootbeer
Dispensing System (BIB)
BASIC B-I-B SYSTEM & PRESSURES
1. Incoming tap water - should be at a minimum dy-
namic pressure of 40 psi and maximum static pres-
sure of 80 psi. (measured at inlet to pump).
2. BIB pressure gauge set for 35-40 psi or according to
your line run.
3. CO2supply regulator should be set between 26-30 psi.
NOTE: If incoming water pressure is under 40 psi, a wa-
ter booster is recommended. If incoming water
pressure is over 80 psi, a water regulating valve
is required.
2
3
1

Installation and Service Manual
9
INSTALLATION
DRAINAGE OPTIONS
The Blade Tower can be set up to use an existing drain or an optional drain can be ordered for use with the tower.
The illustration below shows the optional flush mount drain setup (Part Number 020001388). If using the optional
flush mount drain be sure to plumb according to local codes.
PLUMBING DIAGRAM LOCATION
A plumbing diagram for the A&W rootbeer system can be found on the remote refrigeration unit or see the
Plumbing Section for the plumbing diagram that fits your installation.
Flush Mount Drain - 020001388

10
Installation and Service Manual
INSTALLATION
SINGLE TOWER PLUMBING
DUAL TOWER PLUMBING

Installation and Service Manual
11
INSTALLATION
TRIPLE TOWER PLUMBING
Water Flow Rate
Adjustment
Water Shut-off
Syrup Shut-off
Syrup Flow Rate
Adjustment
BRIXING PROCEDURE
NOTE: This tower consists of two valves combined as one with a mixer block, mixer tube and mixer. One Pre-ME
valve (CMBEGKER) and one Flomatic 424 Flow Control Base
Set water flow rate first:
1. Turn off syrup shut-off at post-mix (424) valve block.
2. Use stop watch to time the dispense of soda water
only.
3. Dispense for 5 seconds.
4. Record volume in a volume cup or ratio cup.
5. Adjust the water flow rate as needed until 10 ounces
of water is measured in a 5 second (2 oz/sec) dis-
pense.
Set the syrup flow rate:
1. Adjust the ratio (brix) of water to syrup (4.75:1) or 12.3
to 12.7 brix)
2. Turn on syrup shut-off and turn off the water shut-off.
3. Use a stop watch to time the dispense of syrup only.
4. Dispense for 5 seconds.
5. Record volume in a volume cup or ratio cup.
6. Adjust syrup flow rate as needed until 2 ounces of
syrup is measured in a 5 second dispense.
7. Use a refractometer if possible to get final brix ratio of
12.3 to 12.7. You will have to rely on volume adjust-
ment above for diet products.

12
Installation and Service Manual
OPERATION
SYRUP DELIVERY SYSTEM
Your syrup location can vary depending on the volume of beverages served and ease of accessibility. Your bever-
age system may set in a back storage room or under the counter of the dispenser. Configurations are almost
limitless. Check the temperatures expected for the storage location. Adverse temperatures can affect the storage
and quality of beverage products. It is recommended the temperature of storage location should not fall below 40o
F or rise above 90oF.
1. Incoming tap water - should be at a minimum dy-
namic pressure of 40 psi and maximum static pres-
sure of 55 psi.
2. Carbonator Water pump motor - Powers the water
pump. The water pump motor is part of the carbon-
ator pump deck.
3. Carbonator Water pump - Pumps tap water into the
carbonator tank. The water pump is part of the car-
bonator. The incoming water for the carbonator must
be first ran through the pump before connecting to
the proper cold plate inlet.
4. Internal/External Carbonator tank - Combines CO2
gas and tap water to form carbonated water. The “car-
bonator” is the carbonator tank, water pump and wa-
ter pump motor.
5. CO2cylinder - Holds highly pressurized carbon diox-
ide (CO2). The CO2cylinder is a steel or aluminum
cylinder tank. CO2gas flows through the primary pres-
sure regulator.
6. BIB pressure gauge - Set for a minimum of 60 psi.
Indicates CO2 pressure going to B-I-B pumps.
7. Primary pressure regulator - Lowers the CO2gas
pressure, to 100 psi, so the CO2 gas will be at the
proper pressure to enter the carbonator regulator.
8. Lowered outgoing pressure - Set for 75 psi. Gauge
indicated lowered outgoing pressure from the CO2cyl-
inder after being routed through the primary pressure
regulator at 100 psi..
9. Secondary pressure regulator - Lowers the CO2 gas
pressure before the CO2 gas flows to the syrup pump.
CO2pressure, activates the syrup pump.
10. Syrup pump - Draws syrup out of the bag-in-box
syrup package. Syrup flows through the syrup lines
to the dispenser for chilling, then dispensing. There
is a syrup pump for each bag-in-box syrup system.
11. Bag-In-Box syrup cartons - Box which contains a
plastic bag, filled with syrup.
BACK ROOM PACKAGE

Installation and Service Manual
13
OPERATION
RACKING
Regardless if you are working on pre-mix or post-mix (B-I-B or Figal) system, a place will be designated for placement
of the product. A rack (or shelf) system affords systematic placement and complete usage of the beverage paid for. The
B-I-B rack allows the boxes to lay properly for syrup dispersal. Please check with your B-I-B syrup supplier. Some boxes
must be slightly tilted down, while others may be in virtually any position. The Figal tank rack keeps the newer and full
tanks organized at one end of the beverage line with the partial tanks at the other.
B-I-B
The Bag-In-Box system refers to a plastic disposable bag. The B-I-B normally contains 5 gallons of syrup, however
some locations offer 2 1/2 or 3 gallon B-I-B units. This plastic bag is then held inside a cardboard or other container. B-
I-B systems are for post-mix applications only.
PUMPS
The syrup in a B-I-B system is delivered to the beverage system through gas operated pumps. These pumps extract the
syrup out of the bags forcing the syrup throughout the system.
AUTO BAG SELECTORS
These are used on higher volume B-I-B systems where two or more bags of the same product are connected to one
pump and one system. An auto bag selector is essentially a valve that automatically changes from one bag (or series of
bags) to another bag (or series of bags) of syrup as the bags empty, allowing a constant flow of product.
USER MAINTENANCE
PREVENTATIVE MAINTENANCE
Preventative maintenance is a vital part of keeping your Servend dispenser in top condition. Following the guidelines
below will assist you in continued trouble free operation of your unit. Contact MBE at 1-800-367-4233 for more
information about our ProActive Maintenance Program.
1. Conduct the daily and nightly recommended mainte-
nance of the machine.
2. Perform the monthly recommended maintenance of
the machine.
3. Perform periodic maintenance and sanitizing of bev-
erage system.
5. Do not allow the dispenser to sit for prolonged periods
of non use.
WINTERIZATION
Servend equipment is rated for indoor use only. This
equipment will not operate in sub-freezing temperatures.
In a situation when temperatures drop below freezing
the equipment must be turned off immediately and prop-
erly winterized. Contact the manufacturer for winteriza-
tion processes.
NOTE: The minimum to maximum ambient temperature
that the unit should be installed and operated at is 40 de-
grees F to 105 degrees F (4.44 C to 40.56 C).
CO2HANDLING
All CO2tanks must be chained and/or affixed to a permanent
post or wall. Changing of or recharging tanks should be
done by a trained individual. Contents of the tanks are
stored at an extreme high pressure and can cause physical
damage if not handled properly.
DANGER: Carbon Dioxide (CO2) displaces oxygen. Expo-
sure to a high concentration of CO2gas causes tremors,
which are followed rapidly by loss of consciousness and
suffocation. If a CO2gas leak is suspected, particularly in a
small area, immediately ventilate the area before repairing
the leak. CO2lines and pumps should not be installed in an
enclosed space. An enclosed space can be a cooler or
small room or closet. This may include convenience stores
with glass door self serve coolers. If you suspect CO2may
build up in an area, venting of the B-I-B pumps and / or CO2
monitors should be utilized.
Breathing high
concentrations of carbon
dioxide gas can cause
tremors, followed by loss
of consciousness and
suffocation
Route CO
2
vent tube
outside or to an
CO
2
DISPLACES OXYGEN

14
Installation and Service Manual
USER MAINTENANCE

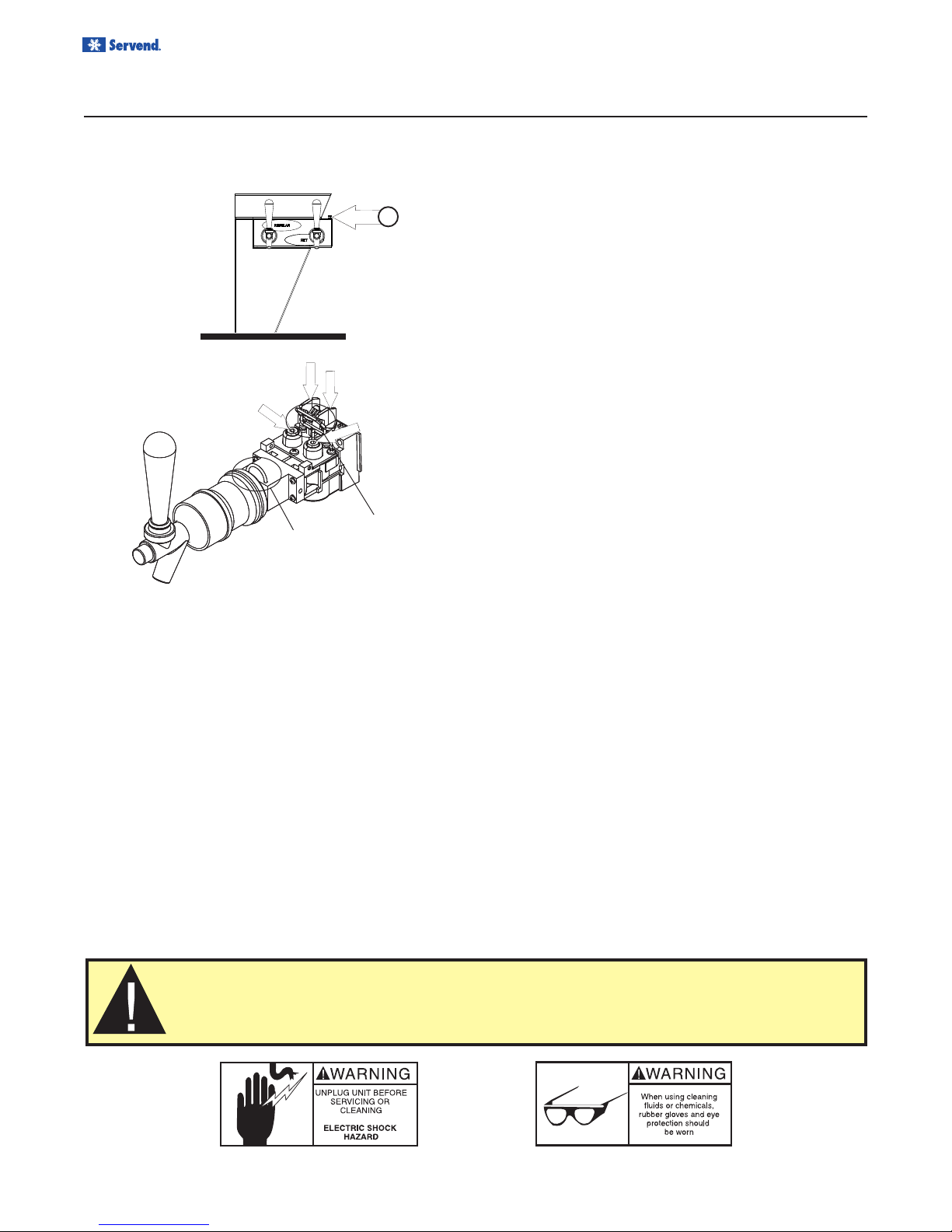

HOW TO DISASSEMBLE TOWER COMPONENTS
CLEANING EQUIPMENT AND SUPPLIES
• Recommended cleaner: Any caustic-base (low
sudsing, non-perfumed, easily rinsed) detergent so-
lution which provides a minimum 2% sodium hydrox-
ide. The solution should be prepared in accordance
with the manufacturer's instructions. Solution tempera-
ture should be between 90°F (32°C) to 110°F (43°C).
Temperatures in excess of this can cause internal dam-
age to the dispensing valve components.
• Recommended sanitizer: Any sanitizer which pro-
vided a minimum of 100 parts per million (100 milli-
grams per liter) of available chlorine. Solution tem-
perature should be between 90°F (32°C) to 110°F
(43°C). Temperatures in excess of this can cause in-
ternal damage to the dispensing valve components.
Note: This tower consists of two (2) valves combined as one (1) with a mixer block, mixer tube, and mixer. One
pre-mix valve (CMBECKER) and one (1) Flomatic 424 flow control base.
Tower & Valve Disassembly:
1. Remove tower housing cover by removing the
thumb screw on the side.
2. Turn OFF both shut-off valves on the flow control
base and remove pressure by pulling the dispense
handle to the ON position.
3. Remove the latch pin on the mixer block by pulling
straight up.
4. Unscrew the inside flange nut on the pre-mix valve.
5. Remove the pre-mix valve and mixer tube out the
front of the tower.
6. Remove the 424 flow control base by lifting up on
its latch pin.
To reassemble follow these steps in reverse order.
• Two five gallon (figals) syrup tanks and fittings,
cleaned and sanitized (one for cleaner; one for
sanitizer).
• Containers for cleaner and sanitizer solutions
• Clean, non-abrasive cloths
• Bucket
• Small Brush
• Extra Nozzles
• Extra Jumpers
CLEANING & SANITIZING THE DISPENSING VALVES & PRODUCT LINES
All cleaning must meet your local health department regulations. The following cleaning instructions are
provided as a guide.
1
Water Shut-off Syrup Shut-off
Syrup Flow
Rate Adjustment
Water Flow Rate
Adjustment
Mixer Block
Latch Pin
Flow Control
Base Latch Pin
CAUTION: Use only warm soapy water to clean the exterior of the dispensing tower. Do not
use solvents or other cleaning agents .

Installation and Service Manual
15
MAINTENANCE SCHEDULE
Everyday Dispensing Valves For the pre-mix dispensing valve, run carbonated water
ONLY through the valve and dispense nozzle for 10
seconds. Turn syrup shut OFF, and block the dispense
nozzle base with a clean new napkin. Dispense carbon-
ated water only for a few seconds to fully fill the dispense
nozzle. Then unblock the dispense nozzle and flow
carbonated water for 10 seconds. Wipe external nozzle
surfaces with carbonated water, then turn syrup shut off,
ON. Clean other nearby surfaces with carbonated water or
cleaning solution.
Everyday Drip pan and drain hose Wash with mild detergent. Rinse with clean water.
Everyday Quick disconnects Wash with mild detergent. Rinse with potable water.
Weekly Outside, dispenser cabinet Wash with clean water and mild detergent. Wipe dry.
Every 3 months Syrup circuits Sanitize each syrup circuit. See ”Cleaning and Sanitizing
Procedure“.
Every 3 months Water bath Drain, melt ice and clean using detergent and brush; rinse
with potable water. Do not use water over 140°F (60°C).
Every 6 months Condenser Vacuum fins or use soft bristle brush (scrub brush).
Every 6 months Air purifier filter (if equipped) Replace.
NIGHTLY SHUTDOWN PROCEDURE
It is recommended that the following steps are followed to keep your Blade Tower clean and running properly;
1 Remove tower top piece to gain access to the
valves.
2 Turn the syrup shut off valve to the OFF position on
all valves (2 valves per tower).
3 Dispense carbonated water for 10 seconds from all
valves.
4 Leave valves off overnight and turn back on in the
morning for use.
USER MAINTENANCE

16
Installation and Service Manual
Note: Cleaning and sanitizing is not required for potable water circuits. Potable water lines should remain con-
nected and operational during the cleaning and sanitizing procedures for syrup circuits.
CLEANING THE DISPENSING VALVES
1. Disconnect each syrup container from its product line,
tank connector, or bag-in-box connector. Remove
product from the lines by purging with clean warm
tap water until syrup has been fully purged from the
product lines and valves.
2. Clean all lines and fittings with cleaning solution and
rinse with clean, room temperature water to remove
all traces of residual product.
3. For the A&W pre-mix valve, clean dispense nozzle in
place with sanitizing solution and nozzle brush, up to
internal shut off port.
CLEANING THE PRODUCT LINES
1. To clean each valve product line, attach the valve
product lines to the pressure tank containing the
cleaning solution or place the bag-in-box connector
in cleaning solution. Remove branch port cover on
bag-in-box connector to allow suction of cleaning
solution. Make sure each line is completely filled.
Pressurize the lines by pulsing the valves.
PRESSURIZING THE PRODUCT LINES
1. For 15 seconds turn dispensing valve “on”, “off”,
and then immediately “on” again for 15 cycles.
2. Allow the valve to remain flowing for 3 minutes.
3. Repeat pulsing and flowing the valves again until all
cleaning solution has been used.
4. Flush the cleaning solution from the lines with clean
water after a minimum of 3 minutes, by pulsing the
valves as described above.
5. Attach each valve product line to the pressure tank
containing the sanitizing solution or place the bag-in-
box connector in sanitizing solution. Remove branch
port cover on bag-in-box connector to allow suction
of sanitizing solution. Be sure all connections are
cleaned and sanitized before connecting to each prod-
uct line.
6. Pressurize and fill the lines with sanitizing solution.
Make sure lines are completely filled. Allow the sani-
tizing solution to flow through each valve while acti-
vating the valves for 15 cycles (as described in “Pres-
surizing the product lines”).
a. Leave valves “off” and allow to stand pressur-
ized for 30 minutes.
b. Activate the valves for two (2) cycles (as de-
scribed in “Pressurizing the product lines”). Flush
remaining sanitizer continuously through the
valves.
7. Reconnect the syrup containers to their respective
circuits. Prepare the unit for operation.
8. Draw drinks to refill lines and flush the sanitizing
solution from the dispenser. Taste the beverage to
verify that there is no off-taste (chlorine).
BEVERAGE SYSTEM CLEANING
USER MAINTENANCE
CLEANING AND SANITIZING PROCEDURE
Caution: It is required that the Carbonated Water Lines should remain connected and opera-
tional during cleaning and sanitizing of the syrup circuits. Sanitizing of the valve without the
Carbonated Water side operation may leave bacteria in the nozzle, diffuser, and syrup tube.
Caution: Do not allow cleaning and sanitizing solutions to remain in syrup systems longer than
recommended contact time. Exceeding contact time will result in damage to valve components.
Sanitize the beverage system at initial start-up as well as regularly scheduled cleaning. The drain pan must be in
place under soda valves, to carry away detergent and sanitizing agents that will be flushed through valves.

Installation and Service Manual
17
USER MAINTENANCE
BAG-IN-BOX SYSTEM
The procedure below is for the sanitation of one syrup circuit at a time. Repeat to sanitize additional circuits.
You will need the following items to clean and sanitize
the Bag-in-Box (BIB) beverage system:
• Three (3) clean buckets
• Plastic brush or soft cloth
• Mild detergent
• Unscented bleach (5% Na CL O) or
Commercial sanitizer
• Bag-In-Box bag connector
1. Prepare the following in the buckets:
•Bucket 1 - warm to hot tap water for rinsing.
•Bucket 2 - mild detergent and warm to hot water.
•Bucket 3 - mix a solution of unscented bleach
(5% Na CL O) or commercial sanitizer and warm
to hot water. Mixture should supply 100 PPM avail-
able chlorine (1/4oz. bleach to 1 gallon water).

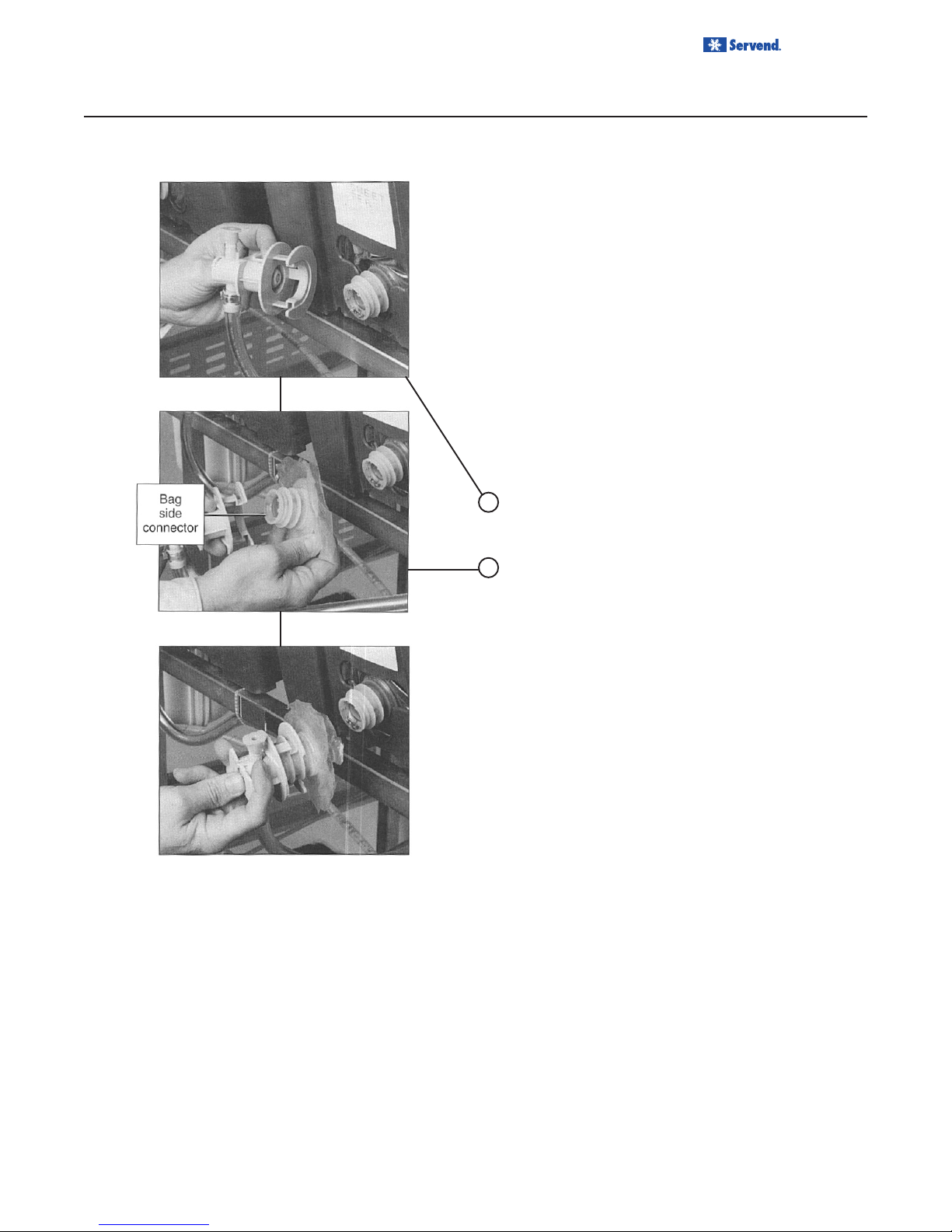

2. Disconnect the “syrup-line side” of the bag-in-box
connector.
3. Rinse connector with warm tap water.
4. Connect syrup connector to BIB connector and im-
merse both into Bucket 1. A “bag-side” connector
can be created by cutting the connector from an
empty disposable syrup bag.
5. Draw rinse water through system until clean water
is dispensed. Most beverage valves allow the syrup
side to be manually activated by depressing the
syrup pallet.
6. Connect Bucket 2 to system.
7. Draw detergent solution through system until solu-
tion is dispensed.
8. Repeat steps 2-7 until all syrup circuits contain de-
tergent solution.
9. Allow detergent solution to remain in the system for
5 minutes.
10. Connect Bucket 3 to system.
11. Draw sanitizing solution through system until solu-
tion is dispensed.
12. Repeat step 11 until all syrup circuits contain sani-
tizer solution.
13. Allow sanitizer solution to remain in system for 15
minutes.
14. Remove nozzles and diffusers from beverage
valves.
15. Scrub nozzles, diffusers and all removable valve
parts (except electrical parts) with a plastic brush
or a soft cloth and the detergent solution.

18
Installation and Service Manual
TROUBLESHOOTING
DRINKS
CONDITION INVESTIGATION CHECK CORRECTION
Water only dispensing No pressure Regulator(s) out of
adjustment
Check/adjust regulator(s)
Out of CO2Install fresh tank
Defective regulator(s) Check/repair/replace regulator(s)
CO2line pinched, kinked or
obstructed
Check/repair/replace CO2line
Syrup and CO2only
dispensing
Carbonator No power Check power supply. Plug in
carbonator or reset breaker.
Water supply Make sure water is turned "on"
Replace water filter
Check/clean/replace pump strainer
Check/clean/repair water check
valve
Check for frozen water line.
Internal Carbonator unit only.
Defective carbonator Check/repair/replace carbonator
pump, motor, electrode or liquid
level control.
Syrup and plain water
only dispensing
No pressure Out of CO2Install fresh tank
HP regulator out of
adjustment
Adjust HP regulator to the proper
setting
Defective HP regulator Check/repair/replace HP regulator
CO2line pinched, kinked or
obstructed
Check/repair/replaceCO2line
One valve will not
dispense anything
Is there power to the
valve?
Broken wire or loose
connection
Replace/repair wire or connector
Bad microswitch Replace microswitch
Beverage dispensed
is too sweet
Is the ratio (brix) of
the drink correct?
Flow control out of
adjustment
Adjust the flow control
Insufficient soda flow due to
low carbonator pressure
Adjust CO2pressure or change the
tank
Low CO2pressure due to
leaks
Repair CO2leaks
Obstruction in the water or
soda line
Clean out the lines
Beverage is not sweet
enough
Is the ratio (brix) of
the drink correct?
Flow control out of
adjustment
Adjust the flow control
Soda flow too high Reset CO2pressure or replace
regulator if necessary
Obstruction in syrup line Clean out the syrup line
Drinks are foaming Are system
pressures correct?
Over carbonation Check CO2supply. Reset
pressure or replace regulator if
necessary
Dirty lines/valves Clean/sanitize entire system

Installation and Service Manual
19
CONDITION
Water Only Dispensing
Syrup and CO2 only
Dispensing
One Valve will not
dispense anything
Beverage Dispense is
too sweet
Drinks are Foaming
Drink Stratification
too great
INVESTIGATION
No Pressure
Carbonator
Pre-Mix Valve
(CMBecker)
Post-Mix Valve
(Flomatic 424)
Are system
pressures correct
Visually verify Soda
Water and Syrup flowing
at the same time in
mixer block, when
initially dispensing
CHECK
BNB Fittings Clogged
Tank Fittings Clogged
No Power
Check Liquid Level
Control Board
For Clogging
For Mechanical
For Clogging
For Mechanical
Syrup Push Pressure
Check Valves in Water
and Product Lines.
If soda water check
valve is bad, Syrup will
overcome soda water
when first dispensing
product. If syrup check
valve is bad, soda water
will overcome syrup flow
when first dispensing
product
CORRECTION
Clean and Sanitize
Clean and Sanitize
Check Power Supply
Replace Control
Clean and Sanitize
Replace if Necessary
Clean and Sanitize
Replace parts or entire
valve if necessary
Adjust to 30-40 PSI per
Tower Manual. Lower
equals less foaming.
Too low will limit flow
volume.
Replace check valve(s)
TROUBLESHOOTING

Manitowoc Beverage Equipment
2100 Future Drive Sellersburg, IN 47172-1868
Tel: [phone] Fax: [phone]
www.manitowocbeverage.com
In accordance with our policy of continuous product development and
improvement, this information is subject to change at any time without notice.
020001448 April 01, 2008 REV0
