Serveredge TRCER-CAB User manual

W: www.serveredge.com
P: 1300 335 797
E: [email protected]
Connect another port of the cable testing with the RJ45 jack on
the receiver (or connect them with cable adapter). The status of
good and NG of the cable circuit can be judged by the 4 indicator
lights on the emitter or on the receiver of the cable status (as
illustrated in the table 1, 2, 3, 4, 5, 6, 7, 8.).
The circuitry status testing functions of CABLE CHECKER can
determine the basic natures of circuit testing. The testing task can
be complete only via the emitter, rather than the receiver. Please
insert one port of the crocodile clip adapter cable into the RJ11
socket of the emitter then let the testing circuit help tightly by the
red-black cable clip located at the other end of the adapter.
Push the DIP switch on the emitter to SCAN position, in the case
the battery level is lower than 6.0V, the STATUS and VERIFY
indicators will light up at the same time, this indicates battery
replacement is required.
• Do not allow exposure to direct sunlight.
• Do not allow exposure to dusty environments.
• Keep away from high humidity and temperatures over 40 degree C.
• Ensure correct batter as specified, otherwise damage may occur.
• Dismantling of the device will void the warranty.
• It is recommended to remove the batteries when the device is not in
use for extended periods.
• NOT to be used on high voltage circuits (such as 120V - 220V
Supply cabling), otherwise damage will occur and could be a risk of
electrocution.
• NOT to be used during an electrical storm.
CAUTION
CIRCUITRY STATUS TESTING
LOW VOLTAGE ALARM TESTING
PACKAGE INCLUDES
PRODUCT SPECIFICATION
Comparison table between the cable standard and the
indictator light status.
INSTRUCTION MANUAL
TRCER-CAB
MULTI-PURPOSE LINES COMMUNICATION
SCANNING & TESTING DEVICE
CABLE TRACER & NETWORK
CABLE TESTER
Zip-up pouch
1

W: www.serveredge.com
P: 1300 335 797
E: [email protected]
CABLE TRACER FUNCTION
CABLE CONTINUITY FUNCTION
PORT ADAPTORS
Direct Connectivity
RJ-11 Cable Adapter
RJ-45 Cable Adapter
Transmitter Unit
Receiver Unit
Connect Via Adapting Lines
Crocodile Clip Adapter Cable
GENERAL DESCRIPTION
Cable Tracer and Network Cable Tester combines the functionality of a
cable tracer and network cable tester in one convenient unit. The main
unit can be connected to an unidentified pair which injects an audible
signal down the line. The “tracer” unit may then be used at the other end
of the cable run to identify the correct conductors. In addition, patch
leads & field wiring may be plugged inline between the units to provide
instant verification of continuity and correct wiring sequence. Probe
includes an LED light for easy cable identification when in dark areas.
Suits RJ45 and RJ11 leads. Requires 2 x 9V batteries. Features
Headphone socket (earphones included) Adjustable buzzer volume
tests network and phone circuit voltage LED light on probe single or dual
tone Verifies short, open or crossed pairs in UTP cables confirms
integrity of patch leads and field wiring Includes RJ45, RJ11 leads &
croc clip test lead.

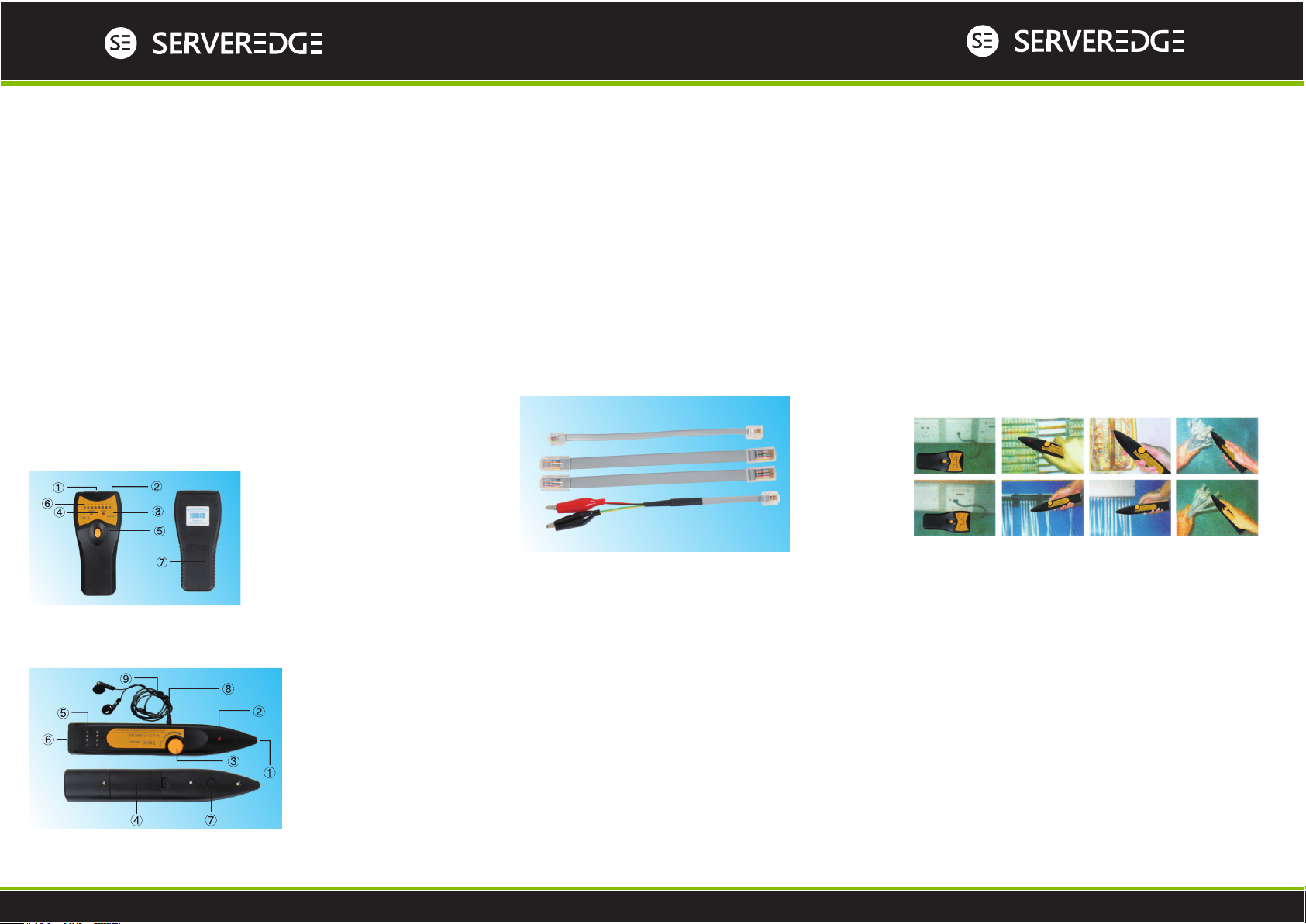

PARTS DESCRIPTION
(1) RJ-11 Jack
(2) RJ-45 Jack
(3) Wire Finding LED
(4) Power LED
(5) Power Check
(6) Power
(7) Battery Cover
(1) Signal Port
(2) Power LED
(3) PWR - VOL
(4) Battery Cover
(5) Situation Indicator
(6) RJ-45 Jack
(7) Loudspeaker
(8) Headphone Port
(9) Earphone
The RJ-11 or RJ-45 jacks on either the transmitter or receiver can be
connected with the RJ-11 adapter cable of 2 pin, 4 pin, 6 pin etc.
The RJ-45 jacks on the transmitter and receiver can be connected
with the RJ-45 LAN 8 pin RJ-45 adapter cables.
The RED and BLACK crocodile clip to RJ-11 adapter can be connected
to either RJ-11 or RJ-45 ports of the transmitter
A set of adapter line cables are included in the package for
connectivity between this device and the users cabling circuit or LAN
For direct connectivity of RJ-45 and RJ-11, both RJ-11 and RJ-45
ports can be utilized into both the transmitter.
For direct connectivity of RJ-45, the RJ-45 ports can be utilized on both
the transmitter and receiver.
Plug the cable to be traced (such as a port extension line or the
port of an network cable) into the RJ-45 or RJ-11 jack on the
transmitter (or via the adapter cables included), and move the
switch on the transmitter to the "SCAN" position. If working
correctly the STATUS LED will flash.
Push test on the receiver and the power LED flashes, hover the
receiver wand over the cable to detect a "toot" sound from the
speaker on the receiver.
Then compare the volume of the "toot" sound, the cable that
makes the highest "toot" sound is the cable to be identified.
Tests UTP Modular network cables by manually or automatically
detecting missing or disordered wiring, and open or short circuits. It
can quickly read the correct pin configuration of 10Base-T cable,
10Base-2 cable, RJ45/RJ11 modular cables, 258A,
TIA-568A/568B and Token Ring cable.
Plug the cable to be tested into the RJ-45 jack on the transmitter
(or connect them via the cable adapters provided). Move the
function switch on the transmitter to the "TEST" position. If working
correctly the "VERIFY" LED's will flash.
