Seura Full Sun Series UB4-50 Operating and safety instructions

WELCOME GUIDE
Full Sun Series™
UB4-50
UB4-65
UB4-85
WARRANTY REGISTRATION
REGISTER FOR
EXTRA BENEFITS
Activate within 30 days of purchase:
seura.com/activate

2
GENERAL
 -40 to 140° F*
 32 to 122° F
 -40 to 140° F*
 10-90% RH Non-condensing
WATERPROOF RATING IP55
 High TNI panels help prevent screen blackout
 Extreme Temperature Protection™
VIDEO
 
 
 2000 nits
 Anti-Glare
ASPECT RATIO 16:9
CONTRAST RATIO 5000:1
REFRESH RATE 60Hz
FRAME RATE 30 fps+
 
RESPONSE TIME 8ms
 Five outdoor picture modes from full sun to nighttime viewing
 
 
TUNER 
 
AUDIO
 RCA x 1
 
® Bluetooth®4.2, 50 ft Clear Span
 1 x Optical, 1 x Coax
 
 
 Sold Separately
Specications

3
50 INCH
Model: UB4-50
65 INCH
Model: UB4-65
85 INCH
Model: UB4-85
DIMENSIONS
 45.1" w x 26.2" h
x 3.8" d
58.2" w x 33.6" h
x 3.8" d
76.0" w x 43.6" h x
3.8" d
WEIGHT 60 lbs. 104 lbs. 187 lbs


Upper portion:
3.9" w x 7.7" h

10.1" w x 5.7" h
Upper portion:
5.1" w x 7.8" h

11.6" w x 5.6" h
Upper portion:
5.1" w x 7.7" h

11.8" w x 5.7" h

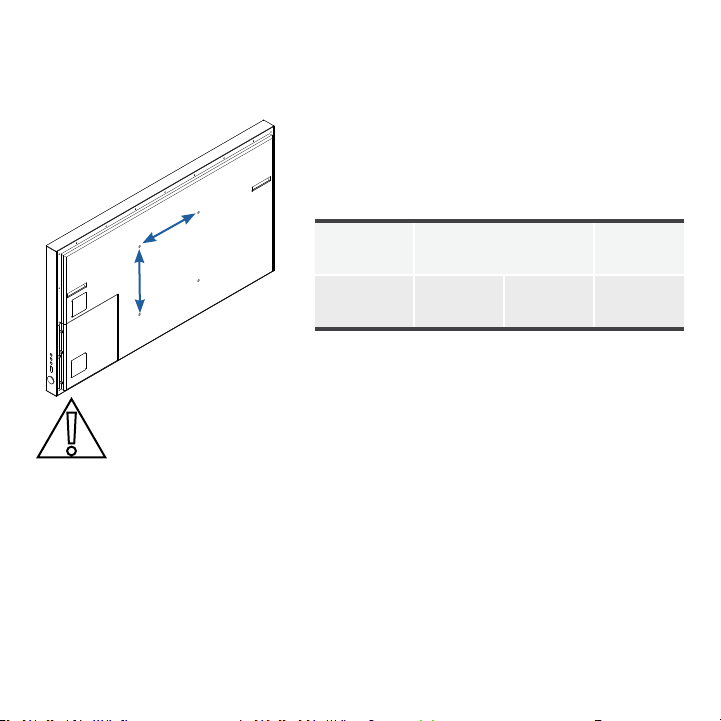

 400 x 400mm 400 x 400mm 600 x 400mm
OTHER
POWER CONSUMPTION,

Standby: 1.0W
Max: 398W
Standby: 3.5W
Max: 682W
Standby: 3.5W
Max: 1096W
 NEMA 5-15P

NEMA 5-15P

NEMA 5-20P†

 Séura's labor, structure,

REMOTE Séura Water Resistant IR Remote
*Installation in sunlight reduces the maximum permitted air temperature. Extreme Temperature Protection™ utilizes internal

low-level hum in warm temperatures.
The 85” model requires a 20 amp circuit with a NEMA 5-20P compatible electrical outlet.
HDR
1000
Nit 700 Nit
inch
inch
inch
inch
inch
inch
inch
inch
inch
55
inch
inch inch inch
86
inch
65
inch
55
inch
49
inch
55
inch
43
inch
65
inch
75
inch
86
inch
65
inch
55
inch
49
inch
55
inch
43
inch
65
inch
75
inch
OUTLINED ICONS
86
inch
65
inch
55
inch
49
inch
75
inch
65
inch
55
inch
86
inch
65
inch
55
inch
49
inch
75
inch
65
inch
55
inch
OUTDOOR
SAFE
75
inch
85
inch
65
inch
50
inch
65
inch
55
inch
43
inch
2000
Nit
85
inch
65
inch
50
inch
85
inch
65
inch
85
inch
65
inch
50
inch
50
inch
85
inch
65
inch
50
inch
HDR
1000
Nit 700 Nit
inch
inch
inch
inch
inch
inch
inch
inch
inch
55
inch
inch inch inch
86
inch
65
inch
55
inch
49
inch
55
inch
43
inch
65
inch
75
inch
86
inch
65
inch
55
inch
49
inch
55
inch
43
inch
65
inch
75
inch
OUTLINED ICONS
86
inch
65
inch
55
inch
49
inch
75
inch
65
inch
55
inch
86
inch
65
inch
55
inch
49
inch
75
inch
65
inch
55
inch
OUTDOOR
SAFE
75
inch
85
inch
65
inch
50
inch
65
inch
55
inch
43
inch
2000
Nit
85
inch
65
inch
50
inch
85
inch
65
inch
85
inch
65
inch
50
inch
50
inch
85
inch
65
inch
50
inch
HDR
1000
Nit 700 Nit
inch
inch
inch
inch
inch
inch
inch
inch
inch
55
inch
inch inch inch
86
inch
65
inch
55
inch
49
inch
55
inch
43
inch
65
inch
75
inch
86
inch
65
inch
55
inch
49
inch
55
inch
43
inch
65
inch
75
inch
OUTLINED ICONS
86
inch
65
inch
55
inch
49
inch
75
inch
65
inch
55
inch
86
inch
65
inch
55
inch
49
inch
75
inch
65
inch
55
inch
OUTDOOR
SAFE
75
inch
85
inch
65
inch
50
inch
65
inch
55
inch
43
inch
2000
Nit
85
inch
65
inch
50
inch
85
inch
65
inch
85
inch
65
inch
50
inch
50
inch
85
inch
65
inch
50
inch

4
This symbol is intended to alert the user
to the presence of uninsulated “dangerous
voltage” within the product’s enclosure

constitute a risk of electric shock to
persons.
This symbol is intended to alert the user
to the presence of important operating
and maintenance instructions in the
literature accompanying the appliance.
WARNING: READ ALL INSTRUCTIONS BEFORE ATTEMPTING TO
INSTALL OR SERVICE THIS PRODUCT.
Warnings:

To avoid damage to the outdoor display, only transport it in a vertical position.

CAUTION






Do not submerge in water: The Séura®Outdoor

sprinklers, snow, etc.; however, it is not designed to
be submerged in water.
Do not wash with garden hose or pressure-wash:
The Séura®
exposure from normal rain, sprinklers, snow etc.;
however, it is not designed to withstand pressure
washers, high-pressure water jets, projected snow
from a blower, or hurricane-type weather.
Do not let metal pieces or objects of any kind fall
into the display. 
and inserting an object can cause electric shock

To prevent re, never place any type of candle or

To prevent re or shock hazard, do not place the AC
cord under the display or other heavy items.
Power Lines
An outside antenna system should not be located in
the vicinity of overhead power lines or other electric
light or power circuits, or where it can fall into such
power lines or circuits. When installing an outside
antenna system, extreme care should be taken to
keep from touching such power lines or circuits as
contact with them might be fatal.
Accessories

recommended by the manufacturer. Use of improper
attachments can result in accidents.

5
Ce symbole est destiné à alerter l’utilisateur
de la présence d’une «tension dangereuse»
non isolée à l’intérieur de l’enceinte du
produit qui peut être d’une amplitude

électrique pour les personnes.
Ce symbole est destiné à alerter l’utilisateur
de la présence d’instructions importantes
d’utilisation et de maintenance dans la
documentation accompagnant l’appareil.
AVERTISSEMENT: LIRE TOUTES LES INSTRUCTIONS AVANT
D’INSTALLER OU SERVICE CE PRODUIT.
Avertissements:
Ne pas manipuler ou supprimer votre moniteur extérieure de l’emballage jusqu’à ce qu’il soit prêt à être installé.
Pour éviter d’endommager la moniteur en plein air, seul le transporter dans une position verticale.
Il est fortement recommandé qu’au moins deux (2) personnes aident à l’installation de la moniteur en plein air.
CAUTION







N’immergez pas le Séura® Outdoor moniteur dans l’eau:
le moniteur Séura® Outdoor résistera à l’exposition
à l’eau causée par la pluie, les gicleurs, la neige, etc.
Cependant, il n’est pas conçu pour être immergé dans
l’eau.
Ne lavez pas avec un tuyau d’arrosage ou avec un
nettoyeur haute pression: Séura® Outdoor moniteur
résistera à l’exposition à l’eau causée par la pluie, les
sprinklers, la neige, etc. Cependant, il n’est pas conçu
pour résister aux laveuses à pression, aux jets d’eau à
haute pression, aux projections de neige d’un ventilateur
ou aux intempéries de type ouragan.
Ne laissez pas de morceaux de métal ou d’objets de toute
sorte tomber dans la moniteur. Une tension élevée circule
dans le produit et l’insertion d’un objet peut provoquer
un choc électrique et / ou un court-circuit des pièces
internes.
Pour éviter les incendies, ne placez jamais de bougies ni
de ammes sur le dessus ou à proximité du moniteur.
Pour éviter tout risque d’incendie ou d’électrocution, ne
placez pas le cordon d’alimentation sous le moniteur ou
d’autres objets lourds.
Les lignes électriques
Une antenne extérieure ne doit pas être située à proximité
de lignes électriques aériennes ou d’autres circuits
d’éclairage ou de circuits électriques, ni à un endroit
où elle pourrait tomber dans de telles lignes ou circuits.
Lorsque vous installez une antenne extérieure, veillez à
ne pas toucher ces lignes ou circuits électriques, car tout
contact avec ces derniers pourrait être fatal.
Accessoires
N’utilisez pas d’accessoires non spéciquement
recommandés par le fabricant. L’utilisation d’accessoires
inappropriés peut entraîner des accidents.

6

Spécications de ce produit sont sujettes à modications sans préavis; ce manuel ne peut donc pas tenir compte de l’état de la technique actuelle.
WARNING: Cancer and Reproductive Harm: www.p65warnings.ca.gov.
Never place a television set in an unstable
location. A television set may fall, causing serious
personal injury or death. Many injuries, particularly
to children, can be avoided by taking simple
precautions such as:
• Using cabinets or stands recommended by the
manufacturer of the television set.
• Only using furniture that can safely support the
television set.
• Ensuring the television set is not overhanging
the edge of the supporting furniture.
• Not placing the television set on tall furniture

anchoring both the furniture and the television
set to a suitable support.
• Not placing the television set on cloth or other
materials that may be located between the
television set and supporting furniture.
• Educating children about the dangers of
climbing on furniture to reach the television set
or its controls.
If your existing television set is being retained
and relocated, the same considerations as above
should be applied.
Ne placez jamais un téléviseur dans un endroit instable. Un
téléviseur peut tomber
et causer des blessures graves ou mortelles. Beaucoup de
blessures, en particulier aux enfants, peuvent être évités en
prenant des précautions simples telles que:
• Utilisation des armoires ou des supports recommandés
par le fabricant du téléviseur.
• Seulement en utilisant des meubles qui peuvent
supporter en toute sécurité le téléviseur.
• Assurer le téléviseur est pas surplombant le bord du
meuble de support.
• Non placer le téléviseur sur un grand meuble (par
exemple, des armoires ou des bibliothèques ) sans
accrocher à la fois les meubles et le téléviseur sur un
support approprié.
• Non placer le téléviseur sur le tissu ou d’autres matériaux
qui peuvent être situés entre le téléviseur et le mobilier
de soutien.
• Éduquer les enfants sur les dangers de grimper sur un
meuble pour atteindre le téléviseur ou ses commandes.
Si votre téléviseur existant est conservé et transféré,
les mêmes considérations que ci-dessus doivent être
appliquées.
WARNINGS ATTENTION

7
WARNINGS

and other injuries, keep these safety
precautions in mind when installing, using,
and maintaining your outdoor display. The
socket-outlet should be installed near the
equipment and be easily accessible. The
display should be connected to a grounded
GFCI protected main socket outlet.
WARNING: If you manipulate against the
recommended usage, serious injury or
death to user may result.
AVERTISSEMENTS
Pour réduire le risque d’incendie, de choc électrique
et d’autres blessures, garder ces consignes de
sécurité à l’esprit lors de l’installation, l’utilisation
et l’entretien de votre moniteur en plein air. La prise
de courant doit être installée près de l’équipement
et être facilement accessible. Le moniteur doit être
relié à une prise de courant avec terre protégé par
disjoncteur différentiel.
ATTENTION: Si vous manipulez contre l’utilisation
recommandée, des blessures graves ou la mort à
l’utilisateur peuvent en résulter.
FCC Supplier’s Declaration of Conformity
Séura Outdoor Entertainment
UB4-50, UB4-65, UB4-85
These devices comply with part 15 of the FCC Rules. Operation is subject to the follow two

interference received, including interference that may cause undesired operation.
Séura
Address: 1230 Ontario Road, Green Bay, WI 54301 United States
Phone number: 920-857-9069
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This
equipment should be installed and operated with a minimum distance of 20 cm between the radiator and any part
of your body.
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• 
Caution:
compliance could void the user’s authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in
a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and on, the user
is` encouraged to try to correct the interference by one or more of the following measures:

8
1. Read these instructions.
2. 
3. Heed all warnings.
4. Follow all instructions.
5. Clean only with a dry cloth.
6. 
accordance with the manufacturer’s instructions.
7. 


8. 
grounding type plug. A polarized plug has two blades
with one wider than the other. A grounding type plug has
two blades and a third grounding prong. The wide blade
or the third prong is provided for your safety. When the

electrician for replacement of the obsolete outlet.
9. Protect the power cord from being walked on or pinched
particularly at plugs, convenience receptacles, and the
point where they exit from the apparatus.
10. 
manufacturer.
11. Use only with the cart, stand,

by the manufacturer, or sold with
the apparatus. When a cart is used,

apparatus combination to avoid injury
from tip-over.
12. Unplug this apparatus during lightning
storms or when unused for long

13. 
Servicing is required when the apparatus has been
damaged in any way, such as power supply cord or plug
is damaged, liquid has been spilled or objects have fallen
into the apparatus, the apparatus has been exposed to
rain or moisture, does not operate normally, or has been
dropped.
14. 
the inside of this apparatus to rain or moisture. The
inside of this apparatus shall not be exposed to dripping
or splashing.
15. The apparatus shall be connected to a MAINS socket outlet
with a protective earthing connection. Where the MAINS
plug or an appliance coupler is used as the disconnect
device, the disconnect device shall remain readily operable.
16. The disconnect device shall remain readily operable.
17. The socket-outlet shall be installed near the equipment
and shall be easily accessible.
18. Inspect the desired location for installation and be aware
of all electrical wiring pathways, water pipes, gas lines, or
other potentially hazardous conditions that may exist to
protect from accidental damage during creation of on-site
conditions.
19. 
and have been installed by the appropriate individuals and
are code approved.
20. Ensure all framing requirements, if needed, have been
completed to building code and pose no structural issues.
21. 
electrical outlet protected by a Ground Fault Circuit


this product.
22. 
product. Removing covers can expose you to high voltage
and other dangerous conditions.
23. 

24. Close adult supervision is necessary when any product is
used by or near children.
25. 
or operate it after the appliance malfunctions or has been
damaged in any manner.
26. To electrically disconnect the product, turn OFF the
product, then remove the electrical power plug from the
outlet.
27. This Séura product is intended for use indoors and
outdoors.
28. If you notice any smoke or scorched smell near the


29. 
substances near the product.
30. 
31. 
product in water.
32. The cable distribution system should be grounded


Grounding of Outer Conductive Shield of a Coaxial Cable.
Important Safety Instructions

9
1. Lisez ces instructions.
2. Conservez ces instructions.
3. Respectez tous les avertissements.
4. Suivez toutes les instructions.
5. Nettoyer uniquement avec un chiffon sec.
6. Ne pas bloquer les ouvertures de ventilation. Installez
conformément aux instructions du fabricant.
7. Ne pas installer près de sources de chaleur telles que des radiateurs,
registres de chaleur, poêles ou autres appareils (y compris les
amplicateurs) qui produisent de la chaleur.
8. Ne pas contourner le dispositif de sécurité de la che polarisée
ou mise à la terre. Une che polarisée possède deux lames dont
une plus large que l’autre. Une prise de terre a deux lames et une
troisième broche de mise à la terre. La lame large ou la troisième
broche est fournie pour votre sécurité. Si la che fournie ne rentre
pas dans votre prise, consultez un électricien pour remplacer la
prise obsolète.
9. Protégez le cordon d’alimentation d’être piétiné ou pincé, en
particulier au niveau des ches, des prises de courant, et le point où
ils sortent de l’appareil.
10. Utilisez uniquement les xations / accessoires spéciés par le
fabricant.
11. Utilisez uniquement avec un chariot, un
support, un trépied, un support ou une table
spécié par le fabricant ou vendu avec
l’appareil. Quand un chariot est utilisé, faites
attention lorsque vous déplacez l’ensemble
chariot / appareil pour éviter les blessures en
cas de chute.
12. Débranchez l’appareil en cas d’orage ou
lorsqu’il est inutilisé pendant de longues
périodes de temps (30 jours ou plus).
13. Les travaux de personnel qualié. Une réparation est nécessaire
lorsque l’appareil a été endommagé de quelque façon que ce
cordon d’alimentation ou la che est endommagé, du liquide a été
renversé ou des objets sont tombés dans l’appareil, l’appareil a été
exposé à la pluie ou à l’humidité, ne fonctionne pas normalement,
ou est tombé.
14. Pour réduire le risque d’incendie ou de choc électrique, ne pas
exposer l’intérieur de cet appareil à la pluie ou à l’humidité.
L’intérieur de cet appareil ne doit pas être exposé à des gouttes ou
des éclaboussures.
15. L’appareil ne doit être relié à une prise secteur dotée d’une
connexion de terre de protection. Lorsque la prise du RESEAU
D’ALIMENTATION ou une prise placée sur l’appareil est utilisée
comme dispositif de déconnexion, ce dispositif doit demeure
aisément accessible.
16. Le dispositif de déconnexion doit rester facilement accessible.
17. La prise de courant doit être installée près de l’équipement et doit
être facilement accessible.
18. Inspecter l’emplacement souhaité pour l’installation et être
conscient de toutes les voies de câblage électrique , les
canalisations d’eau , conduites de gaz , ou d’autres conditions
potentiellement dangereuses qui peuvent exister pour protéger
contre les dommages accidentels lors de la création des conditions
sur place.
19. Assurez-vous que toutes les spécications électriques requises sont
respectées et ont été installées par les personnes appropriées et
sont approuvées par le code.
20. S’assurer que toutes les exigences d’encadrement , si nécessaire
, ont été achevés au code du bâtiment et ne posent pas de
problèmes structurels.
21. Il est REQUIS que ce produit soit branché dans une prise électrique
protégée par un disjoncteur de fuite à la terre (GFCI) pour se
protéger contre les chocs électriques, les incendies et / ou les
blessures. Le non-respect de cette consigne annulera toute garantie
de ce produit.
22. Seules les personnes qualiées doivent tenter de réparer le produit.
Le retrait des capots peut vous exposer à de hautes tensions et
d’autres situations dangereuses.
23. Ne surchargez pas les prises de courant ou les rallonges. Une
surcharge peut causer un incendie ou un choc électrique.
24. Fermer surveillance d’un adulte est nécessaire lorsque tout appareil
est utilisé par ou près des enfants.
25. Ne pas utiliser un produit avec un cordon ou une che détériorés
fonctionner après un mauvais fonctionnement de l’appareil ou a été
endommagé d’une manière quelconque.
26. Pour débrancher électriquement le produit, éteignez le produit , puis
retirez la che d’alimentation électrique de la prise.
27. Ce produit Séura est destiné à un usage intérieur et extérieur.
28. Si vous remarquez de la fumée ou une odeur de brûlure à proximité
du produit, débranchez le cordon d’alimentation et consultez un
personnel qualié pour le service et / ou la réparation.
29. N’utilisez ni ne placez aucune substance combustible ou
inammable à proximité du produit.
30. N’utilisez pas ce produit pour un usage autre que celui prévu.
31. Ce produit est résistant à l’eau. Ne pas plonger ce produit dans
l’eau.
32. Le système de distribution par câble doit être mis à la terre (mise
à la terre) conformément à la norme ANSI / NFPA 70, le National
Electrical Code (NEC), en particulier la section 820.93, Mise à la
terre du blindage conducteur externe d’un câble coaxial.
Consignes De Sécurité Importantes

10
Operation and Storage Requirements
The maximum ambient temperature range for operating the device is -40°F to 140°F*. The screen is most


electric shock, never allow liquids to enter the unit. The uninstalled product must be stored in dry and well

may not be stored in the proximity of the device. The required storage temperature is -40°F to 140°F at
an air humidity of 10 - 90% RH non-condensing. The device must be stored in the complete packaging, as


When the unit is used in temperatures below the ideal operating temperature range, the picture may appear slightly delayed or
blurred. This is normal, and the picture will return to normal aer the temperature increases to the ideal operating temperature
range.
Séura Full Sun Series TVs utilize internal fans that actively heat and cool the electronics, a feature necessary for controlling the
internal TV temperature in environments from -40° F to 140° F. The fans are performing as designed when creating a low-level
hum when activated. Séura’s cooling system volume specication is <40dB from 1 meter away from TV, with thermostatically
control and modiable control curve. The fan speed will increase in hoer temperatures in order to keep the TV cool. Fan speeds,
as a percentage with 100% = full speed, at various TV temperatures are approximately: 104°F = 26% 113°F = 58% 122°F = 89%
131°F = 100%
*Installation in sunlight reduces the maximum permitted air temperature.
The screen is most
optimally viewed at ambient
temperatures of 32°F to 122°F

11
Get to know your Séura® Full Sun Series™ Outdoor Display
If you have questions, call Séura at 1-800-957-3872 to speak to a design expert.
Selecting the Installation Location

the distance from the heat source is such that
the air temperature surrounding the display does
not exceed the maximum operating temperature.
A mantle or other heat shield is recommended to
further protect the display from heat. Installation

is not recommended and may result in damage to
the electronics. If you have questions about your
situation, you may call Séura at 1-800-957-3872 to
speak to a design expert.
Not for installation in a sauna or directly above a hot
tub where extreme heat and steam could damage
the electronics.
Ventilation
Adequate ventilation must be maintained to ensure
reliable and continued operation and to protect the
display from overheating. There must be at least 1.5
inches of space on all sides
cabinet, kiosk, or other enclosure.
Cable Management
When running cables from inside the compartment
to the sources, allow adequate spacing at the foam
entry to the cabinet that allows the foam seal to
completely surround each cable. Bunching the
cables together can create gaps in the foam that
allows moisture and insects to enter the cabinet
that may result in damage.


signal over long distances and your media setup

Once connections are made, the media
compartment cover must be secured. Failure to
close the media compartment exposes the ports
and components to the elements and has the
potential to permanently damage electronics.
Screen Health


Occasionally, a few non-active pixels may appear on

note that this does not affect the performance of

and permitted area are covered under Séura’s limited
product warranty. Please inquire directly with Séura
Technical Support regarding Séura’s pixel policy.
Baery Disposal

or with ordinary household waste. Batteries may explode and can cause damage. Replace
batteries only with the same or equivalent type of battery recommended by Séura. The
disposal of batteries may be regulated by your state. For more information on recycling or
properly disposing of your batteries, please check with your local municipality.

12
Full Sun Series™
Meet Séura® Full Sun Series™
Power Cable
On 85-inch model only, the power cable
is hardwired to the display.
In the Box
IR Remote
Control Resource Information
QUICK START GUIDE & PRODUCT MANUAL
Full Sun Series™
Outdoor TV
UB4-50
UB4-65
UB4-85
WARRANTYREGISTRATION
REGISTER FOR
EXTRA BENEFITS
Activate within 30 days ofpurchase:
seura.com/activate
Access product set-up and installation instructions,
product specications, warnings and safety information,
product warranty, and additional product information.
www.seura.com/ub4-manual
Open and Scan

13
Parts
Removable
Media
Compartment
Cover

NOT HANDLES

Pattern
Mounting
Holes
RF Window
Media
Connections
Cable Entry
with Gasket

14
Installing Your Full Sun Series™
Séura®

surfaces. Follow the instructions with your mount for full details to install your display.
NOTE:
purchased is compatible with your outdoor display.
1. Aach the Soundbar (optional, sold separately)
Follow the instructions included with your
soundbar to attach to your Full Sun Series.
2. Install the Wall Mounting Brackets
(sold separately)
Follow the instructions included with your
outdoor-rated wall mount to attach brackets to
your display and wall. Before hanging the display,
proceed to step 3.
3. Make Media Connections
(see graphics on page 15)
Make all other preferred media connections inside
the media compartment. Turn on the display and
verify all media sources.
TIP: In case you decide to add an additional
streaming device or media player at a later date,

cabling at the time of installation so you won’t
have to remove the display from the wall to
connect.
Reattach the media compartment cover. Take care
when screwing into place to minimize gaps around
cords. At entry, cables should be spaced out to
allow the foam seal to completely surround each
cable. Bunching the cables together can create
gaps in the foam that allow moisture and insects
to enter the cabinet that may result in damage.


up CEC control for your streaming device. This
option is available in the settings menu of your

go to Menu – Network – Advanced Network Setting

to control the streaming device. If your streaming
device does not use an RF connection and is not
CEC compatible, then it will not receive remote
control commands when placed in the media
compartment. An IR emitter may work in getting a
signal to the streaming device.
4. Hang Full Sun Series on the Wall
Complete installation by hanging Full Sun Series on
the mount according to the mount instructions.
Séura is not liable for damage or destruction to third party devices used with Séura products.

15
click!
45.1˝
26.2˝
50 INCH
58.2˝
33.6˝
65 INCH
76.0˝
43.6˝
85 INCH
click!
45.1˝
26.2˝
50 INCH
58.2˝
33.6˝
65 INCH
76.0˝
43.6˝
85 INCH

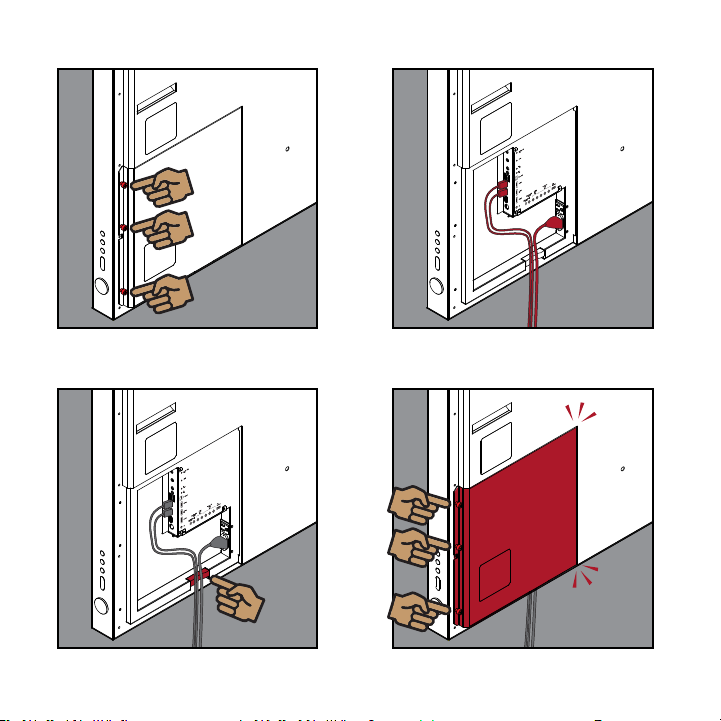

1. Unscrew the three thumb screws and remove the
cover by pulling it towards you.
2. Route the cables to the proper inputs and place
the cable cords over the rubber sealing gasket on
the bottom of the cable access opening.

tighten the thumb screws.
3. Ensure the cables are routed past the indentation
on the bottom of the door. Cables cannot be routed
through the top or side of the rubber sealing gasket.
Accessing the Weatherproof Media Compartment

16





Analog Audio Output
RS232
IR Output
IR Input
IP Control



RF
Connecting Your
Full Sun Series™
Open the weatherproof media
compartment to access all
connections. To connect a source
such as a streaming device or cable



the other end into your device.

17
HDMI 1 and 3
These connection ports receive digital audio and high-


monitor display usage.
HDMI 2 ARC

provide a better sound experience with devices that are
ARC compatible.
USB connects to a USB device to view photos or to

IR Input (3.5mm Stereo Jack Plug) connects to an IR
receiver. The tip is signal. The sleeve is ground.
IR Output (3.5mm Stereo Jack Plug) connects to an IR
emitter. The tip is signal. The sleeve is ground.
IP Control (RJ45) is used for connecting your control
system via IP.
Analog Audio Output (3.5mm, Variable) connects to

RS-232 (3.5mm) connects a control system via RS-232.
RF (Coaxial) connects a digital or analog cable via
a cable box or over-the-air antennas.
Optical Digital Audio Out (Fixed) is used for
sending audio signals to other audio devices, such
as stereo and surround sound receivers via an
optical connection.
Coaxial Digital Audio Out (Fixed) is used for
sending audio signals to other audio devices,
such as stereo and surround sound receivers via a
coaxial connection.
Analog Audio In is used for receiving audio signals
from analog audio devices such as Blu-ray players
or game consoles.
Component/Video In

From left to right, connect green, blue and red
for video. Next, connect white for left channel
audio and red for right channel audio. Use the
input button on your Séura remote to view this
connection.

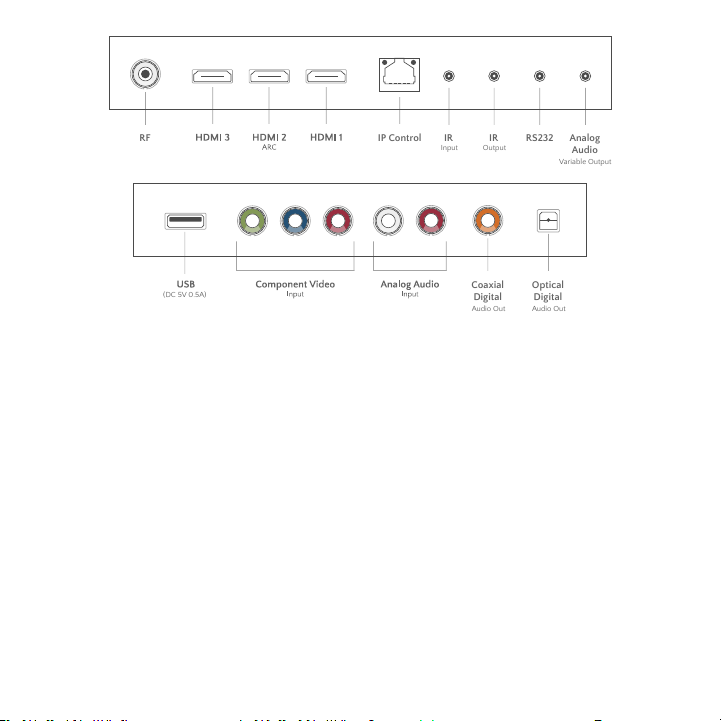

IR
IP Control
Input
(DC 5V 0.5A)
Optical
Digital
Audio Out
Coaxial
Digital
Audio Out
IR
Output
RS232
Analog
Audio
Variable Output
120v Output
RF
IR
IP Control
Input
(DC 5V 0.5A)
Optical
Digital
Audio Out
Coaxial
Digital
Audio Out
IR
Output
RS232
Analog
Audio
Variable Output
120v Output
RF

18
Making TV Connections
1. 
box is turned off.
2. 


3. 
4. Use the remote control’s source button or


NOTE:
• Refer to the set-top box’s manual to make sure


• This model supports SHARP’s universal remote
codes. If Séura is not listed, please use SHARP’s
codes in the universal remote’s handbook.
• 
signal present for more than 15 minutes.
1. 
box is turned off.
2. 
the green, blue, and red connectors to the
corresponding ports on both the set-top box and

3. Using an RCA Audio Cable, connect the white and
red connectors to the corresponding audio ports

4. 
5. Use the remote control’s source button or


IR
IP Control
Input
(DC 5V 0.5A)
Optical
Digital
Audio Out
Coaxial
Digital
Audio Out
IR
Output
RS232
Analog
Audio
Variable Output
120v Output
RF
IR
IP Control
Input
(DC 5V 0.5A)
Optical
Digital
Audio Out
Coaxial
Digital
Audio Out
IR
Output
RS232
Analog
Audio
Variable Output
120v Output
RF

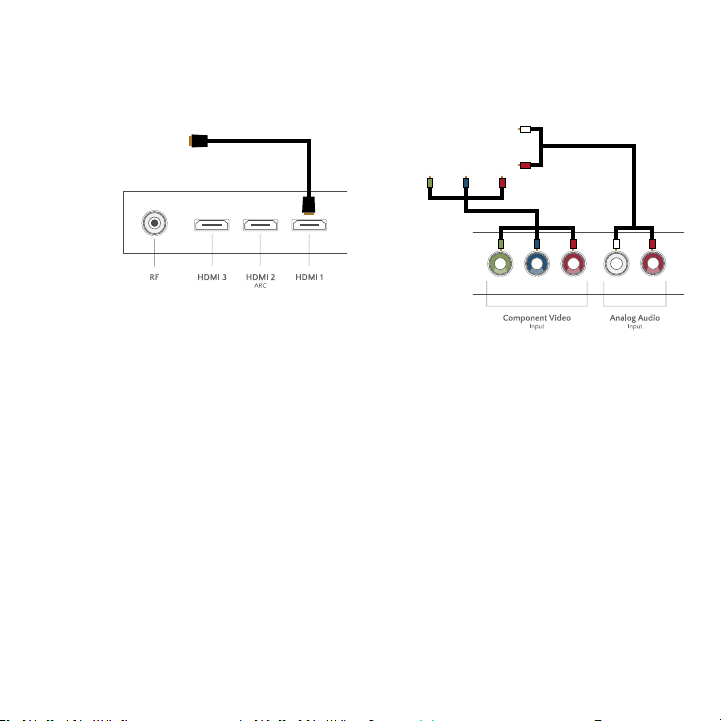

Connecting with HDMI (Best) Connecting with Component (Good)

19
Making Audio Connections
1. 
turned off.
2. Using a coaxial or optical cable, connect to the
receiver’s coaxial or optical digital input and the

3. 
1. 
box is turned off.
2. 
the receiver’s audio input connection to the




RCA adapter cable.
3. 
IR
IP Control
Input
(DC 5V 0.5A)
Optical
Digital
Audio Out
Coaxial
Digital
Audio Out
IR
Output
RS232
Analog
Audio
Variable Output
120v Output
RF
IR
IP Control
Input
(DC 5V 0.5A)
Optical
Digital
Audio Out
Coaxial
Digital
Audio Out
IR
Output
RS232
Analog
Audio
Variable Output
120v Output
RF

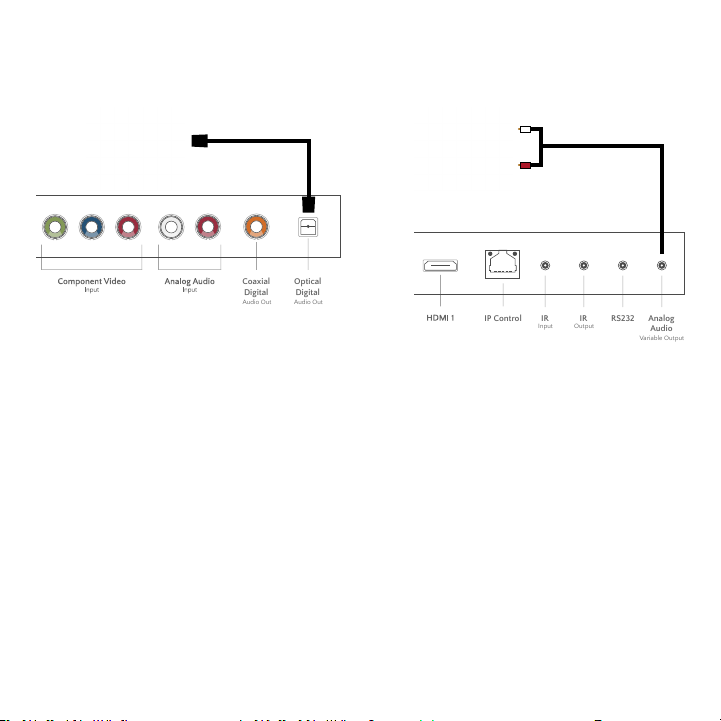

Connecting with Digital Optical (Best) Connecting with RCA Audio Analog (Good)

20

please contact your nearest dealer. If installed on a ceiling or slanted wall, it may fall and result in severe
personal injury. We recommend that you use a Séura wall mount when mounting the display to a wall.
VESA Wall Mounting
A
B
50 INCH
UB4-50
65 INCH
UB4-65
85 INCH
UB4-85

PATTERN

400 x 400mm 600 x 400mm

SCREW M8 M8 M8
NOTE
Screw length needed depends on the wall
mount used. For further information, refer to the
instructions included with the mount.
Standard dimensions for wall mounting are shown
in the above table.
When purchasing a Séura wall mount, a detailed
installation manual and all parts necessary for
assembly are provided.

dimension, as they may cause damage to the inside
of the display.






damage the display or cause the display to fall,
leading to personal injury. Séura is not liable for
these kinds of accidents.
Séura is not liable for display damage or personal

is used or the consumer fails to follow the display
installation instructions.
