Seura Hydra HY-19. 5 User manual

HY-19.5 & HY-27.5
USER MANUAL
Hydra
INDOOR WATERPROOF TELEVISION
www.seura.com
™

2 3
Thank you for selecting a Séura Hydra Waterproof Television.
This product has been inspected and packaged carefully before shipment.
Please read this guide before beginning installation.
Please keep this manual for future reference.
Information in this manual is subject to change without prior notice.
FCC Information
This equipment has been tested and found to comply with limits for a class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses, and radiates radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications.
There is no guarantee that interference will not occur in a particular installation. If this equipment causes unacceptable interference to
radio and television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures.
 •Reorientorrelocatethereceivingantenna.
 •Increasetheseparationbetweentheequipmentandreceiver.
 •Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiverisconnected.
Consult the dealer or an experienced Radio/TV technician for additional help.
WARNINGS
To reduce the risk of re, electrical shock and other injuries, keep these safety precautions in mind when
installing, using, and maintaining your Television. The socket-outlet should be installed near the equipment
and be easily accessible. The TV should be connected to a grounded GFCI protected main socket outlet.
WARNING: If you manipulate against the recommended usage, serious injury or death to user may result.
To protect against electric shock, do not immerse the power cord, power
plug, or product in water or other liquid.
Do not overload AC outlets or extension cords. Overloading can cause
re or electric shock.
Close adult supervision is necessary when any product is used by or near
children.
Do not operate any product with a damaged cord or plug or operate it
after the appliance malfunctions or has been damaged in any manner.
Do not use the product close to any heat sources such as radiators, heat
registers, stoves, or other products that produce heat.
Do not let the power cord come in contact with hot surfaces.
If you notice any smoke or scorched smell near the product, unplug
power cord and refer to qualied personnel for service and/or repair.
Do not use or place any combustible or ammable substances near the
product.
To electrically disconnect the product, turn OFF the product, then remove
the electrical power plug from the outlet.
Do not place heavy articles on or step on the product.
Do not place the product on an unstable cart, stand, tripod or table.
Do not use this product for other than intended use.
This Séura product is only intended for use indoors.
For added safety during a lighting storm, or when this product is left
unattended and unused for long periods of time, unplug it from the wall
outlet and disconnect the antenna.
Specications of this product are subject to unannounced changes; this manual may thus not reect the current technical status.
Before Installation
When installing and during use of this product, basic safety precautions should always be followed to reduce the risk of re, electric shock and/or
injury to persons including the following:
•Inspectthedesiredlocationforinstallationandbeawareofallelectricalwiringpathways,waterpipes,gaslines,orotherpotentiallyhazardous
conditions that may exist to protect from accidental damage during creation of on-site conditions.
•Ensureallrequiredelectricalspecicationsareadheredtoandhavebeeninstalledbytheappropriateindividualsandarecodeapproved.
•Ensureallframingrequirements,ifneeded,havebeencompletedtobuildingcodeandposenostructuralissues.
•ItisREQUIREDthatthisproductispluggedintoanelectricaloutletprotectedbyaGroundFaultCircuitInterrupter(GFCI)toprotectagainst
electric shock, re, and/or injury. Failure to do so will void any warranty for this product.
•Onlyqualiedindividualsshouldattempttoservicetheproduct.Removingcoverscanexposeyoutohighvoltageandotherdangerous
conditions.
•Toprotectagainstelectricshock,donotimmersethepowercord,powerplug,orproductinwaterorotherliquid.
•DonotoverloadACoutletsorextensioncords.Overloadingcancausereorelectricshock.
•Closeadultsupervisionisnecessarywhenanyproductisusedbyornearchildren.
•Donotoperateanyproductwithadamagedcordorplugoroperateitaftertheappliancemalfunctionsorhasbeendamagedinanymanner.
•Donotletthepowercordcomeincontactwithhotsurfaces.
•Toelectricallydisconnecttheproduct,turnOFFtheproduct,thenremovetheelectricalpowerplugfromtheoutlet.
•Donotusethisproductforotherthanintendeduse.
•ThisSéuraproductisonlyintendedforuseindoors.
•Retainthismanualinasafeplaceforfuturereference.
WARNING: READ ALL INSTRUCTIONS AND REVIEW ALL DRAWING SHEETS
BEFORE ATTEMPTING TO INSTALL OR SERVICE THIS PRODUCT.

4 5
2-Part Product Anatomy
BEFORE USE
2-Part Product Anatomy ..............................................................................................................5
INSTALLATION AND SETUP
Display Requirements .................................................................................................................. 6
Setup ...........................................................................................................................................7
Input/Output Overview ...................................................................................................... 7
Remote Control Functions................................................................................................. 7

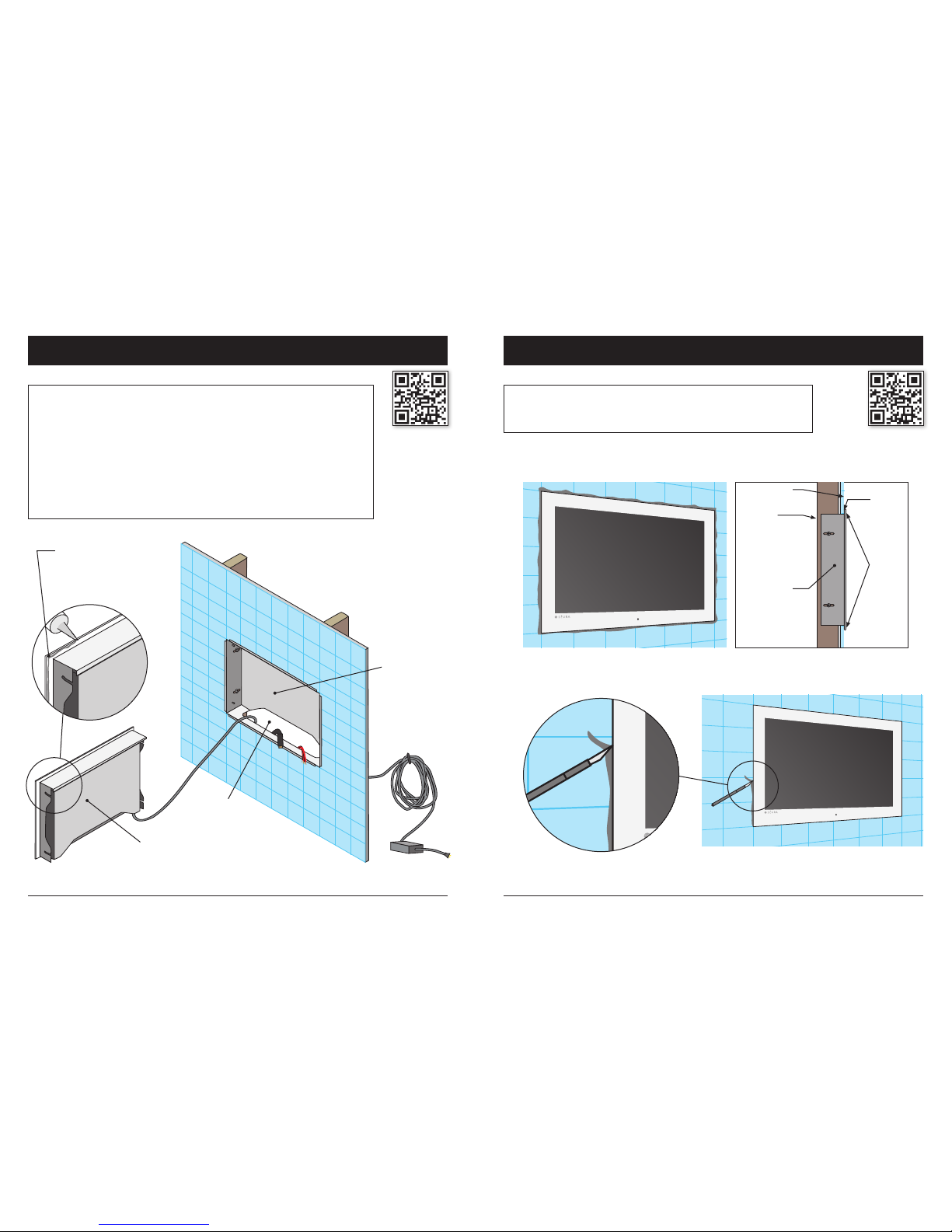

Installation ...............................................................................................................................8-11
Making Connections .................................................................................................................. 12

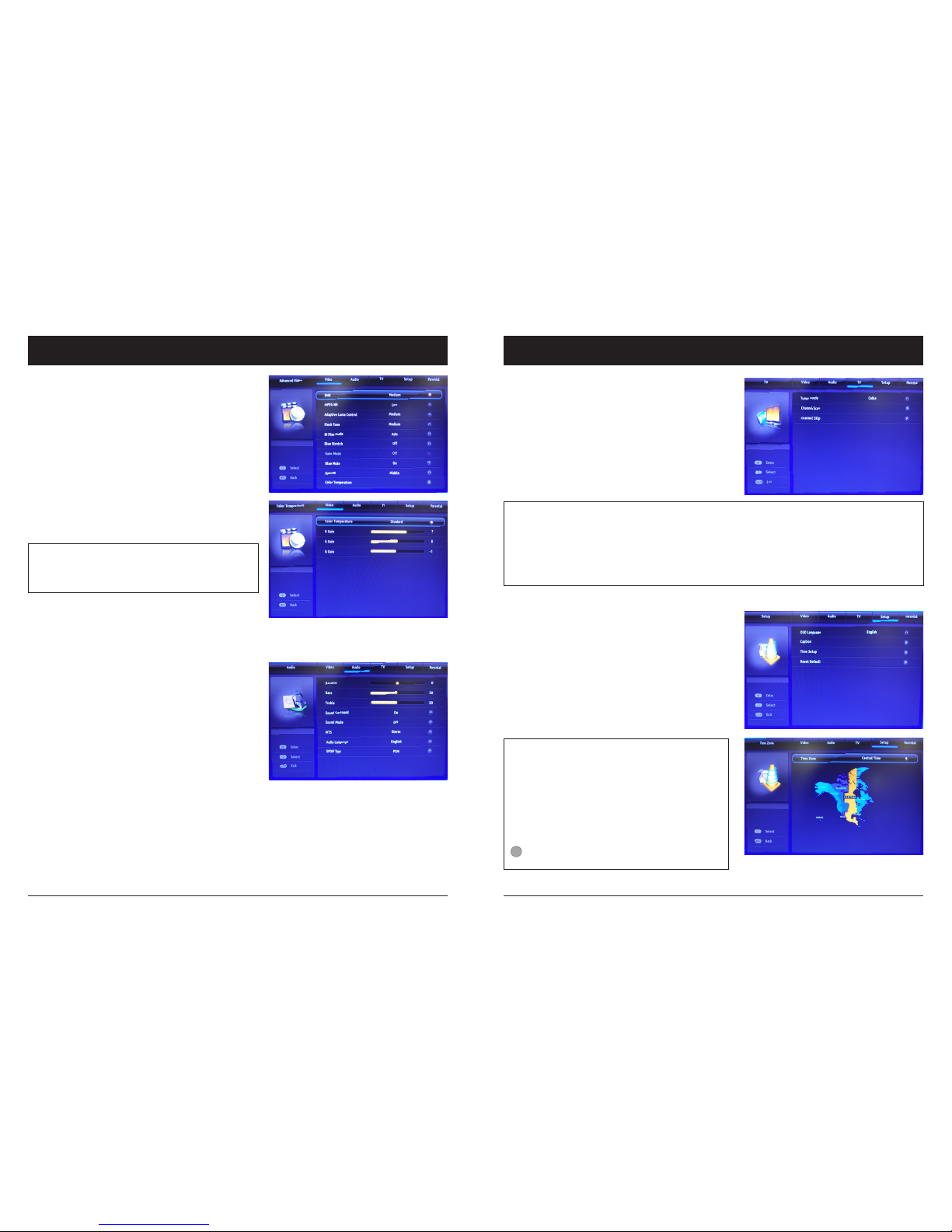

MENUS AND SETTINGS
OnScreenDisplayMenu(OSD)................................................................................................. 13
Input Source Selection...............................................................................................................13
Video Settings ............................................................................................................................ 13
Advanced Video Settings........................................................................................................... 14
Audio Settings............................................................................................................................ 14
TV Settings................................................................................................................................. 15
Setup Menu................................................................................................................................ 15

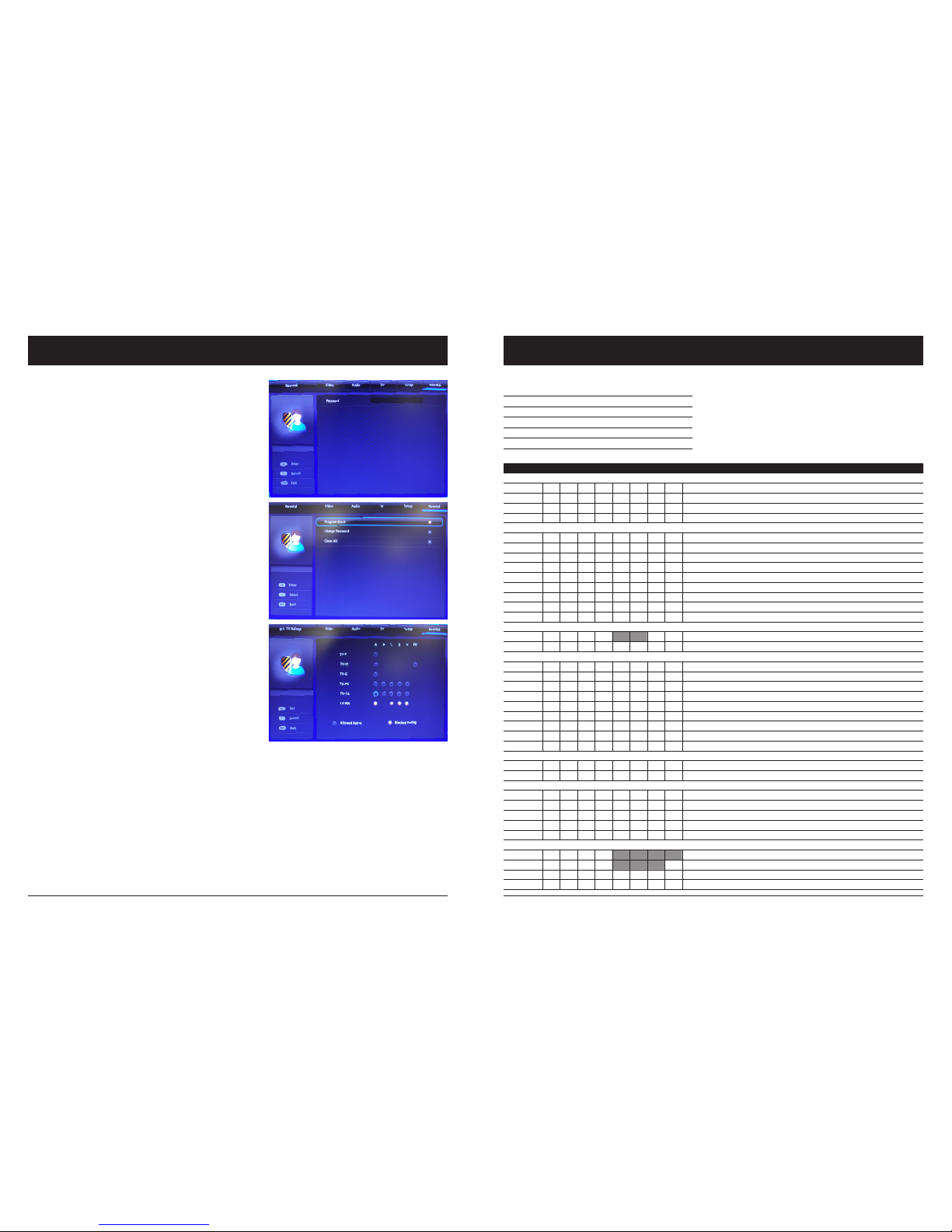

Parental Menu ............................................................................................................................ 16
INTEGRATION AND CONTROL
RS-232 Settings and Command Table.......................................................................................17
IR Commands ............................................................................................................................ 18
TROUBLESHOOTING AND TECHNICAL DETAILS
Troubleshooting.......................................................................................................................... 19
Technical Features .....................................................................................................................19
Ports and Media Support........................................................................................................... 20
Ports ................................................................................................................................20
Special Features .............................................................................................................. 20
 USBMediaSupport.........................................................................................................20
Warranty..................................................................................................................................... 21
Contents
INPUT/OUTPUT/LOWVOLTAGE
PASS-THROUGHPORT
FRAMING
MEMBER
SCREW-
MOUNTING
SLOTS(4,
2PERSIDE)
FRAMINGMEMBER
SCREW-MOUNTING
SLOTS(4)
LOWVOLTAGE
POWERLOCATION
ON-UNITCONTROLBUTTONS
GLASSFACE
GRAVITY
LOCK
GUIDE
SLOTS(4)
GRAVITYLOCKMOUNTS
INPUTS/OUTPUTS
BACK BOX
TV ASSEMBLY
Power Menu
Channel
Down
Channel
Up Volume
Down
Volume
Up
Input
Note: Buttons are labeled on product. 19" shown.
Buttons are located on the side of the unit on the
27" model.

6 7
PULL OUT EXTRA LENGTH OF EACH OF THE A/V
AND POWER CABLES, ATTACH THEM AND TEST THE
UNIT FOR FULL FUNCTIONALITY PRIOR TO ADDING
SEALANT TO THE BACK OF THE GLASS
AFTER VERIFYING THE A/V AND ELECTRICAL
CONNECTIONS APPLY A LIBERAL ENOUGH AMOUNT
TO SURROUND THE OUTER LIP OF GLASS THAT
SURROUNDS THE BLACK METAL HOUSING NOTING
THE MANUFACTURES DESIGNED USAGE.
A
A
BRING ALL A/V AND
ELECTRICAL CONNECTIONS
UP INTO THE BOTTOM OF
THE BACK BOX'S OPENING
FROM INSIDE THE WALL
CAVITY PRIOR TO
INSTALLING LCD UNIT.
(2)
INSTALL BACK BOX
INTO ROUGH OPENING
SECTION A-A
MOUNT BACK BOX
TIGHT TO THE FINISHED
WALL SURFACE
MOUNTING LOCATION
SHOWING SUPPLIED HARDWARE
127
8
"
ROUGH
OPENING
181
2
"
ROUGH
OPENING
19"
GLASS
DIMENSION
131
4
"
GLASS
DIMENSION
1
4
"
3
16
"
3
16
"
1
4
"
(1)
CREATE ROUGH OPENING
WITH THE SEALANT AROUND THE GLASS,
INSERT THE LCD ASSEMBLY INTO THE
BACK BOX MOUNTING THAT HAS BEEN
ALREADY INSTALLED. SLOWLY COMPRESS
THE ADHESIVE UNTIL THE BACK OF THE GLASS
IS TIGHT AGAINST THE WALL SURFACE.
VERIFY THAT SEALANT IS SURROUNDING THE
ENTIRE PERIMETER OF THE GLASS FACE.
SEALANT BEFORE
UNIT IS ENGAGED
SEALANT AFTER
UNIT IS ENGAGED
(3)
VERIFY FUNCTIONALITY
&
APPLY SEALANT
(4)
FINAL INSTALLATION
SHEET
3
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN
THIS DOCUMENT IS THE SOLE
PROPERTY OF THE MANUFACTURER.
ANY REPRODUCTION IN PART, OR AS
A WHOLE, WITHOUT THE WRITTEN
PERMISSION OF MANUFACTURER, IS
PROHIBITED.
DIMENSIONS ARE IN INCHES
TOLERANCES
FRACTIONAL 1/8 [3mm]
ANGULAR: MACH 1.0
ANGULAR: BEND 1.0
TWO PLACE DECIMAL .03 [.8mm]
THREE PLACE DECIMAL .015 [.4mm]
6 JAN 2012 15 MAR 2011
Date Created Sales Order / Inv. Number
S-R-1913-19.5-HY.5
Item Revised Date
BOTTOM VIEW
Hydra 19-inch High-Definition LCD
Screen Size (Diagonal): 19-inch
Format: 16:9
Brightness: 450 cd/m2
Viewing Angle: 170° Horizontal/Vertical
Contrast: 4000:1
Response Time: 6ms
Native Resolution: 1920 x 1080
Backlight: LED
Menu Languages: English, French, Spanish
Tuner:
ATV: NTSC
Digital: ATSC/QAM
Video:
75 Ohm Coaxial Antenna X 1
Composite Video, Audio L, Audio R (RCA plugs) X 1
Component YPbPr (RCA plugs) X 1
S-Video Mini 4-pin DIN X 1
VGA 15-pin D-sub Male X 1
HDMI Type A X 2
USB Type A X 1
Audio:
(No Internal Speakers)
Amplified Output for External Speakers: 2 X 5W
Amplified Output: Terminal Block
Constant Line Output: 3.5mm Jack X 2
Control:
RS232 9-pin DB9 Female X 1
IR IN: 3.5mm Jack X 1
IR OUT: 3.5mm Jack X 4
Power:
Input: 110-240 VAC, 50-60Hz, 1.5A
Type A NEMA Plug
Requires GFCI Protected Outlet
SHEET
2
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN
THIS DOCUMENT IS THE SOLE
PROPERTY OF THE MANUFACTURER.
ANY REPRODUCTION IN PART, OR AS
A WHOLE, WITHOUT THE WRITTEN
PERMISSION OF MANUFACTURER, IS
PROHIBITED.
DIMENSIONS ARE IN INCHES
TOLERANCES
FRACTIONAL 1/8 [3mm]
ANGULAR: MACH 1.0
ANGULAR: BEND 1.0
TWO PLACE DECIMAL .03 [.8mm]
THREE PLACE DECIMAL .015 [.4mm]
6 JAN 2012 15 MAR 2011
Date Created Sales Order / Inv. Number
S-R-1913-19.5-HY.5
Item Revised Date
19" GLASS
DIMENSION
131
4
" GLASS
DIMENSION
97
8
" SCREEN
DIMENSION
1515
16
" SCREEN
DIMENSION
19" SCREEN
LOCATION
33
16
" TOTAL
UNIT DEPTH
Sales Order / Inv. Number
Item and Description
Revised Date Reseller
SHEET 1
SIGNATURE
AND DATE
REQUIRED
DATE:
SIGNATURE:
NOTE:
PLEASE SIGN AND DATE THIS PAGE BEFORE RETURNING TO SEURA. ONLY THIS PAGE NEEDS TO BE
RETURNED. BY RETURNING THIS SHEET, YOU ARE AGREEING TO ALL DIMENSIONS SHOWN ON ALL DRAWING
SHEETS. FOR CUSTOM UNITS, WE WILL NOT START THE BUILD PROCESS WITHOUT AN AUTHORIZED SIGNATURE.
FOR DRAWINGS THAT REQUIRE REVISIONS: SEND THE REVISIONS TO SEURA ON THE ORIGINAL DRAWINGS.
DO NOT SIGN UNTIL ALL REQUIRED DIMENSIONS ARE VERIFIED AND ACCEPTED.
AFTER THE DRAWINGS ARE UPDATED, A REVISED DRAWING PACKAGE WILL BE RE-SENT FOR SIGNATURE.
DIMENSIONS ARE IN INCHES
TOLERANCES
FRACTIONAL 1/8 [3mm]
ANGULAR: MACH 1.0
ANGULAR: BEND 1.0
TWO PLACE DECIMAL .03 [.8mm]
THREE PLACE DECIMAL .015 [.4mm]
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN
THIS DOCUMENT IS THE SOLE
PROPERTY OF THE MANUFACTURER.
ANY REPRODUCTION IN PART, OR AS
A WHOLE, WITHOUT THE WRITTEN
PERMISSION OF MANUFACTURER, IS
PROHIBITED.
www.seura.com
1.800.95.SEURA
PH. 920.857.9069
FAX [phone]
Date Created
15 MAR 2011 6 JAN 2012
S-R-1913-19.5-HY.5
19"(W) x 13-1/4"(H) Standard Hydra Waterproof Television with a 19" LCD and Glass Color Choice
Display Requirements
Operation and Storage Requirements
The ambient temperature for operating the device is between 41 to 122 degrees Fahrenheit. Do not install the device in the proximity of heat sources,
such as heating pipes, heaters, furnaces or other devices that radiate heat. Mount the device in such a way that it is protected against moisture.
Trouble free operation is ensured up to 75% air humidity. To prevent re or electric shock, never allow liquids to enter the unit. The product must be
stored in dry and well-ventilated rooms, without extreme temperature uctuations. Heat sources and aggressive active substances may not be stored
in the proximity of the device. The required storage temperature is 32° F - 140° F at an air humidity of 5 - 85% RH non-condensing. The device must be
stored in the complete packaging, as delivered.
Installation Environment
Avoid direct light or sun exposure, direct proximity to heat sources, outdoor installation. The product is specically designed for indoor use only. There
is the danger of re and of electric shock and damage to the device if it is operated outdoors. Do not place any heat sources such as radiators and
heat registers, etc. near the monitor. To reduce eye strain, avoid installing the Séura Television against a bright background such as a window. Position
the monitor at the height of your eye level. Position the monitor directly in front of you at a comfortable viewing distance.
Installation
Havethisproductinstalledbyqualiedpersonnelonly.UsethemountingsystemswhicharespeciedorrecommendedbySéura.Installtheproduct
in a way that it is xed properly and take care that children are not exposed to danger. Please take extra care during installation, avoid impacts. Before
cabling your monitor, check that the power is off. To avoid any possibility of electric shock, always connect your equipment to properly grounded
outlets.Useofpowercordsoradaptersotherthanthoseprovidedmaycausereormalfunction.Placethisproductasclosetothepowersocketas
possible.Leaveenoughspacetoinsertandremovethepowerplugondemand.Evenifyouswitchofftheproductwithyourremotecontrol,poweris
not cut off unless the power cord is unplugged.
The device may only be operated with the provided power adapter. The rated voltage is indicated on the product label. The device is factory-set to
theoptimaloperatingvoltage(seeTechnicalSpecication).Useonlypowercordsandplugsthataresuitableforyourlocalelectricaloutlets.Install
thepowercordsinsuchawaythatitdoesnotobstructanyone.Ensurefurthermorethatthecableisnotclampedandthatitcannotbepulledout
accidentally from the power adapter. Do not install the power cords in the proximity of heating elements and never place heavy items on the cable or
power adapter. Do not modify or arbitrarily repair the power cords.
CAUTION
Donotuseanypowercordsoradaptersotherthanthoseprovidedwiththisproduct!Useofpowercordsoradaptersotherthanthoseprovided
with this product may cause re, electric shock or malfunction. If several kinds of power cords are provided with this product, use the one that ts
yourpowersocket.Donotlettheadapterhangdownwhileusing.Donotcoverorwraptheadapter.Leavespacearoundtheadaptertoprevent
overheating. The individual components can be destroyed, if the polarity is reversed or an incorrect connection is used. A goodwill replacement is not
possible in such cases, since each device is submitted to meticulous quality inspections prior to shipping. The connecting plugs must be attached in
such a way that the connector is held rmly. Have trained technical personnel install the electrical facilities necessary for mounting. The power adapter
must be installed in ventilated areas due to heat emission. Connect the power cord to a grounded outlet. Never cut or damage the power cord.
Please disconnect the device from the power adapter in the following cases:
1. The device is out of use for a lengthy period.
2. The device malfunctions or displays other unusual features, necessitating maintenance work.
3. During a thunderstorm.
Please plan the positioning of the power adapter and the source cables before proceeding with the structural measures and positioning of the Séura
Television.Observetheprotectionzoneswhenplacingthepoweradapter!Pleasebearinmindthatthepoweradapterhastobeplacedbeyondthe
inset due to heat emission.
NOTE
The power cable should be adequately secured to prevent it from becoming unstable and/or falling. Make sure the power source circuits are properly
grounded.Usethesuppliedpowercordinordertoconnectittothepowersource.Ifyourinstallationrequiresadifferentpowercord,besuretousean
ofcially approved power cord displaying the mark of the safety agency that denes the regulations for power cords in your country.
Ensurethatyourinstallationcomplieswithyournationalandlocalsafetyrules.Anyservicing,adjustment,maintenanceorrepairmustbeperformed
only by service-trained personnel.
Setup
Before using the device please check the following contents of the box for completeness:
TV Assembly
50'Low-Voltage
Power Cable
Back Box
Manual and Custom
Drawing Package
Waterproof
IR Remote
Control
RS-232
Adapter
Composite
Adapter
YPbPr
Adaper
Mounting
Hardware
2010Remote Redesign
Final
waterproof
last
ok
enter
channel
volume
cc
guide
mute
sleep
zoom
input display menu exit
Input/Output Overview (Bottom View)
Remote Functions
2010 Remote Redesign
Final
waterproof
last
ok
enter
channel
volume
cc
guide
mute
sleep
zoom
input display menu exit
Power On / Off
Menu Controls
Press “Menu” to launch On Screen Display menu
Usearrowsand“Ok”tonavigatemenuandmake
selections
Press “exit” to close the On Screen Display menu
“Mute” turns on or off all audio output
“Sleep” designates power off after a specied time
“Zoom” congures ratio and appearance of picture
“Input” designates displaying content source
“Display” displays input and resolution information
UseVolumearrowstoincreaseordecrease
volume level
UseChannelarrowstoincreaseordecrease
channel selection
“Guide”displaysavailableEPG(Electronic
ProgramGuide)whenusingtunerinput
“CC” turns on/off subtitles
“Last”recallslastchannelviewed
Numerical selection for channels and settings
19" TV Shown
Low-VoltagePower
Adapter and Cable
RS232
Input
S-Video
RF Coaxial
Antenna
USB
IR Input
Audio Line
Out
VGA
Input
HDMI 1
Input
HDMI 2
Input
Power Adapter
Input
Speaker Out
Audio
Line
Out
PC
Audio In
Composite
YPbPr IR Output
BOTTOM VIEW
TV Back Box
TV Assembly
Glass Face

8 9
Installation Installation
NOTE:
AllSéuradrawingpackagesindicategeneralizednominalresidentialwood
framing construction, and are not indicative of any particular building code.
It is the installers responsibility that all electrical, audio/visual, and framing
construction are code compliant to the municipality in which the product is
being installed. Modications made to Séura recommendations are at the
sole discretion of the installer and release Séura of all liability.
Inspect the desired location for installation and be aware of all electrical
wiringpathways,waterpipes,gaslines,orotherpotentiallyhazardous
conditions that may exist to protect from accidental damage during creation
of on-site conditions.
Ensureallrequiredelectricalspecicationsareadheredtoandhavebeen
installed by the appropriate individuals and are code approved.
Ensureallframingrequirements,ifneededhavebeencompletedtobuildingcodeandposenostructuralissues.
ItisREQUIREDthatthisproductispluggedintoanelectricaloutletprotectedbyaGroundFaultCircuitInterrupter(GFCI)toprotectagainstelectric
shock, re, and/or injury. Failure to do so will void any warranty for this product.
Only qualied individuals should attempt to service the product. Removing covers can expose you to high voltage and other dangerous conditions.
Step 1
Install back box to framing members using the
provided four screws and washers through
screw-mountingslotsinbackbox.Ensurethat
the front of the box is ush with nished wall
and mounting tabs will rest on nished wall
surface. Feed power and other desired cords
through pass-through port.
Read all installation instructions before beginning installation.
BACKBOX
VERTICALFRAMINGMEMBERS
SCREW
INTO
FRAMING
MEMBERS
USING
SCREW-
MOUNTING
SLOTS(4)
PASS-
THROUGH
PORT
LOW-
VOLTAGE
POWER
AUDIO
VIDEO
Note: Do not overtighten mounting
hardware. Back box should t snuggly
between framing members. If the t is
poor, and overtightening occurs, the
back box may deform, resulting in a
poorly sealed installation. If the back
box doesn’t t well between framing
members, shim the framing members
for a square and stable t.
Step 2
While keeping cord ends outside the back box pass-through port, nish the wall
tight to the edges of back box, removing any gap. Once complete, the nal wall
surface should be ush with the front edge of the back box as shown.
BACKBOX
MAINTAIN CORDS IN
PASS-THROUGHPORT
DURINGWALLFINISHING
FINISHEDWALL
FINISHED
WALL
WALLBOARD
FRAMING
MEMBER
SCREW
MOUNTING
SLOTS BACKBOX
Scan to watch the 2-minute installation video
Scan to watch
the 2-minute
installation video
