Severtson Narrow Fixed Frame Series User manual

IMPORTANT: BEFORE YOU BEGIN
To avoid staining or scratching the screen, wash your hands and clean the work area before starting.
Do not use knives or sharp objects to open the packing boxes.
Care and Cleaning
Clean the screen with a microfiber cloth only. DO NOT use soap, water, harsh detergents, chemicals,
distilled spirits or petroleum-based chemicals to clean the screen. Doing so may result in severe
damage to the screen or the frame covering.
Use a household vacuum cleaner with a brush or furniture cleaning attachment to clean the velvet
frame material. Avoid using excessive amounts of water on the frame.
Plastic sheet x1 Micro fiber cloth x1
M5*8
M5*40
M5*40
16（16）4（6）2（3）2（3）
2（3）2（3）
2（3）4（5）4（5）2（3）10（12 ）32（36）M5*6
16（20）M5*6
M5*6
2（2）2（2）2（2）2（2）2（2）2（2）1（1）
Part List
Instruction Manual for
Narrow Fixed Frame Series
Remark: Above spare parts quantity inside () is equipped.

Installation
xx pcs
②Frame Assembly：2-1
1-1
1-2.Springs
Refer to spring sticker on each frame piece and slide the
correct quantity of springs into each frame piece. Ensure that
the hook on the spring points down toward the frame.
1-2
1-1.One-hole Nut
Slide 6 one-hole nuts into each long frame
piece.
1-3.Four-hole Corner Bracket
Slide 1 small (sharp end) and 1 big (round end) corner bracket into each end of
the long frame piecesas shown in figure 1-3.
(Note that the small corner bracket should be in the same groove as the nut.)
1-3

2-2
3-1

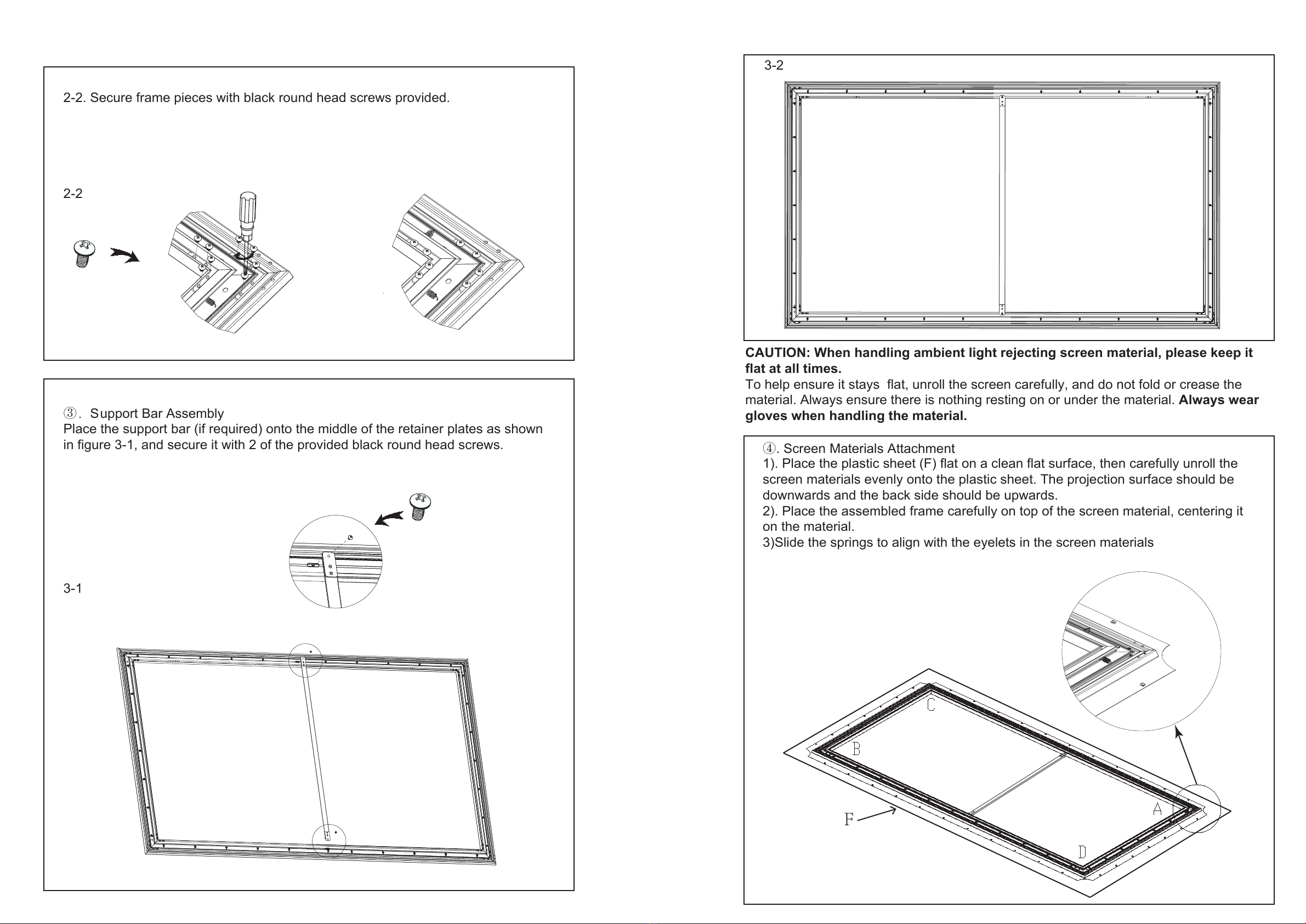

2-2. Secure frame pieces with black round head screws provided.
③．Support Bar Assembly
Place the support bar (if required) onto the middle of the retainer plates as shown
in figure 3-1, and secure it with 2 of the provided black round head screws.
3-2
F
④. Screen Materials Attachment
1). Place the plastic sheet (F) flat on a clean flat surface, thencarefully unroll the
screen materials evenly onto the plastic sheet. The projection surface should be
downwards and the back side should be upwards.
2). Place the assembled frame carefully on top of the screen material, centering it
on the material.
3)Slide the springs to align with the eyelets in the screen materials
CAUTION: When handling ambient light rejecting screen material, please keep it
flat at all times.
To help ensure it stays flat, unroll the screen carefully, and do not fold or crease the
material. Always ensure there is nothing resting on or under the material. Always wear
gloves when handling the material.

5-2
5-3
5-1
⑤. Secure Screen Materials
1). Fold the edges of the screen material over the edge of the frame.
Starting with the opposite corners, then the centers as shown in figure 5-1,
hook the springs through the material eyelets to secure it in place. Then
secure the rest of the eyelets with the springs until all eyelets have been
secured as shown in figures 5-2 and 5-3.
1 2 3 4 5 6 7 8

Install outer frame
Slide 3 one-hole nuts into each long outer frame
piece, and 2 one-hole nuts into each short outer
frame piece; Attach the outer frames on to the frame
as shown in figures 6-1 and 6-2.
Smooth out any wrinkles in the material with gloved hands.
5-4
5-5
6-2
6-1

Install the retaining plate
Screw the retaining plates on the one - hole nuts as shown in
figure 6-3. Install the mounting brackets
1). Secure two mounting brackets with the 1-hole nut in the top frame using
round head screws. Do not tighten the screws completely - the brackets
should be able to slide left and right
2). Secure the circular metal piece to the lower frame in the same fashion,
using the provided flat head screws. Do not tighten the screws completely.
6-1 6-2
6-3

Front
Upper
Lower
Measure the overall Length (A) and Height (B) of the screen frame.
Drill 4 holes in the wall at the desired height. The two holes horizontal distance
should be 2/3 A, the vertical distance should be B minus 4 1/8" (105mm).
A100AB
7-1
7-2
Hammer the expansion bolts into the 4 drilled holes, and drive 2 round head
self-tapping screws into the upper expansion bolts, leaving about 1/4" (5mm)
extended for hanging the screen on. Install the lower 2 magnet pieces using 2
flat self-tapping screws. Hang the screen on the upper brackets and attach the
lower frame to the wall using the magnets.
5mm
7-3 7-4
