Seville Classics UltraHD 20267 User manual

TR151008
ASSEMBLY INSTRUCTIONS
UltraHD Stainless Steel Pegboard Workcenter (Model No. 20267)
(1.21m W X 60.9cm D X 1.56m H)
48in. W X 24in. D X 61.5in H
Reference page 6 for special care and
maintenance of stainless steel

No. Qty. No. Qty. No. Parts Qty.
#1 1 pc #46 1PC #50 SCREW I (M6 x 15L) 56 pcs
#2-D 1 pc #47 8 pcs #51 STUD SCREW J 4 pcs
#3-D 1 pc #48-1 1 pc #100 1/2" CURVED 4 pcs
#3-B 1 pc #48-2 1 pc #101 1" CURVED 4 pcs
#5-B 2 pcs #48-3 1 pc #102 1" STRAIGHT 4 pcs
#6 4 pcs #49-A 2 pcs #103 1.5" STRAIGHT 4 pcs
#18 2 pcs #15 42 pcs #104 2" DOUBLE PRONG 2 pcs
#19-2 2 pcs #21 1 pc #105 4" CURVED DOUBLE PRONG 2 pcs
#20-1 2 pcs #25 1 pc #106 2" PLIER HOLDER 2 pcs
#20-3 2 pcs #27-B 10 pcs #107 2" MULTI-TOOL HOLDER 1 pc
#20-4 2 pcs #40 10 pcs
#20-5 SMALL DRAWER BACK PANEL 2 pcs #41 8 pcs
SMALL DRAWER LEFT PANEL
SCREW DRIVER
WASHER
SCREW E (M8 x 18L)
SMALL DRAWER RIGHT SUPPORT
SCREW F (M4 x 8L)
PEGBOARD LONG SUPPORT BAR
POWER STRIP W. USB PORTS
WRENCH
Parts
Parts
"L" BRACKET
Drawer
PARTS LIST ( pg 1 of 7 )
Please check the parts carefully according to the parts list. If you are missing any parts, please contact our customer service
department (please refer to page 7 of 7).
LEVELING FOOT
DRAWER BASE PANEL
SMALL DRAWER FRONT PANEL
SOLID HARDWOOD TOP
FPR-SS TOP PEGBOARD PANEL
FPR-SS BOTTOM PEGBOARD PANEL
BOTTOM CROSSBAR
LEG PIECE
DRAWER MAT
SMALL DRAWER RIGHT PANEL
SMALL DRAWER MIDDLE SUPPORT
SMALL DRAWER LEFT SUPPORT
SCREW B (M4 x 8L)
#100 #101 #102 #103 #104 #105
#106 #107
#40 #27-B #15 #25#21
#50
#41
#51
#46
#15
#20-3
#20-4 #20-5
#19-2
#20-1 #18
M8X20 pcs
#40
#49-A
#2-D
#20
#27-B
#15
#41
#3-D

Step 1.
Step 2.
NOTE:
Step 3.
Attach the Small Drawer Middle Support
(#48-1) to the back of Solid Hardwood Top
(#1), line up the screw holes, use 8pcs Screw
I (#50) and Screwdriver (#21) to tighten.
Repeat this step to install Small Drawer Left
Support (#48-2) and Small Drawer Right
Support (#48-3).
Do not fully tighten the screws. This will help
you make any adjustments for alignment.
ASSEMBLY INSTRUCTIONS (pg 2 of 7)
Install Bottom Cross Bar (#3-B) and Leveling
Feet (#6).
Attach the Bottom Cross Bar (#3-B) to the back
of Leg Piece (#5-B), line up the screw holes,
use 4 pcs of Screw E (#40) with Washer (#27-B)
and Wrench (#25) to tighten.
After installing the Bottom Cross Bar (#3-B),
attach Leveling Feet (#6) to the Leg Pieces (#5-
B) , use Wrench (#25) to tighten.
UltraHD Stainless Steel Pegboard Workcenter (Model No. 20267)
Install Leg Piece (#5-B).
A: Open the package, and put the parts aside. Then, attach the "L" Bracket (#47) to the Leg Piece (#5-B) , use 4
pcs Screw I (#50) to tighten. Repeat Step A to install "L" Brackets (#47) to another Leg Piece (#5-B) with another
4 pcs Screw I (#50).
Note: Tighten all the screws after the Brackets (#47) are flush with the Leg Piece (#5-B).
B: Attach the Leg Pieces (#5-B) to the back of the Solid Hardwood Top (#1), line up the screw holes, use 16 pcs of
Screw I (#50) and Screwdriver (#21) to tighten.
Note: Assemble the workcenter on top of the cardboard packaging to help avoid scratching the solid hardwood
top.
Install Small Drawer Middle Support
(#48-1), Small Drawer Left Support
(#48-2), Small Drawer Right Support
(#48-3).
TIP: A magnetic screwdriver is included for your convenience. If a power screwdriver is used,
keep on a low torque setting.
Front
Back
Front
Back
Back
Front

Step 4. Install Pegboard Long Support Bar (#49-A).
Step 5:
Step 6:
Install Left and Right Drawer Side Panels (#20-3
and #20-4).
Fit and attach the Left and Right Small Drawer Side
Panels (#20-3 and #20-4) to the Small Drawer
Front Panel (#20-1). Make sure the Left and Right
Small Drawer Side Panels (#20-3 and #20-4) are
placed in all the way making contact with the rear
of the Small Drawer Front Panel (#20-1). Line up
the screw holes and use Screw B (#15) to tighten.
UltraHD Stainless Steel Pegboard Workcenter (Model No. 20267)
ASSEMBLY INSTRUCTIONS (pg 3 of 7)
Turn the workcenter up right, attach Pegboard
Long Support Bar (#49-A) to the back of the
workbench, line up the screw holes, using 6 pcs of
Screw E (#40) with Washer (#27-B) to tighten.
NOTE: Do not fully tighten the screws. This will
help you make any adjustments to alignment
later.
Install FPR-SS Top Pegboard Panel (#2-D) and
FPR-SS Bottom Pegboard Panel (#3-D).
Attach FPR-SS Bottom Pegboard Panel (#3-D) on
the back top edge of workcenter and Pegboard
Long Support Bar (#49-A), line up the screw holes,
use 4 pcs of Screw F (#41) and Screwdriver (#21)
to tighten.
NOTE: Do not fully tighten the screws. This will
help you make any adjustments to alignment
later.
Attach FPR-SS Top Pegboard Panel (#2-D) to the
Pegboard Long Support Bar (#49-A), line up the screw
holes, use 4 pcs of Screw F (#41) and Screwdriver
(#21) to tighten.
Use 2 pcs Screw B (#15) to fasten the FPR-SS Top and
Bottom Pegboards (#2-D and #3-D) together as left
detail photos shows.
Back
Front
#20-4
#20-3
#20-1 #15
#15
#2-D
#3-D
#41
#49-A
#27-B
#40

Step 7:
Step 8:
Note:
ASSEMBLY INSTRUCTIONS (pg 4 of 7)
Each Drawer's maximum loading capacity is 40
lbs.
UltraHD Stainless Steel Pegboard Workcenter (Model No. 20267)
Attach the Drawer Base Panel (#19-2) between
the Drawer Left and Right Side Panels (#20-3 and
#20-4) and into the back of the Drawer Front
Panel (#20-1). Line up screw holes and use Screws
B (#15) to tighten.
Note: Do not fully tighten the screws. Once you
adjust all the parts in position, tighten all screws.
Attach the Drawer Back Panel (#20-5) to the rest
of the assembled drawer. Line up screw holes and
use Screws B (#15) to tighten.
Repeat Steps 6-8 to assemble the second drawer.
Install Drawer Base Panel (#19-2).
Install Drawer Back Panel (#20-5).
#15
#19-2
#20-5
#15
#20-3
#20-5
#20-4
#20-1
#19-2

Step 9: Insert Drawers.
WARNING:
NOTE:
Step 10:
How to pull the drawer out of the unit?
To pull the drawers out of the unit, pull the black plastic clip on the right side of the drawer up, then push on the black
plastic clip on the left side of the drawer down. Now you can pull the drawer out.
After attaching the two drawers, place the Drawer
Mats (#18) inside the drawers.
ASSEMBLY INSTRUCTIONS (pg 5 of 7)
Pull out the Ball Bearing track towards you.
Place Drawer Mats (#18).
UltraHD Stainless Steel Pegboard Workcenter (Model No. 20267)
Once you insert the drawers, tighten the screws
for Small Drawer Middle Support (#48-1), Small
Drawer Left Support (#48-2) and Small Drawer
Right Support (#48-3).
Pull out the drawer sliders and inner ball bearing
track completely. Then attach and fit the Drawer
to the inner track of the sliders and slide drawers
in.
Pull the ball
bearing track
towards you.
PULL
UP
PULL
DOWN
#18

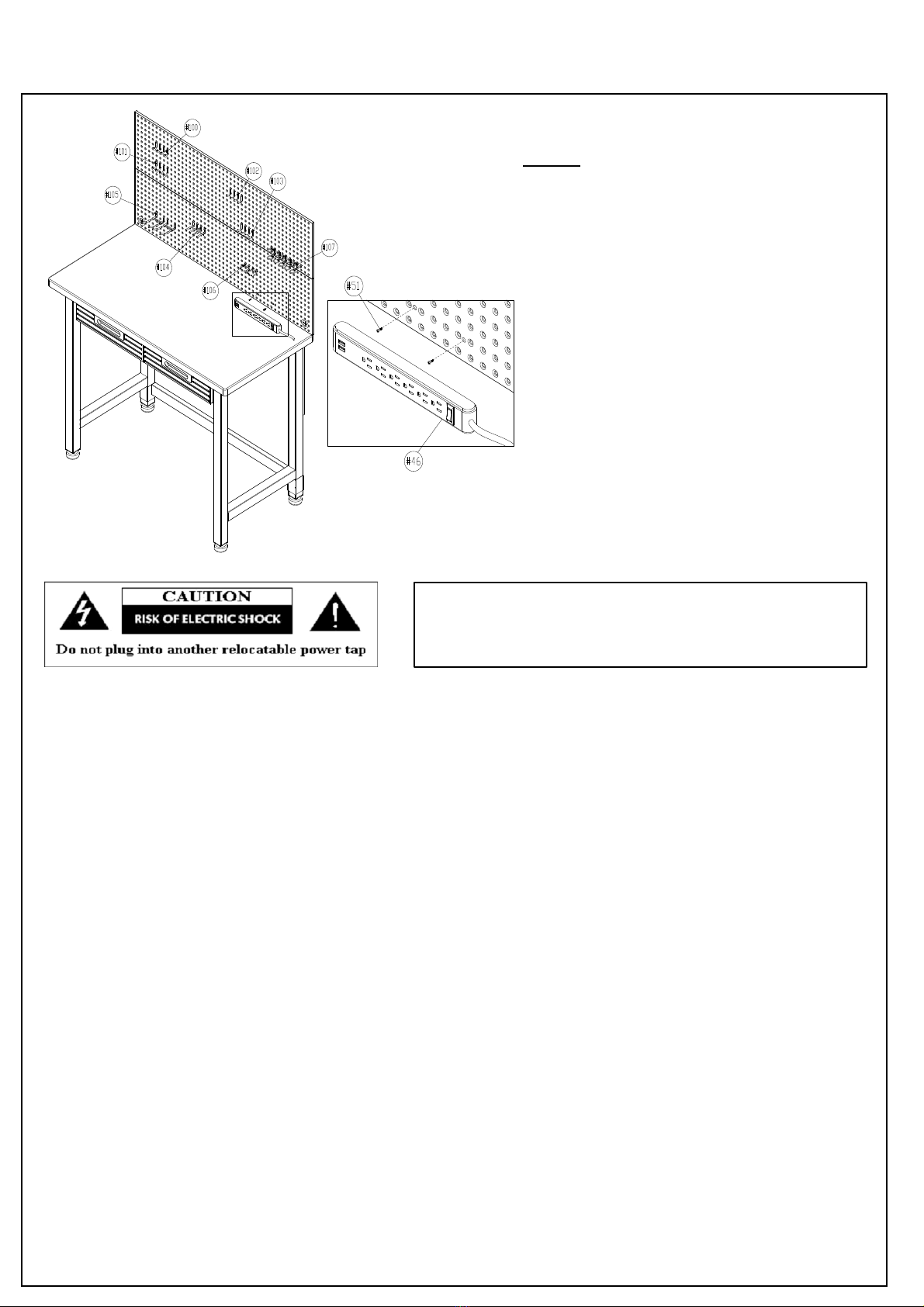

Step 12: Place Power Strip (#46).
UltraHD Wood Top
Restore Shallow Scratches or Chips
Applying a Polyurethane Coating
Please follow the manufacturer's instruction on the product for application.
Stainless Steel Maintenance:
These parts have an UltraGuard® fingerprint resistant finish. Do not use traditional stainless steel cleaners on this unit. Lightly
wipe off once a month with clean warm water and a soft cloth (preferably a micro fiber cloth). This is the safest formula to
prevent new stains from appearing over time and manage unwanted fingerprints or grease marks.
Remember to always wipe in the direction of the surface grain (NEVER ACROSS) and always use a lint-free cloth.
Once the surface is clean, thoroughly wipe dry with a soft absorbent cloth.
ASSEMBLY INSTRUCTIONS (pg 6 of 7)
On the front of the FPR-SS Bottom
Pegboard Panel (#3-D) insert 2 pcs of Stud
Screw J (#51). Then, hook the Power Strip
(#46) onto the screws. Insert the power
cord through the Rubber Grommet in the
bottom corner of Pegboard Panel (#3-D).
NOTE: You can position Power Strip (#46)
on the left or right side of the FPR-SS
Bottom Pegboard Panel (#3-D).
Place Hooks (#100), (#101), (#102),
(#103), #104), (#105), (#106), (#107) to
Pegboard as needed.
Although great care is taken to hand select consistent wood top color and grain for UltraHD products,
there can and will be natural variations in color and graining between finished products. These
variations contribute to the beauty of using a natural material as a workbench and are considered
standard quality. Variations of color within these standards and minor scratches in the clear coat finish
will not be a reason for replacement. If the wood top is received with excessive damage or splitting,
Seville Classics will guarantee replacement of the wood top.
If the wood top becomes scratched and chipped over time or during assembly, a Polyurethane finish
can be applied to help restore the wood's natural texture, as well as protect the surface from future
damage.
UltraHD Stainless Steel Pegboard Workcenter (Model No. 20267)
[!] CAUTION: Potential Shock or Fire Hazard. This unit is not
intended for use in wet or potentially wet locations, such as
showers, saunas, under or near fishtanks, sinks, etc.
