SEVROLL SEVROLLBOX SLIM User manual

114 196 228
115
11
20
LW
NL : 270
300
350
400
450
500
550
[mm]
L = LW - 87 mm
L = LW - 100 mm
37 mm 37 mm
9 mm
1200
1080
min. 38
min. 54
min. 120
min. 38
min. 54
min. 203
min. 38
min. 54
min. 236
L L L
PR
[mm]
Drawer front Set for the internal drawer SEVROLLBOX SLIM
FURNITURE ACCESSORIES

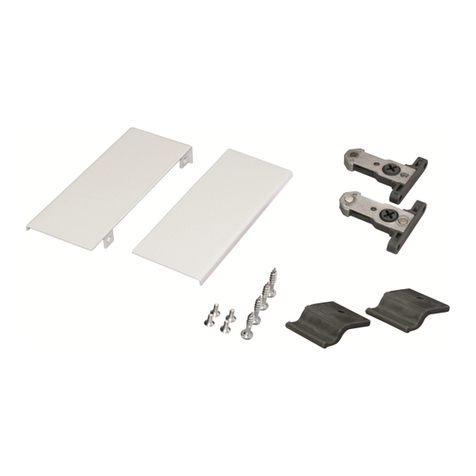

Components:
Drawer SEVROLLBOX SLIM
h = 84 mm / h = 167 mm / h = 199 mm
Universal drawer front base profile for
internal drawer SEVROLLBOX SLIM
Universal drawer front railing for internal
drawer SEVROLLBOX SLIM
Length: 270
300
350
400
450
500
550 Only for use with SEVROLLBOX SLIM
h = 167 mm and h = 199 mm
Set for internal drawer
SEVROLLBOX SLIM h = 84 mm
Set for internal drawer
SEVROLLBOX SLIM h = 167 mm
Set for internal drawer
SEVROLLBOX SLIM h = 199 mm
R R R
4x20
M3x7
Screws for "Set for internal drawer”
Screws for "drawer front base profile”
4x20
M3x7
Screws for "Set for
internal drawer”
Screws for "drawer front
base profile”
4x20
M3x7
Screws for "Set for
internal drawer”
Screws for "drawer front
base profile”
Cutting dimensions of profiles
Universal drawer front railingUniversal drawer front base profile
LW – internal width of carcass
NL – nominal length of the drawer
Calculations for the back wall and base of the drawer
can be found in the instructions SEVROLLBOX SLIM
Mounting dimensions
SEVROLLBOX SLIM h = 84 mm
SEVROLLBOX SLIM h = 167 mm
SEVROLLBOX SLIM h = 199 mm
minimum carcass length: (NL + 3 mm) minimum carcass length: (NL + 12 mm)
Drawer with flush front Drawer with inset front
The front of the drawer sits level with the carcass edges
ATTENTION! To ensure that the drawers cover the high front applied,
the guides should be taken back by 9 mm (one hole in the guide)
into the carcass

180°
180°
1 2 3
45 6
1 2 3
45 6
front catches supplied
with your Sevrollbox Slim
drawer h = 84 mm
ATTENTION! Use the drawer
Installing the drawer front for SEVROLLBOX SLIM h = 84 mm
Installing the drawer front for SEVROLLBOX SLIM h = 167 mm and h = 199 mm
h = 167 mm and h = 199 mm
ATTENTION! Use the drawer front catches
supplied with your Set for internal drawer
SEVROLLBOX SLIM
