Wenger Corner Cabinet User manual

Assembly nstructions
Corner Cabinet and Options
Note: Please read and understand these instructions before assembling the parts.
Note: Assemble the Corner Cabinet in the room that it will be used in.
The assembled Corner Cabinet is typically too large to fit through a doorway.
Note: Assembly requires two people.
Note: Remove all items from the shipping cartons and arrange them in a convenient location.
Refer to the illustrations on the following pages.
f you need additional information, contact Wenger Corporation using the information below.
©Wenger Corporation 2014 Printed in USA 08/14 Part #250A893-05
Wenger Corporation, 555 Park Drive, P.O. Box 448, Owatonna, Minnesota 55060-0448
Questions? Call.....USA: 1-800-4WENGER (493-6437) • Worldwide: 1-507-455-4100 • www.wengercorp.com
CONTENTS
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
mportant User nformation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Manufacturer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Corner Cabinet Assembly nstructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Shelf/Hanger Bar Option Assembly nstructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33
Revolving Shelf Option Assembly nstructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41

GENERAL
Copyright© 2014 by Wenger Corporation
All rights reserved. No part of the contents of this manual may be reproduced, copied, or transmitted in
any form or by any means including graphic, electronic, or mechanical methods or photocopying,
recording, or information storage and retrieval systems without the written permission of the publisher,
unless it is for the purchaser's personal use.
Printed and bound in the United States of America.
The information in this manual is subject to change without notice and does not represent a commitment
on the part of Wenger Corporation. Wenger Corporation does not assume any responsibility for any
errors that may appear in this manual.
n no event will Wenger Corporation be liable for technical or editorial omissions made herein, nor for
direct, indirect, special, incidental, or consequential damages resulting from the use or defect of this
manual.
The information in this document is not intended to cover all possible conditions and situations that might
occur. The end user must exercise caution and common sense when assembling or installing Wenger
Corporation products. f any questions or problems arise, call Wenger Corporation at 1-800-887-7145.
MAN FACT RER
The Corner Cabinet is manufactured by:
Wenger Corporation
555 Park Drive
Owatonna, MN 55060
1-507-455-4100 • 1-800-733-0393
www.wengercorp.com
WARRANTY
This product is guaranteed free of defects in materials and workmanship for ten full years from
date of shipment. A full warranty statement is available upon request.
2
SAFETY
Throughout this manual you will find Cautions and Warnings which are defined as follows.
• Warning means that failure to follow the instruction may result in serious injury or death.
•Caution means that failure to follow the instruction may result in injury or damage to property.
Read and understand the following safety instructions before installing the Cover Panel.
GENERAL
INSTALLATION
Always observe and comply
wit Warnings and Cautions
posted on t e system
equipment.
Always wear safety glasses
w en assembling t e Corner
Cabinet.
Make sure t at anyone w o
elps assemble t e Corner
Cabinet as read and
understands t is manual.
!CAUTION
Installation and use of t e
Corner Cabinet must always
comply wit t e information
contained in t is manual.
!CAUTION
!CAUTION !CAUTION
IMPORTANT USER INFORMATION

3
Corner Cabinet Assembly Instructions
CONTENTS
mportant User nformation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Corner Cabinet Required Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Corner Cabinet Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Corner Cabinet Fasteners Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Corner Cabinet Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Level the Cabinet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
Assemble Cabinet Connector Bracket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
Door Assembly Fasteners Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
Door Assembly Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
Door Assembly Required Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
Door Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
Wood Door Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
Grille Door Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31

4
IMPORTANT USER INFORMATION
INSTALLATION
•The Wenger Corner Cabinet installation must comply with local building regulations and codes.
•Personnel installing the Wenger Corner Cabinet must comply with the Warnings and Cautions in
the Safety Section.
INTENDED SE
•The Wenger Corner Cabinet is intended for indoor use in normal ambient temperature and humidity
conditions — it must not be exposed to prolonged outside weather conditions.
•The Wenger Corner Cabinet is intended to be permanently installed only as described in this manual.
CORNER CABINET REQUIRED TOOLS
•6-foot Ladder
•Carpenters Level
•Tape Rule
•Carpenters Square
•Variable Speed Drill
•Mallet
•Philips Screwdriver
•7/8” Open End Wrench
•Hex nsert Bit
CORNER CABINET PARTS LIST
Item Description Part Number Item Description Part Number
1 Pan Head Screw X000045 12 Plastic Extrusion Trim Strip 145L460
2Tube Plug, 11/8Square, 16 gauge X001605 13 Hex nsert Bit, 5/32"X001962
3 Tack Glide X001757 14 Bracket Connector, Cabinet 145A288
4 Wood Dowel X002540 15 Side Panel, RH, Corner Cabinet 250A145._
5Leveler Glide, 3/8-16 x 21/2"X002561 16 Side Panel, LH, Corner Cabinet 250A144._
6 Hex Socket Machine Screw 1.57" (40mm) 145L193 17 Back Panel, RH, Corner Cabinet 250A294._
7 Hex Socket Lag Screw 145R472 18 Back Panel, LH, Corner Cabinet 250A293._
8Screw nsert, 8-32x7/16"250A506._ 19 Top Panel, Corner Cabinet 250A214._
9 Screw nsert, 1/4-20 x 5/8" 146B507 20 Bottom Frame, Corner Cabinet 145R750
10 Hex Socket Machine Screw, 1.77" (45mm) 145L458 21 Upper Frame, Corner Cabinet 145R753
11 Pan Head Screw, oyster, 1-1/4" long 215B564 22 Filler Strips (one long, one short) 250A350._
23 Deflector Panel (use on Revolving Option) 250A284._
Screw nsert, 1/4-20 x 5/8”
Hex Socket Lag Screw
2”
7
Leveler Glide, 3/8-16 x 21/2”
21/2”
5
Pan Head Screw
5/8”
1
Wood Dowel
4
9
Tack Glide
3
Pan Head Screw
11/4”
11
Hex Socket Machine Screw
1.77”
10
Screw nsert, 8-32 x 7/16”
(oyster)
8
Hex Socket Machine Screw
1.57”
6

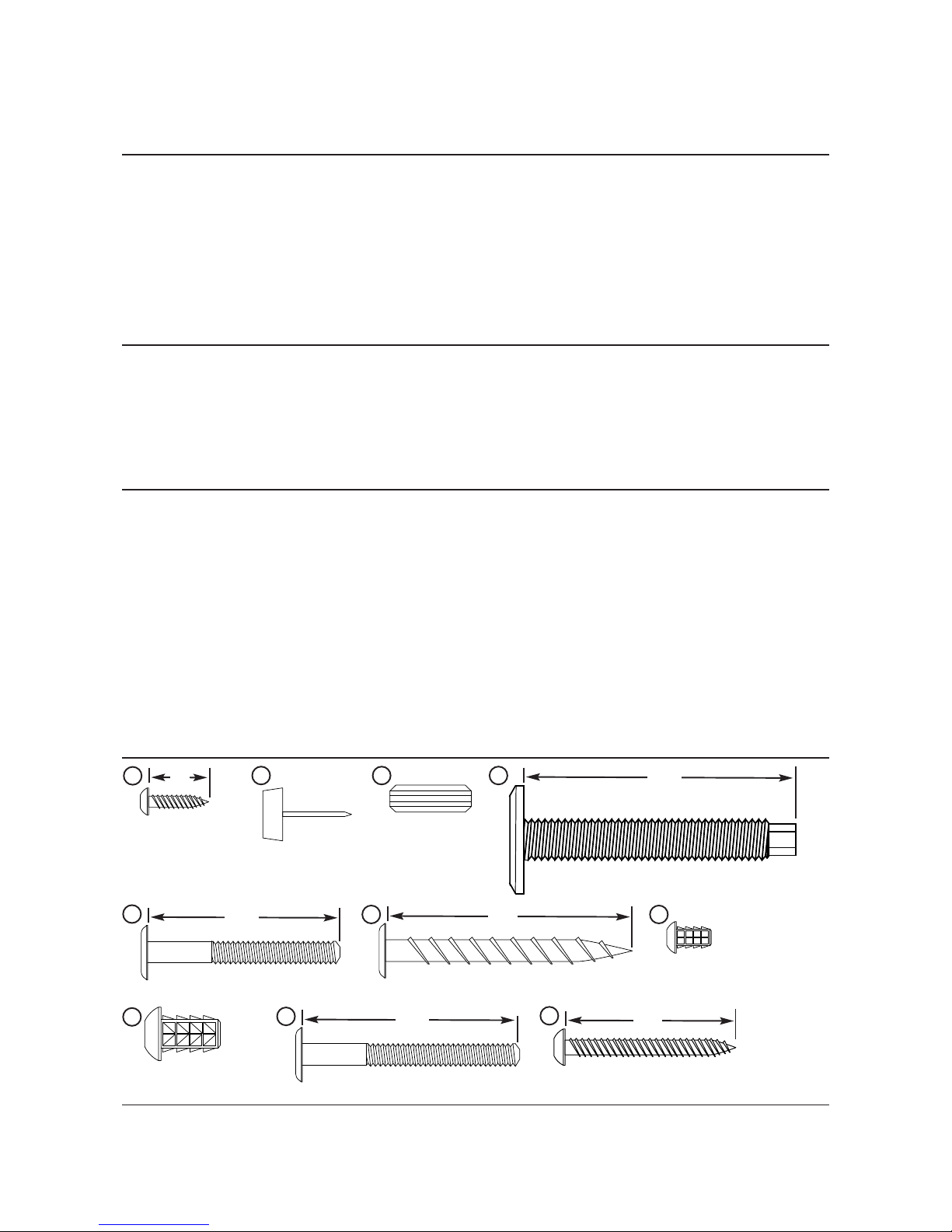

FASTENERS PARTS LIST
The following tools must be supplied by the installer to install the Wenger Corner Cabinet:

5
Before starting the Corner Cabinet assembly, do the
following.
1. Read and understand this assembly instruction.
2. Remove all items from the shipping carton and
arrange the parts as shown in the diagram below.
Make sure that all parts are present. tem
numbers refer to the Parts List on page 4 and the
table at the right.
3. nventory the hardware package and make sure
that all required hardware is present. Discard any
items not used during the assembly.
Item Description
15 Right Hand Side Panel
16 Left Hand Side Panel
17 Right Hand Back Panel
18 Left Hand Back Panel
19 Top Panel
20 Bottom Frame
21 Upper Frame
22 Filler Strips
(one long/one short)
23 Deflector Panel*
* Use only with Revolving Options
CORNER CABINET ASSEMBLY
NOTE: Depending on Corner Cabinet configuration, hole positioning in the individual panels may vary.

6

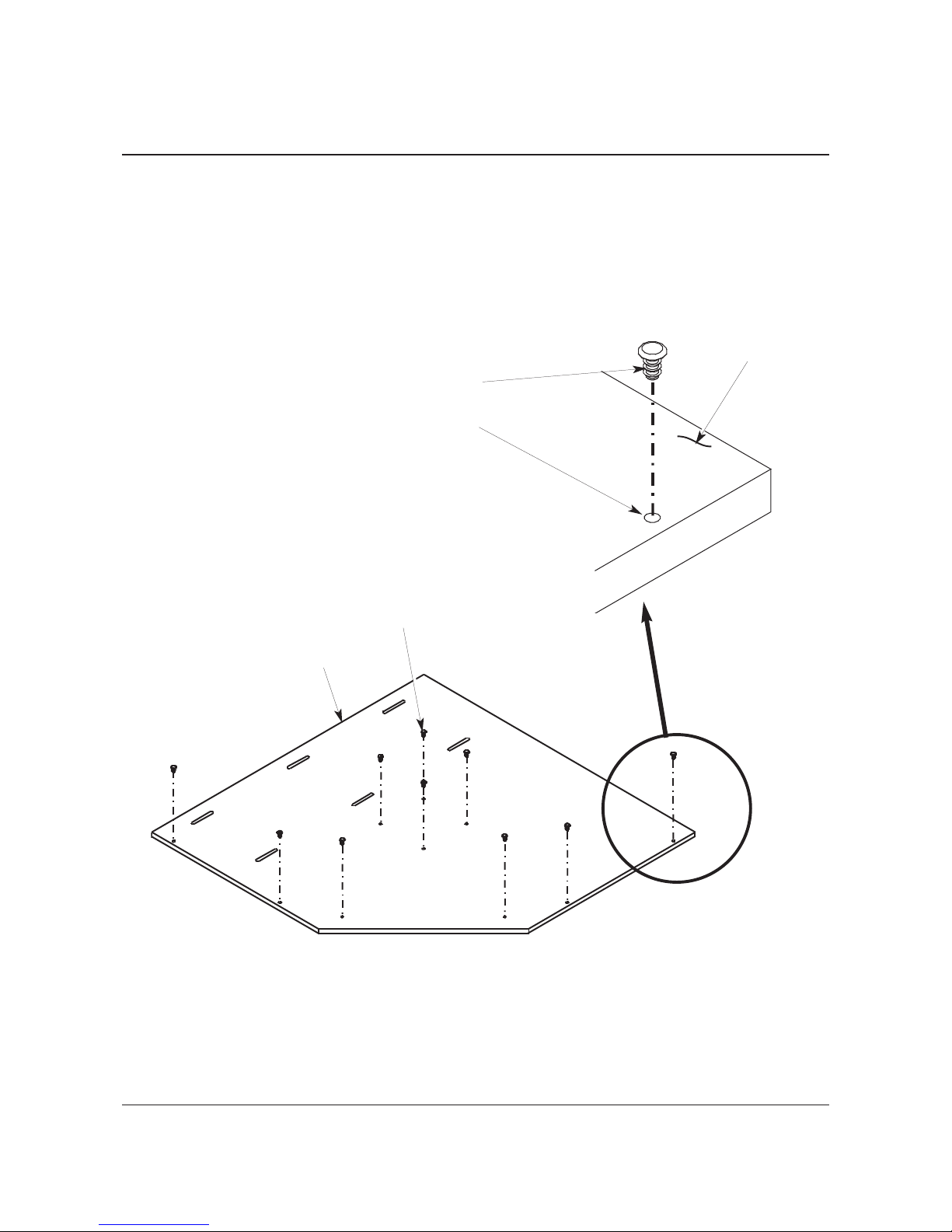

4. Place the Top Panel (19) flat on the floor with the inside surface facing downward (dowel holes do
not go through and are visible only on the inside surface).
IMPORTANT: Dowel holes should not be visible when inside surface is facing down.
5. Using a mallet, drive the Screw nserts (9) into the clearance holes on the outside surface of the
Top Panel (19).
NOTE: Numerical notations that follow part names in this document refer to part list item numbers
on pages 4 and 5.
Top Panel (19)
Screw nsert, 1/4-20 x 5/8" (9)
Clearance Hole
Screw nsert, 1/4-20 x 5/8" (9)
( nstall these only with Revolving Shelf Option)
Outside Surface
CORNER CABINET ASSEMBLY CONTINUED
NOTE: Depending on Corner Cabinet configuration, hole positioning in the individual panels may vary.

7

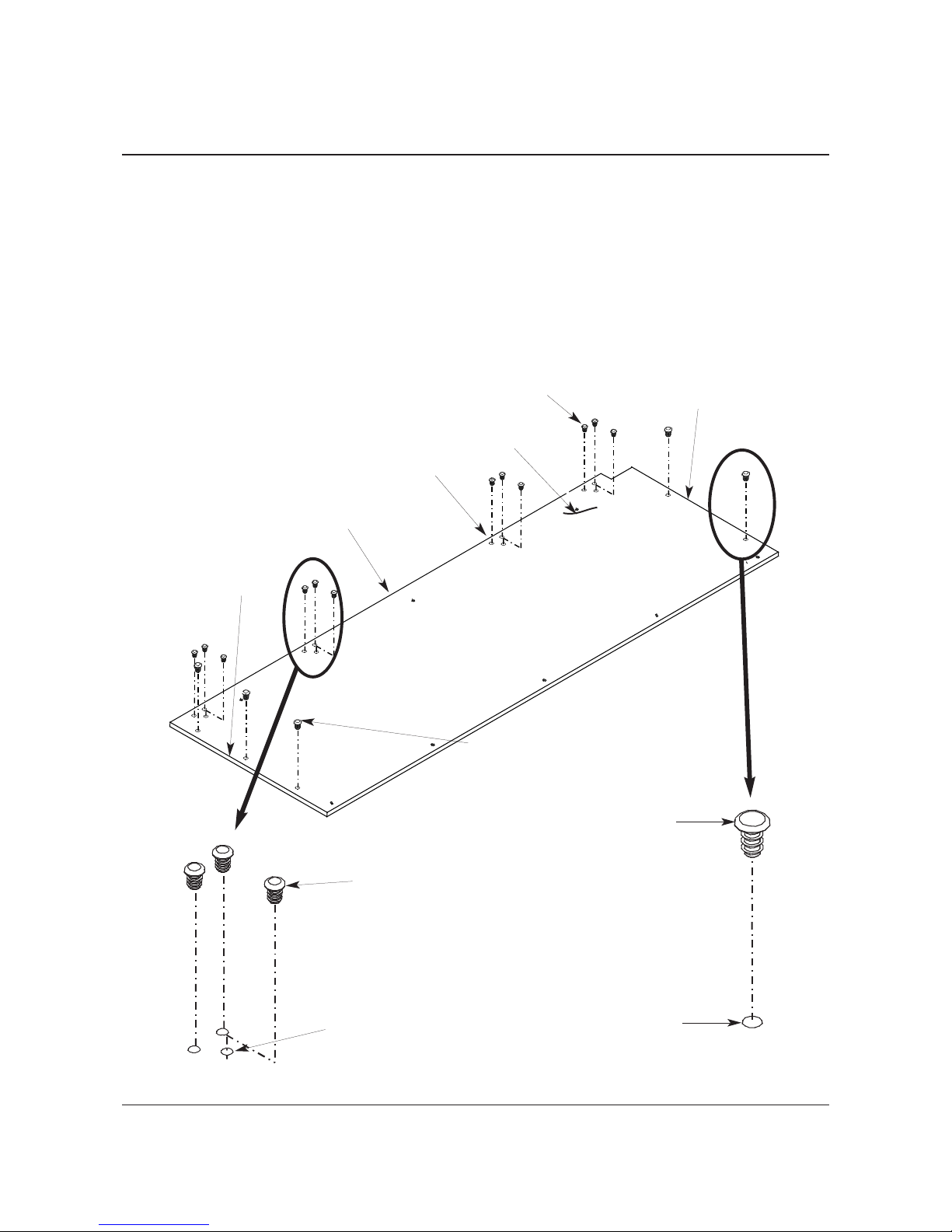

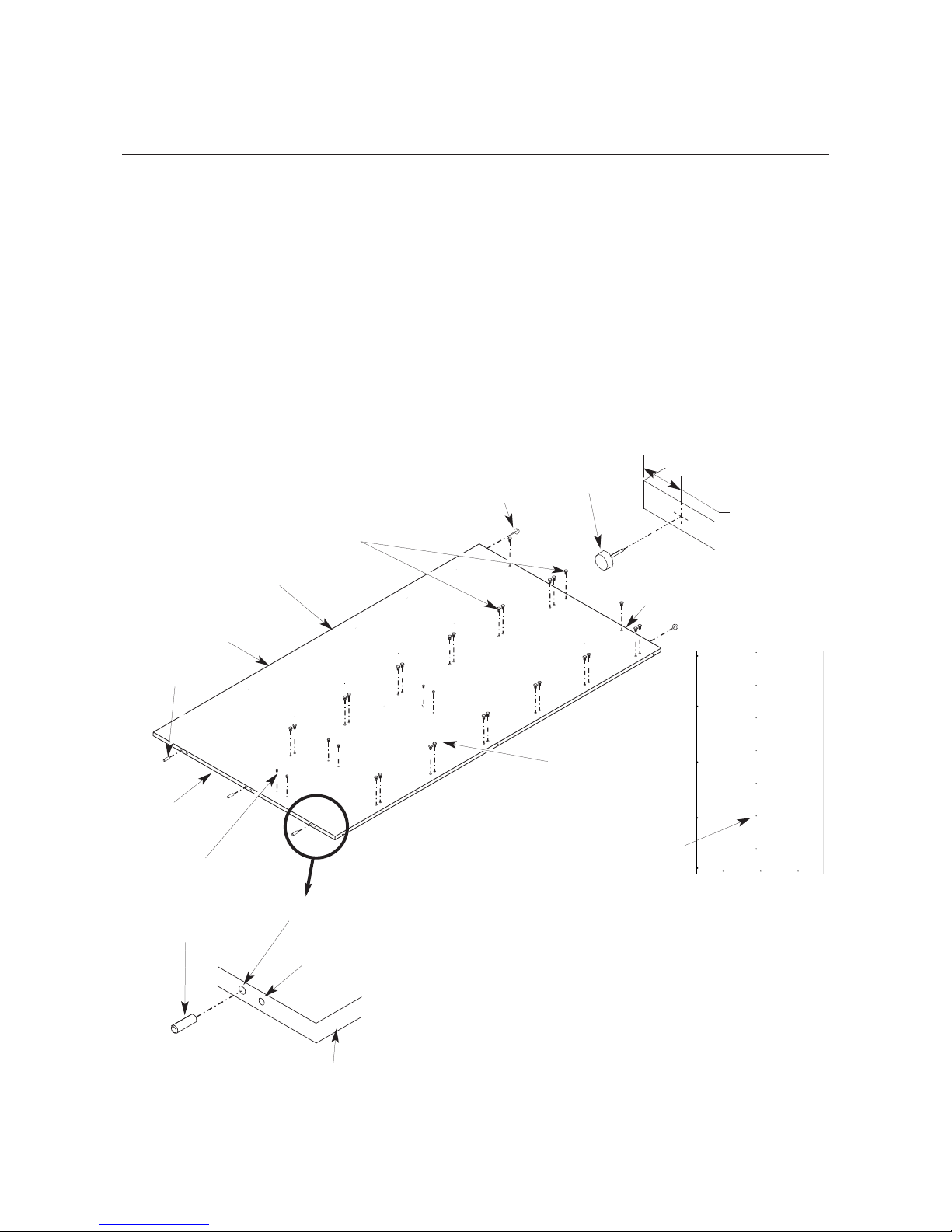

6. Place the Left Hand Back Panel (18) flat on the floor with the inside surface down.
IMPORTANT:
Shelf/Hanger Bar option - when the inside surface is facing down, the outside surface has most of
the clearance holes to the right and the 3 Dowel holes at the top of the panel are visible when
viewing it from the top edge (see the illustration below).
Rotating Shelf option - when the inside surface is facing down, the row of pilot holes at the center of
the panel will also be facing down (see the illustration below).
7. Using a mallet, drive 27 Screw nserts (3 for the Rotating Shelf option) (9) into the 3/8” clearance
holes in the left Hand Back Panel (18) as shown below.
8. Using a mallet, drive 6 Screw nserts (8) into the 1/4” clearance holes in the Left Hand Back Panel
(18) as shown below (Shelf/Hanger Bar option only).
9. Using the mallet, drive three Wood Dowels (4) into the three pilot holes on the top edge of the Panel.
10. Using the mallet, drive two Tack Glides (3) into the bottom surface of the Left Hand Back Panel (18)
as shown below. Each Tack Glide (3) should be about 11/2" from the corner.
NOTE: Depending on Corner Cabinet configuration, hole positioning in the individual panels may vary.
Screw nsert, 1/4-20 x 5/8" (9)
Left Hand Back Panel (18)
Bottom Surface of Panel
Left Hand Edge of Panel
Outside surface
Wood Dowel (4)
5/16" Pilot Hole
Pilot Hole for Lag
Screw (to be inserted
at a later step
Wood Dowel (4)
Screw nsert, 8-32 x 7/16" (8)
Right Hand
Edge of Panel
Top Edge of
Panel
Tack Glide (3) Drive Glide into
bottom surface
about 1” to 11/2"
from corner edge
Tack
Glide (3)
CORNER CABINET ASSEMBLY CONTINUED
Row of
Pilot Holes
Inside Surface of Left
Hand Back Panel

8
11. Place the Right Hand Back Panel (17) flat on the floor with the inside surface facing down.
IMPORTANT:
When the Right Hand Back Panel has the inside surface facing down, there are five pilot holes on
the right hand edge and the three Dowel holes at the top of the panel are visible when viewing it
from the top edge (refer to the illustration below).
12. Using the mallet, drive three Screw nserts (9) into the three 3/8” diameter pilot holes at the bottom of
the Panel.
13. Drive three Wood Dowels (4) into the three 5/16” diameter pilot holes on the top edge of the Panel.
Refer to the illustration below.
14. Using the mallet, drive two Tack Glides (3) into the bottom surface of the Right Hand Back Panel
(17) about 11/2” from each bottom corner as shown below.
Right Hand Back Panel (17)
3/8" Pilot Hole
Bottom Edge of Panel
Left Hand Edge
of Panel
Outside Surface
Wood
Dowel (4) 5/16" Pilot Hole
3/16" Pilot Hole for Lag
Screw (to be inserted
at a later step
Wood Dowel (4)
Pilot
Holes
Screw nsert, 1/4-20 x 5/8" (9)
Screw nsert, 1/4-20 x 5/8" (9)
Tack Glide (3)
Drive Glide into bottom surface
about 1” to 11/2" from corner
edge
Tack Glide (3)
Tack Glide (3)
CORNER CABINET ASSEMBLY CONTINUED
Pilot Holes

9

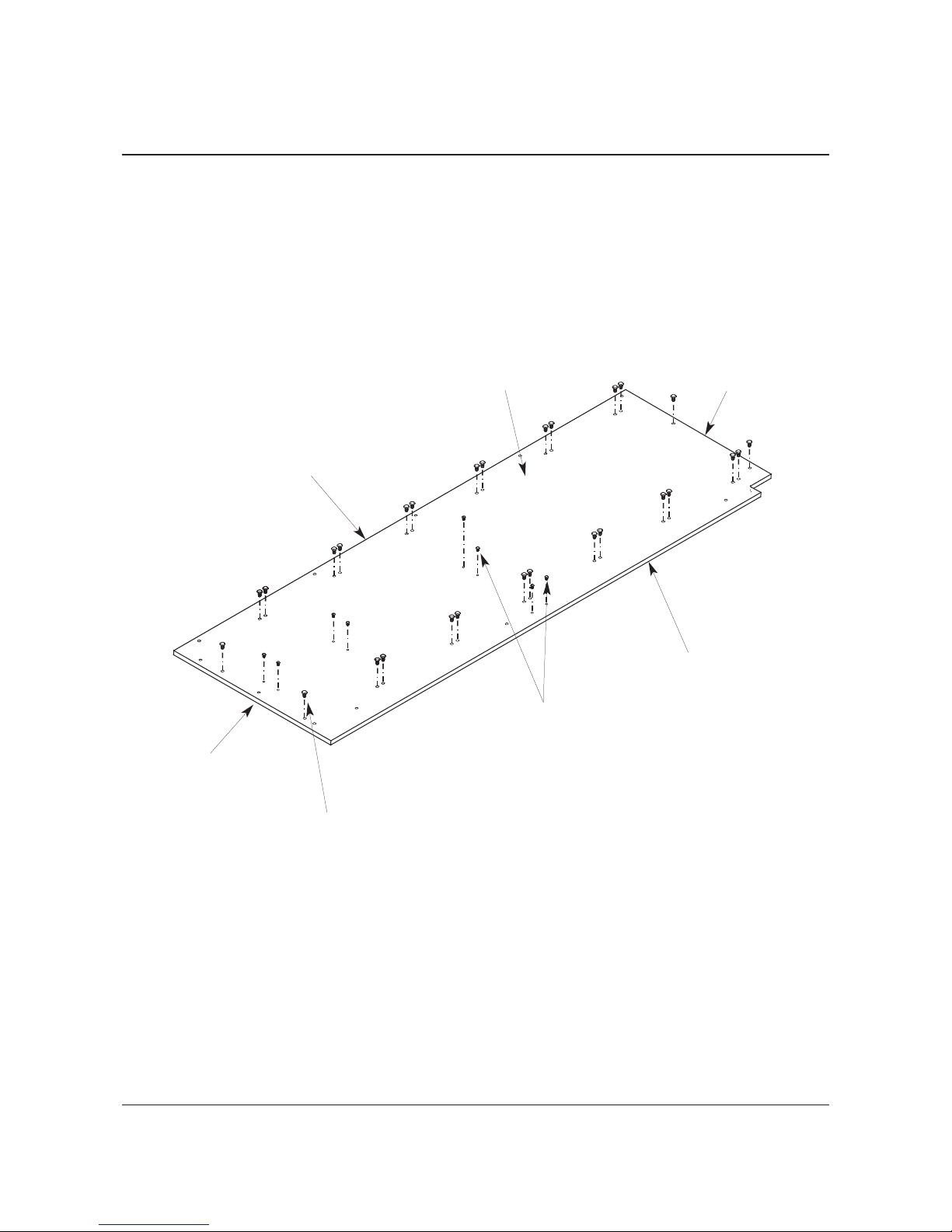

15. Place the Right Hand Side Panel (15) flat on the floor with the inside surface down and outside
surface facing upward.
IMPORTANT:
When the inside surface is facing down, the dowel holes on the inside surface will not be visible
(see the illustration below).
16. Using a mallet, drive the Screw nserts (9) into the 3/8” clearance holes in the left Right Hand Side
Panel (15) as shown below (Shelf/Hanger Bar option shown).
17. Using a mallet, drive the Screw nserts (8) into the 1/4” clearance holes in the Right Hand Side Panel
(15) as shown below (Shelf/Hanger Bar option shown).
NOTE: Depending on Corner Cabinet configuration, hole positioning in the individual panels may vary.
Screw nsert, 8-32 x 7/16" (8)
Screw nsert, 1/4-20 x 5/8" (9)
Right Hand Side Panel (15)
Top Edge of Panel
Left Hand Edge of Panel
Bottom Edge of Panel
Outside Surface
CORNER CABINET ASSEMBLY CONTINUED

10
18. Turn the Right Hand Side Panel (15) over so that the outside surface is facing down (dowel holes
will now be visible).
19. Using a mallet, drive three Wood Dowels (4) into the three 5/16” diameter pilot holes close to the top
edge of the Right Hand Side Panel (15).
NOTE: The dowel holes do not go all the way through and are on the inside surface of the Side Panel.
20. Using the mallet, drive two Tack Glides (3) into the bottom surface of the Right Hand Side Panel
(15) about 11/2” from each bottom corner as shown below.
NOTE: Depending on Corner Cabinet configuration, hole positioning in the individual panels may vary.
Right Hand Side Panel (15) with
inside surface facing up
Wood Dowel (4)
Top Edge
Top Edge
Wood Dowel (4)
5/16" Clearance Hole
7/16" Deep
3/16" Pilot Hole through
nside Surface
Bottom Edge
Drive Glide into bottom surface
about 1” to 11/2" from corner
edge
Tack Glide (3)
Tack Glide (3)
CORNER CABINET ASSEMBLY CONTINUED

11
21. Place the Left Hand Side Panel (16) flat on the floor with the inside surface down and outside
surface facing upward
IMPORTANT:
When the inside surface is facing down, the dowel holes on the inside surface will not be visible
(see the illustration below).
22. Using a mallet, drive four Screw nserts (9) into the 3/8” clearance holes in the Left Hand Side Panel
(16) as shown below.
23. Using a mallet, drive twelve Screw nserts (8) into the 1/4” clearance holes in the Left Hand Side
Panel (16) as shown below.
NOTE: Depending on Corner Cabinet configuration, hole positioning in the individual panels may vary.
Screw nsert, 1/4-20 x 5/8" (9)
3/8" Clearance Hole
Left Hand Side Panel (16)
Top Edge of Panel
Left Hand Edge of Panel
Bottom Edge of Panel
Outside Surface
Screw nsert, 1/4-20 x 5/8" (9)
Screw nsert, 8-32 x 7/16" (8)
1/4" Clearance Hole
Screw nsert, 8-32 x 7/16" (8)
CORNER CABINET ASSEMBLY CONTINUED

12
24. Turn the Left Hand Side Panel (16) over so that the outside surface is facing down. (dowel holes will
now be visible).
25 .Using a mallet, drive three Wood Dowels (4) into the three 5/16” diameter pilot holes close to the top
edge of the Left Hand Side Panel (16).
NOTE: The dowel holes do not go all the way through and are on the inside surface of the Side Panel.
26. Using the mallet, drive two Tack Glides (3) into the bottom surface of the Left Hand Side Panel (16)
about 11/2” from each bottom corner as shown below.
NOTE: Depending on Corner Cabinet configuration, hole positioning in the individual panels may vary.
Left Hand Side Panel (16) with inside
surface facing up
Wood Dowel (4)
Top Edge
Top Edge
Wood Dowel (4)
5/16" Pilot Hole
7/16" Deep
3/16" Clearance
Through-Hole
nside Surface
Bottom Edge
Drive Glide into bottom surface
about 1” to 11/2" from corner
edge
Tack Glide (3)
CORNER CABINET ASSEMBLY CONTINUED

13
27. With two people working together, place the Right Hand Back Panel (17) and the Left Hand Back
Panel (18) vertical as shown below.
28. Using the Hex nsert Bit (13), connect the two Back Panels together with five Hex Lag Screws (7).
Pilot holes locate the position of the Hex Lag Screws.
Right Hand Back Panel (17) Left Hand Back Panel (18)
Hex Lag Screw (7)
Pilot Holes
Right Hand Back Panel (17)
Left Hand Back Panel (18)
Hex Lag Screw (7)
Pilot Hole
Clearance Hole
Clearance Hole
CORNER CABINET ASSEMBLY CONTINUED
NOTE: Depending on Corner Cabinet configuration, hole positioning in the individual panels may vary.

14
29. With two people working together, attach the Right Hand Side Panel (15) to the two assembled Back
Panels, keeping the panels vertical as shown below.
30. Using the Hex nsert Bit (13), connect the Right Hand Side Panel (15) to the Right Hand Back Panel
(17) with five Hex Lag Screws (7). Pilot holes locate the position of the Hex Lag Screws.
NOTE: Do not tighten the Lag Screws. Allow the head of each Lag Screw to extend 1/2” from the surface
of the Side Panel.
Right Hand Back Panel (17)
Right Hand Side Panel (15)
Hex Lag Screw (7)
Pilot Hole
Right Hand Back Panel (17)
Right Hand Side Panel (15)
Hex Lag Screw (7)
Clearance Hole
CORNER CABINET ASSEMBLY CONTINUED

15
31. With two people working together, attach the Left Hand Side Panel (16) to the two assembled Back
Panels keeping them vertical as shown below.
32. Using the Hex nsert Bit (13), attach the Left Hand Side Panel (16) to the Left Hand Back Panel (18)
with five Hex Lag Screws (10). Pilot holes locate the position of the Hex Lag Screws.
NOTE: Do not tig ten t e Lag Screws. Allow the head of each Lag Screw to extend 1/2” from the
surface of the Side Panel.
Hex Lag Screw (7)
Left Hand Side Panel (16)
Hex Lag Screw (7) Pilot Hole
Left Hand Back Panel (18)
Clearance Hole
Right Hand Back Panel (17)
CORNER CABINET ASSEMBLY CONTINUED

16

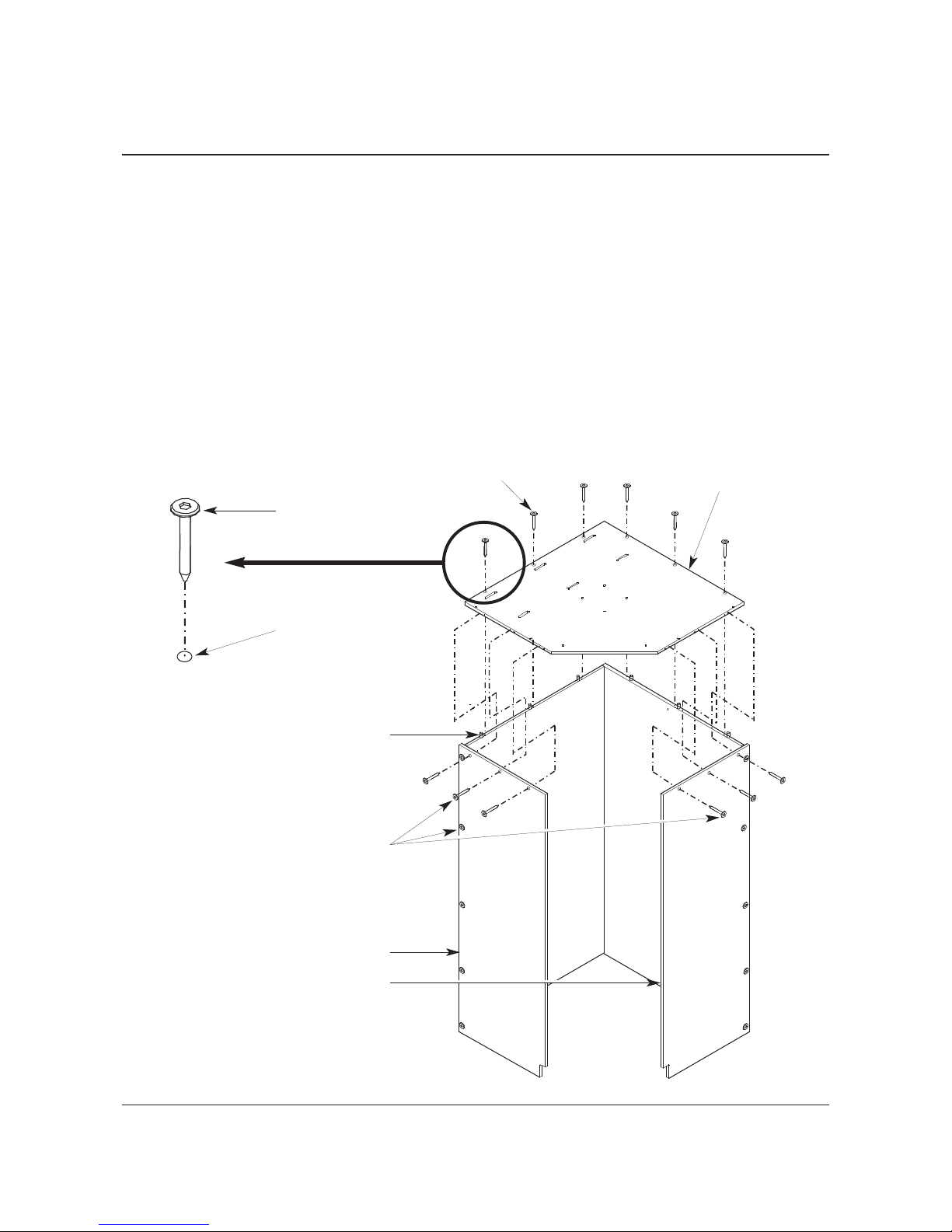

33. Make sure that the Hex Lag Screws (7) holding the two Side Panels to the two Back Panels are
loosened.
34. Carefully place the Top Panel (19) onto the Back Panels aligning the Wood Dowels (4) in the two
Back Panels to the dowel pilot holes on the inside surface of the Top Panel.
35. Make sure that the Wood Dowels (4) in the two Side Panels align to the dowel pilot holes in the Top
Panel and, using the Hex nsert Bit (13), tighten the 10 Hex Lag Screws (7) that fasten the Side
Panels to the Back Panels.
36. Using the Hex nsert Bit (13), fasten:
a. Six Hex Lag Screws (7) through the clearance holes in the Top Panel (19) into the two Back
Panels.
b. Three Hex Lag Screws (7) through the clearance holes in the Left Hand Side Panel (16) into the
pilot holes in the Top Panel.
c. Three Hex Lag Screws (7) through the clearance holes in the Right Hand Side Panel (17) into
the pilot holes in the Top Panel.
Top Panel (19)
Hex Lag Screw, 2" long (7)
Left Hand Side Panel (16)
Right Hand Side Panel (17)
Wood Dowel (4)
Hex Lag Screw, 2" long (7)
Hex Lag Screw, 2" long (7)
3/8" Clearance Hole
CORNER CABINET ASSEMBLY CONTINUED

17

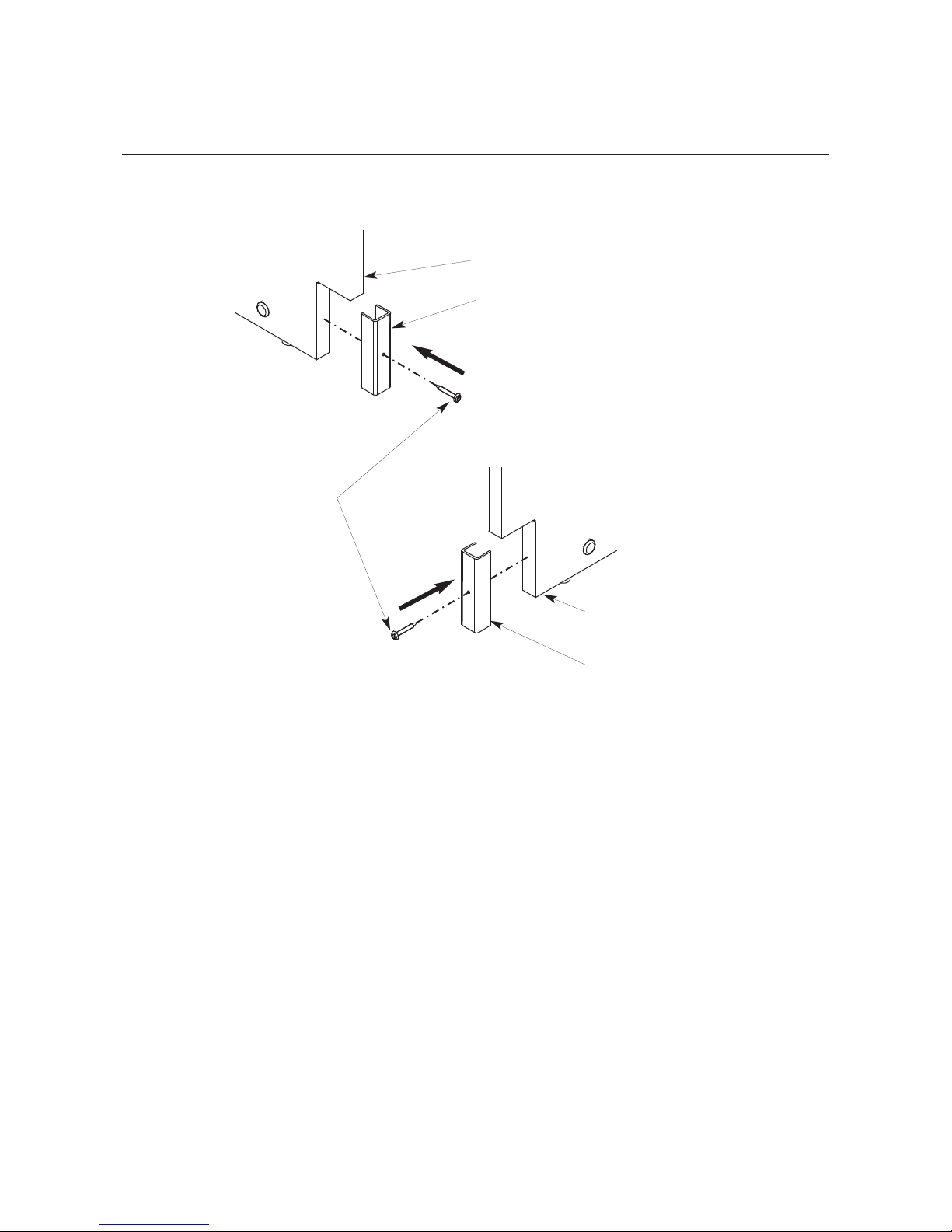

37. Attach a Trim Strip (12) to the Left Hand Side Panel (16) and the Right Hand Side Panel (15) using
a Pan Head Screw, 11/4” long (11) for each Trim Strip as shown in the illustration below.
Pan Head Screw,
painted, 11/4" long (11)
Trim Strip (12)
Trim Strip (12)
Right Hand Side Panel (15)
Left Hand Side Panel (16)
CORNER CABINET ASSEMBLY CONTINUED

18

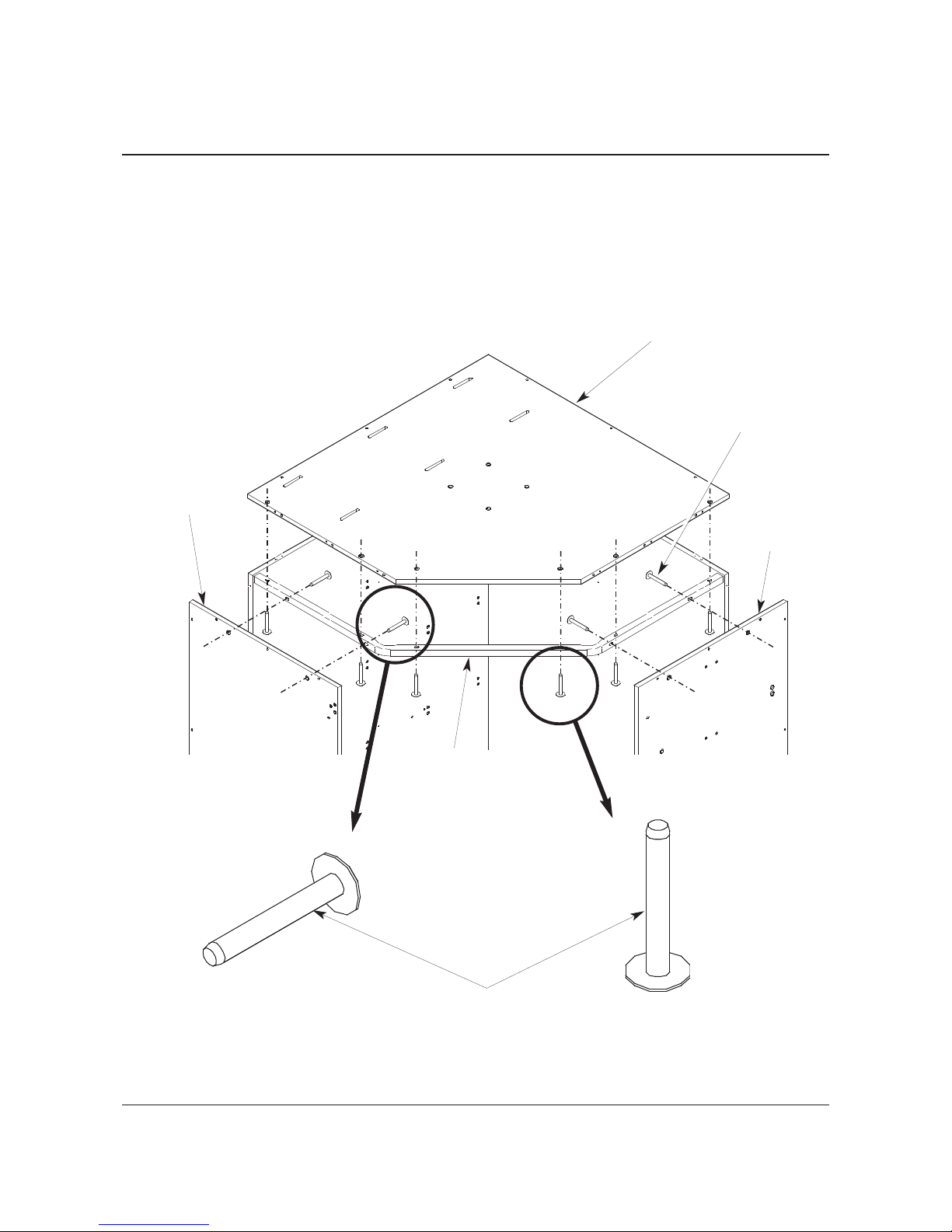

38. nstall the Upper Frame (21) inside the upper part of the Corner Cabinet by doing the following.
a. Hold the Upper Frame in position as shown below.
b. Using the Hex nsert Bit (13), fasten the Upper Frame to the Top Panel (19) with six Hex Socket
Machine Screws (10).
c. Using the Hex nsert Bit (13), fasten the Upper Frame to the Left Hand Side Panel(16) with two
Hex Socket Machine Screws (10).
d. Using the Hex nsert Bit (13), fasten the Upper Frame to the Right Hand Side Panel(17) with two
Hex Socket Machine Screws (10).
Top Panel (19)
Left Hand Side
Panel (16)
Right Hand Side
Panel (17)
Upper Frame (21)
Hex Socket Machine Screw,
1.77" (45 mm) long (10)
Hex Socket Machine Screw,
1.77" (45 mm) long (10)
T e Top Panel, Rig t Hand Side
Panel, and Left Hand Side Panels are
s own disassembled for clarity only.
CORNER CABINET ASSEMBLY CONTINUED

19

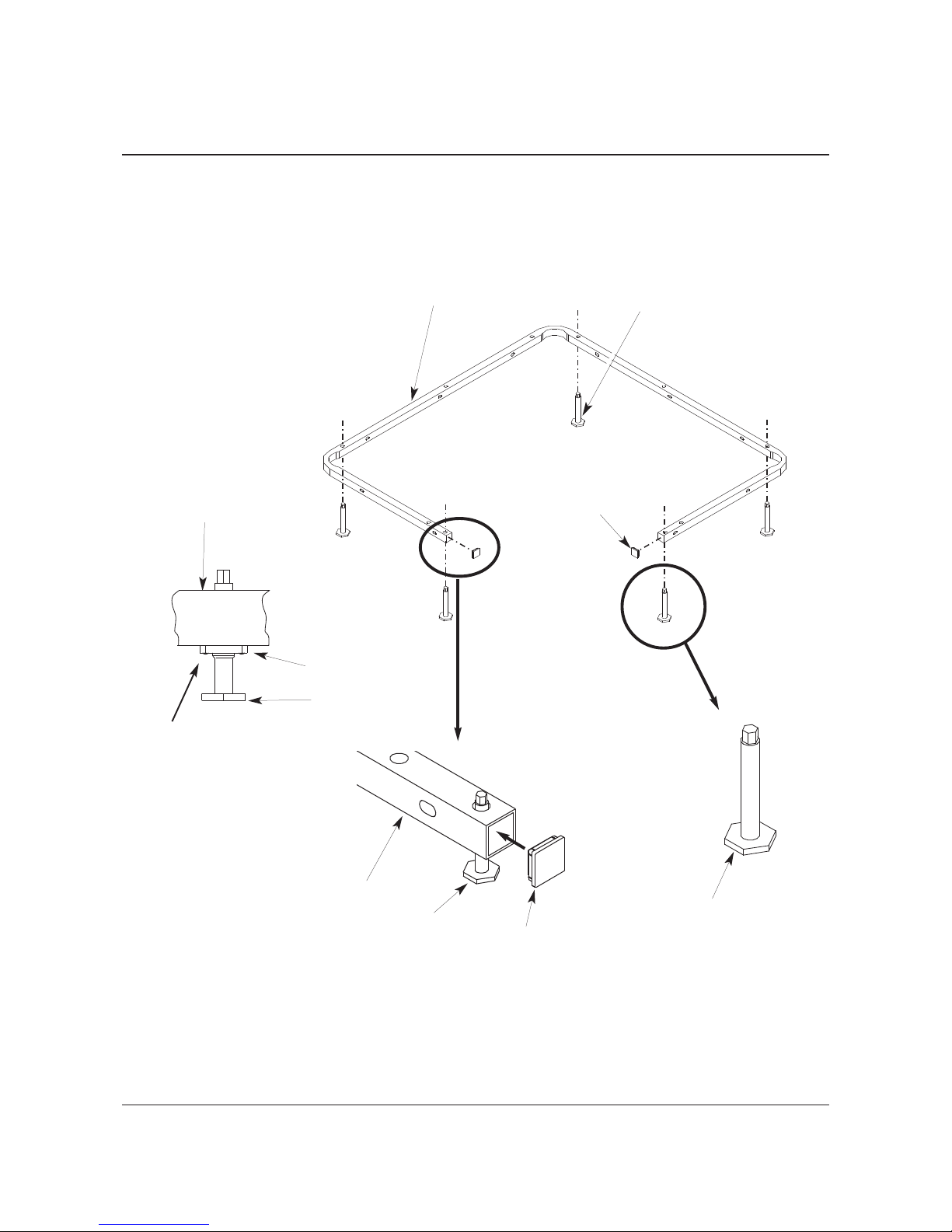

39. Fasten five Leveler Glides (5) to the Bottom Frame (20) using a 7/8" open end wrench as shown
below. Screw the Leveler Glide into the Bottom Frame until the head of the Leveler Glide is against
the Bottom Frame Weld Nut. Do not tig ten.
NOTE: The Weld Nut is on the bottom surface of the Bottom Frame (20) as shown in the illustration
below.
40. Using the mallet, drive a Tube Plug (2) into each open end of the Bottom Frame (20).
Bottom Frame (20) Leveler Glide, 3/8-16 x 21/2" (5)
Leveler Glide, 3/8-16 x 21/2" (5)
Bottom Frame (20)
Leveler Glide,
3/8-16 x 21/2" (5)
Leveler Glide,
3/8-16 x 21/2" (5)
Bottom Frame (20)
Weld Nut
Tube Plug (2)
Tube Plug (2)
T e Weld Nut must be
on t e bottom of t e
Bottom Frame w en t e
Leveler Glide is
attac ed.
CORNER CABINET ASSEMBLY CONTINUED

20

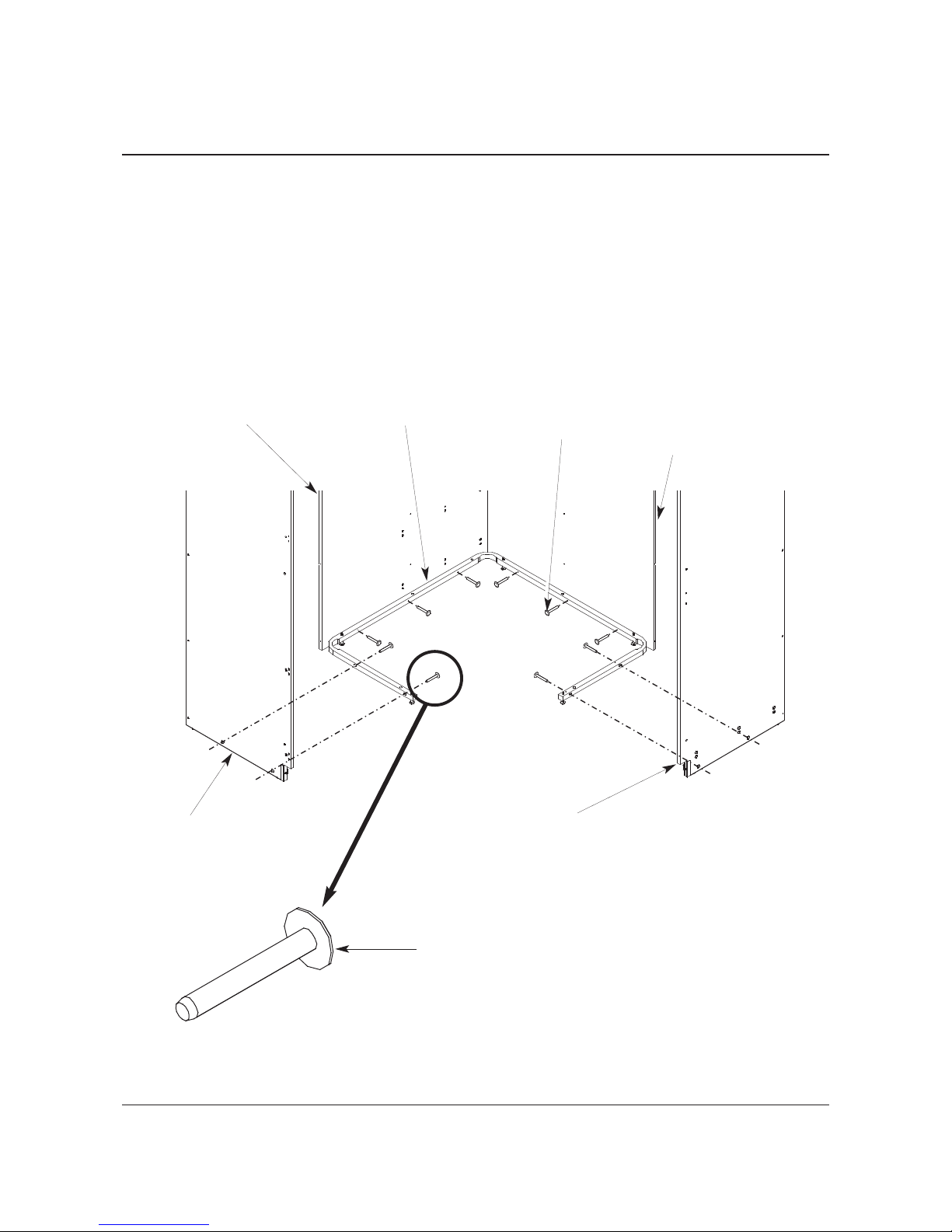

41. nstall the Bottom Frame (20) inside the lower part of the Corner Cabinet by doing the following.
a. Hold the Bottom Frame (20) in position as shown below.
b. Using the Hex nsert Bit (13), fasten the Bottom Frame to the Right Hand Back Panel (17) and
Left Hand Back Panel (18) with six Hex Socket Machine Screws (10) as shown below.
c. Using the Hex nsert Bit (13), fasten the Bottom Frame to the Left Hand Side Panel(16) with two
Hex Socket Machine Screws (10).
d. Using the Hex nsert Bit (13), fasten the Bottom Frame to the Right Hand Side Panel(15) with
two Hex Socket Machine Screws (10).
Left Hand Side
Panel (16)
Right Hand Side
Panel (15)
Hex Socket Machine Screw,
1.77" (45 mm) long (10)
T e Rig t Hand Side Panel and Left
Hand Side Panels are s own
disassembled for clarity only.
Hex Socket Machine Screw,
1.77" (45 mm) long (10)
Bottom Frame (20)Left Hand Back Panel (18)
Right Hand Back Panel (17)
CORNER CABINET ASSEMBLY CONTINUED
