SEWOO SLK-TS400 Instruction Manual

TS400 ENG Rev. I 01/2021
Aroot Co., Ltd.
28-6, Gajangsaneopdong-ro, Osan-si, Gyeonggi- do, 18103, Republic of Korea
TEL : [phone] / FAX : [phone]
http://www.miniprinter.com

All speci cations are subject to change without notice
MODEL : SLK-TS400 SERIES
Receipt Printer User’s Manual

This device co mplies with part 15 of the FCC Rules.
Operation is subject to the following two conditions.
1) This device may not cause harmful interference, and
2) This device must accept any interference received,
including interference that may cause undesired operation.
Vic Barczyk
19700 S Vermont Ave Ste 200 Torrance, CA 90502 | USA
[e-mail]
Henning Mahlstedt
26188 Edewecht, Holljestr.9 | Germany
[e-mail]
Victor Almazan
Paseo de la Reforma No. 265 Piso 2.Ocina SBC. Col.
Cuauhtémoc, C.P. 06500 Ciudad de Mexico | Mexico
[e-mail]
Yan xiao rui
Room 902, No. 7, Lane 118, Xiaojishan Road, Sheshan Town,
Songjiang District, Shanghai | China
[e-mail]

Disposal of Old Electrical&Electronic Equipment(Applicable in the European Union and other
European countries with separate collection systems)
This symbol on the product or on its packaging indicates that this product shall not be treated as
household waste. Instead it shall be handed over to the applicable collection point for the recycling of
electrical and electronics equipment. For more detailed information about recycling of this product,
please contact your local city oce, your household waste disposal service or the shop where you
purchased the product.

2
Table of Contents
1. Parts Identications 3
2. Setting up the printer 4
2.1 Unpacking 4
2.2 Connecting the cables 5
2.3 Loading the roll paper 8
3. Control panel and other functions 11
3.1 Control panel 11
3.2 Error Indicating 11
4. Self Test 12
5. ASCII Print 13
6. ECO Mode 13
6.1 Font 13
6.2 Paper Reduce 14
6.3 Density 14
7. Printer Setting 15
7.1 Baudrate 15
7.2 Cutter 15
7.3 Error Beep 15
7.4 Melody 16
8. Hexadecimal Dump 17
9. Peripherals Connection (Option) 18
9.1 Bluetooth Connection 18
9.2 Wi-Fi Connection 18
10. Printer Cleaning 19
11. Specications 20
12. Command List 22
13. Utilities 24
14. S/W 25

3
1. Parts Identications
Used to turn on/o
power to the printer.
POWER SWITCH
CONTROL PANEL
Features LED indicators
to indicate printer status
and switches to operate
the printer.
Open this cover to
load or replace a
paper roll.
PRINTER COVER
Push down this button to
open the printer cover.
COVER OPEN PUSH BUTTON

4
2. Setting Up the Printer
2-1. Unpacking
Your printer box should include these items. If any items are damaged or miss-
ing, please contact your dealer for assistance.
The Printer CD Roll Paper
Adaptor(Option) USB Cable(option)

5
2-2. Connecting the Cables
All cables connect to the connector panel on the back of the printer which is
shown below:
SLK-TS400
CASH DRAWER CONNECTOR
POWER CONNECTOR
INTERFACE CONNECTOR (USB)INTERFACE CONNECTOR
(SERIAL)
SLK-TS400EB
CASH DRAWER CONNECTOR
RESET
POWER CONNECTOR
INTERFACE CONNECTOR
(USB)
INTERFACE CONNECTOR
(ETHERNET)
Before connecting any of the cables, make sure that both the printer and the
computer are turned o.

6
2-2-1. Interface Connector
14
1
25
13
4 3
21
D-SUB 25 Female Serial USB “B” Type
Status LED
123453678
Link END
Ethernet
Ethernet Interface
PIN SIGNAL I/O
1Data Out + Output Data +
2Data Out - Output Data -
3Data IN + Input Data +
4N.C
5N.C
6Data IN - Input Data -
7N.C
8N.C
25Pin Serial Interface
PIN SIGNAL I/O Description
2TxD Output Printer transmit data line
3RxD Input Printer receive data line
4, 20 DTR Output Data Terminal Ready
6DSR Input Data Set Ready
1, 7 GND -System Ground

7
USB Interface
PIN SIGNAL I/O Description
1+5V -+5V
2DATA- -Printer transmit data line
3DATA+ -Printer transmit data line
4GND -System Ground
2-2-2. Cash Drawer Connector

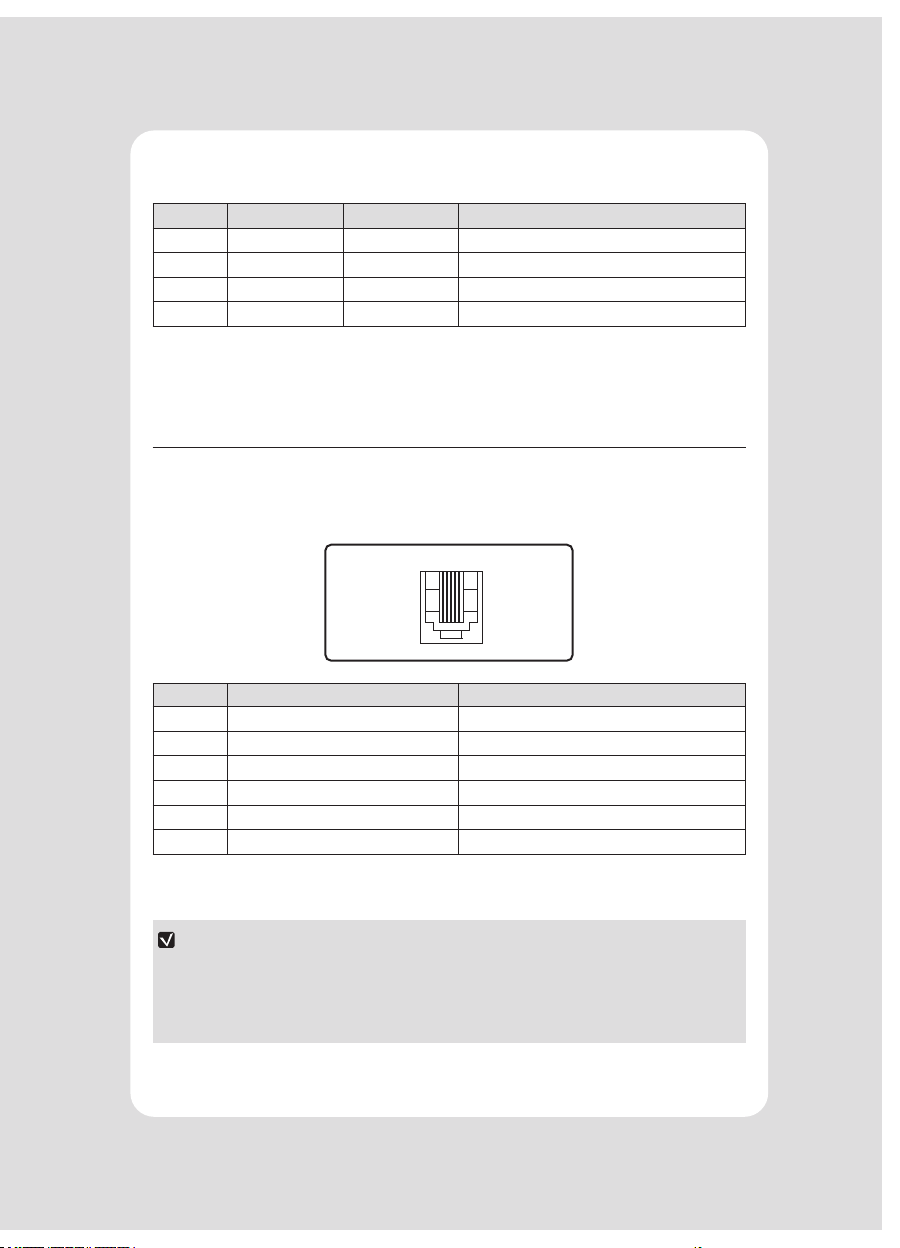

The printer can operate two cash drawers with a 6 pin RJ-11 modular connector.
The driver is capable of supplying a maximum current of 1.0A for 510ms or less
when not printing.
61
PIN SIGNAL Description
1Signal GND -
2Drawer kick-out drive signal 1 Output
3Drawer open/close signal Input
4+24V -
5Drawer kick-out drive signal 2 Output
6Signal GND -
NOTE
Cash drawer 1 and 2 are connected each other inside the printer.
As it is not able to distinguish between Cash drawer 1 and 2, we recommend
you to use only one cash drawer.

8
2-3. Loading the Roll Paper
NOTE
Be sure to use paper rolls that meet the specications. Do not use paper rolls
that have the paper glued to the core because the printer cannot detect the
paper end correctly.
Turn o power switch.
1 Make sure that the printer is not receiving data; Otherwise, data may be lost.

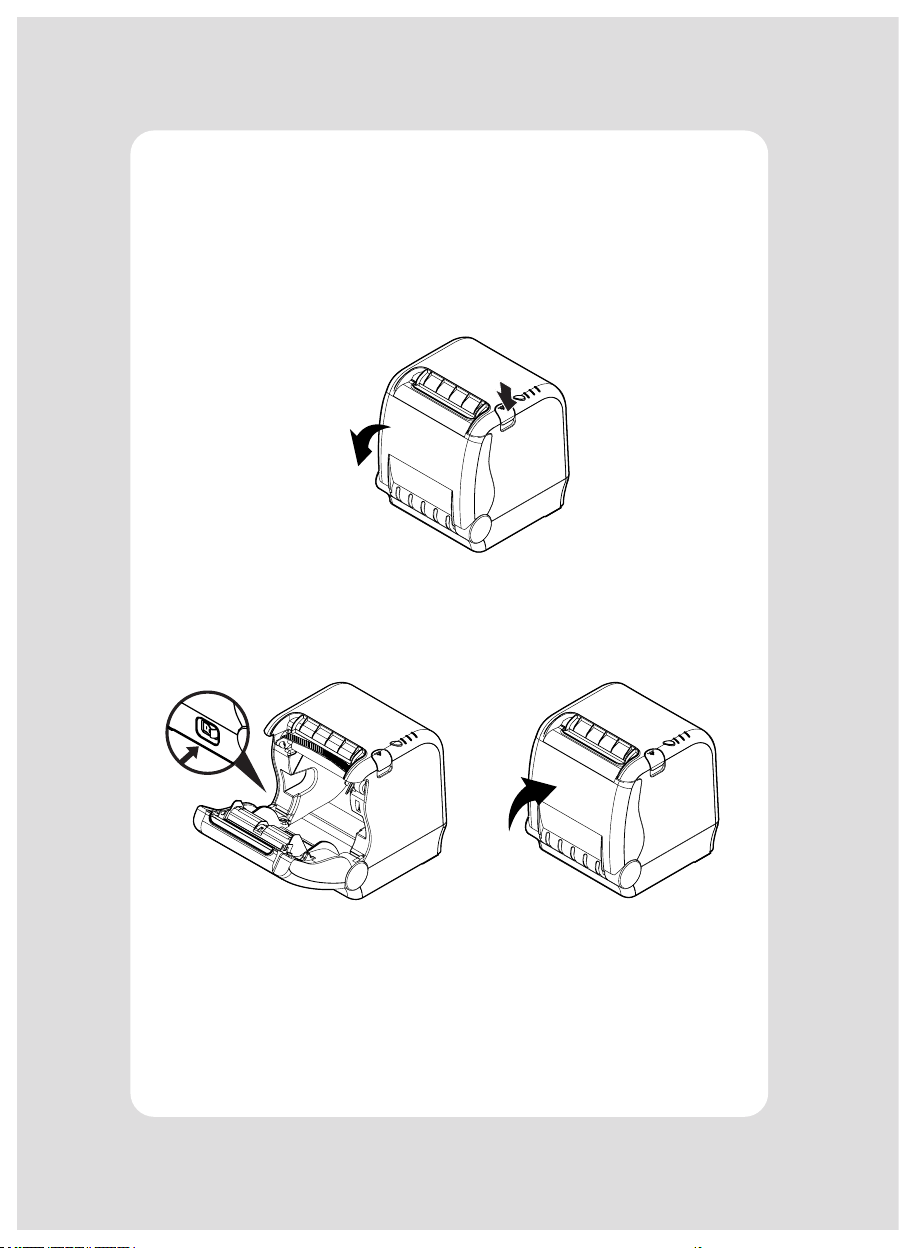

2 Open the printer cover by pushing down the cover open push button.
3 Remove the used paper roll core if there is one inside.

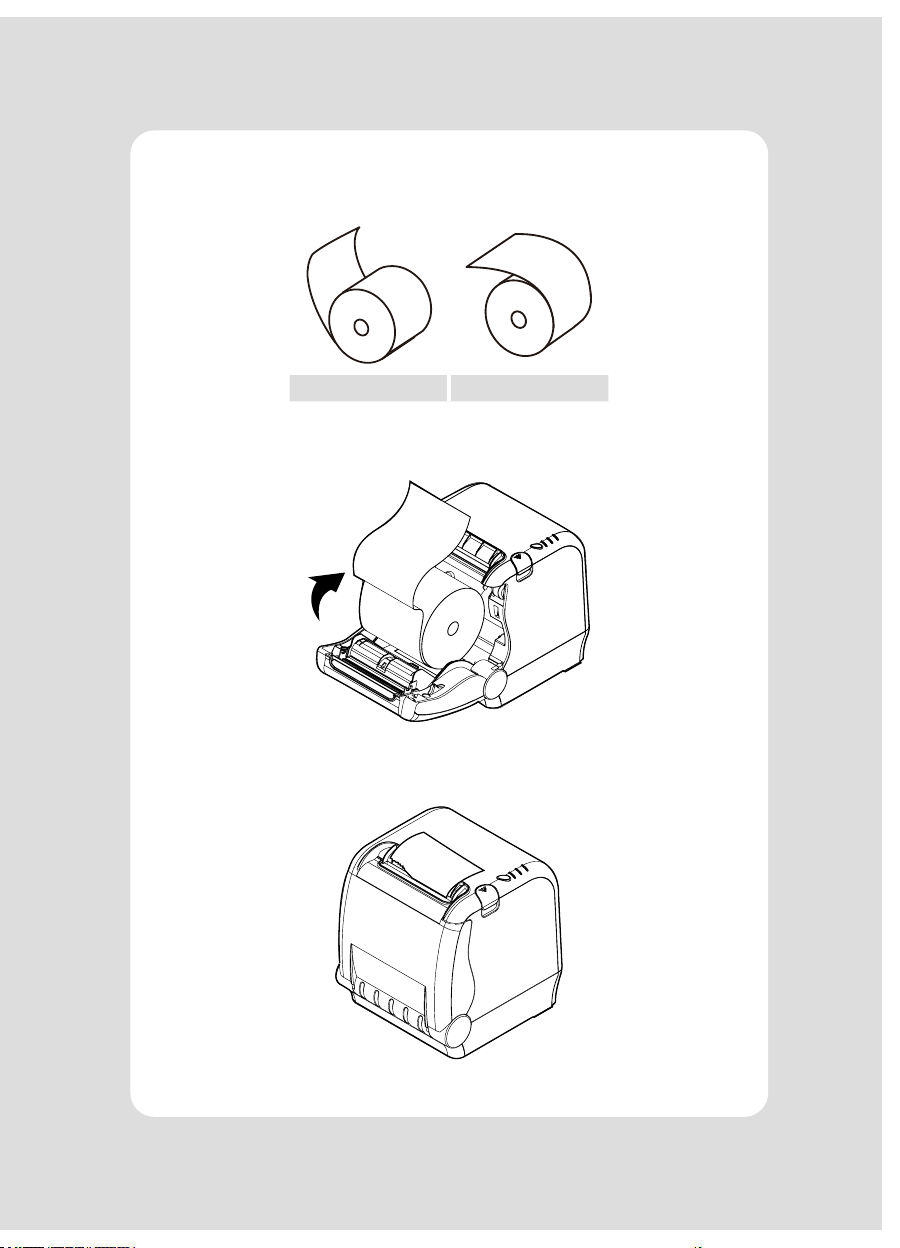

4 Insert new paper roll as shown.

9
5 Note the correct direction that the paper comes o the roll:
O X
6 Pull out a small amount of paper roll as shown. Then, close the cover.
7 Tear o the paper as shown.

10
CAUTION:
When the cutter is jammed, please follow the steps below.
1 Turn o the power.
2 Press the cover open button and open the cover.
: Be carefull of cutter blade because the cutter blade might be come out.
OPEN
3 Turn on the power, the cutter will automatically reset.
4 Close the cover.
CLOSE

11
3. Control panel and other functions
3-1. Control panel
You can control the basic paper feeding operations of the printer with the button
on the control panel. The indicator lights let you to monitor the printer’s status.
Control Panel
Button
The button can be disabled by the ESC c 5 command.
Press the FEED button once to advance paper one line. You can also hold down
the FEED button to feed paper continuously.
3-2. Error indicators
STATUS
PAPER ERROR POWER
REMARKS
RED RED GREEN
Power o OFF OFF OFF Normal power is not supplied to the printer
Power on OFF OFF ON Normal power is supplied to the printer
On line OFF OFF ON Normal error-free mode
Cover open OFF ON ON Close cover
Paper end ON ON ON Insert new paper roll

12
4. Self Test
The self-test result indicated whether the printer is operating properly. Also with
this, user can check following options or status of the printer.
Control circuit
Printer mechanism
Printing quality
ROM version
Interface setting
This test is independent of any other equipment or software.
Running the self test
1 Make sure the printer is turned o and the printer cover is closed properly
before performing the self test.
2 Turn the printer on holding the FEED button, then the self-test will start.
The self-test prints the printer setting value and then prints the following, and
pauses. (Error LED On)
SELECT MODE BY BUTTON
1. ASCII PRINT
2. ECO MODE
3. PRINTER SETTING
4. HEXADUMP MODE
3 Press the FEED button consecutively (1~4)
1. ASCII PRINT
(press the FEED button once) Printing test page constructed with ACII code.
2. ECO MODE
(press the FEED button twice)
Set the ECO mode for saving paper and power.
(Default font type, Reduce paper margin, Density)
3. PRINTER SETTING
(press the FEED button triple time)
Set the printer option.
(Serial baudrate, Cutting mode, Error beep, Melody)
4. HEXADUMP MODE
(press the FEED button quad time)
Printing the HEX value received from the interface
※ Wait for 5~6 seconds if you want to exit. Printer performs a cutting when exiting
this mode
4 The printer is ready to receive data after nishing setting.

13
5. ASCII Print
6. ECO Mode
ASCII PRINT is printing a test page constructed ASCII code. You can able to check the
printer works properly with this
The ASCII PRINT test automatically ends and cuts the paper after printing the follow-
ing:
*** Completed ***
The printer is ready to receive data as soon as it completes the ASCII PRINT.
After entering the ECO MODE, the list which can select the ECO option will be printed.
Similar like Self Test, you can press the FEED button to select a ECO option.
Once the input performs properly, the printer shows a result and store.
ECO MODE
1. FONT SETTING
2. LINE SPACE SETTING
3. LINE FEED SETTING
4. BARCODE[1D] HEIGHT
5. DENSITY SETTING
6-1. Font
FONT SETTING menu can be change the Font mapping(FONT A / FONT B).
If you did not want other side font, you can disable that.
- FONT A : 12x24
- FONT B : 9x17
FONT SETTING
1. FONT A -> A / FONT B -> B
2. FONT A -> B / FONT B -> B
3. FONT A -> A / FONT B -> A
4. FONT A -> B / FONT B -> A

14
6-2. Paper Reduce
Reduce menu (Line space, Line feed, barcode[1D] height) was developed for paper
saving.
-Line space
“Line space” means the amount of feed when you intentionally generate newlines.
-Line feed
“Line feed” means the amount of feed when there is an automatic line break.
-Barcode Height
“Barcode Height” means the height of the barcode when creating a one-
dimensional barcode.
LINE SPACE SETTING
01 NORMAL
02 REDUCE 50%
03 REDUCE 75%
04 REDUCE 90%
LINE FEED SETTING
01 NORMAL
02 REDUCE 50%
03 REDUCE 75%
04 REDUCE 90%
1D BARCODE HEIGHT SETTING
01 NORMAL
02 REDUCE 50%
03 REDUCE 75%
04 REDUCE 90%
6-3. Density
Adjust the print density to save the power consumed by the printer.
SELECT DENSITY
01 NORMAL
02 LOW
03 DARK

15
7. Printer Setting
Change the printer settings. The options below can also be changed via the
Memory Saver.
PRINTER SETTING
01 SELECT BAUDRATE
02 SELECT CUTTING MODE
03 SELECT ERROR BEEP OPTION
04 SELECT MELODY OPTION
7-1. Baudrate
After entering the BAUDRATE MODE, the list which can select the BPS will be printed.
Similar like Self Test, you can press the FEED button to select a BAUDRATE. Once the
input performs properly, the printer shows a result and store. The printer is ready to
receive data as soon as it completes the SELECT BAUDRATEMODE.
SELECT BAUDRATE
01 4800bps
02 9600bps
03 19200bps
04 38400bps
05 57600bps
06
115200bps
7-2. Cutter
Set cutter mode.
SELECT CUTTING MODE
01 PARTIAL CUT
02 FULL CUT
7-3. Error Beep
If the cover is open or there is no paper, the error beep function is activated.
This option allows you to enable / disable the error beep.
SELECT ERROR BEEP OPTION
01 BEEP ON
02 BEEP OFF

16
7-4. Melody
To DK Port (Cash), Melody box or external buzzer can be connected.
You can activate it from the Melody Setting menu, and the melody will operate after the
cutting operation.
- Melody Box : Melody is xed and volume can be adjusted.
- External Buzzer : 3 types of melody are output according to the Melody Type set-
ting and volume control is not included
SELECT MELODY OPTION
01 MELODY SETTING
02 SELECT MELODY TYPE
MELODY SETTING
01 MELODY ON AFTER CUTTING
02 MELODY OFF
SELECT MELODY TYPE
01 MELODY-Ⅰ
02 MELODY-Ⅱ
03 MELODY-Ⅲ

17
8. Hexadecimal Dump
This feature allows experienced users to see exactly what data is coming to the
printer. This can be useful in nding software problems.
When you go into the hex dump function, the printer prints all commands and other
data in hexadecimal format along with a guide section to help you nd specic com-
mands.
To use the hex dump feature, follow these steps
1 Please turn printer o.
2 Please turn printer on while press down “Feed” button.
3 Press the FEED button three times when the Self Test printed.
4 Now printer had entered into Hexa dump mode.
5 Run any software program that sends data to the printer. The printer prints
”Hexadecimal printing mode…” and then all the codes it receives in a two-col-
umn format. The rst column contains the hecadecimal codes and the second
column gives the ASCII characters that correspond to the codes.
Hecadecimal Dump
1B 21 00 1B 26 02 40 40 .!..& . @ @
1B 25 01 1B 63 34 00 1B .%..c4 ..
41 42 43 44 45 46 47 48 ABCDEFGH
A period (.) is printed for each code that has no ASCII equivalent.
6 Turn o the printer.
7 Turn on the printer.
