SECTION 1 – Assembly, Installation & Operation
STAGE 1 Umbrella Location
1A) PLANNING THE UMBRELLA LOCATION:
Special care is needed when selecting the best location for your umbrella.
Some key points to keep in mind are:
Ensure that the location you have chosen has the umbrella in a position where it provides the best possible coverage
over the area that you want shaded.
Remember the SU7 has the ability to rotate 360° so if you wish to utilise this function ensure that you allow the necessary
space around the umbrella for this. (see Figure 1).
Figure 1 continued next page....

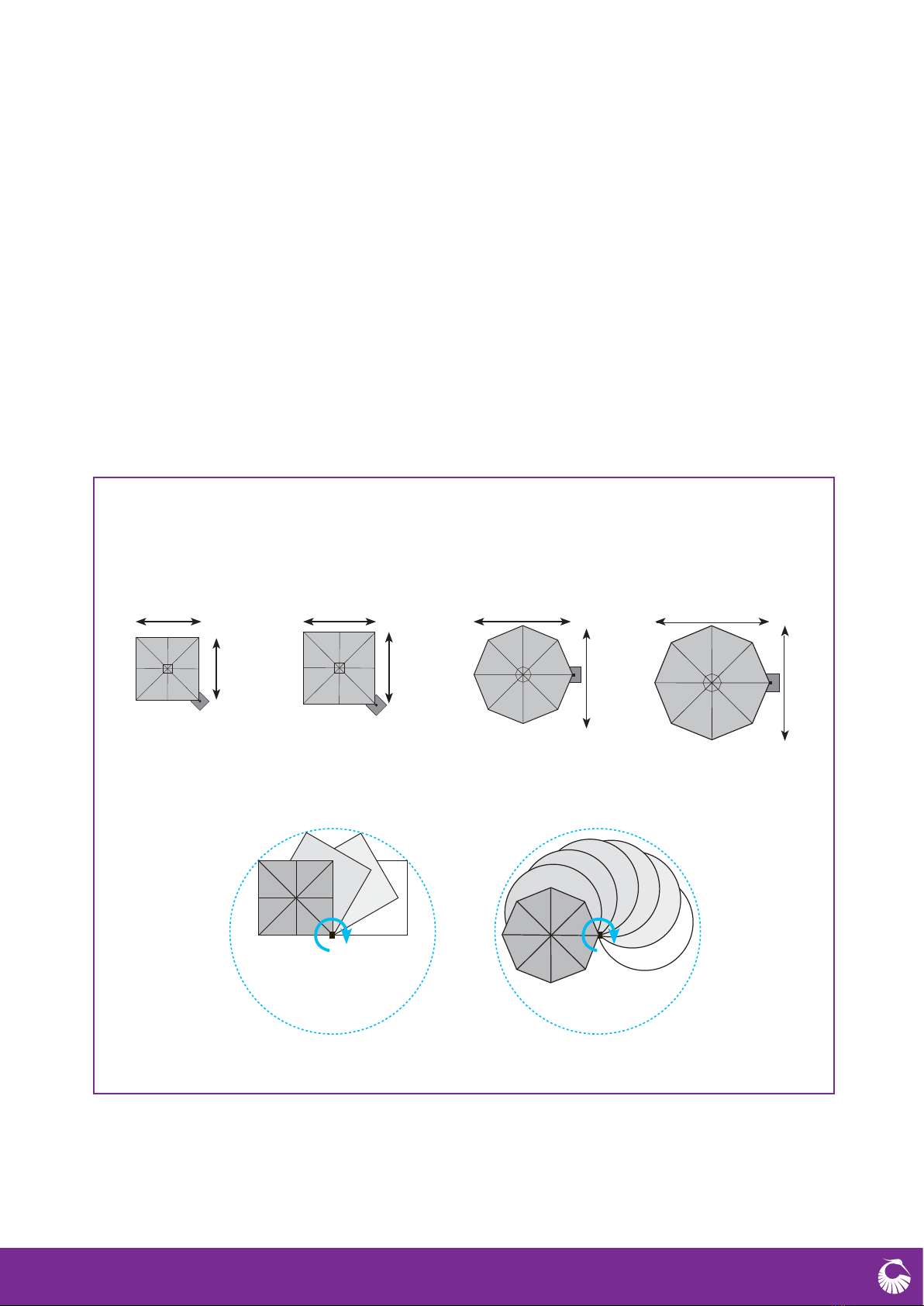

Figure 1 - SU7 Umbrella Configurations,AreaCoverageandDimensions
Configurations/Area Coverage:
2.5m 3.0m
2.5m SQUARE - Uno
6.25m2
3.0m SQUARE - Uno
9.0m2
3.5m OCTAGON - Uno
9.6m2
3.5m
3.5m
2.5m 3.0m
ROTATES 360ºROTATES 360º
4.2m OCTAGON - Uno
12.5m2
4.2m
4.2m

4www.shadowspec.com
2
4
Figure 1 cont...
abc
f
g
** Refer plan diagrams in table.
2.5m Square 3.0m Square 3.5m Octagon
Dimensions of open umbrella
a: Total height to top of canopy (cm) +/- 278 +/- 278 +/- 278
b: Distance from ground to central frame hub (cm) +/- 212 +/- 212 +/- 212
c: Height to lower outer edge of canopy (cm) +/- 217 +/- 217 +/- 217
d: Distance from centre of mast to outside edge of canopy (cm)** +/- 257 +/- 307 +/- 363
e:Diagonal distance from centre of mast to opposite / furthest
corner of umbrella (diameter) (cm) **
+/- 363 +/- 436 +/- 363
Dimensions of closed umbrella
f: Distance from ground to central frame hub (cm) +/- 78 +/- 42 +/- 78
g: Overall height of umbrella to top of mast cap (cm) +/- 276 +/- 276 +/- 276
d
e
d
e
d/e
4.2m Octagon
d/e
+/- 278
+/- 212
+/- 217
+/- 436
+/- 436
+/- 42
+/- 276
Key Dimensions (excludes portable base - portable base increases height dimensions by 12cm):

5
•
•
5
STAGE 2 Installation of the Umbrella Fixing

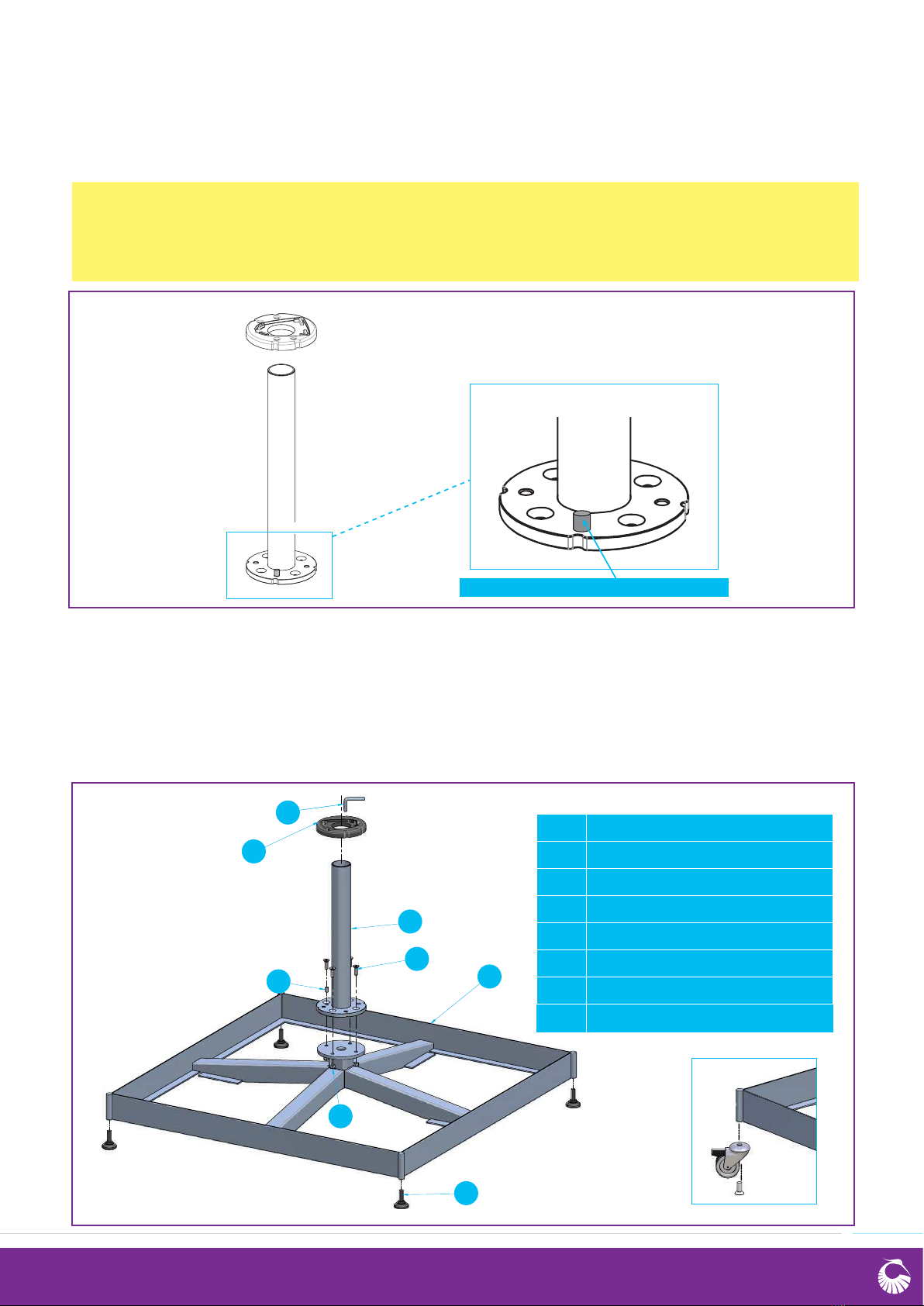

Figure 2 - Position of rotational stopper nipple.
Nipple can be removed with a punch if not required
ARotational Locking Pin (x1)
BRotating Platform (x1)
C
Rotating Stopper Nipple (x1)
DM8 70mm Bolts countersunk (x4)
E
Main mast support spigot (x1)
FPortable Steel base (x1)
GThreaded foot screws (x4)
HNuts (x4)
A
B
C
D
G
F
E
H
Option 1 - PORTABLE STEEL BASE
For installation you will require:
• 1 person
• Adjustable spanner
• Hex Allen key set
• The complete Portable Steel Base kit (see below - follow the indications on the diagram to install the necessary parts).
Wheels Option:
CH1
CH2
IMPORTANT TIP! On the base plate of the mast support there is a small protruding nipple (see Figure 2) which acts as a stopper,
preventing the umbrella mast from rotating past a 300° radius.
Should your umbrella be fitted with the optional LED light, this nipple is a necessary feature to prevent the electrical cable housed
inside the mast from becoming twisted. However, if your umbrella is not fitted with the optional LED light, this nipple is not necessary
and can be easily removed using a hammer and nail punch or similar, thus enabling the umbrella to rotate a full 360°.

6www.shadowspec.com
Option 2 - IN-GROUND ANCHOR FIXING
For installation you will require:
• 1 person
• Concrete mix, spade and a wheelbarrow
• Hex Allen key set
• The complete In-ground Anchor kit (see Figure 3).
*Please note that the Main In-ground Fitting (L) is generally supplied semi-assembled.
Step 1 Choose your site carefully – ensure ground is level and that there is no risk of damaging underground utilities when
you start digging.
Step 2 Dig your footing hole at least 500mmW x 500mmL x 700mmH**. It is recommended that you flare the footing hole
slightly at the base for extra stability (see Figure 4).
**Please note that the dimensions stated in Step 2 above are given as a guide only. Footing requirements can differ depending
on the ground composition at your property. For instance, if you are installing the anchor into topsoil or sand a larger hole may be
necessary and it is best if you seek appropriate advice in regards to this. Remember the depth of the hole is just as important as
the width and it is simpler to increase the size of the footing than to try and relocate it or re-stabilize it should it start to move over
time. When pouring the concrete it is also advisable to insert some lengths of reinforcing steel bar into the hole to strengthen the
concrete and help prevent it from cracking.
Step 3 Insert 10mm diameter Foundation Rods (K) into Main In-ground Fitting (L) (see Figure 4).
Step 4 Mix and prepare the concrete ready to pour into the hole.
ARotational Locking Pin (x1)
BRotating Platform (x1)
CRotating Stopper Nipple (x1)
DM8 20mm Screws (x4)
EMain mast support spigot (x1)
FMain mast support foot (x2)
G4.2mm x 32mm Screws (x2)
HSquare hole plug (x2)
ICapping plate
JM6 x 8.0mm Allen screws (x2)
KThreaded foundation rods (x2)
LMain In-ground Fitting (x1)
Figure 3 - In-Ground Anchor kit for SU7 Umbrella*
A
BC
D
E
H
H
I
J
KL
G
F
6

7
Step 5 Position the Main In-ground Fitting (K+L) in the hole ensuring that it is level/perpendicular. Scallop out a small
cove in the concrete for access to screws (J) at the top of the Main In-ground Fitting (K) (see Figure 4). It is
recommended that the Main Mast Support Foot (F) and the Main Mast Support Spigot (E) are assembled to the Main
In-ground Fitting (L) to assist getting it level / perpendicular.
HANDY TIP! To avoid excess concrete travelling up into the centre of the fitting please ensure that you close off the
bottom of the fitting using plastic hole plug provided before positioning it in the hole.
Step 6 Pour concrete into the hole around the fitting and up to the required finished level. (Note: extra props / support may
be required to ensure that the Fitting remains level while the concrete sets).
HANDY TIP! Before leaving the concrete to cure re-check the fitting to ensure that it is level/perpendicular.
Step 7 Once the concrete is fully cured, the umbrella mast can be placed onto the Main Support Spigot (E).

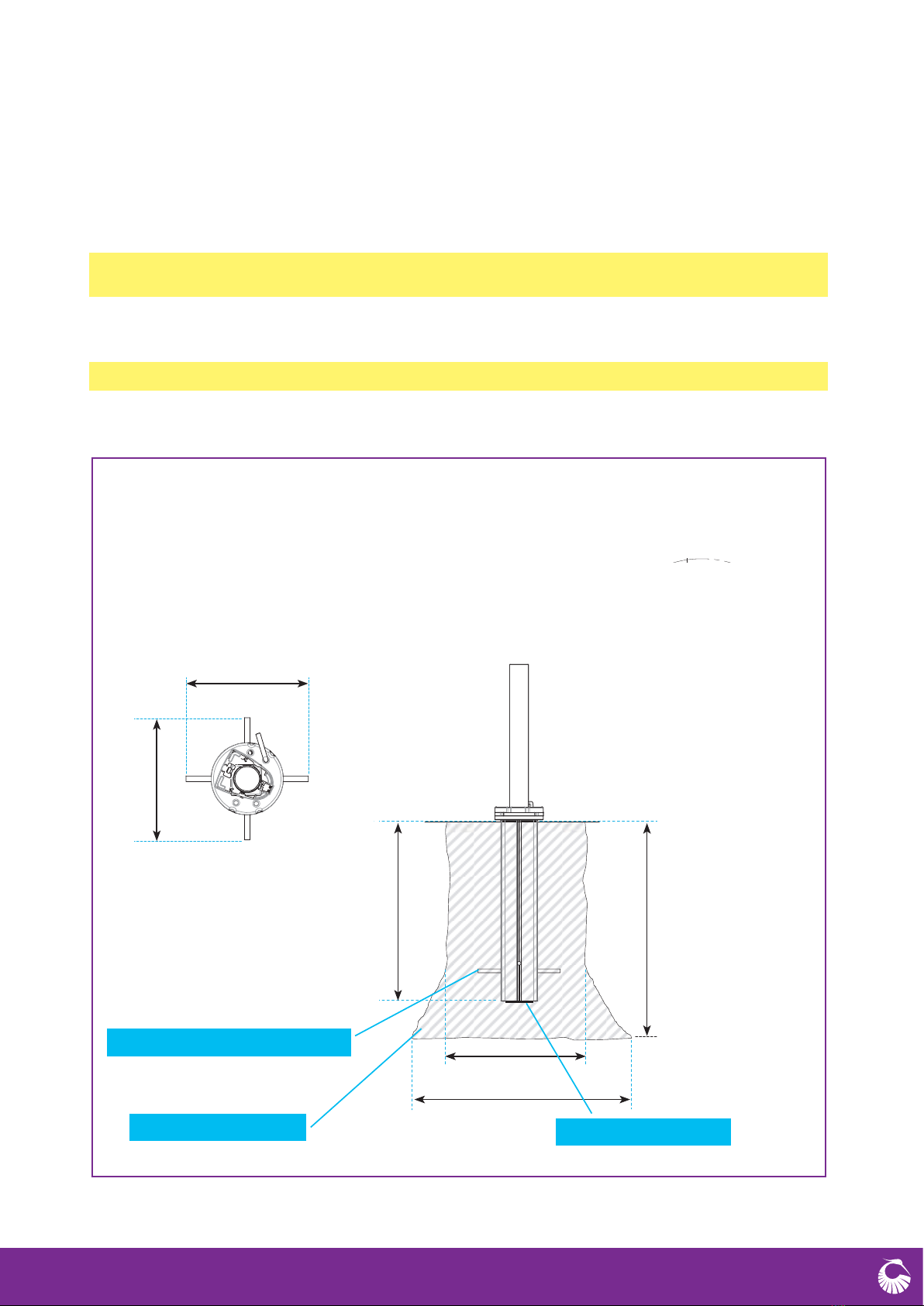

Figure 4 - In-Ground Anchor installation & suggested specifications for SU7 Umbrella
10mm threaded foundation rods
Hole flared at the base
220mm
220mm
500mm
500mm
700mm
700mm
Square lower hole plug
7

8www.shadowspec.com
ASpigot (x1)
BRotating Platform (x1)
CRotational Locking Pin (x1)
DSpigot Mounting Bolts (provided)
ESurcafe Plate Fixing (x1)
NOTE: Bolts for fixing to surface not supplied
Option 3 - SURFACE PLATE FIXING
For installation you will require:
• 1 person
• 4 x 10mmØ bolts (not supplied - the type of bolts you need and the length will depend on what type of surface you are
fixingtheSurfacePlatetoandthesurroundingenvironment)
• Hex Allen key set
• 2x adjustable spanner/wrench
• The complete Surface Plate Anchor kit (see Figure 5).
Step 1 Choose your site carefully – ensure the surface that you are anchoring to is clean, level and structurally sound.
HANDY TIP! It is recommended to double check the mounting surface is level by placing the surface plate where you want it to
be located and ensuring that the spigot is perfectly vertical/perpendicular.
Step 2 Place the Surface Plate where you want it to be located.
Step 3 Mark the position of the four bolt holes on the surface that you are fixing to.
HANDY TIP! If you are mounting the Surface Plate to a wooden deck it is essential that all four fixing bolts (not supplied), are
secured through the substantial structure of the deck and not only to the deck planking.
In order to achieve this some additional structural bracing may be required before the surface plate can be fitted securely (as
a suggestion see Figure 6).
HANDY TIP! If you are securing the Surface Plate to a wooden deck it is also recommended that you place a washer between
the bottom of the plate and the surface of the deck, this leaves a small gap to allow water to escape and reduce the risk of
long-term water damage to the deck (See Figure 6).
Step 4 Drill holes and secure the surface plate using the 4 x 10mmØ bolts (not supplied - the type of bolts you need and the
length will depend on what type of surface you are fixing the surface plate to and the surrounding environment)
Step 5 Using bolts provided, fix spigot to the surface plate.
of the rotational stopper nipple (refer Figure 2) if still in place.
Step 6 Once the spigot and the surface plate are secure, lower the rotating platform over the spigot, and insert the locking
pin as preferred. Once complete, the umbrella mast can be placed onto the Main Mast Support Spigot.
Figure 5 - Surface Plate Anchor kit for SU7 Umbrella
AB
E
D
C
re that it is correctly orientated regarding the positionEnsu
8

9
HANDY TIP! If you are securing the surface plate to an existing concrete pad it is important that you know the thickness of
the concrete before you begin. It is recommended that the concrete be at least 100mm deep and that no screws or fixings
be within 150mm of closest edge of concrete (See Figure 7).
Figure 6 - Securing SU7 Surface Plate Fixing to wooden deck (suggestion only)
Figure 7 - Securing SU7 Surface Plate Fixing to concrete slab (suggestion only)
10mmØ bolts running
right through and
fastened with a
washer and nut.
(not supplied)
Timber decking.
Surface Plate Fixing.
Spigot
NOTE: Washer between
surface plate and
decking. (not supplied)
200mm x 50mm
Timber deck bearers.
Additional 100mm x 100mm
Timber nogs inserted between
deck bearers to provide a
substantial anchor point for
bolts to fasten through.
10mmØ dyna-bolts
or concrete screws
recommended at least
100mm lon
(not supplied)
g.
Surface Plate Fixing.
Recommended minimum depth of concrete slab 100mm.
NOTE: No screws or fixings to be within 150mm of closest edge of concrete slab.
Minimum 150mm
Spigot
Spigot bolts
(provided)
Spigot bolts
(provided)
9

10 www.shadowspec.com
1
re
10
Option 4 - WALL ANCHOR FIXING
For installation you will require:
• 1 person
• 8x screws/bolts (not supplied - the type of fastenings you need and the length will depend on the type of surface you a
fixingtheWallAnchortoandthesurroundingenvironment)
• Hex Allen key set
• 2x adjustable spanner/wrench
• The two Wall Anchor Fixing brackets (see Figure 8).
Step1 Choose your site carefully – ensure the surface that you are anchoring to is clean, structurally sound and has
sufficient height to accommodate the height of the umbrella mast.
HANDY TIP! Fastening requirements will differ depending on the type of wall structure that you are fixing the Wall Anchor
brackets to. It is recommended that you seek appropriate advice in regards to this in order to ensure that your umbrella is
mounted securely.
Step2 Before you begin the next step of securing the Wall Anchor Fixing brackets to the wall you will need to complete steps
1-4 of assembling the umbrella (refer to STAGE 3, 3A - Assembling The Umbrella & Figure 9).
Also if your umbrella is fitted with the optional LED light, you will need to complete steps 1 & 2 of Connecting the
LED Light (refer to STAGE 3, 3D - Connecting the LED Light).

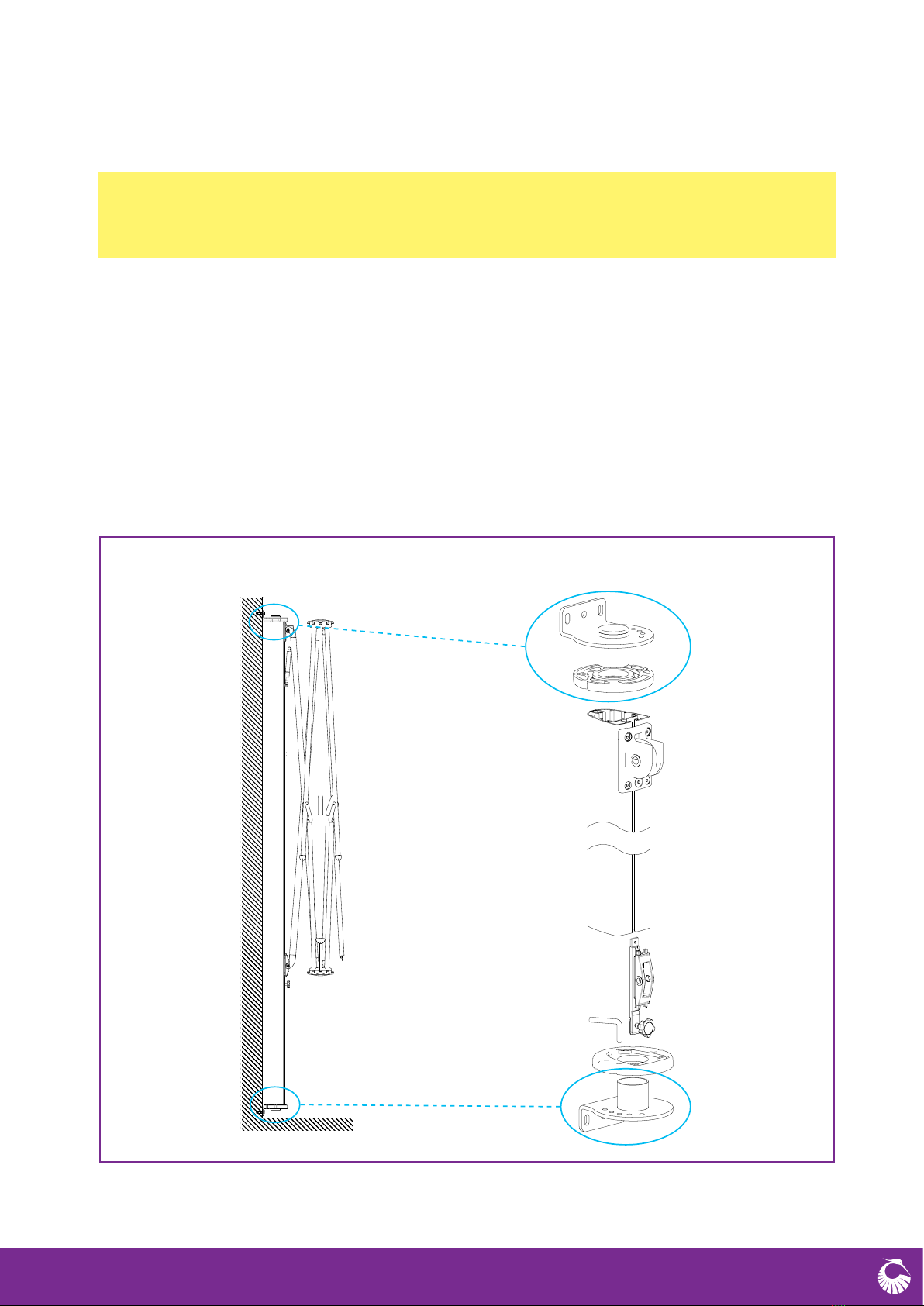

AWall Anchor Fixing Bracket (x2)
NOTE: Fasteners for fixing bracket to wall not included
Figure 8 - Wall Fixing Anchor brackets for SU7 Umbrella
A
Bottom
Top

11
1
re
11

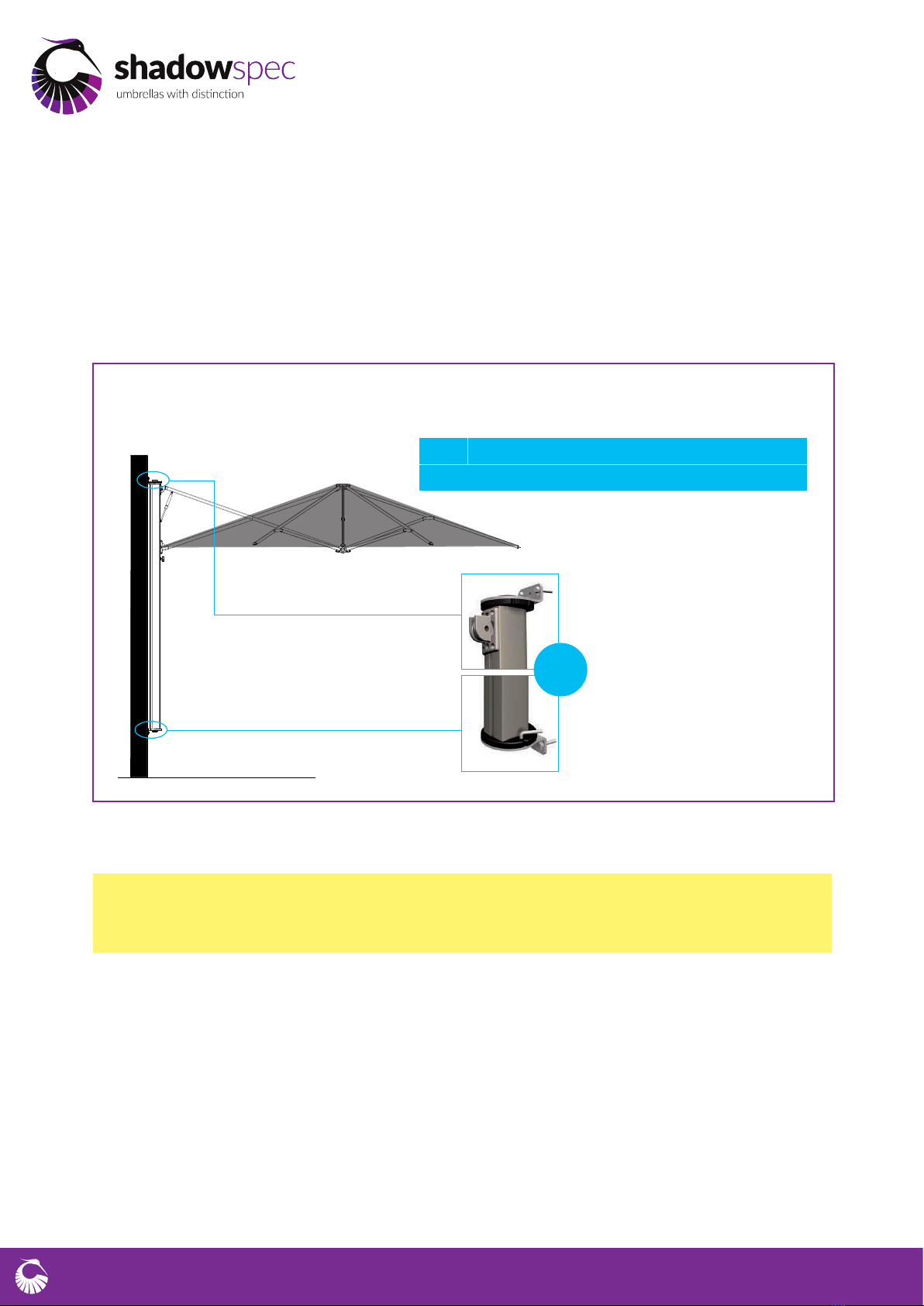

Figure 9 - SU7 Wall Anchor Fixing Installation
HANDY TIP! Given that the umbrella mast is not sitting on the ground surface, the height positioning of the umbrella is
somewhat variable and entirely up to the requirements of the user. However as a guide, it is suggested to match the 2.1m
head clearance of the standard ground mounted umbrella. To achieve this, the upper Wall Anchor fixing bracket would be
positioned approx 2850mm above the ground.
Step 3 Drill holes and secure the lower Wall Anchor Fixing bracket to the wall ensuring that it is level.
Step 4 Insert the umbrella mast onto the rotating platform of the lower Wall Anchor Fixing bracket (which is now fixed to
the wall).
Step 5 Place the rotating platform of the upper Wall Anchor Fixing bracket on the top of the mast.
Step 6 Ensure the mast is vertical/perpendicular. Mark and drill the holes for the upper Wall Anchor Fixing bracket.
Step 7 Leaving the mast in place between the two brackets, secure the upper Wall Anchor Fixing bracket to the wall.
The Umbrella mast should now be mounted to the wall held between the two Wall Anchor brackets. It cannot be removed
without first removing one of the brackets from the wall.


12 www.shadowspec.com
12
STAGE 3 Assembling and Mounting the Umbrella/s
3A) ASSEMBLING THE UMBRELLA:
For this step it is easier to remove the umbrella mast offthe ground spigot/wall brackets and lay it in a horizontal position.
You will require:
• 1-2 persons
• Hex Allen key set
• 2x adjustable spanner/wrench
• The umbrella mast
• The umbrella frame/s
• The assembly parts kit (supplied with each umbrella frame) (see Figure 10)
• The umbrella canopy fabric/s (if not supplied already fitted to the umbrella frame/s)
Work through the following steps carefully referring to the diagrams (see Figure 10 and Figure 11) as you do so.
Step 1 Lay the umbrella mast in a horizontal position on the ground or on a bench with sufficient protection to ensure
that the outer surface is not scratched or damaged in any way. Insert Sliding wagon (F) into place on mast.
Step 2
Step 3a
Step 3b Slide the entire Frame Support Assembly (D+G+I+K) into top of mast as shown.
(
for a Wall Anchor fixing only)
Attach the Gas Strut Support Plate (I) to the Frame Support (G), not fully tightening the 25mm Allen screw (H).
Insert eye-bolt (K) into Gas Strut Support Plate. Slide this frame support assembly (G+I+K) into top of mast and
line up the four holes in the Frame Support (G) with the four holes in top of mast.
Insert the two Frame Support Back-Plates (D) into top of mast as shown so that the holes in each Back-Plate line
up with the holes in the Frame Support
Support, securing it to the mast (once completed, go directly to Step 5).
(G) and holes in the mast. Insert the 20mm Allen screws (C) into the Frame
(for Surface Plate, In-Ground Anchor, Portable Base fixing options)
Loosely attach the Frame Support Back-Plates (D) and Gas Strut Support Plate (I) to Frame Support (G) (note these
bolts should not be fully tightened until Step 4). Insert eye-bolt (K) into Gas Strut Support Plate (I).
Step 4 Insert the two lower screws (C) into the frame support securing it to the mast. Fully tighten all five screw bolts.
Step 5 Fix upper main spar of umbrella frame to frame support using frame axle (B) and nuts (A) provided.
Step 6 Fix lower main spar of umbrella frame to sliding wagon using frame axle (B) and nuts (A) provided.
Step 7 Fix moulded plastic mast cap to top of mast with screws provided.
HANDY TIP! If your umbrella includes the option of LED Lighting (see Figure 12) you will need to install the LED light system
(see 3E, page 18) before proceeding with Step 7.
3B) MOUNTING THE UMBRELLA:
(Note Steps 8 and 9 apply only to the In-ground Anchor or Surface Plate Fixings (not applicable to the Wall Anchor Fixing).
At this point you will also need:
• Another person (recommended)
• A step ladder
12

13
Step 8 Lift and slide Umbrella mast (now complete with frame attached) back on to the anchor spigot.
Step 9 Slide the sliding wagon (F) up the mast, raising the umbrella and lock in position once the sliding wagon (F) is
approximately midway past the hole for the stopper screw (refer to Pictorial Step 12, Page 15). Lock the sliding wagon
in position using the tightening wheel.
Step 10 Attach the gas strut ensuring that it is positioned the correct way up as shown.
Step 11 Once the gas strut is secure the screw stopper can be inserted in place.
Figure 10 - SU7 Parts kit - small parts identificationlist
D
C
G
H
I
J
L
M
K
N
A
B
AAxle nut (x4)
BMain axle (x2)
C20mm Allen screw (x4)
DFrame support back-plate (x2)
ESliding wagon wheel (x1)
FSliding wagon (x1)
GFrame support (x1)
H25mm Allen screw (x1)
IGas strut support plate (x1)
JGas strut (x1)
KEye bolt (x1)
LPlastic washer (x6)
MGas Strut mounting bolt & nut (x2)
NStopper screw (x1)
E
F



13

14 www.shadowspec.com
14
Figure 11 - SU7 Assembly, step by step attaching umbrella to mast
(NOTE: If your umbrella has a Surface Plate, In-ground Anchor or Portable base fixing please skip Step No.2)
23a
3b
45
6
7
Upper Hub
Main Spar - Upper
Main Spar - Lower
1NOTE: This step applies to a
Note: Fully tighten all five bolts.
Note: Bolts should be only
loosely tightened in this step
to allow process in step 3b.
Wall Mount fixing only. (Once
completed go directly to step
No. 5)
HANDY TIP! Partially open umbrella to
ensure axel bolt can be inserted.

15
15
10+11
8+9
12 Upper Frame Hub
+
Fabric Canopy Cap
Screw stopper (part N)
inserts here.
Hole is located approx
500mm below top of
mast inside trolley track

16 www.shadowspec.com
16
3C) FIXING THE FABRIC CANOPY TO UMBRELLA FRAME
HANDY TIP! Your Umbrella may possibly be supplied with the fabric canopy already fitted to the frame. If so, then you can
simply use this section as a reference if you ever wish to remove the fabric canopy (ie: to clean it). If the fabric canopy is
supplied separate to the frame, work through these simple steps to install the fabric to the frame for the first time.
Step 1 Remove the fabric canopy from its packaging and unfold it out on a clean surface.
Step 2 Locate the fabric corner that has the oval brass / nickel eyelet in it. This is the corner that will be located on the
umbrella frame at the point closest to the mast.
Step 3 Locate the centre/appex of the fabric canopy with the hole & circular support ring.
Step 4 With the umbrella frame semi-open, using a step ladder or something similar to safely access the top of the umbrella,
spread the fabric canopy over the top of the umbrella frame, positioning the hole that is in the centre of the fabric
canopy directly over the upper hub (refer Fig 11, Step 5) of the frame.
Step 5 While maintaining the position of the centre of the fabric canopy approximately as outlined in Step 4, orientate
the fabric so that the corner with the oval brass / nickel eyelet (mentioned in Step 2) is positioned over the Lower
Main Spar attached to the mast.
Step 6 Once the fabric canopy is orientated to its correct position, proceed with inserting the ends of the individual frame
struts each into its own relevant fabric pocket located around the underside perimeter of the fabric canopy.
*Please note: As the fabric canopy is made to fit relatively taut over the frame, the last 2-4 struts to be inserted into
their pockets may take more effort than the first ones. At the point where each pocket is located, pull the edge of the
fabric canopy down with sufficient force to enable the spoke to slot into its pocket.
Step 7 Take the corner of the fabric canopy with the oval brass / nickel eyelet (as mentioned in Step 2) and fit it over the turn
button fastener fixed to the upper surface of the Lower Main Spar(refer Fig 11, Step 6). Turn the turn button
fastener so the eyelet & canopy are locked in place. Ensure the Velcro fabric overlap up the length of the main spar
and the ‘chute’ where the upper main spar protrudes through the fabric canopy are correctly fittedandpositioned.
Step 8 Return the umbrella to fully closed position, then using a step ladder or something similar to safely access the top
of the umbrella, ensure that the hole in the centre of the fabric canopy is directly over the threaded hole in the upper
frame hub (refer Fig 11, Step 5). Bolt the fabric canopy cap firmlyinpositionoverthetopofthefabric,asshown
below.

17
17
3D) CONNECTING THE LED LIGHT (optional accessory):
The LED Lights which are an optional accessory offeredfortheSU7Umbrellaare fittedtothecentrelowerhuboftheumbrella
at the time of manufacture (see Figure 12).
As part of the umbrella assembly process, if your umbrella has the optional LED lights fitted, the electrical cable connected to
the LED Light which is incorporated within the umbrella frame will require connecting to the Control Box Unit (supplied) which in
turn will require connecting to an external 230/240V power supply.
IMPORTANT NOTE! Any 230V/240V wiring for electrical connections must be carried out and certified by a qualified
electrician.
HANDY TIP! Steps 1 - 3 of this Connecting LED Lights process are best done between Steps 7 and 8 of the main assembly
process (3A - Assembling The Umbrella).
Step 1 Unscrew the lid offthe Control Box Unit and remove the electrical circuit board from the base of the plastic casing box.
(See Figure 13)
HANDY TIP! The electrical circuit board may be wedged in the base of the plastic casing box quite tightly but can be gently
levered out with the help of a screwdriver or similar.
Figure 12 - LED Lights

18 www.shadowspec.com
110V
CABLE ZONE
2.2
2.3
110V
Ø8mm
25 CM10 CM
A
DETAIL A
B
Lower both sides
at the same time
DETAIL B
110V
2. MOUNTING LED KIT SU7 110V
2.1. Mounting the 110 V power cable
STEP 1 The power cable can be put into the
provided channel behind the pole or into the
central part of the pole.
STEP 2 Remove the back cover profile of the pole in
order to reveal the power cable.
Caution: The provided areas for the power
cable are indicated. Please only use these
zones to insert the cable.
2.2. Connecting the 110V power cable
STEP 1 Put the cable into the provided channel. Drill
a hole of 8mm (or according to cable
thickness) at approximately 10cm of the top.
The power cable can then be guided
upwards into the pole through this hole.
STEP 2 The power cable needs to stick out about
25cm at the top of the pole in order to make
the connection. The total needed cable
length measured as from the floor is 3m.
STEP 3 Unscrew the connector so that the internal
parts appear.
STEP 4 The LED kit is already connected to the
connecter. The power cable should be
connected to the other side of the connector
by using a small screwdriver.
Caution: Make sure to always connect
matching cables L-L / N-N / PE-PE
STEP 5 Once the connection is made, close the
connector by using wrenches size 24.
Caution: Make sure the connector is closed
tightly after connecting. This guarantees a
waterproof connection.
2.3. Connecting LED cable & mounting LED kit
STEP 1 In order to lower the LED kit into the pole,
grab it in one hand, the transparent cable
facing down and the black power cable
facing up. Make sure that the transparent
female connector of the LED cable goes
back upwards along the LED kit. Grab the
connector into the other hand. Lower both
parts, each at one side of the metal bracket,
into the pole. (Detail B). This way, the LED
kit is suspended over the metal bracket with
the power cable.
STEP 2 Connect the female connector of the LED kit
coming out of the pole to the male connector
of the LED cable coming out of the frames
like indicated on DETAIL A. Close them
tightly to guarantee a waterproof connection.
STEP 3 Put the top cover on the pole by using the
supplied screw
CH1
CH2
ON/OFF
< 1s
DIM 
> 1s
3E) FITTING THE LED LIGHT SYSTEM (Optional Accessory)
18

19
19
Power supply
Max power output 40W
Operating temperature range t.a. 50°C
Protection: short circuit, overload and overheating
The product is exclusively designed for LED loads
100-277V~
40W Transformer included
Remote memorization of further radio codes
LED = ON
1
Press the button of the transmitter.
2
CH1 CH1
CH1
CH2
Press CH1 button twice of the transmitter.
*
...
3
CH1
Press the CH1 button once for the transmitter
to memorise.
Remote deletion of a radio code
1
x3
Press the button three times of the
memorized transmitter.
Press the CH1 button once for the transmitter to delete.
LED = OFF
...
2
CH1
P3
**
ON / OFF / DIM
CH1
CH2
CH3
CH4
CH1
CH2
CH1
CH2
CH1
CH2
CH3
CH4
CH1
CH2
CH1
CH2
CH1
CH2
CH3
CH4
CH1
CH2
CH1
CH2

20 www.shadowspec.com
18
STAGE 4 Operating the Umbrella
The SU7 Umbrella is designed to be operated by one person.
The gas-strut allows the umbrella to be opened and closed in one easy sliding movement. Simply release the sliding wagon
by rotating the locking grip anticlockwise (see Figure 16) and push the sliding wagon up the mast until it hits the stopper
screw.
HANDY TIP! Due to the stopper screw being of minor detail it is often overlooked when assembling the umbrella. You can
insert it now if you haven’t already. The stopper screw is included in the parts kit.
The hole for the stopper screw is located approx 500mm below the top of the mast and inside the trolley track
(see Figure 11, Step 12).
At the point where the sliding trolley makes contact with the stopper the umbrella should be fully extended and the fabric
canopy should be firm and taut.
Secure the sliding wagon by twisting the locking grip clockwise.
This procedure should take no more than a few seconds (see Figure 16).
To close the umbrella simply release the locking grip (turn anti-clockwise), slide the trolley down the mast until the umbrella is
fully closed and tighten the locking grip (clockwise) once again.
For more information on how to operate your umbrella please visit our website and view the SU7 product demonstration video.
You can view these videos at any time by visiting www.shadowspec.com/videos
Figure 16 - Raising and lowering the umbrella
Release and Secure the Sliding trolley by
twisting the locking grip as shown.
Loosen Tighten
When locking wheel is
loosened, use locking
wheel handle to
raise/lower the
umbrella.
