Shadowspec UNITY Square Uno User manual

SHADOWSPEC UNITY™
THE EVOLUTION OF SHADE
BEST-IN-CLASS WARRANTY
10 YEAR Fabric
Warranty 6 YEAR Frame Warranty
Trusted for
over 25 years Hand built in
New Zealand Marine
Grade


SHADOWSPEC UNITY™
THE EVOLUTION OF SHADE
PATENT-PENDING TECHNOLOGY
SHADOWLOCK™SHADOWHUB™

SHADOWGLIDE™

SHADOWLIFT™



Size & Conguraon
• 100% Sunbrella™ Marine
soluon-dyed fabric
• All fabrics can be cleaned,
washed and are replaceable
• UV & fade resistant
• 10 year Sunbrella™ warranty
• Mould and mildew resistant
• Weight: 314 g/m2
• Sun protecon - Skin Cancer
Foundaon’s seal of approval
Canopy
Features

 

 


Stock Colours Trend Colours - Summer 20/21*
(Non-stock)
  
*Trend colours are non-stock and lead mes
may vary for these colours. Full Sunbrella range
is available as a custom colour opon.
Square Uno
Square Trio Square Quaro Octagon Duo
Square Duo Octagon Uno
2.5m | 8’2’’ 5.0m | 16’5’’ 3.5m | 11’6” 3.0m | 9’10’’ 5.0m |16’5’’6.0m | 19’8’’ 6.0m | 19’8’’
5.0m | 16’5’’ 6.0m | 19’8’’ 7.0m | 23’0” 8.0m | 26’3”5.0m | 16’5’’ 6.0m | 19’8’’
4.0m | 13’2”
Mounng Opons
In-Ground Anchor


Free-Standing Base


Surface Plate

                 
(316 Stainless Steel)
Wall Fixings


(316 Stainless Steel)




Umbrella Dimensions
A
BCDE


Diagram Legend 2.5m 8'2'' 3.0m 9'10'' 3.5m 11'6'' 4.0m 13'2''
A        
B        
C        
D        
E        
F        
G        
F


F F F
G

G


Resources for Architects, Designers & Specifiers
These resources include 2D & 3D files, CAD Resources and Spec Sheets
for all the product range.
https://www.shadowspec.com/cad



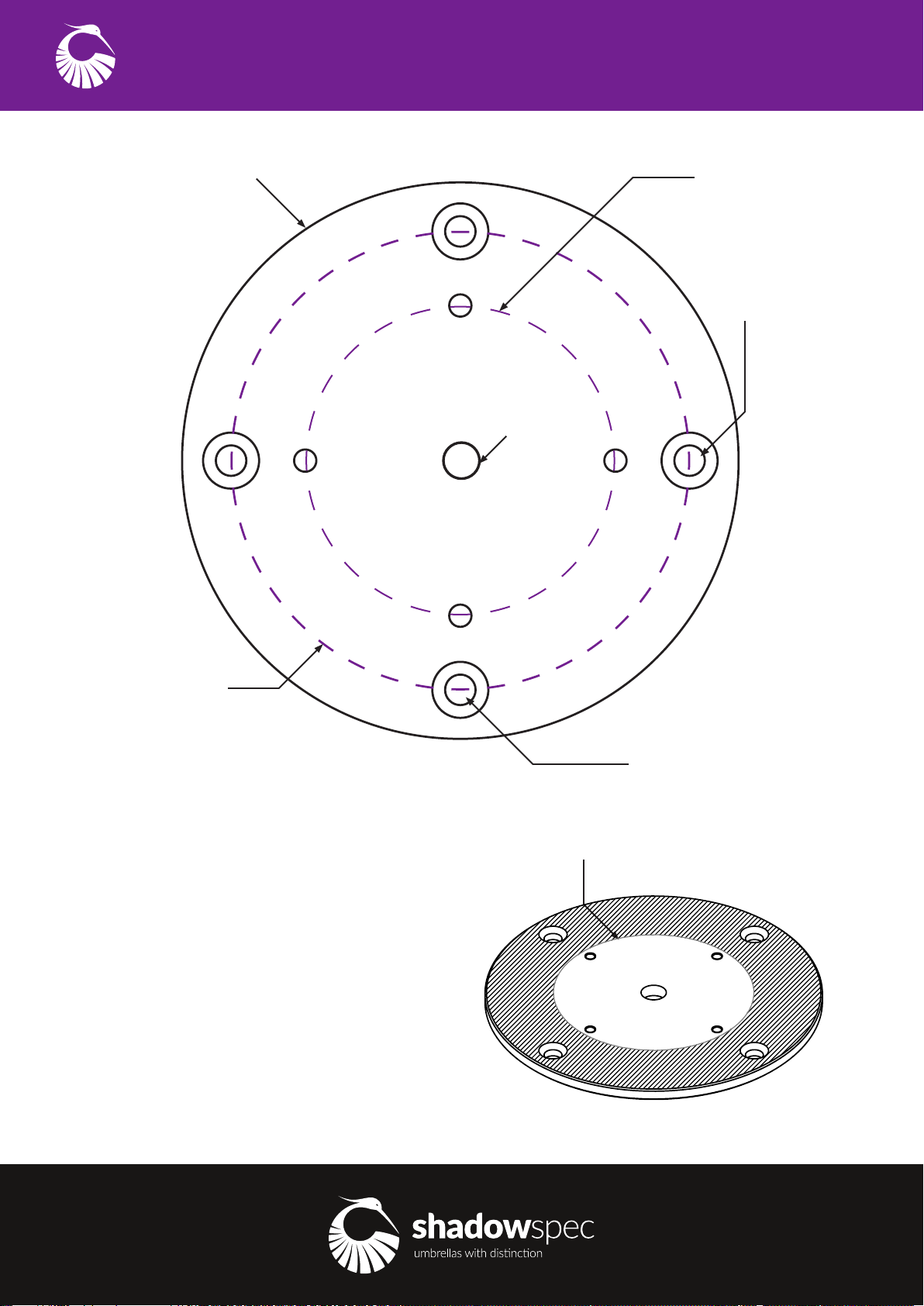

CSK Hex Socket 316 Stainless Steel
Not Included
Shadowspec Unity™

UM-110312


UM - 110068
Unity Spigot
UM - 110114
M10/M12 Countersunk Barrel Nut with
Threaded Rod. Recomended for Chemical
Anchor systems or where non standard
thread length are required.
4x M10 x 20 CSK Screw
316 Stainless Steel

UM - 110312


316 Stainless Steel



Not Included


Nut and Washer to suit
Galvanized/316 SS
To Suit Expansion Bolts
Not Included
Shadowspec Unity™

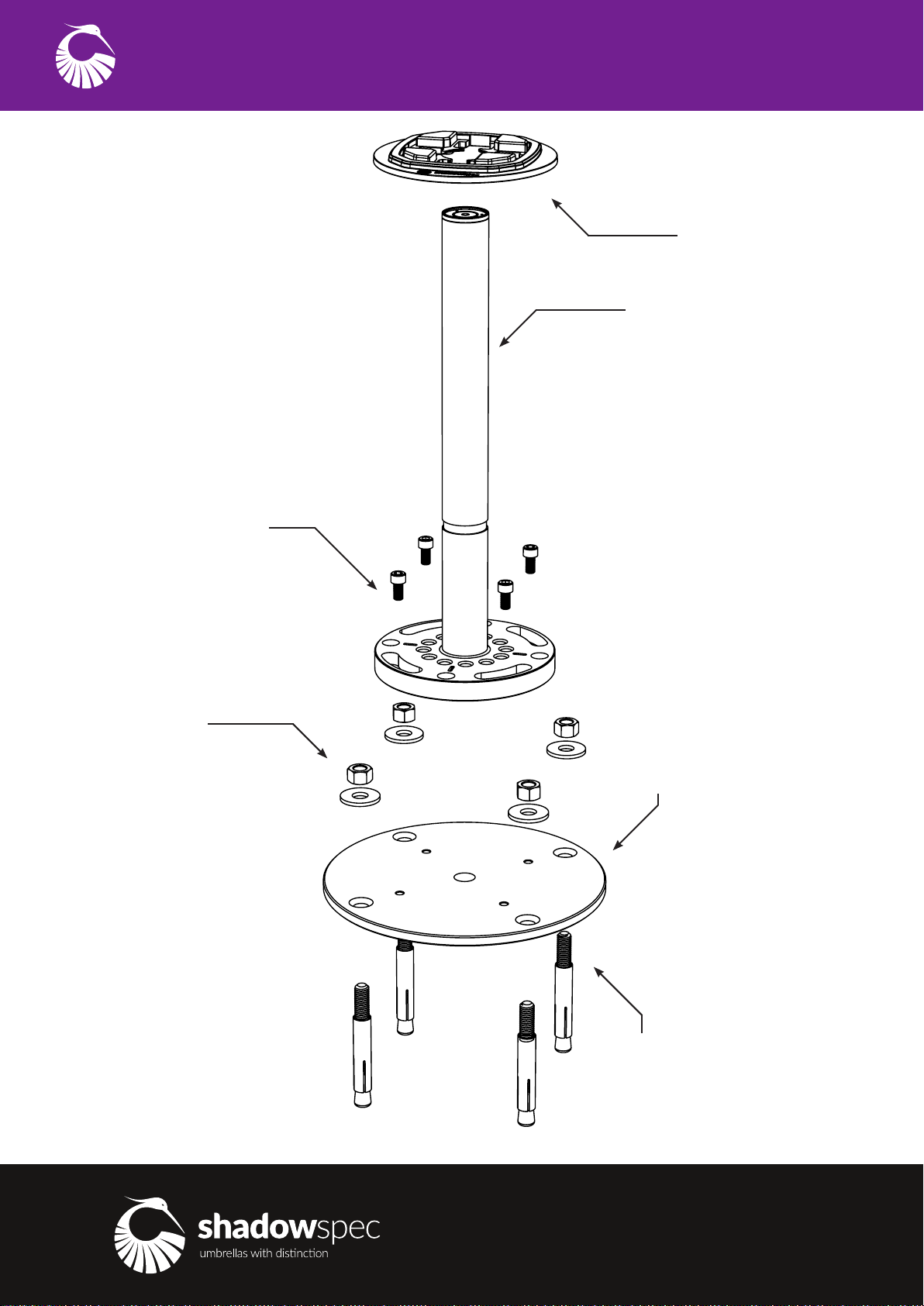

Mounng Opon - Surface Plate - Concrete Install
UM-110312
www.shadowspec.com
Unity Rotaon plate
UM - 110068
Unity Spigot
UM - 110114
12mm/16mm Expansion Bolts.
Recomended for suitable
Concrete Surfaces
M10 x 20 Cap Screw
316 Stainless Steel
Included with Umbrella
UM - 110312
Surface plate - 316 Stainless Steel
12mm/16mm Expansion bolts
Galvanized/ 316 Stainless Steel
Minimum length 100mm
Not Included
NB: It is the responsibility of the installer to ensure that any xings used in the installaon of the umbrella surface plate are suitable for the applicaon

Shadowspec Unity™

UM-110044

 



 Adjustable






- Hot-dipped galvanised steel














- Hot Dipped Galvanized Steel









Shadowspec Unity™

UM-110289

Shadowspec Unity™
Umbrella Dimensions
Codes: UM - 010031 | UM - 010033 | UM - 010035 | UM - 010037


A
BCDE
   
F FF
G
F
G
Diagram Legend 2.5m 8'2'' 3.0m 9'10'' 3.5m 11'6'' 4.0m 13'2''
A        
B        
C        
D        
E        
F        
G        








- 316 Stainless Steel













Turn plate over for
non-countersunk xings


Shadowspec Unity™

UM-110311

4x M10 - M12 CSK Socket Screw
Length to match applicaon
150mm - 200mm | 6’’ - 8’’
316 Stainless Steel
Not included
Shadowspec Unity™
Mounng Opon - Surface Plate - Wooden Deck Install
UM-110312
www.shadowspec.com
Unity Rotaon plate
UM - 110068
Unity Spigot
UM - 110114
M10/M12 Countersunk Bolts
with Nyloc Nuts.
Recommended for Wooden Deck
installaons
4x M10 x 20 Cap Screw
316 Stainless Steel
Included with Umbrella
UM - 110312
Surface plate - 316 Stainless Steel
Nyloc Nut and Washer to suit
316 SS - Not Included
NB: It is the responsibility of the installer to ensure that any xings used in the installaon of the umbrella surface plate are suitable for the applicaon

MULTI CANOPY CANTILEVER UMBRELLA
SHADOWSPEC UNITY™
OWNERS MANUAL

www.shadowspec.com
SHADOWLIFT™SHADOWLOCK™SHADOWGLIDE™SHADOWHUB
P02/20

Read your manual in full before assembling your umbrella.
To extend the life of your umbrella investment please read

Thank you for your purchase, we appreciate it.
Enjoy the shade, courtesy of Shadowspec.

3
CONTENTS Page
SECTION 1 - WARRANTY 4
 5
SECTION 2 - UMBRELLA CARE AND MAINTENANCE 5
SECTION 3 - ASSEMBLY, INSTALLATION AND OPERATION 6
STAGE 1  6
STAGE 2 Naming and Checking Your Umbrella Parts 7
STAGE 3  8
 8
 9
 10
 12
STAGE 4  13
 13
 14
 16
STAGE 5  17
SECTION 4 - ACCESSORIES 18
 18

4www.shadowspec.com
SECTION 1 – WARRANTY
THE SHADOWSPEC WARRANTY:
Shadowspec guarantees that Shadowspec Unity Umbrellas that are installed in accordance with our guidelines will be



PLEASE NOTE:







• 

ageing and fading.
• 
• 
are caused by the manufacturing process.
• Damage by a third party.
• Repair by a third party.










Shadowspec or the component manufacturer in undertaking repairs or replacement under this warranty.



purchased your Unity from.
6 YEAR Frame
Warranty
Fabric
Warranty
10 YEAR
*
** **

5
SECTION 2 – UMBRELLA CARE AND MAINTENANCE

The following points will assist in keeping it looking smart and clean while also ensuring its ongoing performance and
reliability.
• 

• 
• 

• 

• 
• 
• 
• 
• 
based spray.
• 

Tips: 1. Keep your toolkit stored in a safe place for future maintenance.
 2.Forcommercialapplicaons,contactusforourpreventavemaintenanceguides.
FABRIC CLEANING INSTRUCTIONS:

Shadowspec Fabric Canopies should be cleaned on a regular basis so dirt isn’t allowed to build-up and become







restore the repellency.



ForfullmanufacturersrecommendaonsregardingcareofourCanopyFabrics,visitwww.sunbrella.comfordetailedcare
instrucons.


www.shadowspec.com/register
PRODUCT REGISTRATION

6www.shadowspec.com
SECTION 3 - ASSEMBLY, INSTALLATION AND OPERATION
STAGE 1 UMBRELLA LOCATION
PLANNING YOUR UMBRELLA LOCATION:

1. 
 
“Sunposionandpath”bysiranet.
 

NOTE: For assistance with orientang your umbrella correctly, see conguraon details in Figure 1 below.








  


Figure1-UnityUmbrellaConguraonsandKeyDimensions



Diagram Legend 2.5m 8'2'' 3.0m 9'10'' 3.5m 11'6'' 4.0m 13'2''
A        
B        
C        
D        
E         
F        
G        

C
A
B
E

E







7
SECTION 3 - ASSEMBLY, INSTALLATION AND OPERATION STAGE 2 NAMING AND CHECKING YOUR UMBRELLA PARTS
Figure2-UnityUmbrellaParts
Figure3-AddionalFrameParts

assembly. If any parts are missing please contact [e-mail]
You will need to refer back to this page so why not earmark it for quick reference whilst you’re assembling your umbrella.
Also Included with Umbrella:
• Hex Key Set
• No. 17 Ring Spanner

Fabric Canopy
Top Cap

Gas Spring
Through-Spar
Securing
Point


Channel


Unity Spigot
Top Catch
Top Cap

Gas Spring
Top Catch
Carriage
Through-Spar



Unity Spigot

Gas
Spring
Through-Spar
Upper Rib







Through-Spar
Carriage





Rib Tip with Canopy screws




8www.shadowspec.com
STAGE 3 INSTALLATION OF YOUR UMBRELLA MOUNT
W

Step 1  Figure5.
Step 2 
Step 3 
Note: 
  
 Figure4.
FREESTANDING BASE

• 
• 
•  Figure6 of included components
• 

•    
Step 1 
Step 2 
 Figure6.5.
Step 3 
Step 4 
 
Step 5 
Step 6 
Step 7 
Step 8 Stage 4.
Figure4-SquareandOctagonalFrameOrientaon
 Octagon Umbrella

Screw

Unity Spigot
Unity 
Figure5-LocaonofSecurityLockingScrew
1. 2.
Screw
Carriage
