Shanren SR-BLC10 User manual

USER MANUAL
Raptor V1.0
2.4G Digital Wireless System

Thank you for choosing Shanren products
We focus on developing intelligent professional cycling equipment
This manual includes instructions for the installation and use of the Shanren intelligent bicycle
accessories as well as the warranty information. Please read this carefully and save it for future
reference. If you do not understand the information in this manual or you have a question about our
product that this manual does not cover, please contact us.

Contents
·Safety and general guidelines
·Accessories List
·Installation
·Screen illustrations
·Initialization/Reset
·How to use
·Specifications
·Warranty Card

General guidelines and warning
·Please read the safety instructions carefully and keep it for future reference.
·Be aware of all warnings and instruction signs marked on the products.
·In order to protect your eyes, do not look directly into any light.
·Keep out of the reach of children.
·Always keep the product away from moisture or getting wet.
·Take ample care to never drop the product.
·Always keep this product away from all kinds of heat sources.
·In order to avoid electric shock, do not use any kind of plug without it being earthed.
·Do not insert objects or pour liquid into this product through any apertures on bezels.
·Do not attempt to repair the product yourself or by any other unqualified person.
·Contact a dealer near you for service.
·Ware a helmet and reflective vest while riding. Always comply to local laws and regulations.
·As a precaution, always inform others of your intended whereabouts before setting out.
1

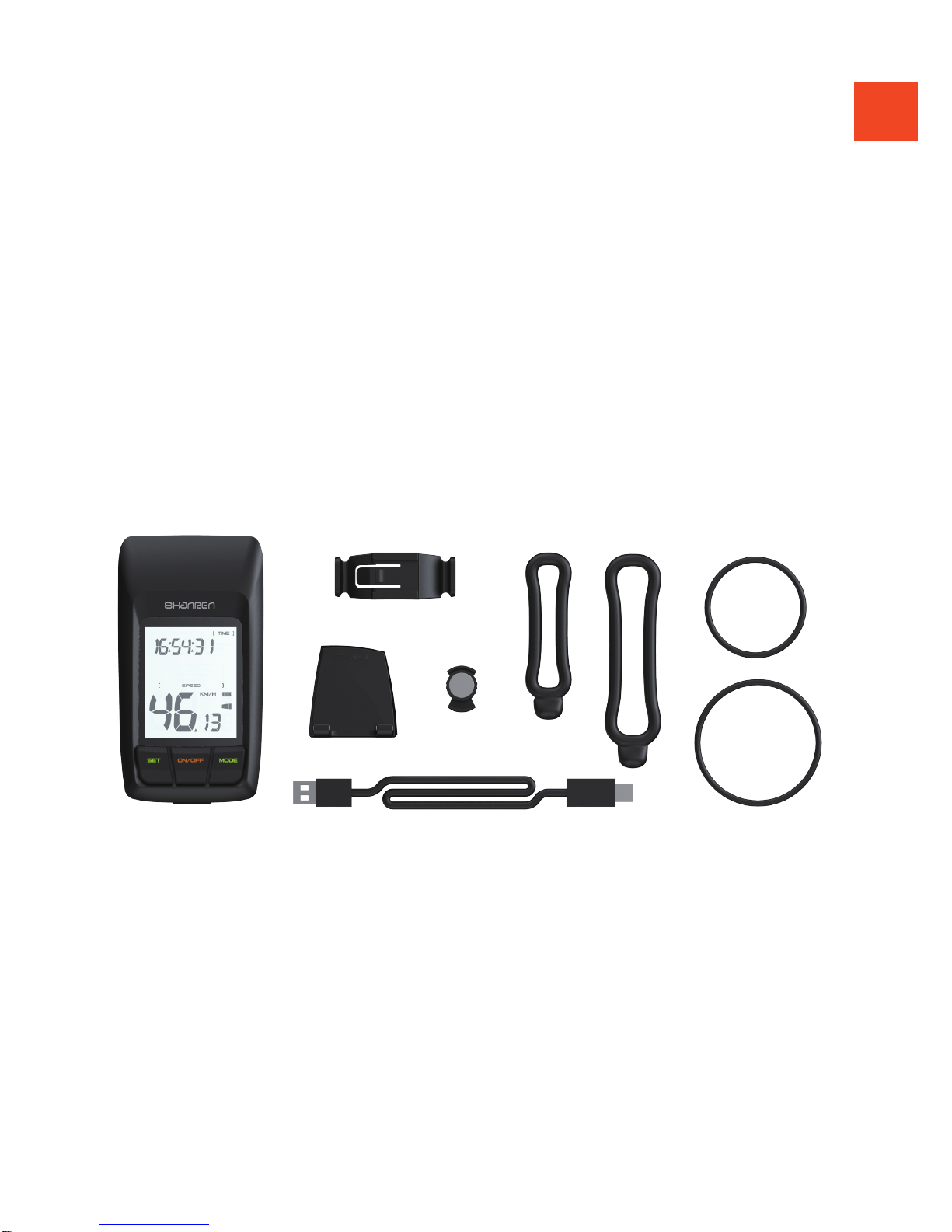

Accessories list
1. Main Unit(Raptor)
2. Bracket
3. USB Wire
4. Speed Sensor
5. Magnet
6. Sensor Rubber Ring
7. Bracket Rubber Ring
Main Unit
Bracket
Speed Sensor
Magnet
USB Wire
Bracket Rubber Ring Sensor Rubber Ring
2

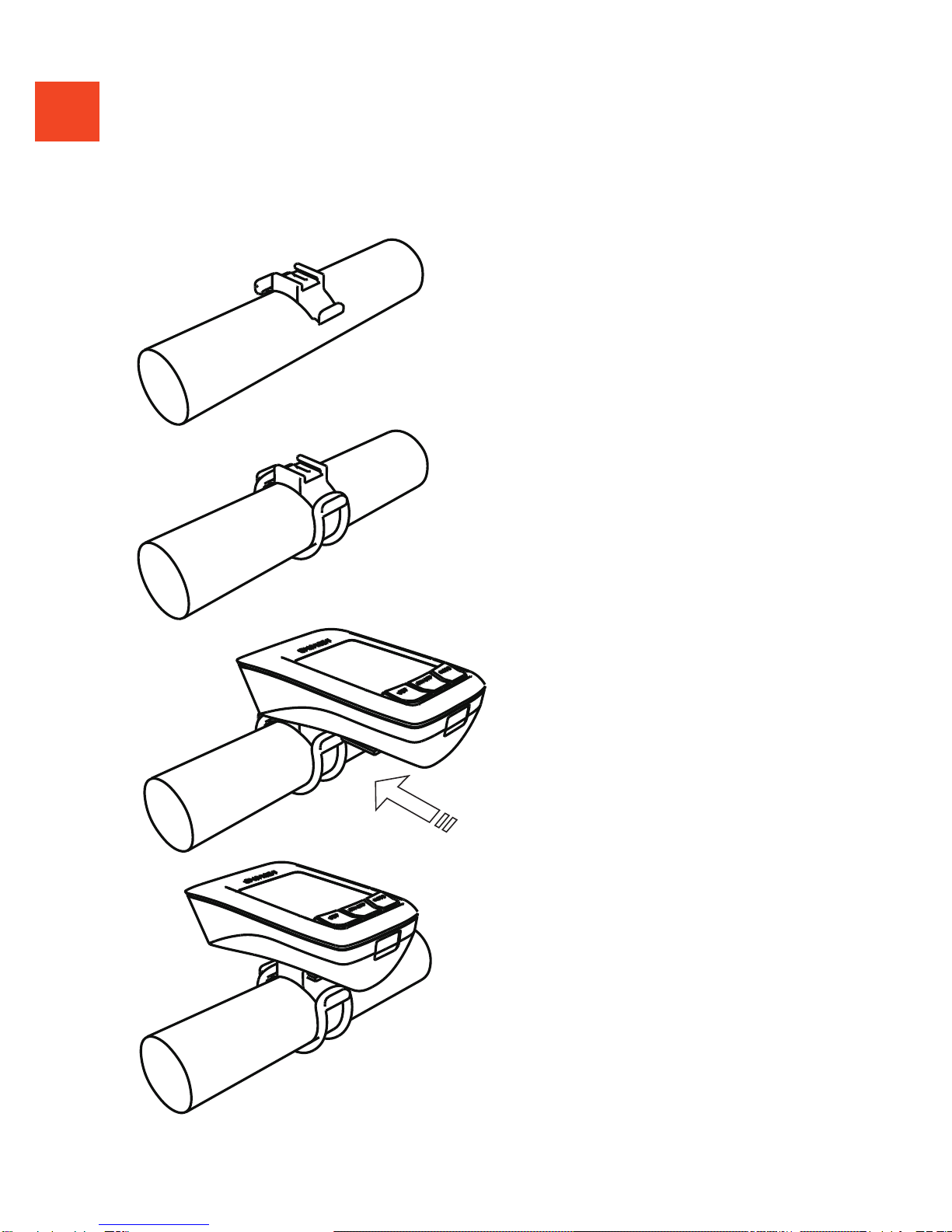

Installation
Click!
1.Position the bracket to the
handlebar on either side of the
stem
2.Fit the bracket on handlebar
with rubber ring
3.Aim the main unit toward the
base
4.Slide the main unit into the
bracket until it snaps up
3

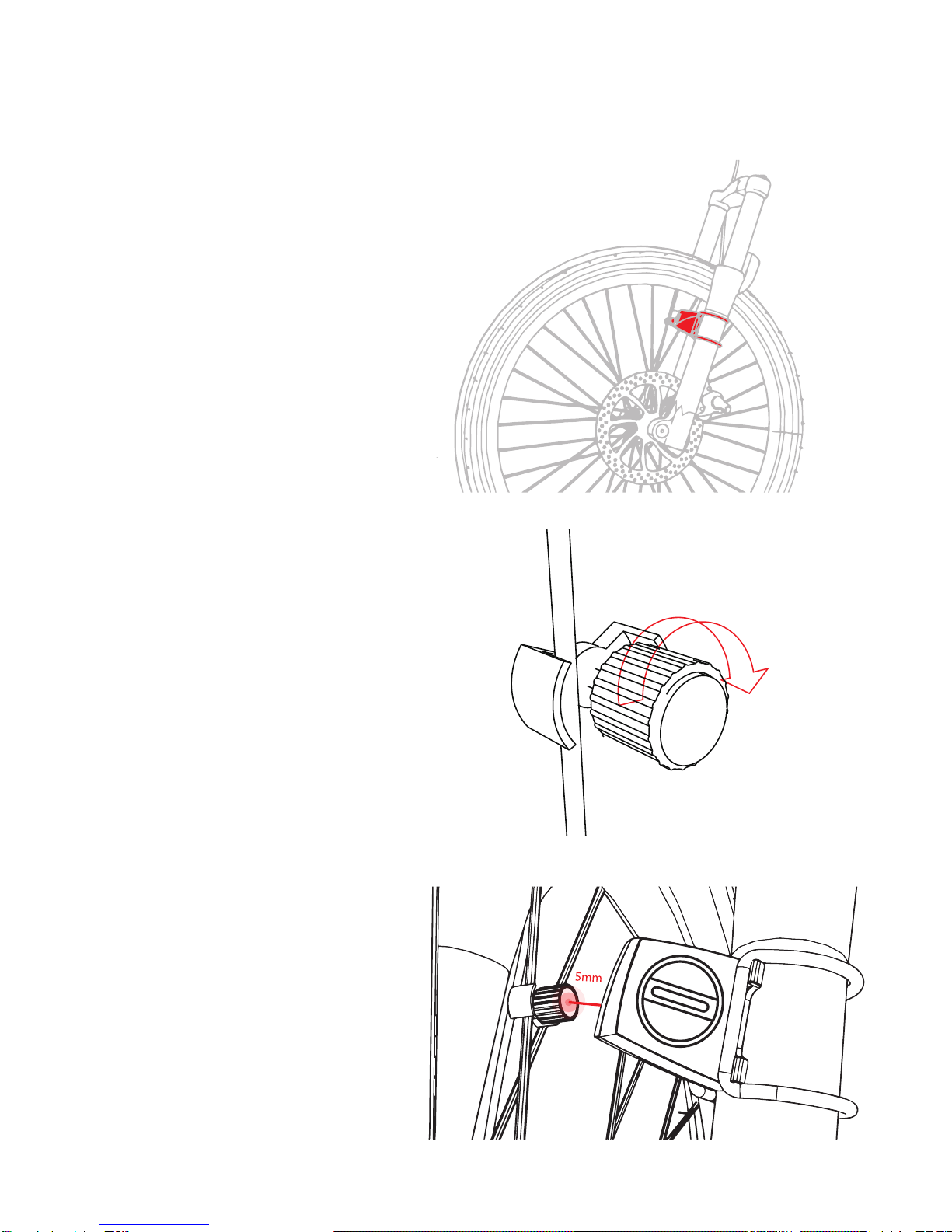

5.Mount the wheel sensor on the fork blade
6.Remove the magnet and install on the spoke, facing the
'sensor' mark.
7.Adjust the magnet until it is 3-5mm from the sensor, then
tighten it.
4

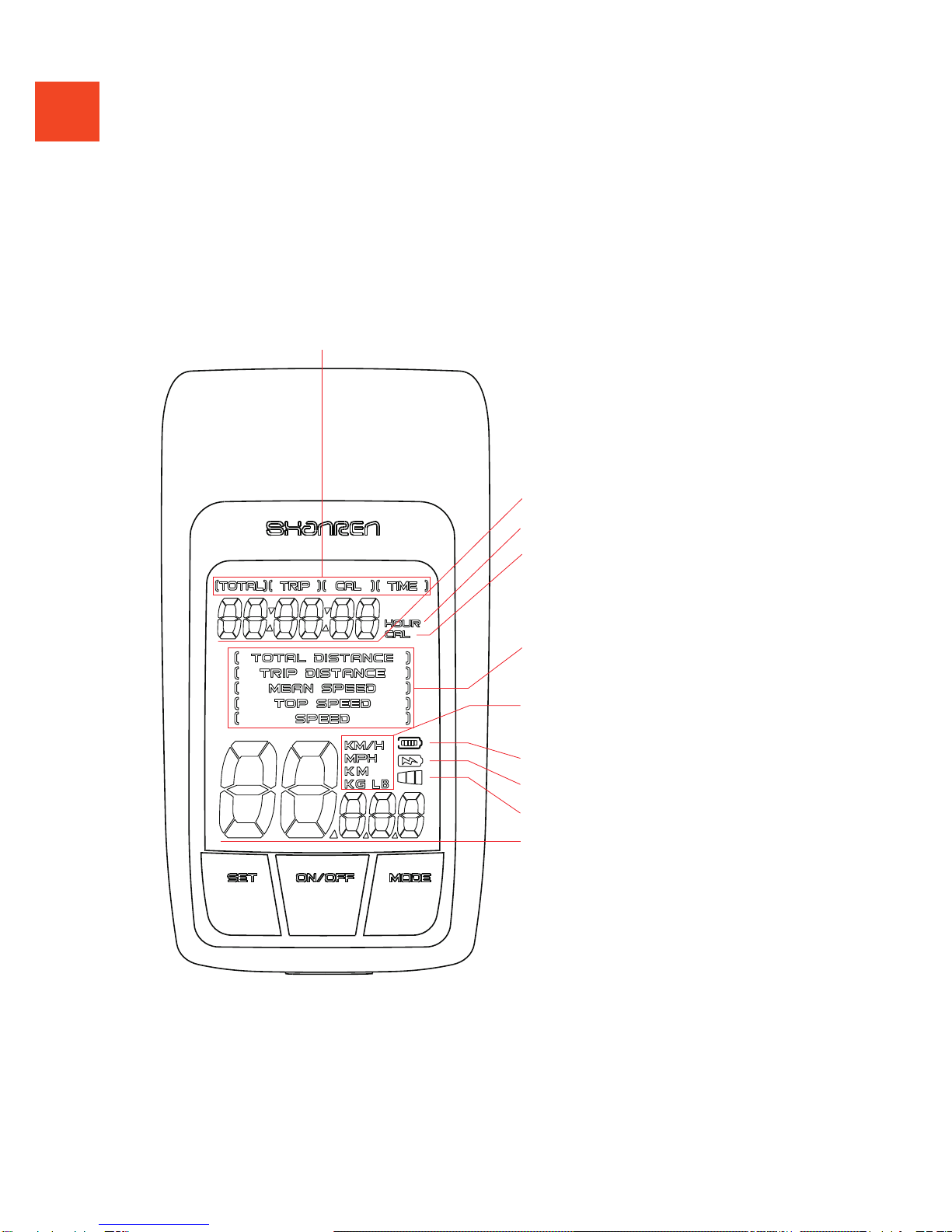

Screen illustrations
Time and calorie symbols
Speed and distance symbols
Battery power indicator
Charging indicator
Bicycle light work mode indicator
Speed and distance display
Time and calorie display
Hour
K calorie
Speed and distance unit
5

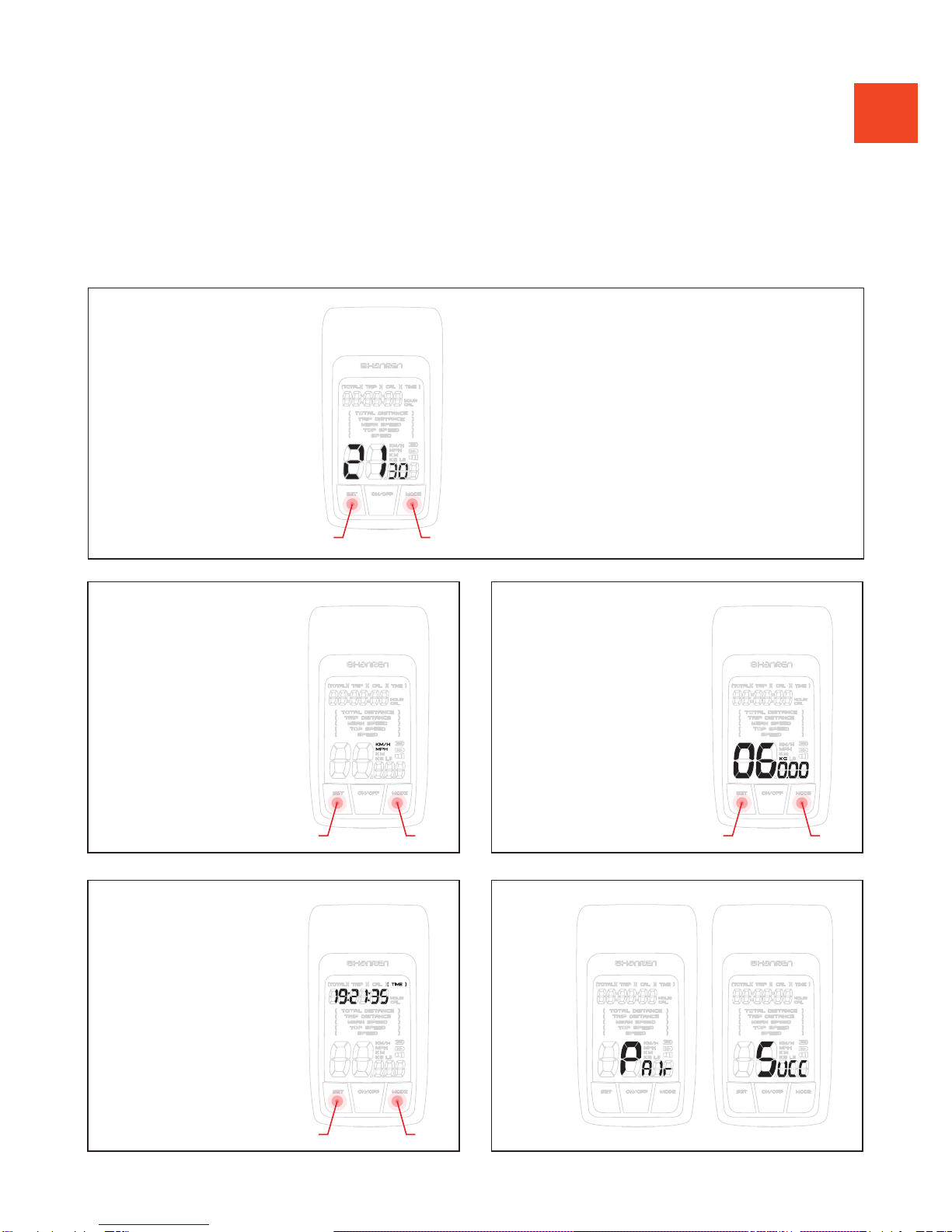

Initialization/Reset
Press and hold the “MODE” and “SET” buttons for more than 2 seconds to enter the
initial setting
（2）Select kilometers/miles:
Press SET and select KM/H or MPH;
press MODE to confirm.
（3）Set body weight:
Press SET to set weight,
press MODE to confirm.
Select Confirm Select Confirm
*Choose KM/H the body weight unit is KG,
select MPH the body weight unit is LB.
（4）Set clock:
Press SET to set the time,
press MODE to confirm.
Select Confirm
（5）Searching for speed sensor:
The sensor was synchronized with this unit before shipment, search the sensor ID
only when a sensor is used or after sensor battery (CR2032) replacement.
Press MODE button to complete setting, the main unit start to work.
The screen will display ‘Pair’ when the main unit is waiting for the speed sensor
signal.
①If it connects successfully, the screen will display ‘SUCC’and main unit will start
performing its functions
②If the connection times out, the main unit will enter the working state.
Connecting Connected
Select Confirm
（1）Set wheel circumference:
Press SET to preset values.There are 4
presets for each wheel setting, press
MODE to confirm.
6
ETRTO Tire size C(mm)
47-305 16x1.90 1272
47-406 20x1.75 1580
37-540 24x1
3/8 1948
47-507 24x1.75 1900
37-584 26x1
3/8 2086
37-590 26x1
3/8 2100
40-559 26x1.50 2030
42-559 26x1.60 2025
47-559 26x1.75 2050
50-559 26x2.00 2075
54-559 26x2.10 2100
57-559 26x2.25 2120
57-584 27
1/2 x2.25 2128
28-630 27x1
1/4 2174
32-630 27x1
1/4 2220
40-635 28x1
1/2 2265
ETRTO Tire size C(mm)
32-622 28x1.25, 700x32C 2170
35-622 28x1.35, 700x35C 2185
37-622 28x1.40, 700x35C 2200
37-622 28x1.40, 700x37C 2200
40-622 28x1.50, 700x38C 2220
42-622 28x1.60, 700x40C 2230
47-622 28x1.75 2250
50-622 29x2.00 2280
54-622 29x2.10 2295
57-622 29x2.25 2288
60-622 29x2.35 2330
23-571 650x23C 1973
18-622 700x18C 2102
20-622 700x20C 2100
23-622 700x23C 2125
25-622 700x25C 2135
28-622 700x28C 2150

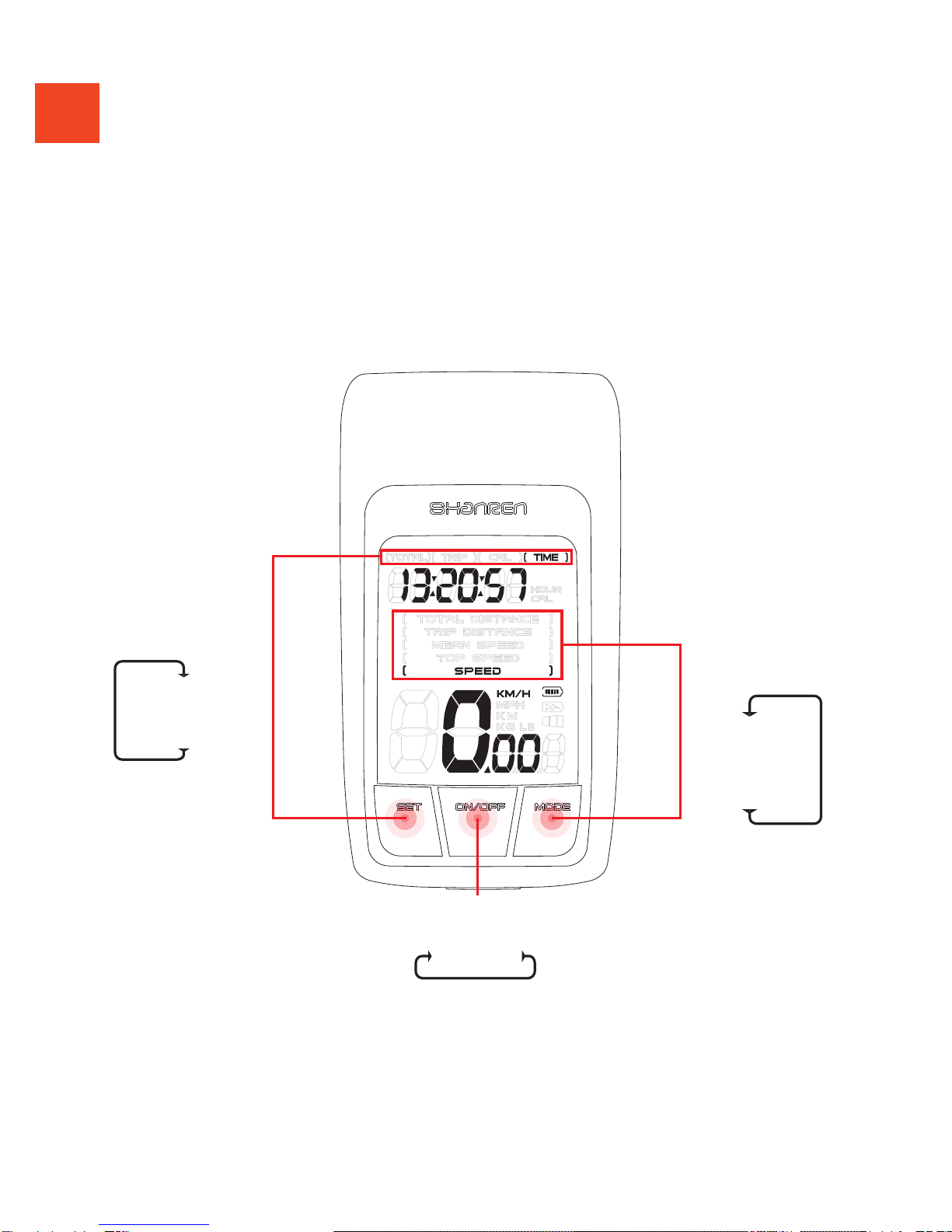

How to use
Press and hold the ON/OFF button for more than 3 second to start.
The screen flashes the following data when main unit is in motion:
（1）[SPEED] Current speed is updated on every second
（2）Five stages battery indicator.
（3）Charging indicator：Indicates when charging status
（4）Bike light work mode indicator.
（5）[TIME] Clock time is displayed as ‘hh:mm:ss’ 24 hours format.
*
1.When main unit display [TRIP], press SET button more than 2 seconds, trip riding time,trip distance and
average speed data are cleared at the same time.
2.When main unit display [CAL]，press SET button more than 2 seconds, calories data is cleared.
3.When main unit display [TRIP DISTANCE], press MODE button more than 2 seconds, trip distance data, trip
riding time, average speed are cleared at the same time.
4.When main unit display [TOP SPEED]，press MODE button more than 2 seconds, top speed data is cleared.
Press SET button switch
the measurement data Press MODE button
switch the measurement
data
Press ON/OFF button switch the
bicycle light mode
7
Clock
Trip riding time
Total riding time
Calories Speed
Top speed
Average speed
Trip distance
Total distance
High Low Off

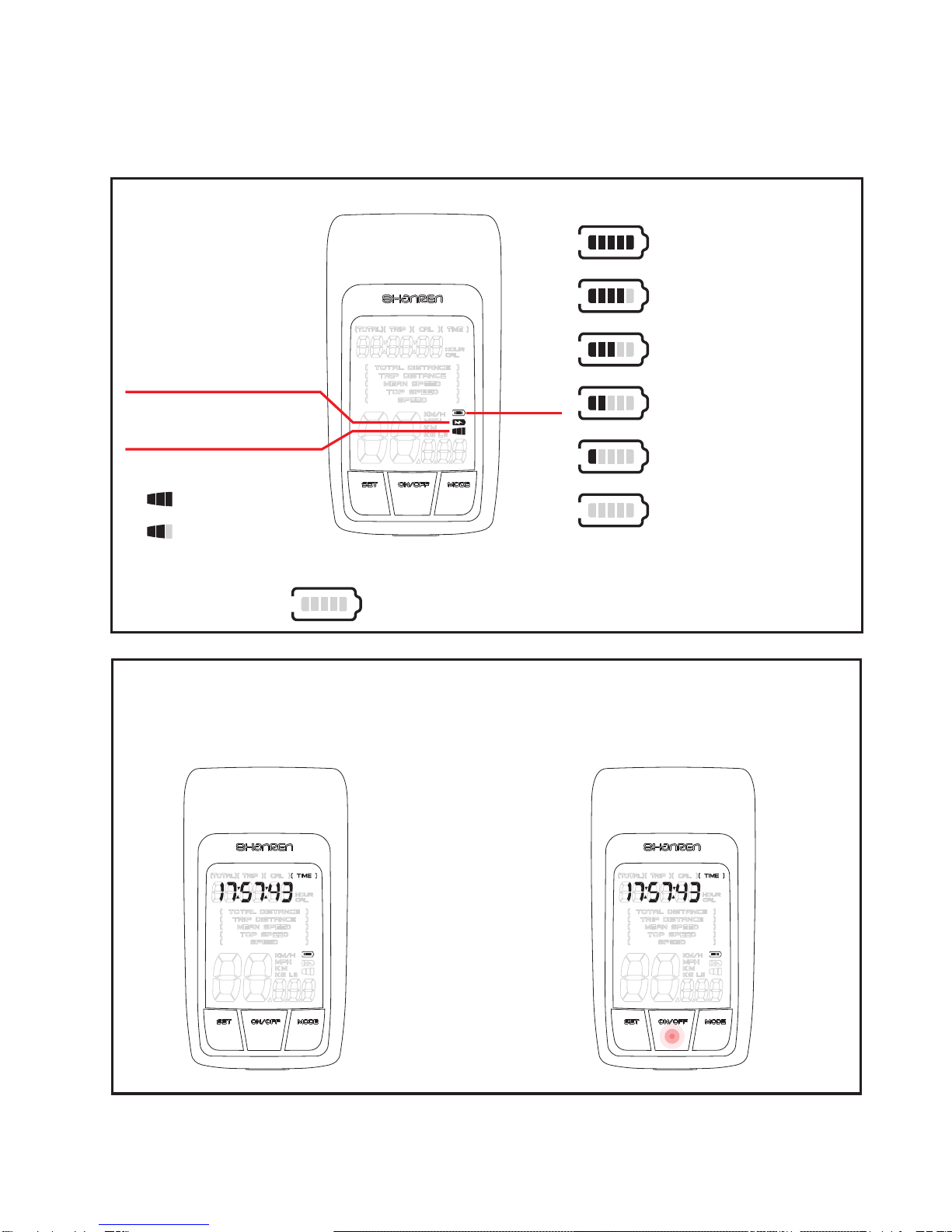

Battery status
Charging status
Main unit can be charged by 5V
1A power adapter or power bank.
Bike light work mode
Battery capacity≥90%
90%> Battery capacity≥70%
70%> Battery capacity≥50%
50%> Battery capacity≥30%
30%> Battery capacity≥10%
Battery capacity <10%
Bike light work mode / battery / charging status
High
Low
Power saving mode
Main unit will go into power saving mode ,clock and battery
status are displayed,which has not received any signal from
sensor for 240 seconds.
Press any key to restart.
Power on/off
Press ON/OFF button more than 3 seconds, main unit power
off.
If main unit power off, press ON/OFF button more than 3
seconds,main unit restart.
If battery capacity<10%, icon flashes, please recharge main unit in time.
8

Press and hold SET & MODE operation summary
(1)Press and hold SET & MODE in 2 seconds, turn on/off backlight.
(2)Press and hold SET & MODE more than 2 seconds,main unit enter initialization mode.
(3)Special note:Press and hold SET & MODE more than 8 seconds, system reset, main unit restore factory settings.
Auto data store
Raptor saves setting and riding data automatically,data will not be lost even when battery power is lost.
Auto lighting output decrease
If battery capacity less than 10%, light output decreases automatically ,avoid danger of riding in darkness cause by light off
suddenly.
9

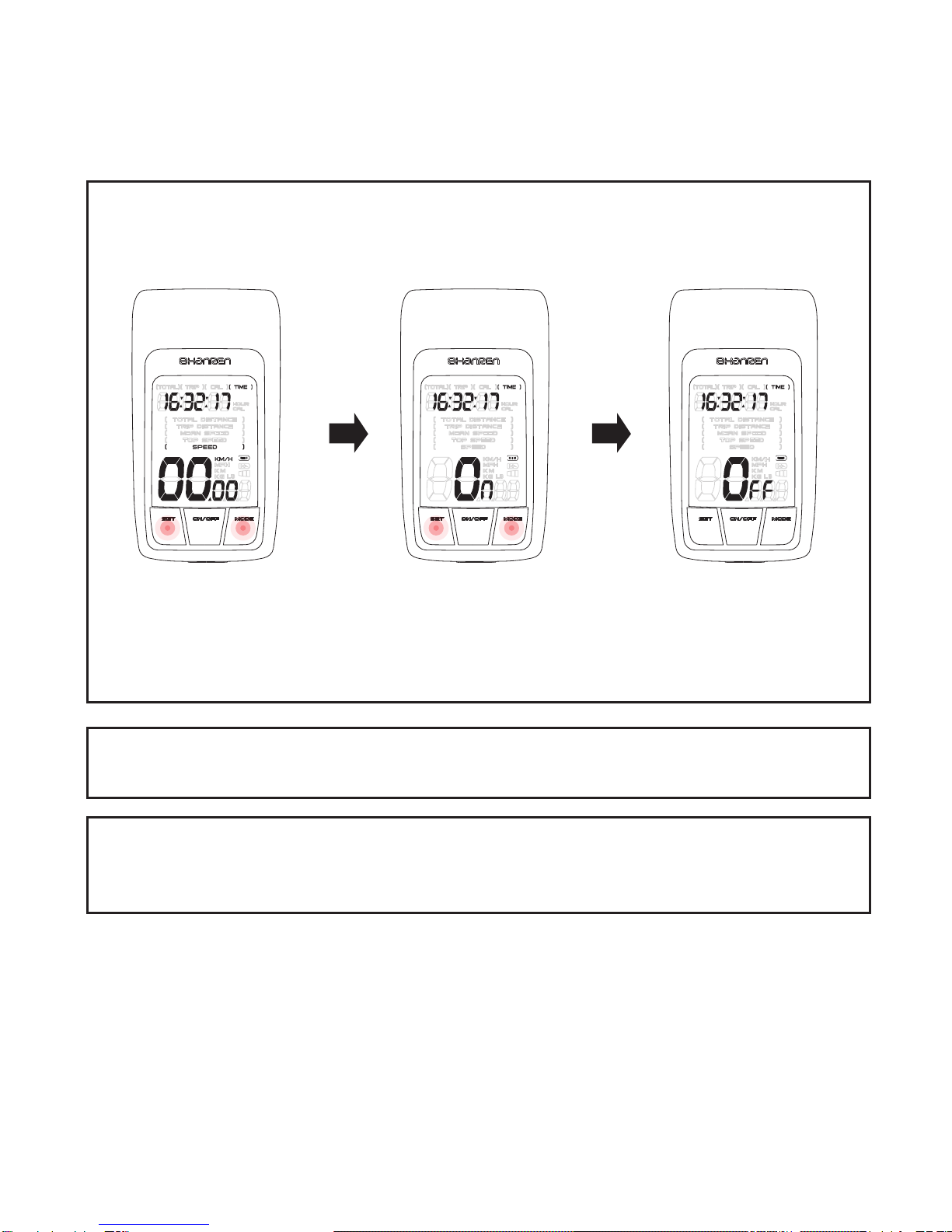

Press and hold SET & MODE in 2 seconds LCD screen display ‘ON’
and backlight turns on constantly
Press and hold SET & MODE in 2 seconds
LCD screen display ‘OFF’
and backlight turns off

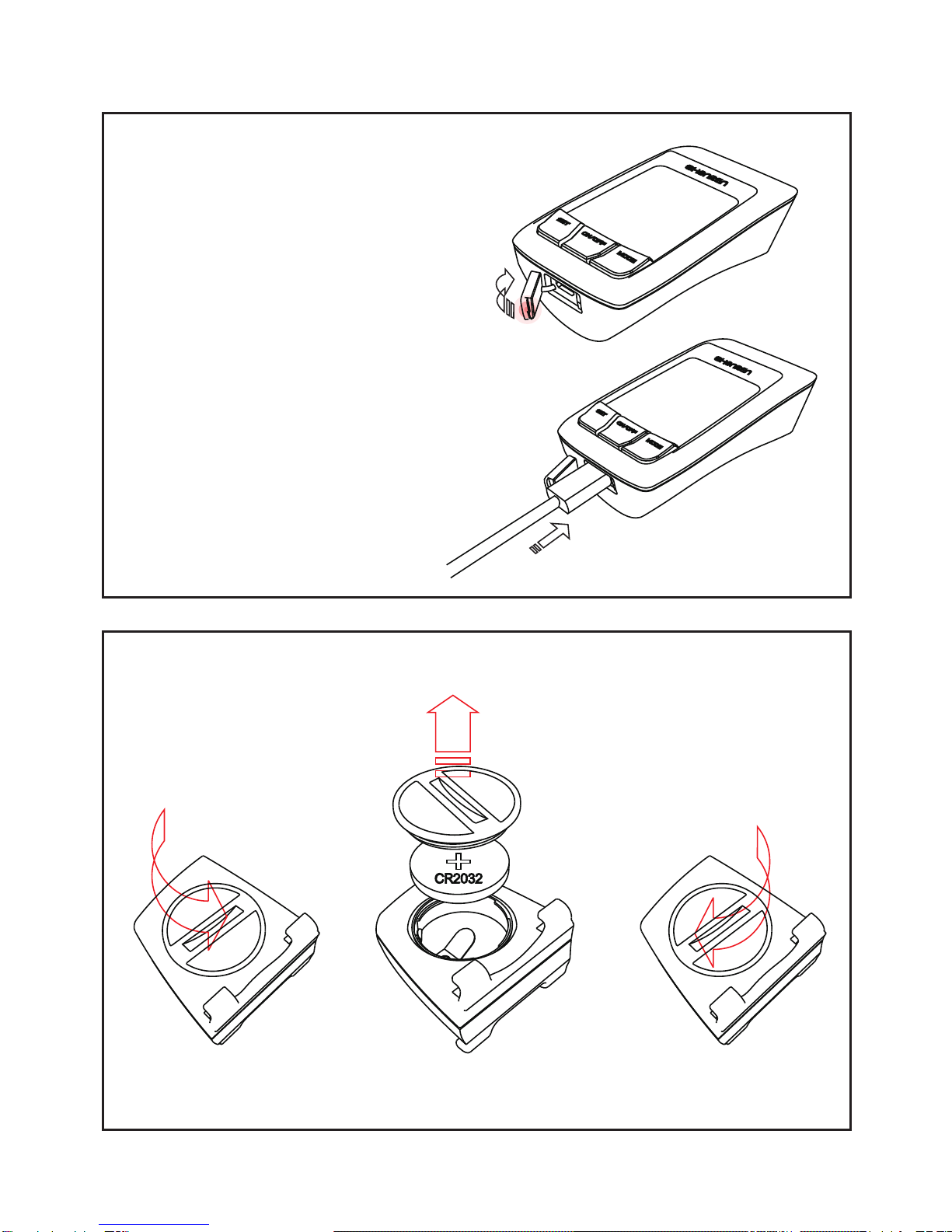

Main unit charging
Sensor battery replacement
1.Open micro USB rubber pad.
2.Connect main unit to 5V/1A power
adapter or power bank with USB wire.
10
1.Open the battery case cover
anticlockwise.
2.Replace a new lithium
battery(CR2032) with (+) side facing
upward.
3.Tighten the battery case cover
clockwise.

Specifications
·Model Number: SR-BLC10
·Light source: Cree white LED*2
·Light output: 300lm
·Rechargeable Li-ion Battery: 2600mAh
·Work mode: High - Low - Off
·Bike light running time: 3 / 6 Hours
·Recharge time: about 4 Hours
·Current/Average/Maximum speed:0.00~99.99 km/h (0.00-62.13m/h)
·Trip/Total distance: 0.00~99999 km (0.00-62139m)
·Clock: 00:00:00~23:59:59 （24-hour system）
·Trip riding time: 00:00’~9999:59’
·Total riding time: 0~999999 Hours
·Calories: 0~999999 kcal
·Tire size: 100mm~3999mm (default 2095mm)
·Sensor battery: Lithium battery CR2032 x 1(Working time: About 12 months,if used
for 1 hour/day)
·Charging Interface: Micro USB
·Working temperature: 0℃~40℃（32°F~104°F）
·Backlight: Supported
·Bike computer with 2.4G wireless sensor
·Weight: 120g
11

Warranty Card
Limited warranty 1 Year main unit and speed sensor.
Accessories and battery consumption excluded.
Each product unit is warranted to be free of factory defects for 1 Year from original
purchase.If the product fails to work through normal usage, we will repair or replace
the defect at no charge. Service must be performed by an authorized Shanren
dealer or an authorized Shanren retailer. To return the product, enclose its warranty
card together with details about its dysfunction.Please type your name and address
clearly on the warranty card.
Insurance and transportation charges shall be borne by the party requesting service.
Thanks for understanding!
User name:
Address:
Telephone:
Purchasing address:
Retail price:
Odd numbers:
Commodity name and specification:
Dealer name:
Purchasing date:
12
