ShareVgo SXB1000 User manual
FCC ID:2AR8P-HONGYUAN203
Last Modified: Dec 1, 2018
Owner’s Manual
Smart Folding Exercise Bike with
Backrest and Pulse
Model: SXB1000
Item# M1B1
Email: [email protected]
M1B1 ShareVgo Smart Folding Exercise Bike
2
Before You Begin
Welcome to the ShareVgo community. Before beginning assembly, take a few
moments to familiarize yourself with important information on how to use our
ShareVgo Smart Folding Exercise Bike safely so that you and your loved ones
do not get hurt. Let’s review the safety notes and warnings now. If you have
any questions, please contact support@sharevgo.com
Safety Instructions
CAUTION
WARNING
WARNING
To reduce the risk of serious injury, read carefully the following
Safety Instructions before using this product.
Consult your physician before starting an exercise program or
using the exercise equipment.
Maximum weight capacity is 250 pounds.
1. Consult your physician before using. Stop immediately and consult your physician if you
feel faint, dizzy, or experience pain during exercise.
2. Carefully read all warnings and cautions before using this equipment.
3. We recommend two people be available to assemble this product.
4. Do not let children under the age of 12 use this product without proper adult supervision.
5. Keep children, your fingers, body parts, and pets away while in use.
6. Set up and operate this product on a solid and level surface with a mat beneath it.
7. Make sure that adequate space is available for access to and around it.
8. Before using, inspect this product for worn or loose components, and securely tighten or
replace any worn or loose components prior to use.
9. Do not wear loose or dangling clothing while using this product.
10. Always wear correct footwear and never exercise in bare feet or socks.
11. This equipment should not be used by persons weighing over 250 pounds.
12. Used by only one person at a time.
13. This equipment is for indoor, household and non-commercial use only.
M1B1 ShareVgo Smart Folding Exercise Bike
3
Caution: The user is cautioned that changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this
device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should
be installed and operated with a minimum distance of 20cm between the radiator and your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
User manual warning statement
M1B1 ShareVgo Smart Folding Exercise Bike
4
Part Drawing
M1B1 ShareVgo Smart Folding Exercise Bike
5
Part List
NO. Description Qty NO. Description Qty
1 Monitor 1 36 FoamGripΦ23*5*450 2
2 UniversalTabletHolderPost 1 37 Washerd8*Φ16*1.5 11
3 FoamGripΦ23*5*350 2 38 RearHandlebar 1
4 FrontArmrest 1 39 BushingF38*38*F30*30*L96 1
5 HandlePulseSensor 2 40 NutM8*Φ60*30 1
6 HandlePulseJack 1 41 Washerd8*Φ20*2 1
7 ScrewST4*19*Φ7 2 42 SaddleTrench 1
8 Washerd6*Φ12*1 2 43 NutM8*H7.5*S13 5
9 EndCapΦ25*16 4 44 SaddleBaseTube 1
10 BoltM8*40*20*S6 2 45 BoltM8*55*20*S6 1
11 ArcWasherd8*Φ20*2*R16 2 46 PinΦ8*52*59 1
12 Monitor/TabletPlate 1 47 Saddle 1
13 ScrewM5*12*Φ10 2 48 BackrestPad 1
14 RearMainFrame 1 49 EndCapJ40*20*17 3
15 BoltM5*16 1 50 BackrestPost 1
16 Washerd5 1 51 BoltM8*30*S6 4
17 SensorWire 1 52 Sensor 1
18 TensionKnob 1 53 PlugΦ12*11*Φ3 2
19 BoltM8*35*18*S6 1 54 WrenchS13‐14‐15 1
20 TabletHolder 1 55 WrenchS6 1
21 BoltM8*16*S6 2 56 EndCap 2
22 Washerd8*Φ25*2 2 57 BoltM8*10*S6 2
23 Spindle 1 58L/R ShroudL/R 2
24 BushingΦ28*3*Φ21.8*7*Φ17 6 59 FrontShroud 1
25 FrontMainFrame 1 60L/R CrankL/R 2
26 LimitMat 1 61 PlugforCrank 2
27 KnobM16*1.5*22*Φ37 1 62 Water Bottle Holder 1
28L/R PedalL/R 2 63 BoltM5*10 2
29 EndCap 2 51 BoltM8*30*S6 4
30A FrontBaseTubes 2 52 Sensor 1
30B RearBaseTubes 2
31 ArcWasherd8*Φ20*2*R30 4
32 NutM8*H16*S13 6
33 SquareBoltM8*50*20*H5 4
34 SquareBoltM8*45*20*H5 2
35 HandlebarSupportPlate 1
M1B1 ShareVgo Smart Folding Exercise Bike
6

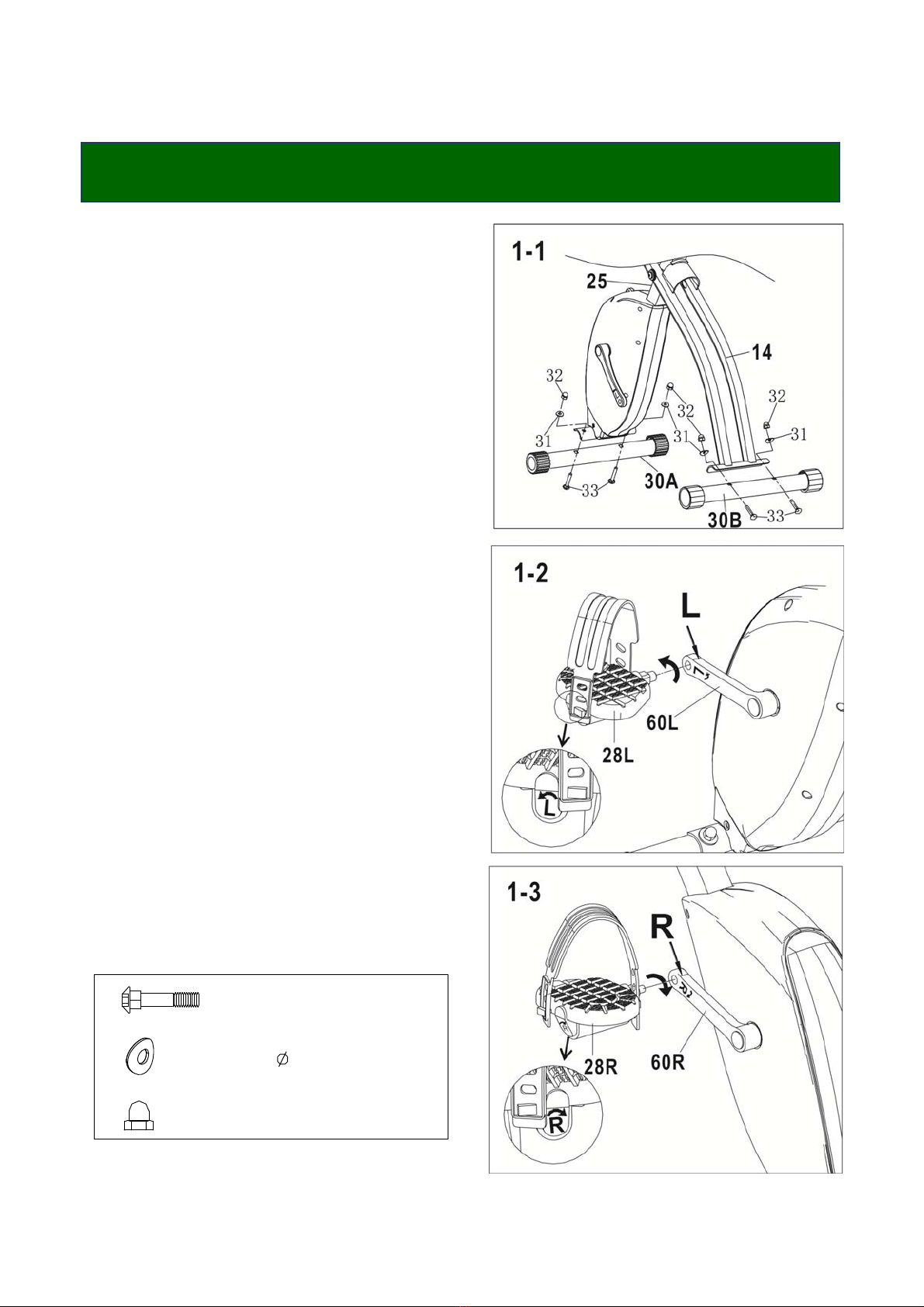

Step 1 - Base Tubes and Pedals Assembly
1-1: Attach the Front Base Tube (30A)
to the Front Main Frame (25) and secure
it by using 2 Square Bolts (33), 2 Arc
Washers (31), and 2 Nuts (32).
Attach the Rear Base Tube (30B) to the
Rear Main Frame (14) and secure it by
using 2 Square Bolts (33), 2 Arc Washers
(31), and 2 Nuts (32).
NOTE:
Match pedals & cranks with L or
R as marked. The crank’s thread will be
damaged if the pedal is incorrectly
attached or incorrectly turned.
1-2: Attach the Left Pedal (28L) to the
Left Crank (60L) with
counter
clockwise
turns. Use the Wrench (54)
to tighten the pedal into place.
1-3: Attach the Right Pedal (28R) to the
Right Crank (60R) with
clockwise
turns
and tighten it with the Wrench (54).
TIGHTEN ALL NUTS, BOLTS, AND
SCREWS AT THIS TIME.
#33 M8x50x20xH5 4PCS
#32 M8xH16xS13 4PCS
#31 d8x 20x2xR30 4PCS
M1B1 ShareVgo Smart Folding Exercise Bike
7
Step 2 – Handlebar and Saddle Assembly
Facing
Up
10
4
11
12
14
2-1 5
44
41
40
42
2-2
43
37
47
2-3
44
41
40
42
2-5
47
2-1: Attach the Front Handlebar (4) with the
Handle Pulse Sensors (5) facing
up, and
at the
same time, attach the Monitor/Tablet Plate (12) to
the Main Frame (14) using 2 Bolts (10) and 2 Arc
Washers (11).
2-2: Detach the Saddle Base Tube (44) from the
Saddle Trench (42) by unscrewing and releasing
the Knob (40). NOTE: DO NOT lose Washer (41).
2-3: Remove the pre-installed 3 Nuts (43) and 3
Washers (37) from the Saddle (47).
2-4: Attach the Saddle (47) to the Saddle Base
Tube (44) with 3 Nuts (43) and 3 Washers (37).
2-5: Re-attach the Saddle (47) and the Saddle
Base Tube (44) to the Saddle Trench (42) by
tightening the Knob (40) with the Washer (41).
TIGHTEN ALL NUTS, BOLTS, AND SCREWS AT
THIS TIME.
#10 M8x40x20xS6 2PCS
#11 d8x 20x2xR16 2PCS
#43 M8xH7.5xS13 3PCS
#37 d8x 16x1.5 3PCS
43
37
47
2-4
44
M1B1 ShareVgo Smart Folding Exercise Bike
8

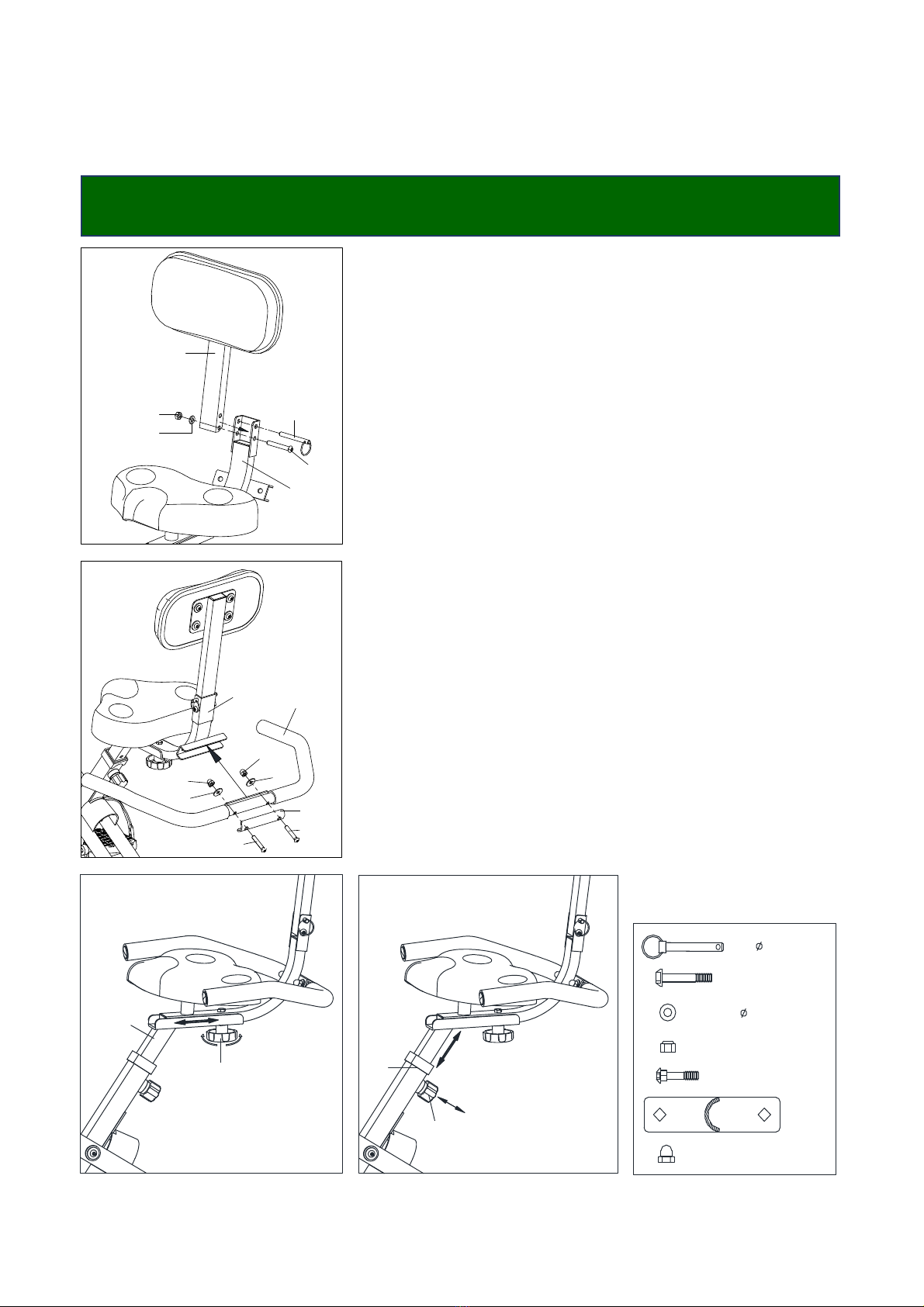

Step 3 – Backrest and Rear Handlebar Assembly
50
43
37
46
44
45
3-1
#35 1PC
#46 8x52x59 1PC
#34 M8x45x20xH5 2PCS
#45 M8x55x20xS6 1PC
#43 M8xH7.5xS13 1PC
#37 d8x 16x1.5 3PCS
#32 M8xH16xS13 2PCS
44 38
37
32
37
32
35
34
3-2
34
42
40
3-3
27
25
3-4
3-1: Attach the Backrest Post (50) to the Saddle
Base Tube (44) and secure it at the
lower hole
using Bolt (45), Washer (37), and Nut (43). Insert
Pin (46) into the
upper hole
.
3-2: Attach the Rear Handlebar (38) and the
Handlebar Support Plate (35) to the Saddle Base
Tube (44) using 2 Square Bolts (34), 2 Washers
(37), and 2 Nuts (32).
3-3: To adjust the saddle
horizontally
, unscrew
the Knob (40) and move the saddle
forwards
and backwards
. Once at desired position,
be
sure
the
Knob (40) is fully tightened.
3-4: To adjust the saddle
vertically
, unscrew
and pull the Knob (27) and move the Saddle
up
and down.
Be sure
Knob (27) locks securely
into a hole before use.
TIGHTEN ALL NUTS, BOLTS, AND SCREWS
AT THIS TIME.
M1B1 ShareVgo Smart Folding Exercise Bike
9
Step 4 – Monitor
1
4-1
13
1
4-2
4-1: Open the cover at the back of Monitor (1), install
the 2 AAA batteries into the slot and then close the
cover.
4-2: Remove the 2 pre-installed Screws (13) from the
back of the Monitor (1).
4-3: Attach the Monitor (1) to the
front
of the
Monitor Plate (12) using 2 Screws (13).
4-4: Connect the Sensor Wire (17) to the Monitor
Sensor Wire (1a) and make sure it is properly
connected. Plug the Handle Pulse Jack (6) into the
Pulse Port at the back of Monitor (1).
TIGHTEN ALL NUTS, BOLTS, AND SCREWS AT
THIS TIME.
M1B1 ShareVgo Smart Folding Exercise Bike
10

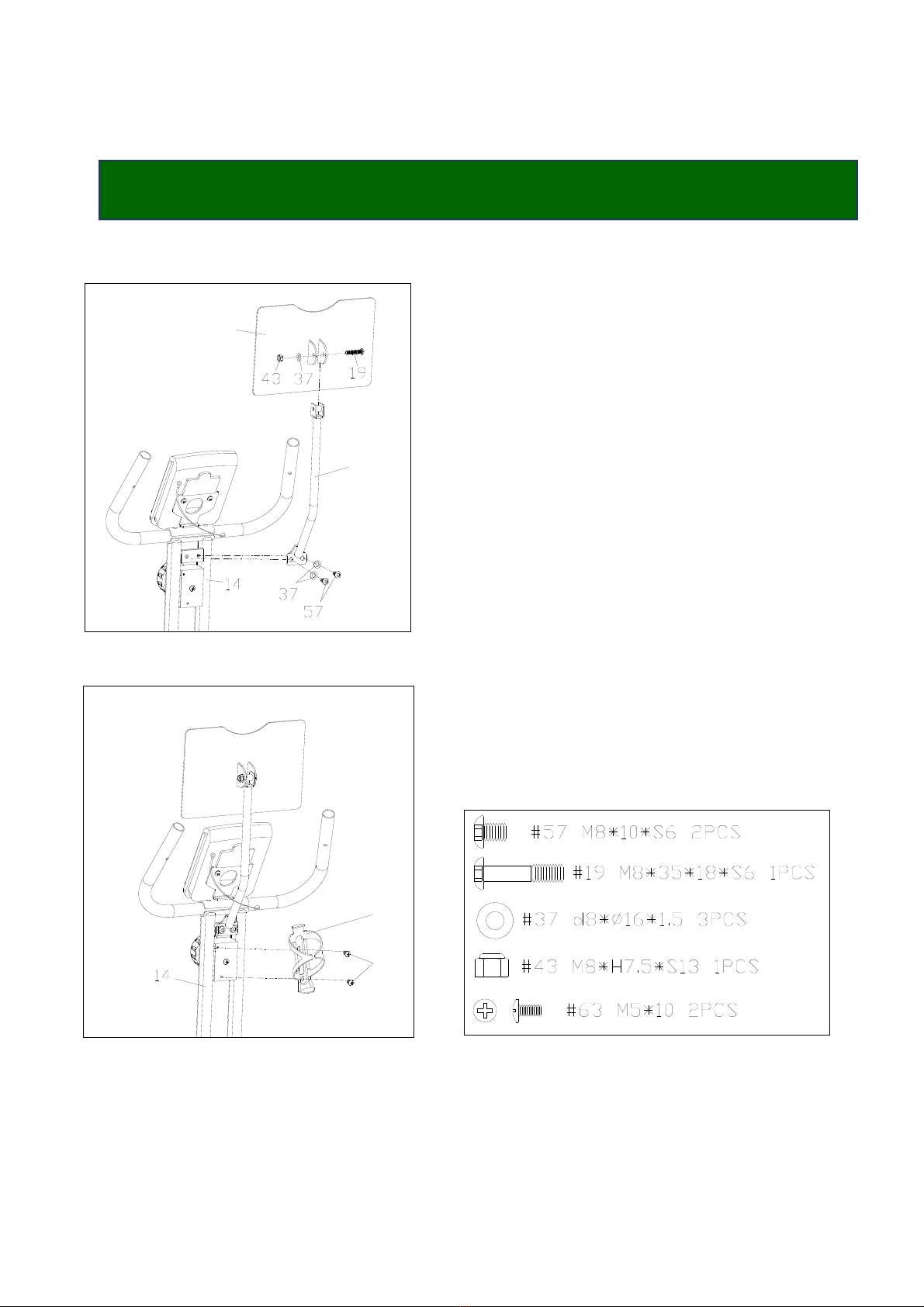

Step 5 – Tablet Holder Assembly & 水壶架
2
20
5-1
62
63
5-2
5-1:
Attach the Tablet Holder (20) to Tablet
Holder Post (2) using Bolt (19), Washer
(37), and Nut (43).
Then, attach the Post (2) to Main Frame
(14) using 2 Bolts (57) and 2 Washers
(37).
.
5-2: Attach the Water Bottle Holder (62)
to the Main Frame (14) using 2 Bolts (63).
NOTE: The Water Bottle Holder is designed
to be installed at the left side of the back
of Tension knob with an angle of about 15
degree for easy accessibility.
TIGHTEN ALL NUTS, BOLTS, AND
SCREWS AT THIS TIME.
M1B1 ShareVgo Smart Folding Exercise Bike
11
Monitor Operation & Function
MODE button:
1. Press to select functions.
2. Press and hold 3-5 seconds to reset time, distance, calorie values to zero.
Operations:
1. SCAN: Press MODE until ‘SCAN’ appears. The monitor will rotate through all 6 functions: Time,
Speed, Distance, Calorie, Odometer, and Pulse. Each function will be displayed for 5 seconds.
2. TIME: Displays the total amount of time exercised.
3. SPEED: Displays the current speed.
4. DIST: Displays the total distance traveled.
5. PULSE: Displays your current pulse. Your hands must be placed on the metal contact pads for
6-7 seconds or the machine will not be able to accurately read your pulse. The monitor will
display pulse in beats per minute (BPM).
NOTE: In the first 2-3 seconds, the monitor may display a higher pulse than your actual pulse.
Once your hands are settled, the machine will display your actual pulse. The measurement should
not be treated as the basis for medical purposes.
Note:
1. If the display is faint or will not display properly, replace the batteries.
2. The monitor will automatically shut off if it does not receive signal after 4 minutes.
3. The monitor will turn on when you begin using the exercise bike or by press the MODE button.
4. The monitor will begin calculating when you begin exercising and will stop calculating when you
stop exercising for four seconds.
Specifications:
FUNCTION
SCAN 5 seconds per display
TIME 00:00’~99:59’
SPEED The maximum signal it can pick up is 999.9 Mile/H
DISTANCE 0.0~9999 Mile
PULSE 40~240 BPM
BATTERY TYPE 2pcs of SIZE – AAA
OPERATING TEMPERATURE 0°C ~ +40°C
STORAGE TEMPERATURE -10°C ~ +60°C
M1B1 ShareVgo Smart Folding Exercise Bike
12
Connecting to Mobile Device
STEP 1 - Get it assembled
Make sure your equipment is assembled properly, batteries are
installed, and the monitor is ON.
STEP 2 - Get the app
Download the ShareVgo Fitness app from Google Play or the
App StoreTM on a compatible phone or tablet.
STEP 3 - Set up
Follow the on-screen steps to register your equipment and sign-up
an account.
STEP 4 - Congratulations!
You are all set! Let’s start exercise and enjoy healthier life.
To learn more, visit www.sharevgo.com/faq
Apple and the Apple logo are trademark of Apple Inc., registered in the U.S. and
other countries. App Store is a service mark of Apple Inc., registered in the U.S. and
other countries.
M1B1 ShareVgo Smart Folding Exercise Bike
13
R Connecting to Mobile Device
FCC Warning
Changes or modifications not expressly approved by the party responsible for compliance could
void the user’s authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of
the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV technician for help. This device meets the
FCC and IC requirements for RF exposure in public or uncontrolled environments.

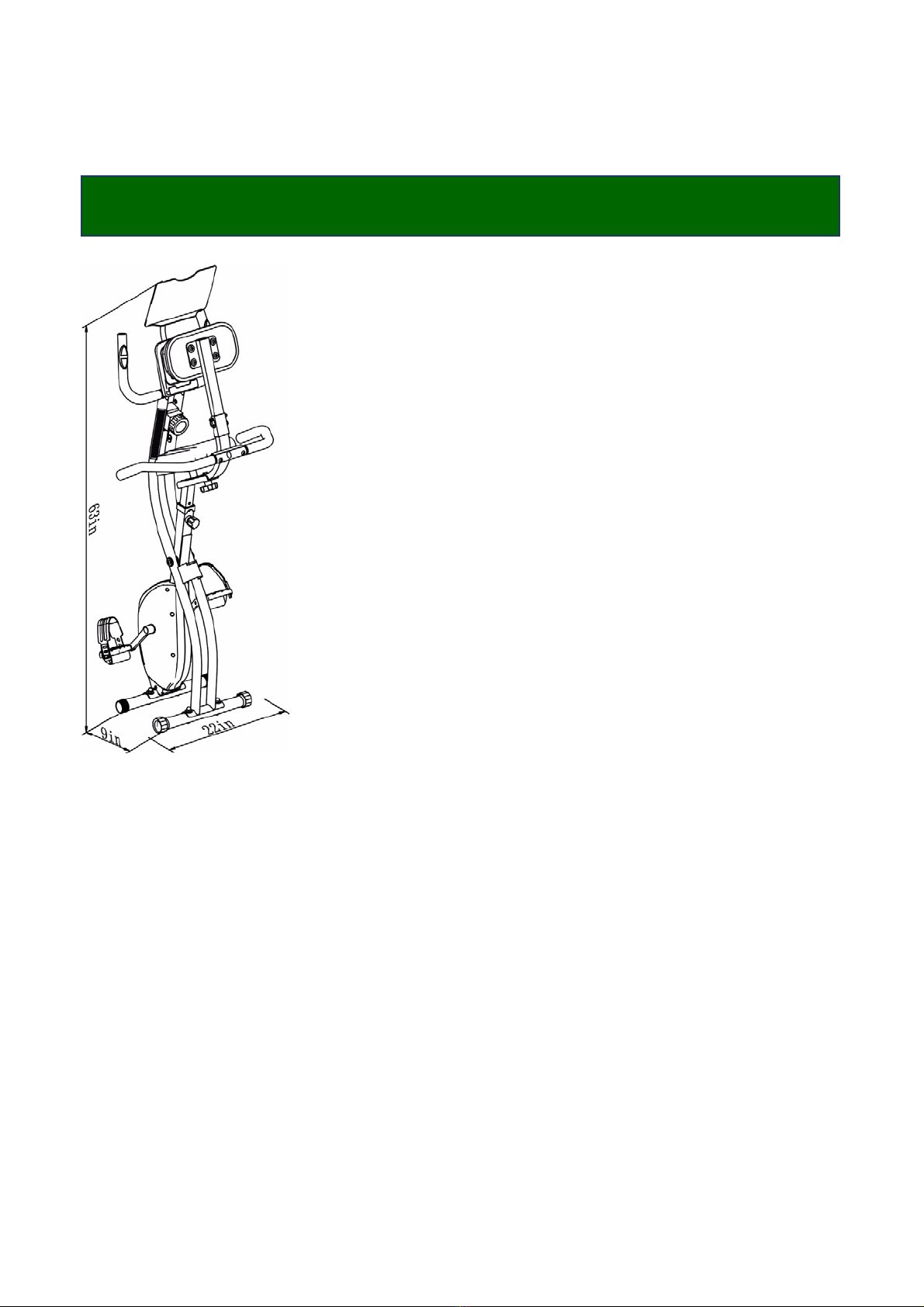

28in
22in
55in
M1B1 ShareVgo Smart Folding Exercise Bike
14
Maintenance and Storage
M1B1 ShareVgo Smart Folding Exercise Bike
15
Inspect all parts and make sure all nuts, bolts, and screws are completely
tightened before each use. To clean, wipe this equipment with a damp cloth.
DO NOT use abrasive cleaners or solvents.
Store your equipment at a stable position, in clean and dry environment away
from children.
M1B1 ShareVgo Smart Folding Exercise Bike
16
Product Warranty
90-day Limited Warranty
ShareVgo, LLC. warrants that this product will be free from defects in materials and
workmanship for a period of 90 days from date of purchase when purchase of the product
is from an authorized retailer and is used for the purpose intended, under the conditions
that it has been installed and operated in according to ShareVgo’s Owner’s Manual.
ShareVgo’s obligation under this warranty is limited to replacing free of charge, any parts
which may prove to be defective under normal household and personal use. This warranty
does not include any damage cause by improper operation, misuse or commercial
application. This warranty applies only to the original purchaser and is not transferable.
Proof of purchase is required.
YOU EXPRESSLY UNDERSTAND AND AGREE THAT, TO THE MAXIMUM EXTENT PERMITTED
BY APPLICABLE LAW, SHAREVGO SHALL NOT BE LIABLE TO YOU UNDER ANY THEORY OF
LIABILITY (WHETHER CONTRACT, TORT (INCLUDING NEGLIGENCE), BREACH OR FAILURE
OF ANY WARRANTY OR OTHERWISE) FOR ANY INDIRECT, INCIDENTAL, SPECIAL,
CONSEQUENTIAL OR EXEMPLARY DAMAGES THAT MAY BE INCURRED BY YOU IN
CONNECTION WITH YOUR ShareVgo Smart Exercise Bike OR THESE TERMS, INCLUDING
ANY LOSS OF DATA, WHETHER OR NOT SHAREVGO OR ITS REPRESENTATIVES HAVE
BEEN ADVISED OF OR SHOULD HAVE BEEN AWARE OF THE POSSIBILITY OF ANY SUCH
LOSSES ARISING. YOU EXPRESSLY UNDERSTAND AND AGREE THAT, TO THE MAXIMUM
EXTENT PERMITTED BY APPLICABLE LAW, THE SHAREVGO’S TOTAL LIABILITY IN
CONNECTION WITH YOUR SMART EXERCISE EQUIPMENT OR THIS LIMITED WARRANTY
WILL NOT EXCEED THE AMOUNT YOU ACTUALLY PAID SHAREVGO FOR YOUR EQUIPMENT
Some states, provinces or territories do not allow the exclusion or limitation of incidental or
consequential damages, so the above limitation or exclusion may not apply to you.
This warranty gives you specific legal rights, and you may also have other rights that vary from
jurisdiction to jurisdiction.
Customer Service
To request product service and order replacement parts, please have the following
information ready and email to [email protected]:
1. Your name
2. Receipt of purchase
3. Model number
4. Description of part
5. Part number
© Copyrighted 2018 ShareVgo, LLC
Table of contents
Popular Exercise Bike manuals by other brands
Sunny Health & Fitness
Sunny Health & Fitness SF-RB422903 user manual
Crivit
Crivit 355244 2004 operating instructions
Trojan
Trojan ERGO 510 Assembly, care and instructions manual
Impex
Impex MARCY PL-960 owner's manual
Stamina
Stamina FUSION 7200 owner's manual
Horizon Fitness
Horizon Fitness RC-30 user guide
