Weslo Pro 11.0x Bike User manual

USERʼS MANUAL
CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Keep this manual
for future reference.
www.weslo.com
Model No. WLEX31810.0
Serial No.
Write the serial number in the
space above for reference.
Serial
Number
Decal
QUESTIONS?
If you have questions, or if parts are
damaged or missing, DO NOT
CONTACT THE STORE; please
contact Customer Care.
IMPORTANT: Please register this
product (see the limited warranty
on the back cover of this manual)
before contacting Customer Care.
CALL TOLL-FREE:
1-866-699-3756
Mon.–Fri., 6 a.m.–6 p.m. MT
Sat. 8 a.m.–4 p.m. MT
ON THE WEB:
www.wesloservice.com

2
TABLE OF CONTENTS
WARNINGDECALPLACEMENT ..............................................................2
IMPORTANTPRECAUTIONS ................................................................3
BEFOREYOUBEGIN ......................................................................4
ASSEMBLY ...............................................................................5
FCCINFORMATION .......................................................................11
HOWTOUSETHEEXERCISEBI E .........................................................11
MAINTENANCEANDTROUBLESHOOTING ...................................................16
EXERCISEGUIDELINES ...................................................................17
PARTLIST ..............................................................................18
EXPLODEDDRAWING ....................................................................19
ORDERINGREPLACEMENTPARTS ..................................................BackCover
LIMITEDWARRANTY ..............................................................BackCover
WESLO PRO is a trademark of ICON IP, Inc.
WARNING DECAL PLACEMENT
This drawing shows the location(s)
of the warning decal(s). If a decal
is missing or illegible, call the
telephone number on the front
cover of this manual and request
a free replacement decal. Apply
the decal in the location shown.
Note: The decal(s) may not be
shown at actual size.

3
WARNING: To reduce the risk of serious injury, read all important precautions and
instructions in this manual and all warnings on your exercise bike before using your exercise bike.
ICON assumes no responsibility for personal injury or property damage sustained by or through the
use of this product.
1. Before beginning any exercise program,
consult your physician. This is especially
important for persons over age 35 or per-
sons with pre-existing health problems.
2. Use the exercise bike only as described in
this manual.
3. It is the responsibility of the owner to ensure
that all users of the exercise bike are ade-
quately informed of all precautions.
4. The exercise bike is intended for home use
only. Do not use the exercise bike in a com-
mercial, rental, or institutional setting.
5. Keep the exercise bike indoors, away from
moisture and dust. Place the exercise bike
on a level surface, with a mat beneath it to
protect the floor or carpet. Make sure that
there is at least 2 ft. (0.6 m) of clearance
around your exercise bike.
6. Inspect and properly tighten all parts regu-
larly. Replace any worn parts immediately.
7. Keep children under age 12 and pets away
from the exercise bike at all times.
8. Wear appropriate clothes while exercising;
do not wear loose clothes that could become
caught on the exercise bike. Always wear
athletic shoes for foot protection.
9. The exercise bike should not be used by
persons weighing more than 250 lbs.
(113 kg).
10. The pulse sensor is not a medical device.
Various factors, including the user's move-
ment, may affect the accuracy of heart rate
readings. The pulse sensor is intended only
as an exercise aid in determining heart rate
trends in general.
11. The exercise bike does not have a free
wheel; the pedals will continue to move until
the flywheel stops. Reduce your pedaling
speed in a controlled way.
12. Always keep your back straight while using
the exercise bike; do not arch your back.
13. Over exercising may result in serious injury
or death. If you feel faint or if you experience
pain while exercising, stop immediately and
cool down.
IMPORTANT PRECAUTIONS

4
Thank you for selecting the revolutionary WESLO
PRO™ 11.0X exercise bike. Cycling is an effective
exercise for increasing cardiovascular fitness, building
endurance, and toning the body. The 11.0X exercise
bike provides an impressive selection of features
designed to make your workouts at home more effec-
tive and enjoyable.
For your benefit, read this manual carefully before
you use the exercise bike. If you have questions
after reading this manual, please see the front cover
of this manual. To help us assist you, note the product
model number and serial number before contacting
us. The model number and the location of the serial
number decal are shown on the front cover of this
manual.

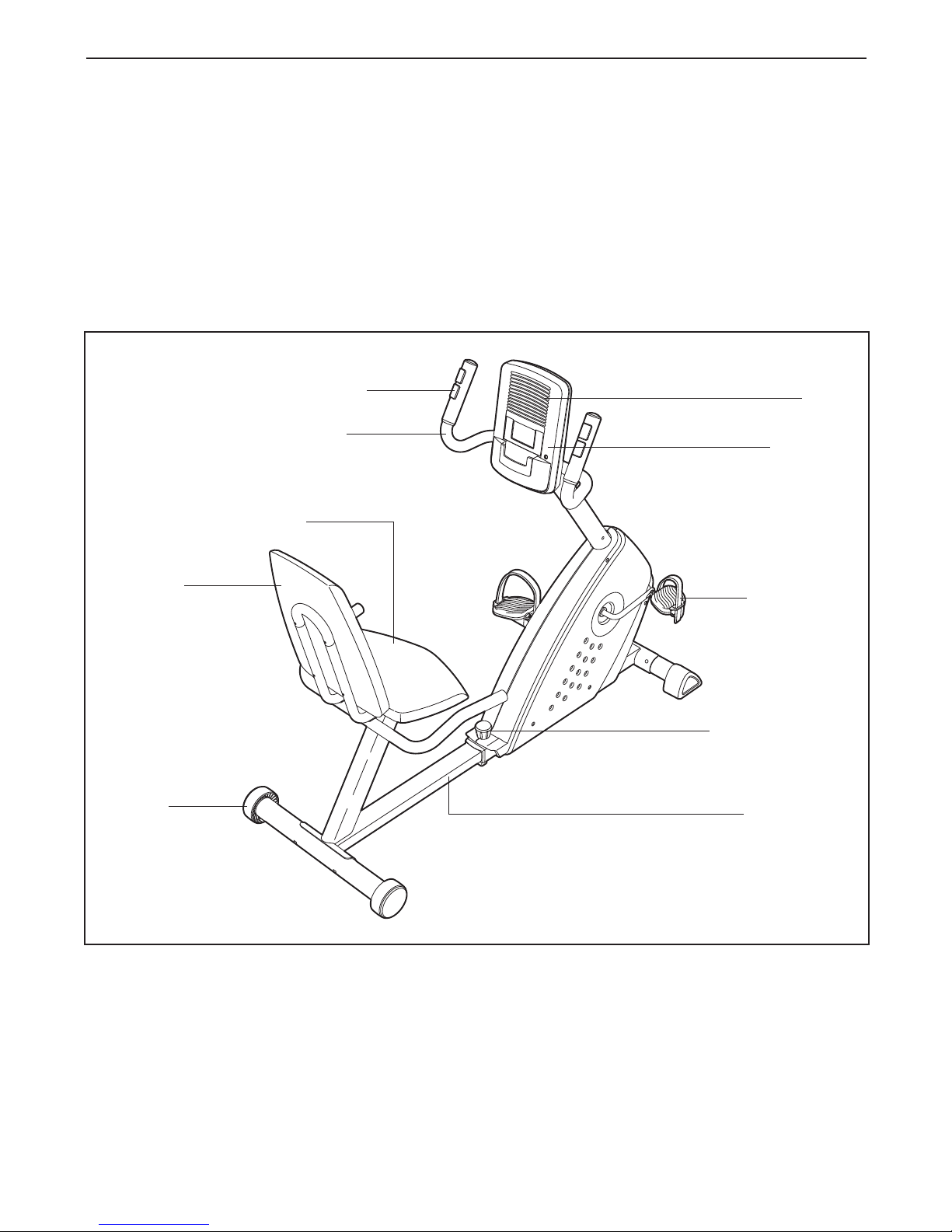

Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
Seat
Adjustment nob
Rear Frame
Pedal/Strap
Backrest
Console
Pulse Sensor
Wheel
Fan
Handlebar
BEFORE YOU BEGIN

5
ASSEMBLY
To hire an authorized service technician to assemble the exercise bike, call 1-800-445-2480.
Assembly requires two persons. Place all parts of the exercise bike in a cleared area and remove the packing
materials. Do not dispose of the packing materials until assembly is completed. In addition to the included
tools, assembly requires a Phillips screwdriver and an adjustable wrench .

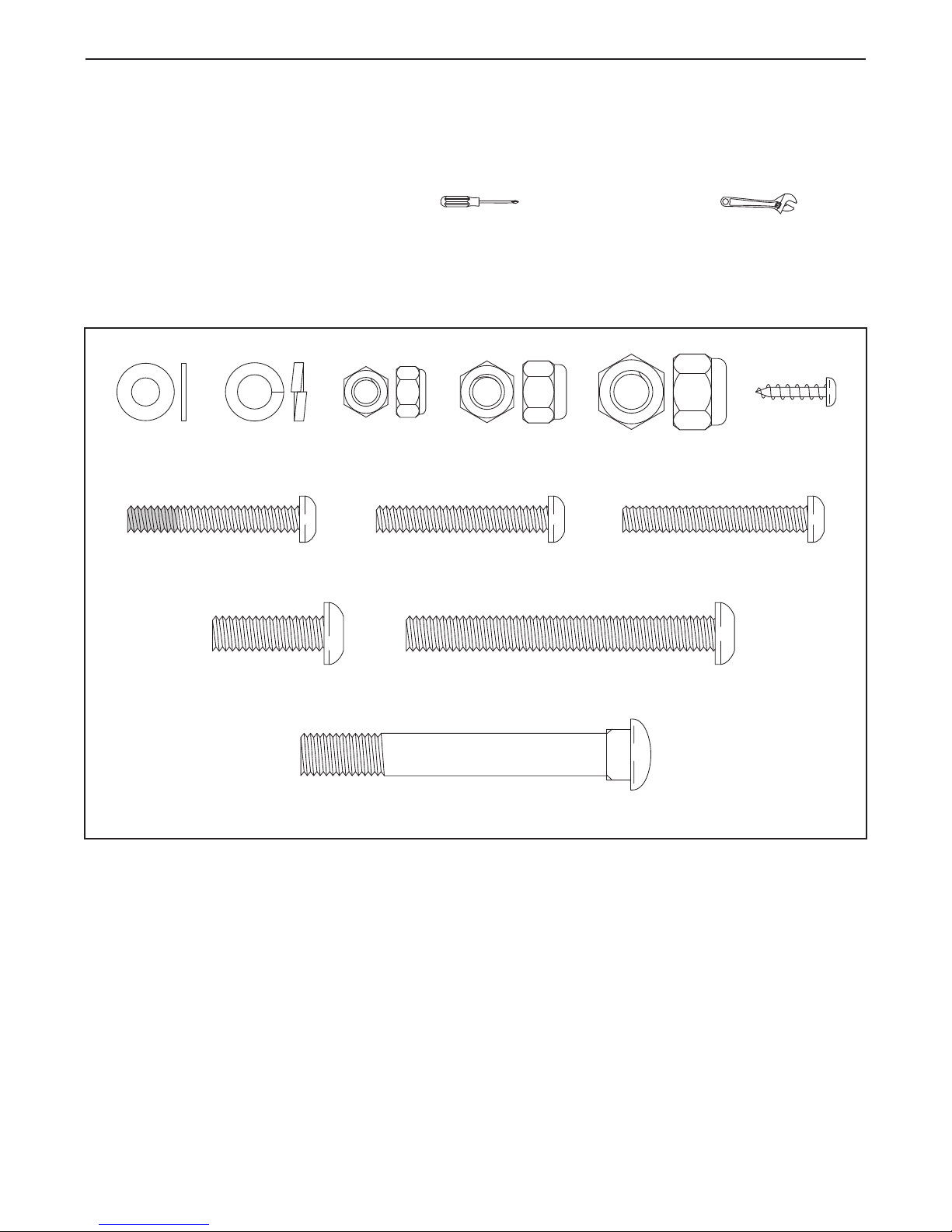

As you assemble the exercise bike, use the drawings below to identify small parts. The number in parentheses
below each drawing is the key number of the part, from the PART LIST near the end of this manual. The number
following the key number is the quantity needed for assembly. Note: If a part is not in the hardware kit, check
to see if it has been preassembled. To avoid breaking parts, do not use power tools for assembly.
M10 Locknut
(63)–4
M8 Locknut
(60)–4
M8 Split
Washer (59)–5
M6 Washer
(55)–8
M8 x 25mm Button
Screw (33)–3
M8 x 70mm Button
Bolt (54)–2
M6 Locknut
(27)–4
M10 x 75mm Carriage Bolt (51)–4
M6 x 42mm Button
Screw (49)–4
M6 x 38mm Patch
Screw (48)–4
M6 x 38mm Button
Bolt (69)–4
M4 x 16mm
Screw (52)–4

6

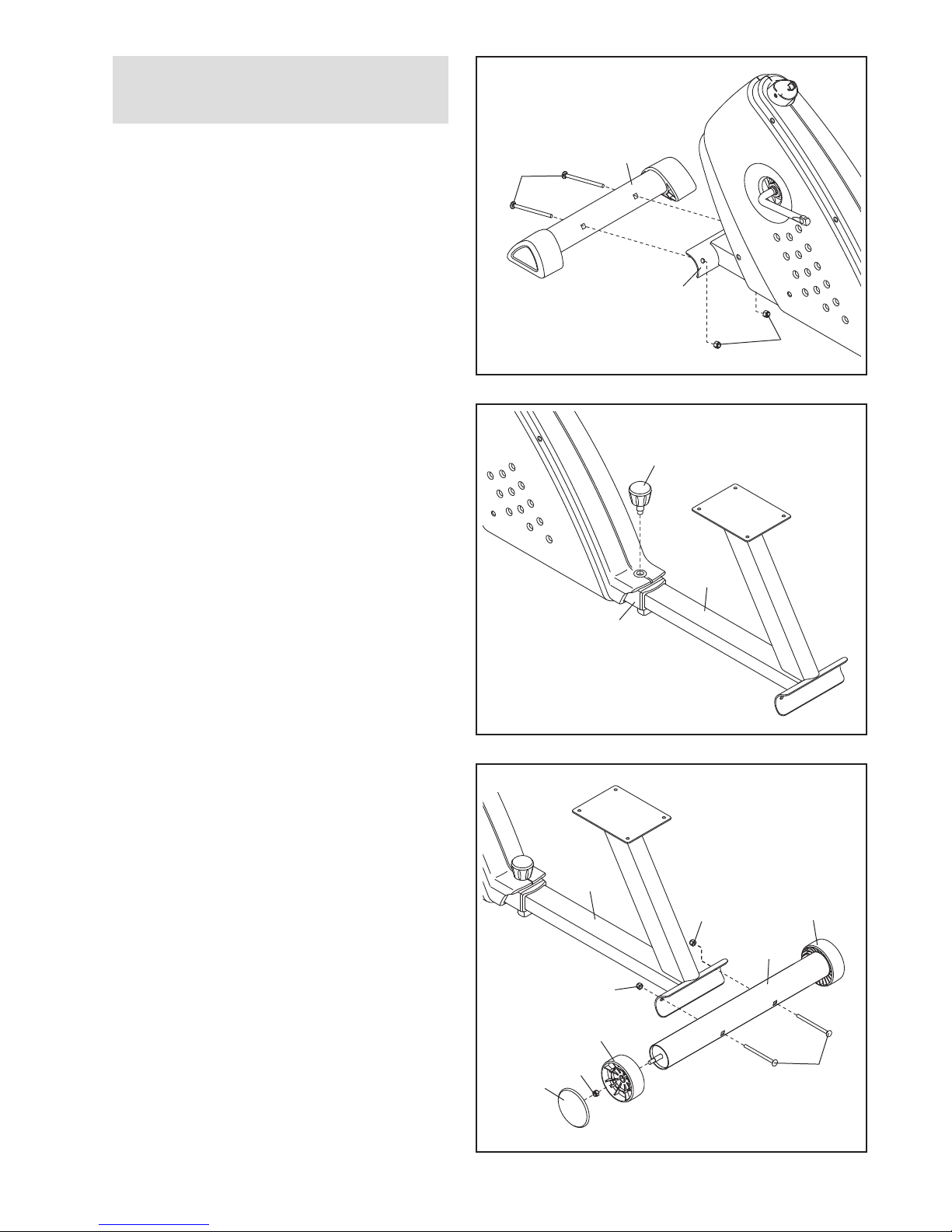

1.
While a second person lifts the front of the
Frame (1), attach the Front Stabilizer (3) to the
Frame with two M10 x 75mm Carriage Bolts
(51) and two M10 Locknuts (63).
3
51
1
1
3. Attach the Wheels (18) to the Rear Stabilizer (4)
with two M8 Locknuts (60). Press a Wheel Cap
(19) onto each Wheel.
Attach the Rear Stabilizer (4) to the Rear Frame
(2) with two M10 x 75mm Carriage Bolts (51)
and two M10 Locknuts (63).
2. Slide the Rear Frame (2) out of the Frame (1),
and then tighten the Adjustment nob (17) into
the Frame.
51
18
4
18
19
3
63
63
60
2
63
17
2
1
To make assembly easier, read the
information on page 5 before you begin.
2

7

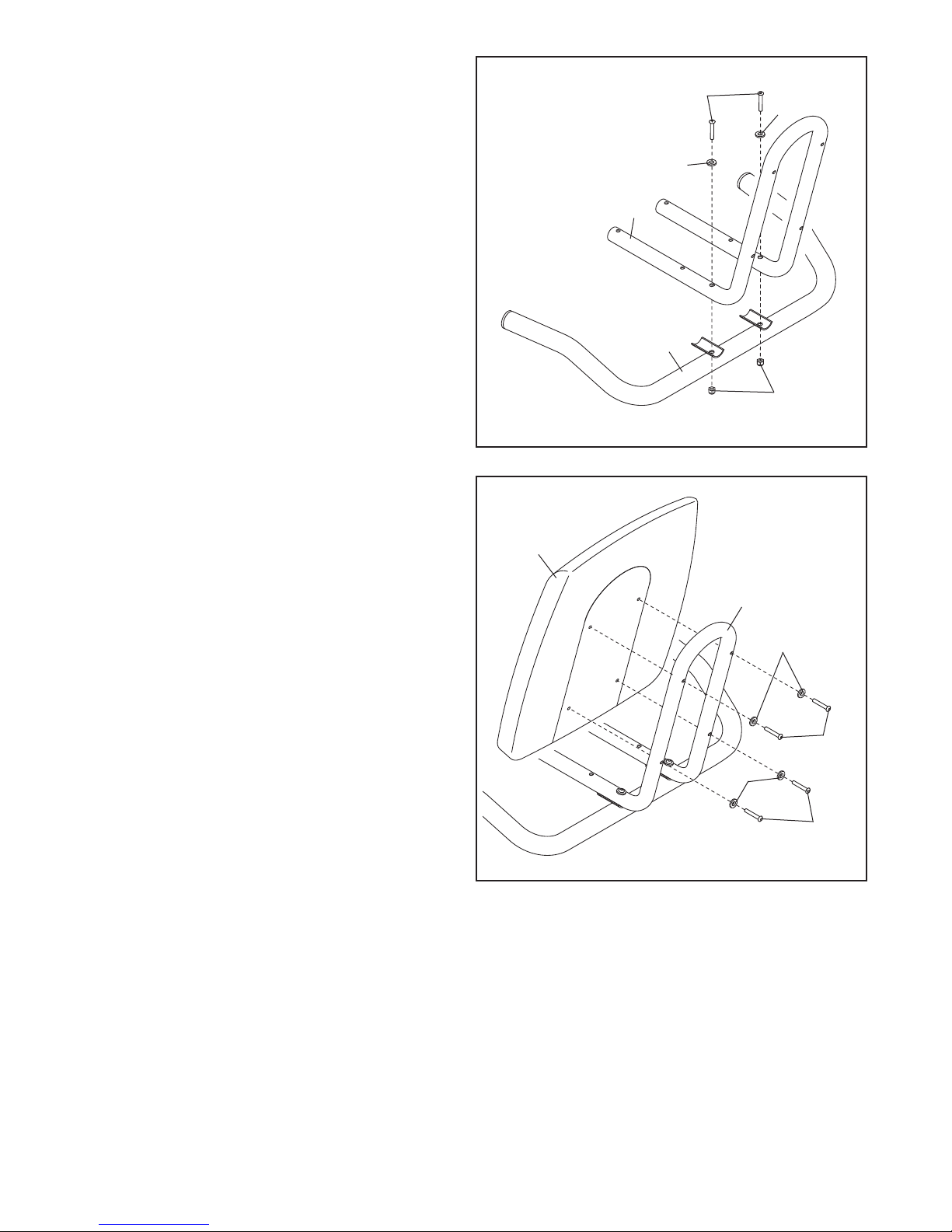

5. Attach the Backrest (5) to the Seat Frame (7)
with four M6 x 38mm Patch Screws (48) and
four M6 Washers (55). Do not tighten the
Patch Screws yet.
5
5
7
55
55
48
48
4. Attach the Seat Frame (7) to the Handlebar (6)
with two M8 x 70mm Button Bolts (54), two M8
Split Washers (59), and two M8 Locknuts (60).
7
6
60
54
59
59
4

8
12
55
55
55
7
6
49
2
49
6. Have a second person hold the Seat Frame (7)
under the Rear Frame (2) as shown.
Attach the Seat Frame (7) and the Seat (12) to
the Rear Frame (2) with four M6 x 42mm Button
Screws (49) and four M6 Washers (55).
See step 5. Tighten the four M6 x 38mm Patch
Screws (48).
7. The Console (16) can use four D batteries (not
included); alkaline batteries are recommended.
IMPORTANT: If the Console has been
exposed to cold temperatures, allow it to
warm to room temperature before inserting
batteries. Otherwise, you may damage the
console displays or other electronic compo-
nents. Remove the screws, remove the battery
covers, insert the batteries into the battery com-
partments, and reattach the battery covers.
Make sure to orient the batteries as shown
by the diagrams inside the battery compart-
ments.
To purchase an optional power adapter, call
the telephone number on the front cover of
this manual. To avoid damaging the console,
use only a manufacturer-supplied power
adapter. Plug one end of the power adapter
into the jack on the console; plug the other end
into an outlet installed in accordance with all
local codes and ordinances.
16
Batteries
Batteries
Screws
Battery
Covers
7

9
9. While a second person holds the Console (16)
near the Upright (13), connect the wires on the
Console to the Upper Wire (36) and to the
Pulse Wires (71).
Insert the excess wire downward into the
Upright (13) or upward into the Console (16).
Tip: Avoid pinching the wires. Attach the
Console (16) to the Upright (13) with four M4 x
16mm Screws (52).
9
16
52
13
36
71

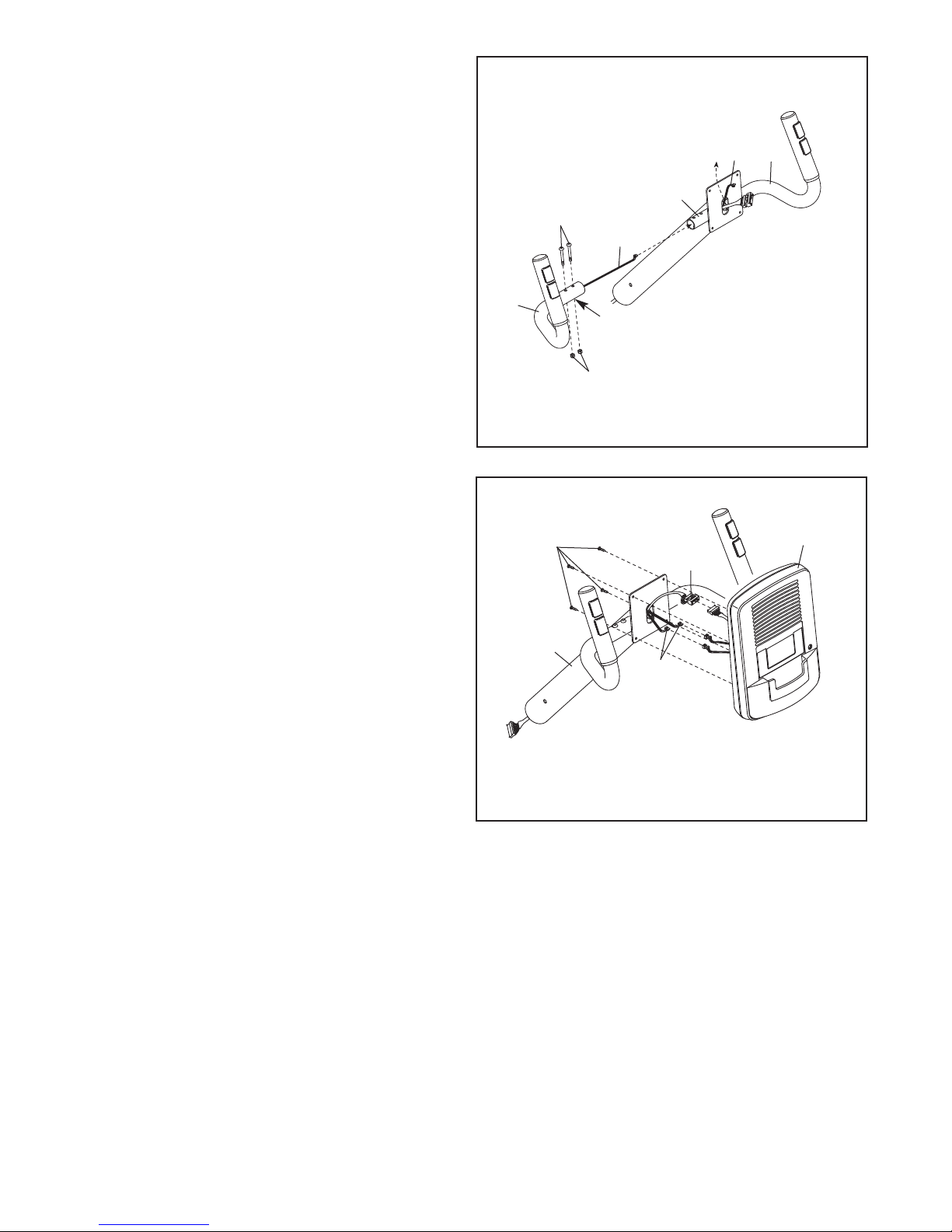

8. Identify the Left Pulse Bar (65), which is marked
with a “Left” sticker.
Have a second person hold the Left Pulse Bar
(65) near the left side of the Upright (13).
Insert the left Pulse Wire (71) into the Upright
(13) and pull it upward out of the top of the
Upright.
Tip: Do not pinch the wires. Slide the Left
Pulse Bar (65) onto the Upright (13). Attach the
Left Pulse Bar with two M6 x 38mm Button
Bolts (69) and two M6 Locknuts (27). Make
sure that the Locknuts are in the hexagonal
holes.
Repeat this step for the Right Pulse Bar (66).
8
65
13
66
69
71
71
27
Avoid pinching
the wires
Avoid pinching
the wires
Hexagonal
Holes

10
11
Strap
24
Tab
11. Identify the Left Pedal (24), which is marked
with a “Left” sticker.
Firmly tighten the Left Pedal (24) counterclock-
wise into the left arm of the Crank (31).
Tighten the Right Pedal (not shown) clockwise
into the right arm of the Crank (not shown).
Adjust the strap on the Left Pedal (24) to the
desired position, and press the end of the strap
onto the tab on the Left Pedal. Adjust the
strap on the Right Pedal (not shown) in the
same way.
12. Make sure that all parts are properly tightened before you use the exercise bike. Note: Some hardware
may be left over after assembly is completed. Place a mat beneath the exercise bike to protect the floor.
13
36
10
10. While a second person holds the Upright (13)
near the Frame (1), connect the Upper Wire
(36) to the Lower Wire (8).
Tip: Avoid pinching the wires. Slide the
Upright (13) onto the Frame (1).
Attach the Upright (13) with three M8 x 25mm
Button Screws (33) and three M8 Split Washers
(59).
8
33
33
33
59
59
59
1
Avoid pinching
the wires
31

11
HOW TO USE THE EXERCISE BIKE
HOW TO AD UST THE SEAT
After the exercise bike is assembled, adjust the
Seat (12) to the proper position. As you pedal, there
should be a slight bend in your knees when the
pedals are in the most forward position.
Loosen the Adjustment nob (17), slide the Rear
Frame (2) forward or backward in the Frame (1),
and then tighten the Adjustment nob.
12
17
2
1
FCC INFORMATION
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in
a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
WARNING: Per FCC rules, changes or modifications not expressly approved by ICON could void the
user's authority to operate the equipment.

12
FEATURES OF THE CONSOLE
The advanced console offers an array of features
designed to make your workouts more effective and
enjoyable.
When you use the manual mode of the console, you
can change the resistance of the pedals with the touch
of a button. As you exercise, the console will provide
continuous exercise feedback. You can even measure
your heart rate using the handgrip pulse sensor.
The console offers ten preset workouts—five weight
loss workouts and five performance workouts. Each
preset workout automatically changes the resistance
of the pedals as it guides you through an effective
workout.
You can even connect your MP3 player or CD player
to the console sound system and listen to your favorite
music or audio books while you exercise.
To use the manual mode, see page 13. To use a
preset workout, see page 15. To use the sound
system, see page 15.
Note: Before using the console, make sure that batter-
ies are installed (see assembly step 7 on page 8). If
there is a sheet of plastic on the display, remove the
plastic.

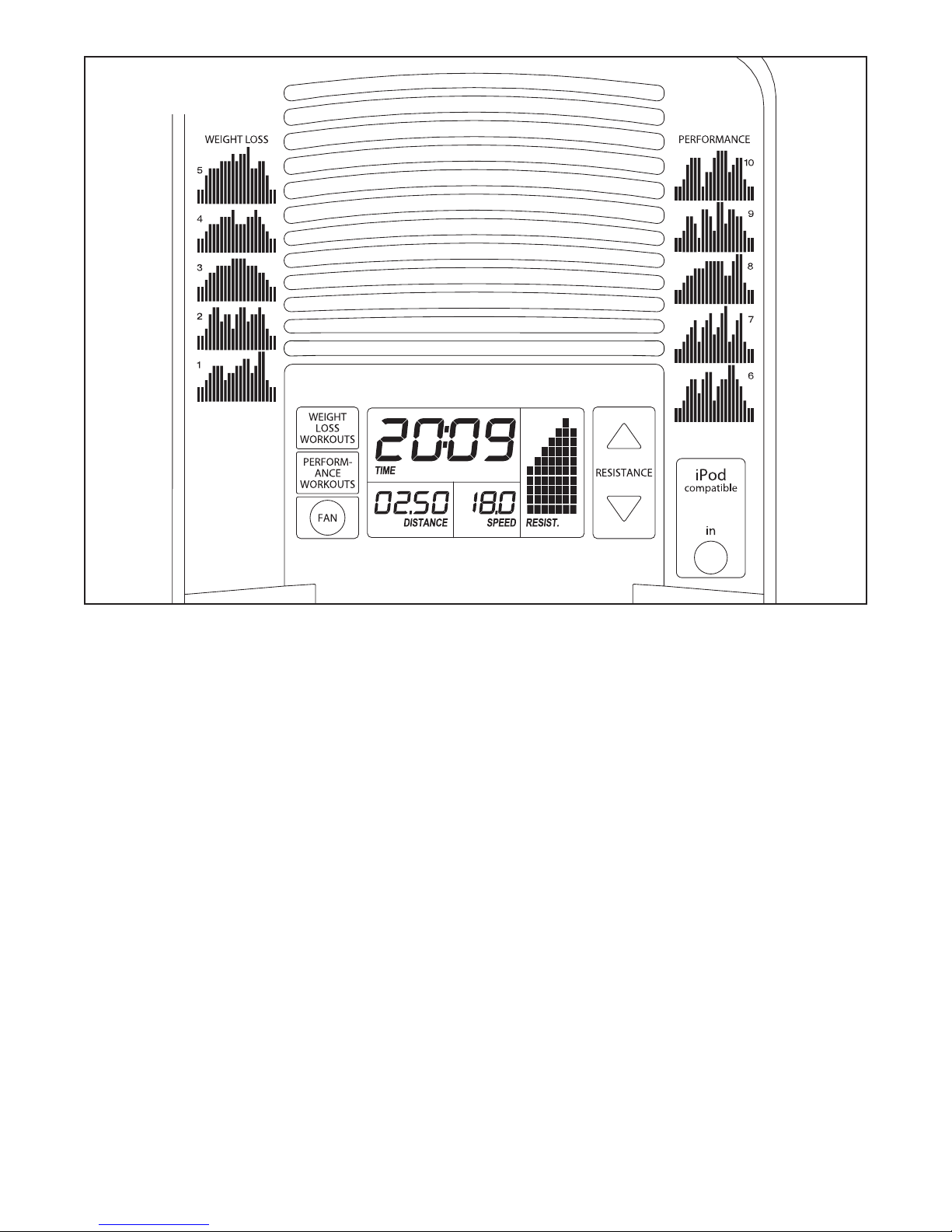

CONSOLE DIAGRAM

13
HOW TO USE THE MANUAL MODE
1. Turn on the console.
Press any button or begin pedaling to turn on the
console.
When you turn on the console, the display will turn
on. A tone will sound and the console will be ready
for use.
2. Select the manual mode.
When you turn on the console, the manual mode
will be selected.
If you have
selected a work-
out, reselect the
manual mode by
pressing the
Weight Loss
Workouts or the
Performance
Workouts button
repeatedly until
zeros appear in
the displays.
3. Begin pedaling and change the resistance of
the pedals as desired.
As you pedal, change the resistance of the pedals
by pressing the Resistance increase and decrease
buttons.
Note: After you press the buttons, it will take a
moment for the pedals to reach the selected resis-
tance level.
4. Follow your progress with the displays.
The upper display—This display will show the
elapsed time and the resistance level of the pedals
each time the resistance level changes.
Note: During a workout, the display will show the
time remaining in the workout.
The lower left display—This display will show the
distance (total number of revolutions) that you
have pedaled.
The lower right display—This display will show
your pedaling speed in revolutions per minute
(rpm) and the approximate number of calories you
have burned.
The lower right display will also show your heart
rate when you use the handgrip pulse sensor (see
step 5 on page 14).

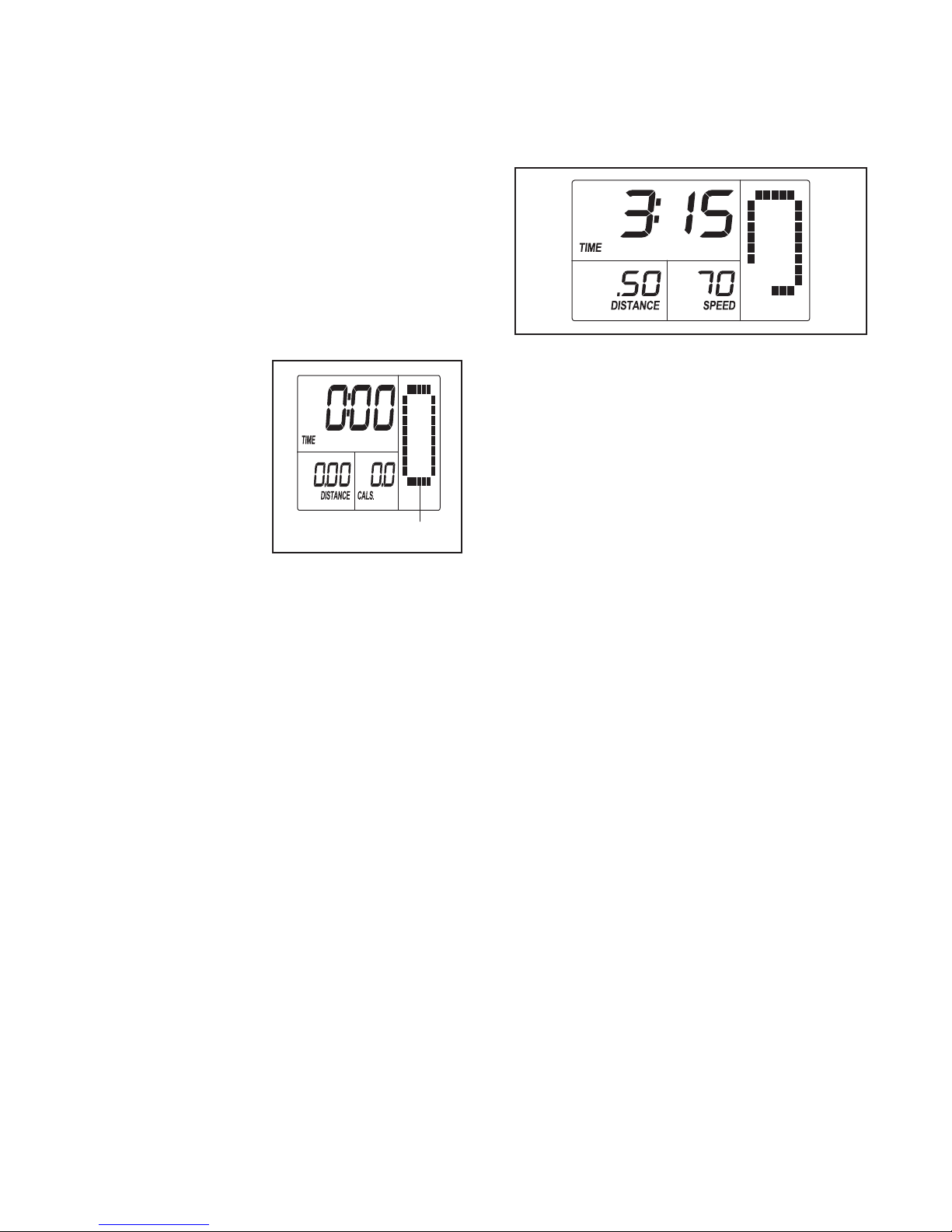

The right display—This display will show a track
that represents 640 revolutions (1/4 mile or 400
meters). As you exercise, indicators will appear in
succession around the track until the entire track
appears. The track will then disappear and the
indicators will again begin to appear in succession.
Track

14
5. Measure your heart rate if desired.
If there are
sheets of plastic
on the metal con-
tacts on the
handgrip pulse
sensor, remove
the plastic. In
addition, make
sure that your
hands are clean.
To measure your
heart rate, hold the
handgrip pulse
sensor with your palms resting against the metal
contacts. Avoid moving your hands or gripping
the contacts tightly.
When your pulse is detected, a heart-shaped sym-
bol will flash in the display and then your heart
rate will be shown. For the most accurate heart
rate reading, hold the contacts for at least 15 sec-
onds.
If your heart rate is not shown, make sure that
your hands are positioned as described. Be care-
ful not to move your hands excessively or to
squeeze the metal contacts tightly. For optimal
performance, clean the metal contacts using a soft
cloth; never use alcohol, abrasives, or chemi-
cals to clean the contacts.
6. Turn on the fan if desired.
The fan has high and low speed settings. Press
the Fan button repeatedly to select a fan speed or
to turn off the fan.
Note: If the pedals do not move for about thirty
seconds, the fan will turn off automatically.
7. When you are finished exercising, the console
will turn off automatically.
If the pedals do not move for several seconds, a
series of tones will sound, the console will pause,
and the time will flash in the display.
If the pedals do not move for several minutes, the
console will turn off and the display will be reset.
Contacts

15
HOW TO USE A PRESET WORKOUT
1. Turn on the console.
See step 1 on page 13.
2. Select a preset workout.
To select a preset workout, press the Weight Loss
Workouts or the Performance Workouts button
repeatedly until the name of the desired workout
appears in the upper display.
When you select a
preset workout, the
duration of the
workout will
appear in the
upper display and
a profile of the
resistance levels of
the workout will
scroll across the
right display.
Note: Complete profiles of the preset workouts are
printed on the sides of the console.
3. Begin pedaling to start the workout.
Each workout is divided into 30 one-minute seg-
ments. One resistance level is programmed for
each segment. Note: The same resistance level
may be programmed for consecutive segments.
During the workout, the workout profile will show

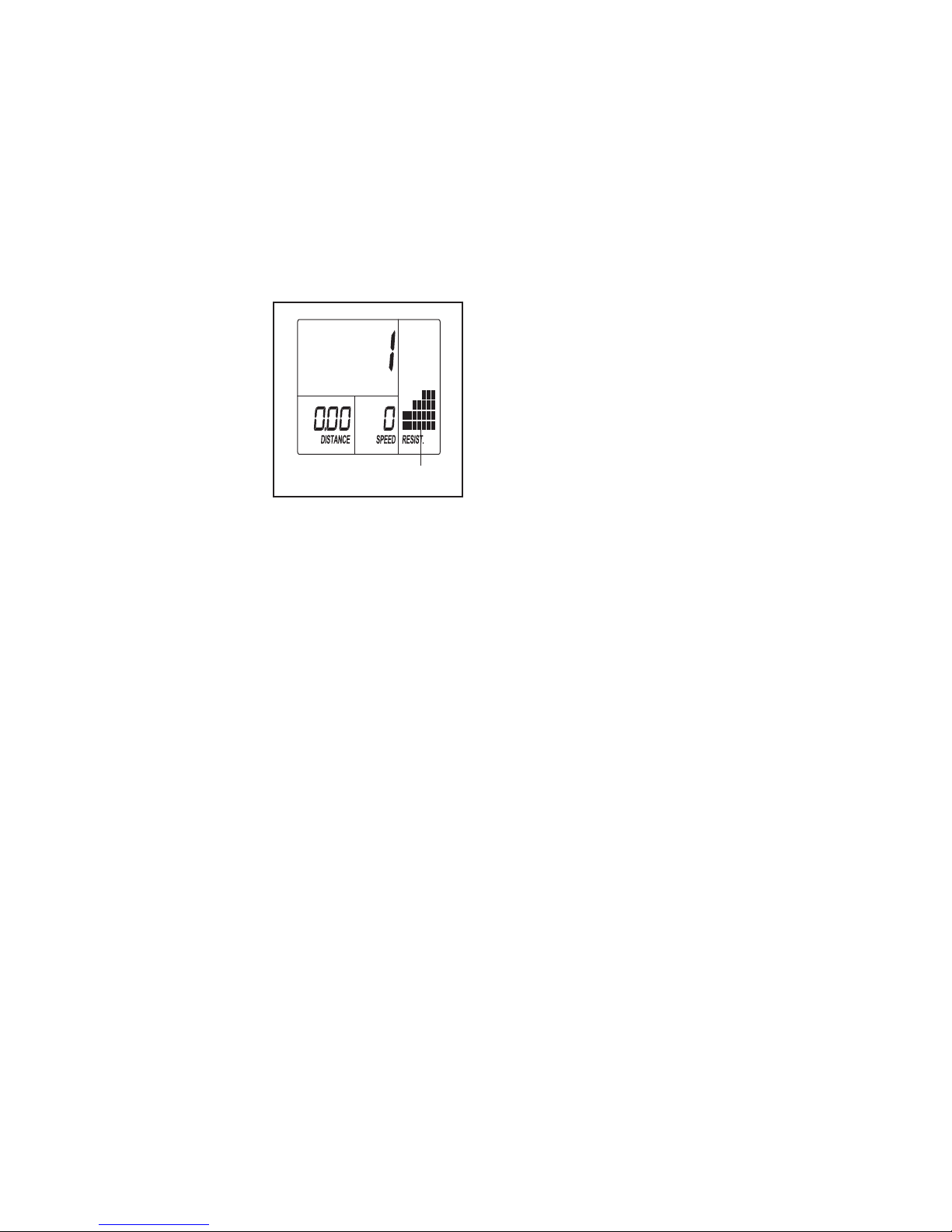

your progress (see the drawing above). The flash-
ing segment of the profile represents the current
segment of the workout. The height of the flashing
segment indicates the resistance level for the cur-
rent segment.
At the end of each segment of the workout, a
series of tones will sound and the next segment of
the profile will begin to flash. If a different resis-
tance level is programmed for the next segment,
the resistance level will flash in the display for a
few seconds to alert you. The resistance of the
pedals will then change.
If the resistance level for the current segment is
too high or too low, you can manually override the
setting by pressing the Resistance buttons.
However, when the current segment ends, the
pedals will automatically adjust to the resistance
level for the next segment.
If you stop pedaling for several seconds, a series
of tones will sound and the workout will pause.
To restart the workout, simply resume pedaling.
The workout will continue until the last segment of
the profile flashes and the last segment of the
workout ends.
Note: If you continue to pedal after the workout is
completed, the display will continue to show exer-
cise feedback; however, the display will not show
the elapsed time until you select the manual mode
or a new workout.
4. Follow your progress with the displays.
See step 4 on page 13.
5. Measure your heart rate if desired.
See step 5 on page 14.
6. Turn on the fan if desired.
See step 6 on page 14.
7. When you are finished exercising, the console
will turn off automatically.
See step 7 on page 14.
HOW TO USE THE SOUND SYSTEM
To play music or audio books through the console
sound system while you exercise, plug the audio cable
into the jack on the console and into the jack on your
MP3 player or CD player; make sure that the audio
cable is fully plugged in.
Next, press the play button on your MP3 player or CD
player. Adjust the volume level using the volume con-
trol on your MP3 player or CD player.
Profile

16
Inspect and properly tighten all parts of the exercise
bike regularly. Replace any worn parts immediately.
To clean the exercise bike, use a damp cloth and a
small amount of liquid dish soap. IMPORTANT: To
avoid damaging the console, keep liquids away
from the console and keep the console out of
direct sunlight.
CONSOLE TROUBLESHOOTING
If the console display becomes dim, replace all the
batteries at the same time; most console problems are
the result of low batteries. To replace the batteries,
see assembly step 7 on page 8.
If the handgrip pulse sensor does not function prop-
erly, see step 5 on page 14.
HOW TO AD UST THE REED SWITCH
If the console does not display correct feedback, the
reed switch should be adjusted.

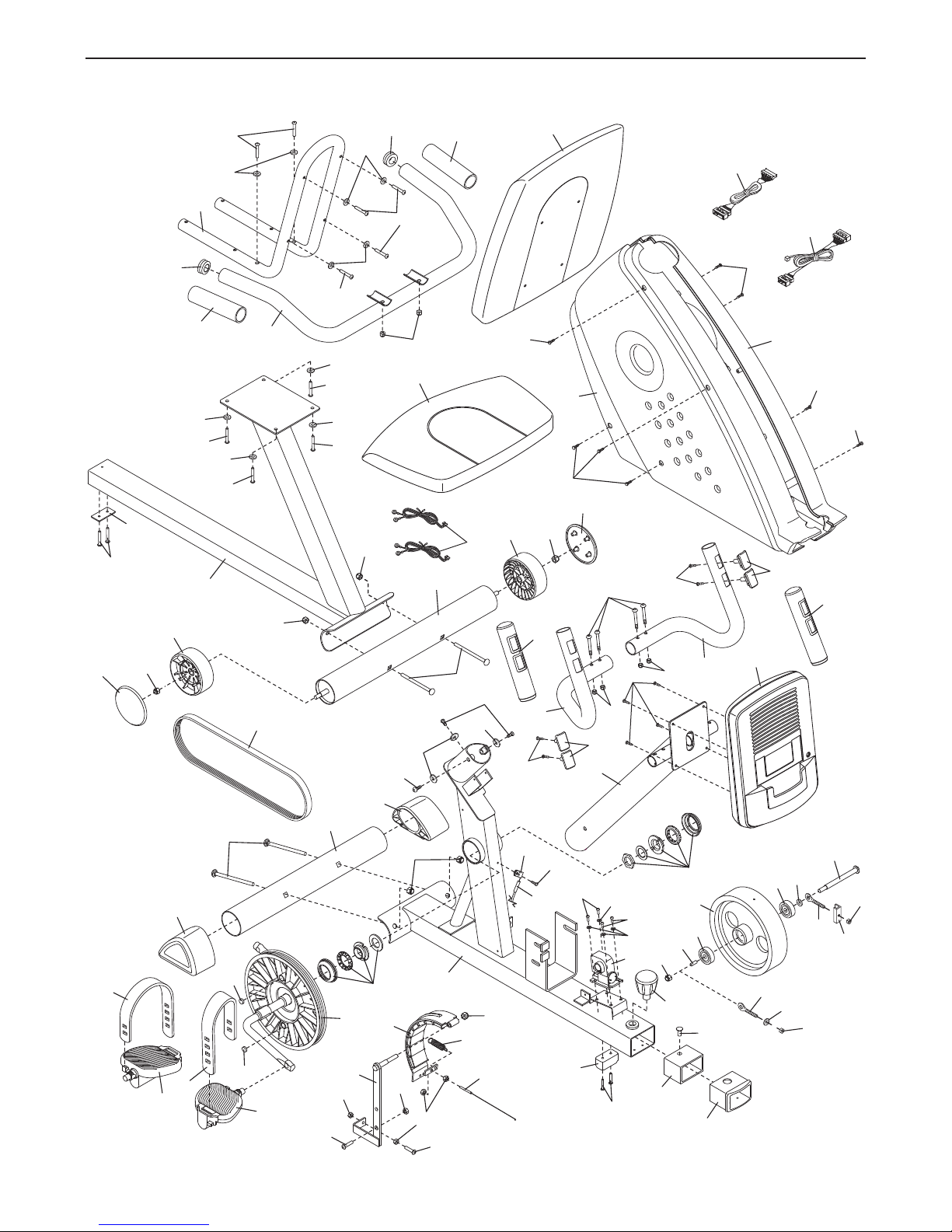

To adjust the reed switch, you must first remove the
Left Shield (9). Using an adjustable wrench, turn the
Left Pedal (24) clockwise and remove it.
Next, remove the M4 x 16mm Screws (57) and the M4
x 25mm Screw (45). Then, carefully remove the Left
Shield (9).
Locate the Reed Switch (43). Turn the Crank (31) until
a Magnet (38) is aligned with the Reed Switch. Next,
loosen, but do not remove, the indicated M4 x 16mm
Screw (57).
Slide the Reed Switch (43) slightly closer to or away
from the Magnet (38), and then retighten the M4 x
16mm Screw (57). Turn the Crank (31) for a moment.
Repeat these actions until the console displays correct
feedback. When the reed switch is correctly adjusted,
reattach the left shield and the left pedal.
MAINTENANCE AND TROUBLESHOOTING
57
57
57
9
57
45
24
38
43
57
31

17
These guidelines will help you to plan your exercise
program. For detailed exercise information, obtain a
reputable book or consult your physician. Remember,
proper nutrition and adequate rest are essential for
successful results.
EXERCISE INTENSITY
Whether your goal is to burn fat or to strengthen your
cardiovascular system, exercising at the proper inten-
sity is the key to achieving results. You can use your
heart rate as a guide to find the proper intensity level.

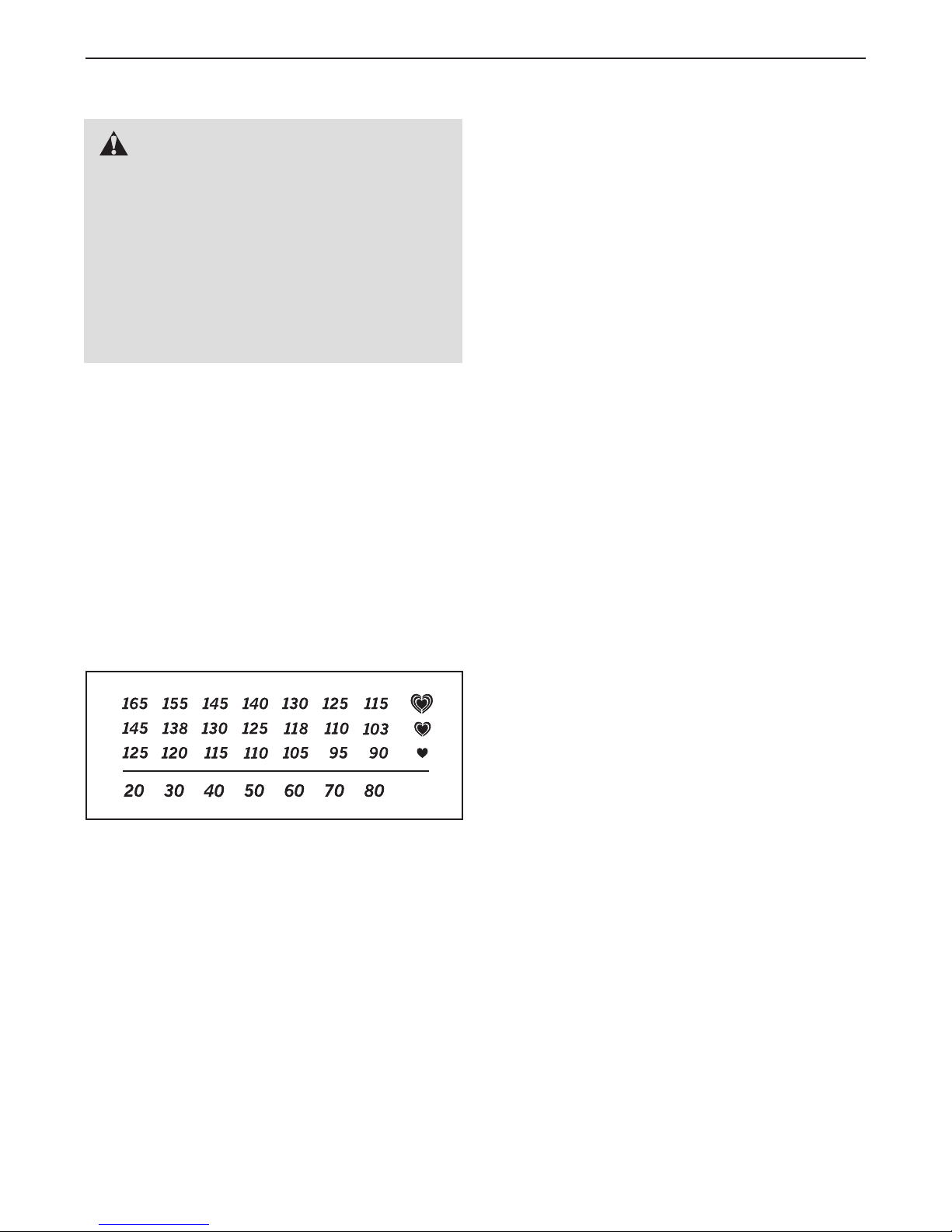

The chart below shows recommended heart rates for
fat burning and aerobic exercise.
To find the proper intensity level, find your age at the
bottom of the chart (ages are rounded off to the near-
est ten years). The three numbers listed above your
age define your “training zone.” The lowest number is
the heart rate for fat burning, the middle number is the
heart rate for maximum fat burning, and the highest
number is the heart rate for aerobic exercise.
Burning Fat—To burn fat effectively, you must exer-
cise at a low intensity level for a sustained period of
time. During the first few minutes of exercise, your
body uses carbohydrate calories for energy. Only after
the first few minutes of exercise does your body begin
to use stored fat calories for energy. If your goal is to
burn fat, adjust the intensity of your exercise until your
heart rate is near the lowest number in your training
zone. For maximum fat burning, exercise with your
heart rate near the middle number in your training
zone.
Aerobic Exercise—If your goal is to strengthen your
cardiovascular system, you must perform aerobic
exercise, which is activity that requires large amounts
of oxygen for prolonged periods of time. For aerobic
exercise, adjust the intensity of your exercise until
your heart rate is near the highest number in your
training zone.
WORKOUT GUIDELINES
Warming Up—Start with 5 to 10 minutes of stretching
and light exercise. A warm-up increases your body
temperature, heart rate, and circulation in preparation
for exercise.
Training Zone Exercise—Exercise for 20 to 30 min-
utes with your heart rate in your training zone. (During
the first few weeks of your exercise program, do not
keep your heart rate in your training zone for longer
than 20 minutes.) Breathe regularly and deeply as you
exercise–never hold your breath.
Cooling Down—Finish with 5 to 10 minutes of
stretching. Stretching increases the flexibility of your
muscles and helps to prevent post-exercise problems.
EXERCISE FREQUENCY
To maintain or improve your condition, complete three
workouts each week, with at least one day of rest
between workouts. After a few months of regular exer-
cise, you may complete up to five workouts each
week, if desired. Remember, the key to success is to
make exercise a regular and enjoyable part of your
everyday life.
EXERCISE GUIDELINES
WARNING: Before beginning this
or any exercise program, consult your physi-
cian. This is especially important for persons
over age 35 or persons with pre-existing
health problems.
The pulse sensor is not a medical device.
Various factors may affect the accuracy of
heart rate readings. The pulse sensor is
intended only as an exercise aid in determin-
ing heart rate trends in general.

18
11Frame
21Rear Frame
31Front Stabilizer
41Rear Stabilizer
51Backrest
61Handlebar
71Seat Frame
81Lower Wire
91Left Shield
10 1 Right Shield
11 2 Stabilizer Cap
12 1 Seat
13 1 Upright
14 1 Front Bushing
15 1 Rear Bushing
16 1 Console
17 1 Adjustment nob
18 2 Wheel
19 2 Wheel Cap
20 1 Frame Pad
21 1 Frame Stop
22 1 Clamp
23 1 C-magnet Bracket
24 1 Left Pedal/Strap
25 2 Foam Grip
26 1 Right Pedal/Strap
27 4 M6 Locknut
28 1 Resistance Motor
29 1 Flywheel Axle
30 1 Drive Belt
31 1 Pulley/Crank
32 1 C-magnet
33 3 M8 x 25mm Button Screw
34 1 Flywheel
35 1 Crank Bearing Assembly
36 1 Upper Wire
37 2 Bearing
38 2 Magnet
39 2 Tension Bolt
40 1 Tension Bracket
41 1 M8 Washer
42 1 Flywheel Washer
43 1 Reed Switch/Wire
44 2 Handlebar Cap
45 3 M4 x 25mm Screw
46 1 Resistance Cable
47 1 Return Spring
48 4 M6 x 38mm Patch Screw
49 4 M6 x 42mm Button Screw
50 3 M4 x 16mm Flat Head Screw
51 4 M10 x 75mm Carriage Bolt
52 4 M4 x 16mm Screw
53 1 5mm Spacer
54 2 M8 x 70mm Button Bolt
55 8 M6 Washer
56 1 M8 x 20mm Button Bolt
57 12 M4 x 16mm Screw
58 4 M5 Washer
59 5 M8 Split Washer
60 5 M8 Locknut
61 6 M6 Nut
62 2 M8 Jam Nut
63 4 M10 Locknut
64 1 M6 x 38mm Bolt
65 1 Left Pulse Bar
66 1 Right Pulse Bar
67 4 Pulse Sensor
68 2 Pulse Grip
69 4 M6 x 38mm Button Bolt
70 4 M4 x 20mm Screw
71 2 Pulse Wire
*–Userʼs Manual
*–Assembly Tool
PART LIST—Model No. WLEX31810.0 R0710A
Key No. Qty. Description Key No. Qty. Description
Note: Specifications are subject to change without notice. For information about ordering replacement parts, see
the back cover of this manual. *These parts are not illustrated.

19
16
24
24
34
32
35
46
47
63
61
51
36
12
35
33
26
26
30
33
52
13
37
37
22
57
62
43 58
58
57
57
17
63
63
51
45
38
31
62
3
1
24
18
19
18
19
11
11
6
7
5
9
10
14
15
20
23
28
29
39
39 40
41
44
44
57
57
45
48
48
49
49 49
49
50
55
55
55
55
55
55
54
59
60
60
60
60
61
64
21
59
59
57
57
61
42
61
53
56
50
8
65
66
67
67
68
68
69 70
70
27
71
25
25
38
27
EXPLODED DRAWING—Model No. WLEX31810.0 R0710A

Part No. 301433 R0710A Printed in China © 2010 ICON IP, Inc.
ORDERING REPLACEMENT PARTS
To order replacement parts, please see the front cover of this manual. To help us assist you, be prepared to
provide the following information when contacting us:
• the model number and serial number of the product (see the front cover of this manual)
• the name of the product (see the front cover of this manual)
• the key number and description of the replacement part(s) (see the PART LIST and the EXPLODED
DRAWING near the end of this manual)
ICON Health & Fitness, Inc. (ICON) warrants this product to be free from defects in workmanship and
material, under normal use and service conditions. Parts and labor are warranted for ninety (90) days from
the date of purchase.
This warranty extends only to the original purchaser. ICONʼs obligation under this warranty is limited to
repairing or replacing, at ICONʼs option, the product through one of its authorized service centers. All
repairs for which warranty claims are made must be preauthorized by ICON. If the product is shipped to
a service center, freight charges to and from the service center will be the customerʼs responsibility. For
replacement parts shipped while the product is under warranty, the customer will be responsible for a min-
imal handling charge. For in-home service, the customer will be responsible for a minimal trip charge. This
warranty does not extend to any damage to a product caused by or attributable to freight damage, abuse,
misuse, improper or abnormal usage, or repairs not provided by an ICON authorized service center; to
products used for commercial or rental purposes or as store display models; or to products transported
or purchased outside the US. No other warranty beyond that specifically set forth above is authorized by
ICON.
ICON is not responsible or liable for indirect, special, or consequential damages arising out of or in con-
nection with the use or performance of the product; damages with respect to any economic loss, loss of
property, loss of revenues or profits, loss of enjoyment or use, or costs of removal or installation; or other
consequential damages of whatsoever nature. Some states do not allow the exclusion or limitation of inci-
dental or consequential damages. Accordingly, the above limitation may not apply to you.
The warranty extended hereunder is in lieu of any and all other warranties, and any implied warranties of
merchantability or fitness for a particular purpose are limited in their scope and duration to the terms set
forth herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the
above limitation may not apply to you.
This warranty gives you specific legal rights. You may also have other rights that vary from state to state.
ICON Health & Fitness, Inc., 1500 S. 1000 W., Logan, UT 84321-9813
LIMITED WARRANTY
IMPORTANT: You must register this product within 30 days of the purchase date to avoid added
fees for service needed under warranty. Go to www.wesloservice.com/registration.
