OWNER’S MANUAL
IMPORTANT: Read all instructions carefully before using this product.
Retain this owner’s manual for future reference.
The specifications of this product may vary from this photo, subject to
change without notice.
4230.3-071918
Momentum Bike
®

PLEASE DO NOT RETURN THIS PRODUCT TO THE STORE.
STOP. Contact customer service if you have any questions
regarding assembly or proper operation of the machine.
Email us at:
[e-mail]
Or call us at:
1-844-641-7921
Hours:
8:00 am to 5:00 pm (PST)
Monday thru Friday

1
TABLE OF CONTENT
SERVICE ------------------------------------------------------------------------ 2
LABEL PLACEMENT --------------------------------------------------------- 3
IMPORTANT SAFETY GUIDELINES ------------------------------------- 4
OVERVIEW DRAWING ------------------------------------------------------ 6
PARTS LIST ------------------------------------------------------------------- 7

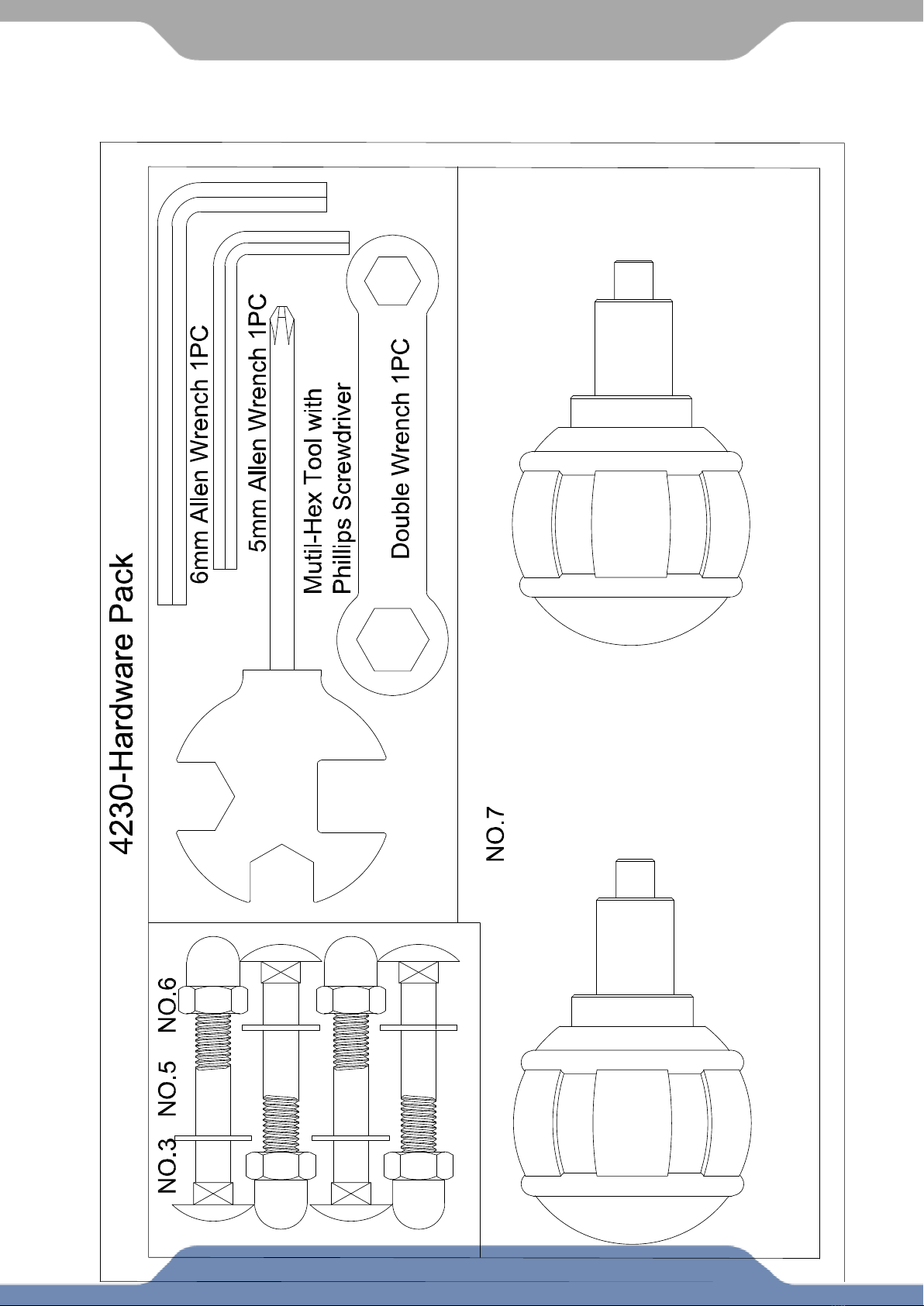

HARDWARE & TOOLS PACK ------------------------------------------- 9
REMOVE THE METAL BAR ------------------------------------------------ 10
ASSEMBLY ---------------------------------------------------------------------- 11
ADJUSTMENTS --------------------------------------------------------------- 17
TROUBLESHOOTING ------------------------------------------------------- 20
TRANSPORT & STORAGE ------------------------------------------------ 21
WARRANTY -------------------------------------------------------------------- 22
PARTS REQUEST FORM--------------------------------------------------- 23

2
SERVICE
IMPORTANT: FOR NORTH AMERICA ONLY
For damaged or defective product, questions, replacement parts or any other service
support, please contact our customer service department by the below methods:
For The Best Service, please Email:
[e-mail]
Response Time: 1-2 Business Days
Emailing us with the information above will be the best method to receive a response during
peak business hours
Website:
www.paradigmhw.com
Toll-Free:
1-844-641-7921
(8:00 AM - 5:00 PM Pacific Standard Time, Monday Thru Friday)
Response time may vary via calling
Please have the following information ready when requesting for service:
Your name
Phone number
Model number
Serial number
Part number
Proof of Purchase
For damaged or defective product please contact our customer service before returning to
the store.
Paradigm Health & Wellness, Inc.
1189 Jellick Ave.
City of Industry, CA 91748, USA

3
LABEL PLACEMENT

4
IMPORTANT SAFETY GUIDELINES
Read all instructions before using the equipment. When using the equipment, basic
precautions should always be followed. WARNING - To reduce the risk of injury to
persons, read and under the following:
1. Make sure your equipment is correctly assembled before you use it.
2. Be sure all screws, nuts, and bolts are tightened prior to use.
3. Before using this equipment, we recommend doing warm ups and stretching of the major muscle
groups.
4. Only one person should be using the equipment at a time.
5. Never operate this equipment if it is not working properly, has been dropped, or damaged. If a
problem is encountered, contact Customer Service before using the equipment again.
6. Always use this equipment on a clear and level surface.
7. For household use only.
8. Do NOT use outdoors or near water.
9. Use this product only for its intended use as described in this manual. Do NOT use attachments
not recommended by the manufacturer.
10.Do NOT wear loose clothing when using the equipment.
11.Never drop or insert any object into any opening.
12.If at any time you feel faint, light-headed, or dizziness while operating the equipment, stop
exercising immediately. You should also stop exercising if you are experiencing pain or any
discomfort.
13.For any problems, contact Customer Service. Servicing should be performed by an authorized
service representative. Our contact number is on the service page.
14.DO NOT pedal in reverse.
15.This product requires a minimum of 6 square feet of space for safe operation.
16.ASSEMBLE ALL HARDWARE IN THE ORDER THAT IS SHOWN IN THE ILLUSTRATIONS
17.Warning:- Risk of Personal Injury - Consult with your personal physician to see if this
exercise equipment is appropriate for you. This is especially important for people with pre-existing
health problems. Do NOT use this equipment without your physician's approval.
18.Warning:- Risk of Personal Injury –Do NOT allow children to use this machine.
19.Warning:- Risk of Personal Injury - Keep children under the age of 13 away from the
machine.
20.Warning:- Risk of Personal Injury –Keep body parts, hair, loose clothing, and jewelry
clear of all moving parts.
21.Warning: - Risk of Personal Injury - Do NOT attempt to service the unit yourself.
Discontinue use and contact customer service.
22.Warning: - To Reduce The Risk Of Personal Injury - Read And Understand All Read The
Instructions Before Using the Bike.

5
IMPORTANT SAFETY GUIDELINES
Do NOT use this equipment if you have any of the following conditions or ailments:
Pregnancy
Extreme obesity
Middle ear infection
Hiatus hernia or Ventral hernia
Glaucoma, retinal detachment or conjunctivitis
Use of anticoagulants including Aspirin in high doses.
Spinal injury, Cerebral Sclerosis, or acutely swollen joints
Heart or circulatory disorders for which you are being treated
High blood pressure, Hypertension, Recent stroke or Transient Ischemic attack
Bone weaknesses including Osteoporosis, Unhealed fractures, Modular pins, or surgically implanted
orthopedic supports.
Do not exceed the maximum rated weight (load):
The Maximum Weight Capacity for this product is 300lbs / 136kgs.
Retain this owner’s manual and keep the original purchase receipt
for future reference.
SAVE THESE GUIDELINES

6

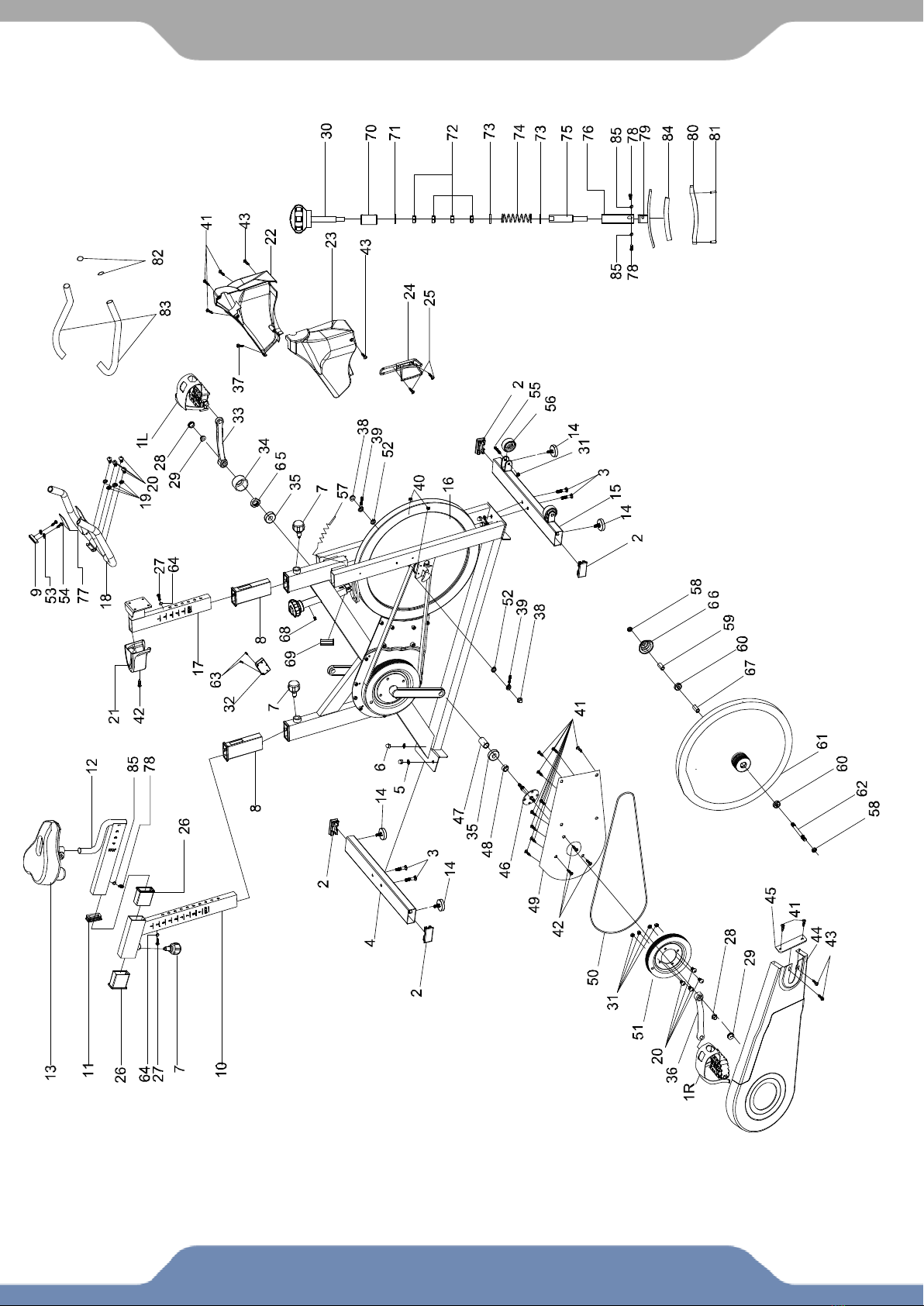

OVERVIEW DRAWING

7
PARTS LIST
No.
Description
Qty
No.
Description
Qty
1R
Right Pedal
1
27
Self-Drilling Bolt ST4.8x13
2
1L
Left Pedal
1
28
Flange Nut M10x1.25
2
2
End Cap
5
29
Crank Cover
2
3
Carriage Bolt M8x42
4
30
Bracket Knob
1
4
Rear Stabilizer
1
31
Lock Nut M8
6
5
Flat Washer Ø8
4
32
Bluetooth Bracket
1
6
Cap Nut M8
4
33
Left Crank
1
7
Spring Knob
3
34
Crank Cover
1
8
Plastic Sleeve
2
35
Bearing 6004ZZ
2
9
Mobile Phone Rack
1
36
Right Crank
1
10
Seat Post
1
37
Self-Tapping Screw ST2.9x12
1
11
End Cap
1
38
Cap Nut M12
2
12
Seat Bracket
1
39
Eye Bolt M6x54
2
13
Seat
1
40
Lock Nut M6
2
14
Foot Pad
4
41
Self-Tapping ScrewST4.2x19
14
15
Front Stabilizer
1
42
Self-Drilling Screw ST4.2x19
4
16
Main Frame
1
43
Self-Drilling Screw ST4.8x13
4
17
Handlebar Post
1
44
Chain Cover
1
18
Handlebar
1
45
Plastic Cover
1
19
Spring WasherØ8
4
46
Axle φ20x162
1
20
Hex Bolt M8x16
8
47
Long Sleeve
1
21
Handlebar Cover
1
48
Short Sleeve
1
22
Left Brake Cover
1
49
Inner Chain Cover
1
23
Right Brake Cover
1
50
Belt
1
24
Cup Holder
1
51
Belt Pulley
1
25
Phillips Screw ST4.8x19
2
52
Flat Washer Ø12
2
26
Plastic Sleeve
2
53
Flat Washer Ø 6
2

8
PARTS LIST
No.
Description
Qty
No.
Description
Qty
54
Self-Tapping ScrewST4.0x12
2
70
Fixing Sleeve φ20x34
1
55
Bolt M8x40
2
71
Nylon Washer M10
1
56
Wheel φ50x23
2
72
Hex Nut M10
4
57
Magnet Sensor
1
73
Nylon Washer φ20xφ14x2.0
2
58
Thin Hex Nut M12x1.25
2
74
Spring 18x62
1
59
Flywheel Sleeve
1
75
Axle
1
60
Bearing 6001ZZ
2
76
Square Bushing 18x18x1.2
1
61
Flywheel
1
77
Silicon Pad
1
62
Flywheel shaft
1
78
Hex Bolt M6x12
2
63
Screw M4x8
2
79
Brake Bracket
1
64
Spring Washer Ø5
2
80
Wool Felt Block 113x25x8
1
65
Hex NutM20*1.0
1
81
Socket Hex Bolt M6x16
2
66
Flywheel Cover
1
82
End Cap φ25x1.5
2
67
Flywheel Sleeve
1
83
Foam Grip
2
68
Hex Bolt M6*6
1
84
Rubber Pad
1
69
Brake Bushing
1
85
Spring Washer Ø6
3
